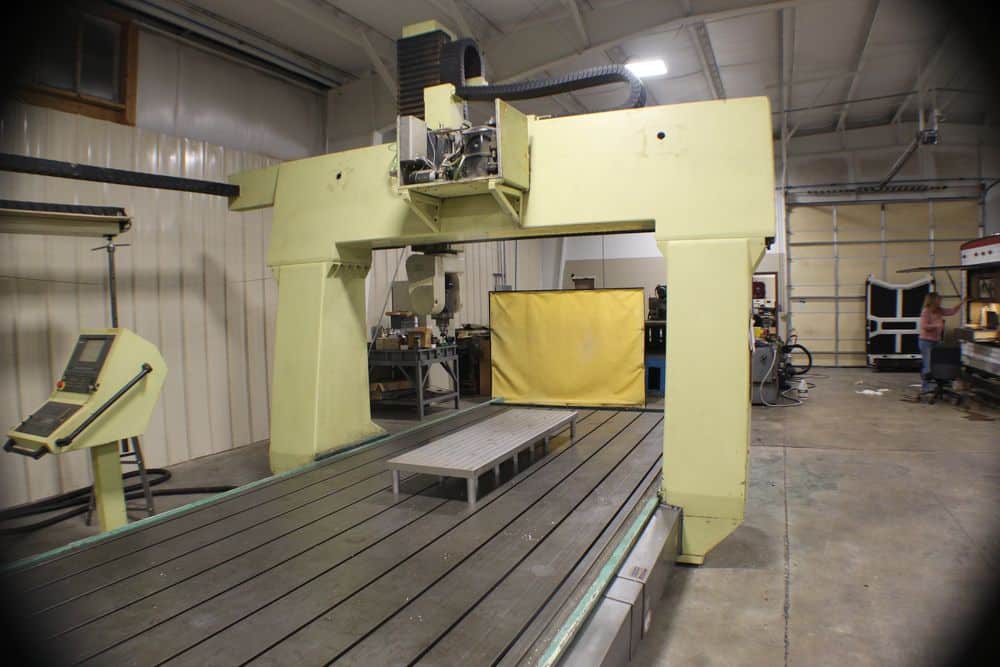

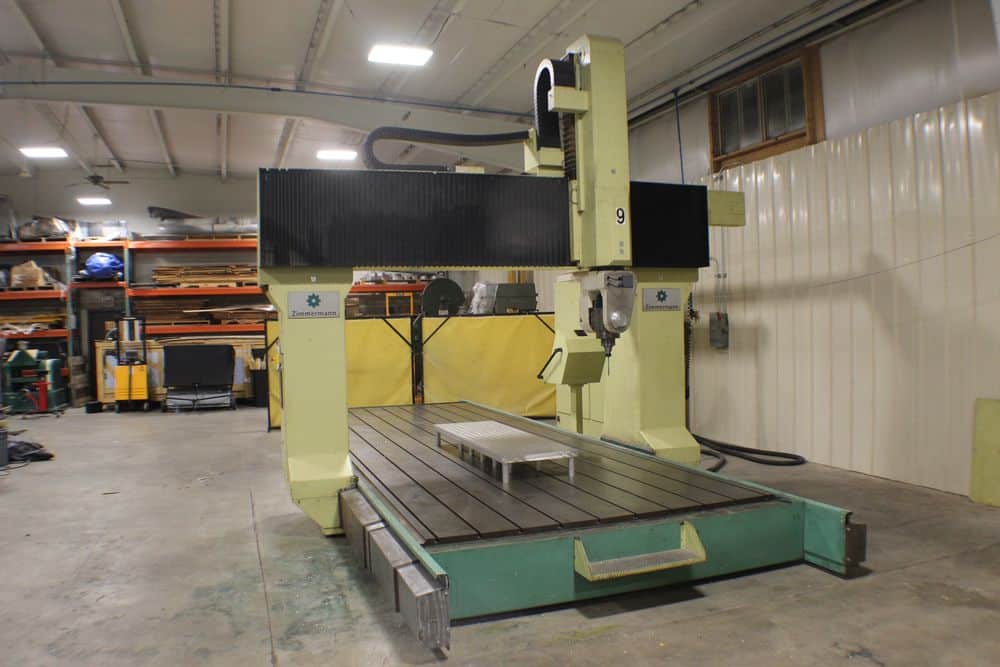

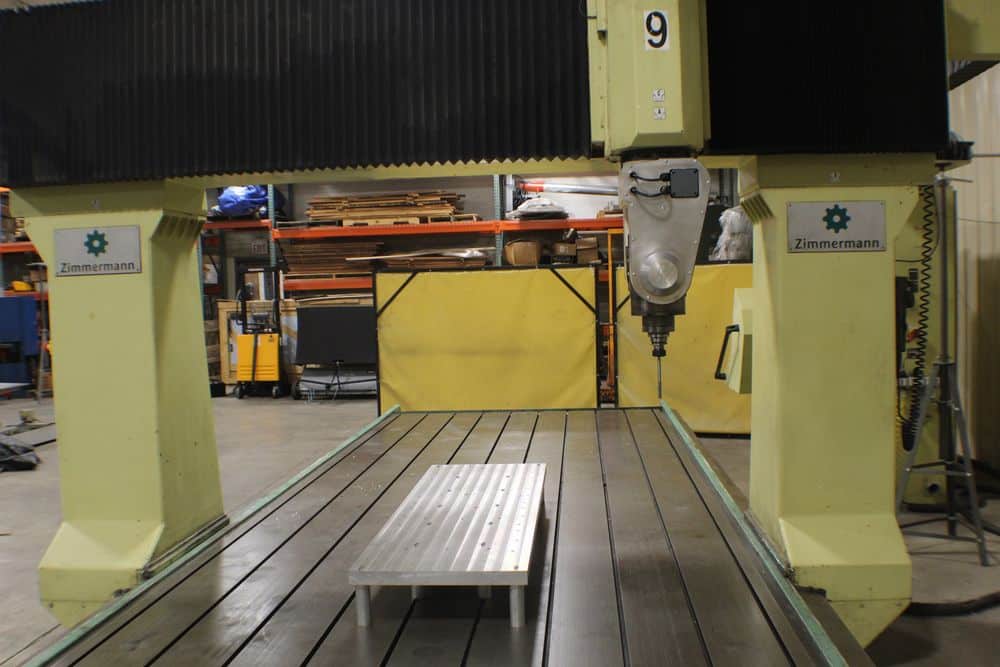

Zimmermann GmbH FZ30 5-Axis CNC Portal Milling Machine

Manufacturer

Zimmermann GmbH

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

181250012

Model

FZ30

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 181250012
  • Location: Troy, Ohio
  • Brand: Zimmermann GmbH
  • Model: FZ30
  • Year: Factory Rebuilt in 2021
  • Approx. Shipping Weight: 55,000 Lbs.
  • Loading Fee: Rigging Required

Specifications

  • X-Axis Travel: 197″
  • Y-Axis Travel: 93″
  • Z-Axis Travel: 39″
  • A-Axis Swivel Range: ±100 Degrees
  • C-Axis Swivel Range: ±300 Degrees
  • Spindle Speed: 15,000 RPM
  • Spindle Power/Spindle Torque: 24 HP/ 42 ft lb
  • Table Length: 267″
  • Table Width: 98″
  • Table Load Capacity: 22,000 Lbs
  • Feed Rate (X/Y/Z): 0-1,968 Inches Per Minute
  • Rapid Traverse (X/Y/Z): 1,968 Inches Per Minute

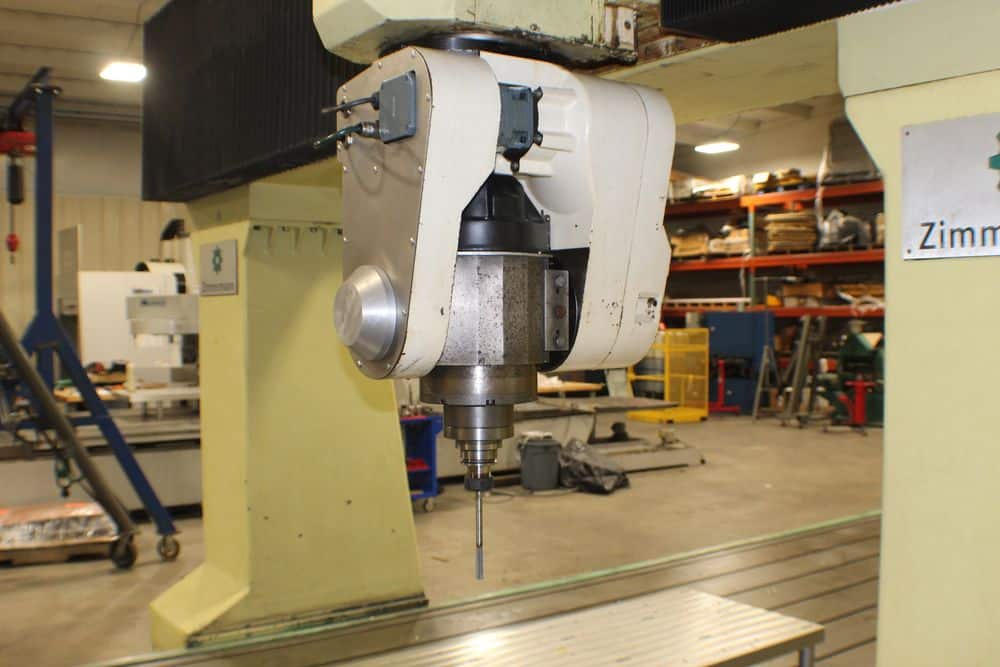

  • Milling Head Type: AC 2 S-Milling Head
  • Tool Holder Type: HSK-A63
  • Tool Changer: Optional (Capacity Varies, Typically 8-60 Positions)
  • Overall Length: 236″
  • Overall Width: 197″
  • Overall Height: 177″
  • Machine Weight (Approximate): 55,000 Pounds
  • Coolant System: Water-Cooled Machine Stand
  • Accuracy (Positioning): ±0.0004 Inches
  • Repeatability: : ±0.0002 Inches
  • Power Requirement: 480 Volts, 3-Phase, 60 Hz

Equipped With

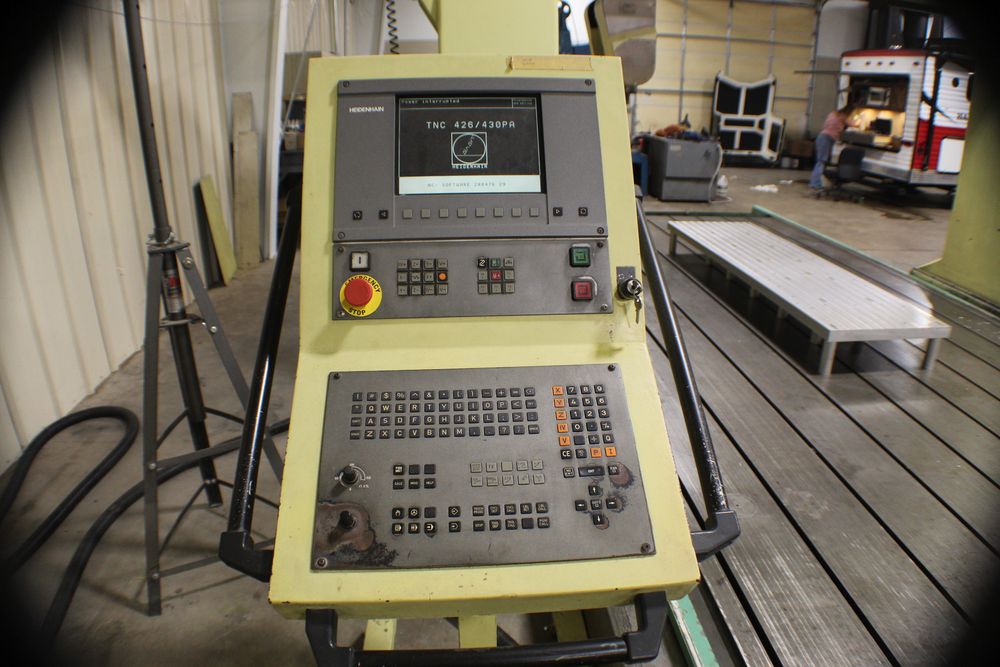

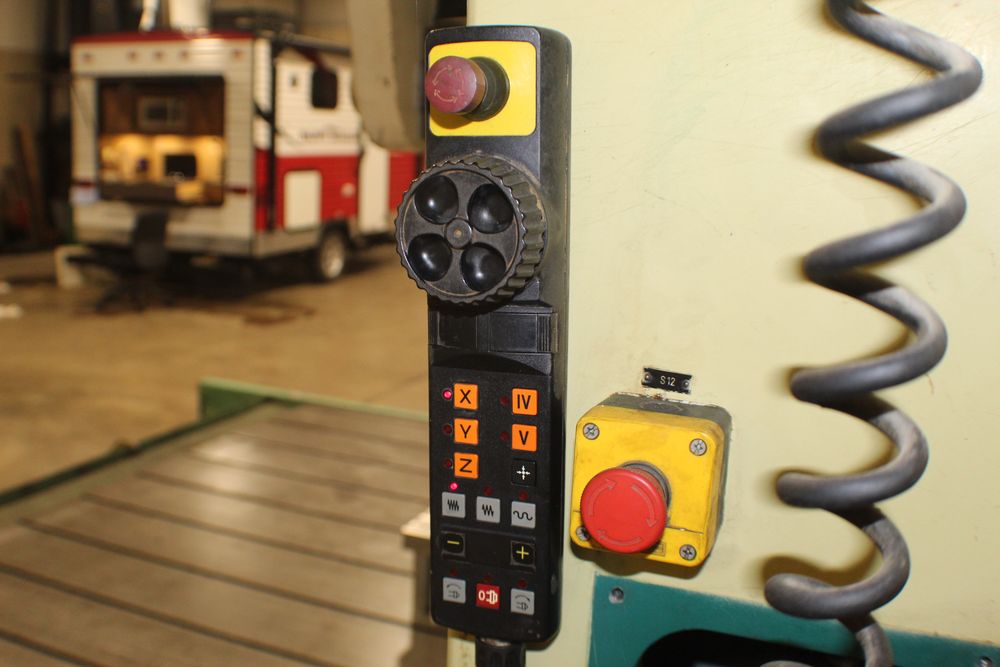

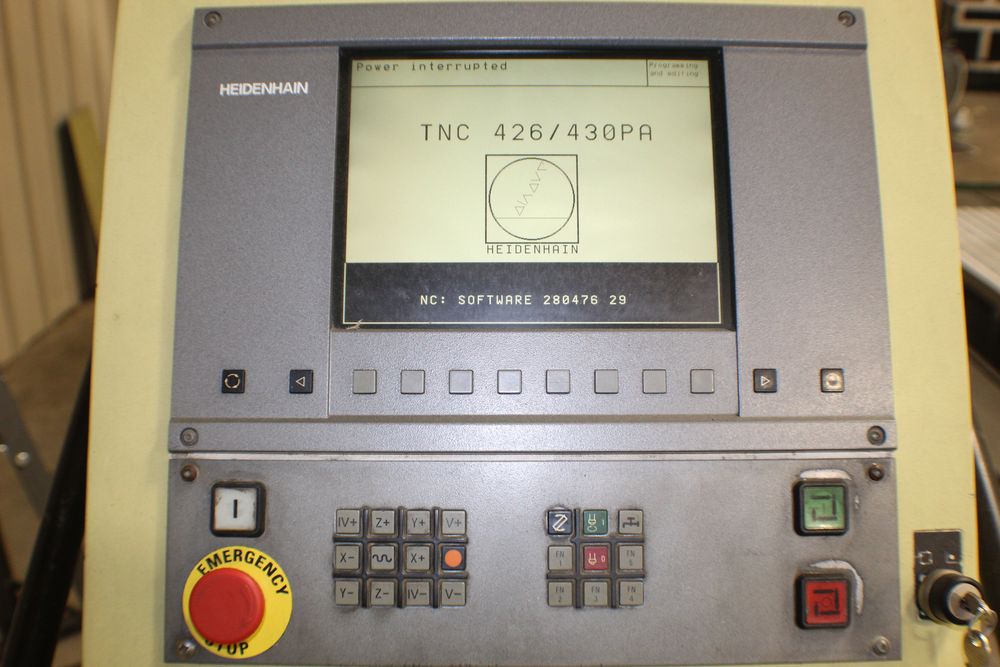

Heidenhain TNC 430 with Handwheel Factory Rebuilt in 2021- Low Hours

Additional Info

Inspection Upon request
