R D & D 50" x 200" Heavy Duty CNC Roll Lathe, 200 HP, 75 Ton Wt Capacity, 225 RPM, Rebuilt 2009, Siemens 840D #43885

Manufacturer

RD&D

Category

Lathes

Type

LATHES, ENGINE

Stock

43885

Model

Heavy Duty

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43885
R D & D 50" x 200" Heavy Duty 200 HP CNC Roll Lathe

FEATURES:
Siemens 840D CNC Control
200 HP
Rebuilt In 2009
75 Ton Weight Capacity

SPECIFICATION:
Swing Over Bed ........................ 50"
Swing Over Cross Slide ................ 24"
Cutting Diameter ...................... 24"
Distance Between Centers .............. 200"
Weight Capacity Between Centers ....... 75 Tons
Spindle Speeds, Low ................... 0-103 RPM
Spindle Speeds, High .................. 0-225 RPM
Chuck Capacity ........................ 2"-14.875"
Distance Tool Can Approach Chuck ...... 16"
Machine Weight ........................ 80,000 Lbs
X-Axis Rapid Traverse ................. 30 IPM
Y-Axis Rapid Traverse ................. 60 IPM
Feed Range ............................ .01-9.99 IPM
Main Motor ............................ 200 HP

EQUIPPED WITH:

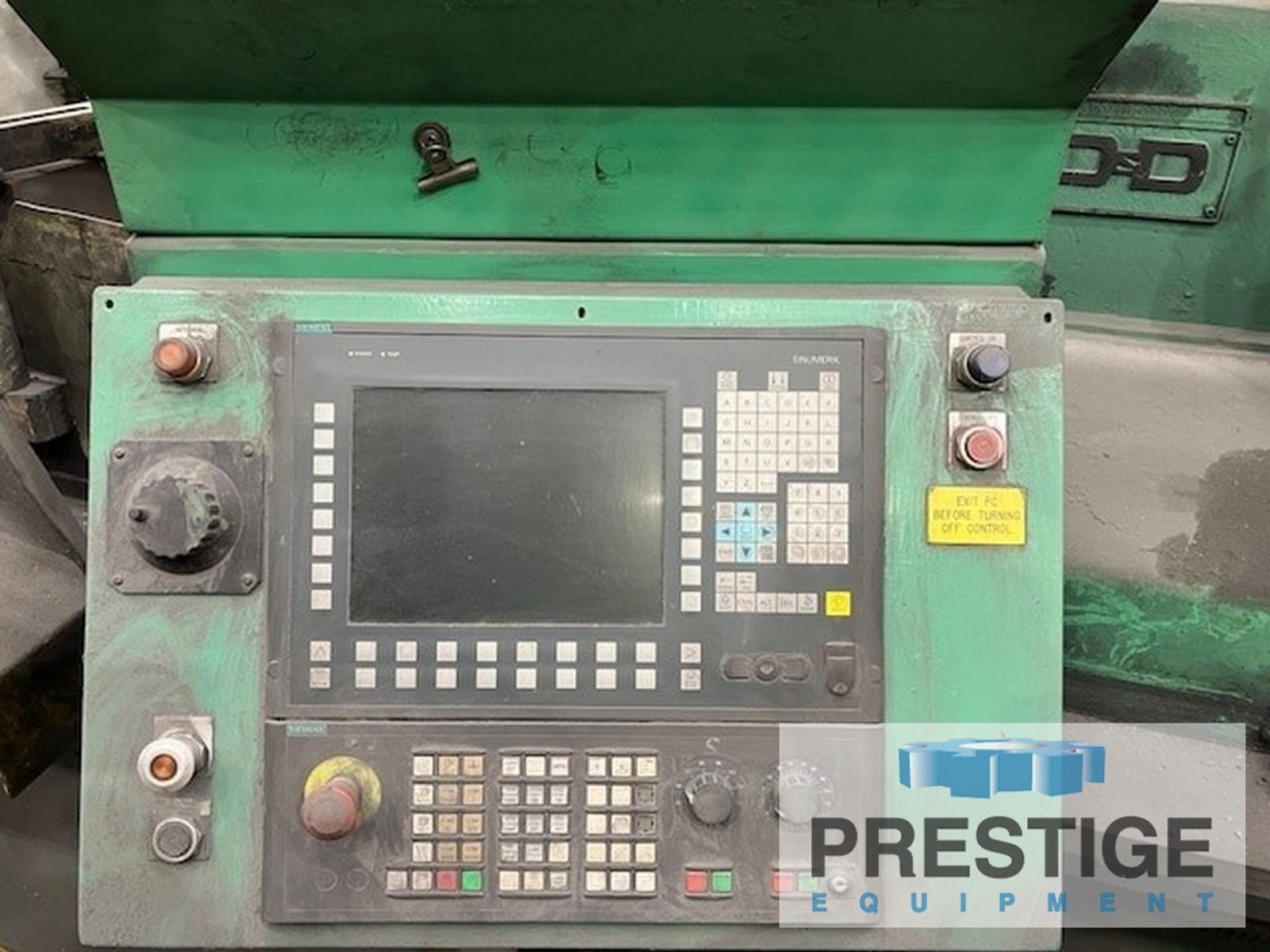

Siemens 840D CNC Control

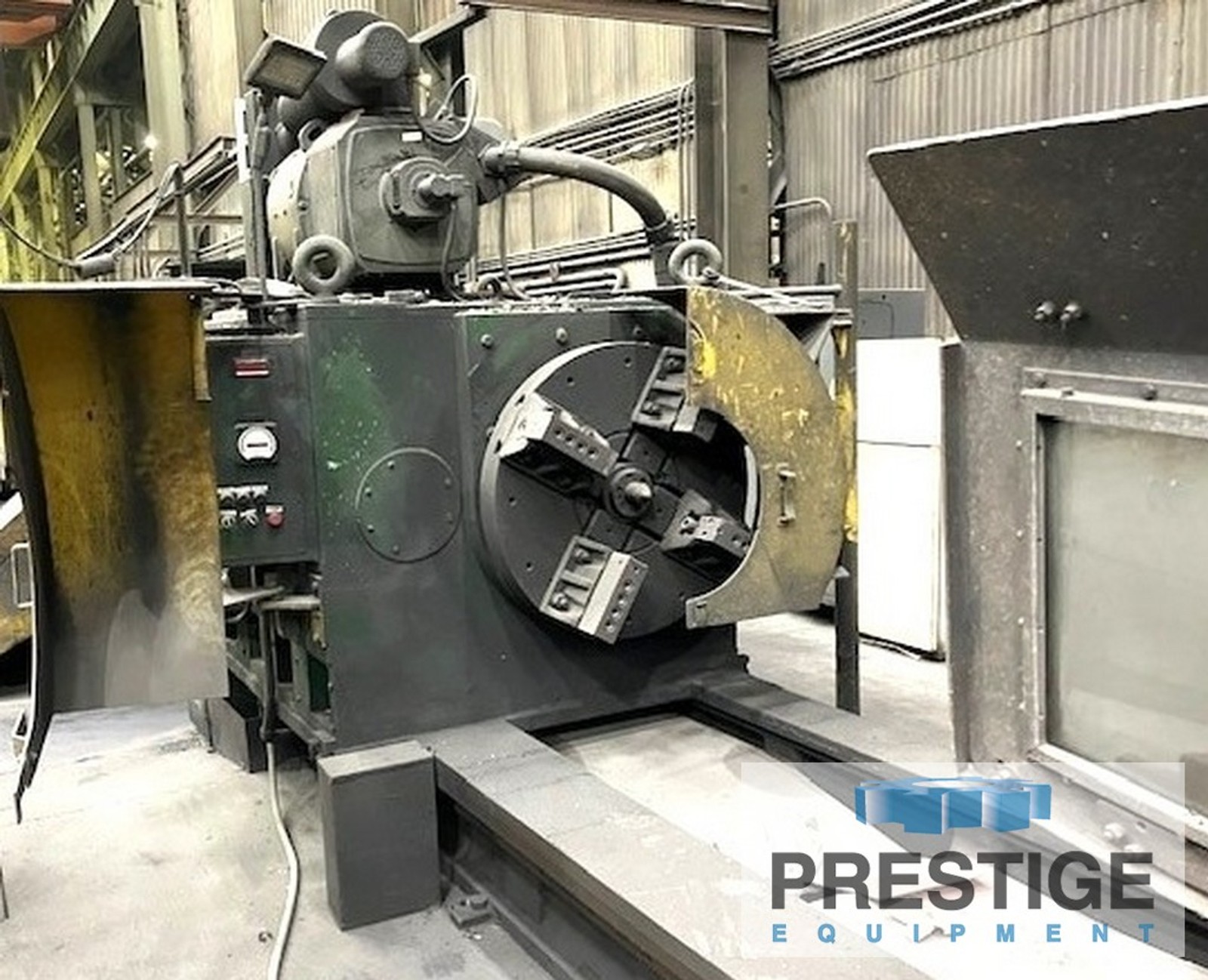

4-Jaw Chuck
