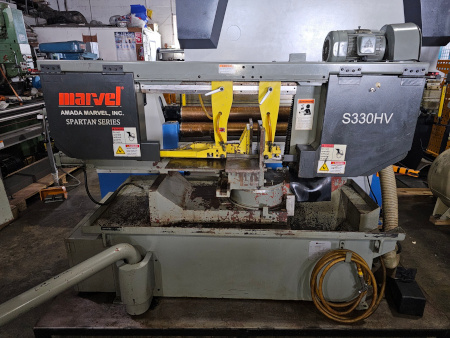

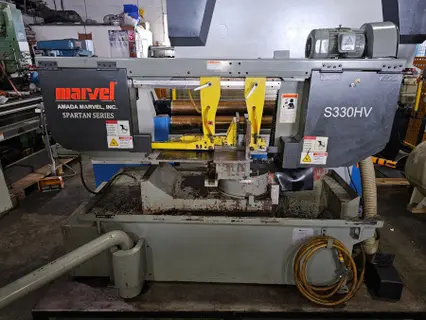

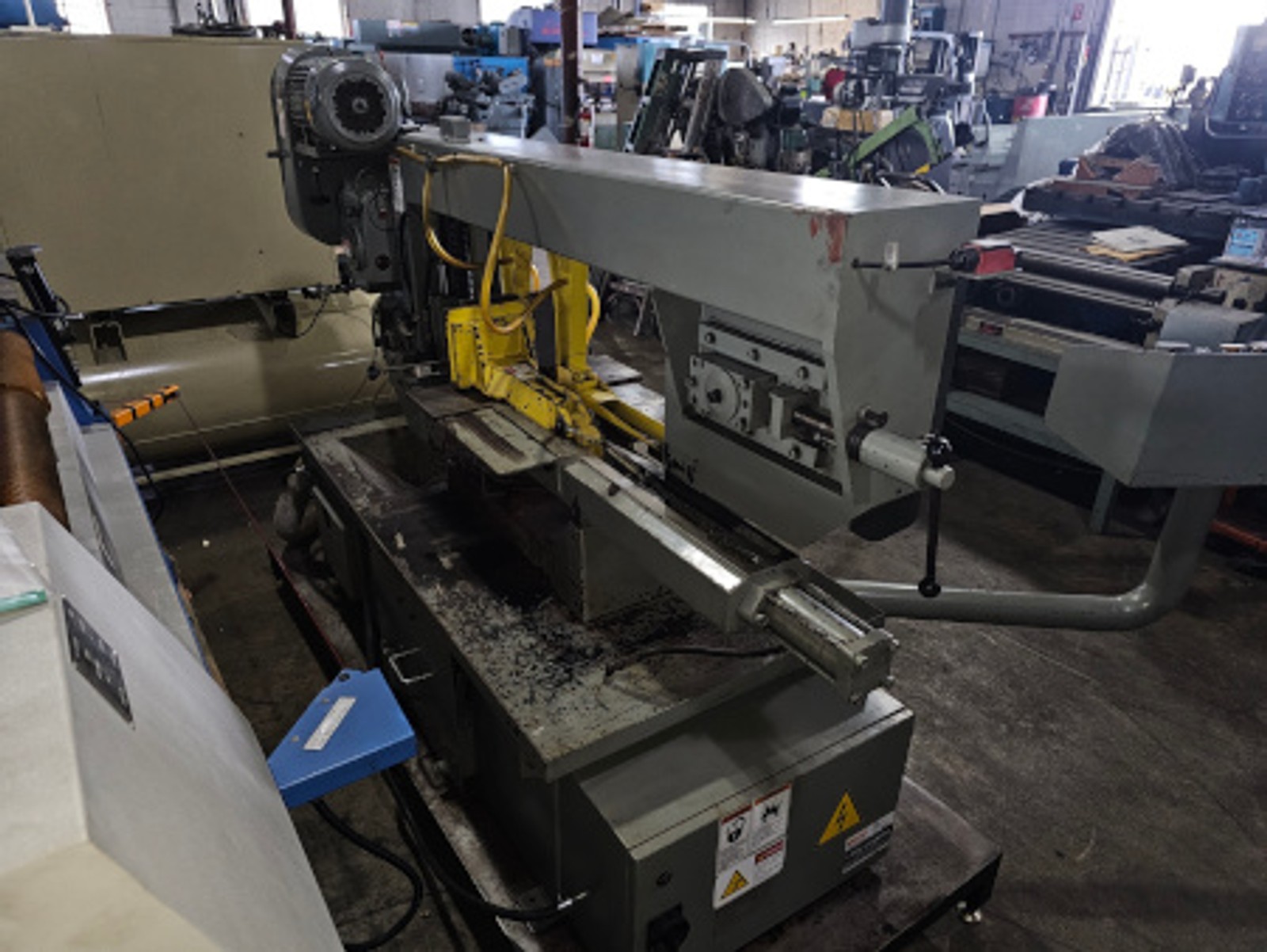

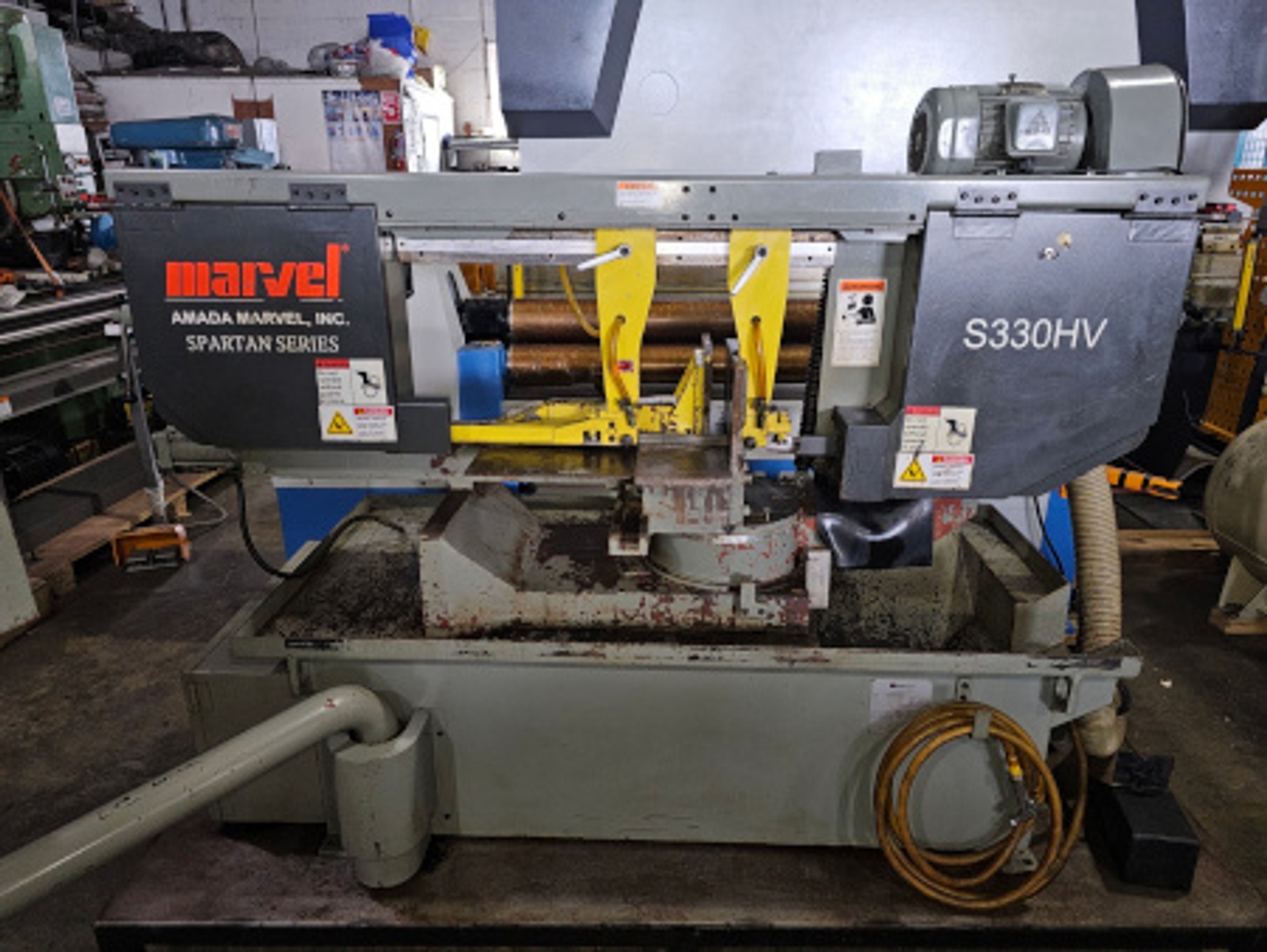

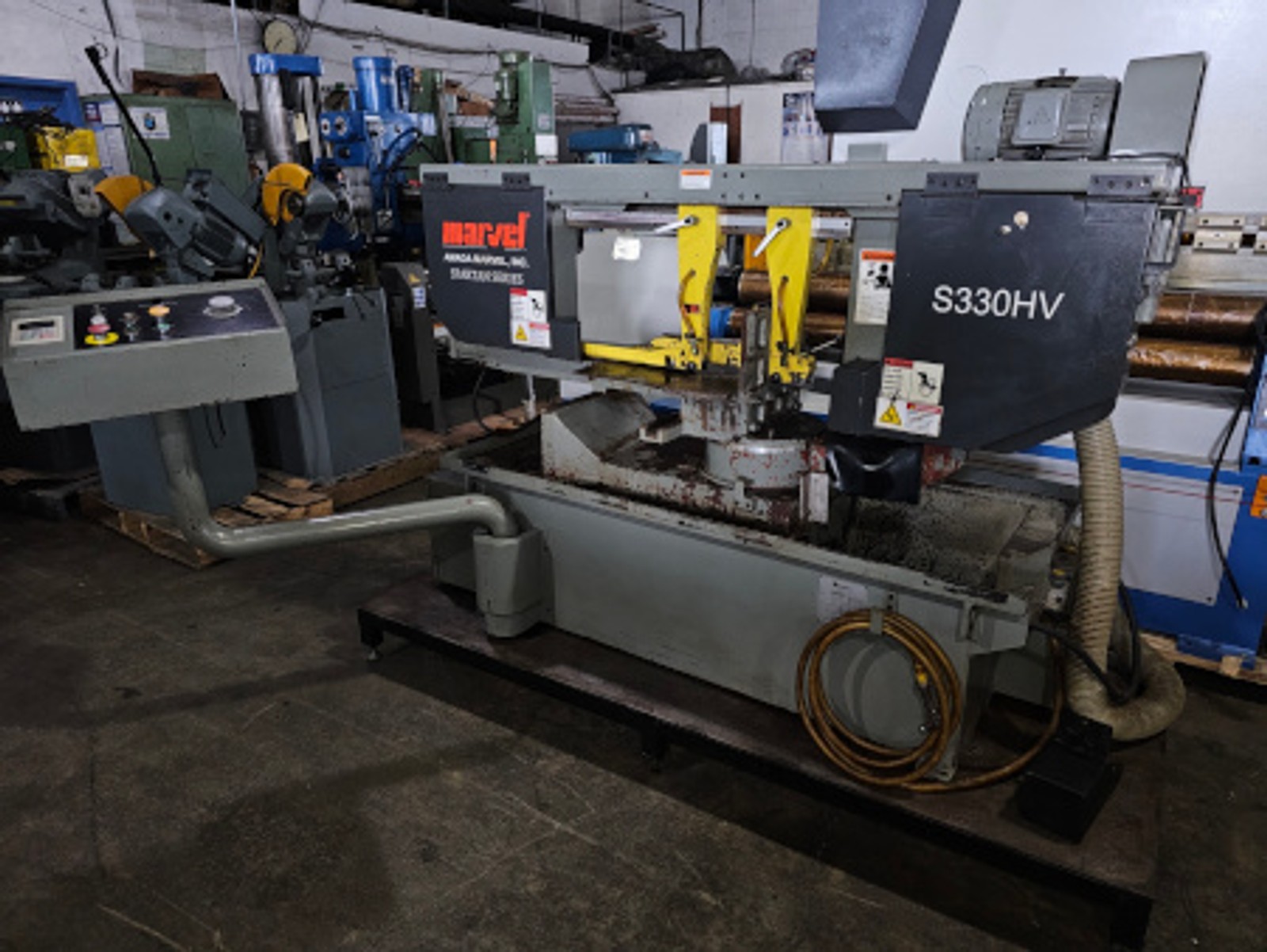

12" x 18" AMADA Marvel, #S330HV, 13" round, semi-automatic, swivel head, 2020 Our stock number: 7190

Manufacturer

Amada/Marvel

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

7190

Model

#S330HV

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

SPECIFICATIONS:
Capacities
Rounds--90 degrees 13"
--45 degrees 13"
--30 degrees 8.7"
Rectangles--90 degrees (H x W) 12" x 18"
--45 degrees (H x W) 12" x 12"
--30 degrees (H x W) 11" x 8"
Blade Speed--type Infinite variable
--range 60 to 330 fpm

Blade size 13'6" x 1" x .035"
Blade tension Manual
Blade cleaning Powered wire brush
Blade guides Carbide
Blade drive 3 HP
Hydraulic 1/2 HP
Coolant 1/8 HP
Electrics 460/3/60
Weight 1,543 lbs

FEATURES:
Hydraulic down feed, Hydraulic auto frame return, Chip brush
Hydraulic vise jaw, Hose for washdown
Swivel miter head--full 60 degrees to rear and 45 degrees to front
