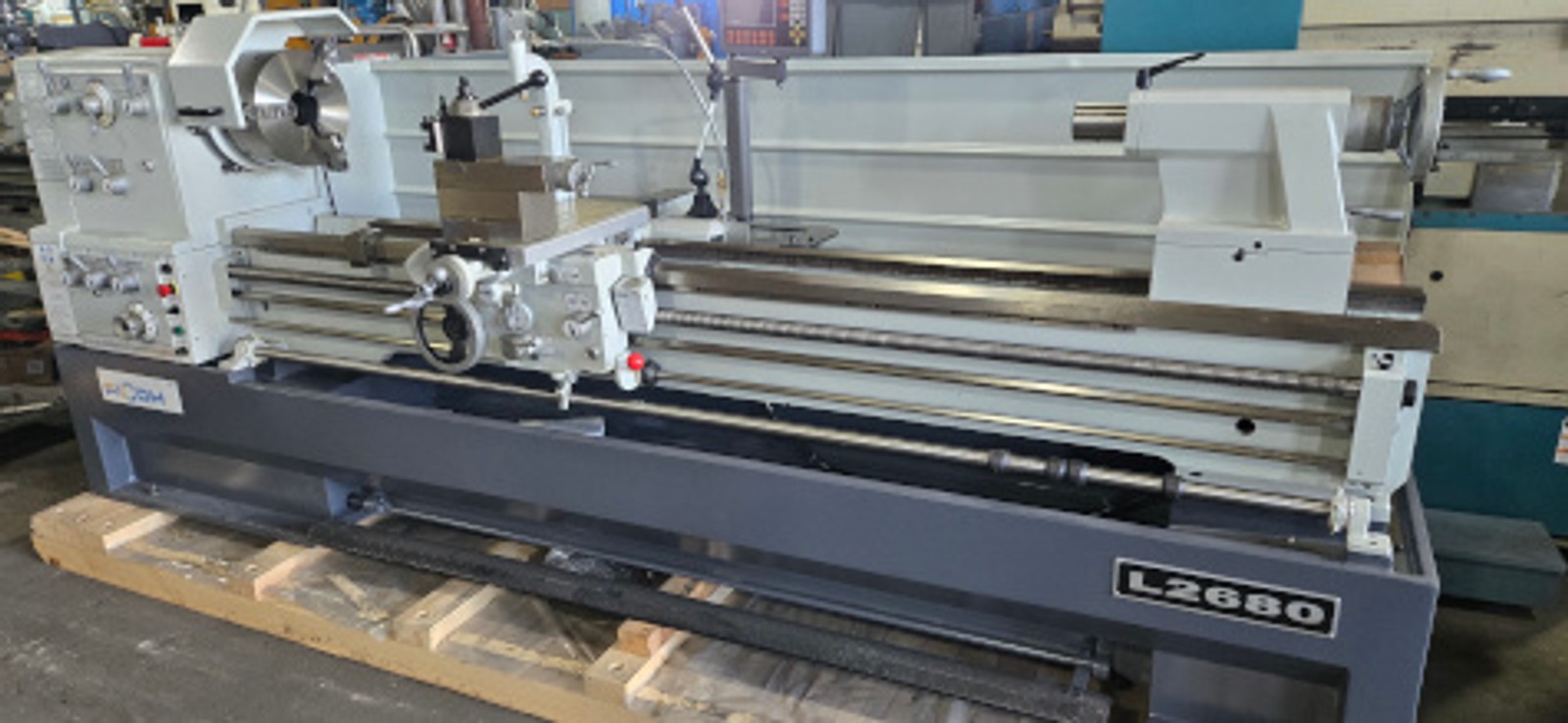

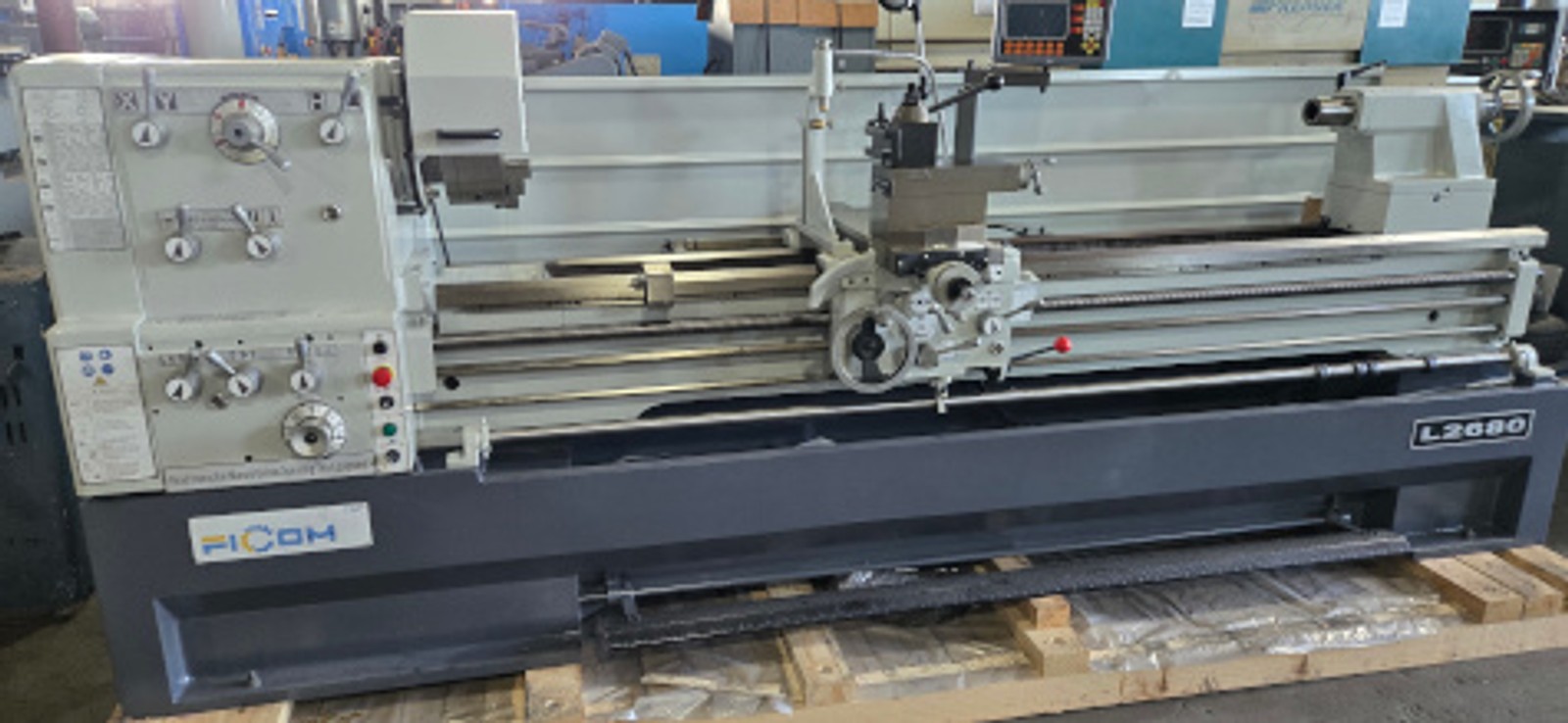

26" x 80" cc, FICOM, #L2680, 3J, 4J, FP, TA, SR, FR, CL, DRO, QCTP, 10 HP, New Our stock number: 7202

Manufacturer

Fiacom

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

7202

Model

#l2680

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

STANDARD ACCESSORIES:
SINO two axis digital readout--installed, Live center
12" 3 jaw chuck, 16" 4 jaw chuck, Face plate, Thread dial
Quick change tool post with holders, Steady rest, Follow rest
Work light, Coolant system, Chuck guard with safety switch
Solid bed casting for maximum rigidity, Set of levelling pads
Full length splash guard, Foot brake, Taper turning attachment


ELECTRICS: 230/460 volts, 3 phase, 60 Hz.

SPECIFICATIONS:
Swing over bed 26" (660mm)
Swing over cross slide 17.9 (455mm)
Swing in gap x width 33.6" x 6.7" (885mm x 170mm)
Distance between centers 80" (2000mm)
Spindle hole 4-1/16" (103mm)
Spindle nose D1-8 camlock
Spindle speeds--number 12
--range 25 to 1500 rpm
Inch threads--number 60
--range 2 to 112 tpi
Metric threads--number 47
--range .2 to 14 mm
Feeds--number 35
--range (longitudinal) .0022" to .0612"
Tailstock taper #5 MT
Tailstock travel 7" (180mm)
Tailstock diameter 3" (75mm)
Main motor power 10 HP (7.5KW)
Coolant pump motor 1/8 HP (0.1KW)
Weight (approx.) 7,000 lbs. (3190kg)
Floor dimensions (L x W x H) 132" x 46" x 60"
(3340mm x 1150 x 1510mm)
