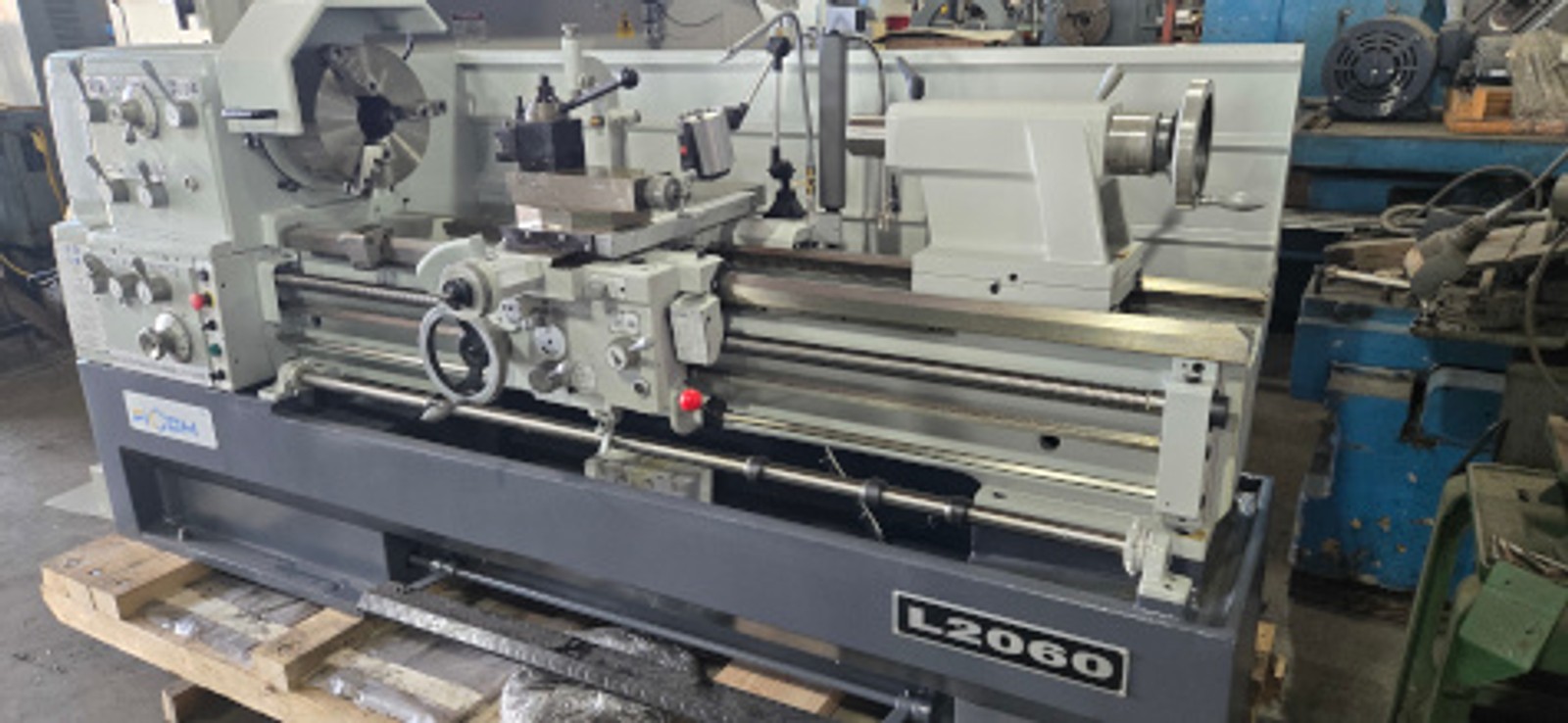

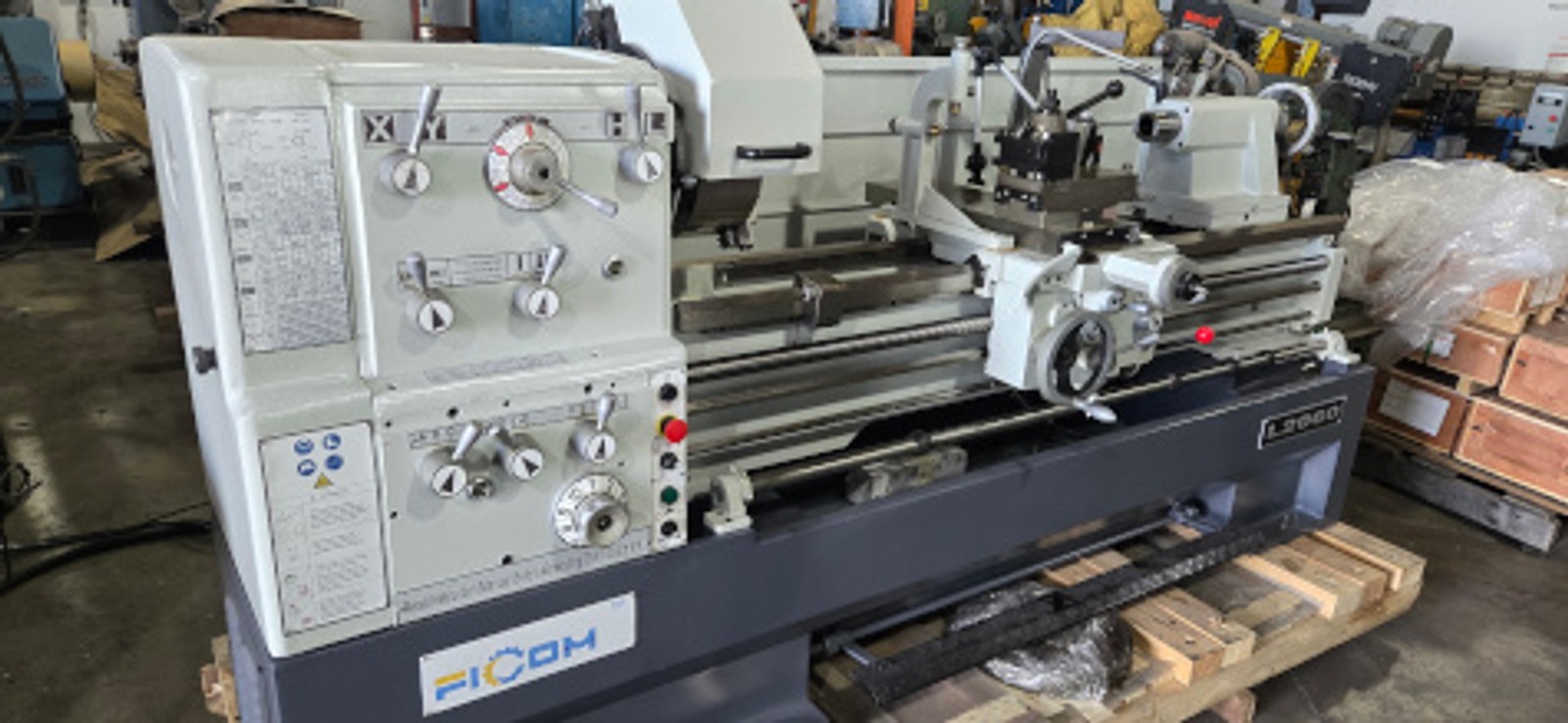

20" x 60" cc, FICOM, #L2060, 3J, 4J, FP, SR, FR, CL, DRO, QCTP, 10 HP, New Our stock number: 7201

Manufacturer

Fiacom

Category

Lathes

Type

LATHES, ENGINE

Stock

7201

Model

#l2060

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

STANDARD ACCESSORIES:
SINO two axis digital readout--installed, Live center
12" 3 jaw chuck, 16" 4 jaw chuck, Face plate, Thread dial
Quick change tool post with holders, Steady rest, Follow rest
Work light, Coolant system, Chuck guard with safety switch
Solid bed casting for maximum rigidity, Set of levelling pads
Full length splash guard, Foot brake


ELECTRICS: 230/460 volts, 3 phase, 60 Hz.

SPECIFICATIONS:
Swing over bed 20" (510mm)
Swing over cross slide 12" (305mm)
Swing in gap x width 28.9" x 6.7" (735mm x 170mm)
Distance between centers 60" (1500mm)
Spindle hole 3-1/8" (80mm)
Spindle nose D1-8 camlock
Spindle speeds--number 12
--range 25 to 1600 rpm
Inch threads--number 60
--range 2 to 112 tpi
Metric threads--number 47
--range .2 to 14 mm
Feeds--number 35
--range (longitudinal) .0022" to .0612"
Tailstock taper #5 MT
Tailstock travel 7" (180mm)
Tailstock diameter 3" (75mm)
Main motor power 10 HP (7.5KW)
Coolant pump motor 1/8 HP (0.1KW)
Weight (approx.) 5,610 lbs. (2550kg)
Floor dimensions (L x W x H) 114" x 46" x 67"
(2900mm x 1150mm x 1710mm)
