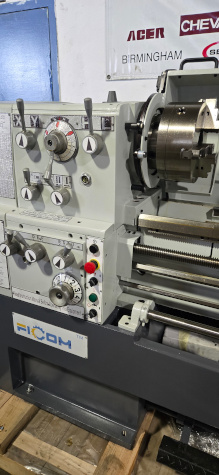

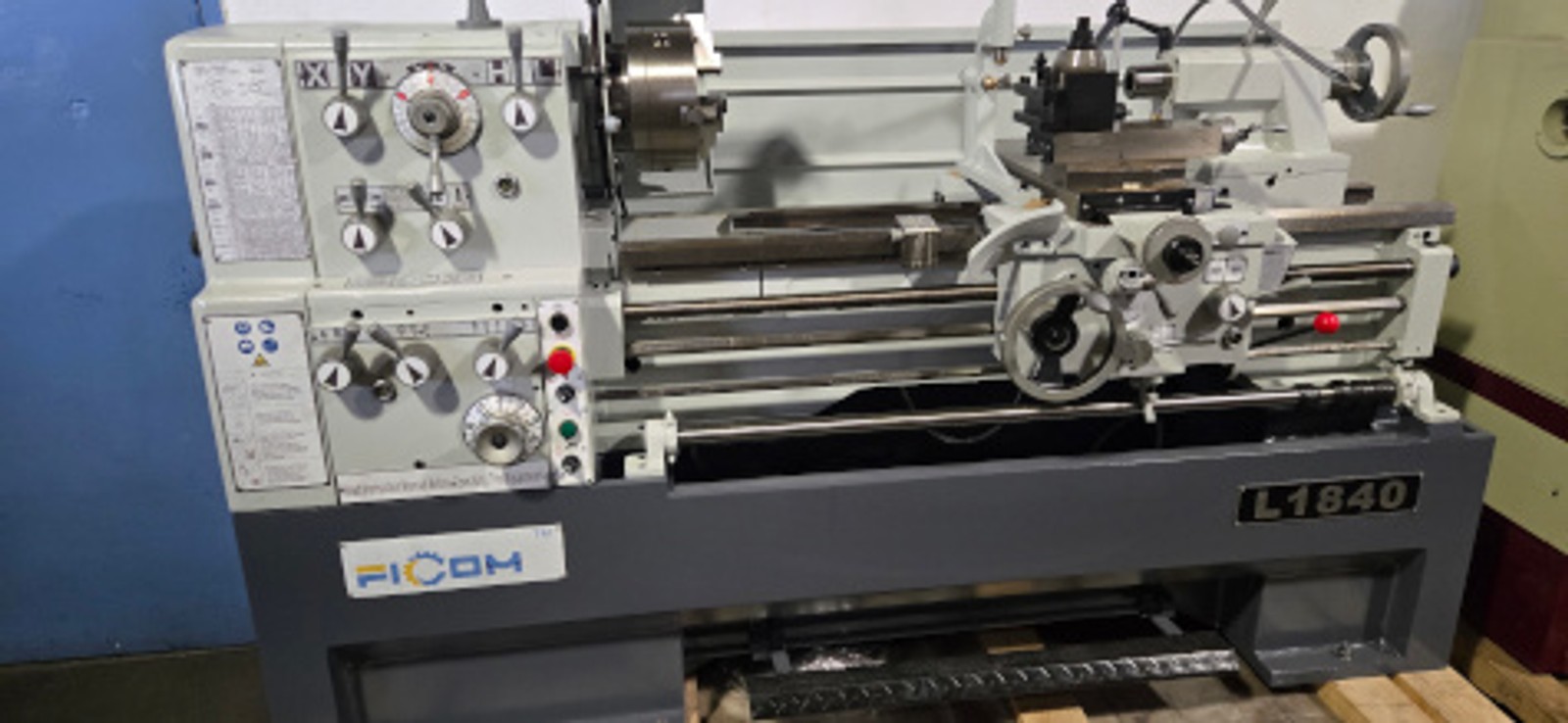

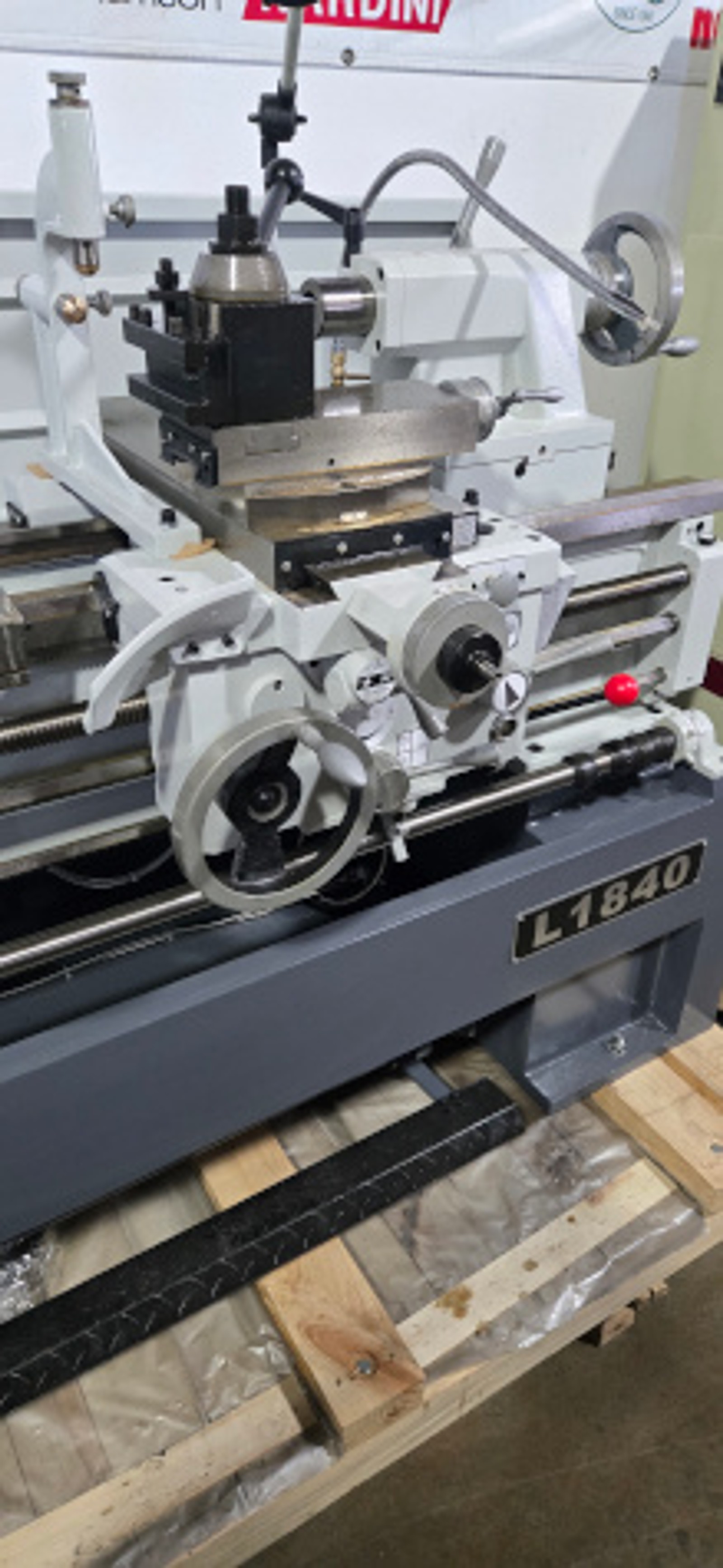

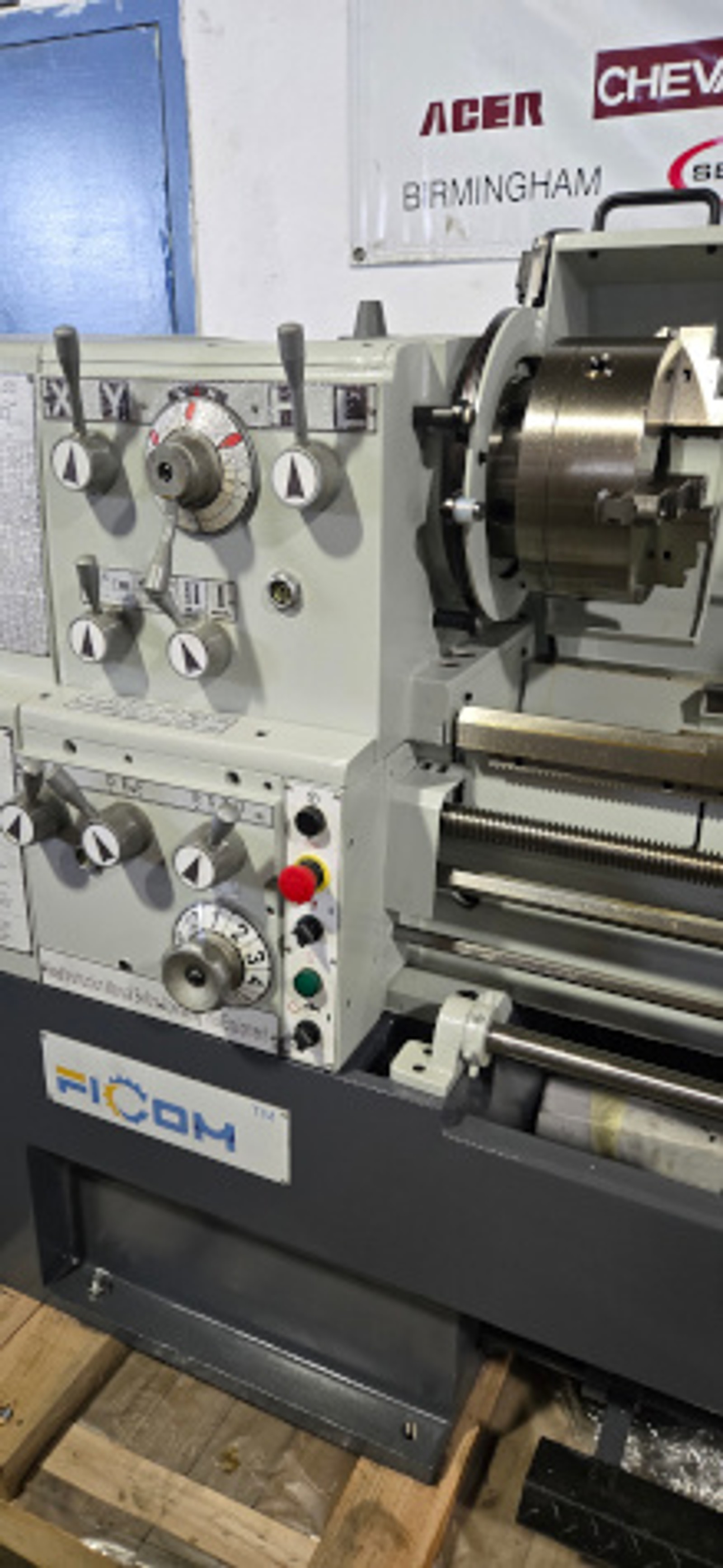

18" x 40" cc, FICOM, #L1840, 3J, 4J, FP, SR, FR, CL, DRO, QCTP, 7.5 HP, New Our stock number: 7200

Manufacturer

Fiacom

Category

Lathes

Type

LATHES, ENGINE

Stock

7200

Model

#L1840

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

STANDARD ACCESSORIES:
SINO two axis digital readout--installed, Live center
10" 3 jaw chuck, 12" 4 jaw chuck, Face plate, Thread dial
Quick change toolpost with holders, Steady rest, Follow rest
Work light, Coolant system, Chuck guard with safety switch
Solid bed casting for maximum rigidity, Set of levelling pads
Full length splash guard, Foot brake


ELECTRICS: 230/460 volts, 3 phase, 60 Hz.

SPECIFICATIONS:
Swing over bed 18.1" (460mm)
Swing over cross slide 10.6" (270mm)
Swing in gap x width 27.1" x 6.5" (690mm x 165mm)
Distance between centers 40" (1000mm)
Spindle hole 2-1/4" (58mm)
Spindle nose D1-6 camlock
Spindle speeds--number 12
--range 25 to 2000 rpm
Inch threads--number 60
--range 2 to 112 tpi
Metric threads--number 41
--range .1 to 14 mm
Feeds--number 42
--range (longitudinal) .0011" to .0633"
Tailstock taper #4 MT
Tailstock travel 5.12" (130mm)
Tailstock diameter 2.36" (60mm)
Main motor power 7.5 HP (5.5KW)
Coolant pump motor 1/8 HP (0.1KW)
Weight (approx.) 4,202 lbs. (1910kg)
Floor dimensions (L x W x H) 87" x 43" x 54"
(2200mm x 1080mm x 1370mm)
