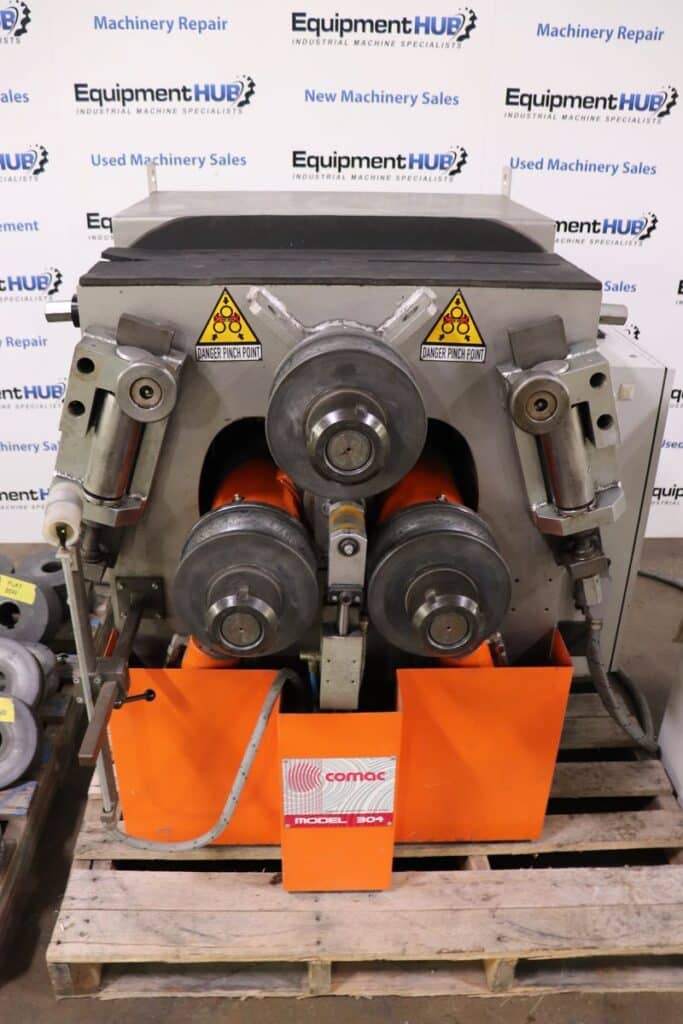

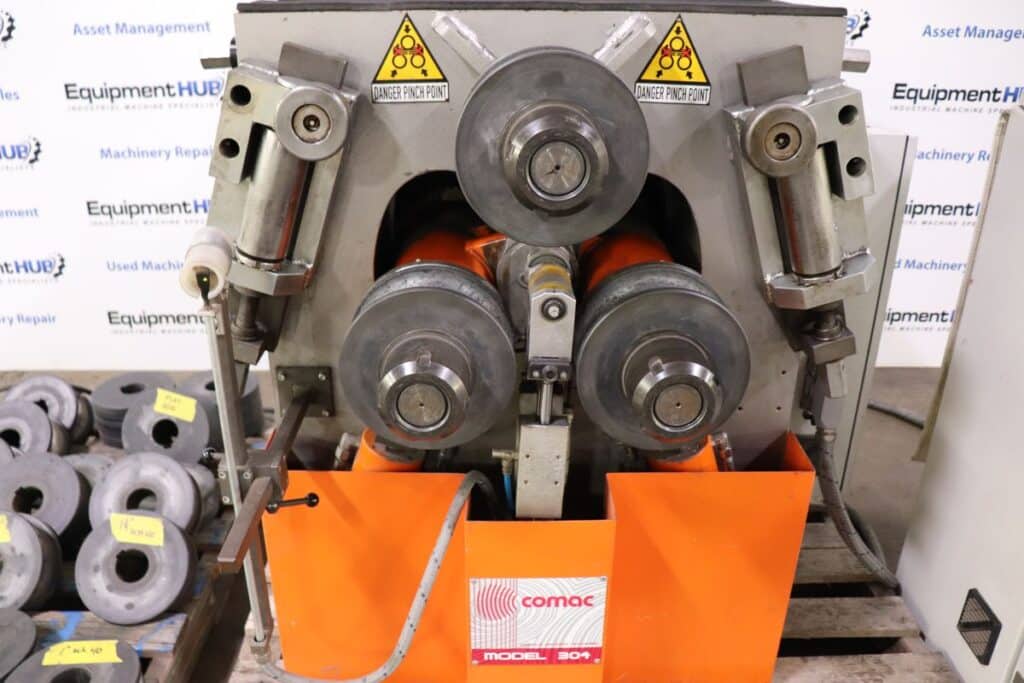

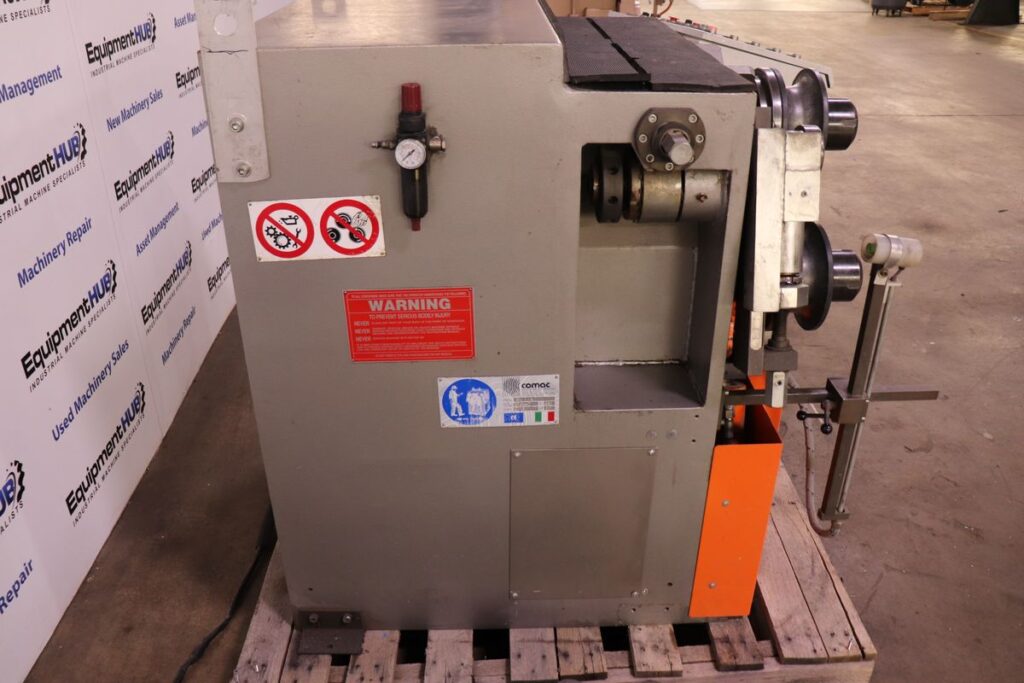

Comac 304 CN31V 2-1/2″ x 5/16″ Hydraulic Double Initial Pinch Angle Roll

Manufacturer

Comac

Category

Fabricating Machines

Type

SHEET METAL MACHINERY

Stock

120250042

Model

304 CN31V

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 120250042
  • Location: Stone Mountian, Ga
  • Brand: Comac
  • Model: 304 CN31V
  • Serial #: 3040247
  • Year: 2015
  • Approx. Shipping Weight: Pallet #1: 400 Lbs. Pallet #2: 2650 Lbs.
  • Approx. Shipping Dimensions: Pallet #1: 4′ L x 4′ W x 3′ H Pallet #2: 5′ L x 4′ W x 5′ H
  • Skidding Fee: $225

Specifications

  • Flat Bar on Edge Capacity: 2 3/4″ x 1/2″ to 23 1/2″ Diameter
  • Flat Bar on Flat Capacity: 4 3/4″ x 3/8″
  • Square Bar Capacity: 1 1/2″ x 1 1/2″ to 23 1/2″ Diameter
  • Round Bar Capacity: 1 3/4″ to 17 3/4″ Diameter
  • Pipe Example: 3″ Diameter x 0.11″ wall to 47.2″ Diameter (Schedule 10 or Similar)
  • Angle Bending Capacity (Leg-Out): 2 1/2″ x 5/16″
  • Angle Bending Capacity (Leg-In): 2 3/8″ x 1/4″
  • Rolling Speed: 17 FPM
  • Roll Diameter: 8″
  • Oil Capacity: 5 Gallons
  • Shaft Diameter: 2 3/8″
  • Power Output: 4.7 HP
  • Electrical: 220V / 3PH / 60 HZ

Equipped With

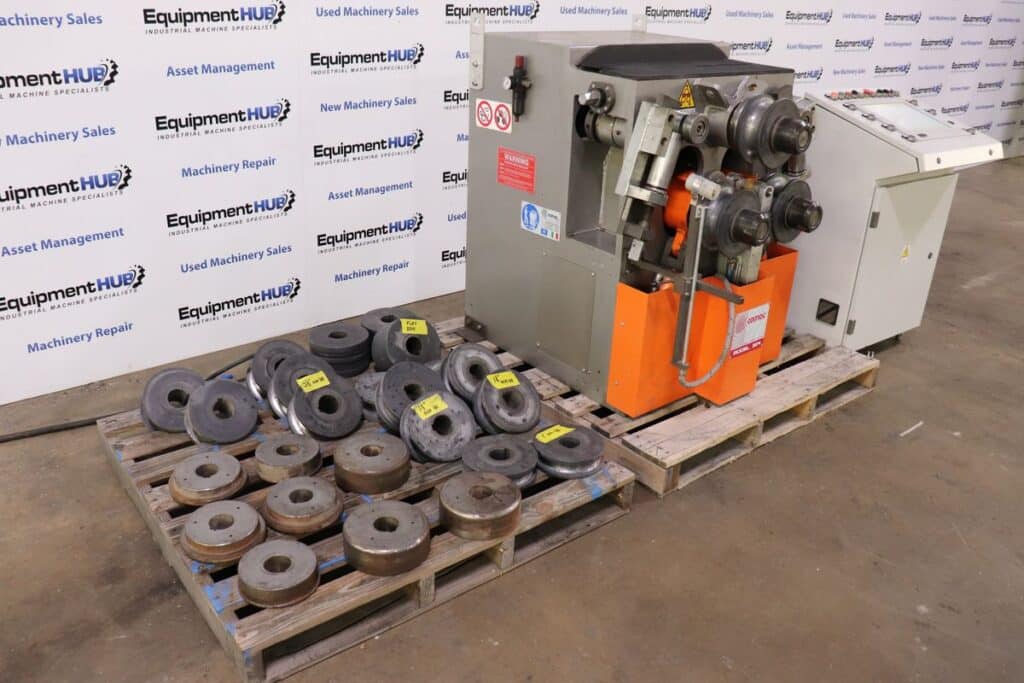

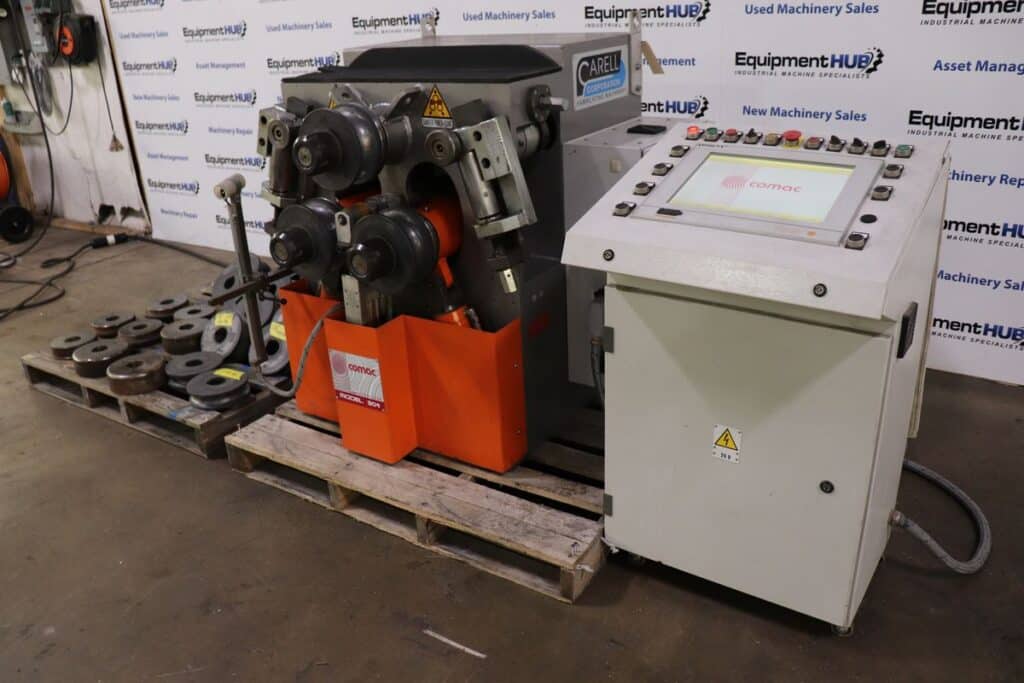

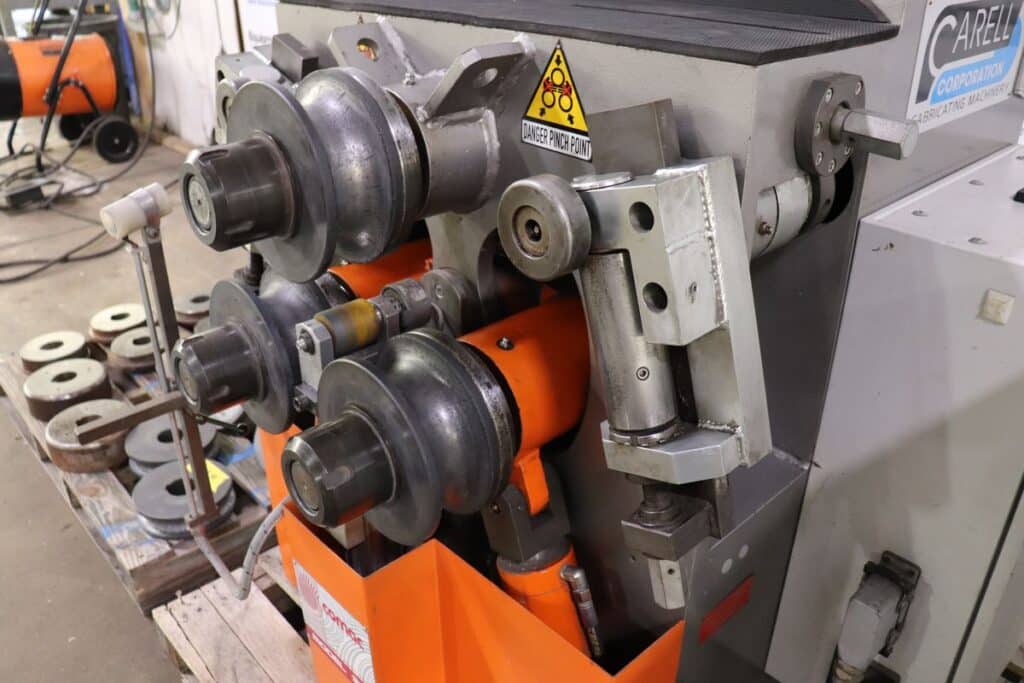

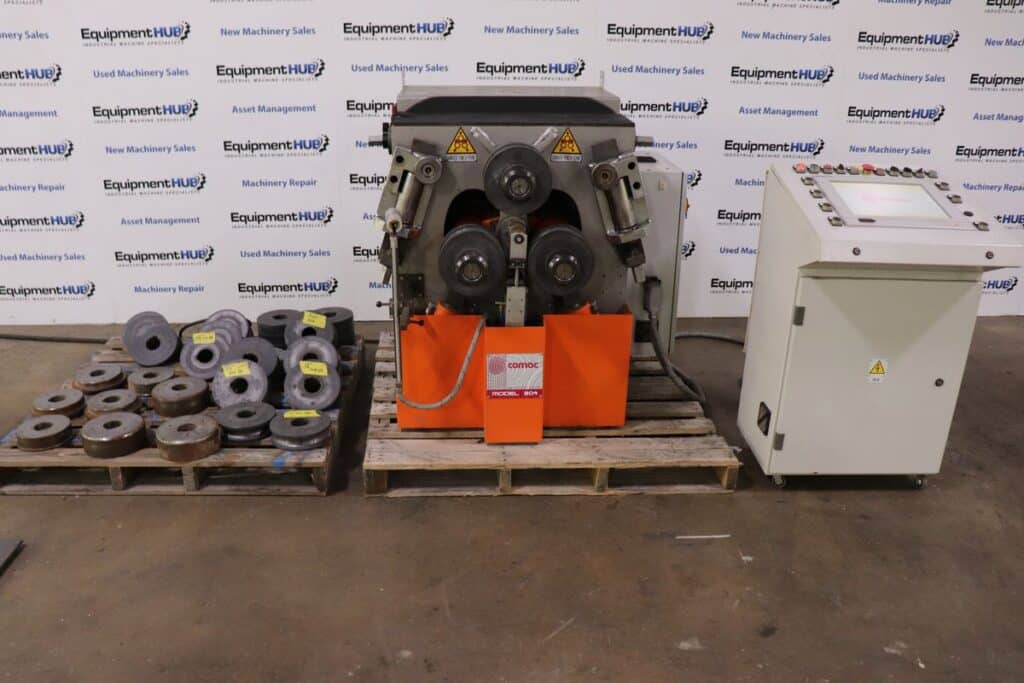

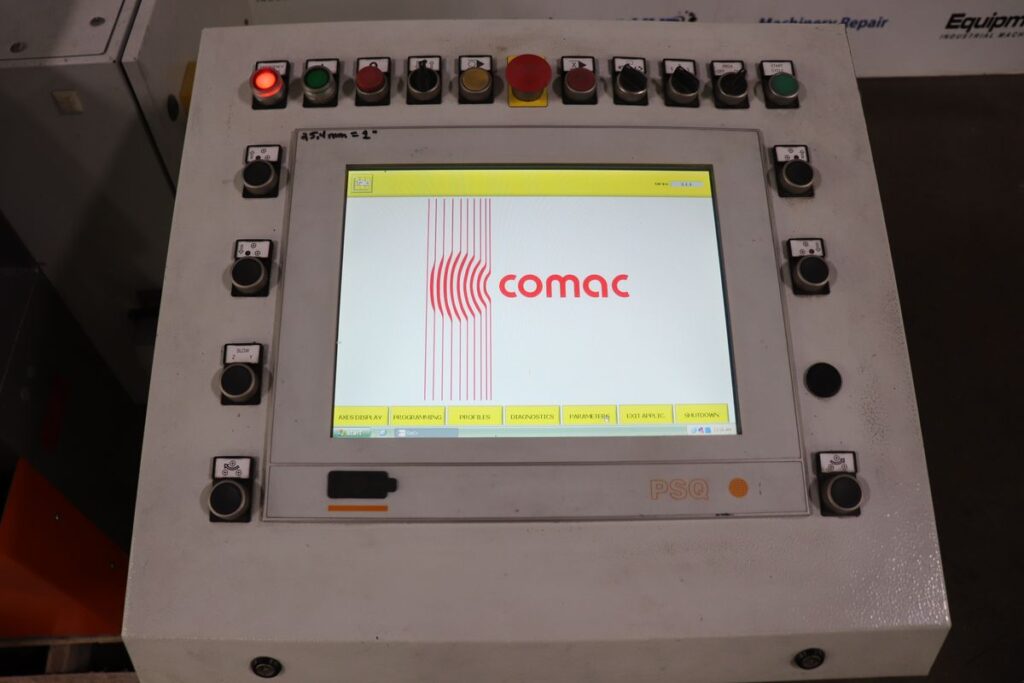

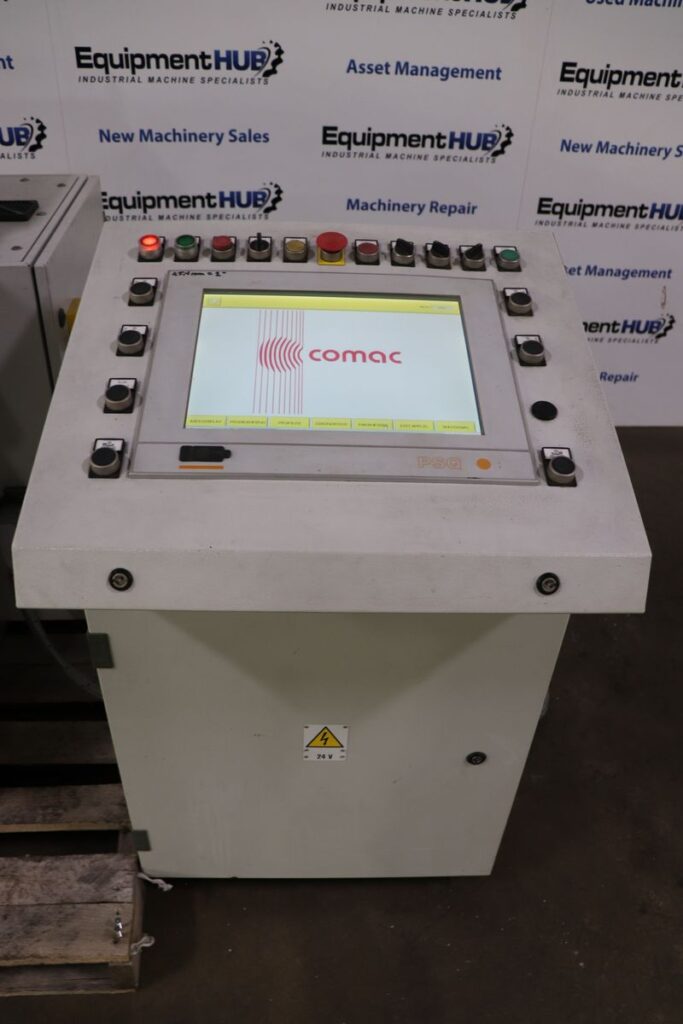

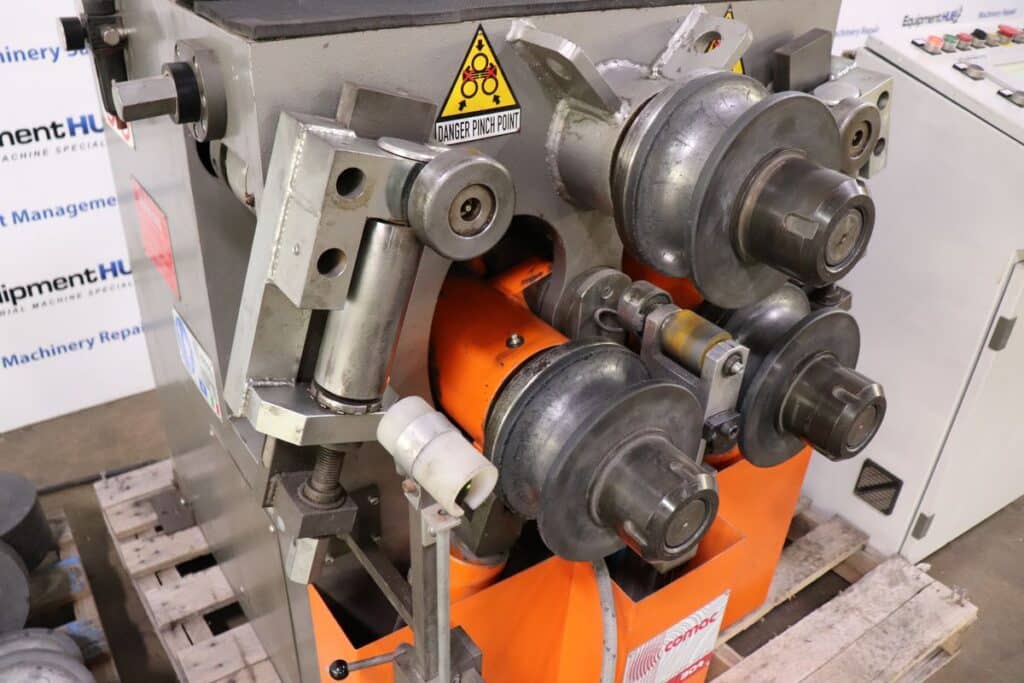

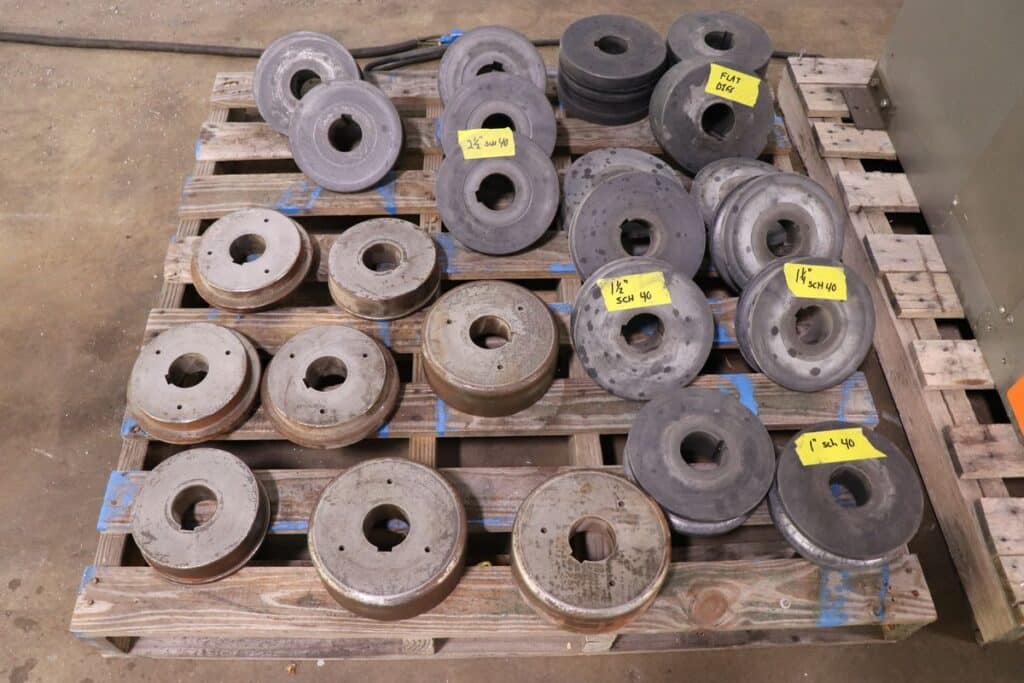

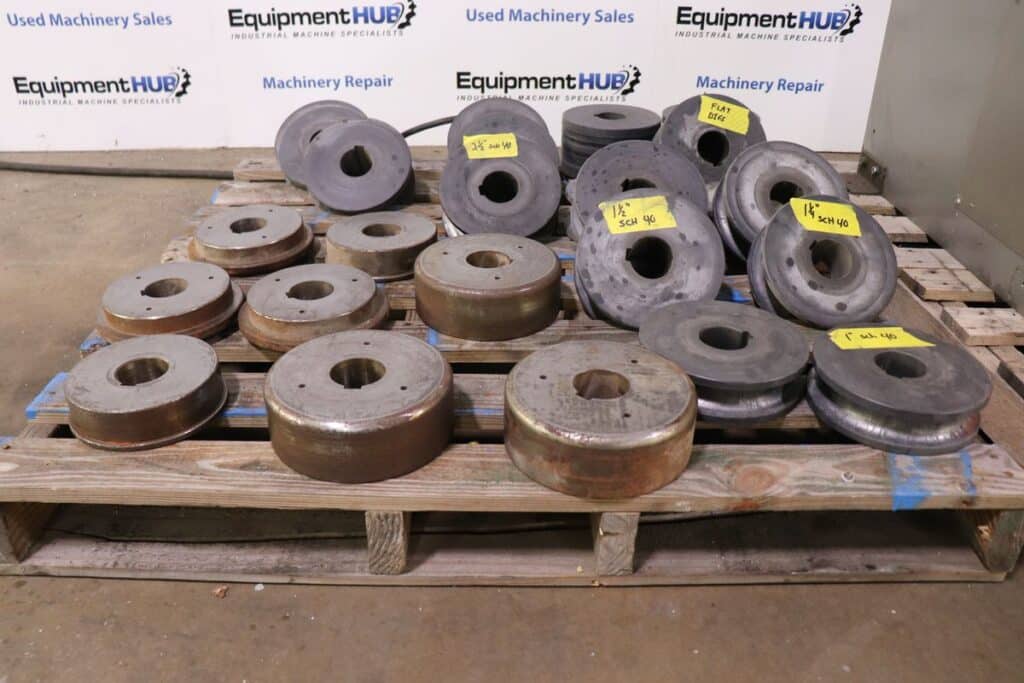

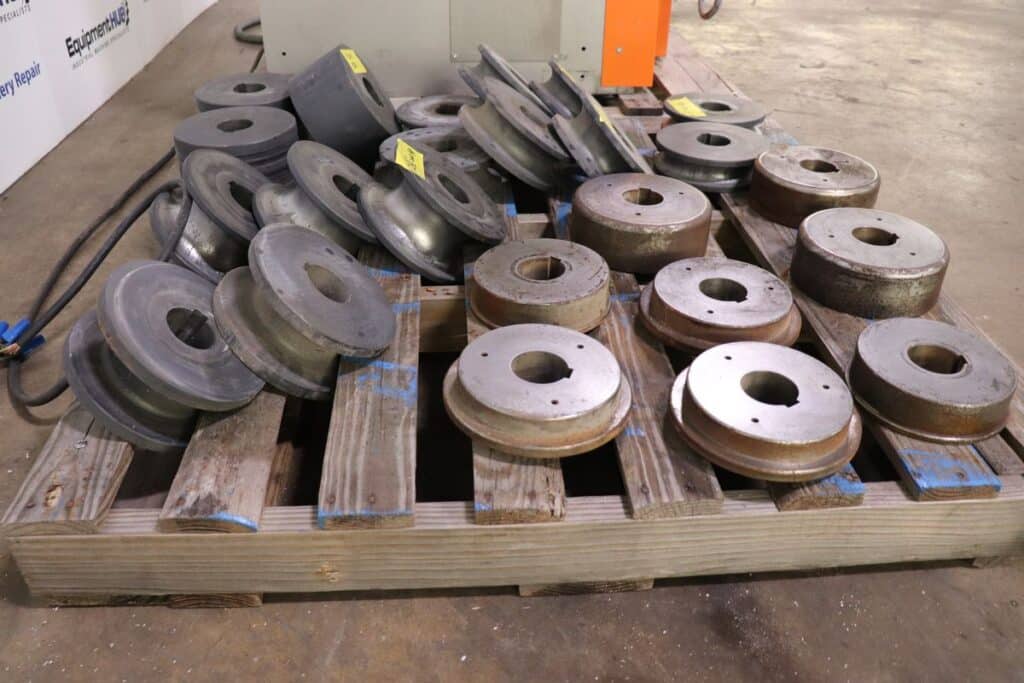

PSQ Mobile LED Control Cabinet, Three driven rolls for optimal traction, Dual pre-bending (double-pinch design), 3D lateral guide rolls for distortion control, Operates horizontally or vertically Programmable CNC CN31V control for automated sequences and repeatability, Pallet of assorted dies on pallet

Additional Info

The Comac Angle Roll can be demoed upon request. Check out the video on the listing to see it in operation.
