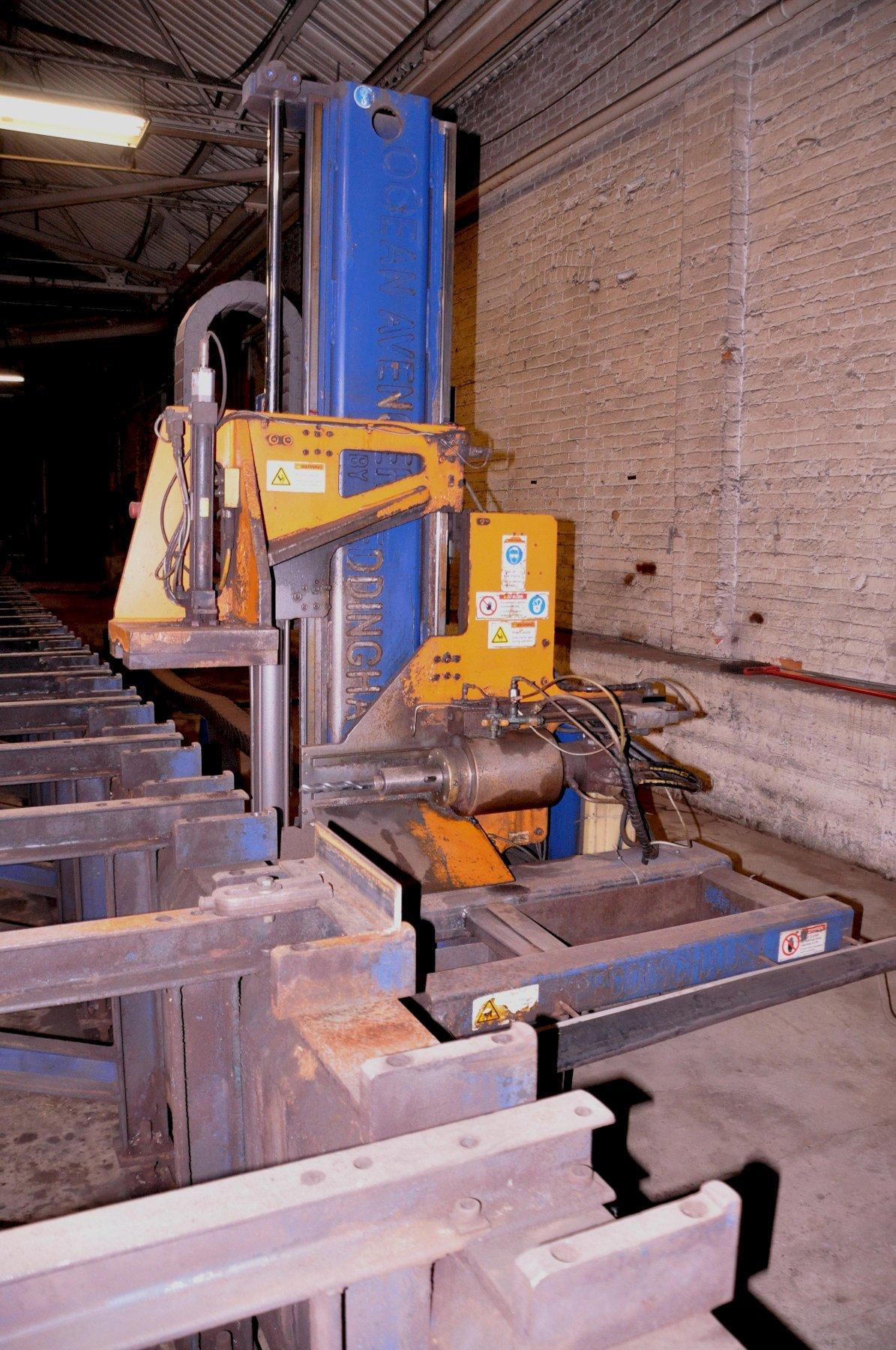

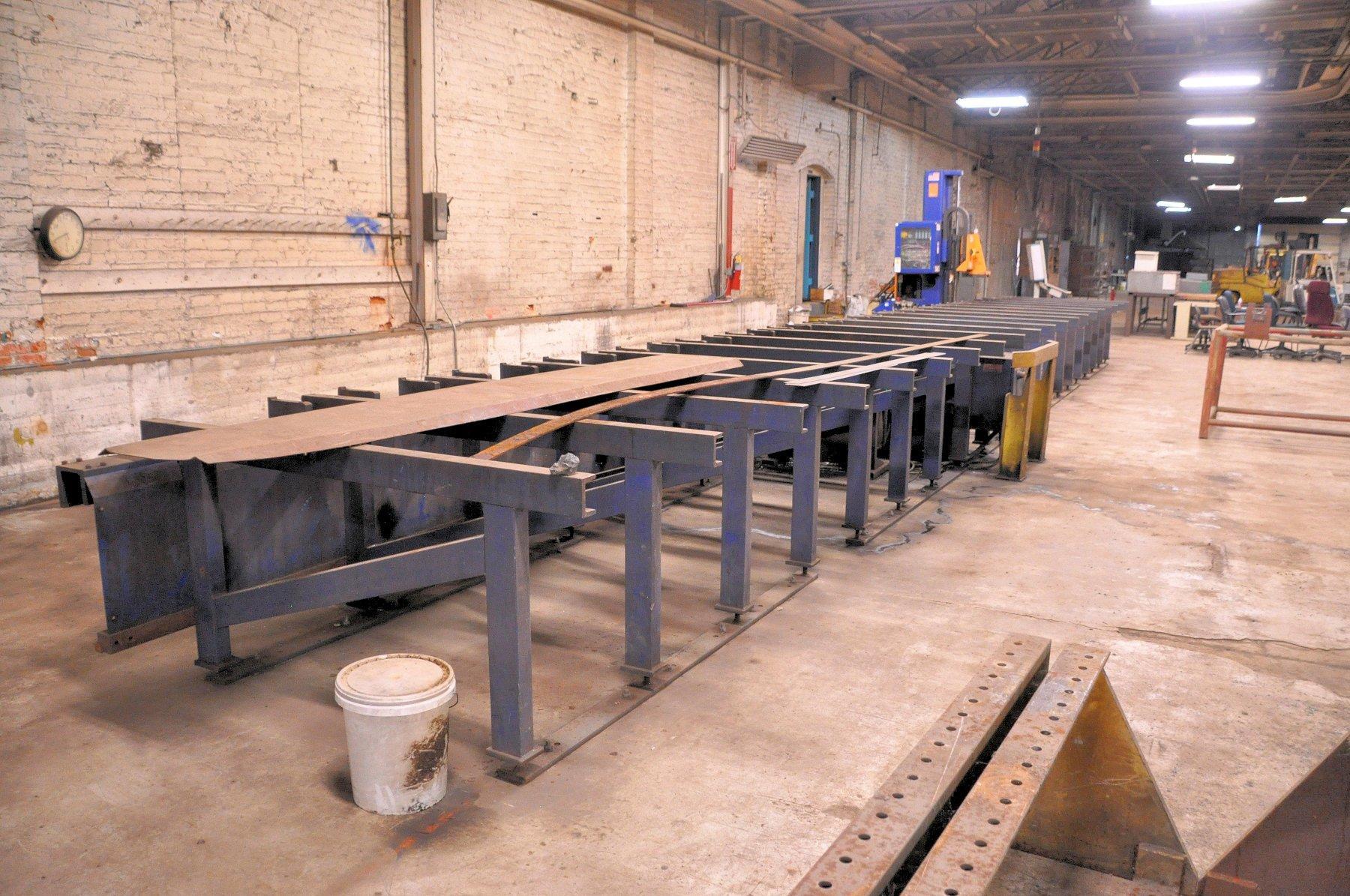

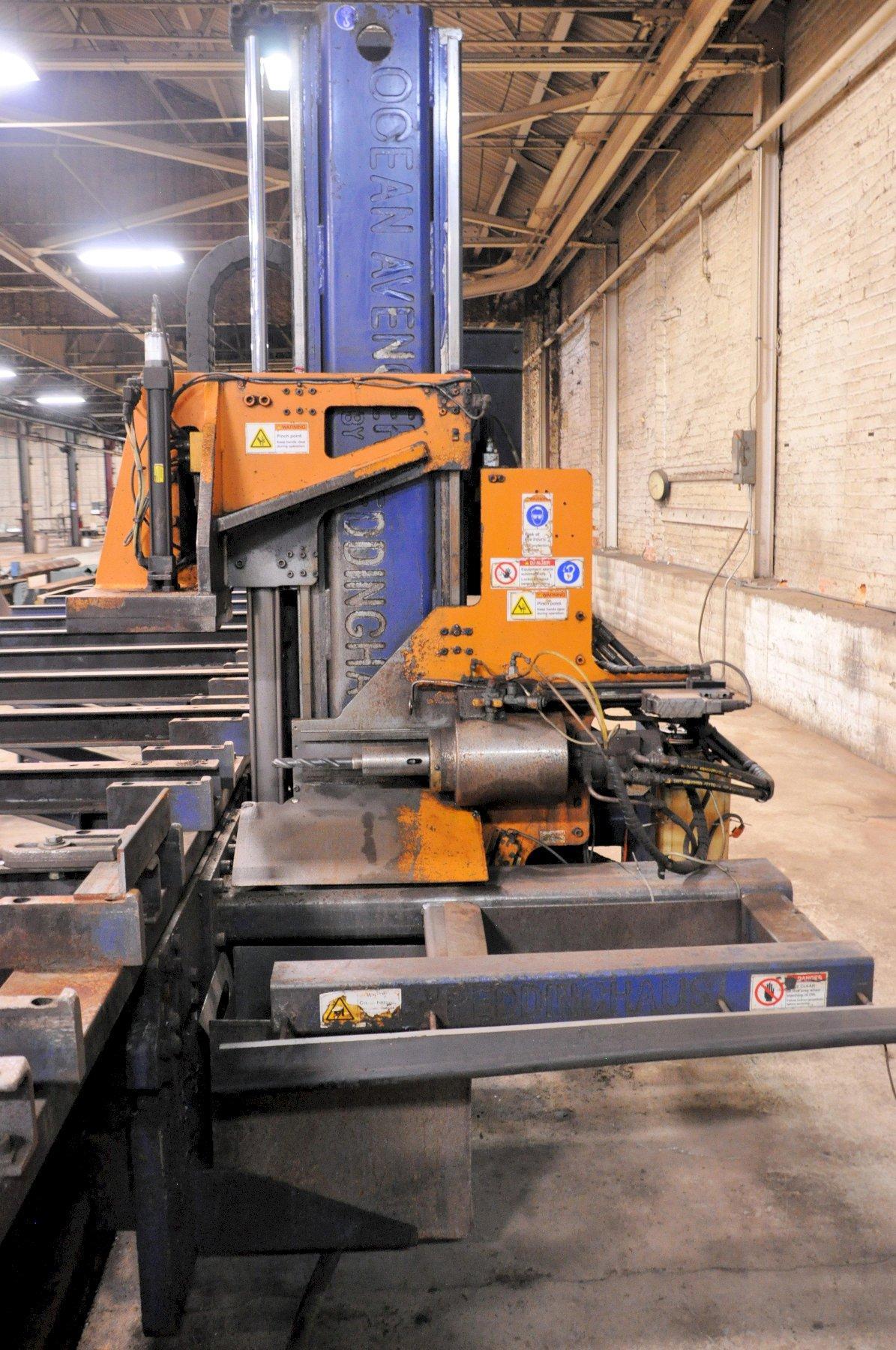

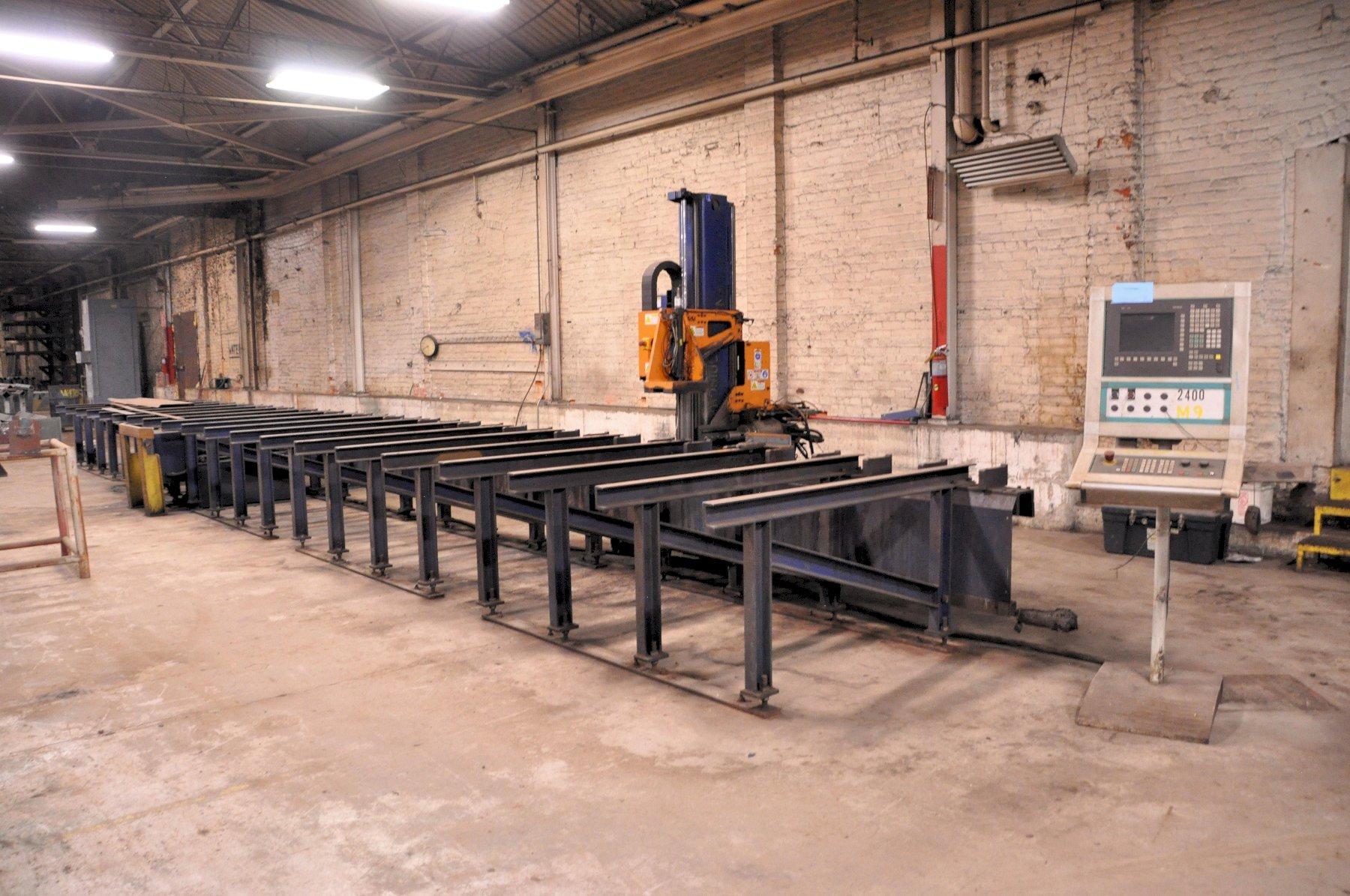

USED OCEAN AVENGER SINGLE SPINDLE CNC BEAM DRILL LINE WITH 40' OF CONVEYOR, Stock# 11144, Year:

Manufacturer

OCEAN

Category

Miscellaneous Machines

Type

BEAM/DRILL LINES

Stock

11144

Model

Avenger II 1000/1B

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



Brand: Ocean / Peddinghaus
Model: Avenger II

The Ocean Avenger Beam Drill Line was designed for small to medium size steel fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market.  The Avenger completely eliminates time-consuming manual beam layout and hole drilling, formerly done by mag drills and/or hydraulic punches.



The Ocean Avenger’s unique space saving design conserves valuable floor space and will increase monthly production by up to 400 tons-per-month with a single operator on an eight-hour shift. Its versatile design allows processing profiles including Beams, Angle, Channel, Square and Round Pipe and Tube, as well as Base Plates.



The Avenger Beam Drill will completely change the profitability of your operation by:



  • Decreasing labor costs - eliminates manual layout and hole drilling.
  • Increasing fabrication capabilities - process faster and with less human labor.
  • Lowering cost-per-hole drilling – by up to 30 cents/hole - 15,000-20,000 holes/bit.
  • Providing competitive advantages – bid more jobs lower, process larger profiles.

AVENGER SPECIFICATIONS

  Profile size:                               40" x 40'

 Maximum drill diameter:           1-9/16" [40mm] at 100% duty cycle

                                                   2” [50mm] at reduced production

 Material thickness:                   limited only by drill length with through-the-tool coolant system;

                                                  1-1/4” [40mm] with external spray-mist coolant system

 Maximum speed X axis:           120 ft per minute [36m/min]

 Maximum speed Y axis:           120 ft per minute [36m/min]

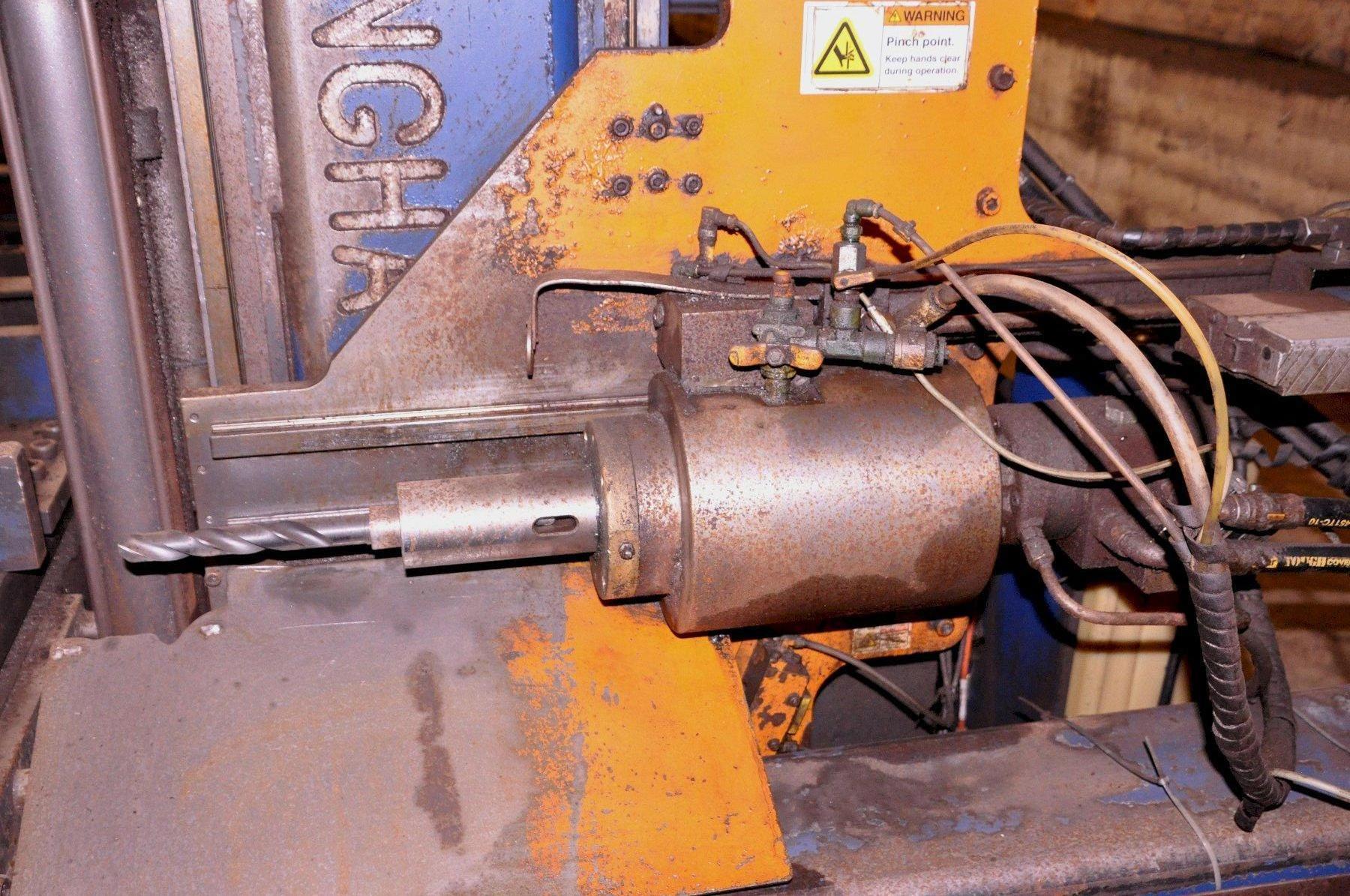

 Spindle motor:                         13.5 hp, dual-range hydraulic motor

 Spindle speeds:                        200-850 rpm, continuously variable

 Drilling feed rate:                      2” – 10” per minute [50-250mm/min], continuously variable

 Maximum spindle stroke:         13” [330mm]

 Vise clamping power:               5 tons maximum (adjustable)

 Power supply:                           460/480 V, 3-ph, 60 Hz



The Ocean Avenger can be installed in any structural steel fabrication shop or other operation where layout and drilling is required.  It is capable of drilling most steel profiles including:

 Beams up to 40" high (rolled or fabricated)

 Angles, channels and T sections

 Flat bars

 Plates up to 40" wide

 Girders

 Tapered beams or other unequal sections

 Tubes

 Rails

 Truck frames, rail car frames, etc.



 Main Characteristics of the Ocean AVENGER:

Eliminates manual layout and drilling
Provides exceptional accuracy of hole placement, eliminating costly field modifications
Easy installation in one-half the floor space required by regular beam lines
Simple and easy to operate

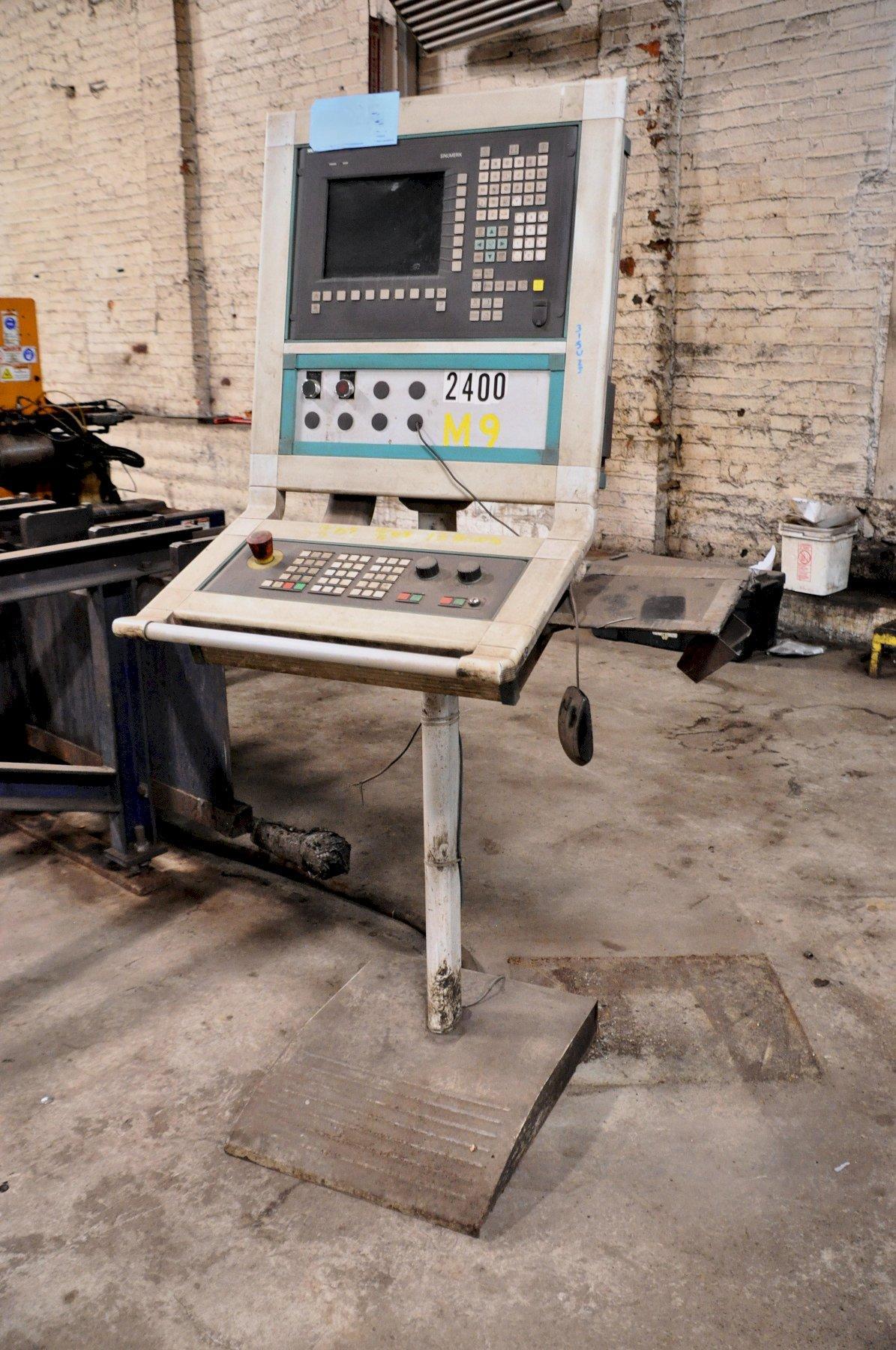

No computer experience required
Fully automatic drilling cycle
