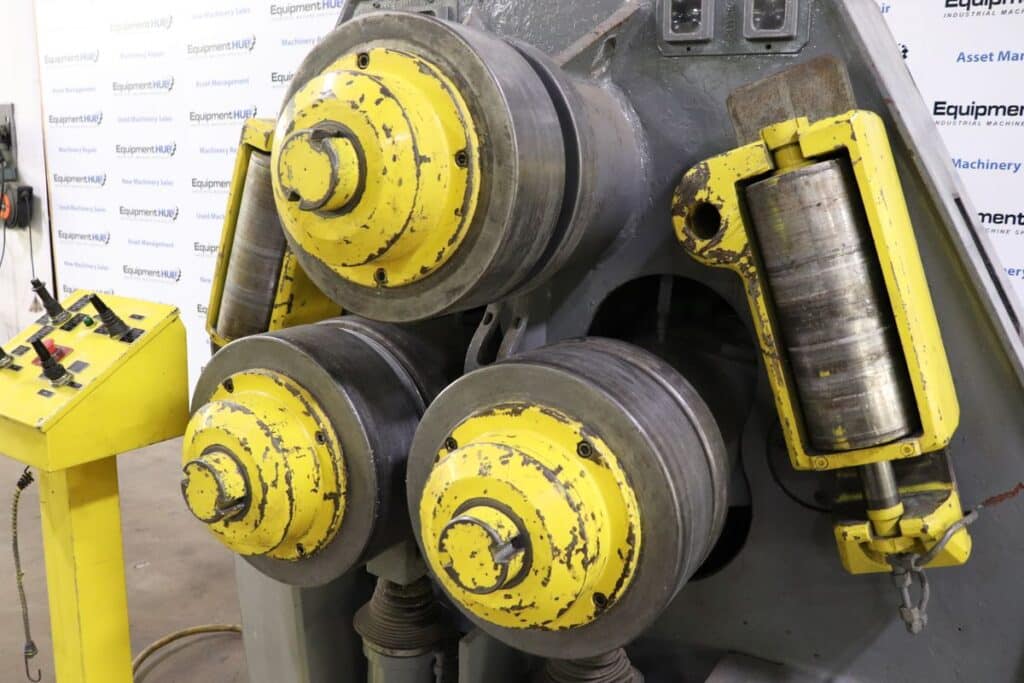

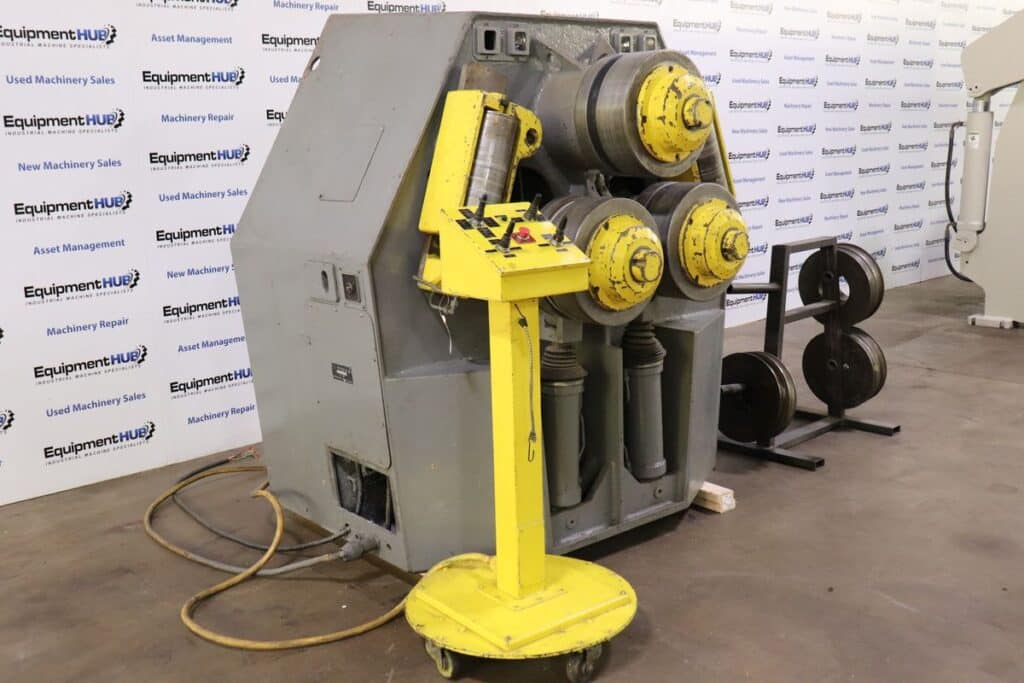

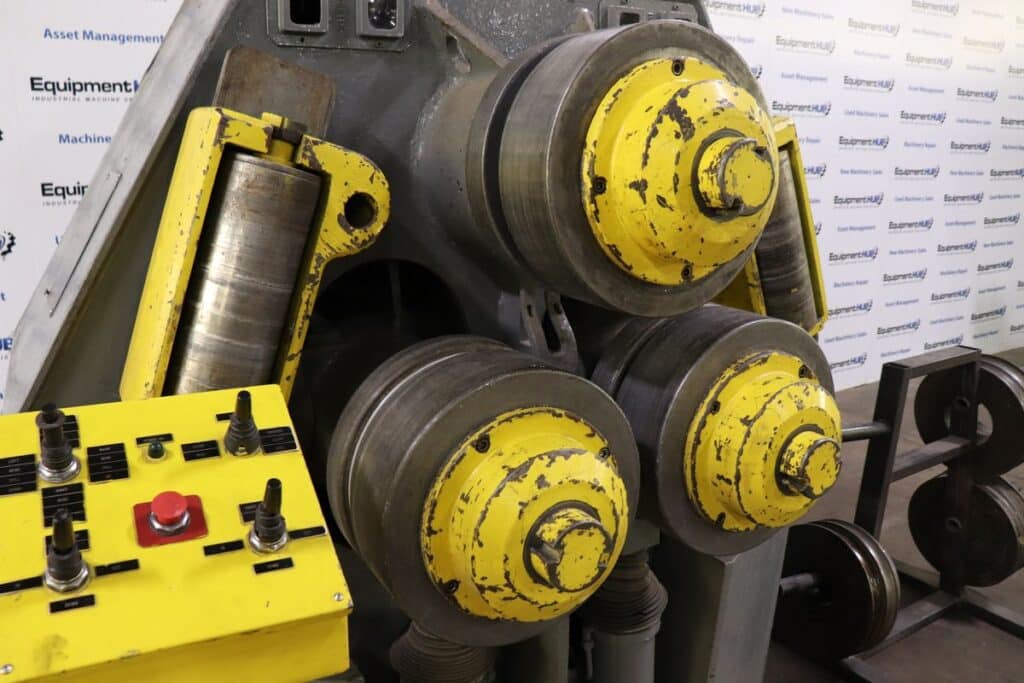

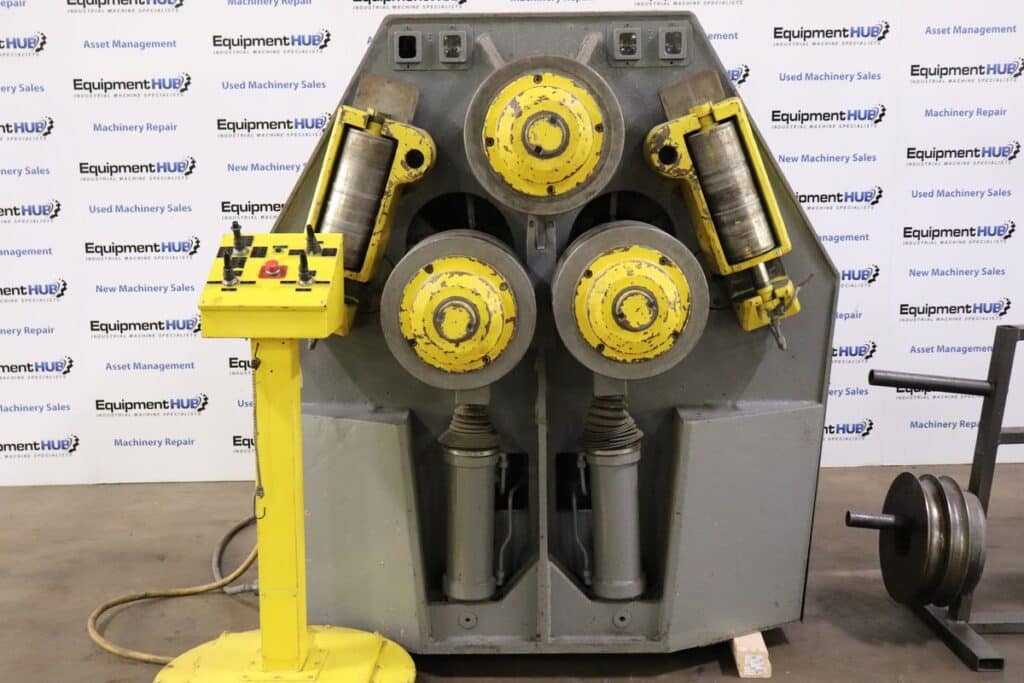

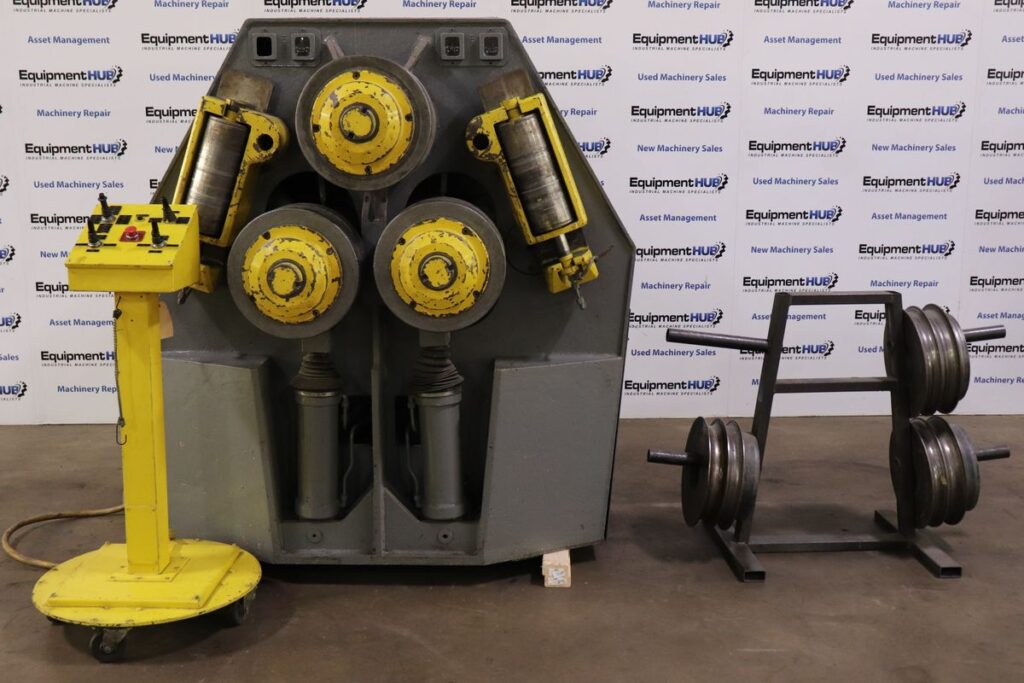

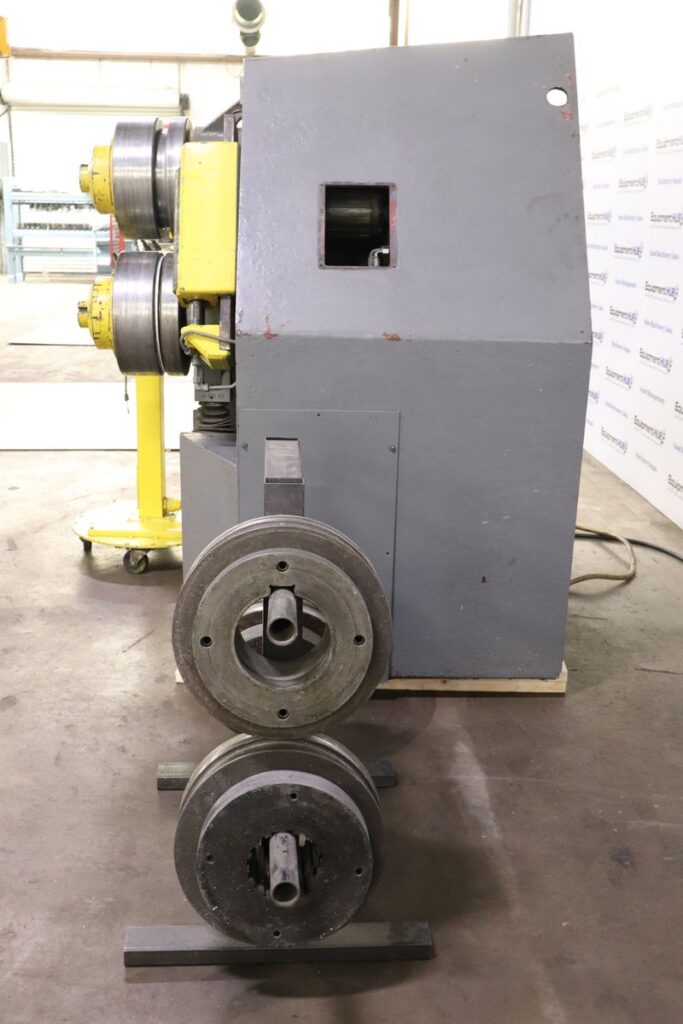

Pullmax Z41 5″ x 5″ x 1/2″ Hydraulic Angle Roll

Manufacturer

Pullmax

Category

Rolls

Type

ROLLS, EXTRUSION BENDING

Stock

120250032

Model

Z41

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 120250032
  • Location: Stone Mountain, Ga
  • Brand: Pullmax
  • Model: Z41

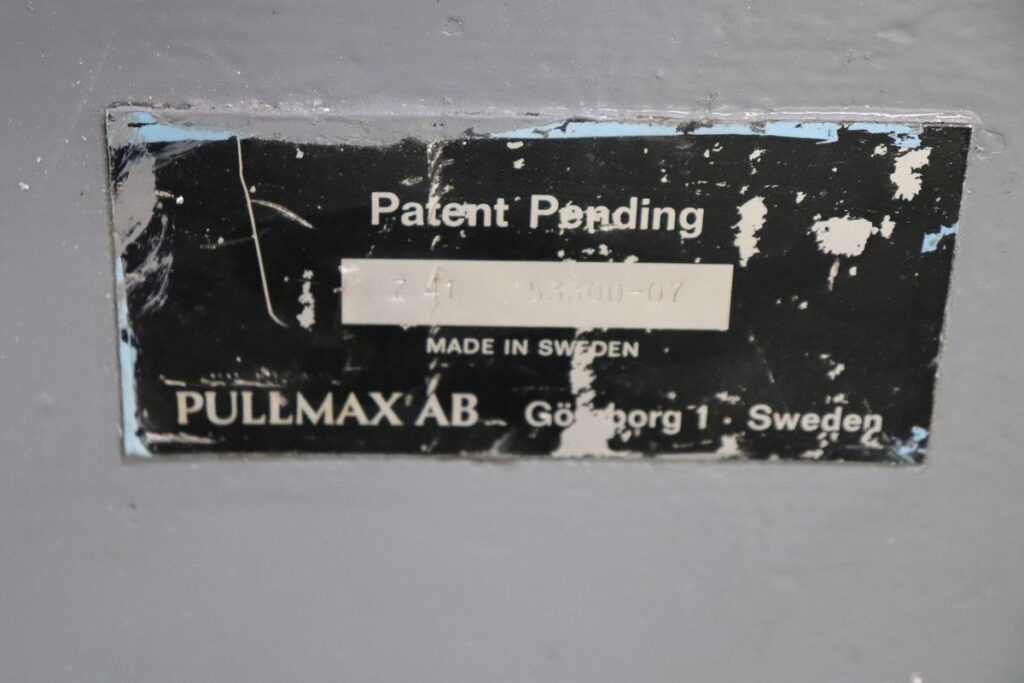

  • Serial #: 53300-07
  • Approx. Shipping Weight: 13,000 Lbs.
  • Approx. Shipping Dimensions: 10′ L x 5′ W x 6′ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Angle Leg Out Max: 5” X 5” X ½” to 63” Diameter
  • Angle Leg Out Min: 1-¾” X 1-¾” X ¼” to 32” ¬¬-Diameter
  • Angle Leg In Max: 4” X 4” X ⅝” to 60” Diameter
  • Angle Leg In Min: 1-¾” X 1-¾” X ¼” 36” Diameter
  • Tee Leg Out Max: ST 5WF 30 LBS to 60”
  • Tee Leg Out Min: 1-¼” X 1-¼” X ¼” to 18” Diameter
  • Tee Leg In Max: ST 5WF 30 LBS to 60”
  • Flat Bar On Edge: 5” X ¾” to 50” Diameter
  • Flat Bar On Flat: 8” X 1-½” to 32” Diameter
  • Square Bar: 2-¾” X 2-¾” to 40”
  • Round Bar: 3” to 30” Diameter
  • Round Pipe: 4” Sch 40 to 50”
  • I – Beam on Web: 10” X 4” to 70” Diameter
  • I – Beam on Flange: 4” X 2-⅝” to 140” Diameter
  • Channel Flange Out: 10” X 2-⅝” to 70” Diameter
  • Channel Flange In: 10” X 2-⅝” to 70” Diameter
  • Channel Flange Up: 5” X 1-¾” to 140” Diameter
  • Electrical: 460V/3PH

Equipped With

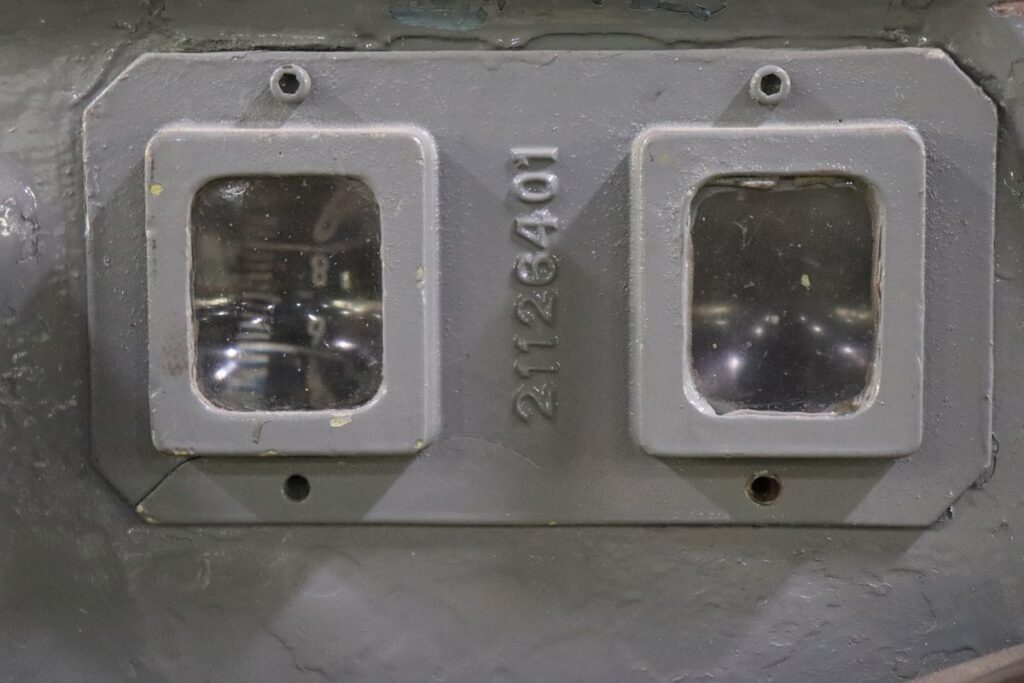

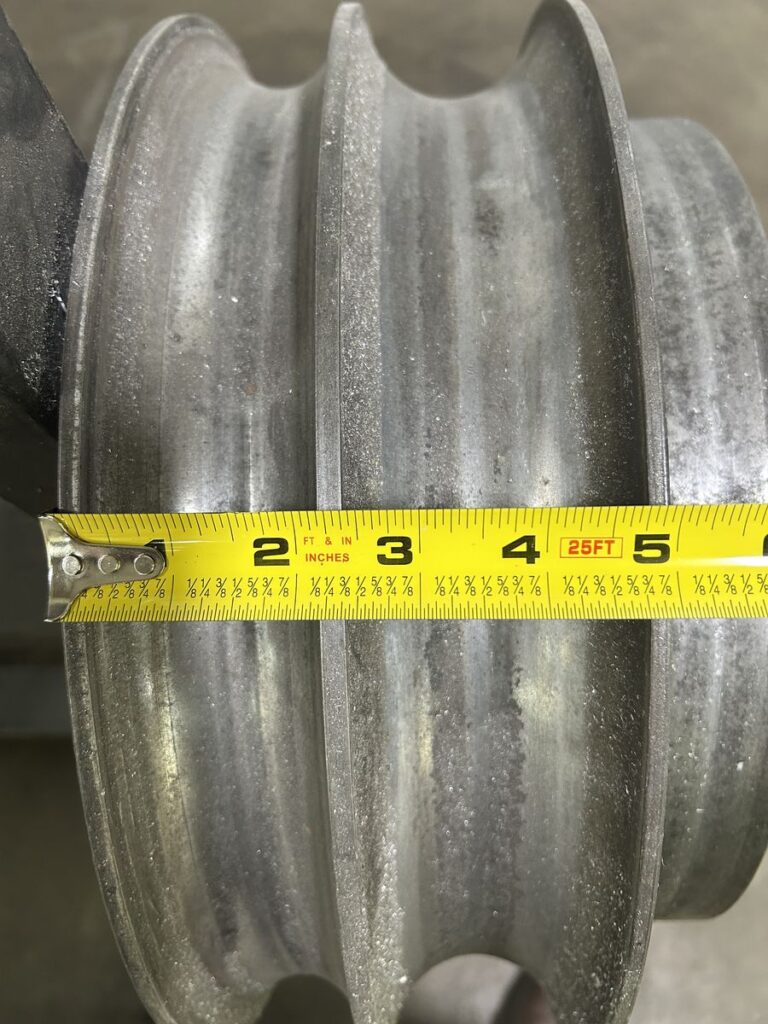

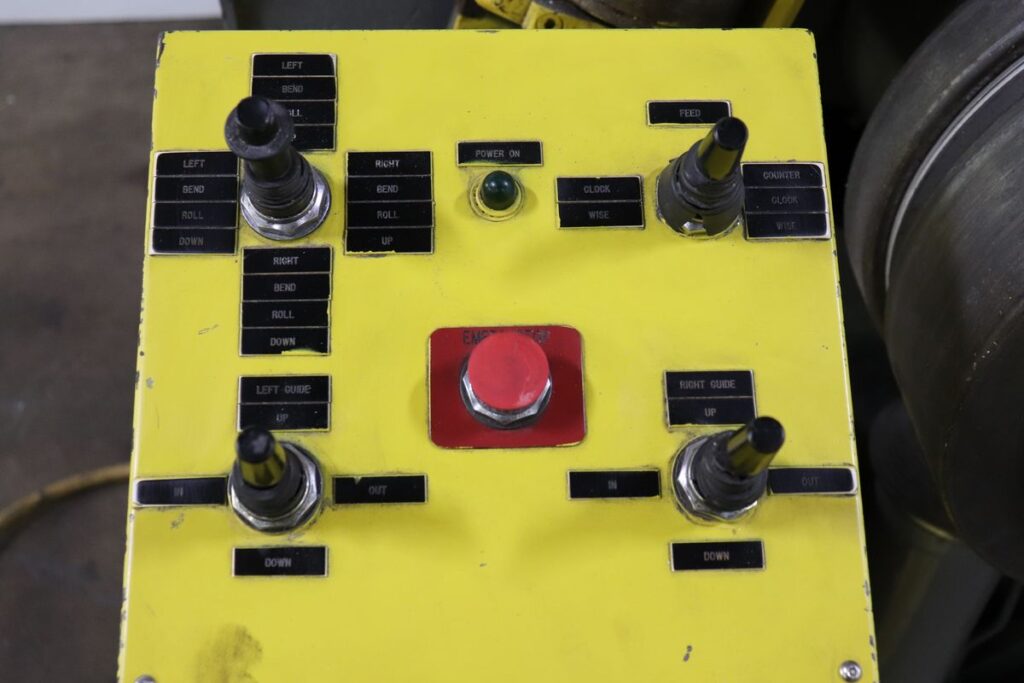

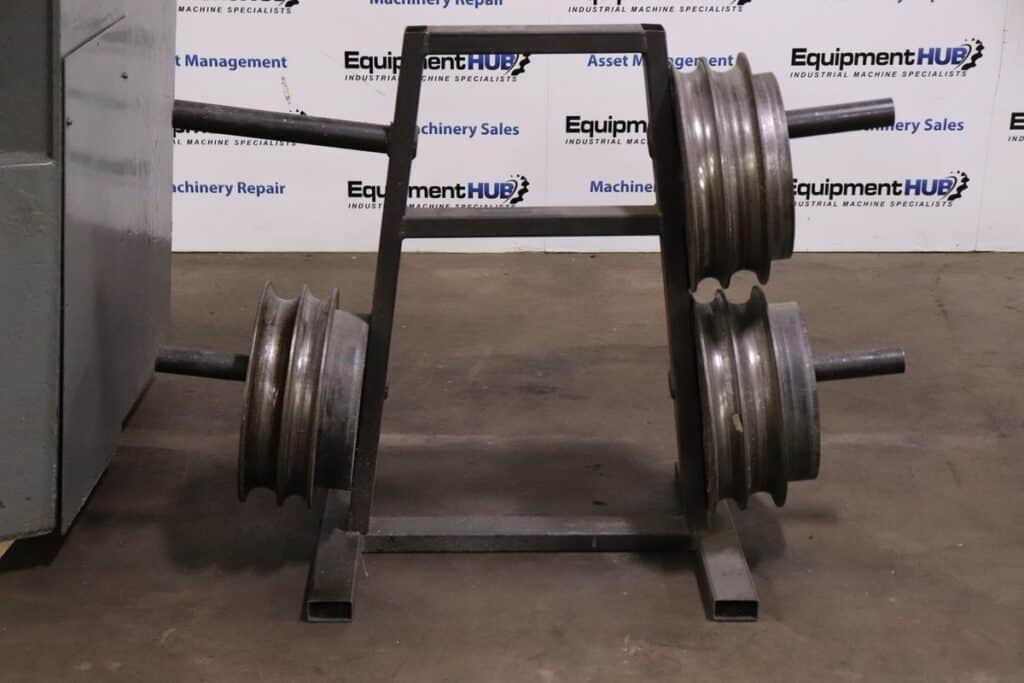

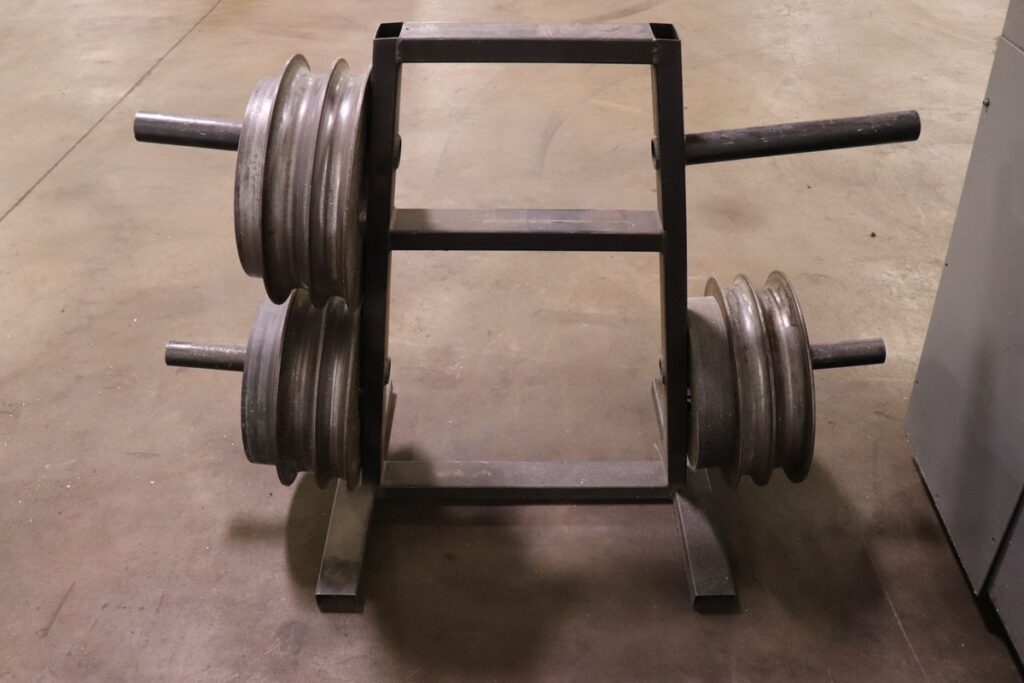

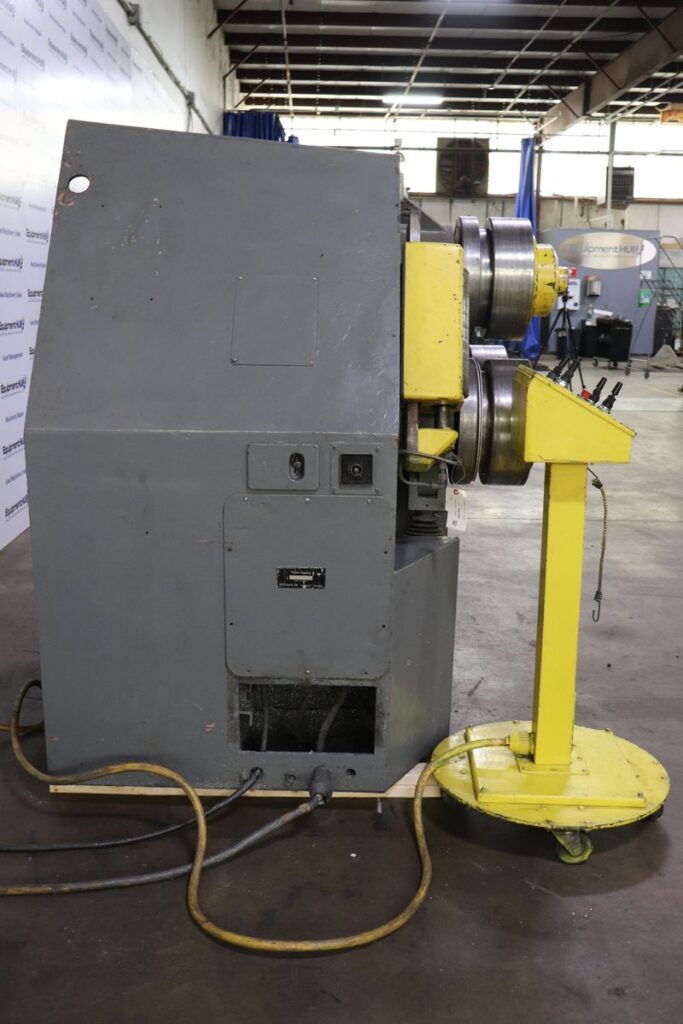

Free Standing Operator Console with Joystick, Mechanical Scales for Vertical Travel of Rolls, Dies

Additional Info

The Pullmax Angle Roll can be demoed upon request, check out the video on the listing to see it in operation.
