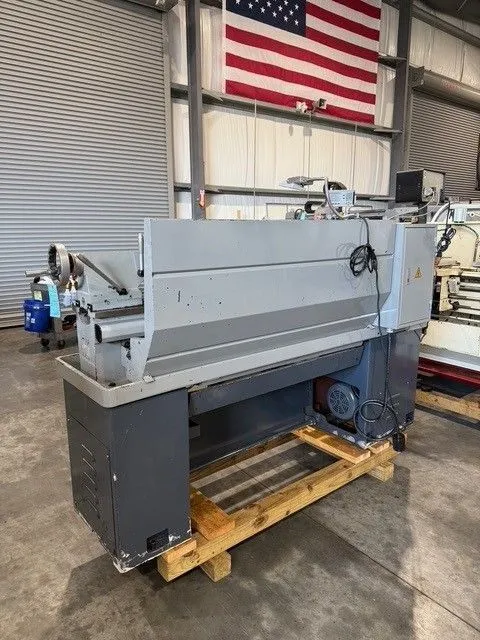

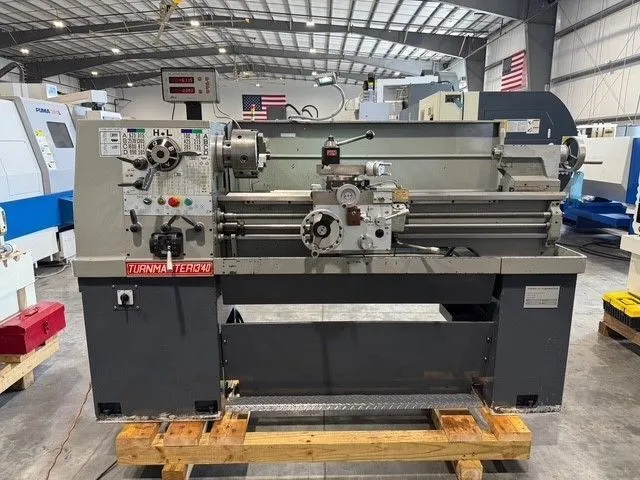

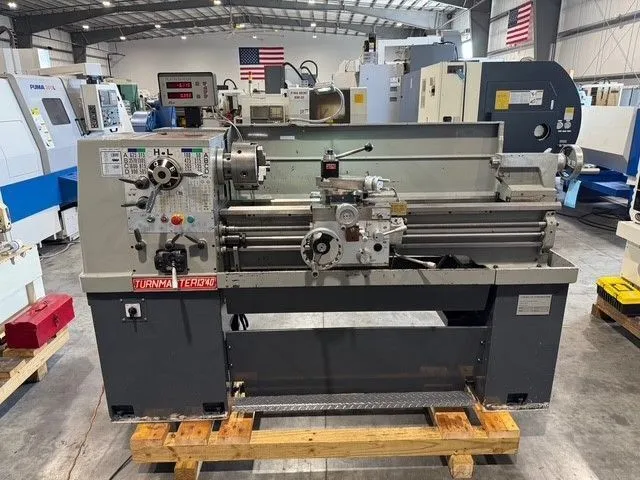

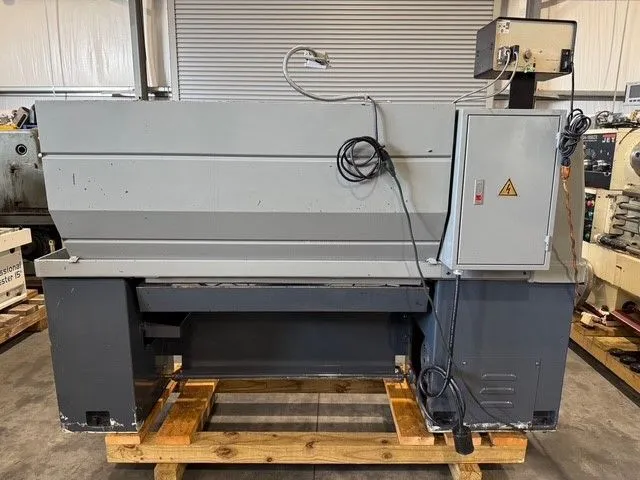

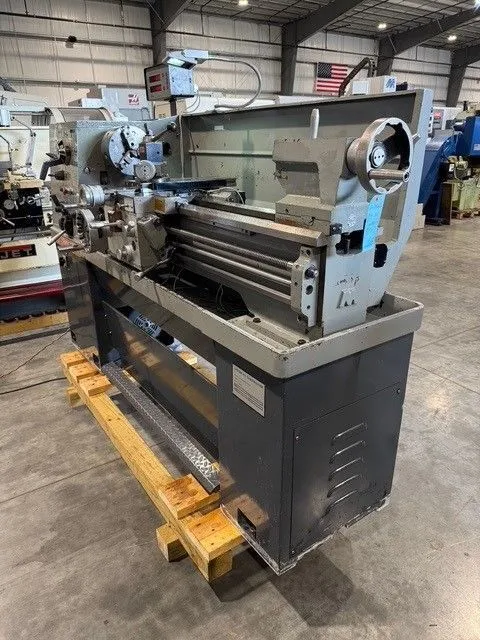

LAGUN AMERICAN TURNMASTER 13” x 40” Engine Lathe #7399

Manufacturer

LAGUN AMERICAN TURNMASTER

Category

Lathes

Type

LATHES, ENGINE

Stock

7399

Model

TRL-1340

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

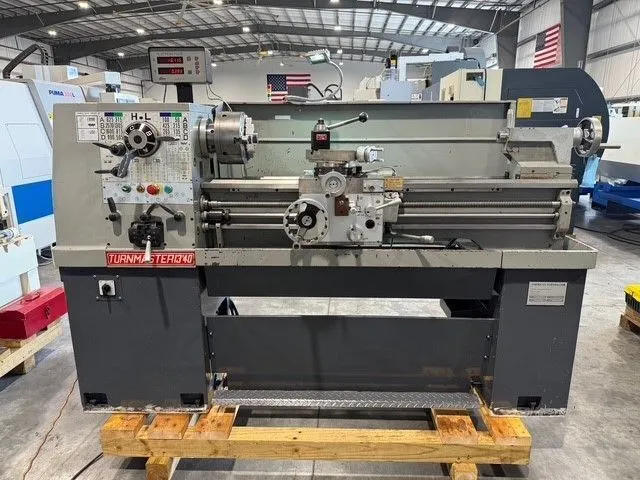

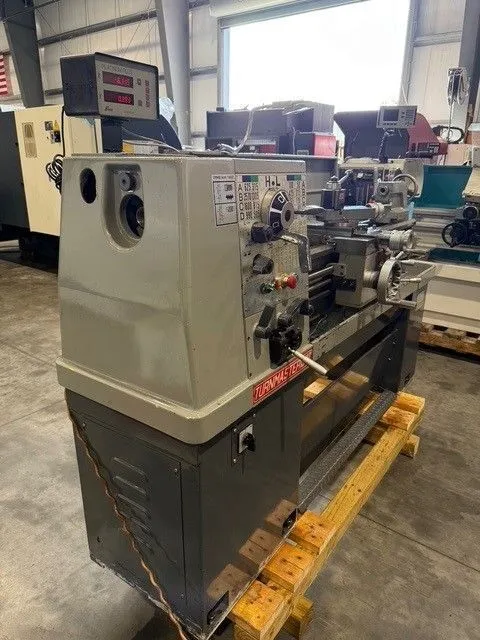

LAGUN AMERICAN TURNMASTER 13” x 40” Engine Lathe #7399
Reference #7399

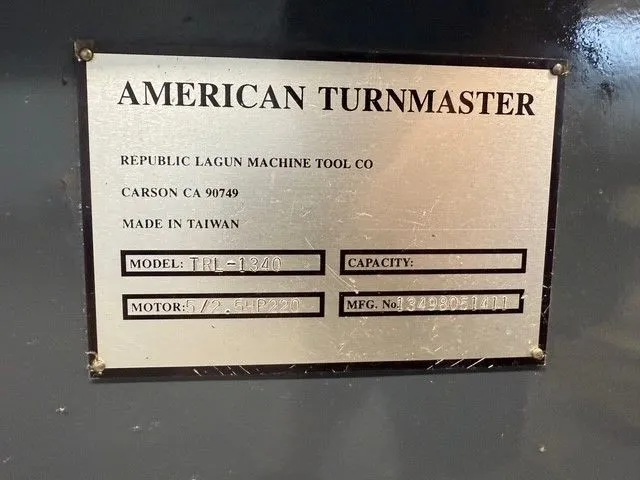

Model #TRL-1340
Serial #13498051411
Year of Manufacture- 1998
Swing over bed- 13”
Swing over cross slide- 8-1/4”
Distance between centers- 40”
Spindle bore- 1-9/16”

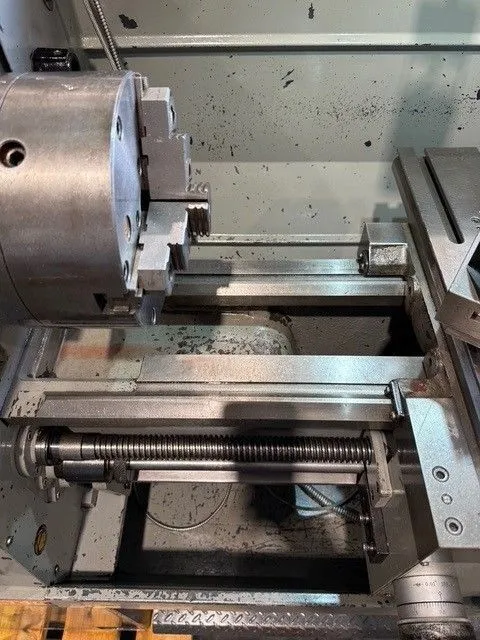

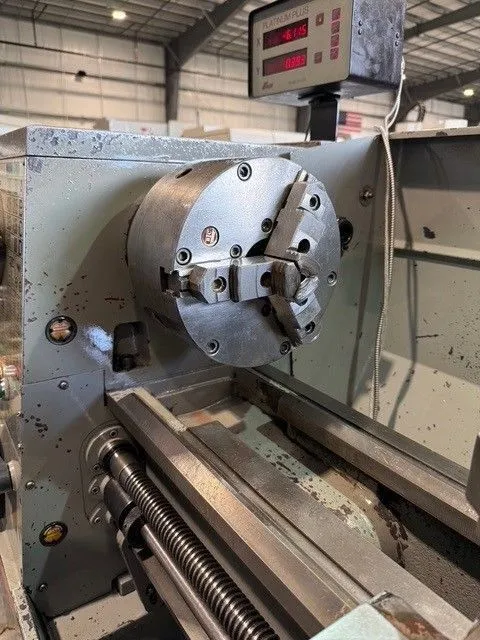

Spindle Nose camlock- D-1-4

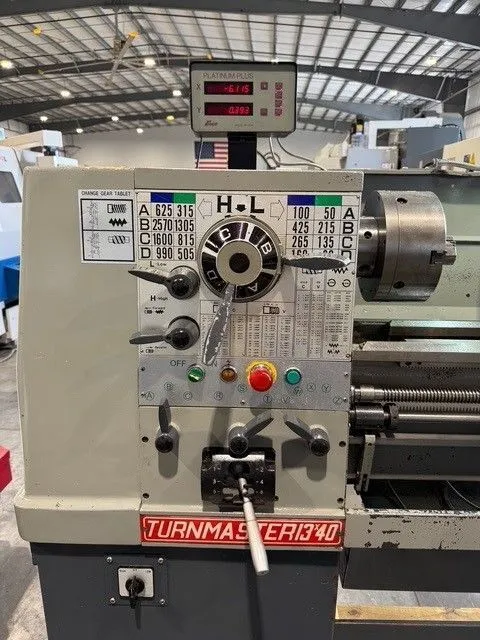

Spindle speeds (16)- 50 – 2570 R.P.M.
Spindle taper with adapter sleeve- #5 Morse

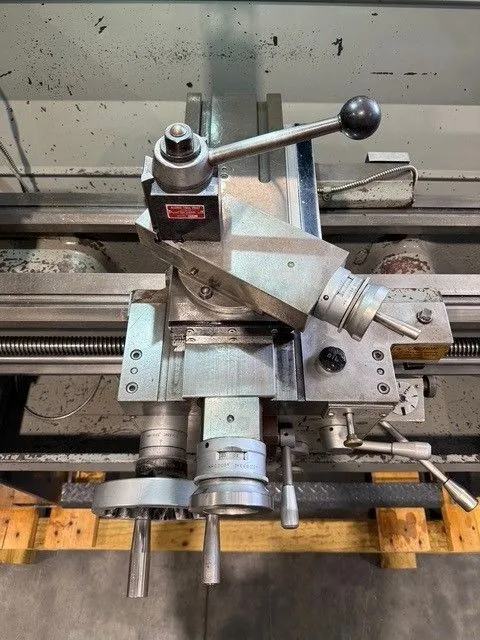

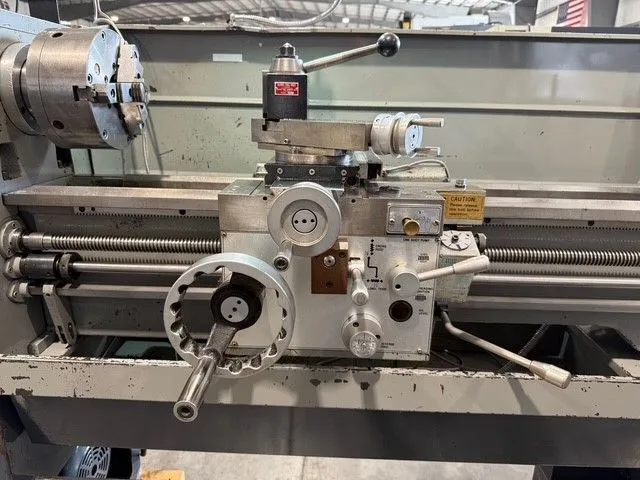

Cross slide travel- 7-3/4”
Top slide travel- 4”
Bed width- 9”
Inch threads (45) 2 – 72 T.P.I.
Metric threads (39) 0.2 - 14mm
Diametral threads (21) 8 – 44 DP
Module threads (18) 0.3 - 3.5mm
Longitudinal feeds- .002” - .067” I.P.R.
Cross feeds- .001” - .034” I.P.R.

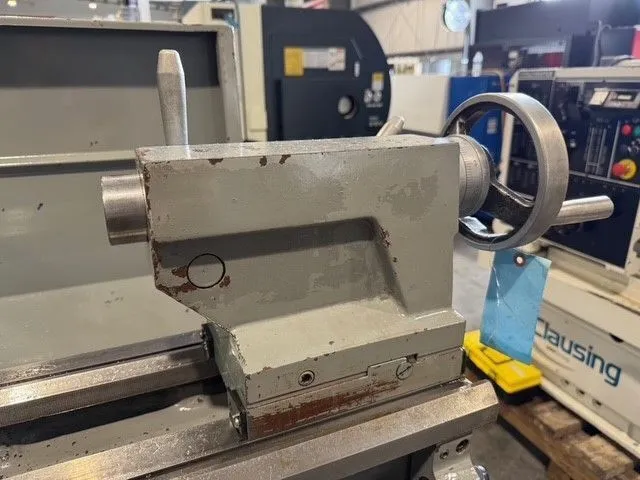

Tailstock taper- # 3 Morse
Tailstock travel- 4-1/2”
