50 ton Macrodyne Model MPZ-50 4-Post Used Hydraulic Press For Sale, Year 2008

Manufacturer

MACRODYNE

Category

Presses

Type

PRESSES, HYDRAULIC

Stock

2940

Model

MPZ-50

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 50
Stroke - 20 inches
Bed Size - 72" x 30"
Ram Area - 72" x 30"

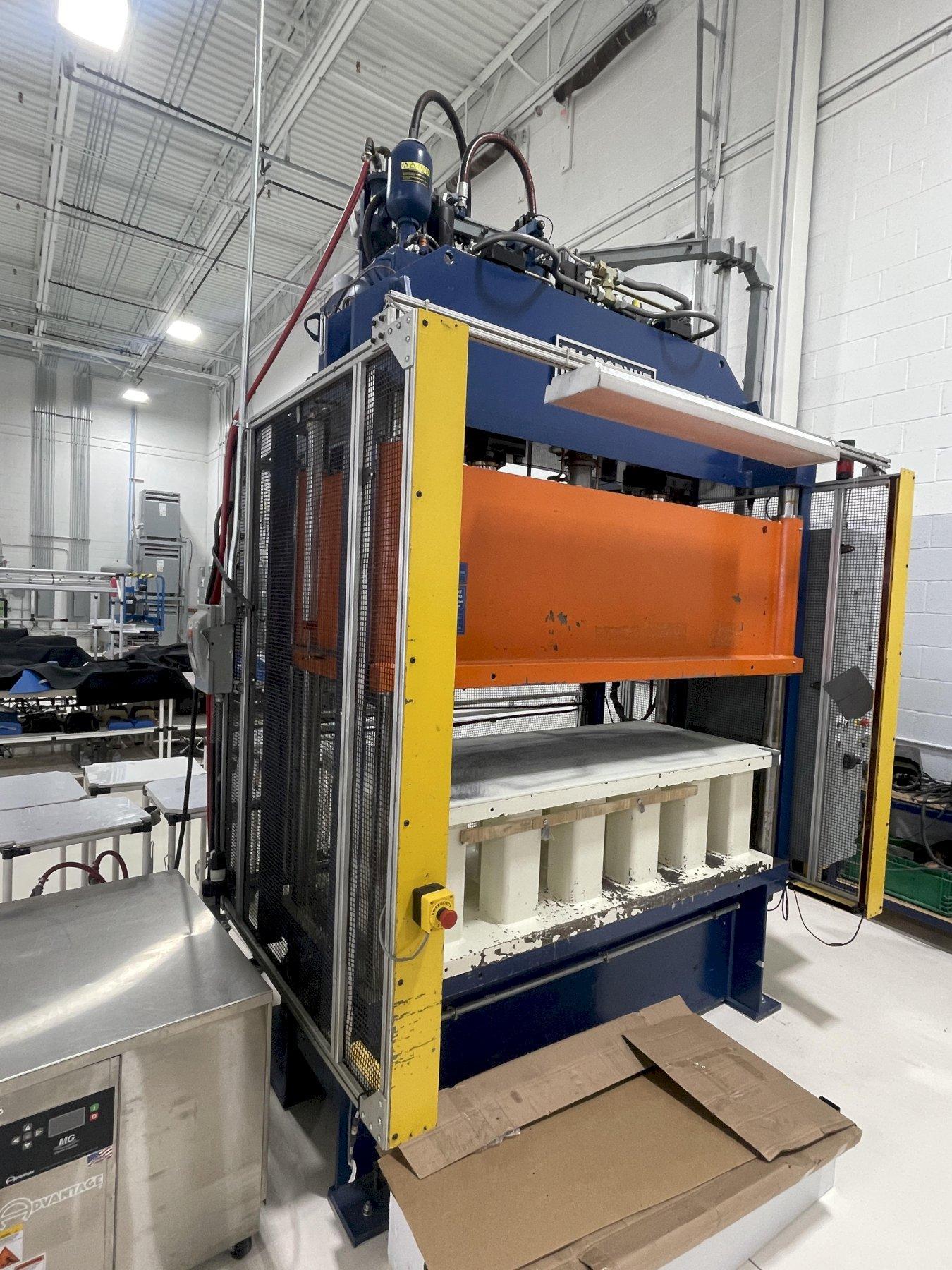

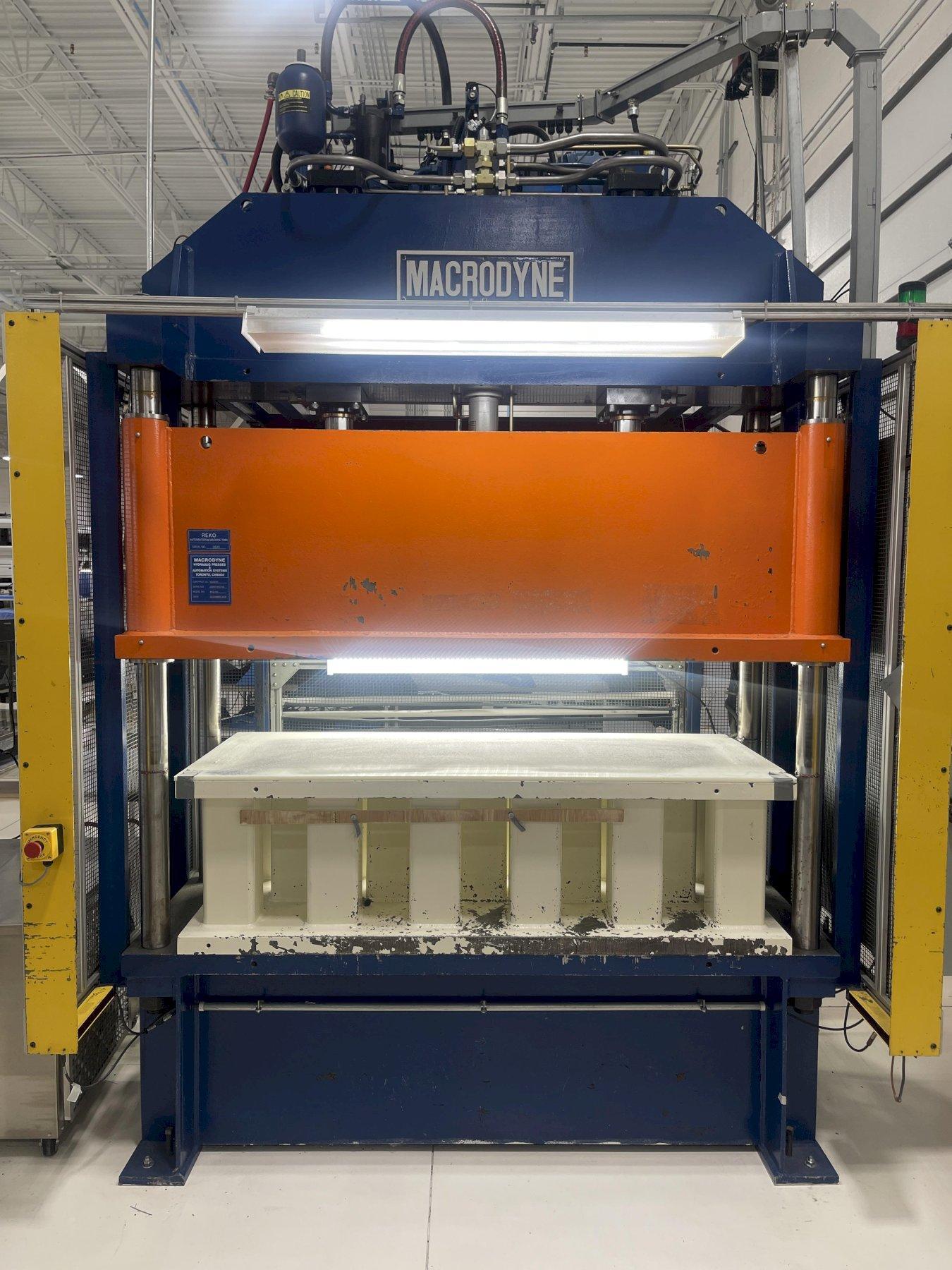

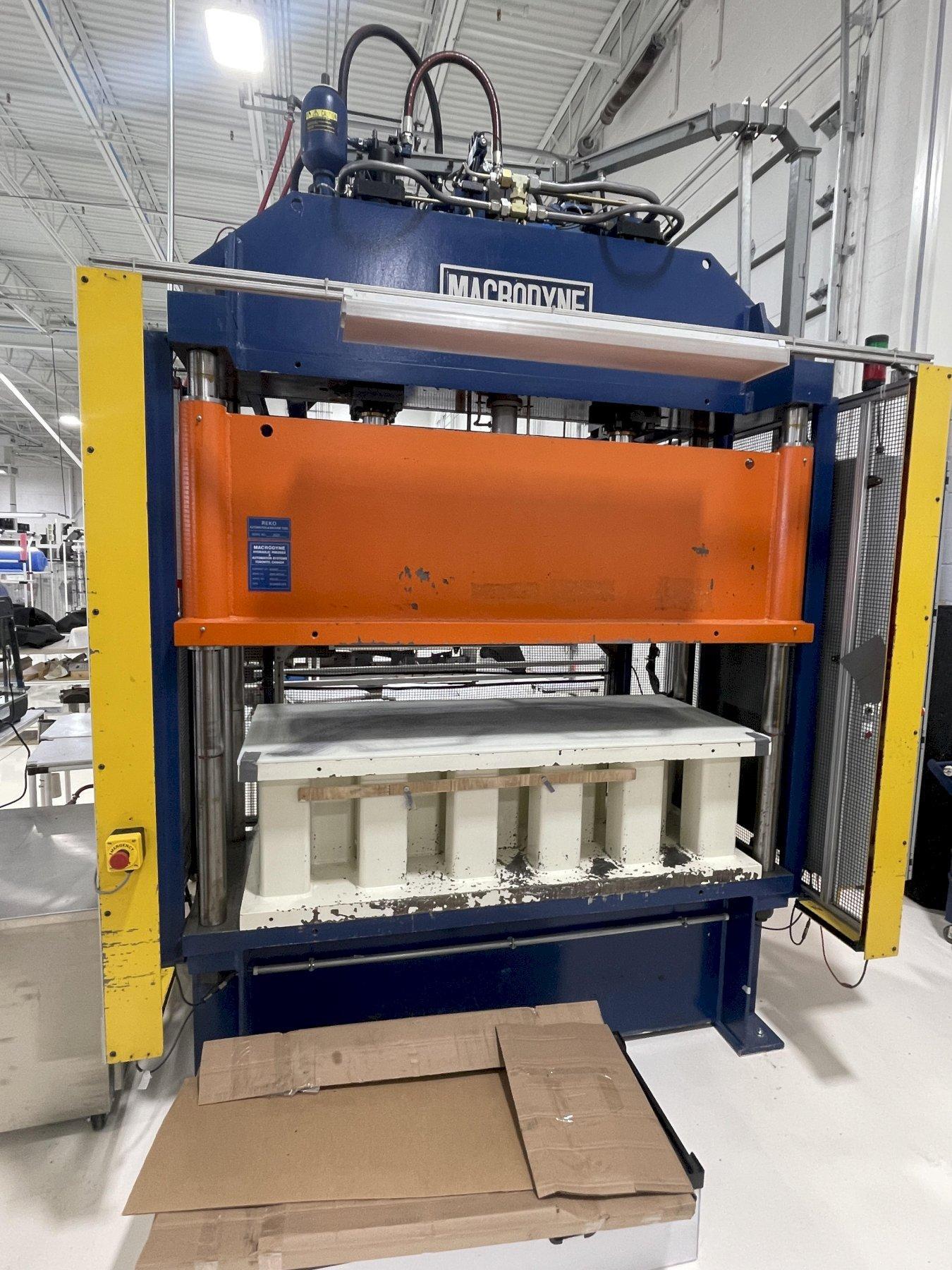

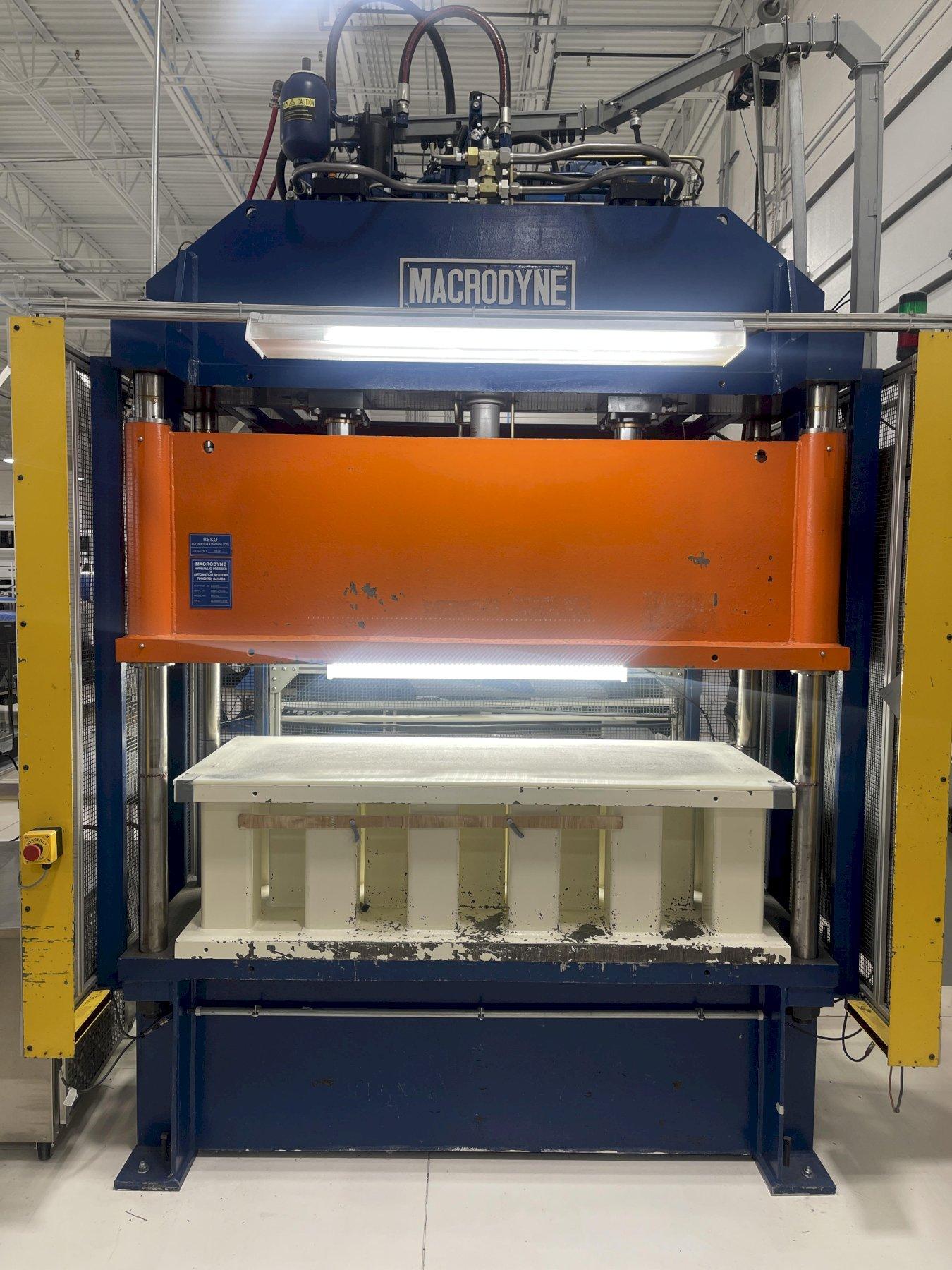

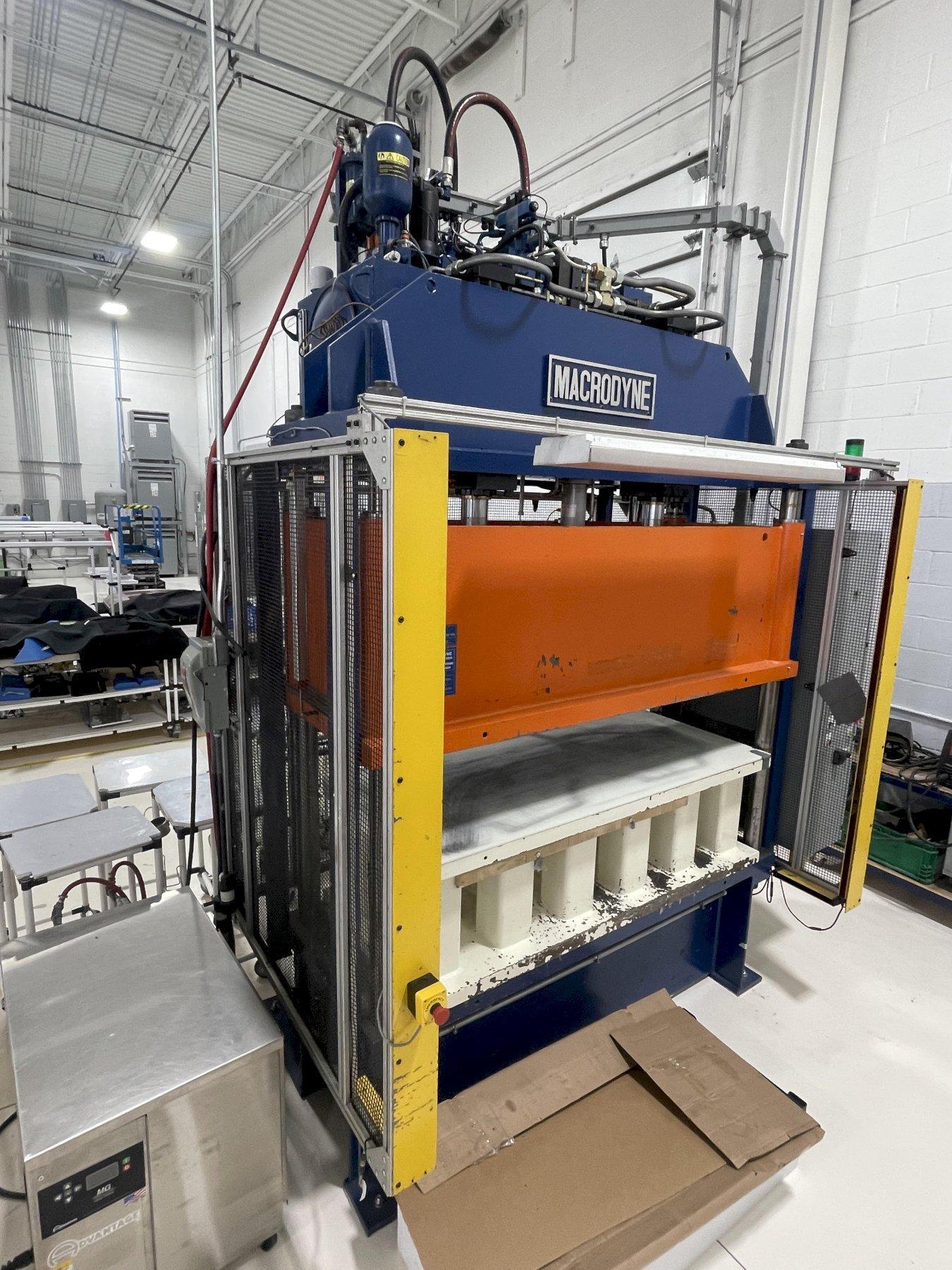

Macrodyne 4-Post Hydraulic Press
Model # MPZ-50

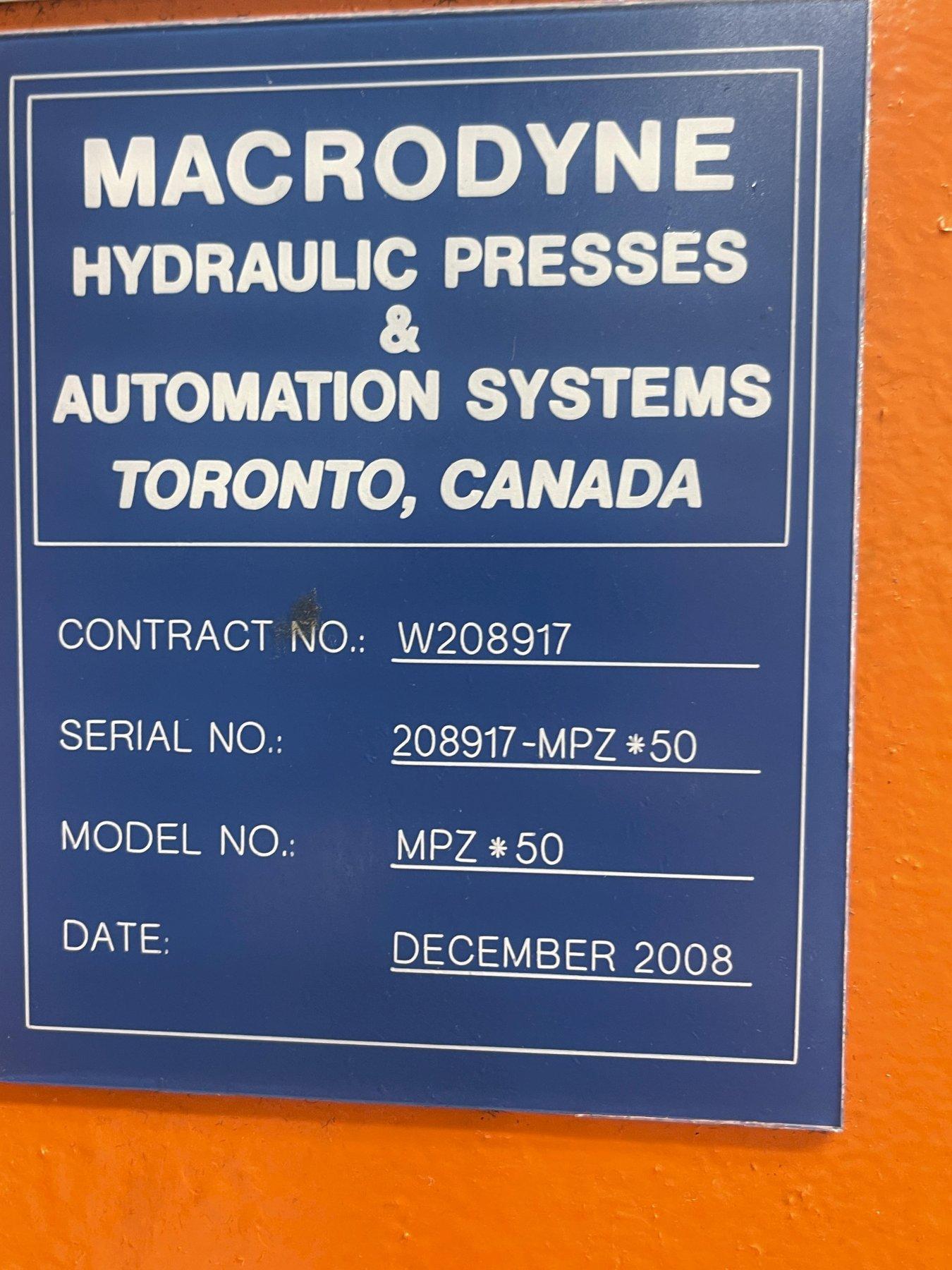

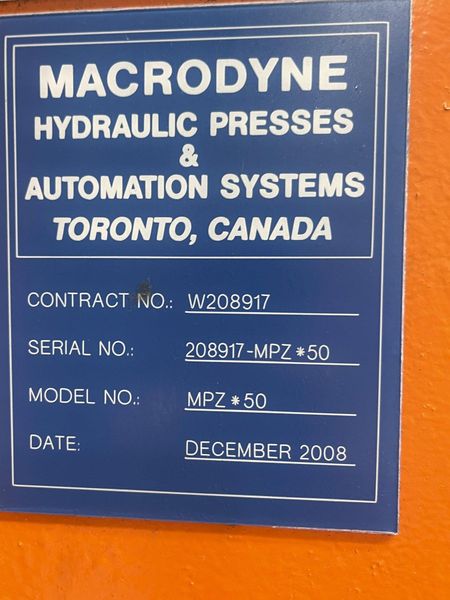

Serial Number / 208917
Year 2008
Pressing Force: 50 Ton
Maximum Return Force: 1.5 Ton
Usable Bed Size: 72"LR x 30" FB
Usable Slide Size: 72"LR x 30"FB
Distance Between Columns: 72"LR x 22"FB
Open Daylight: 36"
Closed Daylight: 16"
Stroke: 20"

Speeds:
Approach Speed: 19.5"@5.0"/Second = 3.90 Sec.
Pressing Speed: 0.5"@0.5"/Sec. = 1.00 Sec.
Return Speed: 20.0"@5.0"/Sec. = 4.00 Sec.
Shifting Time Etc. = 1.00 Sec.
Total Dry Cycle = 9.90 Sec.

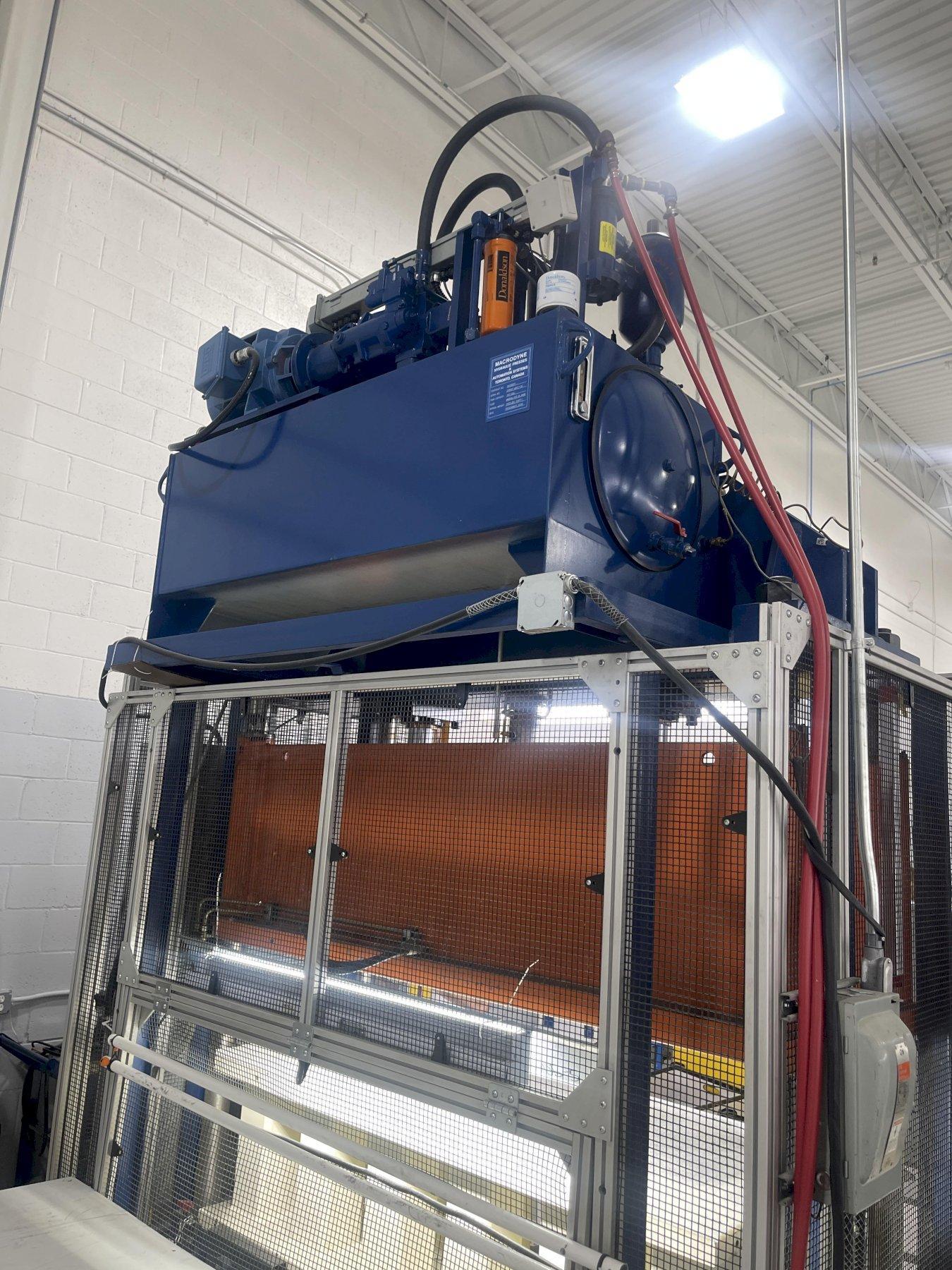

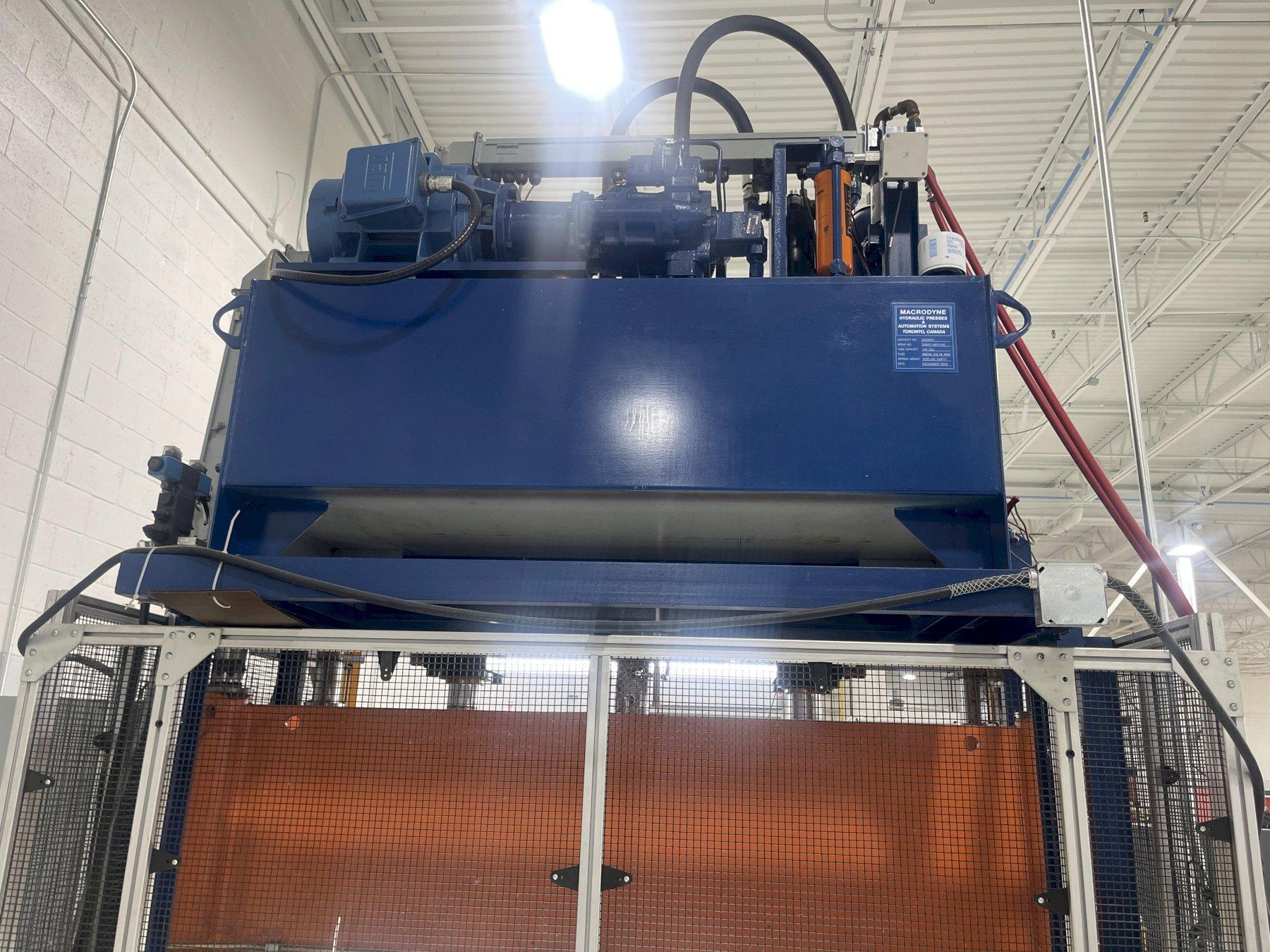

Hydraulic System Operating Pressure: 2,600 PSI

Controls: Allen Bradley w/Panelview 600

Control Features:
Programmable Pressing Speed
Slide Position and Monitoring via Position Transducer
Multi-Mode Capability
Programmable Dwells
Jog Function
Security Screen
Fault Diagnostics

Electrical: 480V/3PH/60Hz
Weight: 15,000 lbs. Approximate
Dimensions: 80" LR x 36" FB x 150" Tall (Max. Overall)

Can be seen under power upon request!

4-post Hydraulic Press For Sale, Macrodyne Hydraulic Press
