100 Ton Finn Power 100-3100, 122" O.A, Backgauge, Support Arms, Wila New Standard Power Ram Clamping, #43877

Manufacturer

FINN POWER

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43877

Model

E-Brake 100-3100

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43877

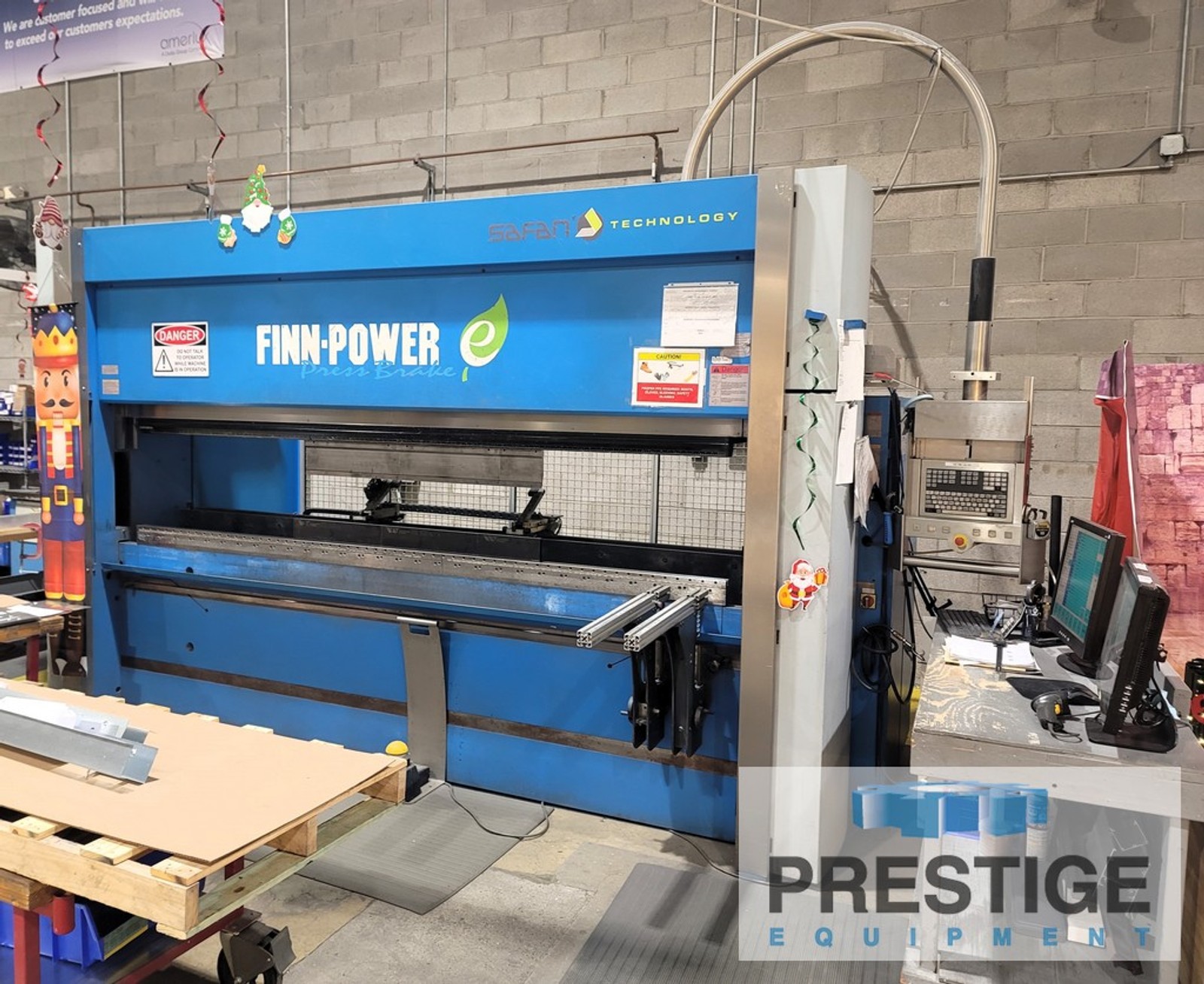

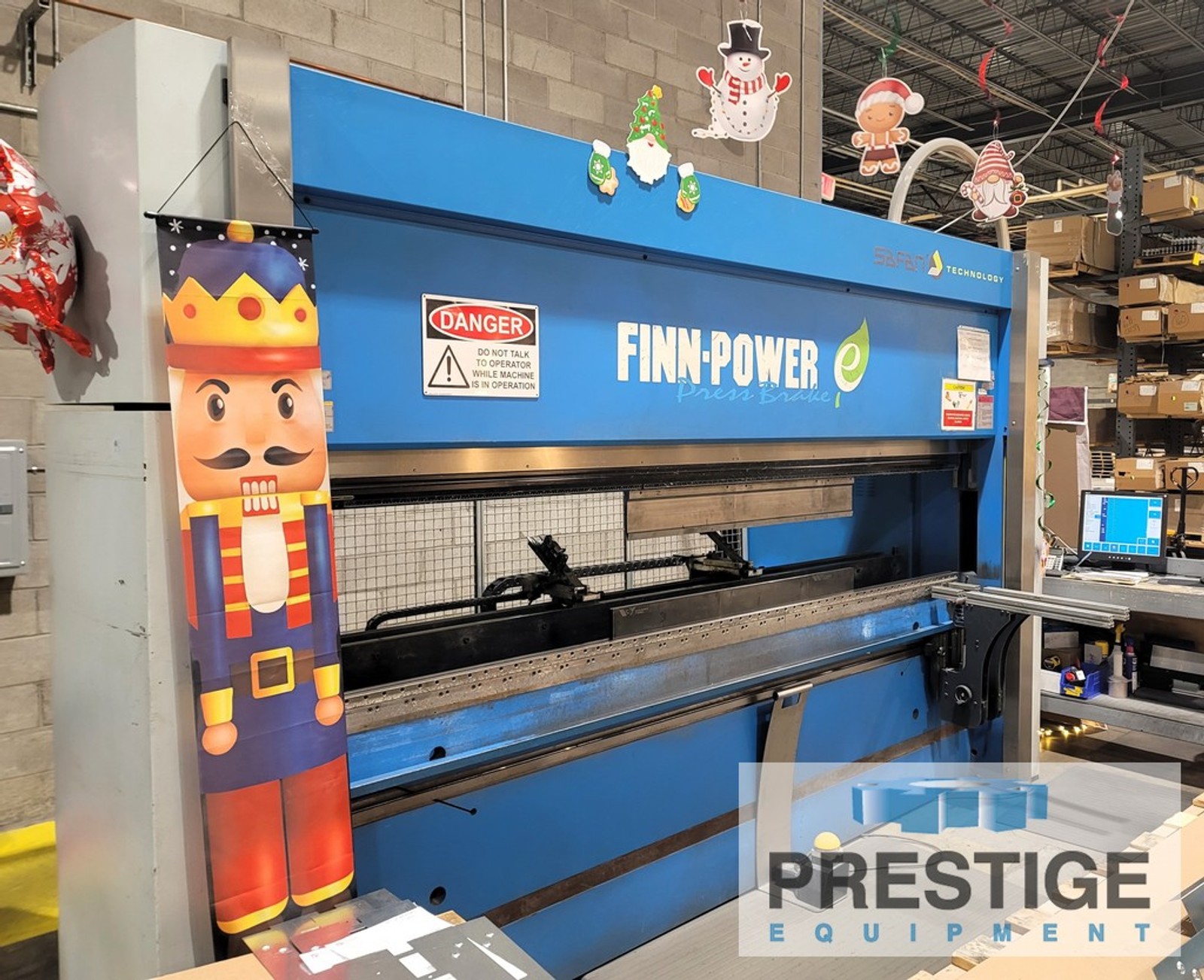

Finn Power E-Brake 100-3100 100 Ton CNC Electric Servo Press Brake

FEATURES:

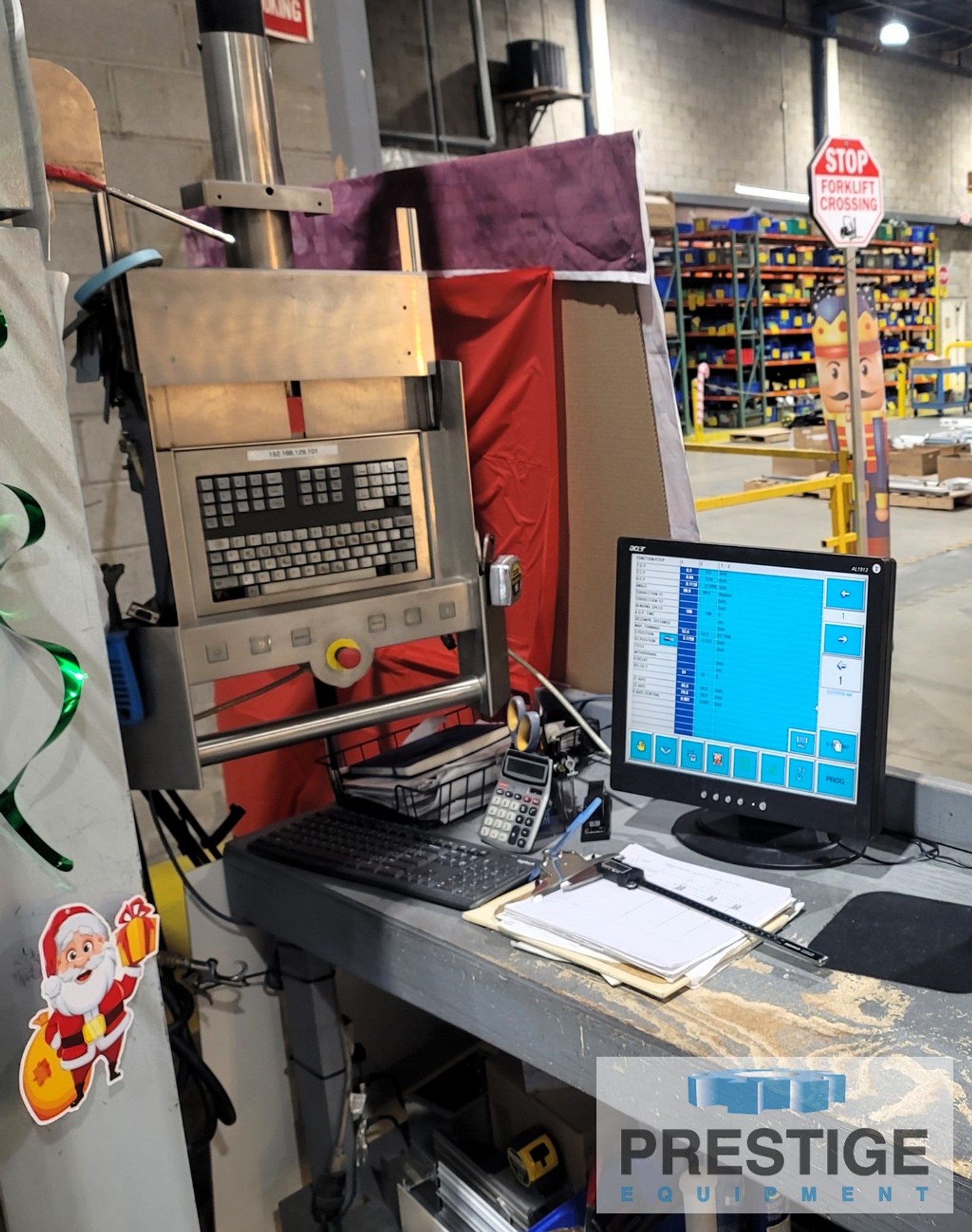

Finn Power TS 6-Axis CNC Control

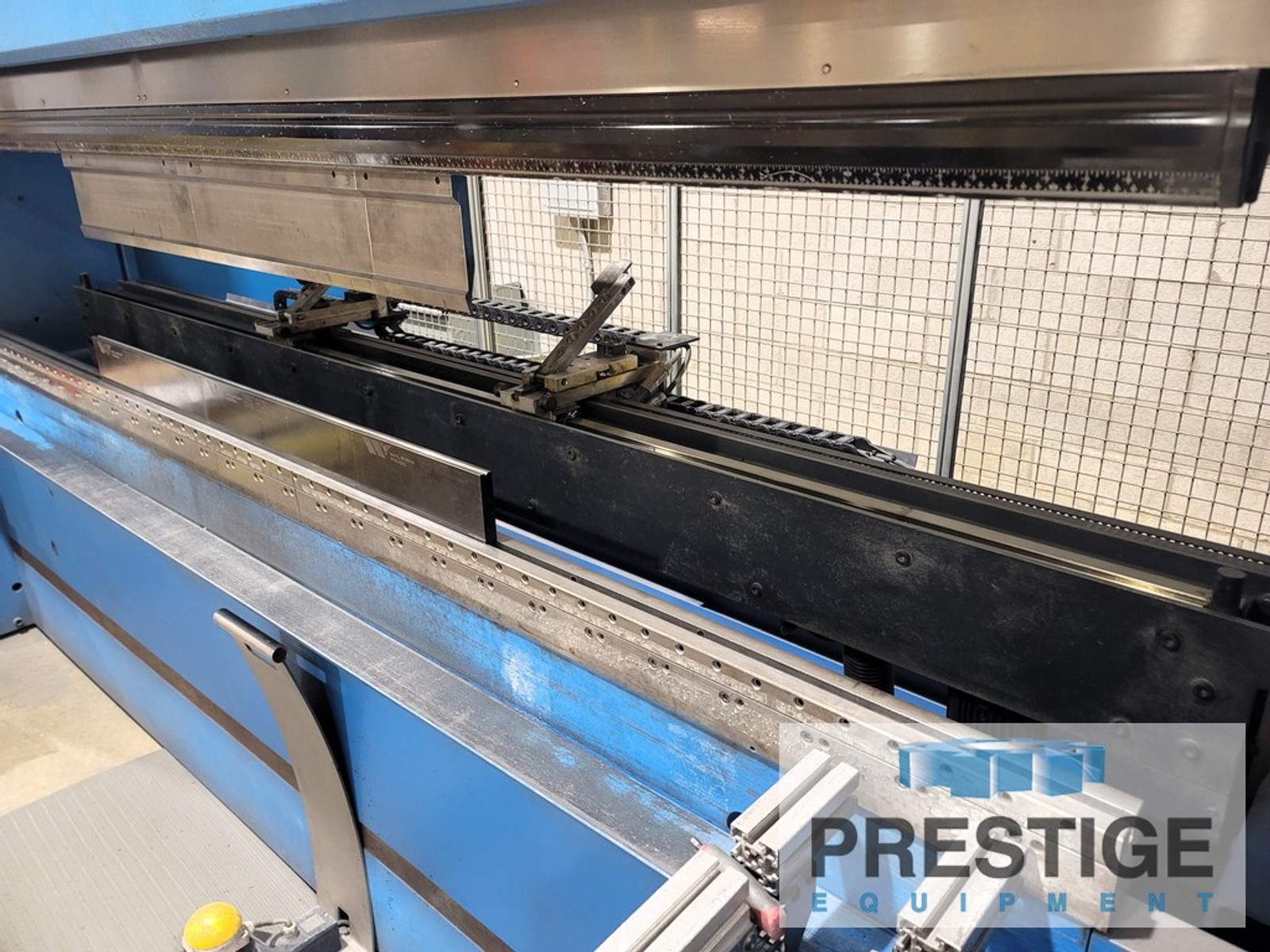

5-Axis Back Gauge X1,R,Z1,Z2,X2
Hydraulic Upper Clamping

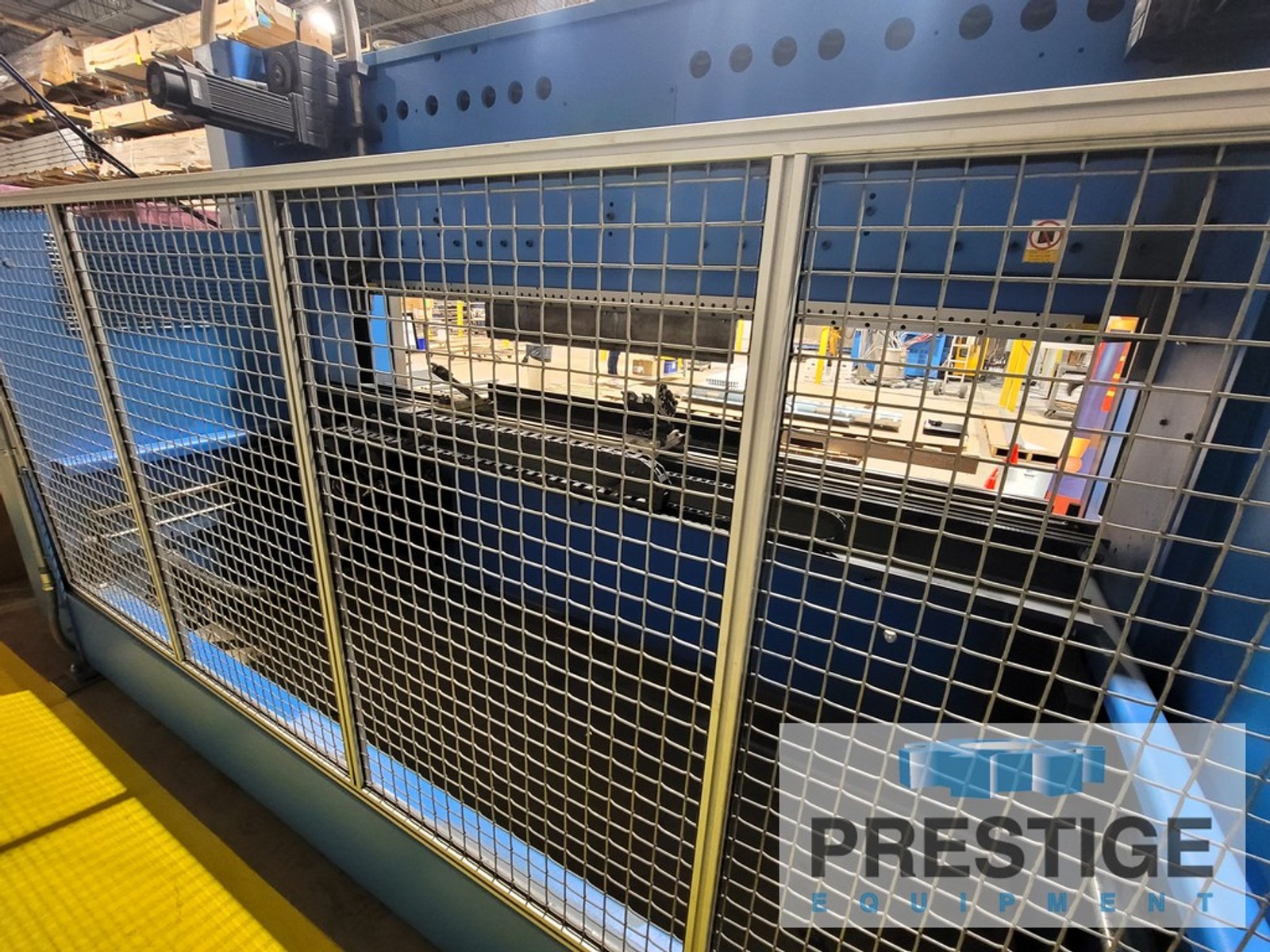

Safety Light Guard System
Assorted Wilson New Standard Tooling

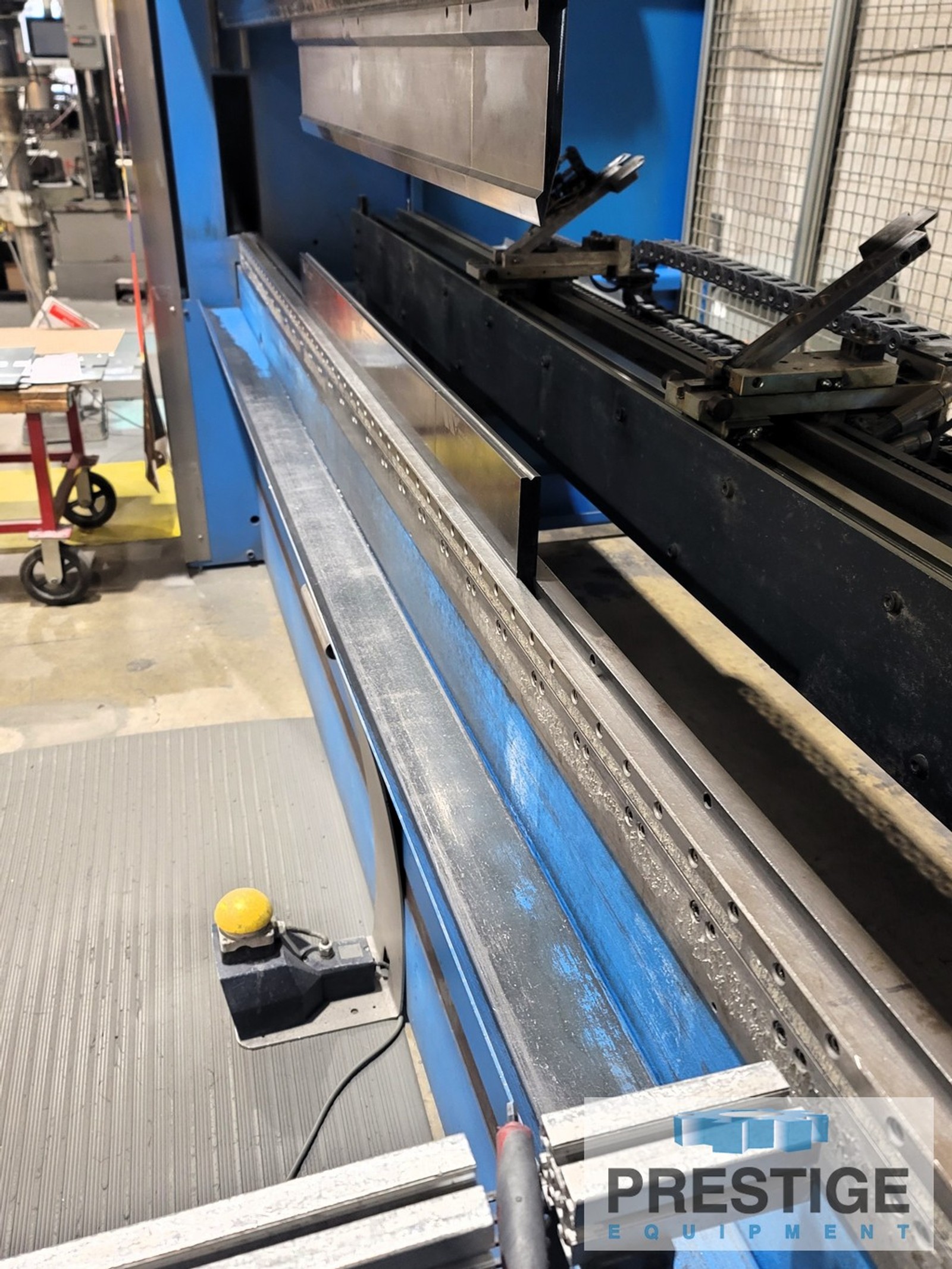

Foot Switch
(2) Front Support Arms

CAPACITY:
Maximum Tonnage ....................... 100 Ton
Bending Length ........................ 122.04"
Stroke Length ......................... 11.417"
Open Height ........ .................. 23.22"
Approach Speed Upper Beam ............. 3.14" IPS
Bending Speed Upper Beam .............. .393" IPS
Return Speed Upper Beam ............... 3.34" IPS
X-Axis Backgauge Travel ............... 21.65"
Maximum Back Gauge Speed .............. 13.77" IPS
Maximum Gauge Stop Depth .............. 39.4"

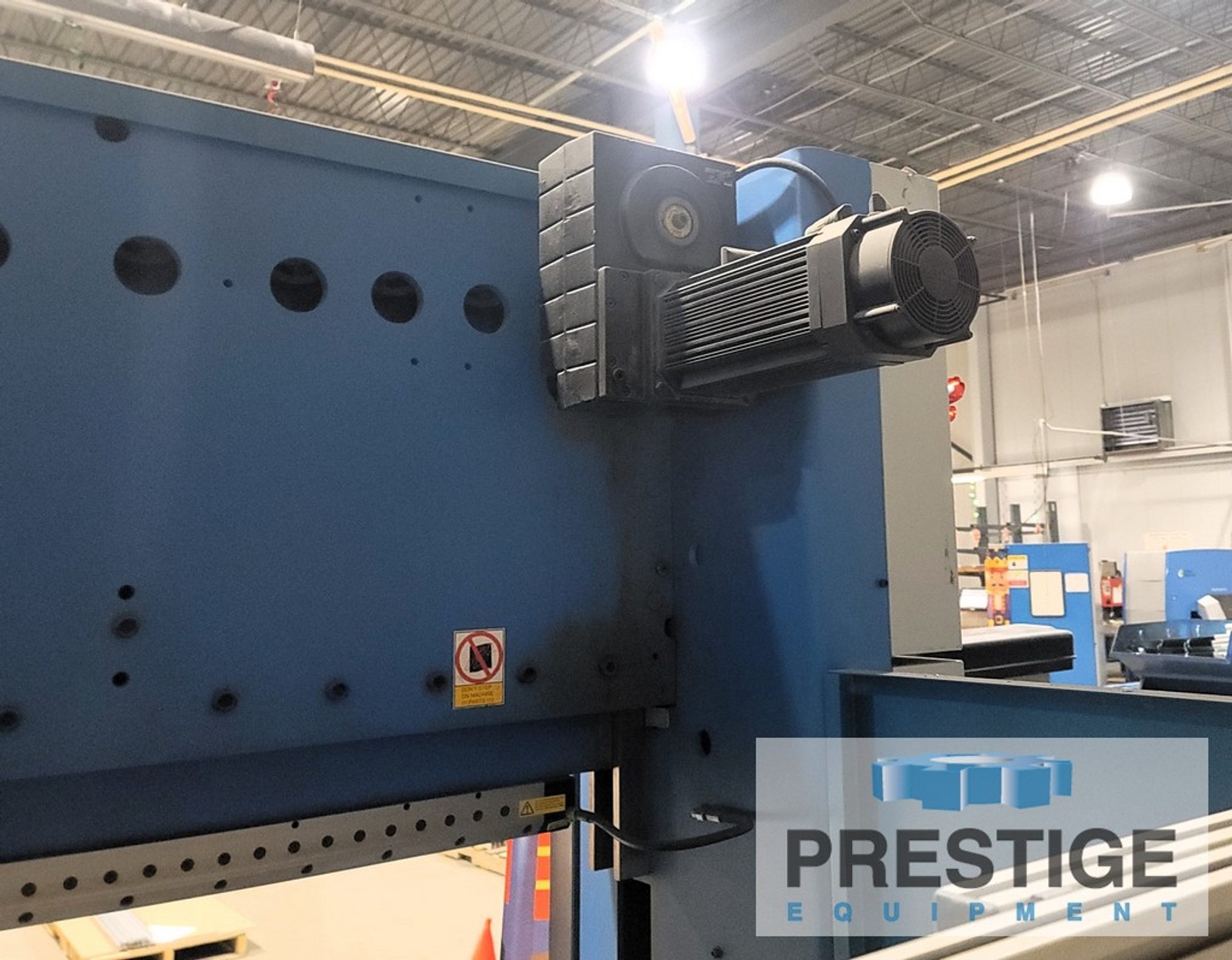

Motor ................................. 14 HP
Approximate Shipping Weight ........... 14,000 Lbs.

EQUIPPED WITH:
Finn Power TS 6-Axis CNC Control
5-Axis Back Gauge X1,R,Z1,Z2,X2
Hydraulic Upper Clamping
Safety Light Guard System
Assorted Wilson New Standard Tooling
Foot Switch
(2) Front Support Arms
