Droop & Rein TF2500, 5-Axis,X-216", Y-130", Z-60", 118" BC, 98" x 196" Tbl, 2-Axis CNC Head, Heidenhain 530, 2022 #43863

Manufacturer

DROOP & REIN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43863

Model

TF2500-SRC-30/15NW

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43863

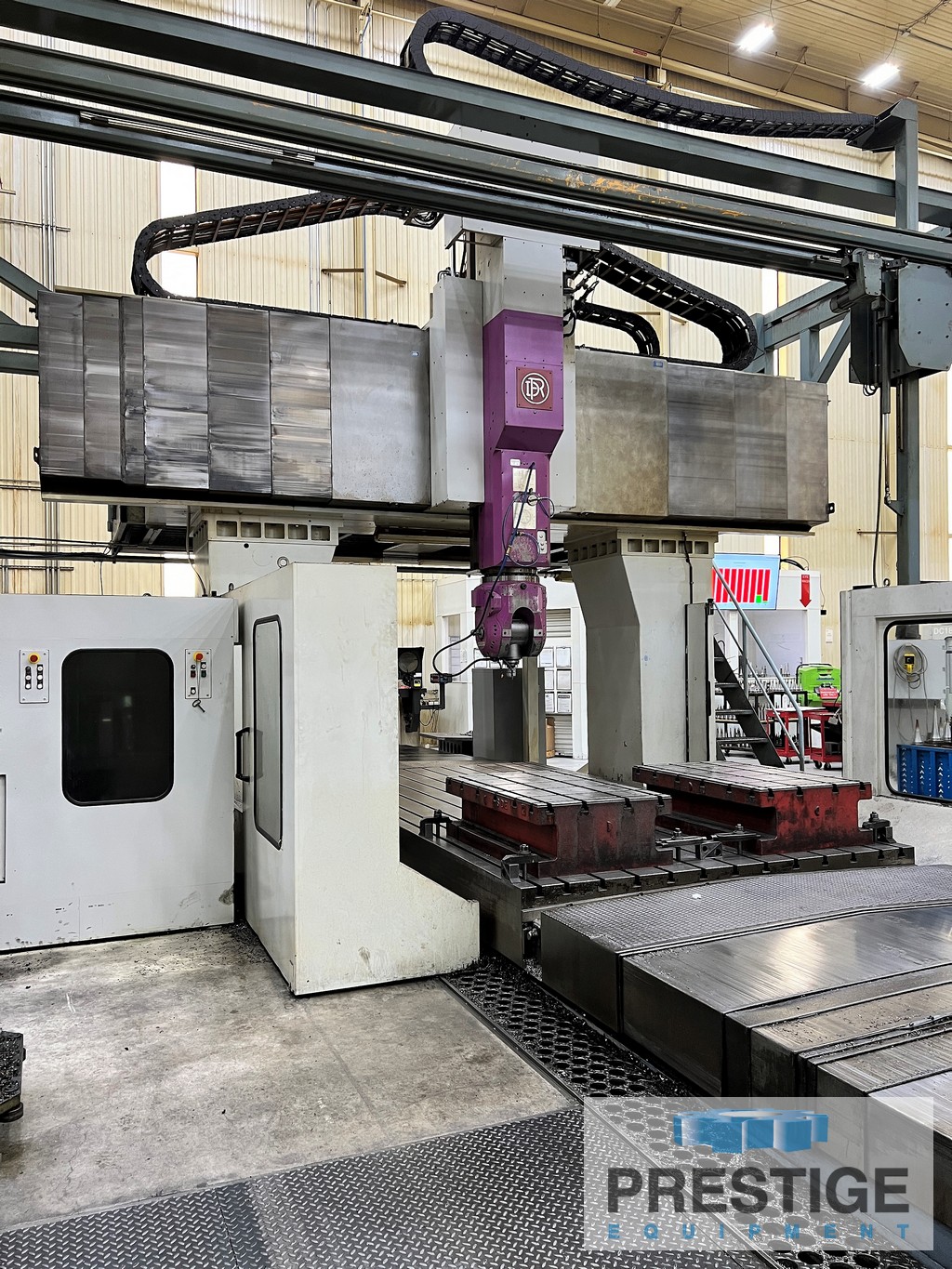

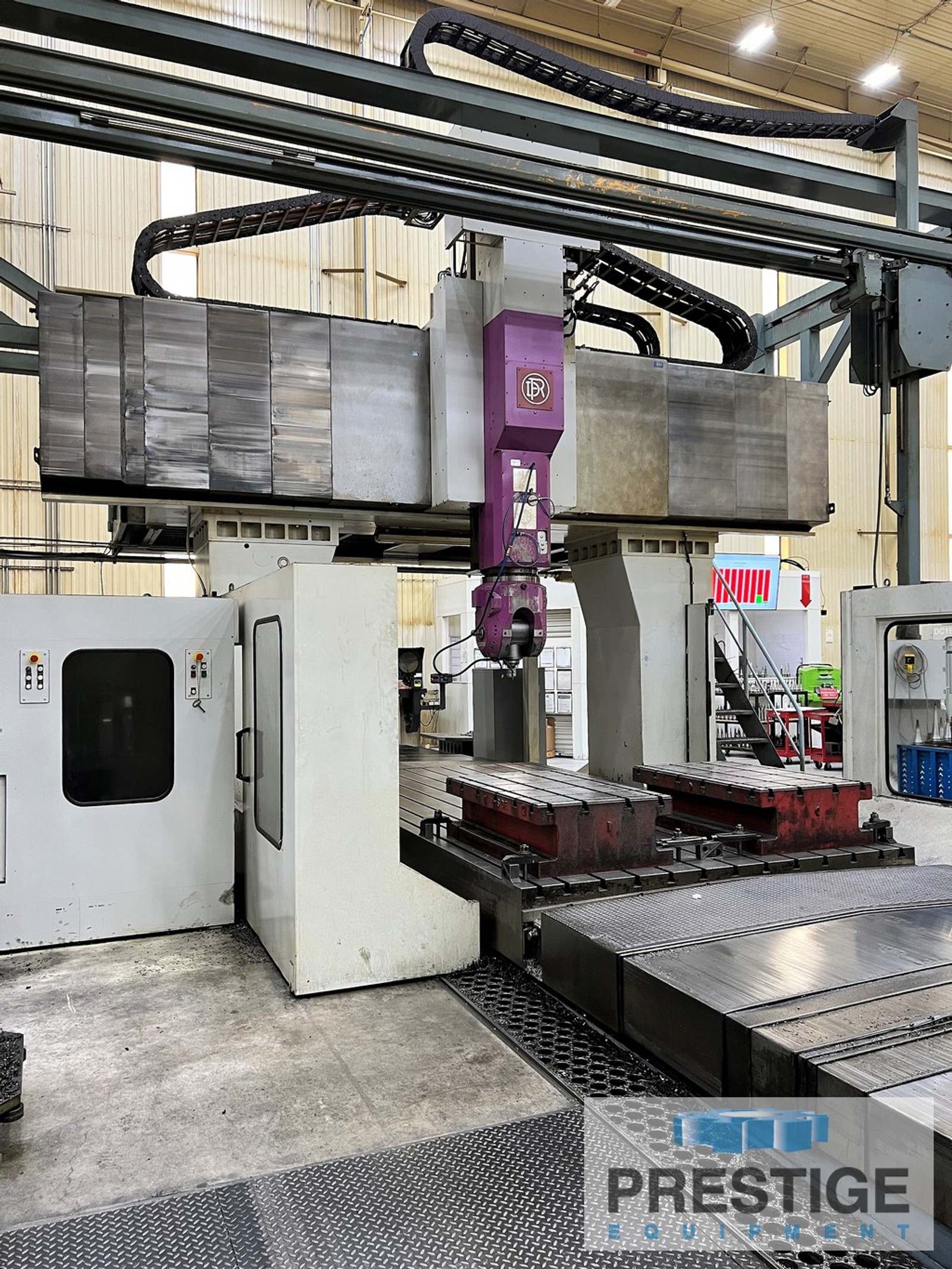

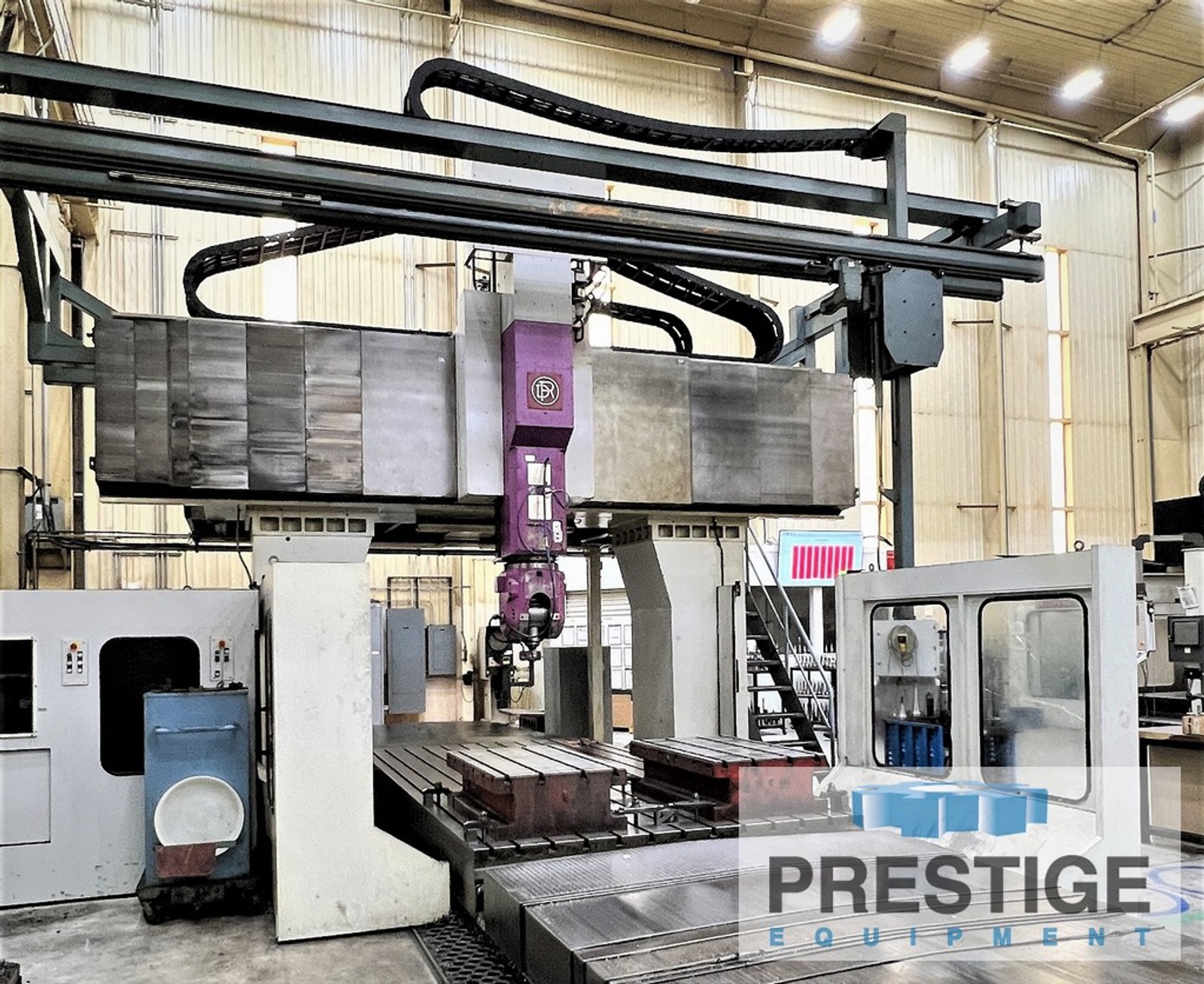

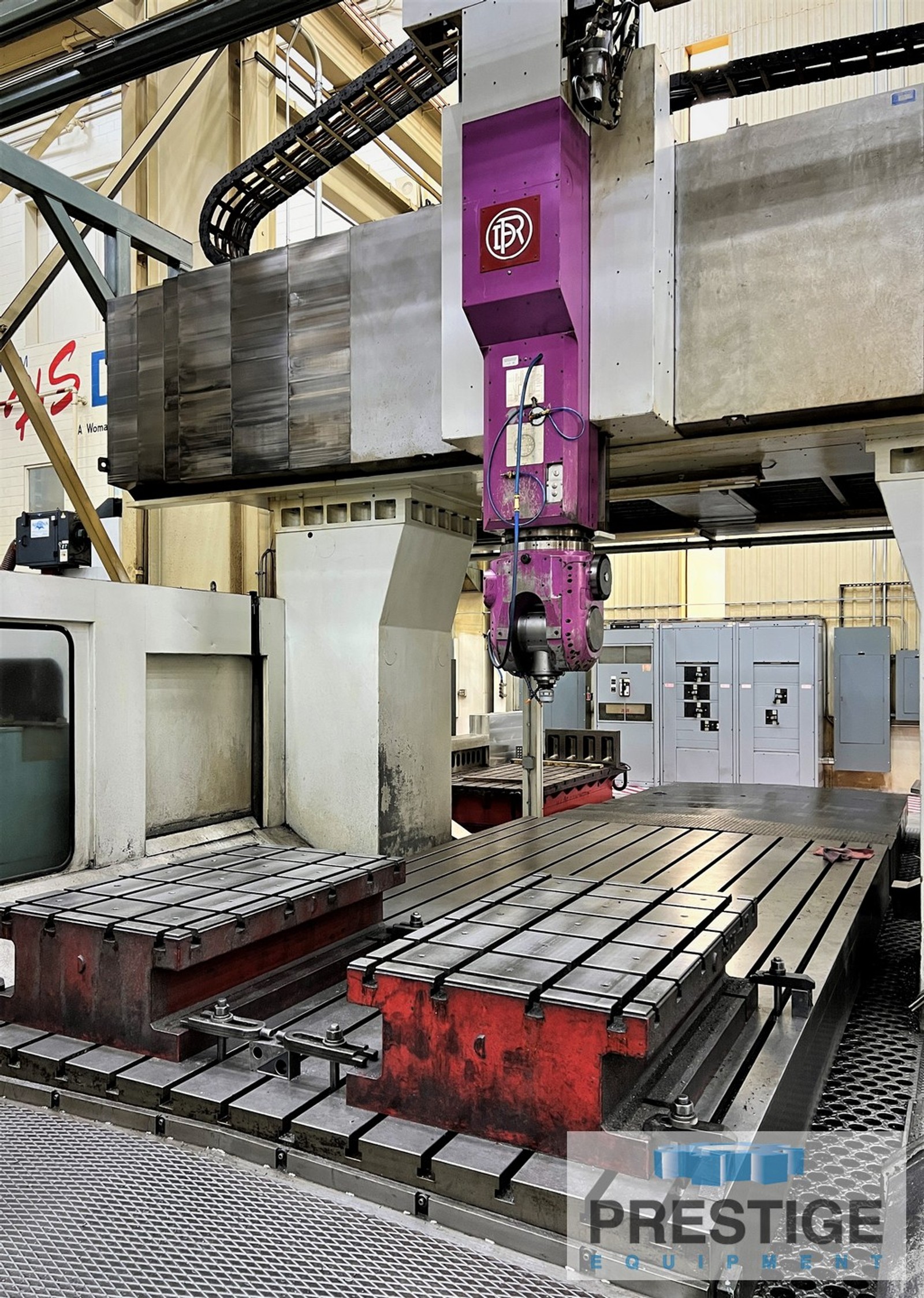

Droop & Rein TF2500-SRC-30/15NW 5-Axis CNC Double Column Bridge Mill

FEATURES:
Heidenhain iTNC 530 CNC Control (Upgraded 2022)

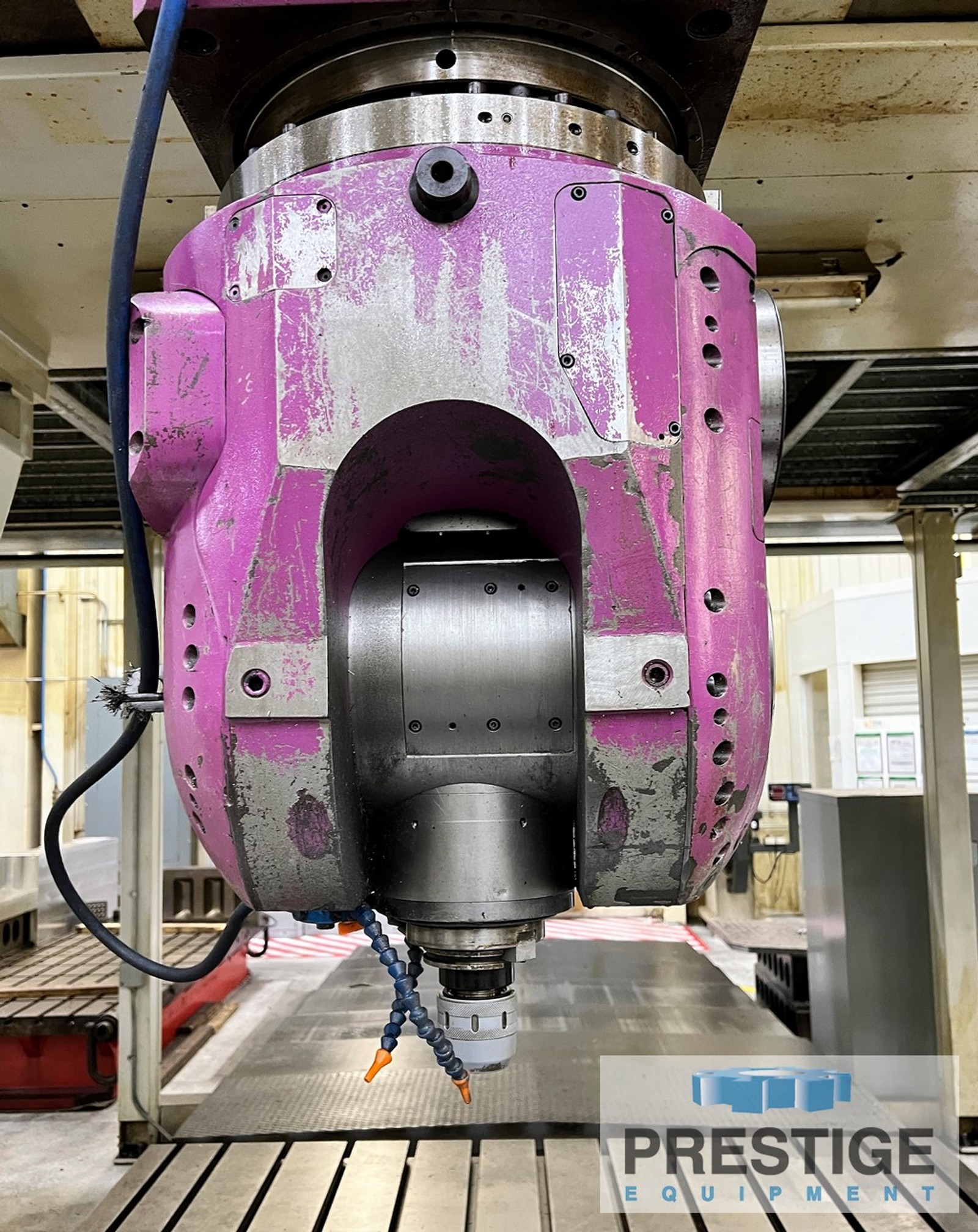

4,000 RPM Universal Head Attachment
6,000 RPM Straight Head Attachment
30-Station Automatic Tool Changer

SPECIFICATIONS:

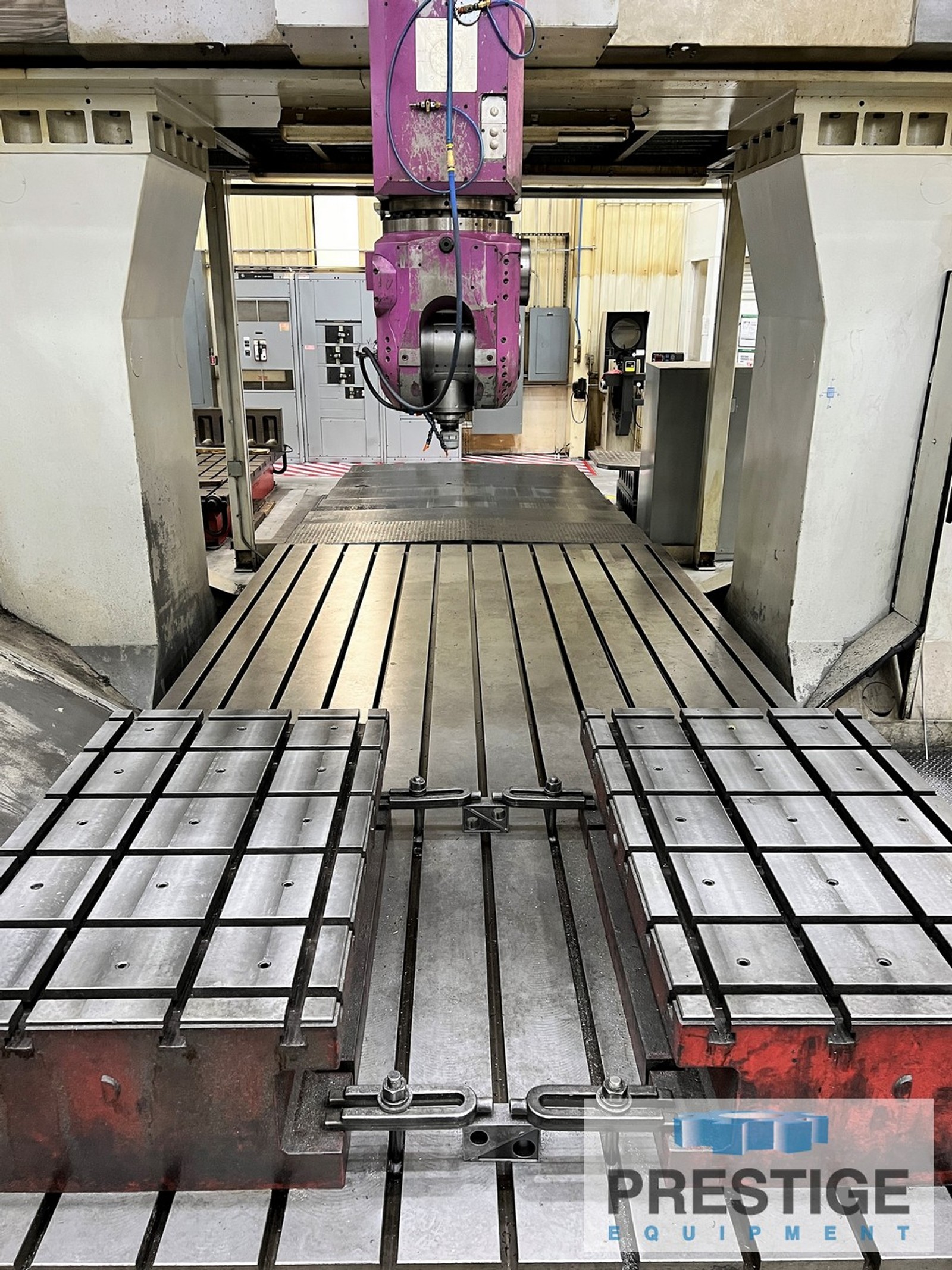

Table Dimensions ...................... 98.4" x 196.8"
Distance Between Columns .............. 118"
X-Axis Travel ......................... 216"
Y-Axis Travel ......................... 130"
Z-Axis Travel ......................... 60"
Height Under Rail ..................... 85.8"
Table Weight Capacity ................. 55,000 Lbs
Spindle Taper ......................... CAT 50
Main Motor ............................ 40 HP

EQUIPPED WITH:
Heidenhain iTNC 530 CNC Control (Upgraded 2022)
4,000 RPM Universal Head Attachment
6,000 RPM Straight Head Attachment
30-Station Automatic Tool Changer

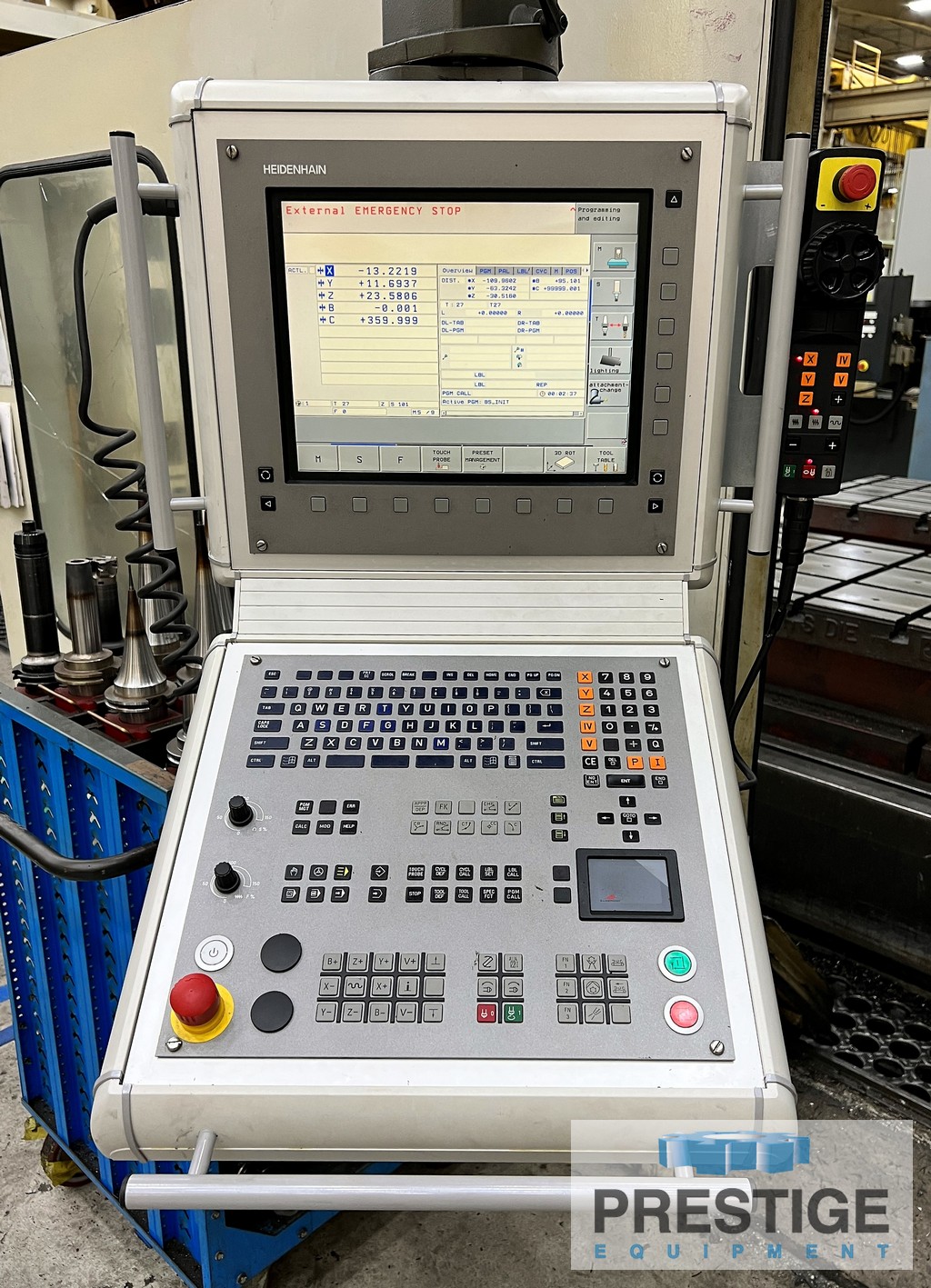

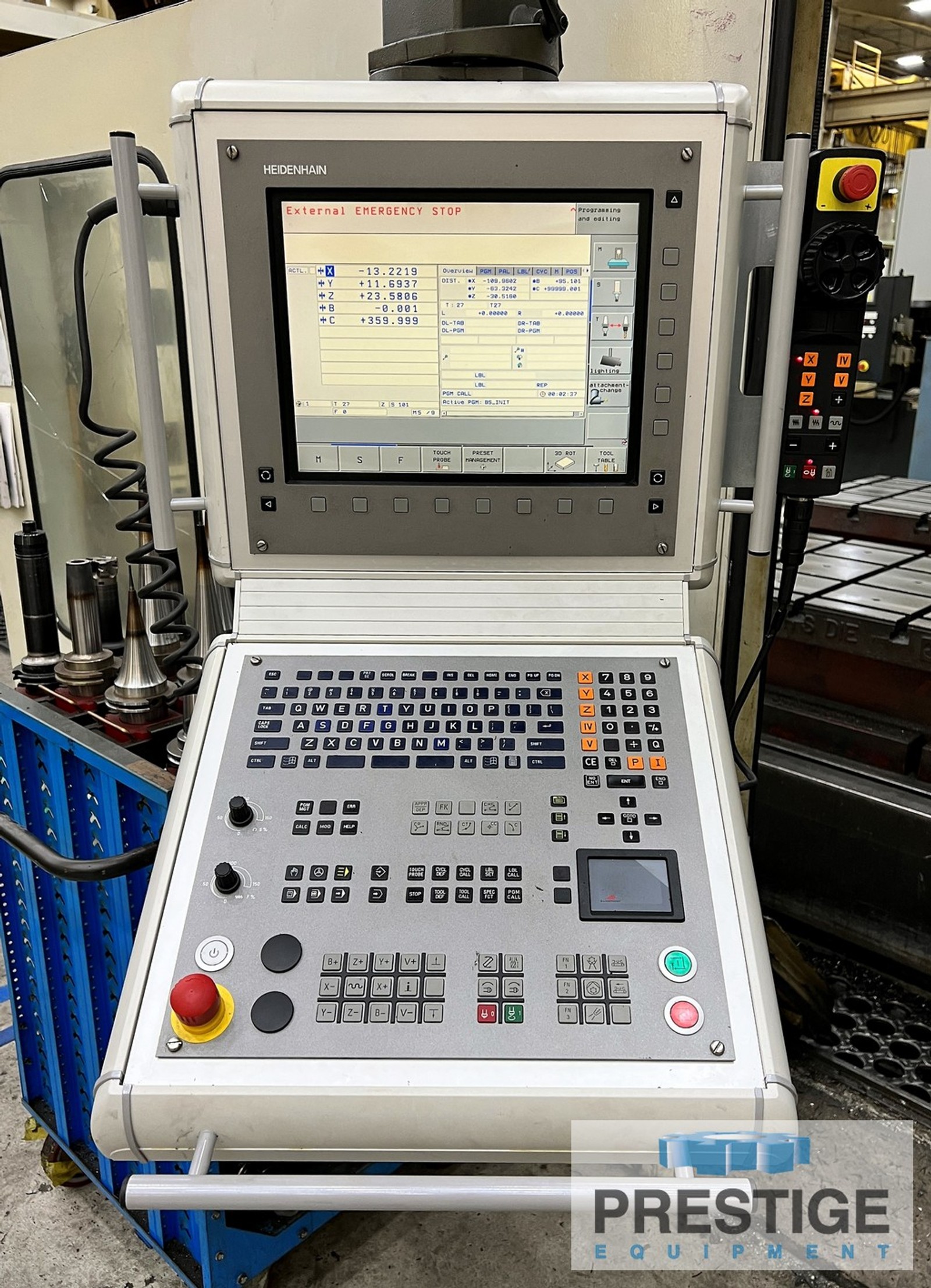

Operator Control Console

Note:
(2) Set-Up Tables are not Included. Originally Mfg In 1995 and Upgraded in 2022 with new CNC Controls. Recently in Operation in High Precision Mold Making Facility.
