Tsugami B0325-II, 1.26" Working Dia., 12.6" Work Length, 31 Tools, 8k RPM Main/Back Spdle, Fanuc 0i-TD CNC, 2012, #43727

Manufacturer

TSUGAMI

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

43727

Model

B0325-II

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43727

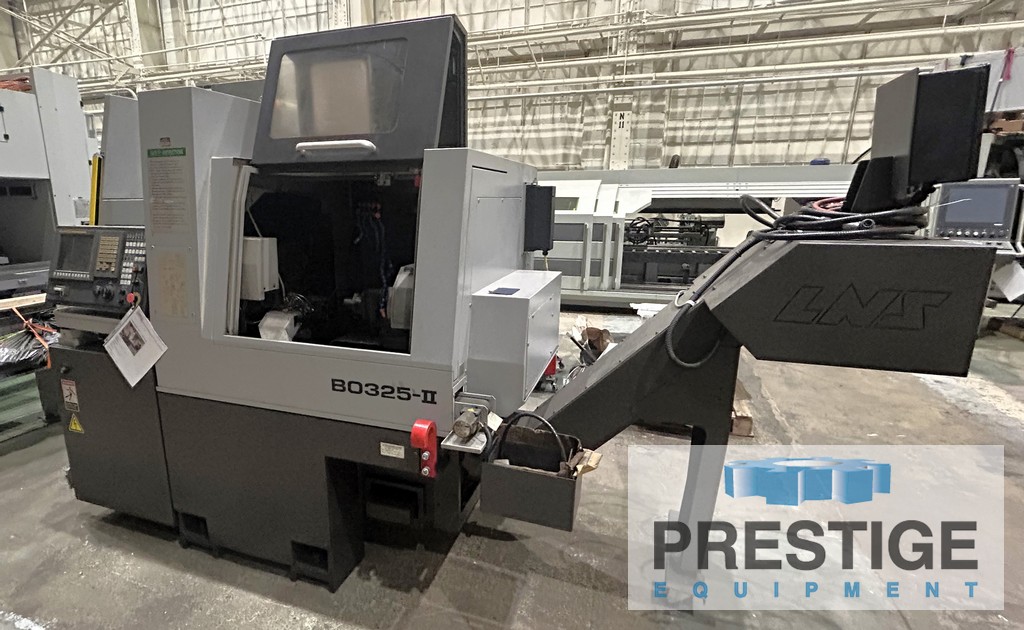

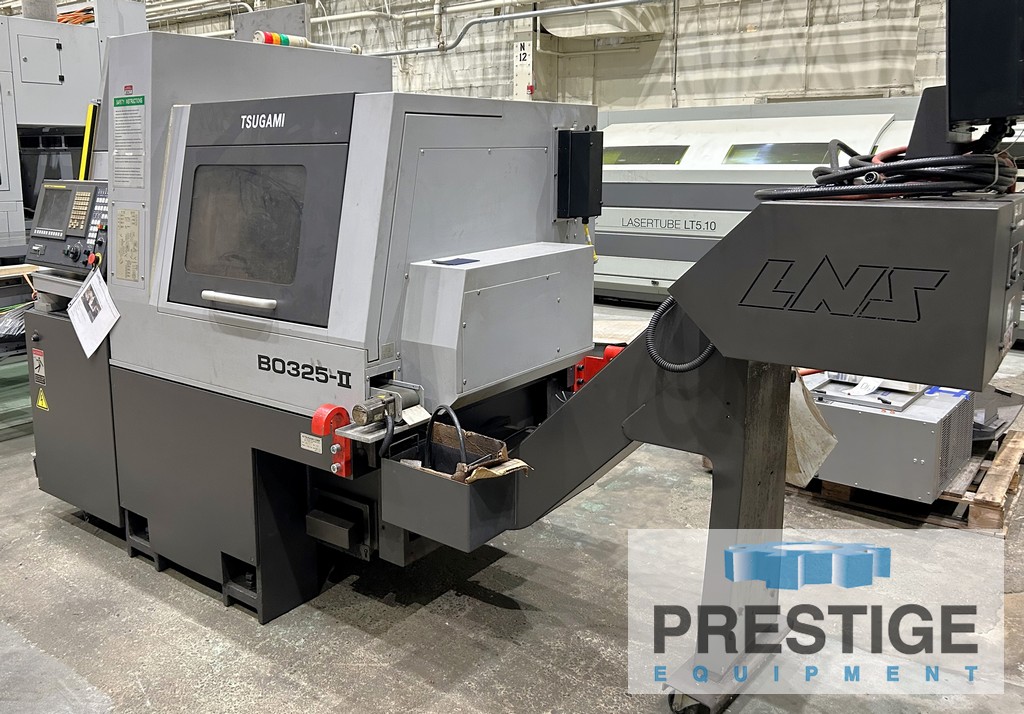

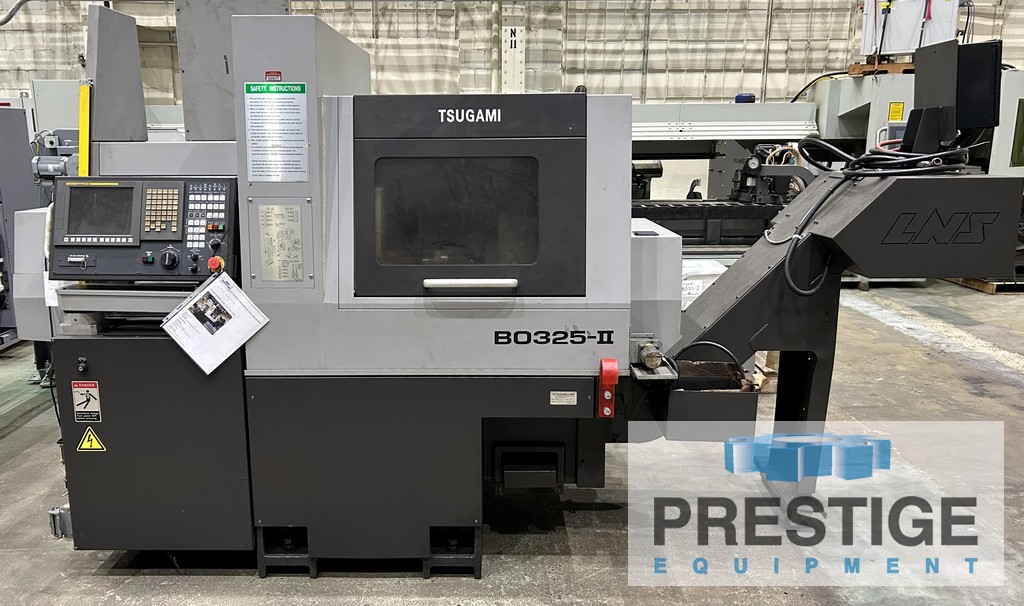

Tsugami B0325-II Swiss Type CNC Lathe

FEATURES:

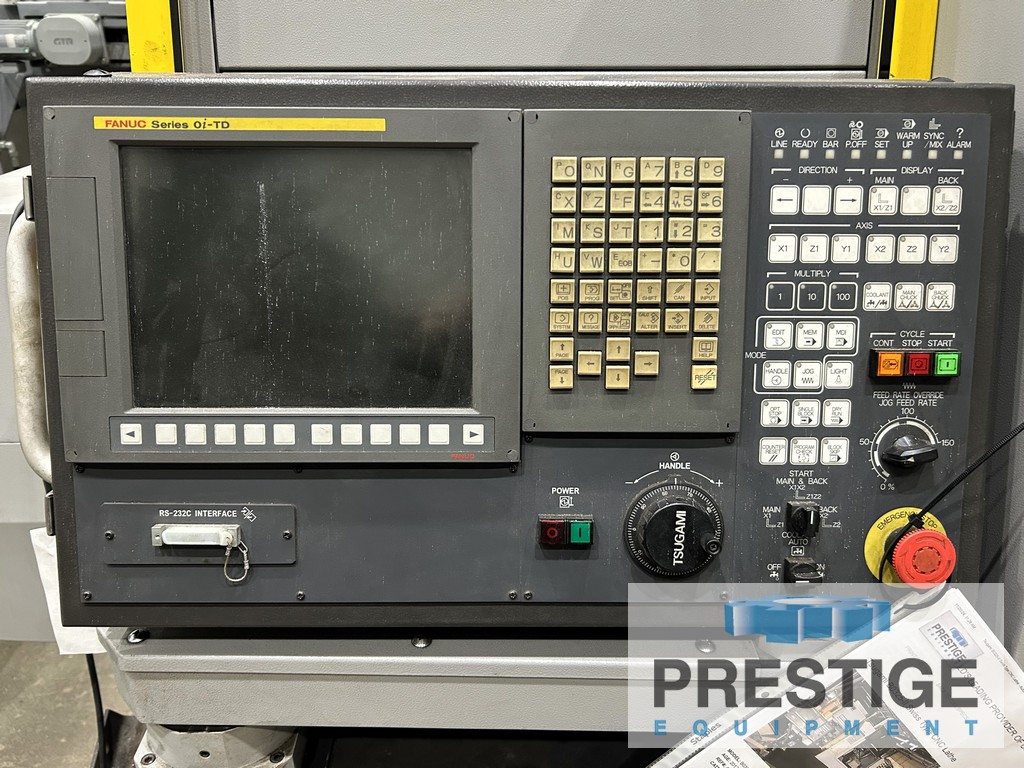

Fanuc 0i-TD CNC Control
MP Systems High Pressure Coolant System
Mist Buster
Assorted Tooling

SPECIFICATION:
Maximum Working Diameter .............. 1.26"
Maximum Working Length ................ 12.6"
Maximum Number of Tools ............... 31
Tool Dimensions, Square ............... .625 x 3.94"
Tool Dimensions, Round ................ .98"
Main Spindle Speed .................... 200 - 8000 RPM
Back Spindle Speed .................... 200 - 8000 RPM
Max Bar Stock Diameter ................ 1.26"
Max. Main Spindle Drilling Diameter ... .39"
Max. Main Spindle Tapping Diameter .... M10
Max. Back Spindle Chucking Diameter ... 1.26"
Max. Back Spindle Drilling Diameter ... .39"
Max. Back Spindle Tapping Diameter .... M8
Max. Tool Spindle Drilling Diameter ... .39"
Max. Tool Spindle Slotting Diameter ... 1.77"
Cutting Feed Rate ..................... 1 - 236 IPM
Rapid Traverse Rate ................... 1259 IPM
Rapid Traverse Rate, X1/Y1/Y2 ......... 787 IPM
Approximate Machine Dimensions ........ 85" x 51" x 76"

EQUIPPED WITH:
Fanuc 0i-TD CNC Control
MP Systems High Pressure Coolant System
Mist Buster
Assorted Tooling
Chip Conveyor
