64" x 472" TruTurn, 2-Carriages, 49" Over C/S, Inch/Metric Threading, 55" 4-Jaw, SR, FR, 40 HP, 2025 #43247

Manufacturer

TRU TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

43247

Model

CW61160H x 12M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43247

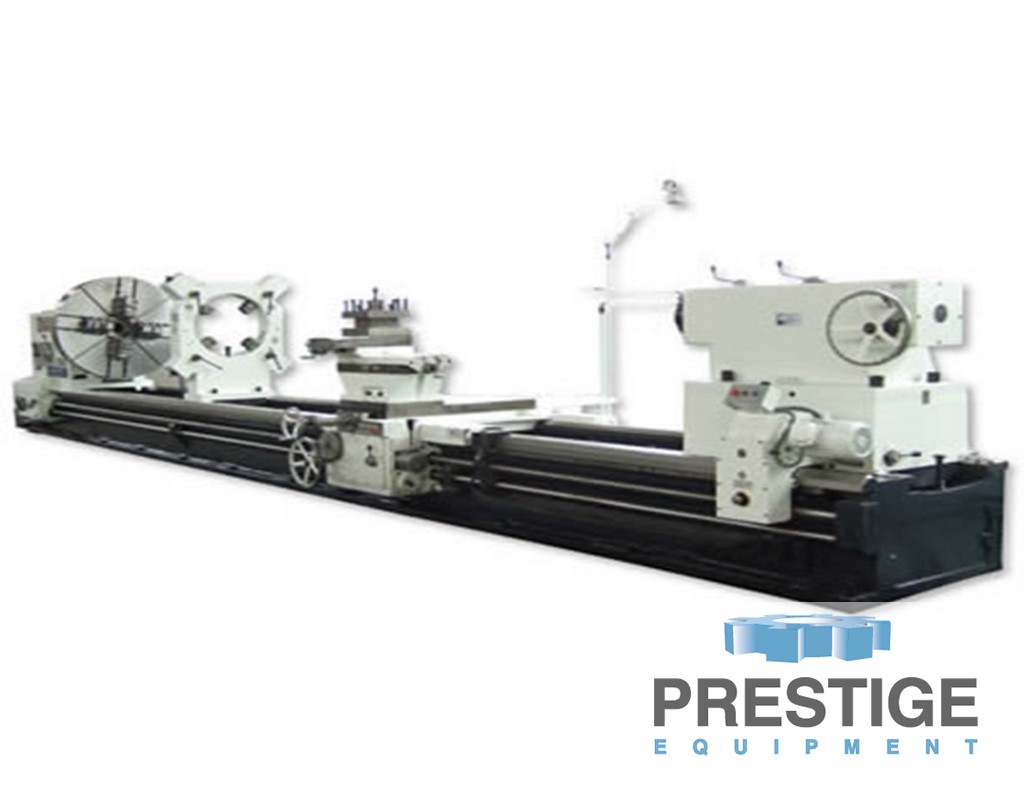

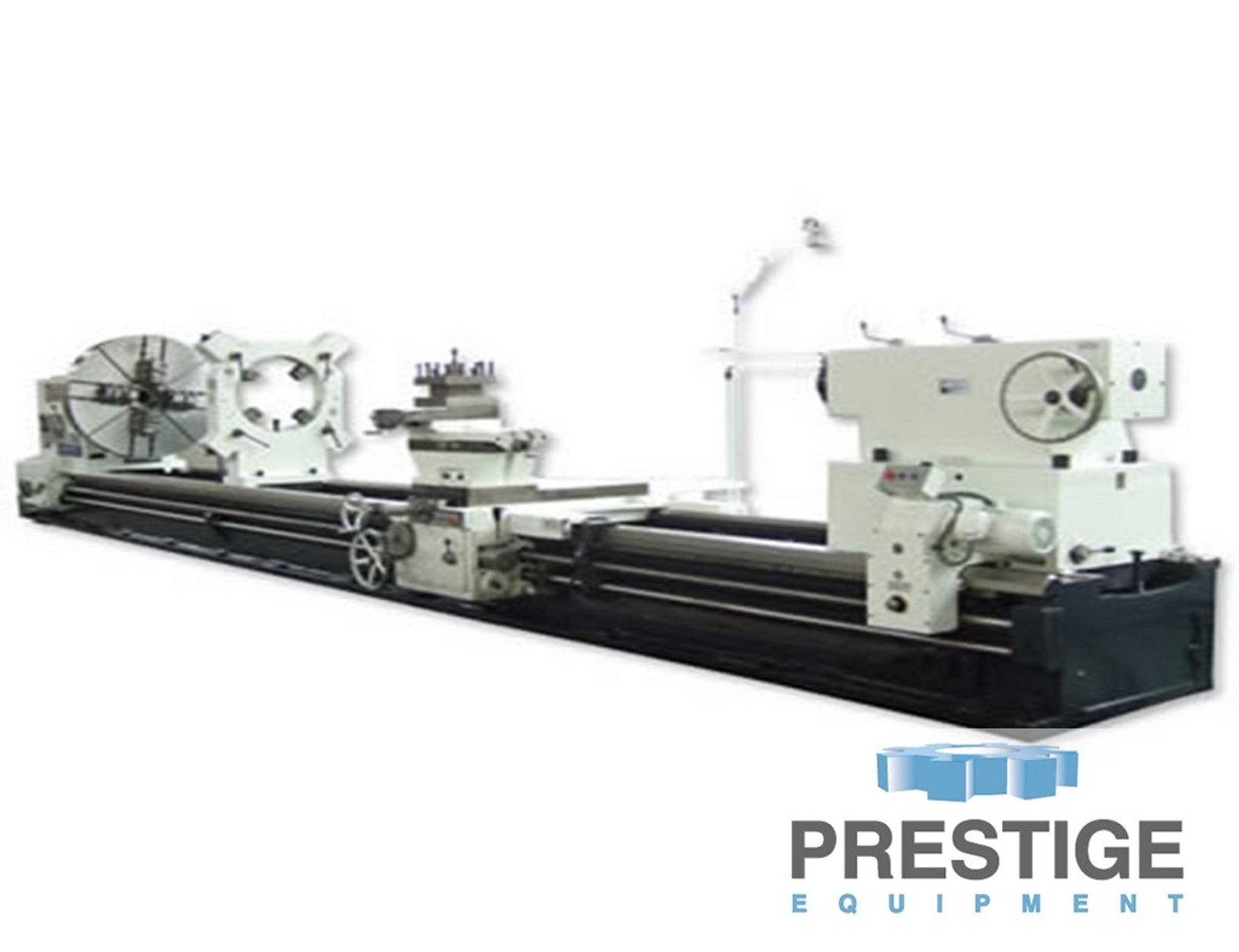

TruTurn CW61160H 64" x 472" Manual Lathe w/2-Carriages

FEATURES:
Twin Carriages w/ Tool Post
55.18” (1400 mm) 4-Jaw Chuck
Work Light
Motorized Tailstock
Coolant System
NSK Bearing in Headstock & Tailstock
Foundation Bolts & Levelers

SPECIFICATIONS:
Swing Over Bed ....................... 64.56"
Swing Over Cross Slide ............... 49.21"
Width of Guide Way ................... 43.30"
Distance Between Centers ............. 472.44"
Spindle Hole ......................... 5.12"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Tailstock Diameter ................... 11.02”
Tailstock Travel ..................... 11.81"
Tailstock Taper ...................... Metric No 140
Weight Capacity Between Centers ...... 20,000 kg

EQUIPPED WITH:
Twin Carriages w/ Tool Post
55.81"(1400mm) 4- Jaw Chuck
Inch & Metric Threading
Center Sleeve
Work Light
Motorized Tailstock
Coolant system
Foundation Bolts & Levelers
40 HP Motor

AVAILABLE OPTIONS [AT ADDITIONAL COST]:
Center Sleeve
350-800 mm Roller Support (Open Steady Rest)
120-480 mm Steady Rest
400-700 mm Steady Rest
Follow Rest
Taper Turning Attachment


Delivery:
Six (6) Months From Date of Order [Estimated]
FOB Philadelphia, PA Warehouse
