22 Ton Amada Vipros 255, 50" x 50" travel, (31) Station, (2) Auto Index, Brush Table, #44028

Manufacturer

AMADA

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

44028

Model

Vipros 255

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44028

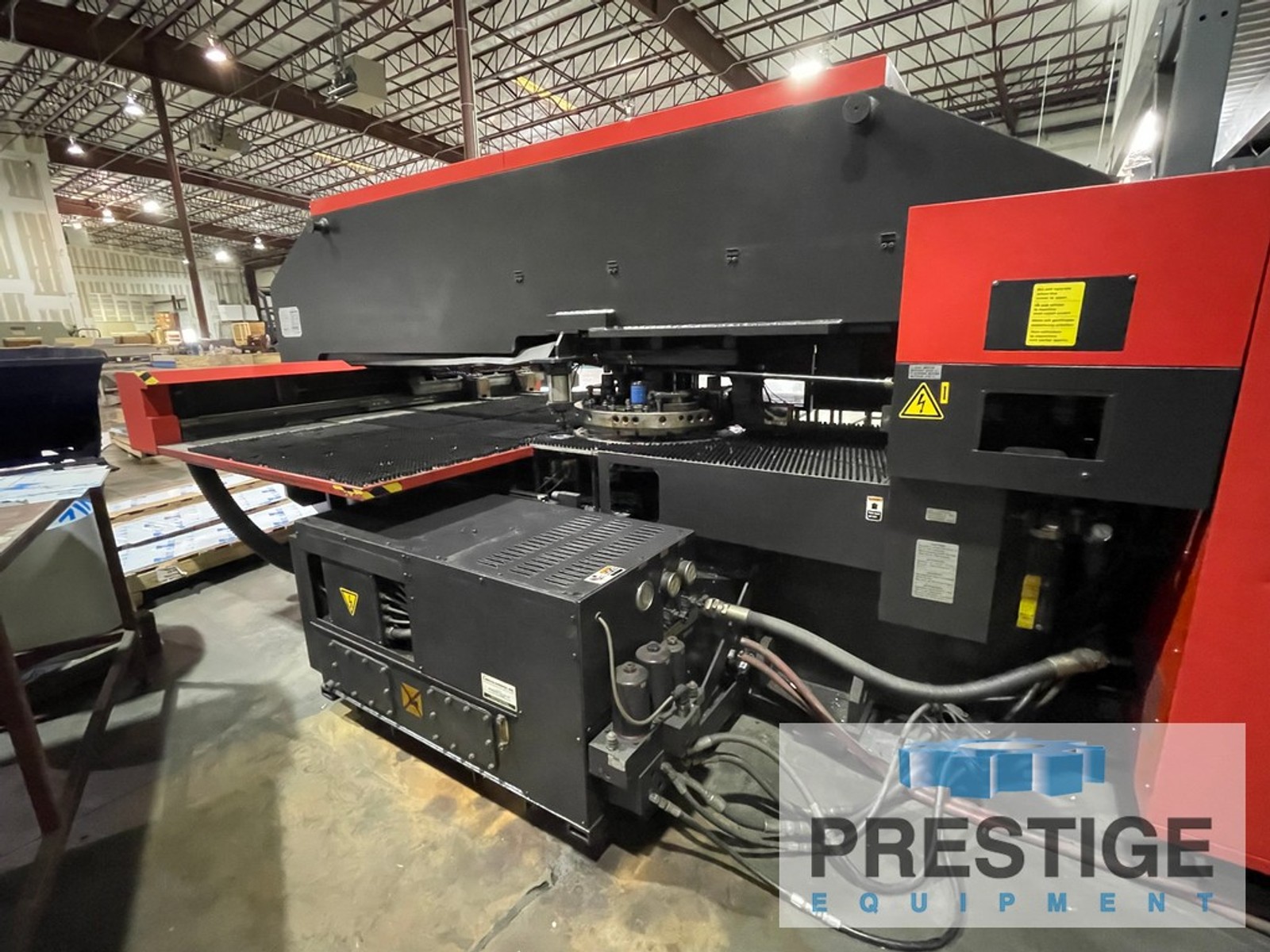

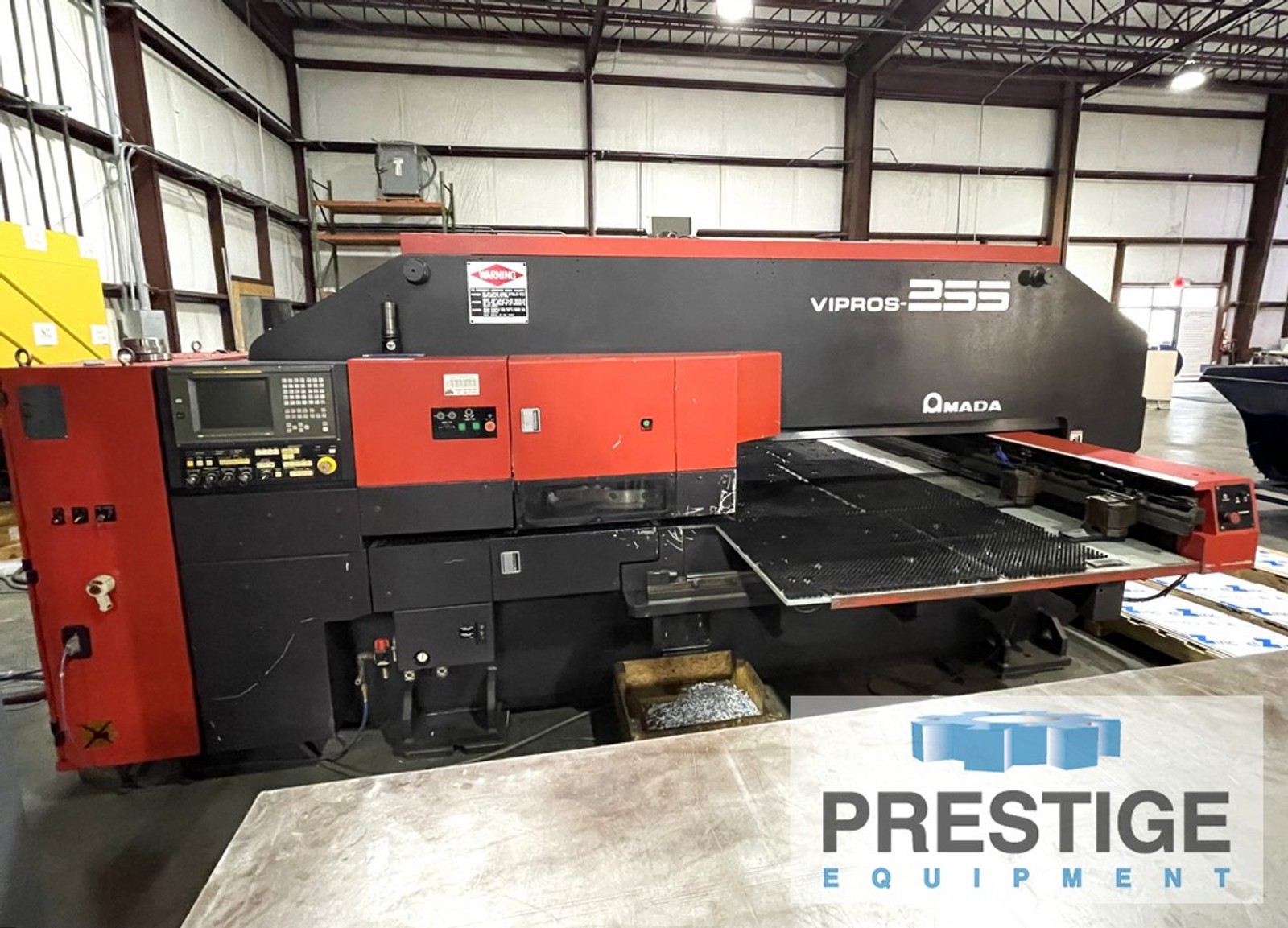

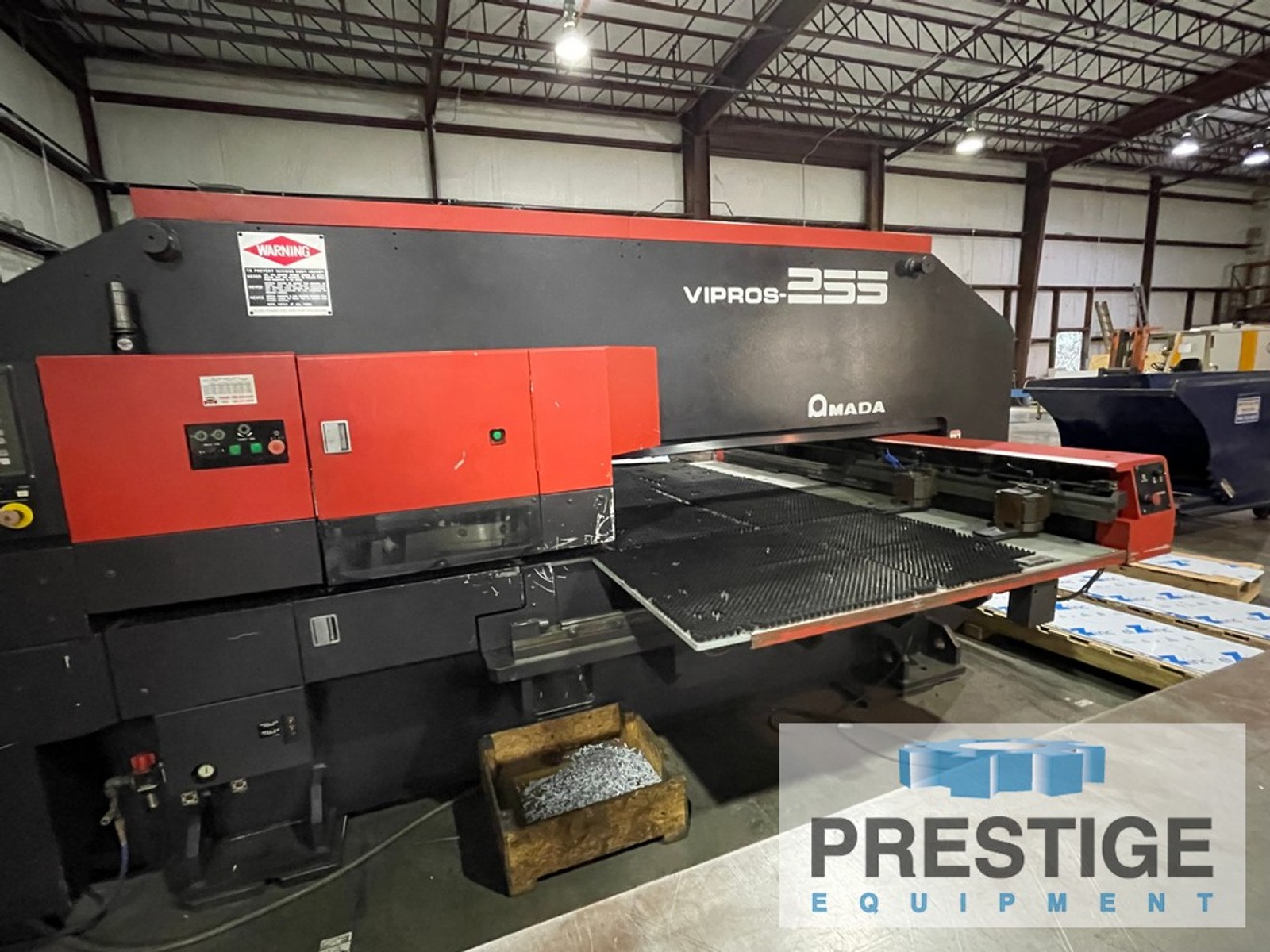

Amada Vipros 255 CNC Turret Punch Press

FEATURES:
Fanuc 18P CNC Control

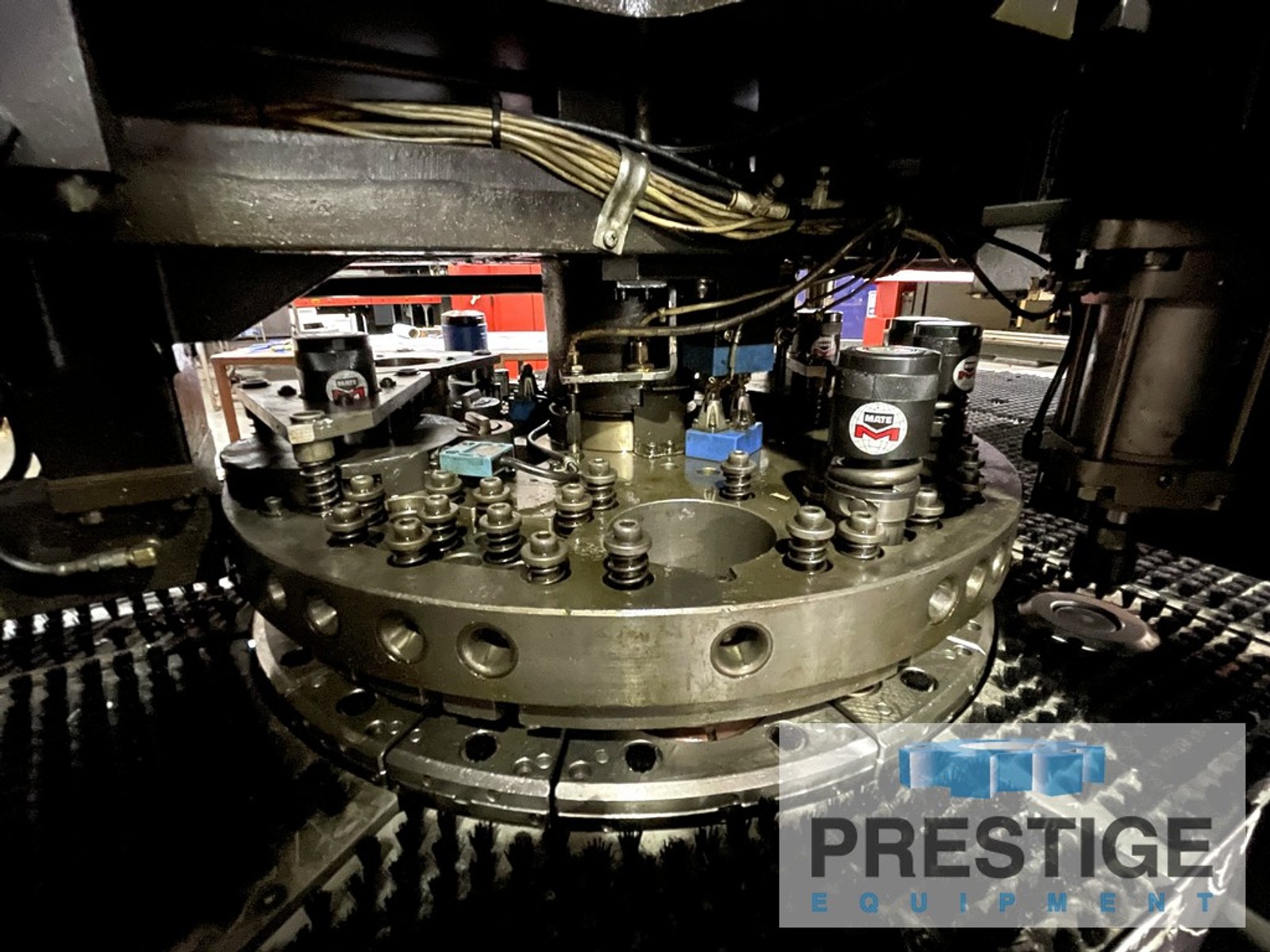

31 Station Thick Turret
Brush Table
(2) Auto Index Stations
Automatic Sheet Repositioning
Servo Controlled Hydraulic Ram

CAPACITY:
Tonnage Capacity ............................ 22 Tons
Table Travel ................................ 50" x 50"
Maximum Sheet Thickness ..................... 1/4"
Maximum Strokes Per Minute .................. 1000
Hits/Minute On 1" Moves ..................... 340
Linear Positioning Speed .................... 3,229 IPM
Weight ...................................... 19,600 Lbs.

EQUIPPED WITH:
Fanuc 18P CNC Control
31 Station Thick Turret
Brush Table
(2) Auto Index Stations
Automatic Sheet Repositioning
Servo Controlled Hydraulic Ram

Note:
Inspect Under Power in Plant

No Video Available
