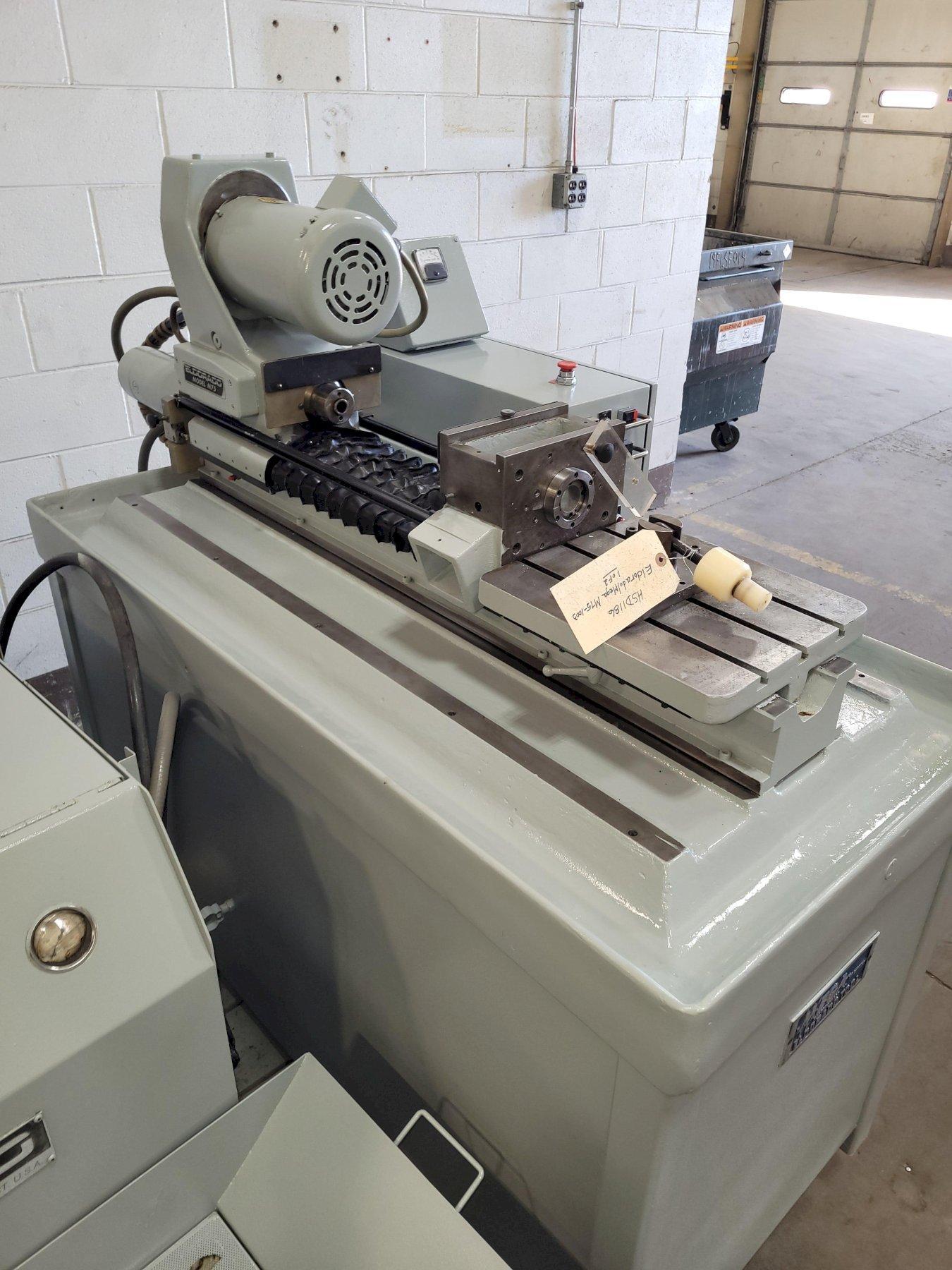

3/4" X 15" Eldorado Mega Model M-75-1003 Precision Deep Hole Gun Drill

Manufacturer

ELDORADO

Category

Drilling Machines

Type

DRILLS, DEEP HOLE

Stock

HSD1186

Model

M-75-1003

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Drilling Diameter Maximum - .75”
Drilling Diameter Minimum - .055”
Maximum Drilling Depth - 15”
Spindle Speeds - 725-5860 RPM
Drilling Feed Rate - .1-99.9 IPM
Rapid Feed Rate - 200 IPM
Work Table (T-Slotted) - 12” x 14”
Height of Spindle Centerline - 2-1/2”
Coolant Pressure, Maximum - 1900 PSI
Reservoir Capacity - 90 Gallon
Coolant Flow (Gal/Min.) - 17.5 GPM
Filtration - 5 Micron
Machine Dimensions - 42” x 72”
Coolant Dimensions - 42” x 78”
Approximate Weight - 5,000 lbs.


EQUIPPED WITH:
Motor Driven with 2HP, 3 Phase, 60 Cycle, 460 Volt 1725 RPM Spindle Drive.
7.5 HP, 3 Phase, 60 Cycle Coolant System.

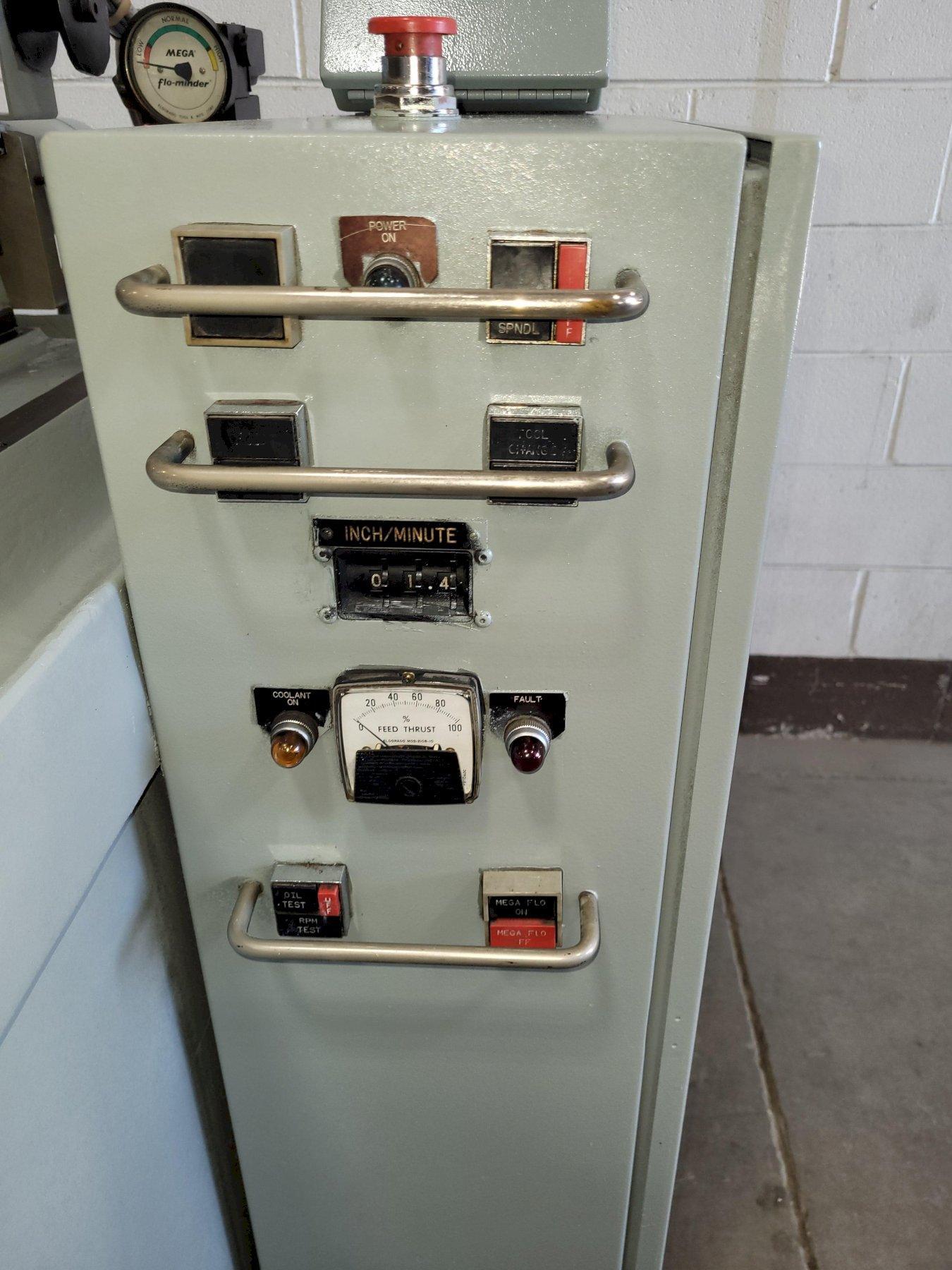

Complete Electrical Controls.
1 HP DC Servo Feed Motor.

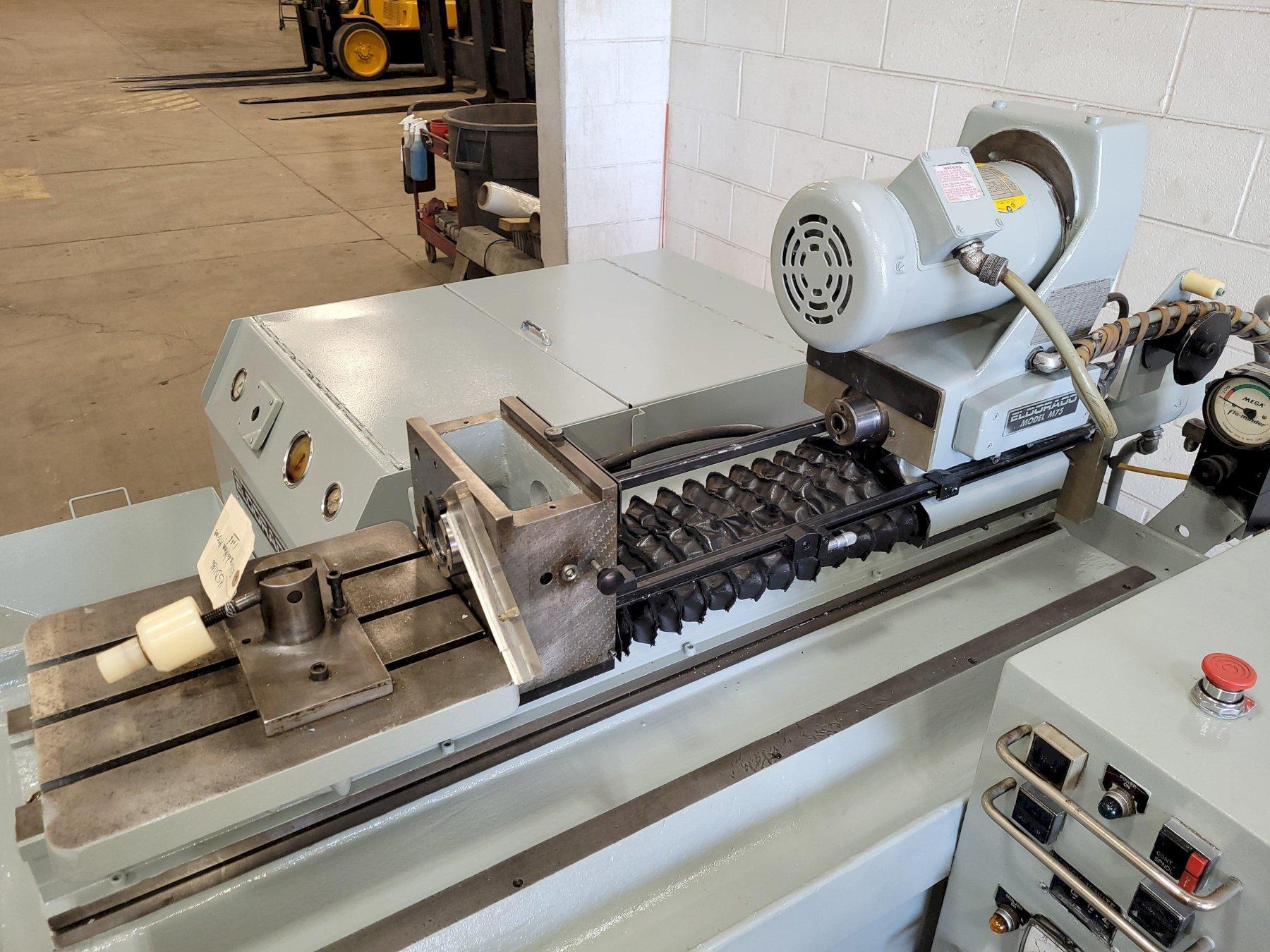

Ball Screw Driven Drill Feed.
12” x 14”” Work Table.

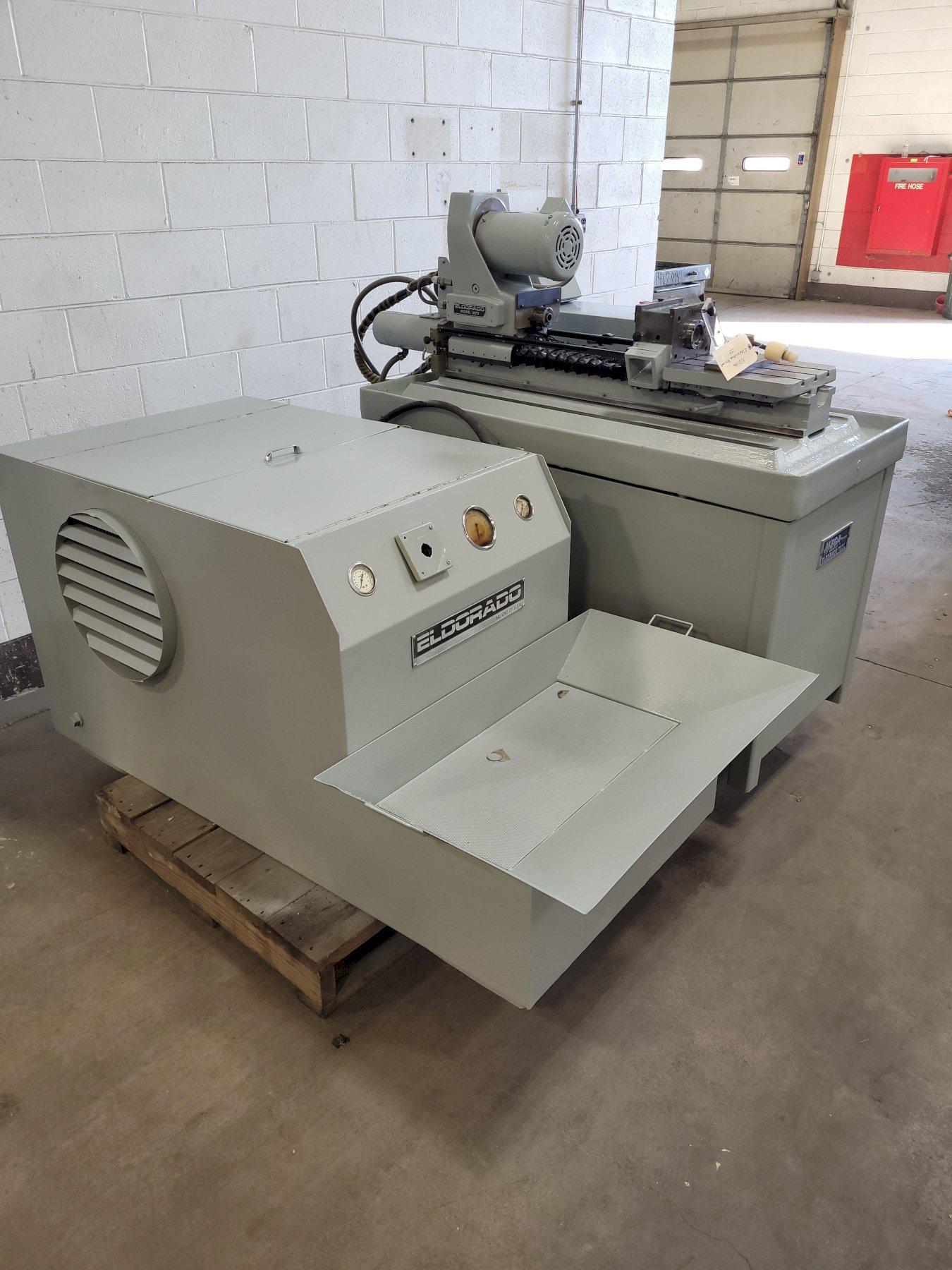

Eldorado F18 “Mega Flow” High Pressure Coolant System with Filtration and Heat Exchanger.
Thumb Wheel Feed Rate.
Feed Thrust Load Meter.
Spindle Load Meter.
Chip Box.
Automatic Slideway Lubrication.
Miscellaneous Drills.
