Hwacheon VTM-2000, 94" Tbl, 104" Swing, 82" U.R, 240RPM, Milling, C-Axis, 12-ATC, Fanuc 31iA CNC, 2011, #44041

Manufacturer

HWACHEON

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

44041

Model

VTM-2000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44041

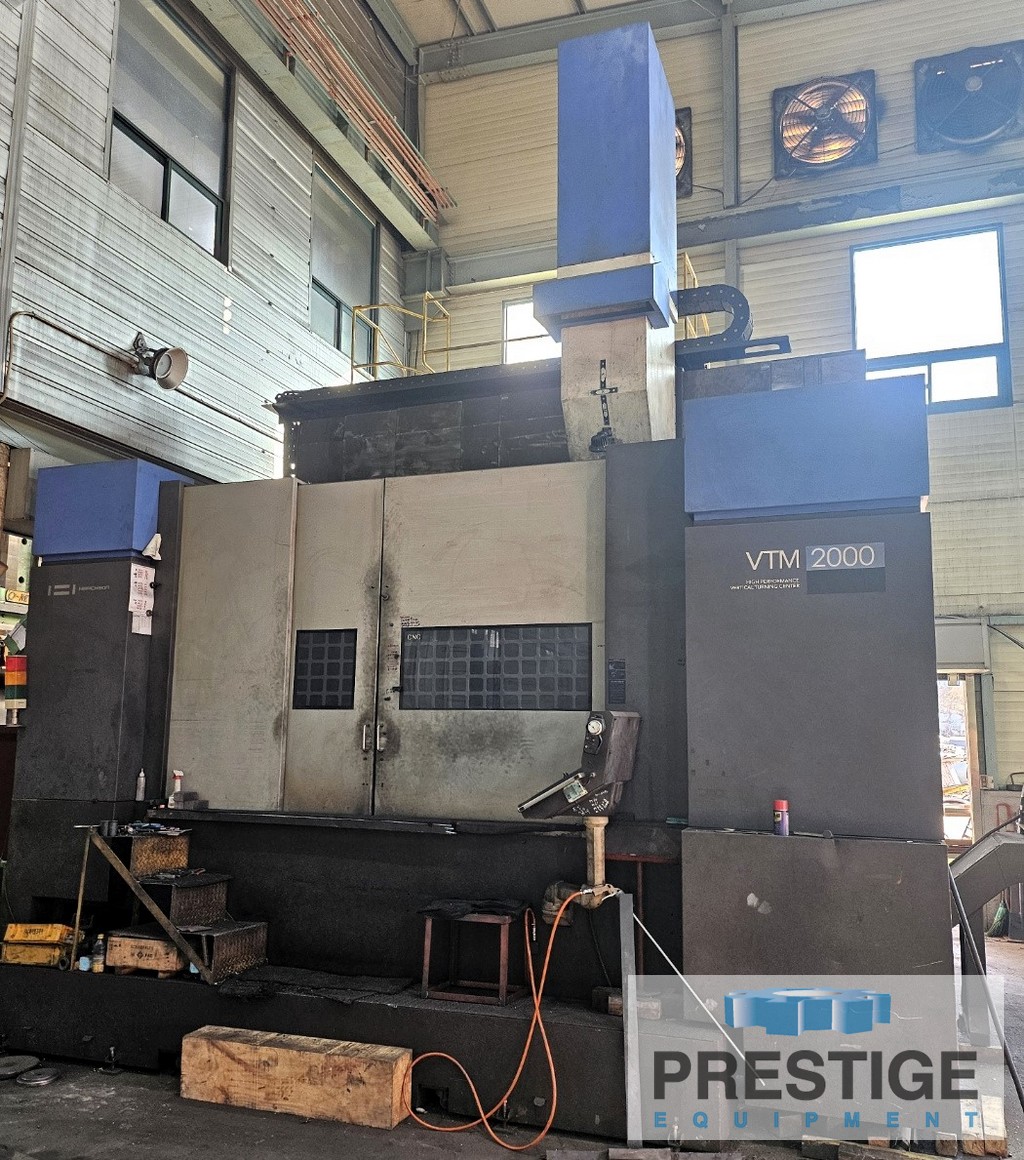

Hwacheon VTM-2000 CNC Vertical Turning & Milling Center

FEATURES:

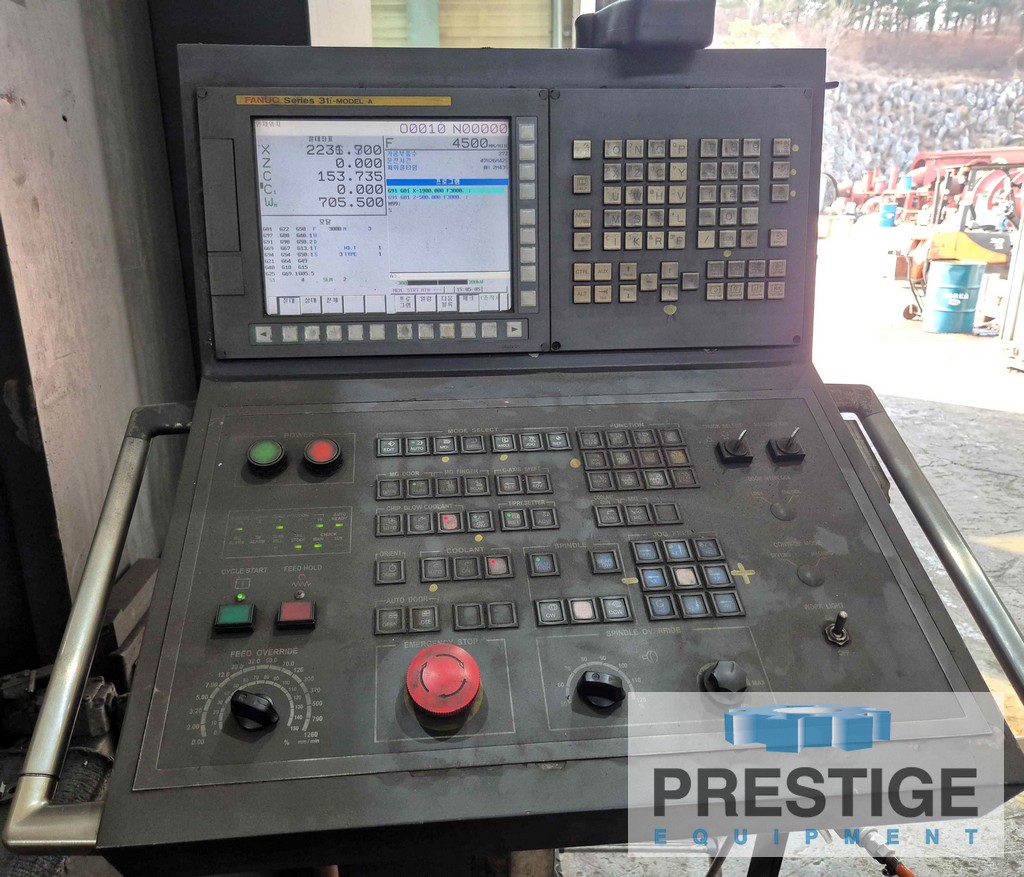

Fanuc 31iA CNC Control
12-Station Automatic Tool Changer
Live Milling

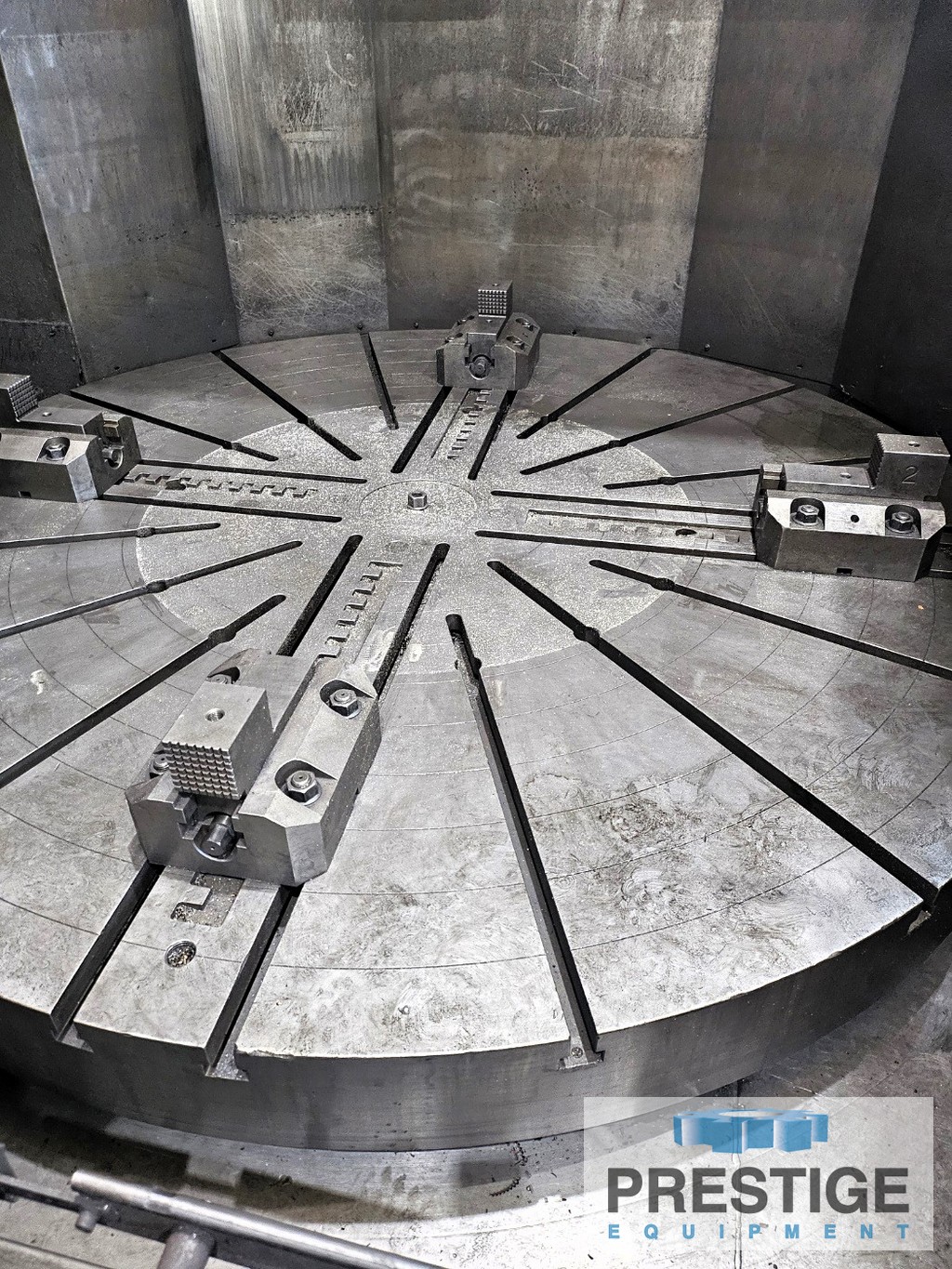

C-Axis Table

SPECIFICATION:
Table Diameter ........................ 94.48"
Max. Part Swing ....................... 104.33"
Max. Cutting Diameter ................. 98.42"
Max. Turning Height ................... 82.67"
Table Speeds .......................... 1 - 240 RPM
C-Axis Rotation ....................... .001°

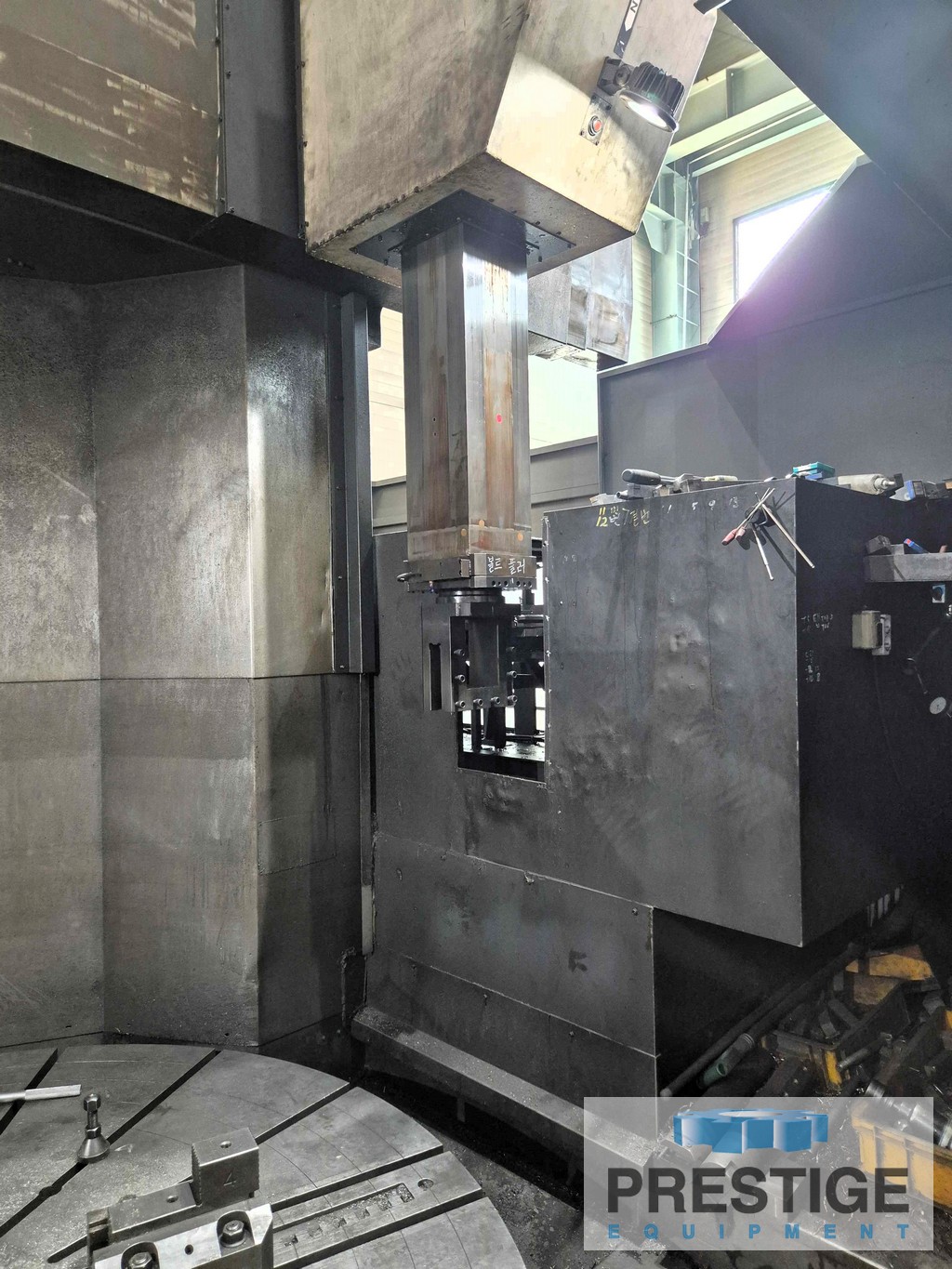

Ram Stroke ............................ 39.37"
Cross Rail Vertical ................... 43.30"
Milling Spindle Speed ................. 3,000 RPM
Milling Spindle Motor ................. 24.8 HP
Table Motor ........................... 100 HP

EQUIPPED WITH:
Fanuc 31iA CNC Control
12-Station Automatic Tool Changer
Live Milling
C-Axis Table
Chip Conveyor
Full Enclosure
