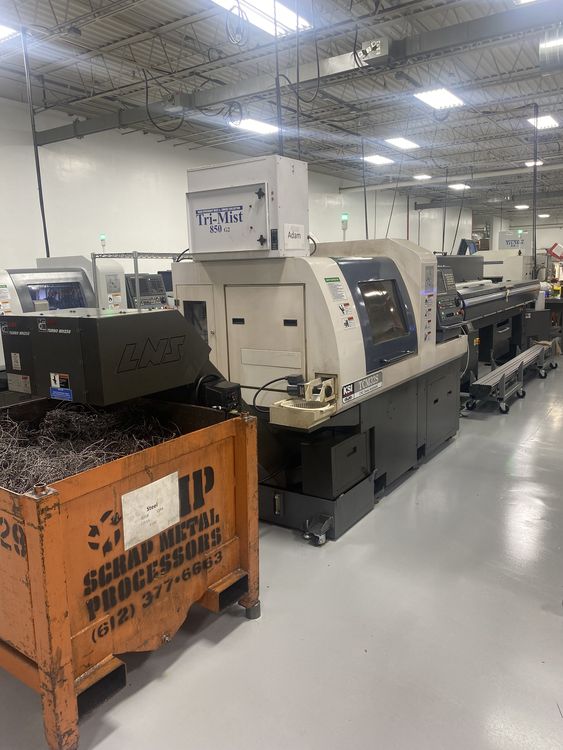

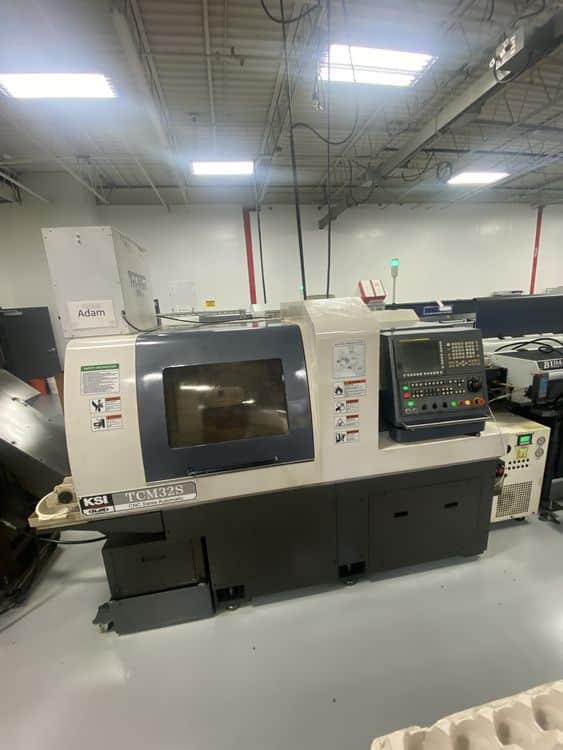

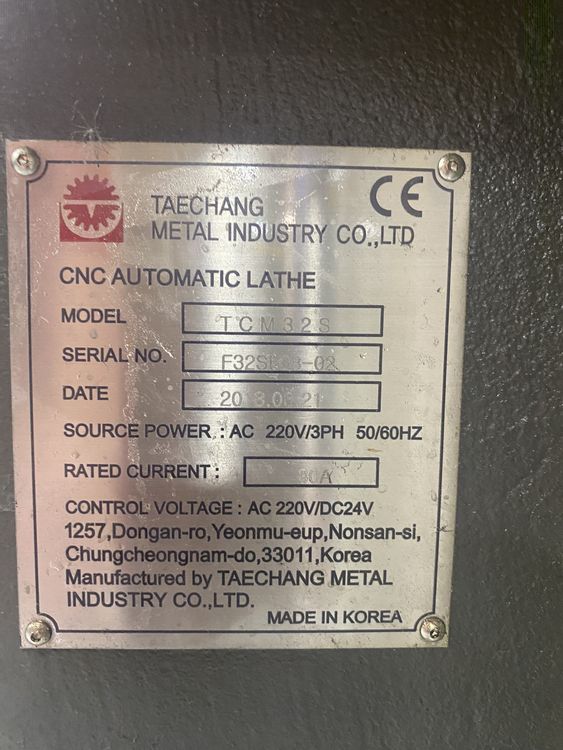

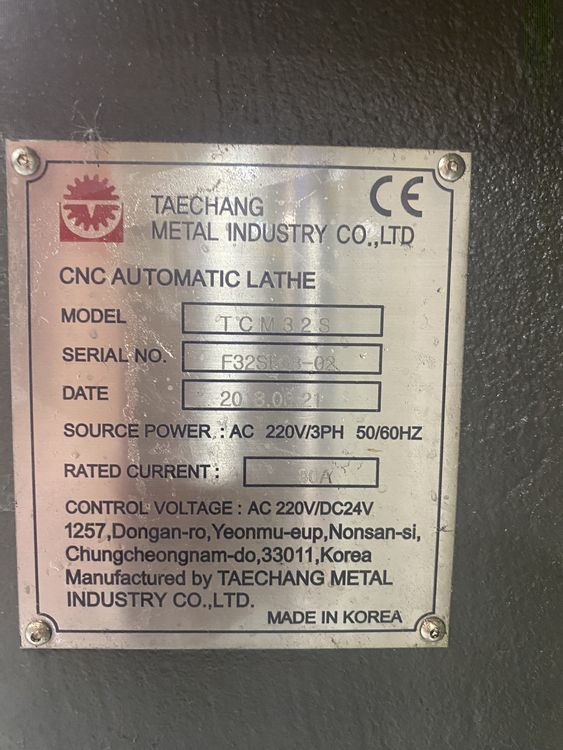

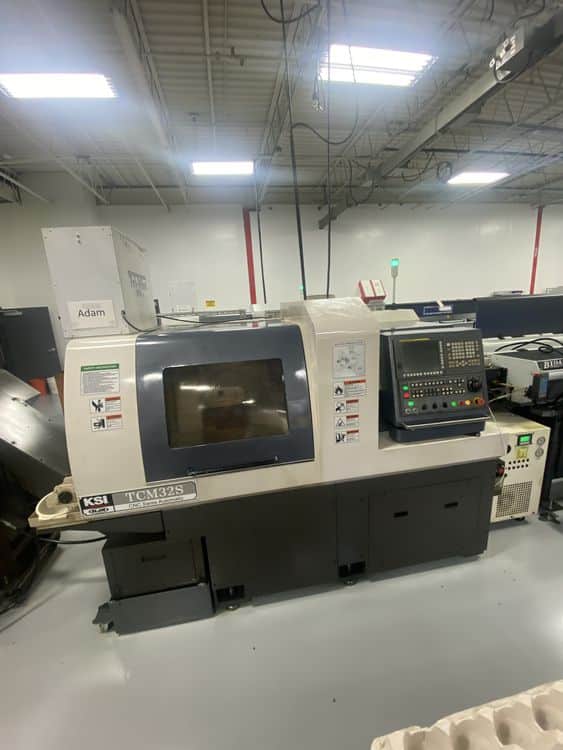

KSI TCM32S CNC Swiss Automatic Lathe (2018)

Manufacturer

KSI

Category

Lathes

Type

LATHES, CNC

Stock

211250015

Model

TCM32S

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 211250015
  • Brand: KSI
  • Model: TCM32S
  • Year: 2018
  • Approx. Shipping Weight: 3500 KG

Specifications

  • Max Machining: 032/038 mm
  • Max Chucking: 032/038 mm
  • Tool No. ID: 6 each
  • Tool No. OD: 4 each
  • Tool No. Front: 5 each
  • Tool No. Back End: 4 each/2 fixed, 2 Live
  • Max Drill/Tap: 10 mm Drill, M8 Tap
  • Cross Max Drilling, Tapping, Slotting: 08 mm, M6, width 1.5mm x Depth 4.0 mm
  • Back Max Drilling Fixed (Live), Tapping Fixed (Live): 10 mm (8mm), M8 (M6)
  • Main Motor Max Rpm: 10,000 RPM
  • Sub Motor Max RPM: 5000 RPM
  • Cross Motor Max RPM: 5000 RPM
  • Back End Motor Max RPM: 5000 RPM
  • Cooling Tank Capacity: 180 Liters

Equipped With

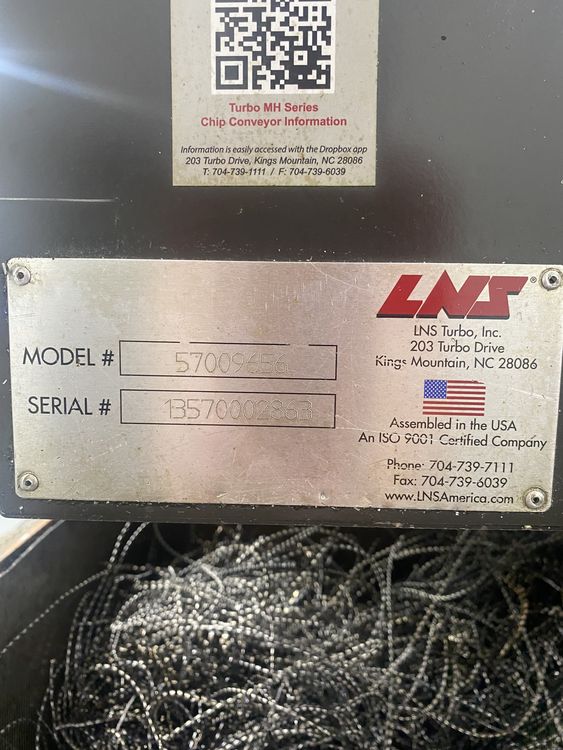

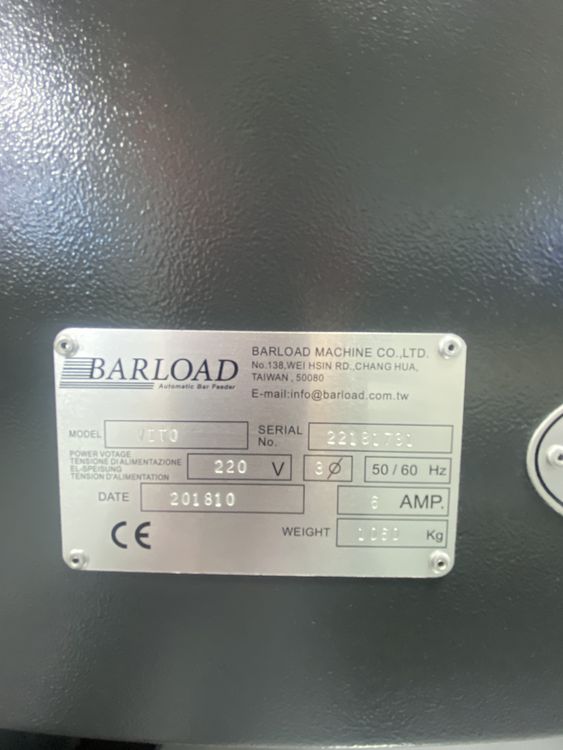

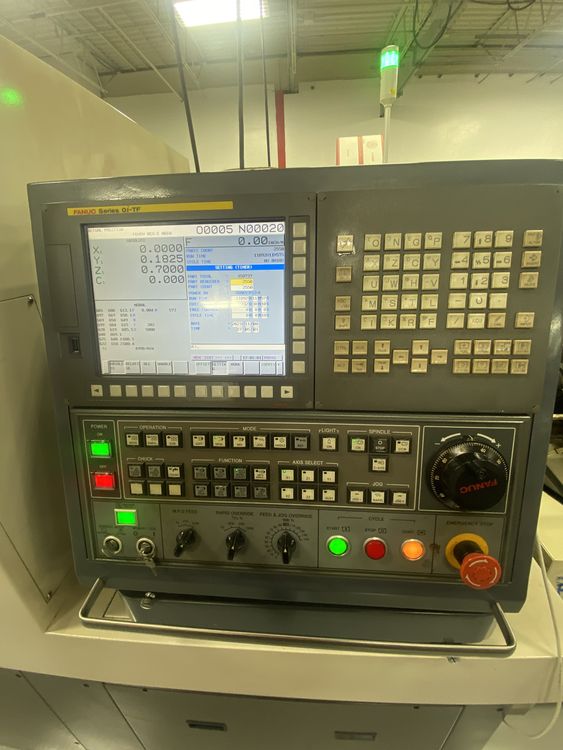

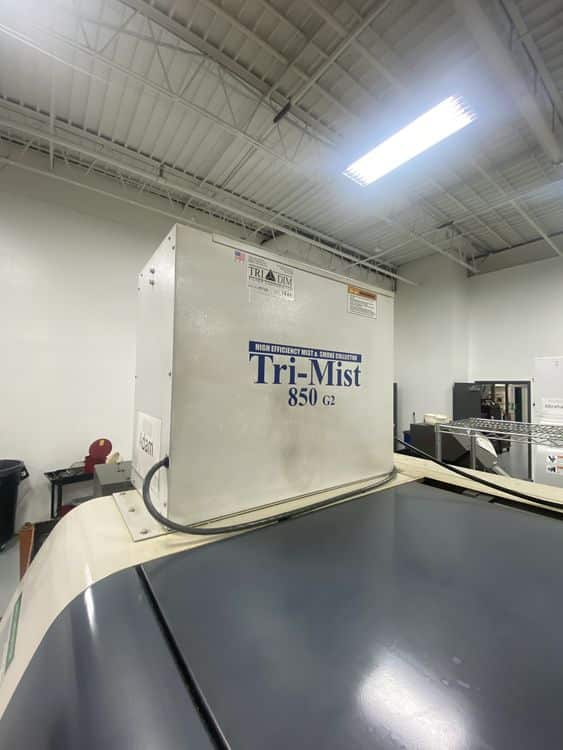

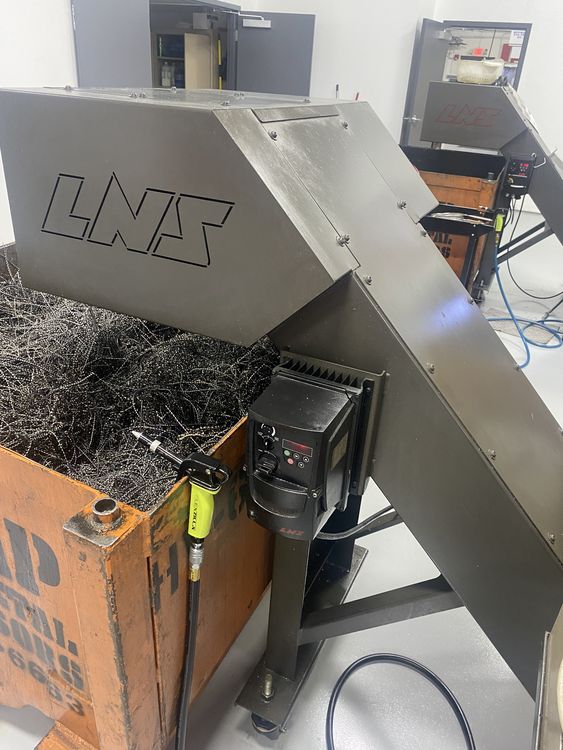

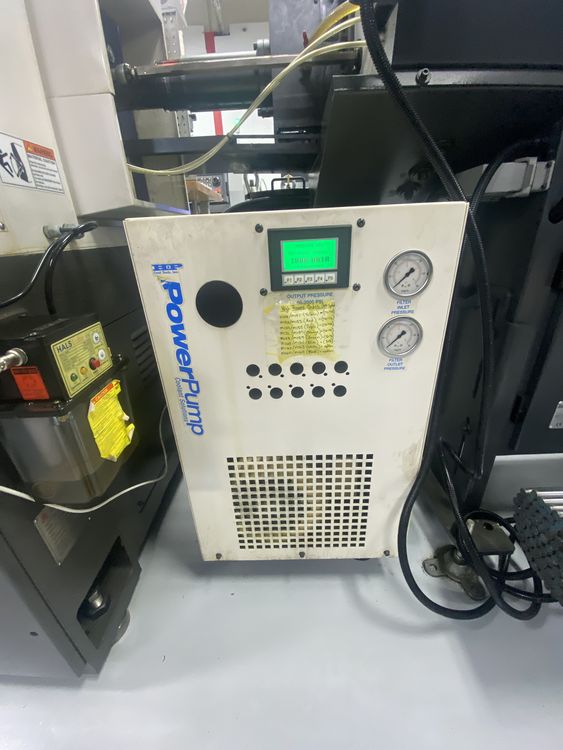

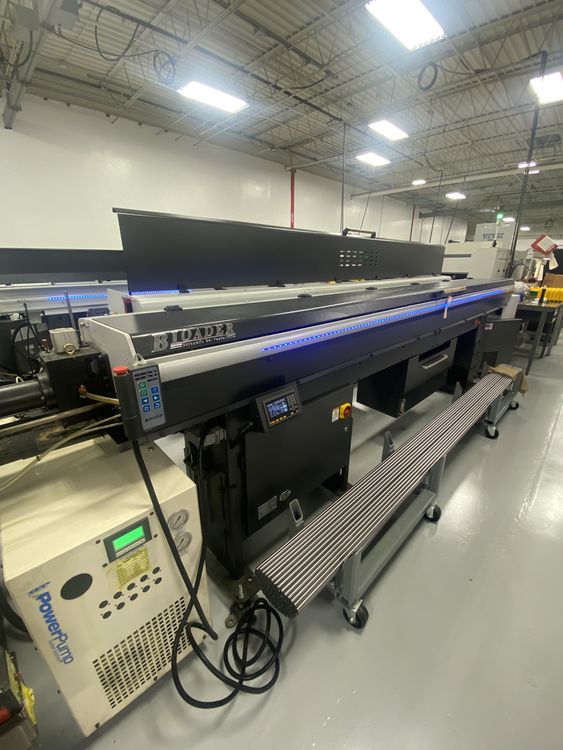

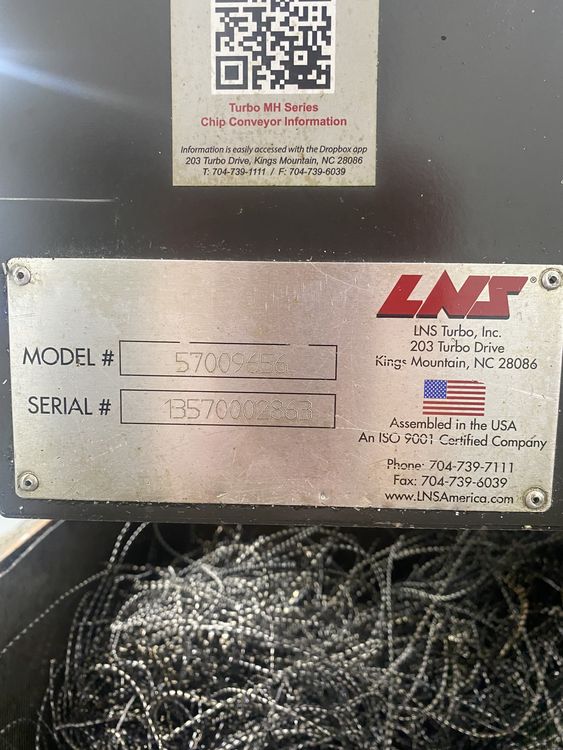

Barload model VITO bar feed, LNS Chip Conveyor, Fanuc Series Oi-TF Control, High Pressure Pump, Tri-Mist 850 G2 Mist collector
