5.3" Hyundai Wia KBN-135CL, X-157", Y-98", Z-27.5", W-78", 78" x 70" R.Tab, 15 Ton Cap., Fanuc 16iMB, 2016, #44031

Manufacturer

HYUNDAI WIA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

44031

Model

KBN-135CL

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44031

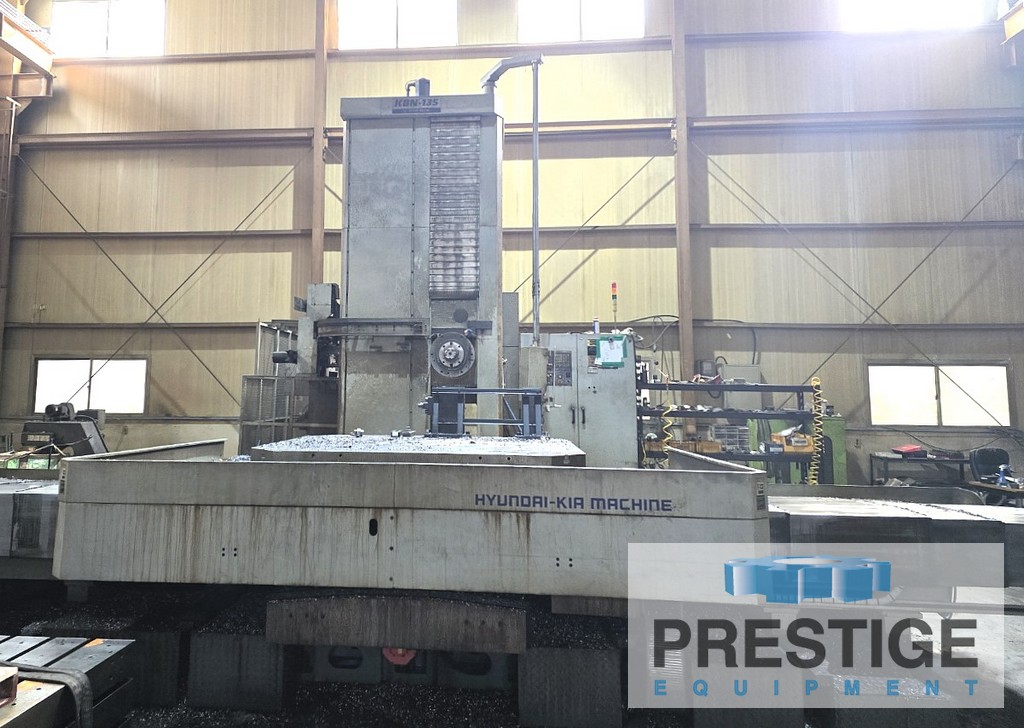

5.3" Hyundai Wia KBN-135CL CNC Table Type Horizontal Boring Mill

FEATURES:

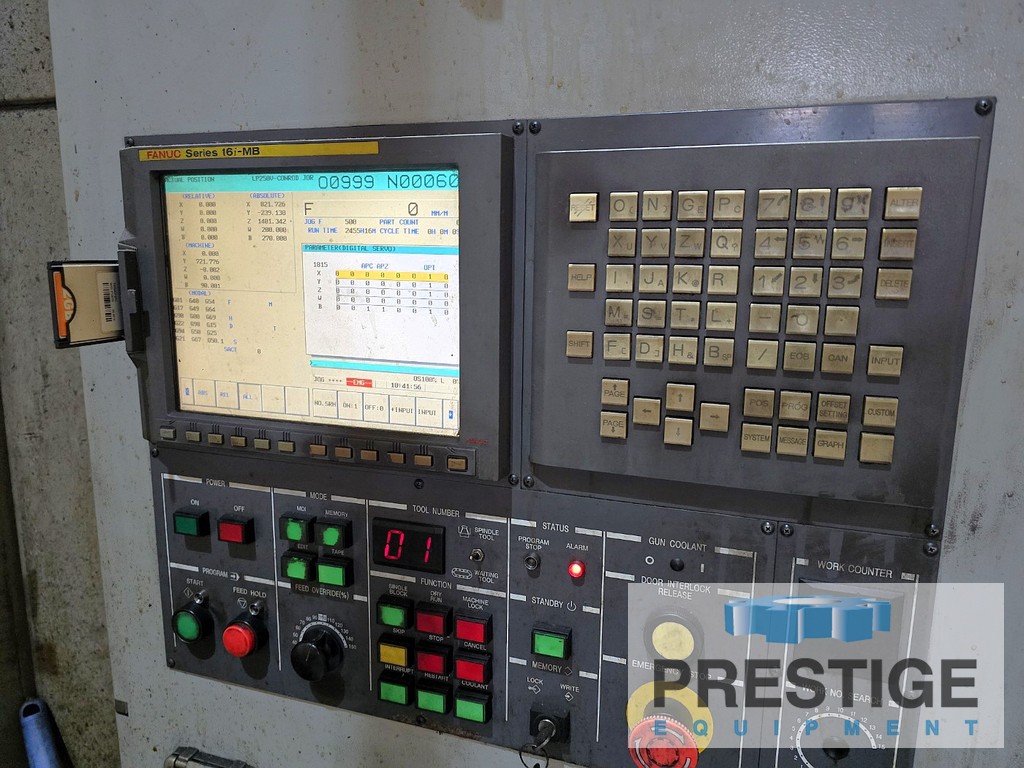

Fanuc 16iMB CNC Control
Operator Pendant Control
60-Station Automatic Tool Changer
Built-In Contouring Rotary Table

SPECIFICATION:

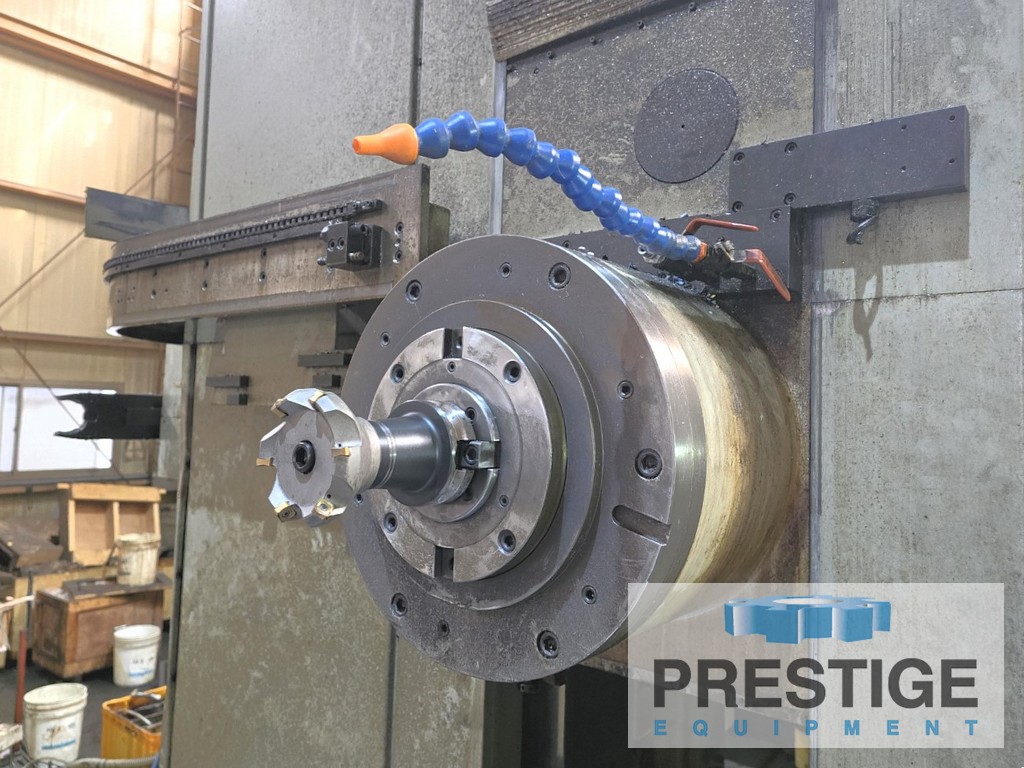

Spindle Diameter ...................... 5.3"
X-Axis Travel ......................... 157.48"
Y-Axis Travel ......................... 98.42"
Z-Axis Travel ......................... 27.55"
W-Axis Travel ......................... 78.74"
Spindle Speed ......................... 2,000 RPM

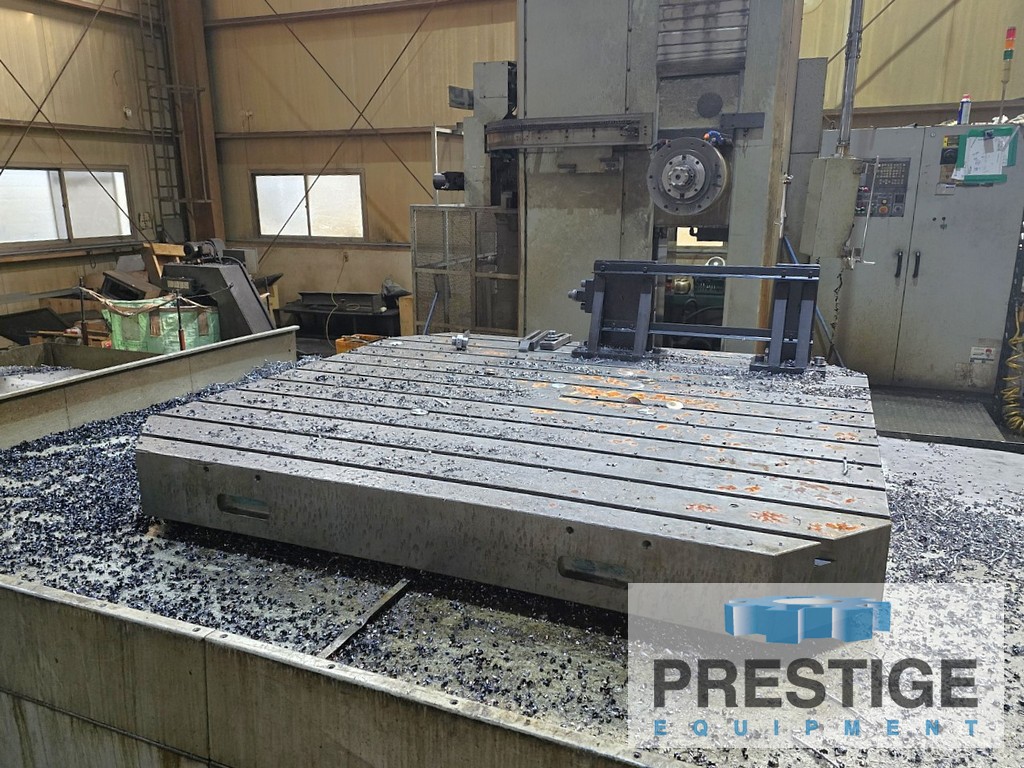

Table Dimensions ...................... 78.74" x 70.86"
C-Axis, Table Rotation ................ .001°
Table Weight Capacity ................. 15 Ton
Spindle Motor ......................... 29.5 HP

EQUIPPED WITH:
Fanuc 16iMB CNC Control

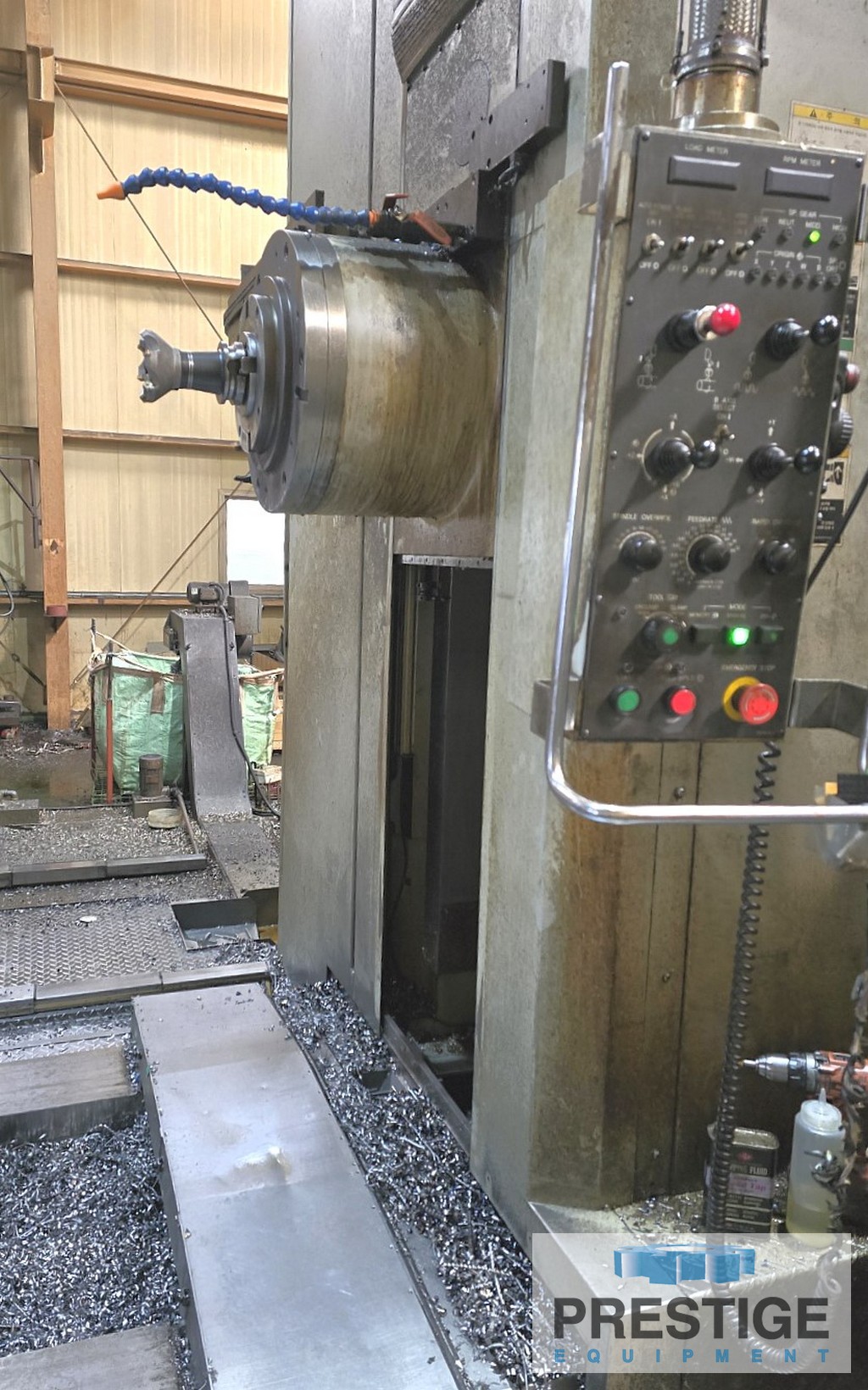

Operator Pendant Control
60-Station Automatic Tool Changer
Built-In Contouring Rotary Table
Scales
Chip Conveyor
