Farrell VBM, 192" Table, 168 U.R, 35 RPM, 2-Rams, 110" Ram Stroke, 100HP, #44029

Manufacturer

FARREL

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

44029

Model

VBM

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44029

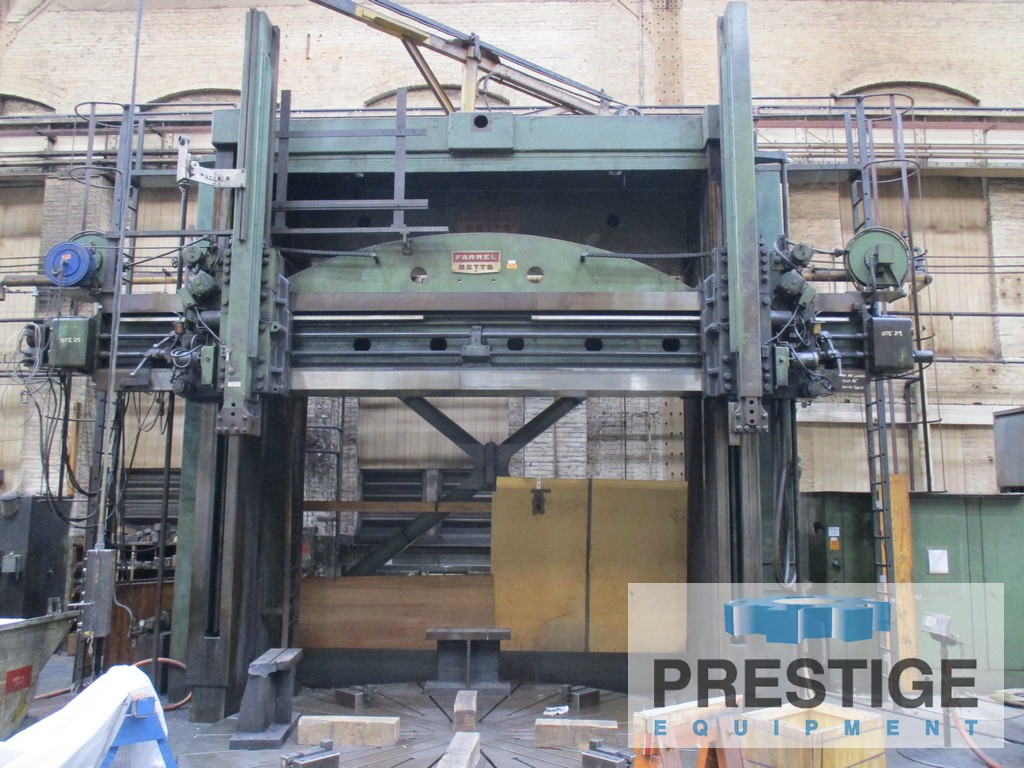

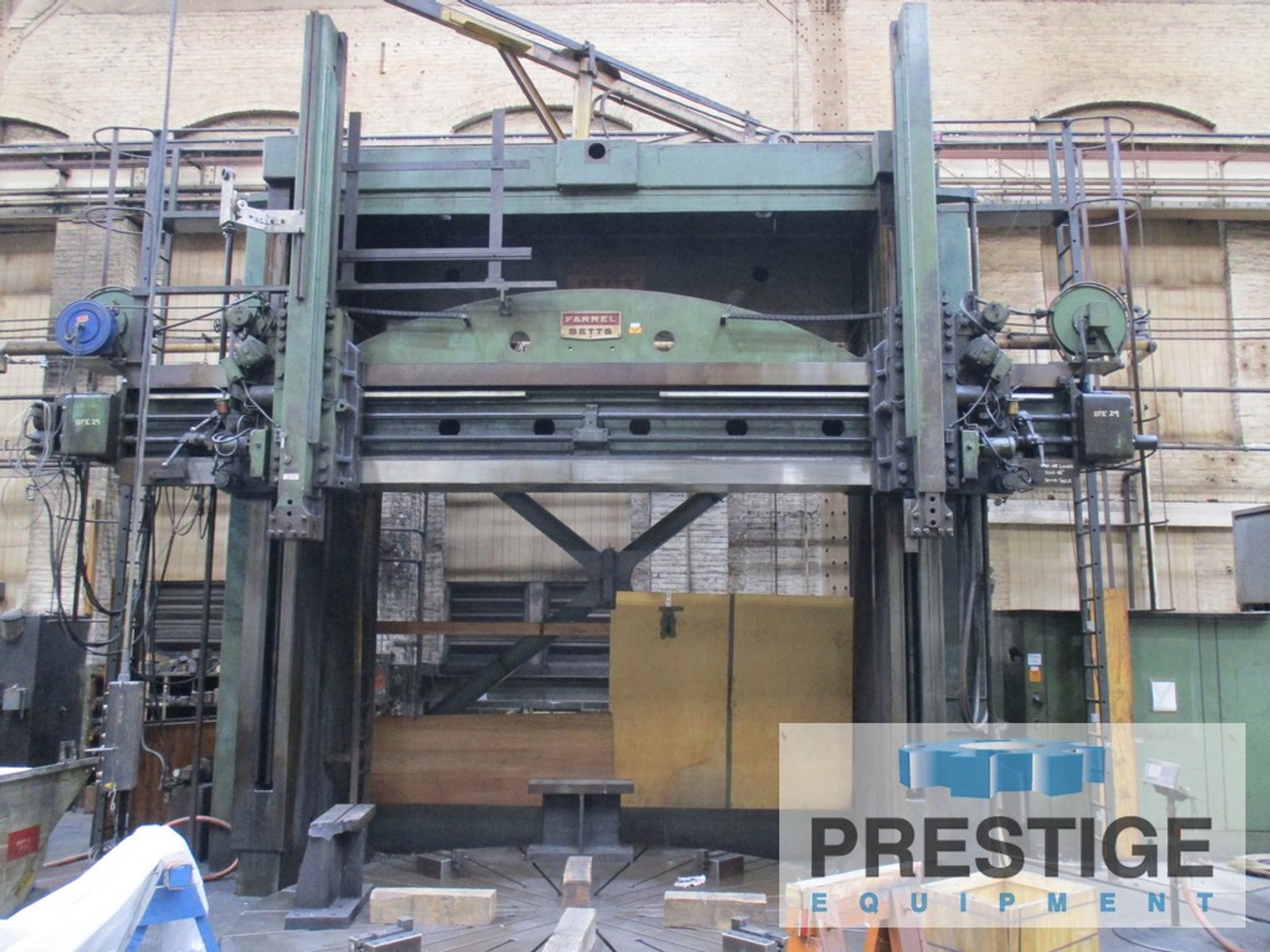

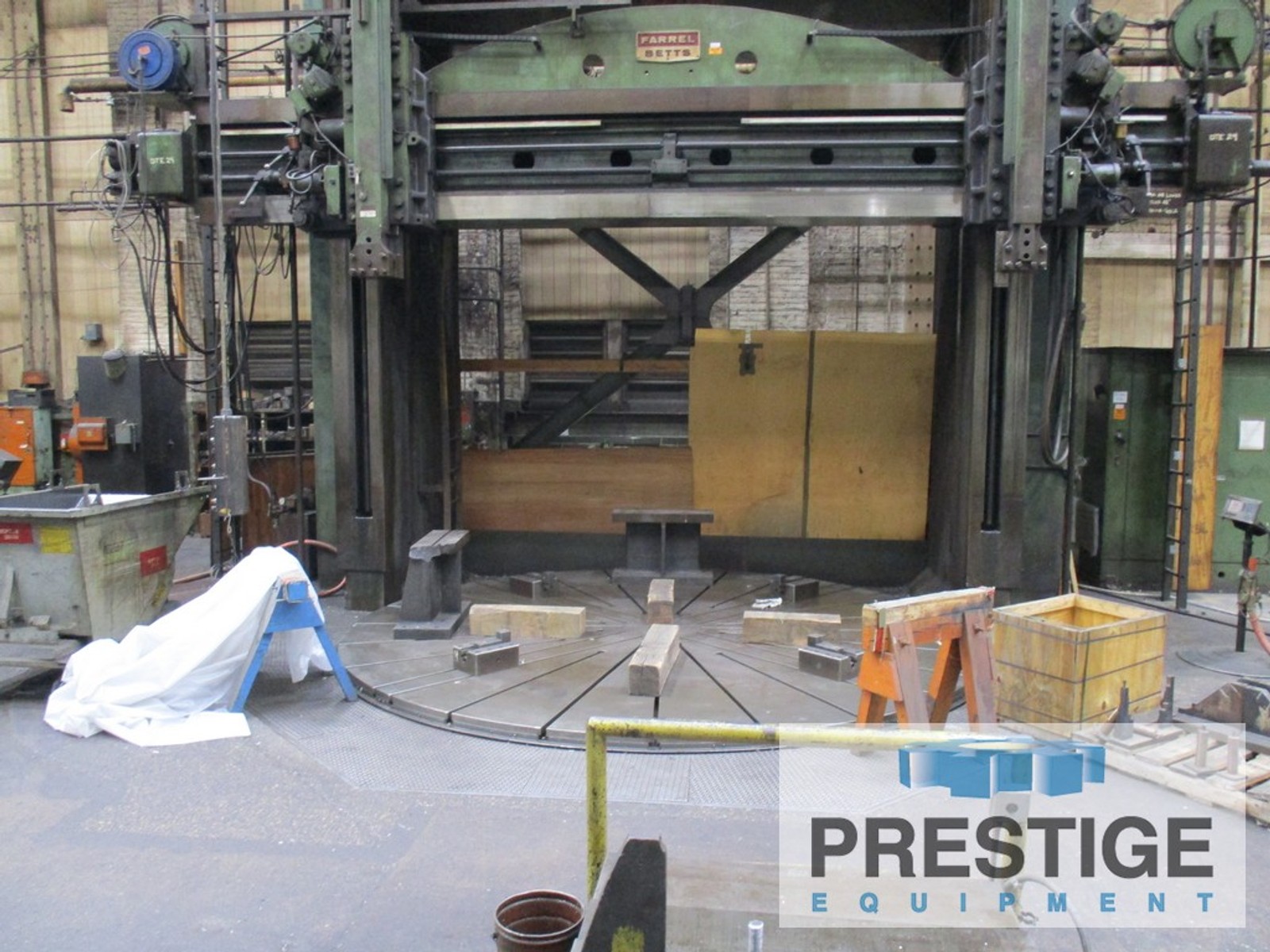

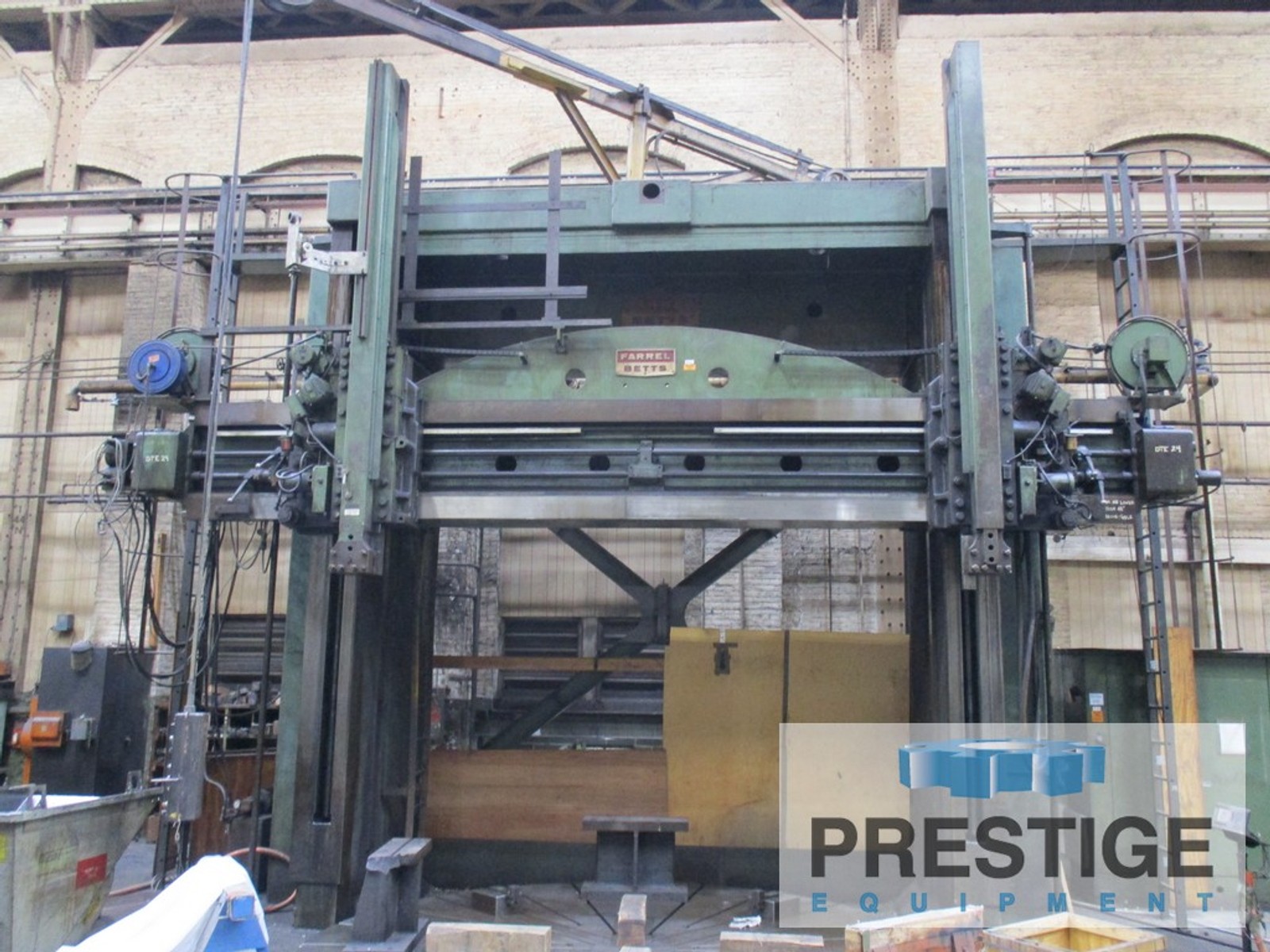

Farrel 192" Vertical Boring Mill

FEATURES:
2-Swivelling Rams
100 HP Table Motor

SPECIFICATIONS:
Table Diameter ....................... 192"
Maximum Swing ........................ 192"
Maximum Height Under Rail ........... 168"
Maximum Height Under Tool Holders .... 238"
Ram Stroke ........................... 110"
Ram Swivel Away From Center .......... 45 Degrees
Ram Swivel Towards Center ............ 35 Degrees
Table Speeds ......................... 0.5-35 RPM
Table Speed Ranges ................... 4
Table Motor ......................... 100 HP
Cross Rail Elevation Motor ........... 20 HP
Feed Range ........................... .005-20 IPM

EQUIPPED WITH:
2-Swivelling Vertical Ram Heads
Full Pendant Controls
Power Elevation on Pendant
4-Heavy Duty Face Plate Type Chucks
100 HP Table Motor
