Hankook Hanturn-75 x 6000, 29.5" swing, 236" cc, 1,250 RPM, Fanuc 21i CNC, 24 HP, (2) Steadies, (2) Chucks, 2012, #44023

Manufacturer

HANKOOK

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

44023

Model

Hanturn 75 x 6M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44023

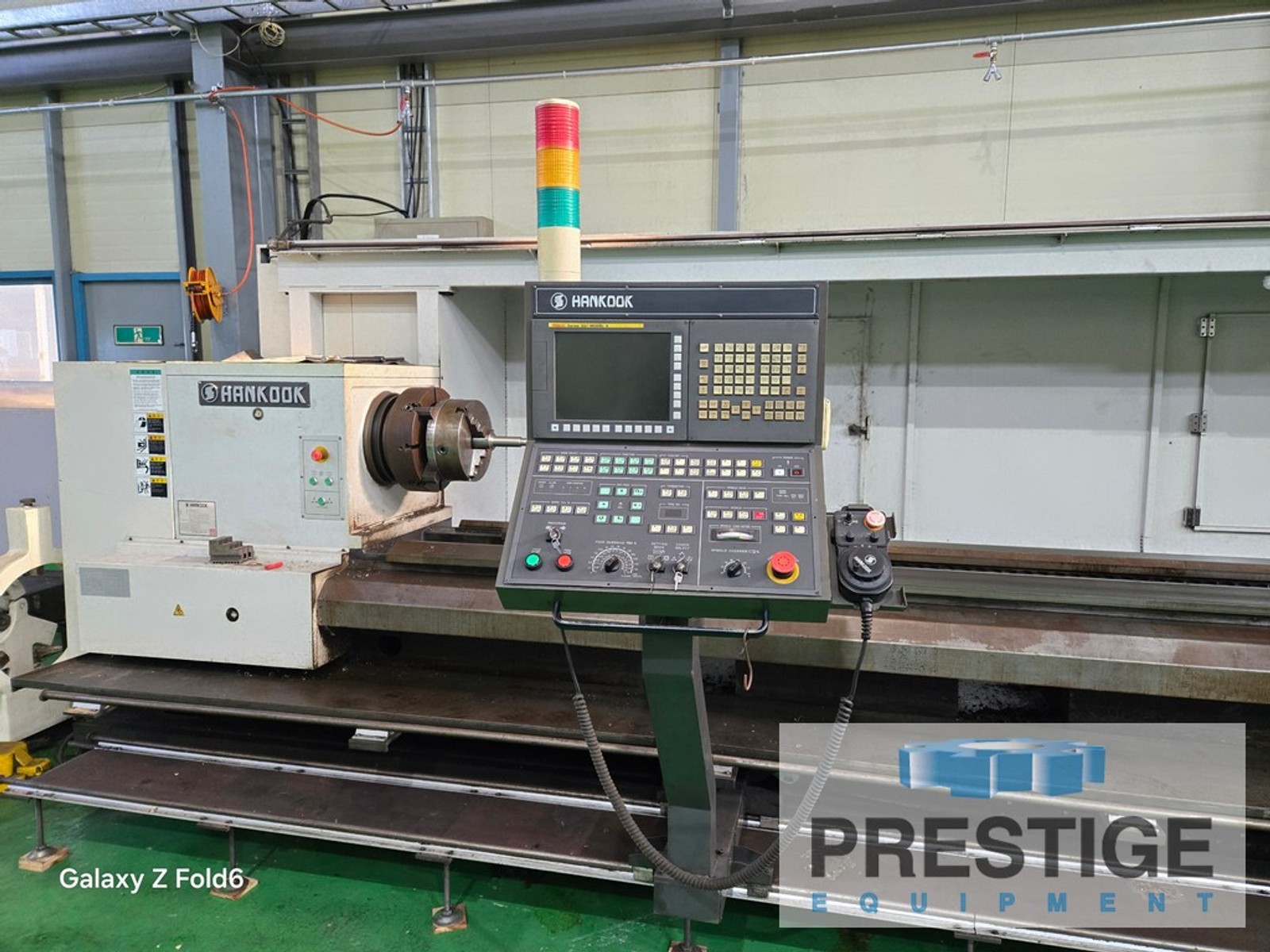

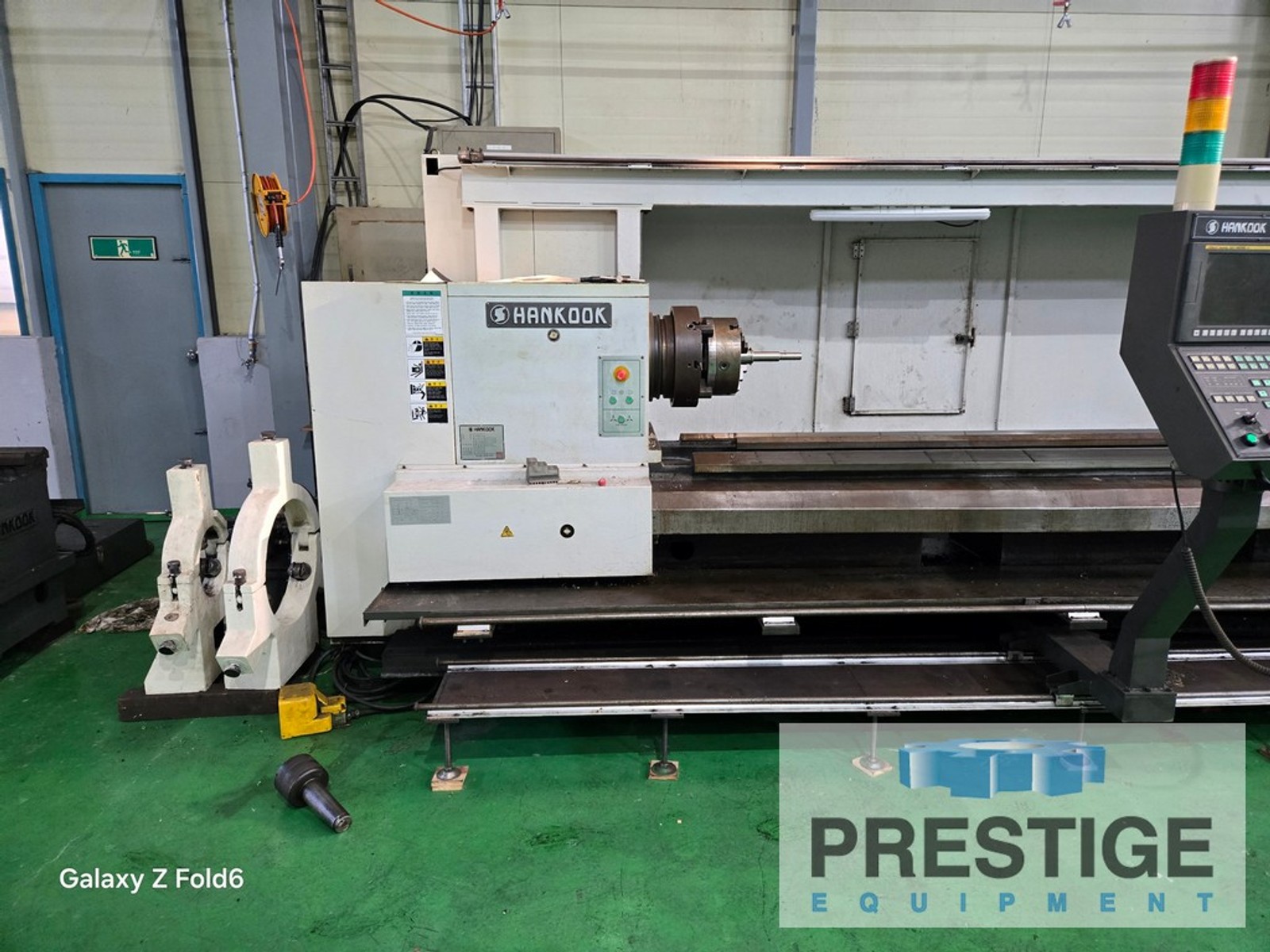

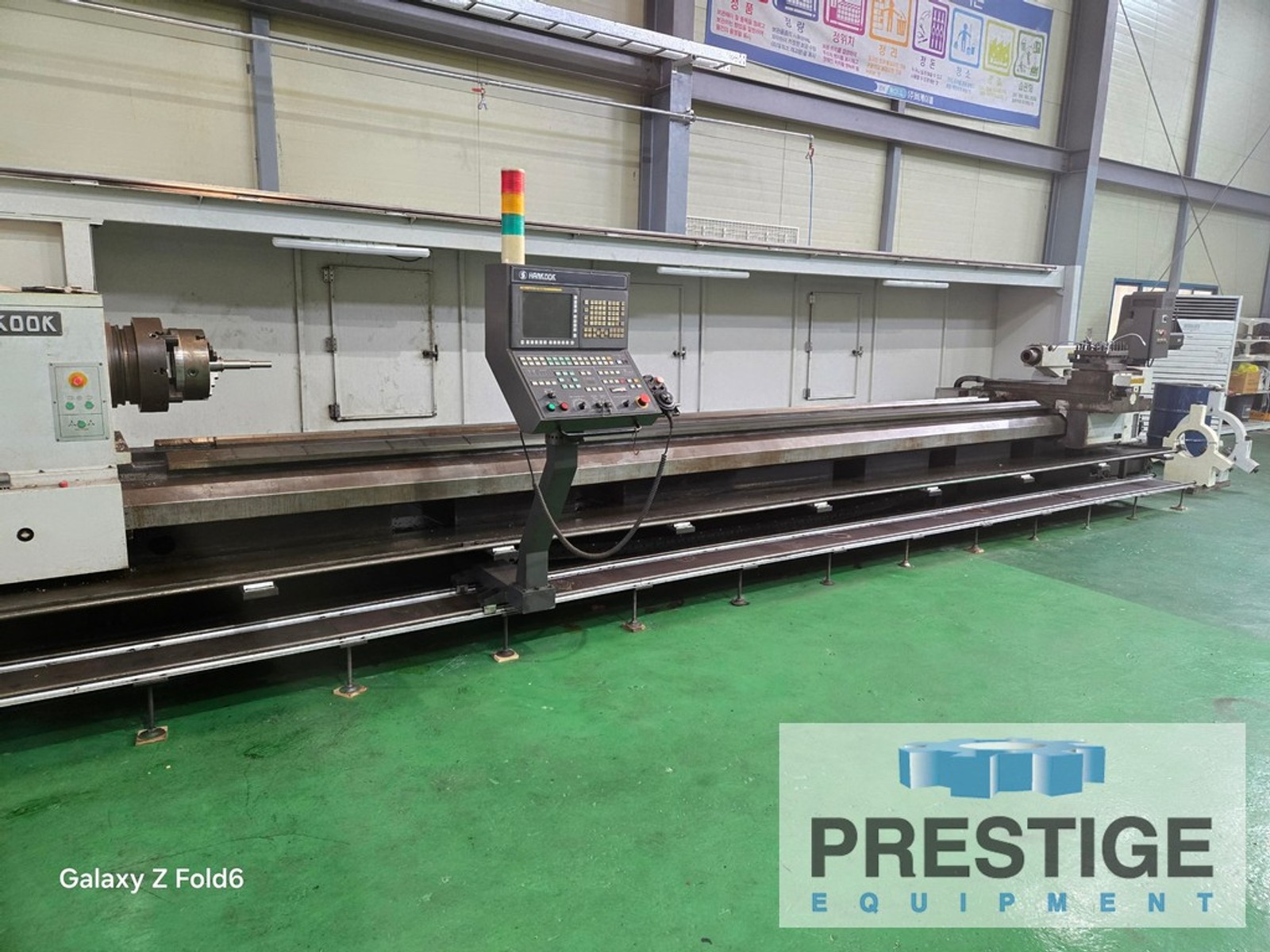

Hankook Hanturn-75 x 6000 CNC Lathe

FEATURES:

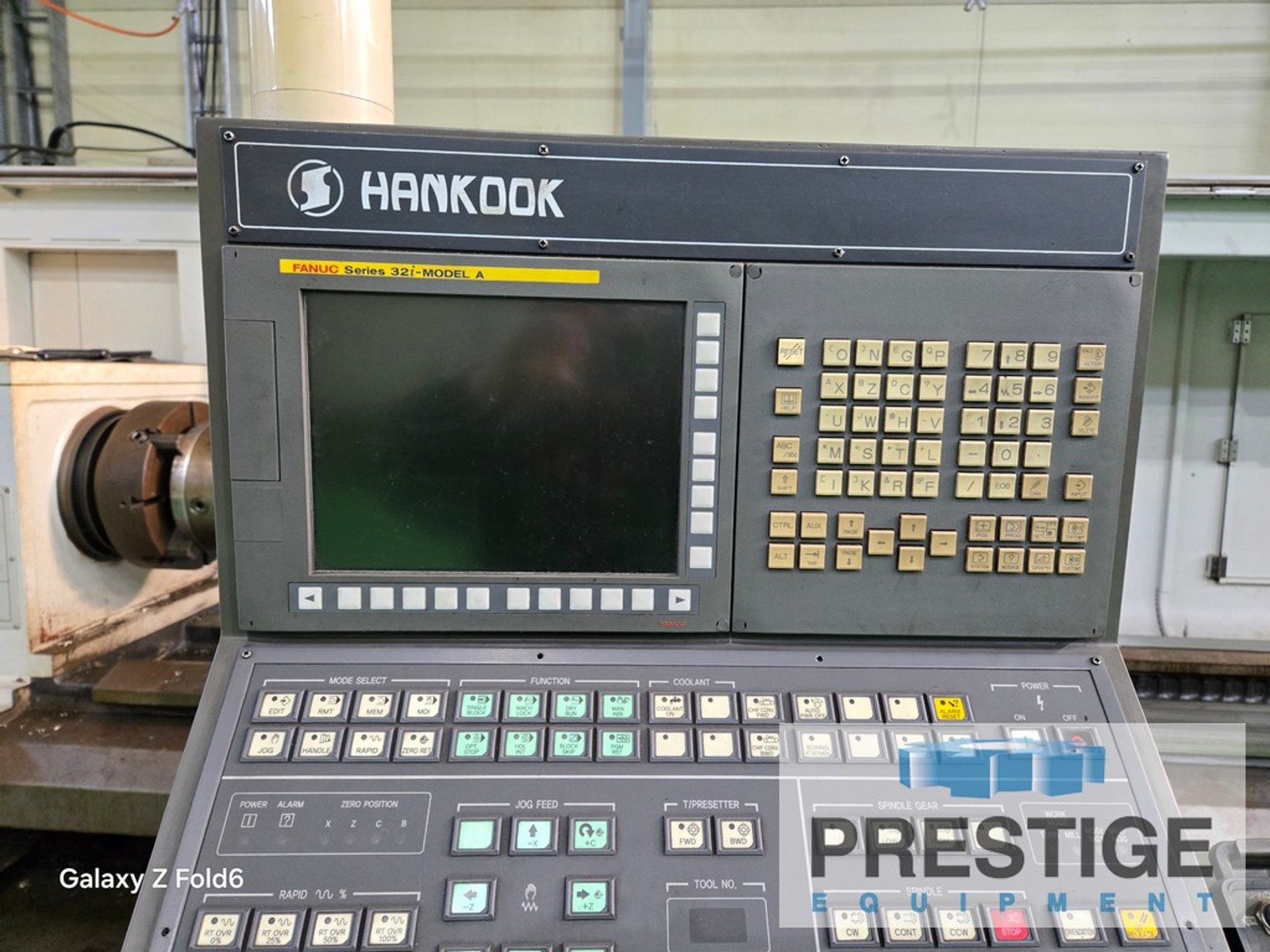

Fanuc 32i-TA CNC Control

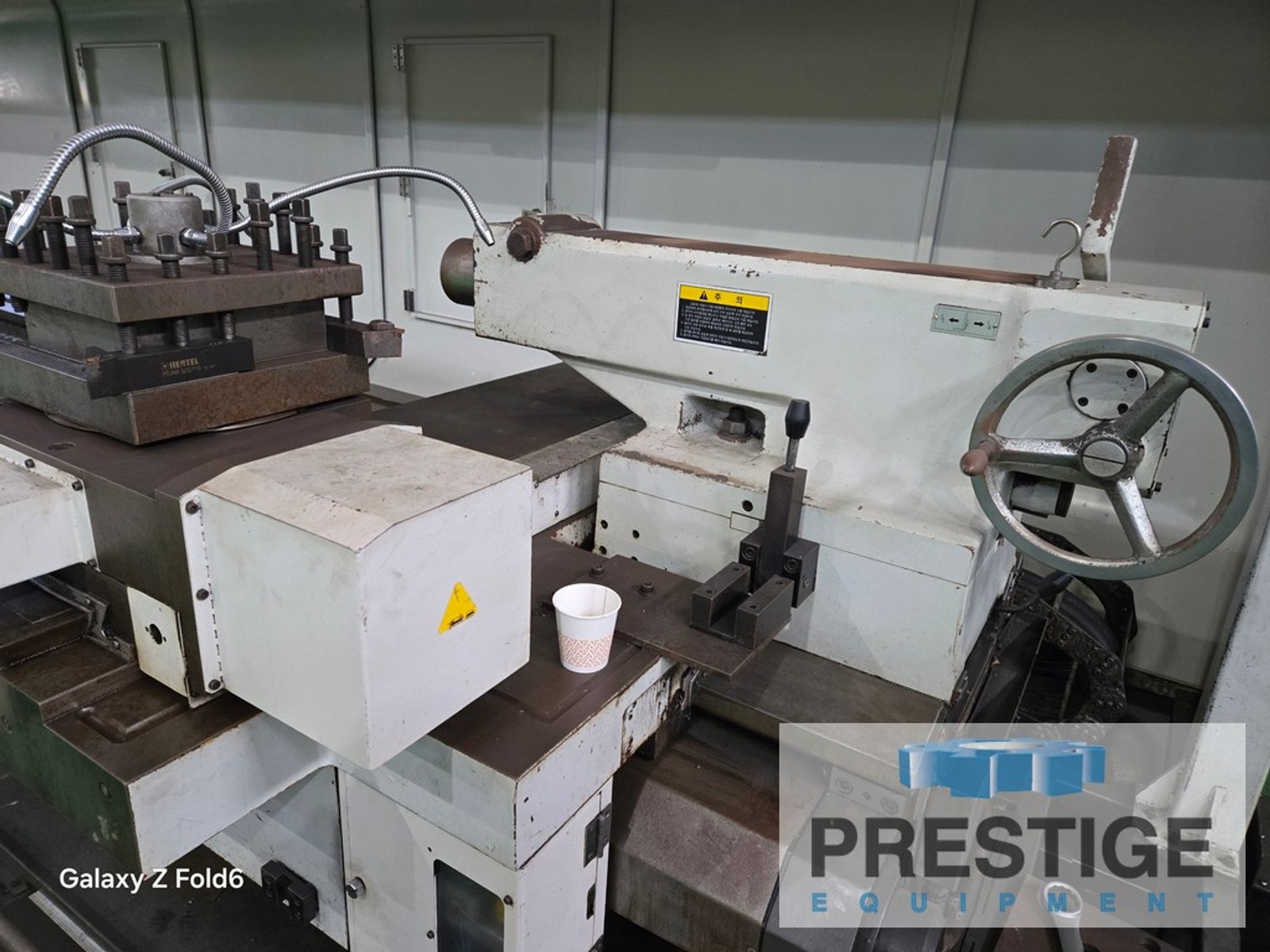

Automatic Square Tool Post
17.71" Hydraulic Chuck
15.74" Manual Chuck
(2) Steady Rest (9.84" & 15.7")
Tailstock

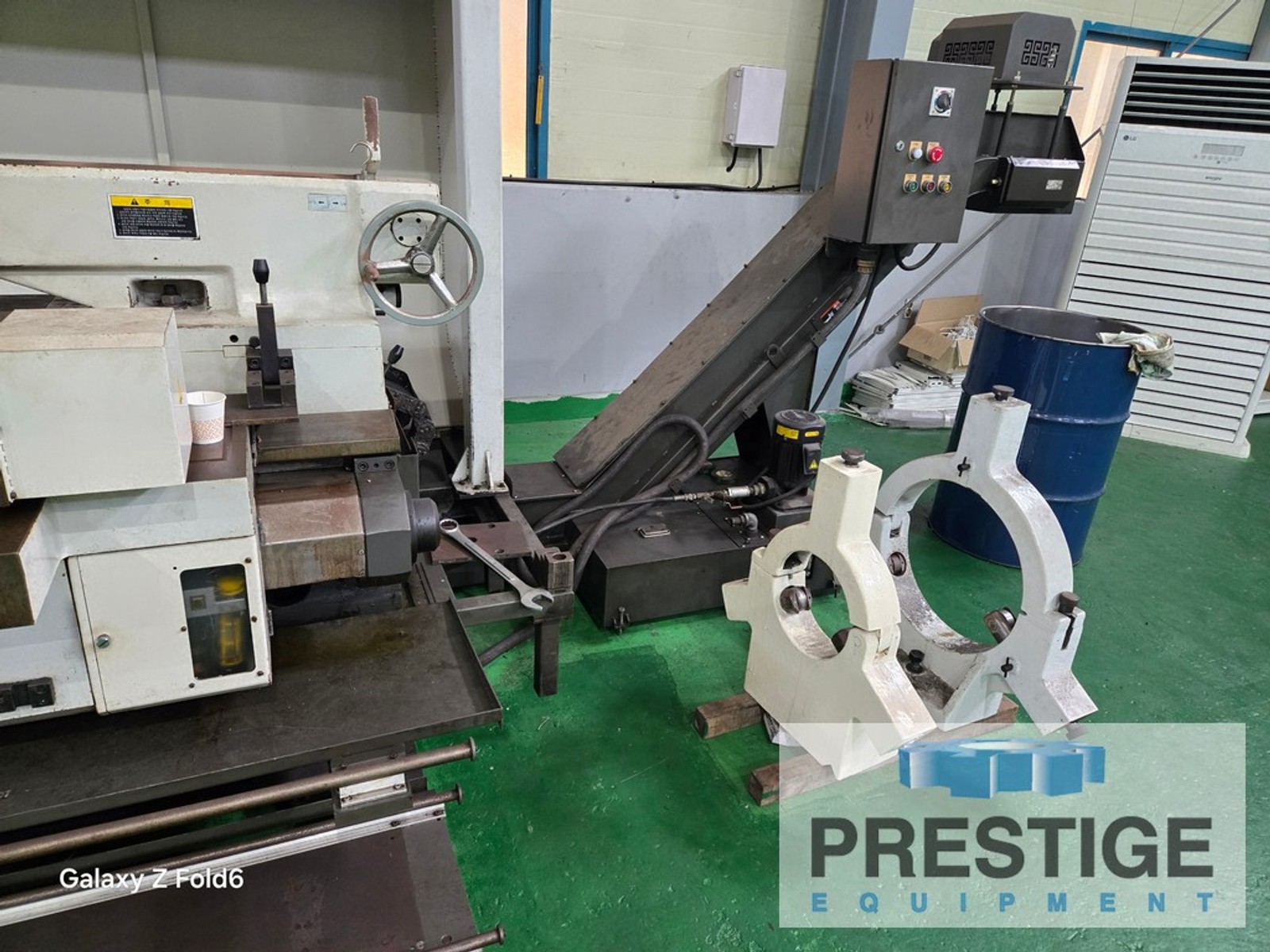

Chip Conveyor

CAPACITIES:
Swing Over Bed ........................ 29.52"
Swing Over Carriage ................... 18.89"
Max. Turning Diameter ................. 29.52"
Distance Between Centers .............. 236.22"
Loading Capacity Between Centers ...... 8,800 Lbs.
Maximum Spindle Speed ................. 1-1,250 RPM
Spindle Nose .......................... A2-11
Spindle Bore .......................... 4.13"
Spindle Drive Motor ................... 20 HP/24 HP
X-Axis Travel ......................... 16.73"
Z-Axis Travel ......................... 251.18"
Tailstock Quill Diameter .............. 4.40"
Tailstock Spindle Taper ............... MT-6
Tailstock Quill Travel ................ 7.87"
Approximate Machine Weight ............ 28,600 Lbs.

EQUIPPED WITH:
Fanuc 32i-TA CNC Control
Automatic Square Tool Post
17.71" Hydraulic Chuck
15.74" Manual Chuck
(2) Steady Rest (9.84" & 15.7")
Tailstock
Chip Conveyor
