Okuma LB4000 EXII, 26.38" Swing, 30.31"" Centers, 15" Chuck, OSP P300LA CNC, Low Hours, 2019, #43981

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

43981

Model

LB4000 EXII

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43981

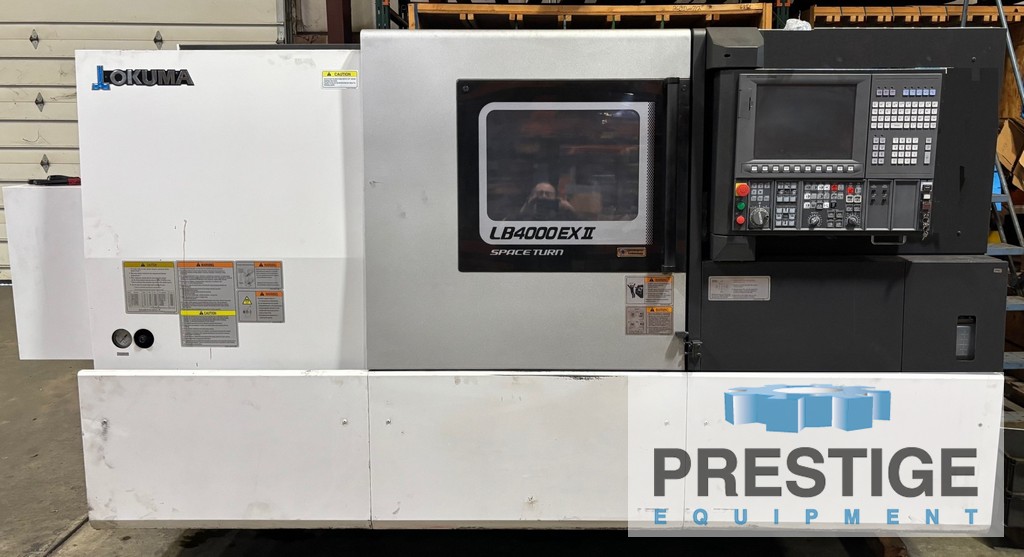

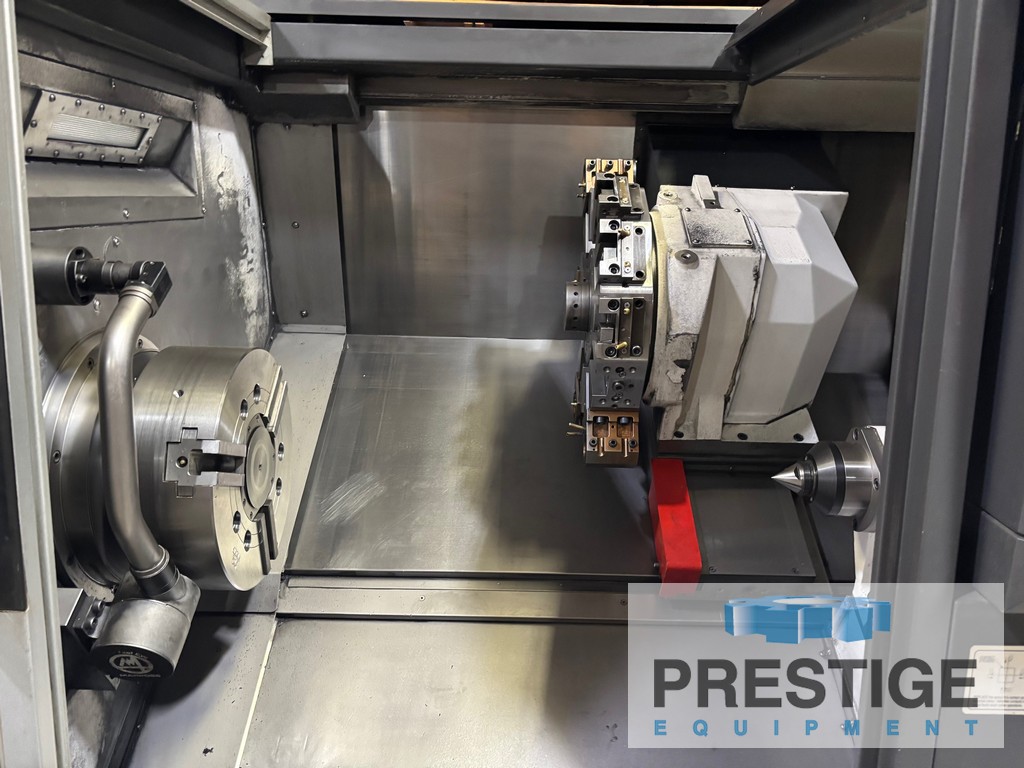

Okuma LB4000 EXII CNC Lathe

FEATURES:

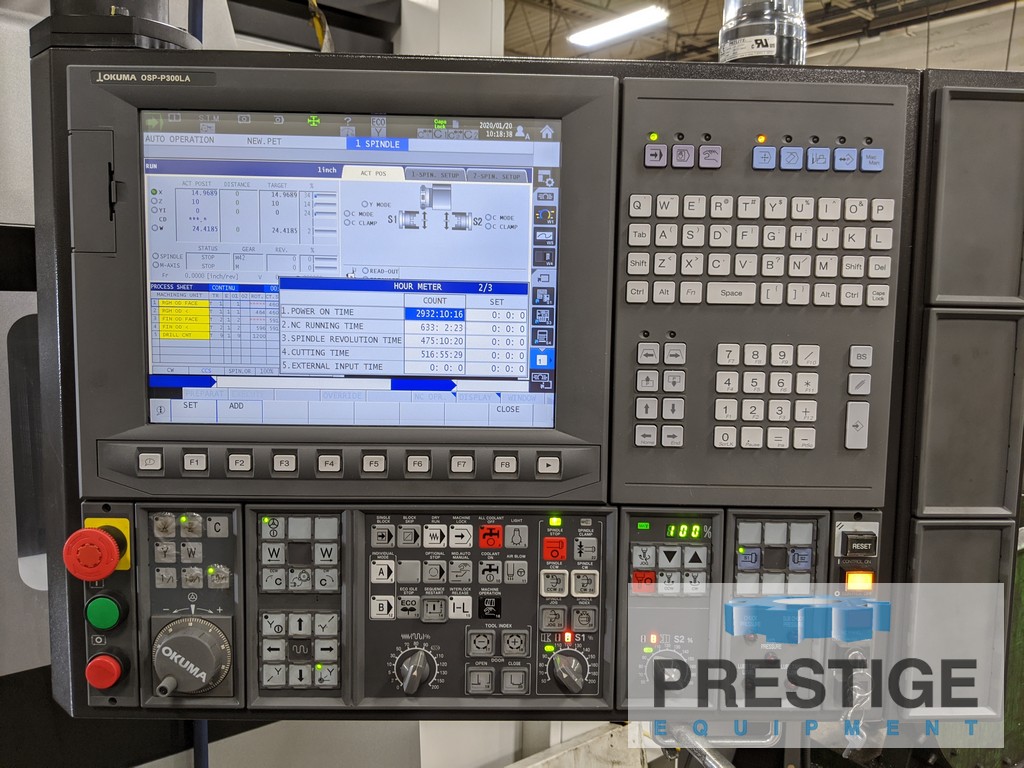

OSP-P300LA CNC Controls

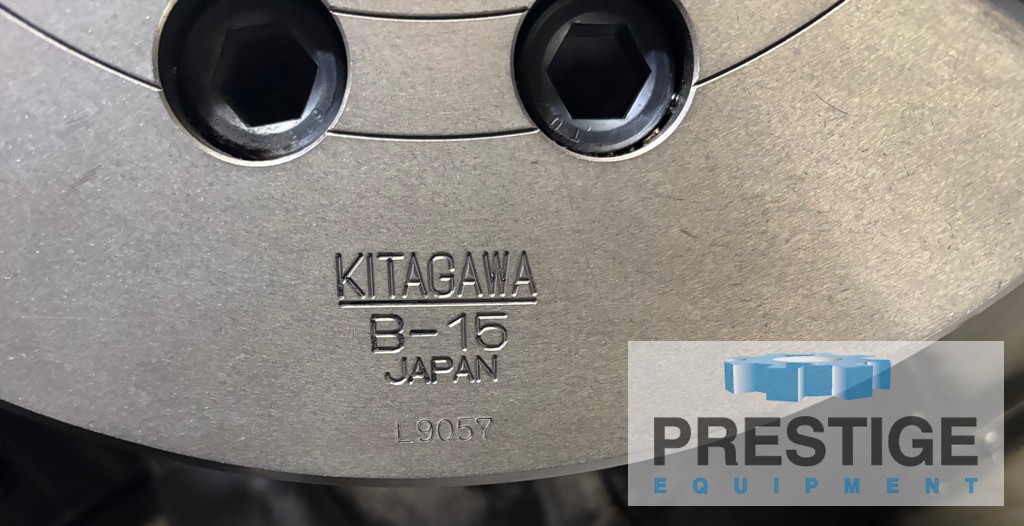

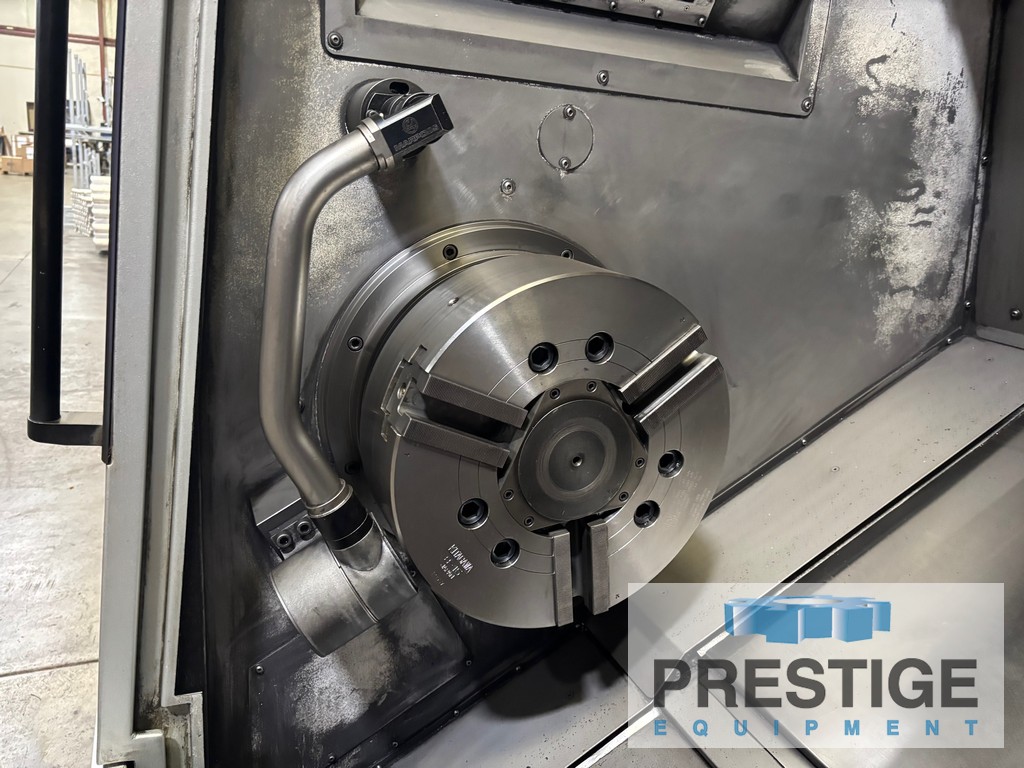

15" Kitagawa B-15 Chuck

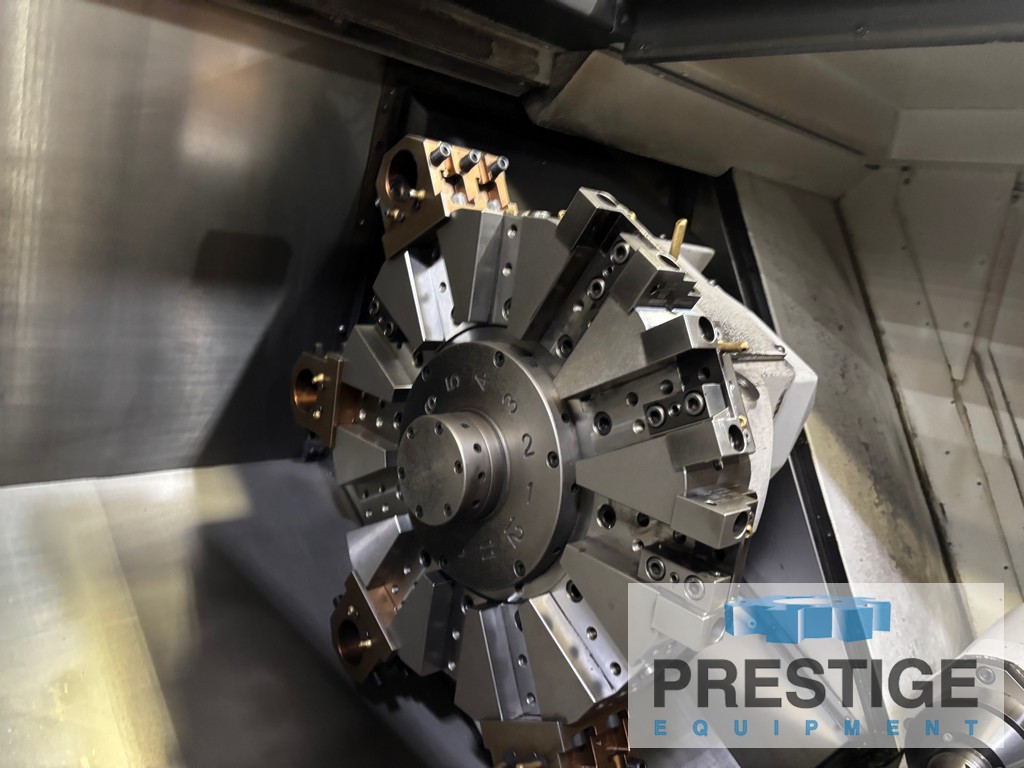

12-Position Turret
Tailstock

SPECIFICATIONS:
Maximum Swing ......................... 26.38"
Maximum Turning Diameter .............. 18.9"
Maximum Turning Length ............... 30.31"
Chuck Diameter ........................ 15"
Spindle Nose .......................... A2-8
Spindle Speeds, 2-Ranges .............. 42 - 4,200 RPM
Spindle Motor ......................... 40 HP
Spindle Bore .......................... 3"
Machine Footprint .................... 122" x 76"
Machien Height ....................... 76.97"
Machine Weight ....................... 13,860 lbs

EQUIPPED WITH:
OSP-P300LA CNC Controls
15" Kitagawa B-15 Chuck
12-Position Turret
Tailstock

NOTE:
2932 On Hours
633 Run Hours
516 Cut Hours
