Brother TC-S2C-0 CNC Vertical Drill & Tapping Center, CNC-B00 CNC Ctrl, 21 Station ATC, BT #30, 10,000 RPM, #44009

Manufacturer

BROTHER

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

44009

Model

TC-S2C-0

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44009

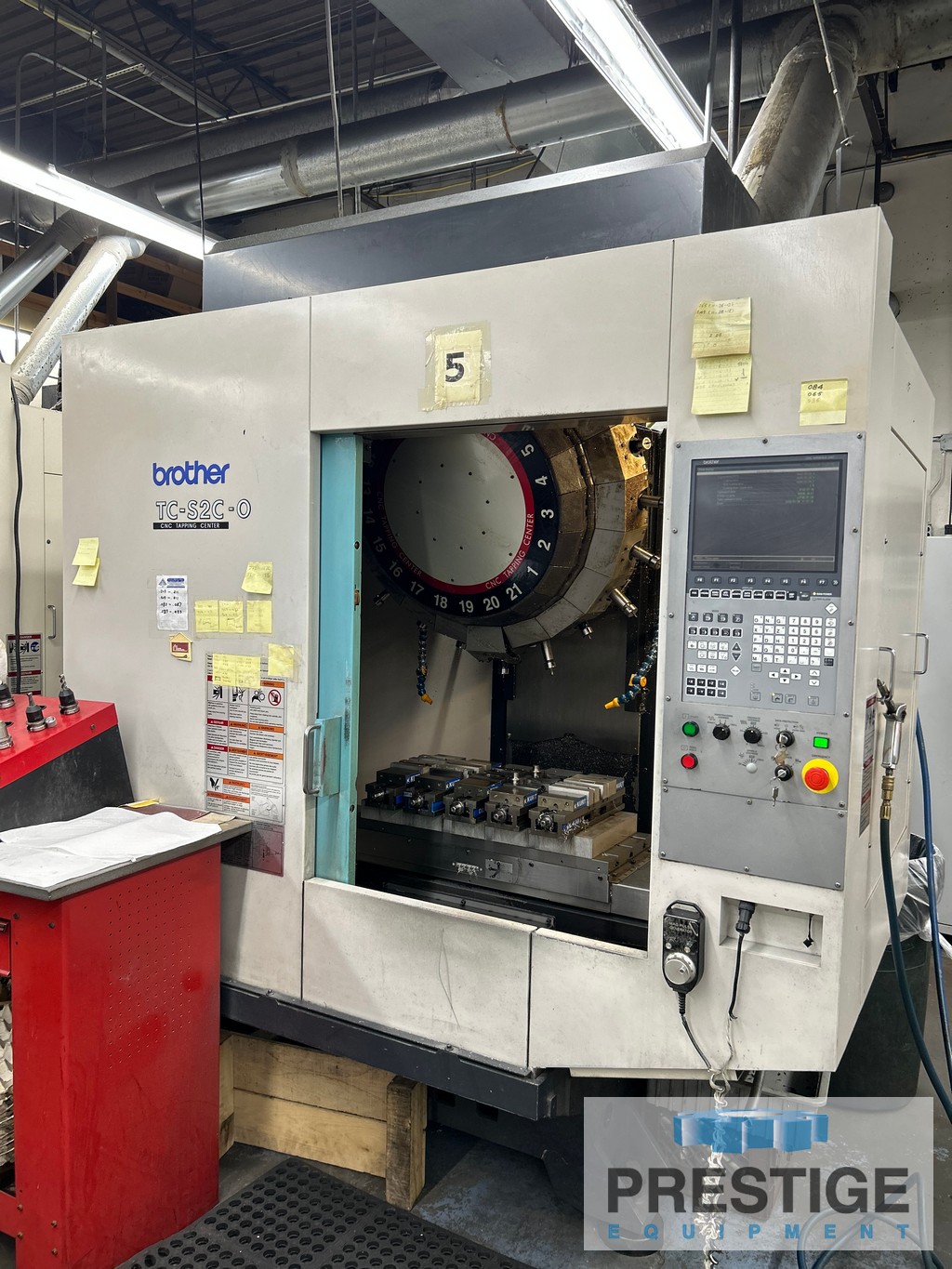

Brother TC-S2C-0 CNC Vertical Drill & Tapping Center

SPECIFICATIONS:
X-Axis Travel ......................... 27.6"
Y-Axis Travel ......................... 15.7"
Z-Axis Travel ......................... 11.8"
Distance Between Table and Spindle .... 7.1"-18.9"
Table Size (Fixed Table) .............. 31.5" x 12.6"
Max. Load Weight ...................... 551 Lbs.
Spindle Speeds ........................ 10-10,000 RPM
Spindle Taper ......................... BT 30
Spindle Drive ......................... 10.1 HP/6.7 HP
Rapid Traverse ........................ 1,969 IPM
Cutting Feed Rate (X/Y)................ 0.04-394 IPM
Approximate Machine Dimensions ........ 84" x 112" x 103"
Approximate Machine Weight ............ 5,300 Lbs.

EQUIPPED WITH:

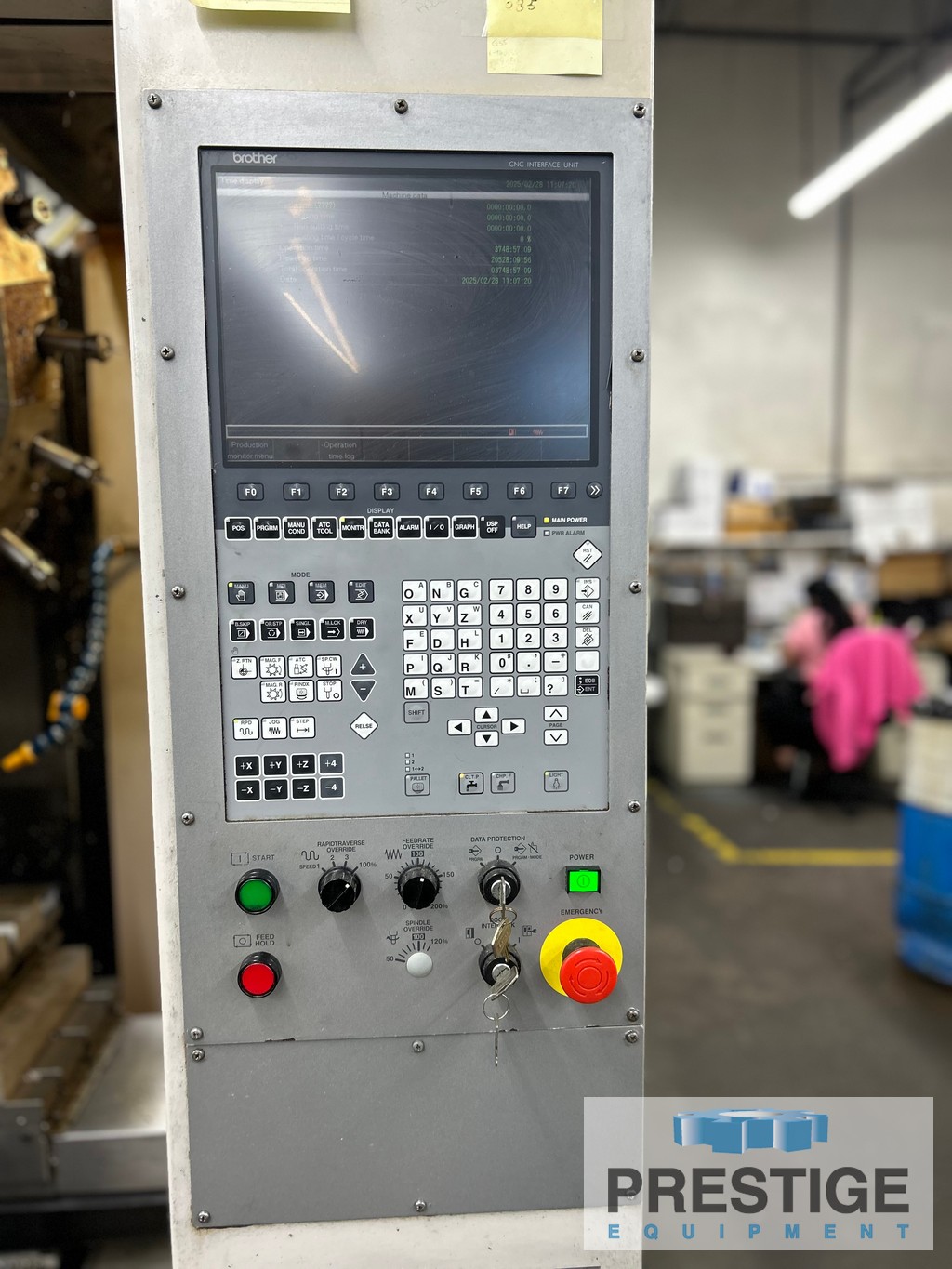

Brother CNC-B00 CNC Control

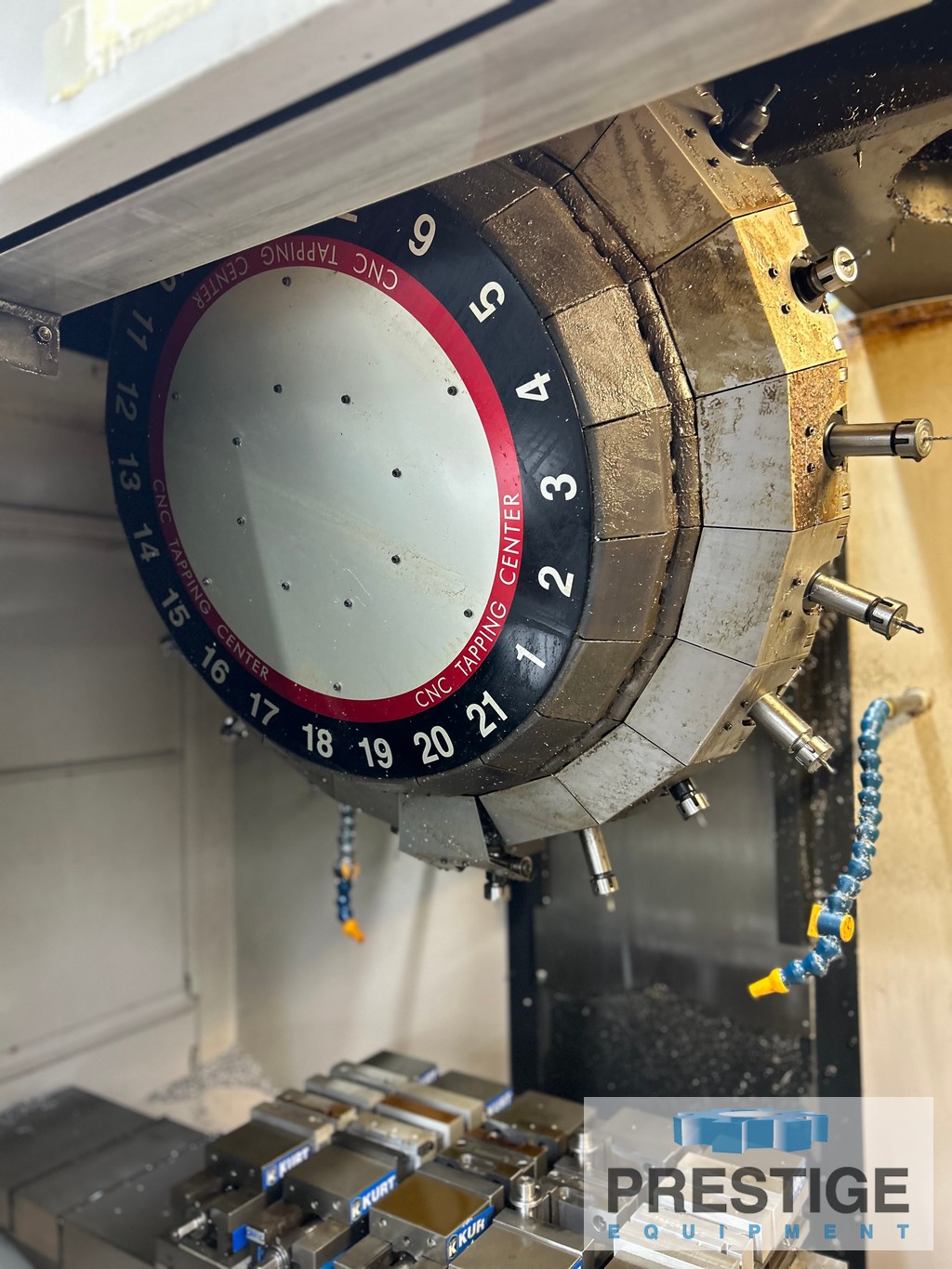

21-Station Automatic Tool Changer

NOTE:
Inspect in Plant Under Power, Vises Not Included with Machine
