Flow 4' x 4' Mach 2 1313b, 50" x 50", 60,000 PSI, 30 HP, Flowmaster PC, Intensifier Pump, 500 Lb. Hopper, 2014, #44007

Manufacturer

FLOW

Category

Water Jet Cutting

Type

WATER JET CUTTING, CNC

Stock

44007

Model

Mach 2 1313b

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44007

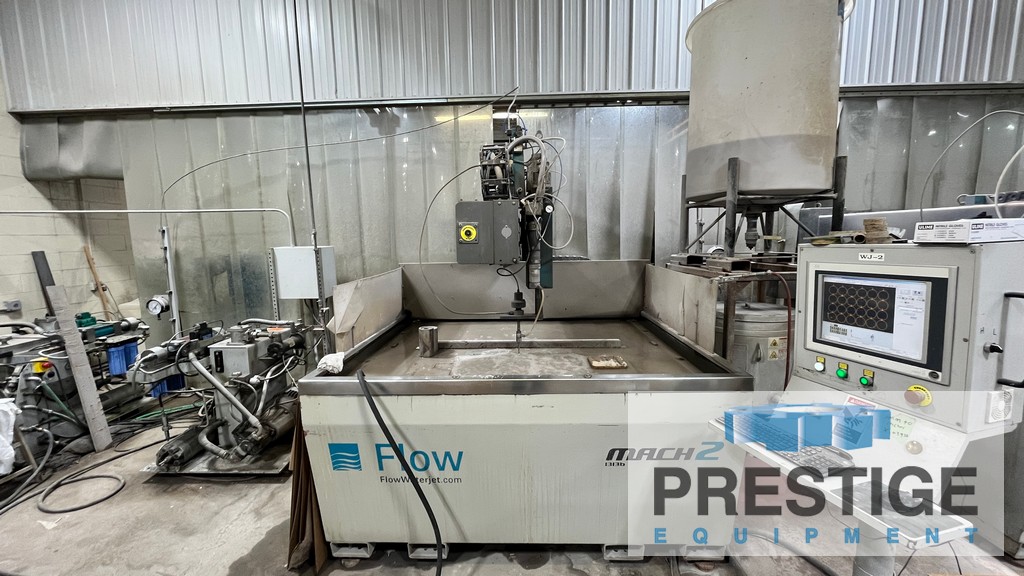

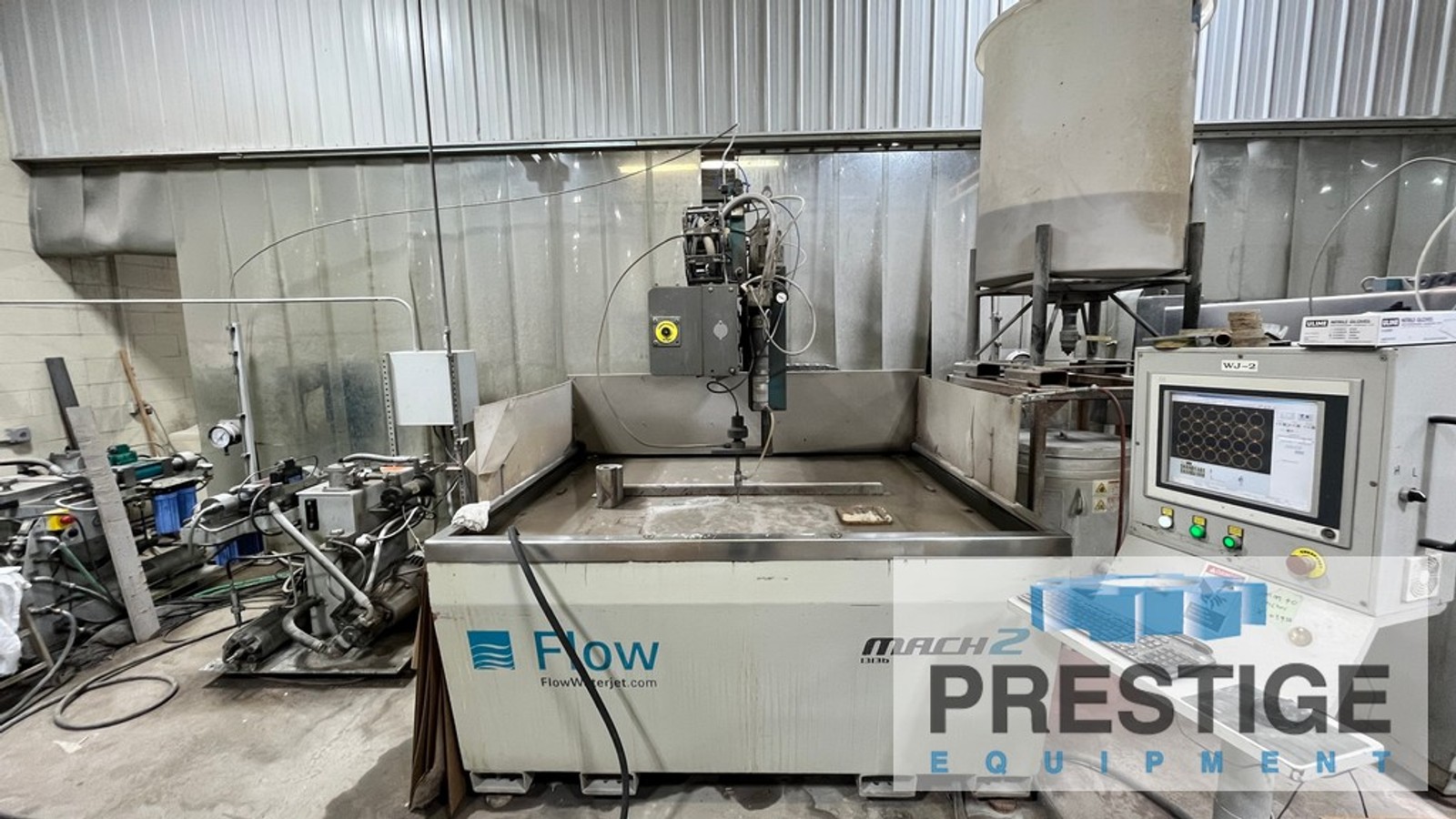

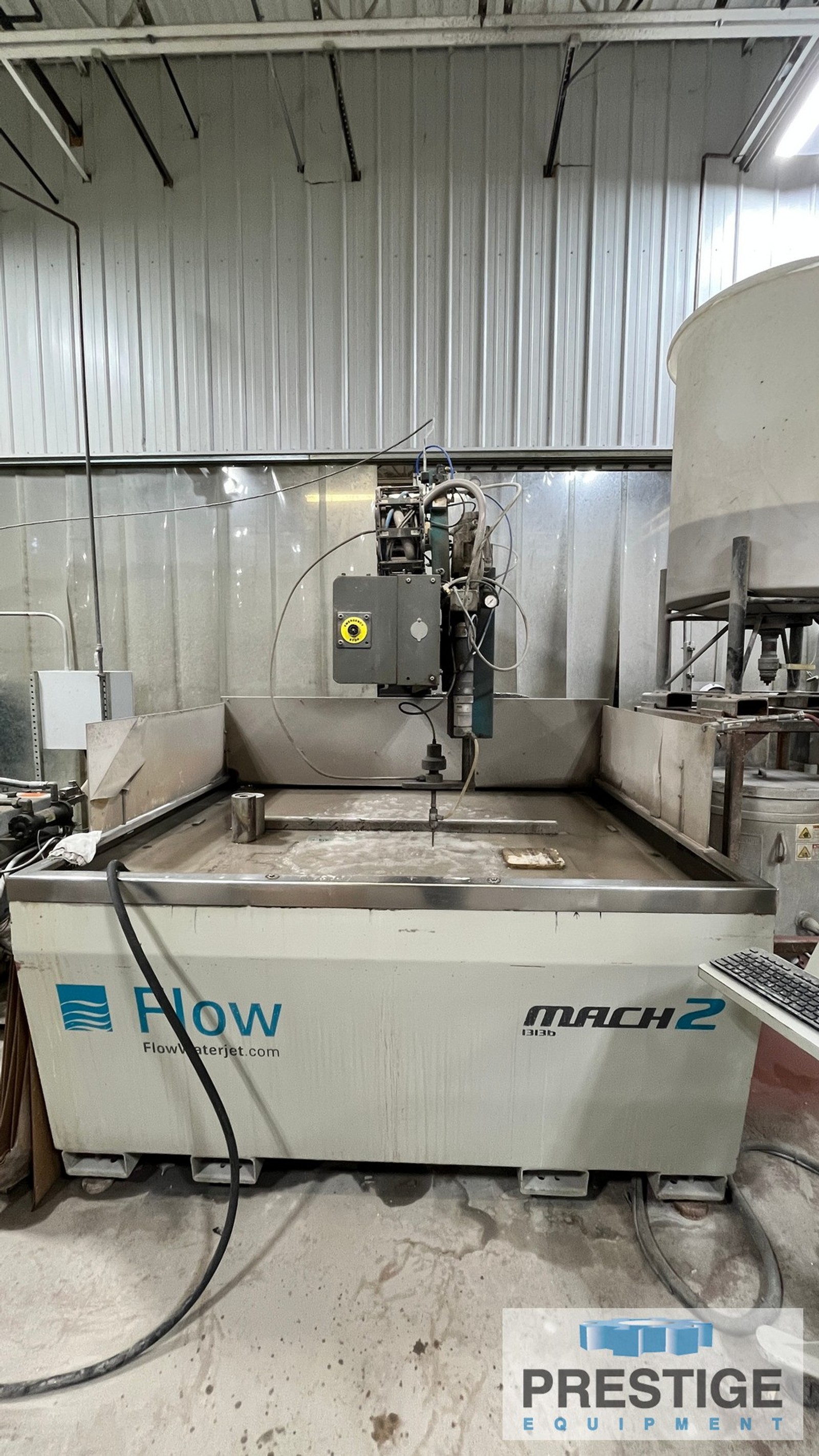

Flow 4' x 4' Mach 2 1313b CNC Water Jet

FEATURES:
Flowmaster PC Based CNC Control
Conventional 2D Cutting Head
Flow 30-SA Intensifier Pump
500 Lb. Abrasive Hopper

CAPACITY:
Work Area ............................. 48" x 48"
X-Axis Travel ......................... 50"
Y-Axis Travel ......................... 50"
Z-Axis Travel ......................... 7"
Intensifier Output .................... 60,000 PSI
Motor Size (460 Volt) ................. 30 HP
Speed Range (X & Y Axes) .............. 0 - 400 IPM
Contouring ............................ 300 IPM
Positional Accuracy (X & Y Axes) ...... +/- 0.005"
Repeatability (X & Y Axes) ............ +/- 0.0025"

EQUIPPED WITH:

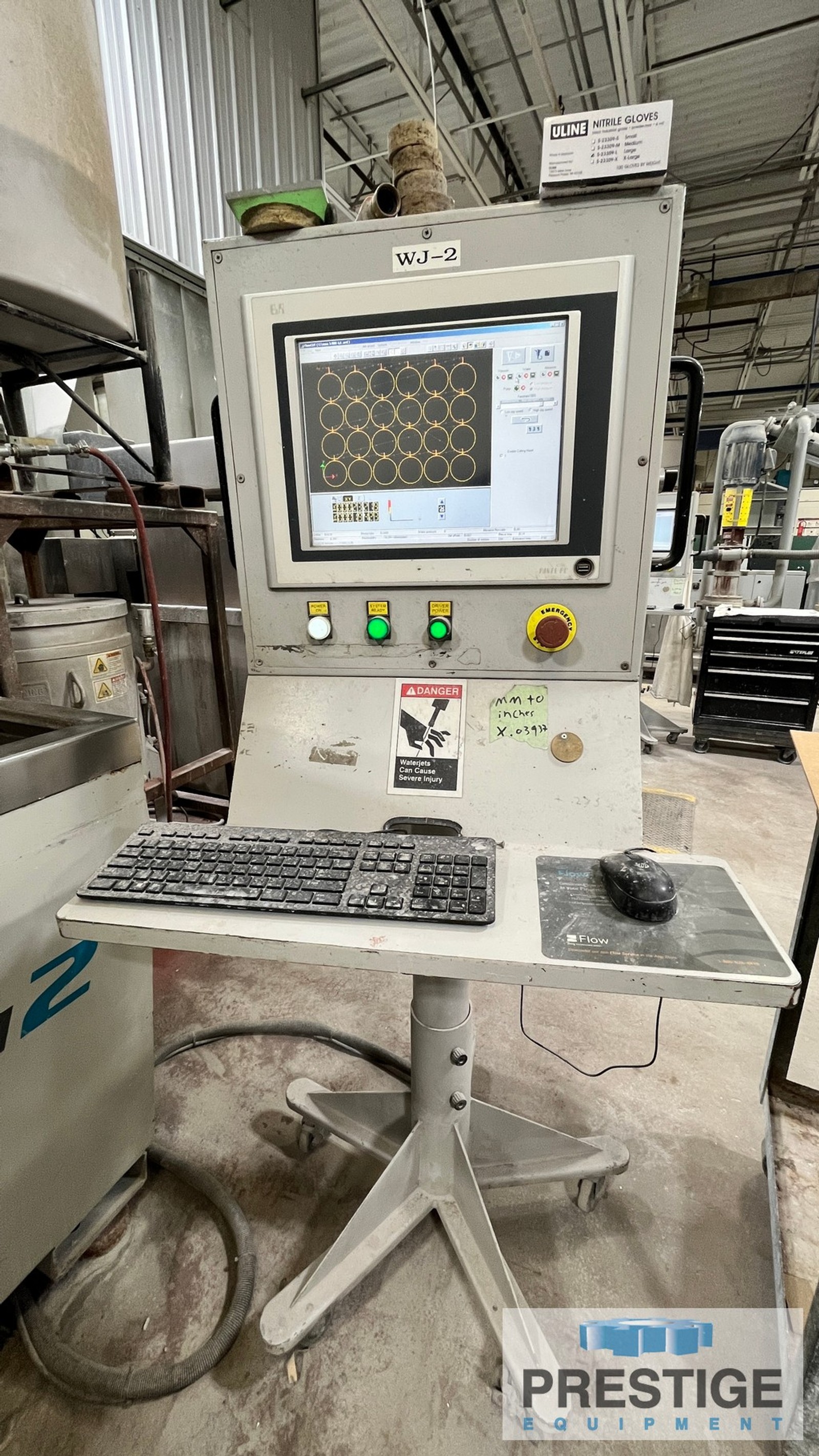

Flowmaster PC Based CNC Control

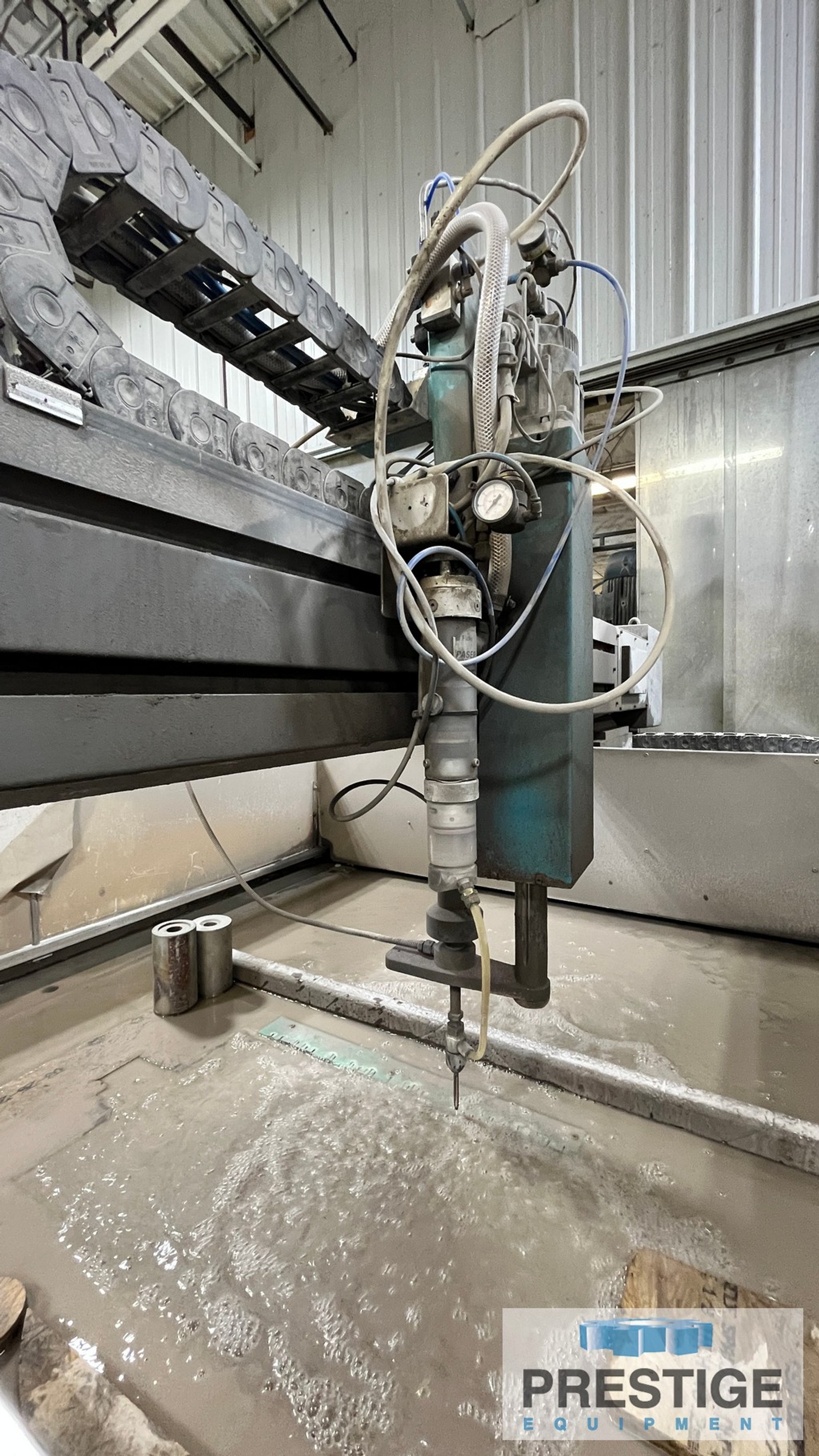

Conventional 2D Cutting Head

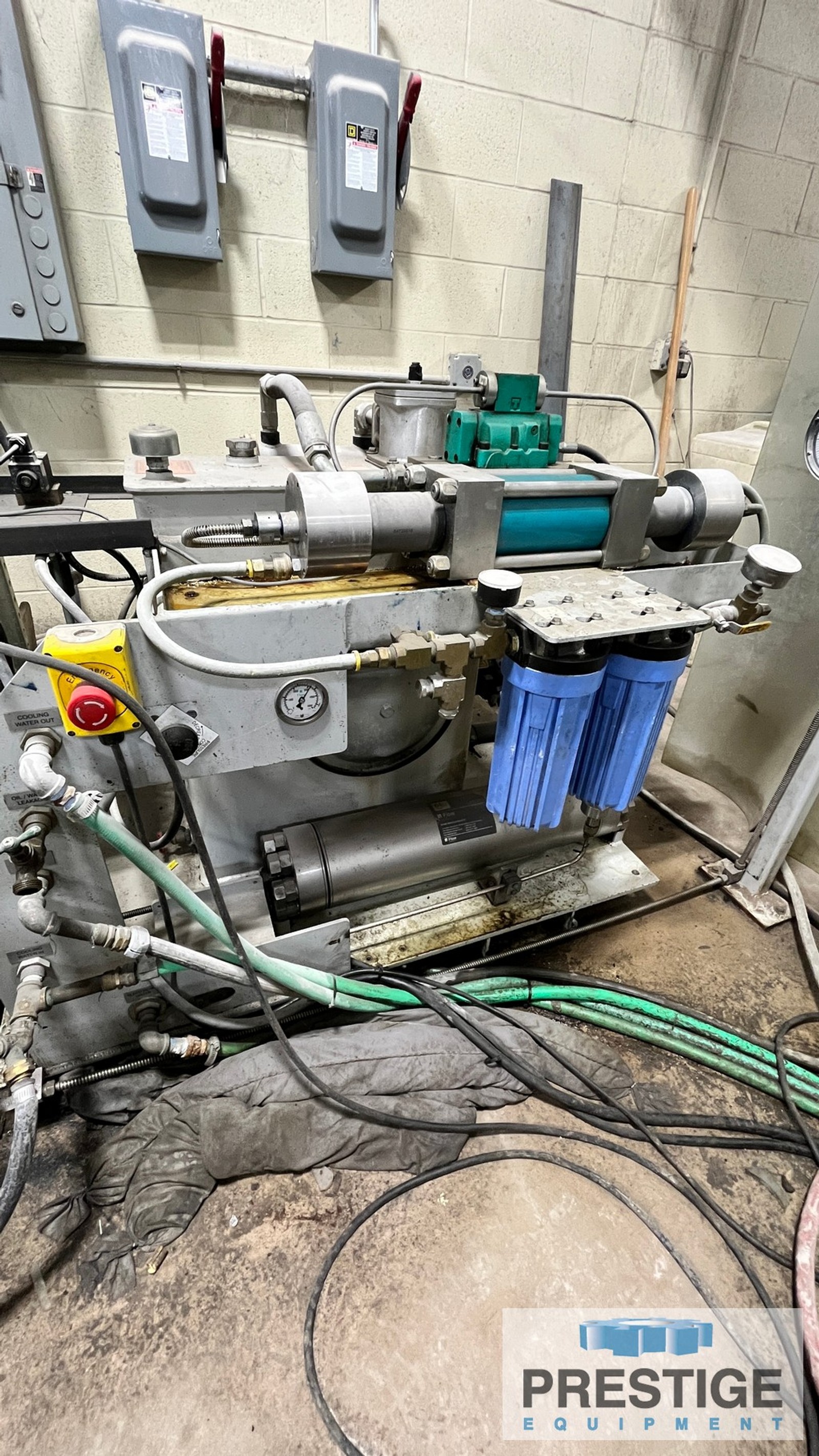

Flow 30-SA Intensifier Pump
500 Lb. Abrasive Hopper

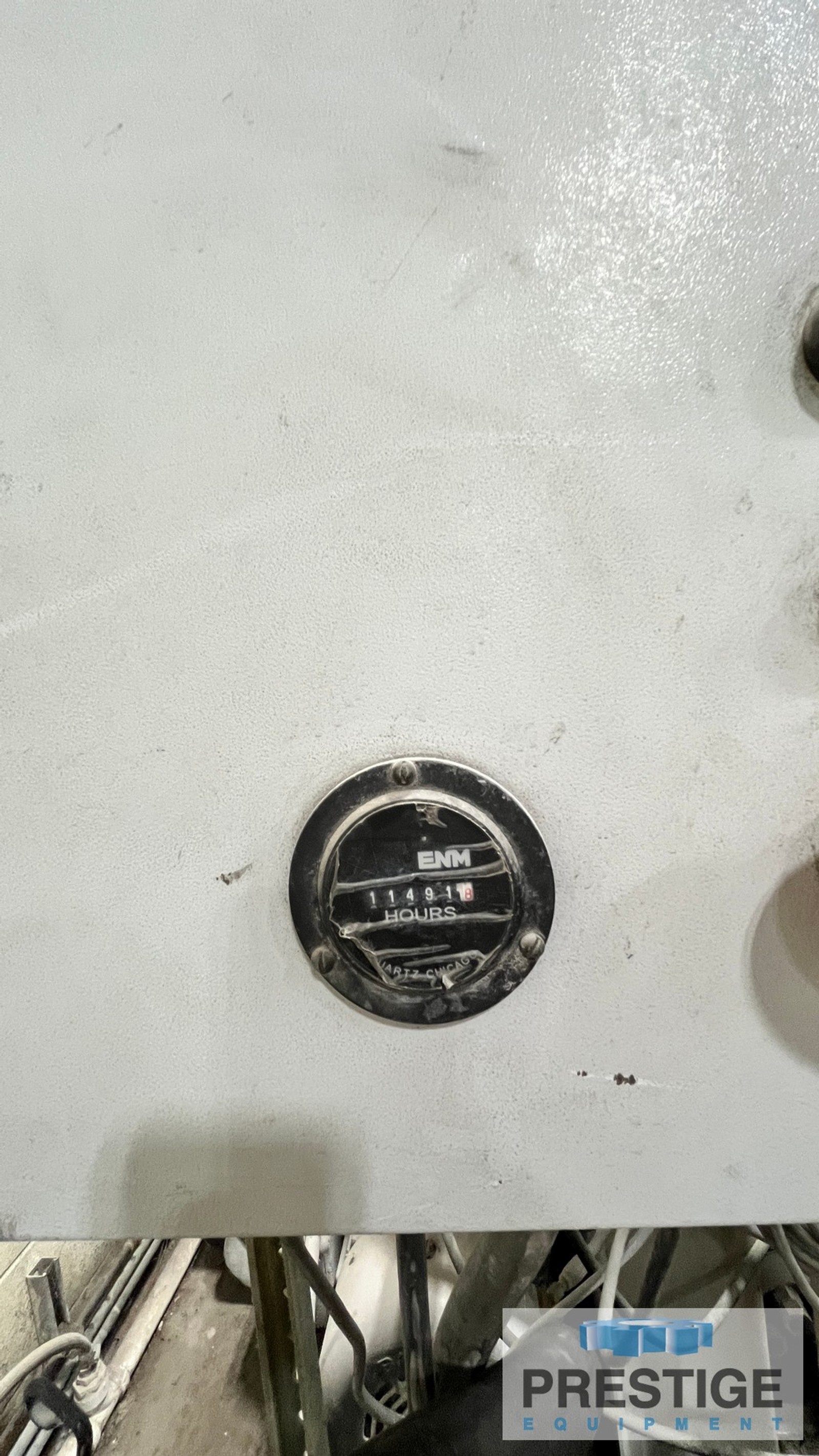

HOURS:
11,491

NOTE:
Inspect In Plant Under Power
(2) Machines available
