Okuma MU-6300V CNC 5-Axis, 2-Axis Trunnion Table, 166 ATC, OSP300 CNC Blum Laser, 2019, #43935

Manufacturer

OKUMA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43935

Model

MU-6300V

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43935

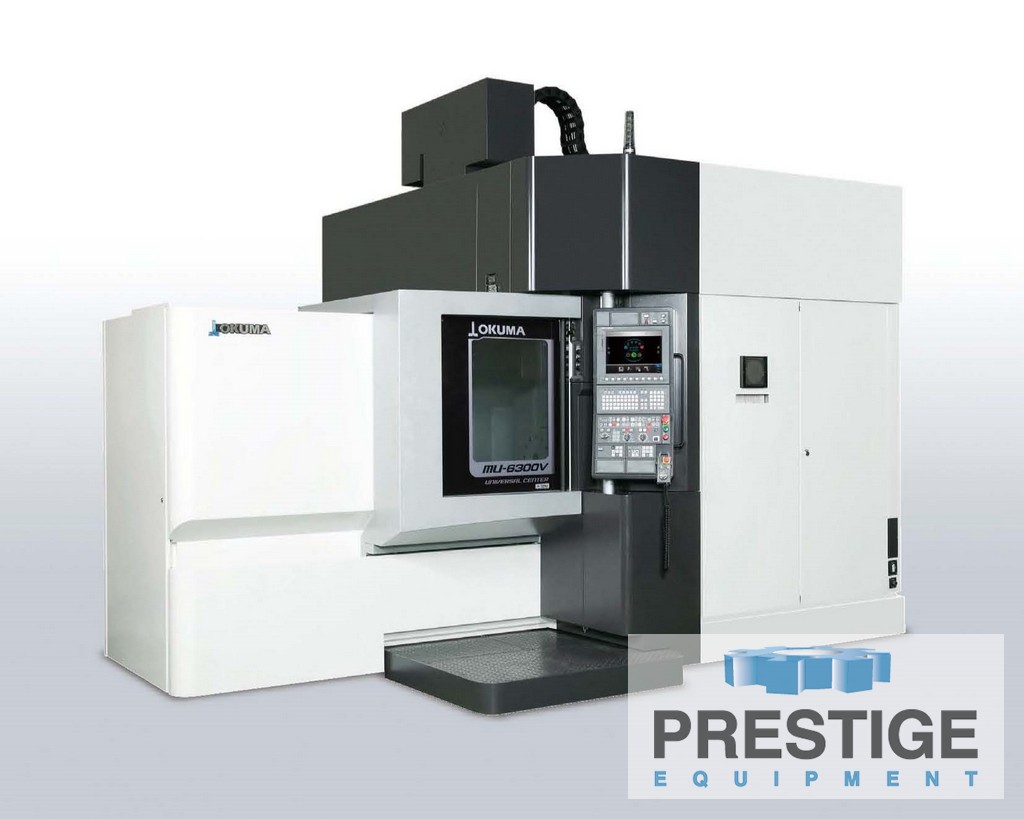

Okuma MU-6300V CNC 5-Axis Vertical Machining Center

FEATURES:
Okuma OSP 300 5-Axis CNC Control

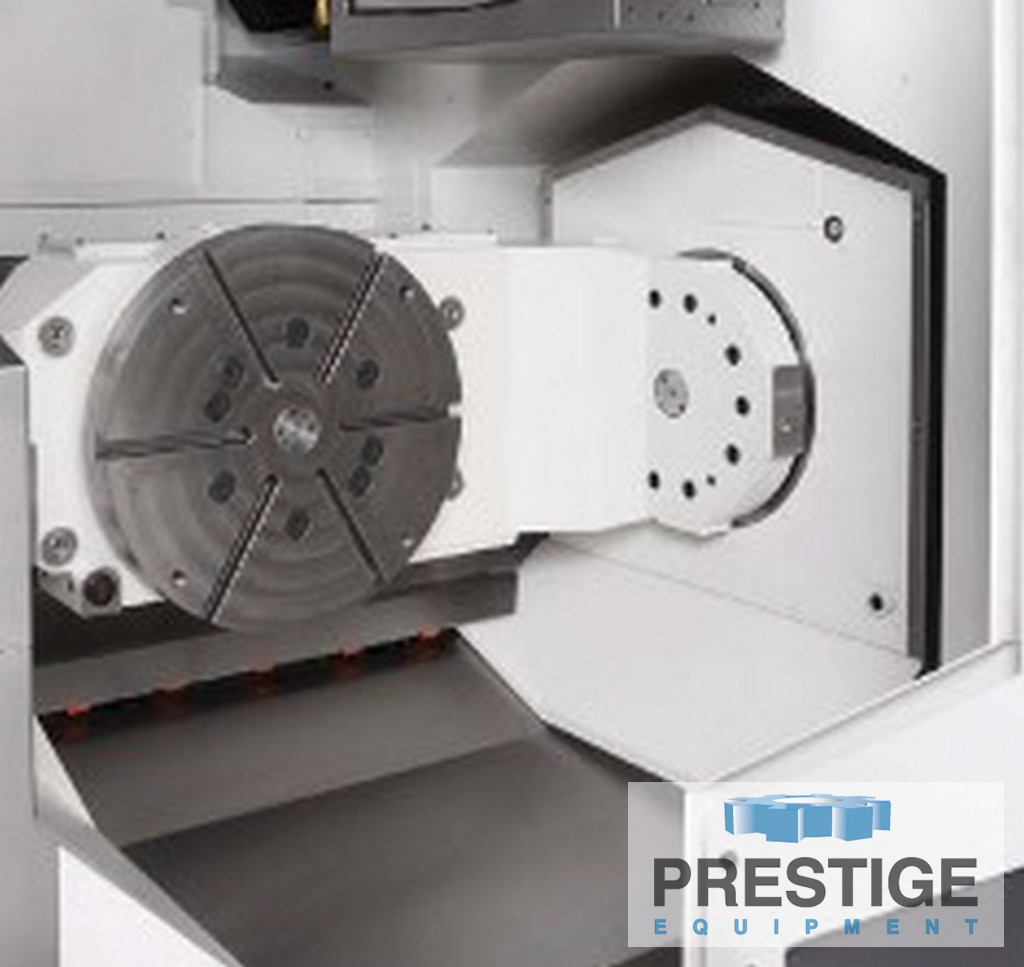

2-Axis Trunnion CNC Rotary Table
166-Station Automatic Tool Changer

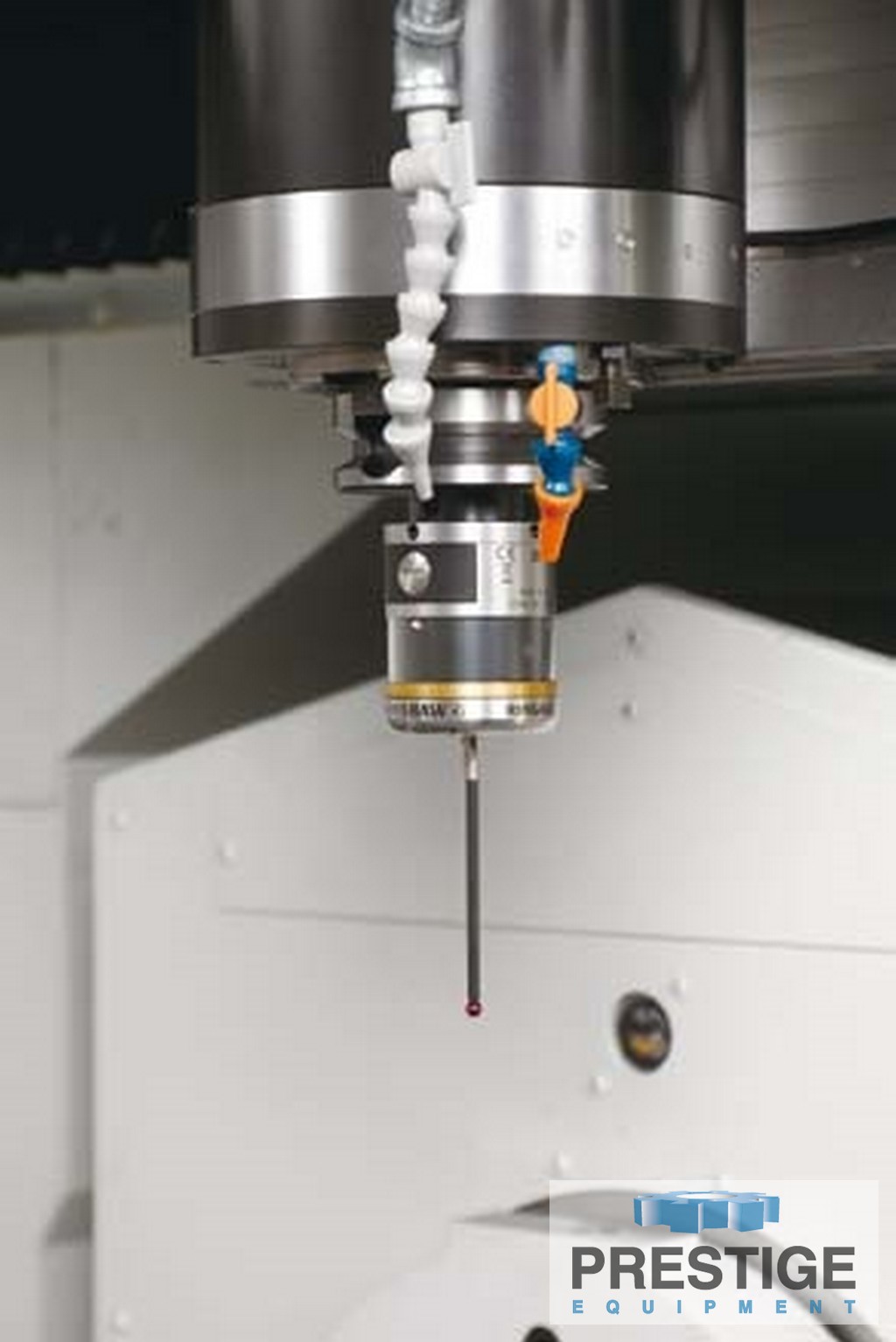

Auto Guaging
Tool Breakage Detection

TRAVELS:
X-Axis Travel ......................... 36.42"
Y-Axis Travel ......................... 41.34"
Z-Axis Travel ......................... 23.62"
A-Axis(Trunnion Swivel) ............... +90/-120
C-Axis Swivel ......................... 360 Deg.
Table Surface to Spindle Nose ......... 6.30"-29.92"
Table Size ............................ 24.8" Dia.
Maximum Load Capacity ................. 1,320 Lbs.
Max Machining Volume .................. 32.68" x 21.65"
Spindle Speeds ........................ 15,000 RPM
Spindle Motor ......................... 29 HP/24.6 HP
Spindle Taper ......................... #40 Big Plus
Rapids, XYZ ........................... 1,969 IPM
Cutting Feed Rate (X/Y/Z) ............. 0.0393-1968 IPM
Approximate Dimensions ................ 191" x 118" x 139"
Approximate Weight .................... 38,500 Lbs.

EQUIPPED WITH:
Okuma OSP300 5-Axis CNC Control
2-Axis Trunnion CNC Rotary Table
166-Station Automatic Tool Changer
Prepped for Thru Spindle Coolant
Flood Coolant
Auto Guaging
Blum Laser Tool Setter
