HNK NT-25/35, 12-ATC, 98" Table, 137" Swing, 78" Turning Height, Heidenhain Scales, 74 HP, 2009 #43940

Manufacturer

HNK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43940

Model

NT-25/35

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43940

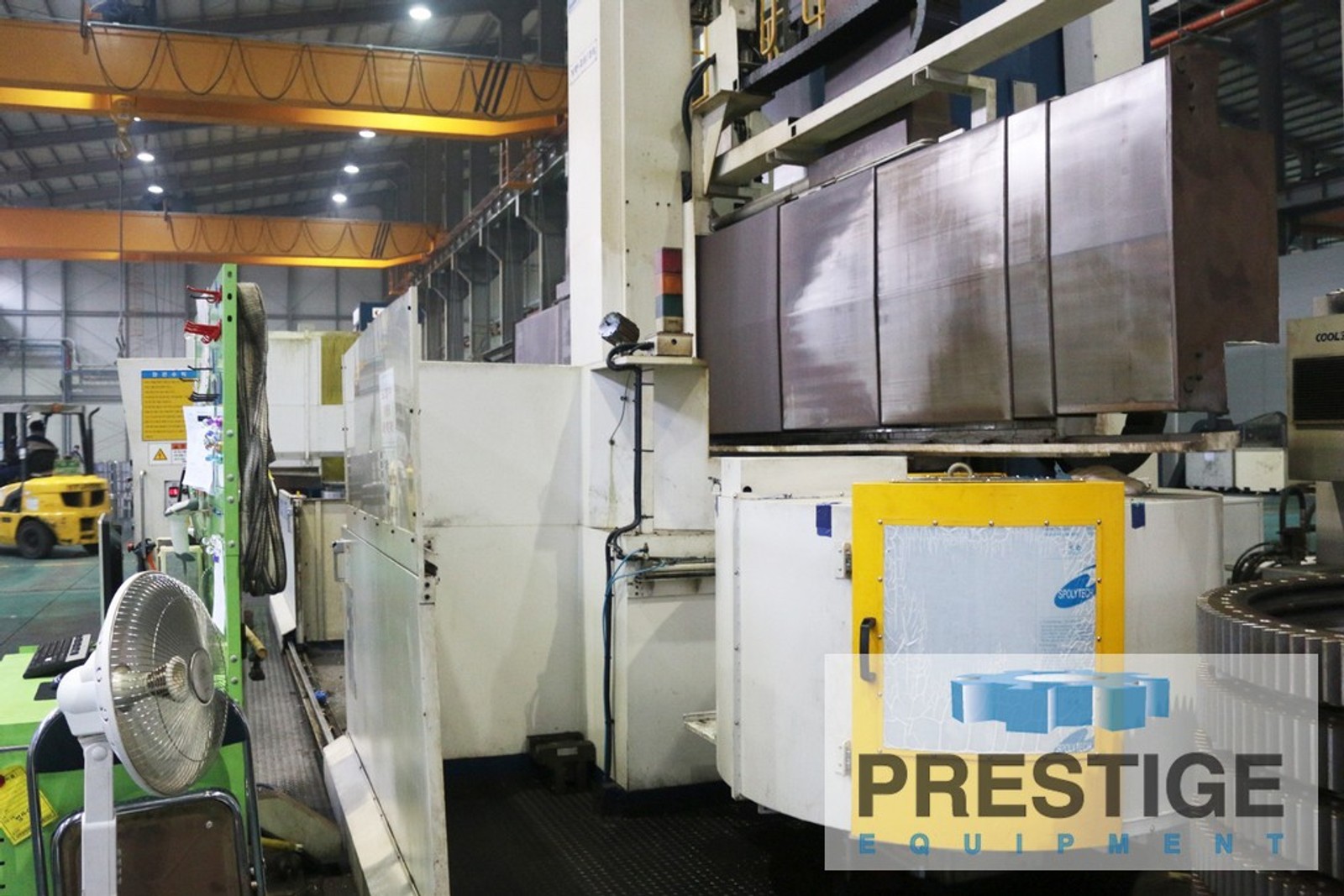

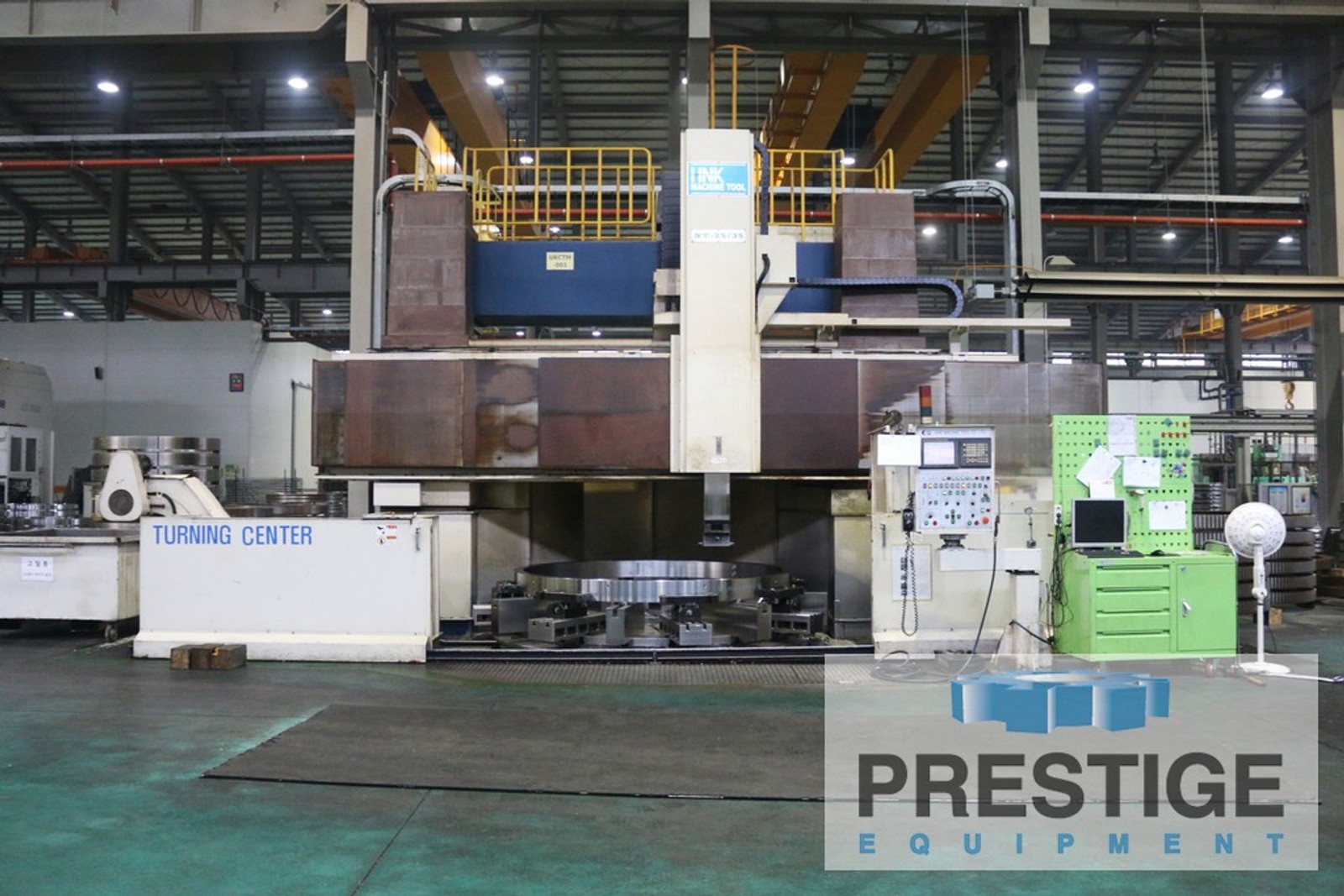

HNK NT-25/35 98"/137" CNC Vertical Boring Mill w/Fanuc 18-iB

FEATURES:
Fanuc 18i-TB CNC Control
12-Station Automatic Tool Changer
Heidenhain Linear Scales

SPECIFICATIONS:
Table Diameter ....................... 98.42"
Maximum Swing ........................ 137.79"
Maximum Turning Height ............... 78.74"
Cross Rail Adjustment 4-Steps ........ 9.84" Each
Ram Cross Section .................... 9.45" x 9.45"
Table Speeds ......................... to 120 RPM
Table Load Capacity .................. 26,820 Lbs
Vertical Ram Travel, Z-Axis .......... 47.24"
Rapid Feed Rate ...................... 393.7 IPM
Cutting Feed Rate .................... 118.11 IPM
Main Motor, AC ....................... 60 HP/ 75 HP

EQUIPPED WITH:
Fanuc 18i-TB CNC Controls
78.74" Face Plate Chuck W/4-Jaws
12-Station Automatic Tool Changer
Heidenhain Linear Scales X & Z Axes

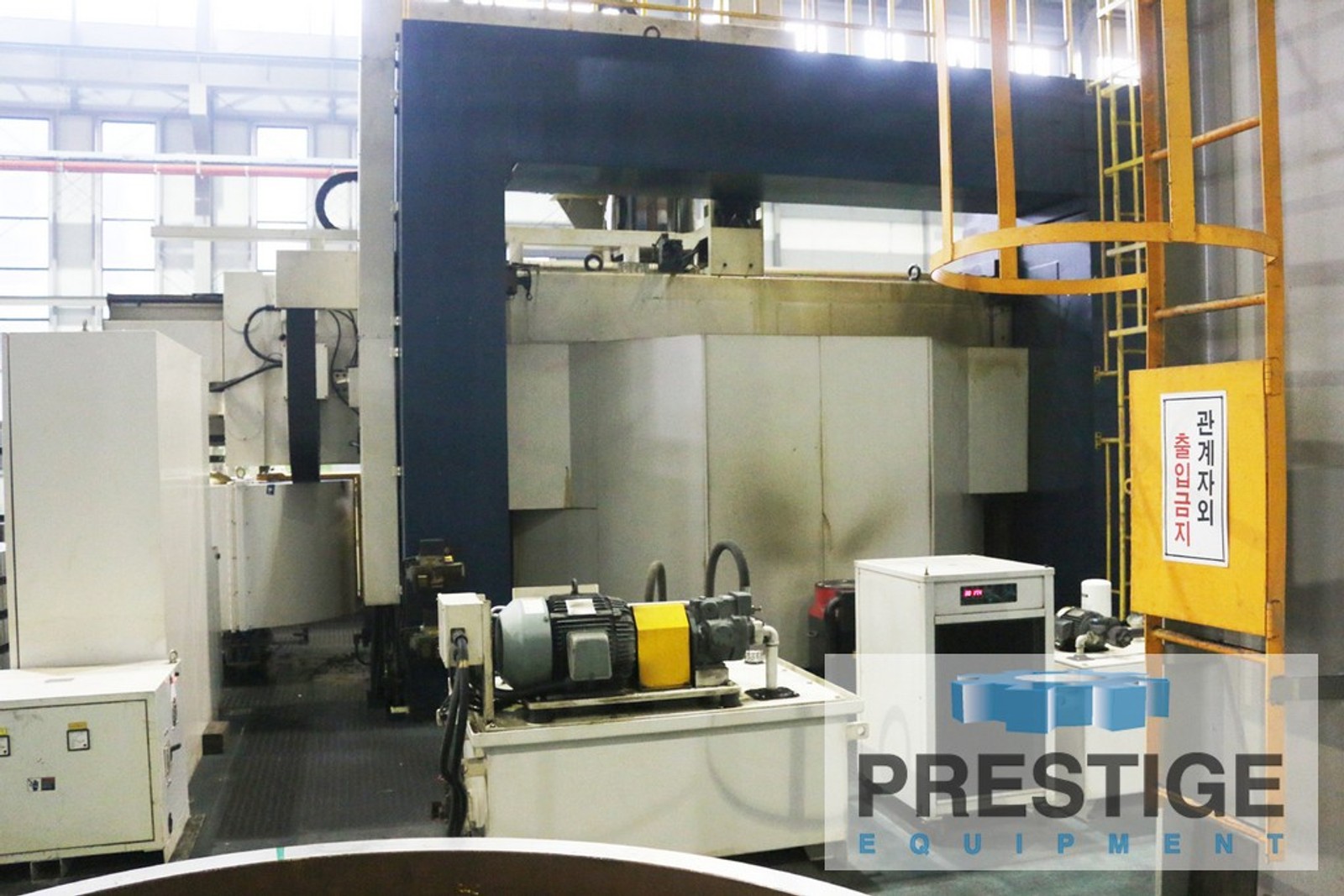

Coolant System with Chiller Unit
Chip Conveyor
Splash Guard
75 HP Main Motor
