FIDIA Y2G Dual Gantry Dual Head 5-Axis, 42-ATC, X-629", Y-137", Z-59", A & C Axis, 24,000 rpm, Fidia C-20 #43933

Manufacturer

FIDIA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43933

Model

Y2G 5-Axis

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43933

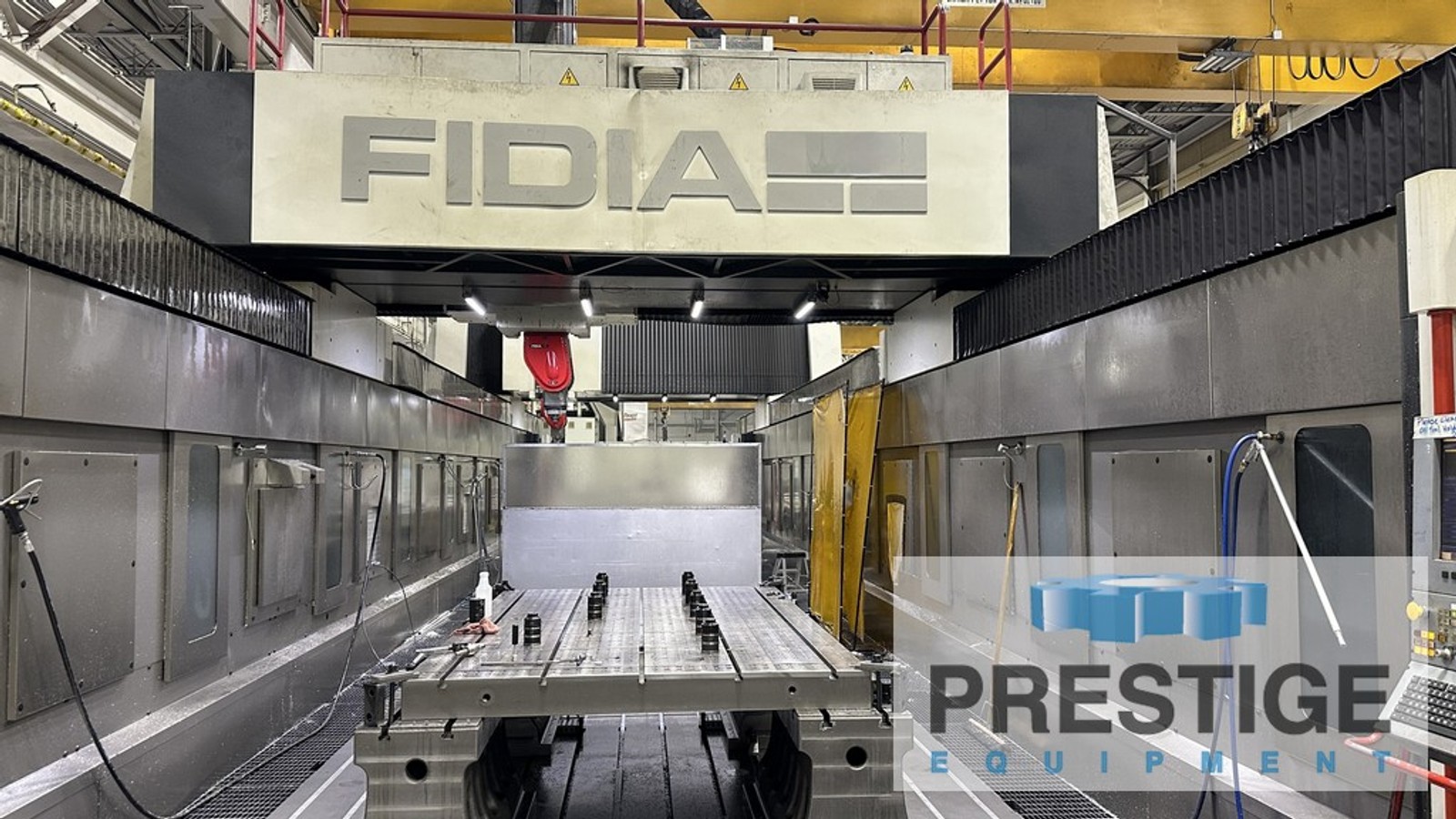

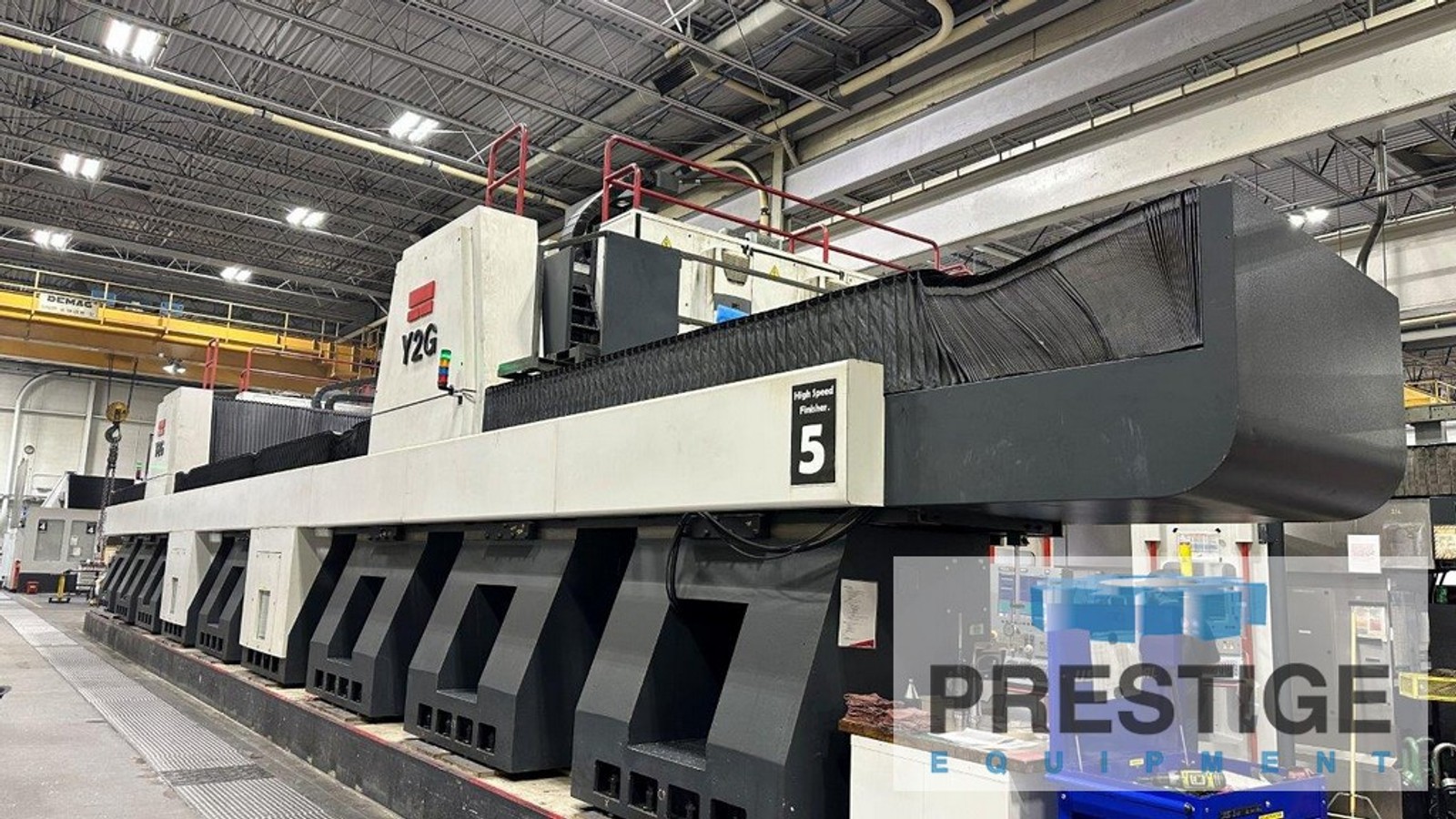

FIDIA Y2G Dual Gantry Dual Head 5-Axis CNC High Speed Milling Machine

FEATURES:

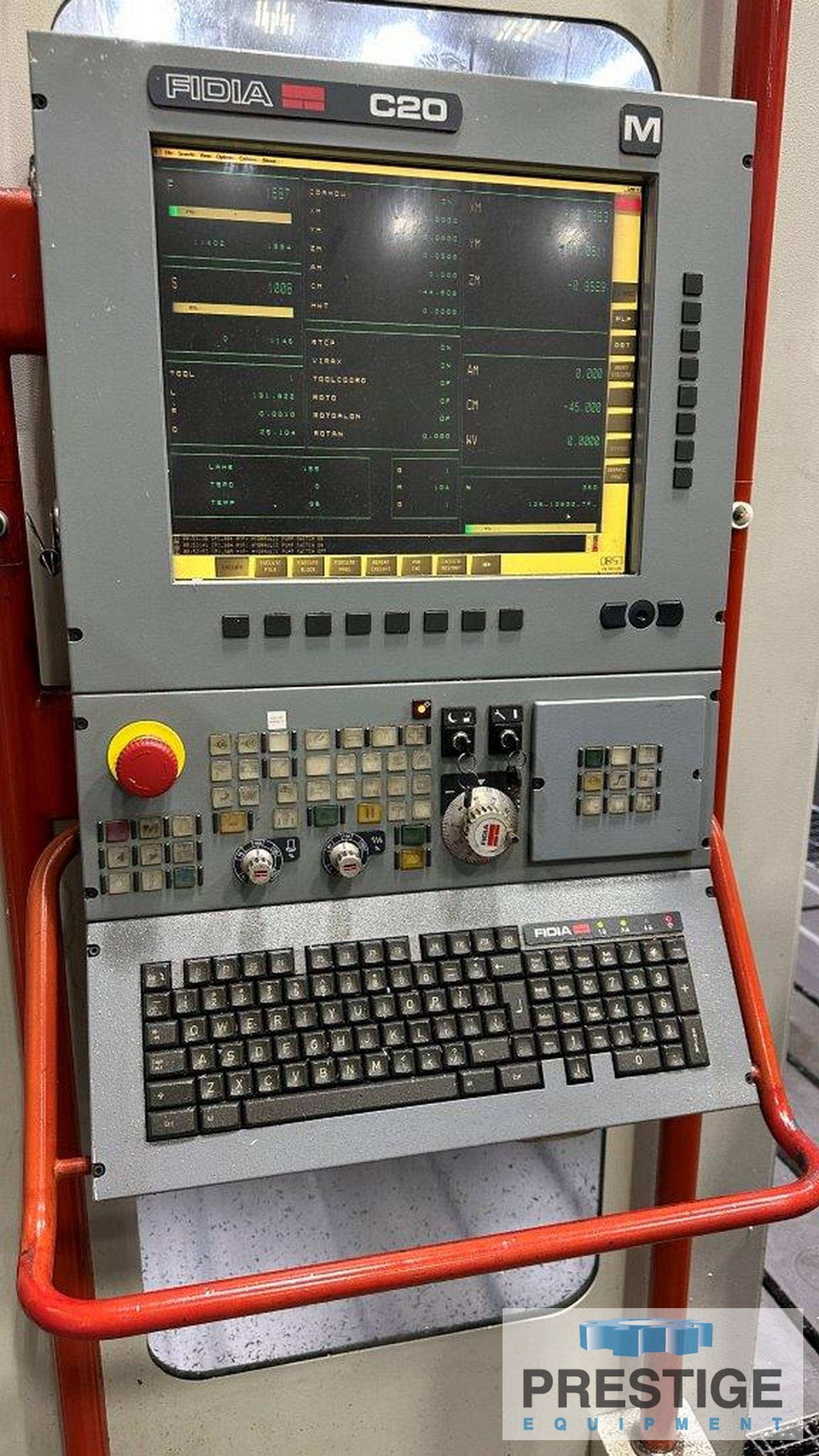

(2) Fidia C20 CNC Controls

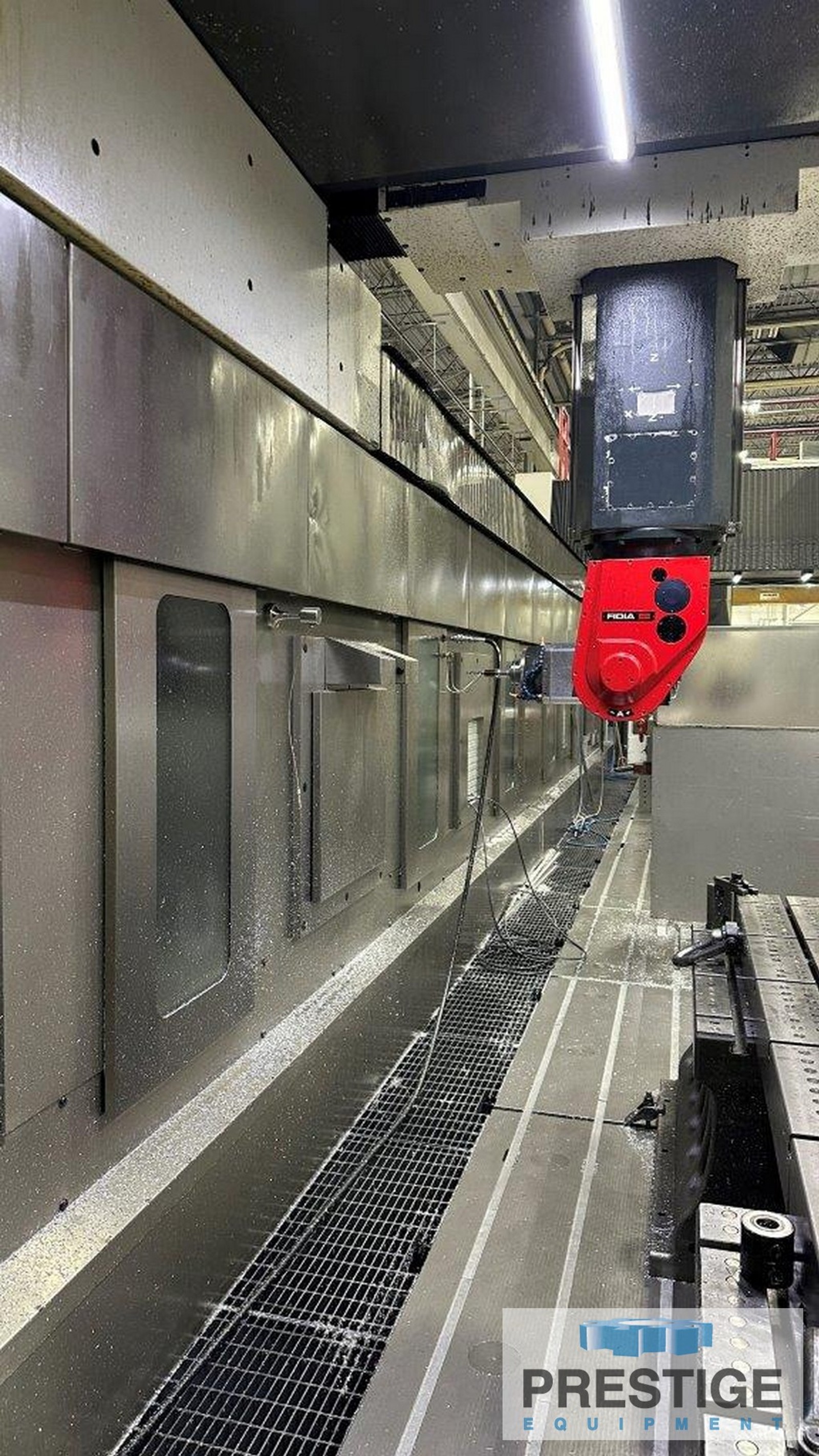

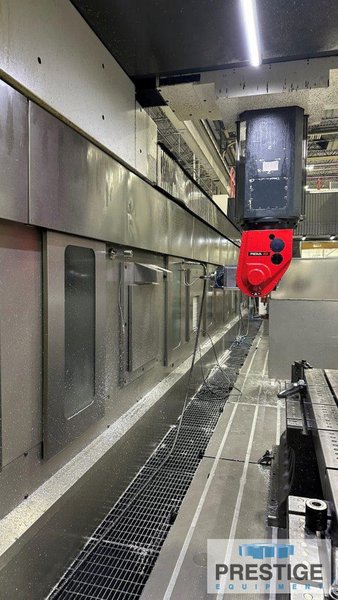

M5A Full Continuous 5-Axis Heads
(2) 42 Automatic Tool Change Stations
Linear Rails on X,Y,Z Axes
(2) Tool Measuring Systems
157" x 236" Floor Plate

SPECIFICATIONS:
X-Axis Travel ......................... 629.92"
Y-Axis Travel ......................... 137.79"
Z-Axis Travel ......................... 59.05"
Weight Capacity ....................... 150,000 Lbs.
A-Axis Travel ......................... +110 Deg./-90 Deg.
C-Axis Travel ......................... +/360 Deg.
Spindle 1 Speeds (HSK 63) ............. 24,000 RPM
Spindle 2 Speeds (HSK 100) ............ 14,000 RPM

EQUIPPED WITH:
(2) Fidia C20 CNC Controls
M5A Full Continuous 5-Axis Heads
(2) 42 Automatic Tool Change Stations
Fidia X Power Drives
(2) Fidia Tool Measuring
X-Axis Rack & Pinion
Y/Z Axis Ball Screw
Linear Rails on X,Y,Z Axes
Dropsa MQL Tool Lubrication
(2) 1000 PSI Thru Spindle Coolant
(2) 250 PSI Halo around Spindles
Bi Folding Doors on Each End
(2) Wash Down Hoses

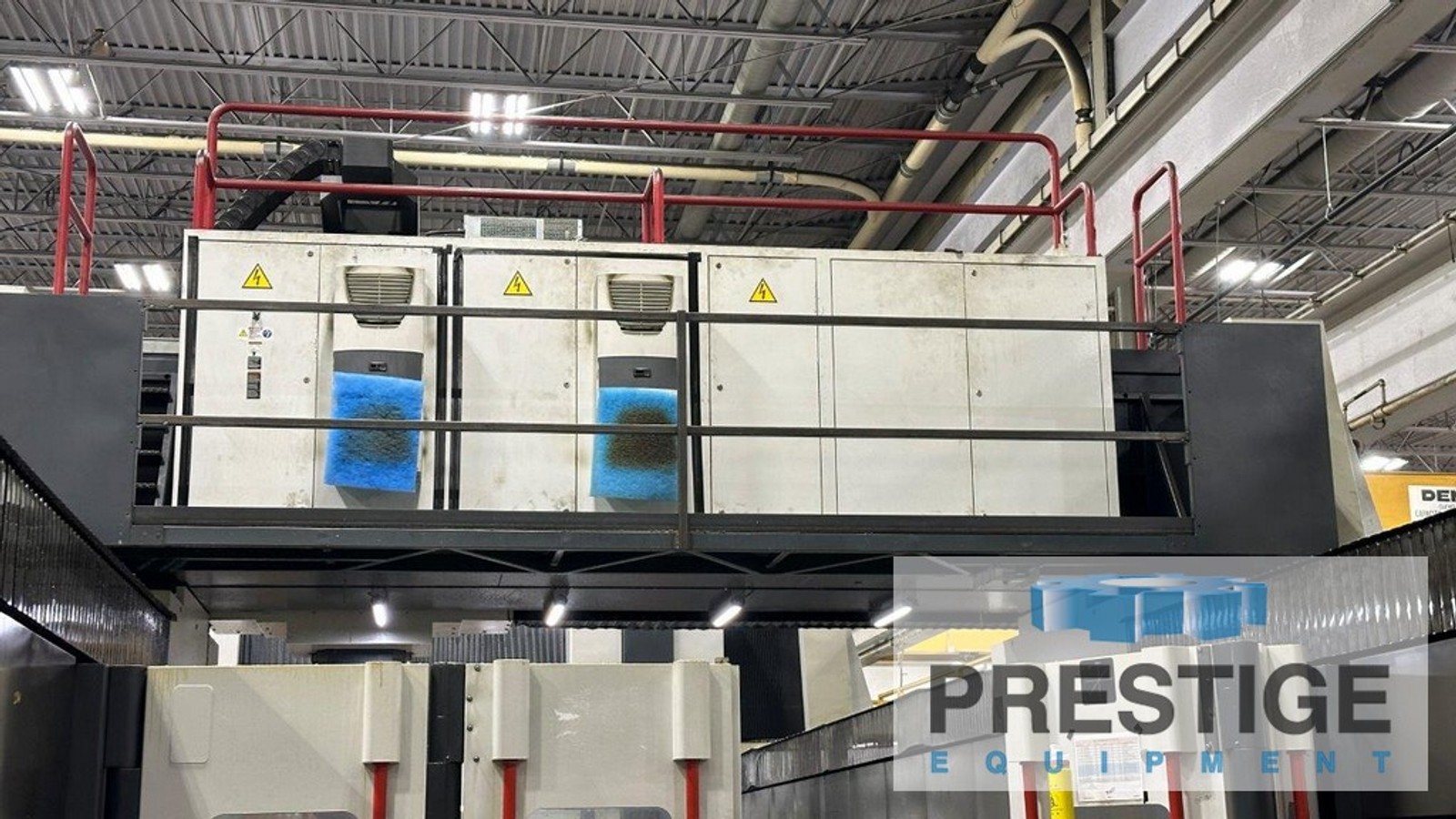

(2) Spindle & Axis Chillers
(2) Tool Measuring Systems
157" x 236" Floor Plate

NOTE:
HSK 100 Head New 2020
Kluber Grease lubrication maintained by Fidia
Full Geometry performed every 24 months.
X-Axis can be reduced to accommodate making (2) Gantry machines

NOTE CUSTOMER IS KEEPING THE FOLLOWING:
Coolant Tanks
(2) 157" x 236" Floor Plates
Chip Conveyors
Filtration Unit for the Coolant
Floor Plate Grates

NOTE:
Inspect Under Power
