Haas VF-11/50 5-Axis, X-120", Y-40", Z-30", Trunnion Rotary Table, Probe, 30 ATC, TSC, 2013, #43682

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43682

Model

VF-11/50 5-Axis

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43682

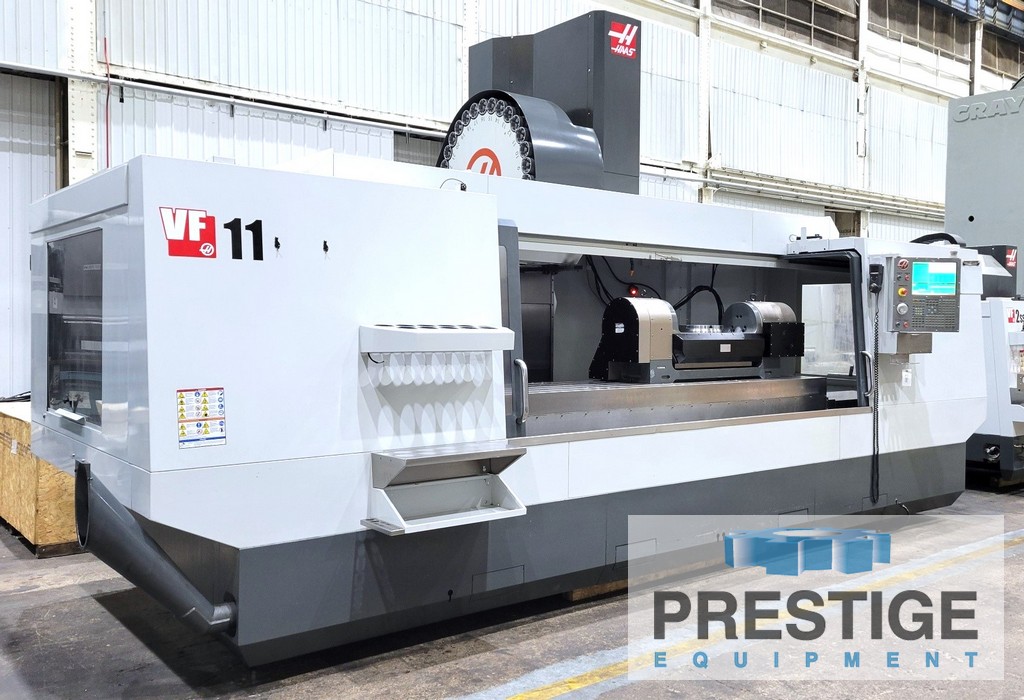

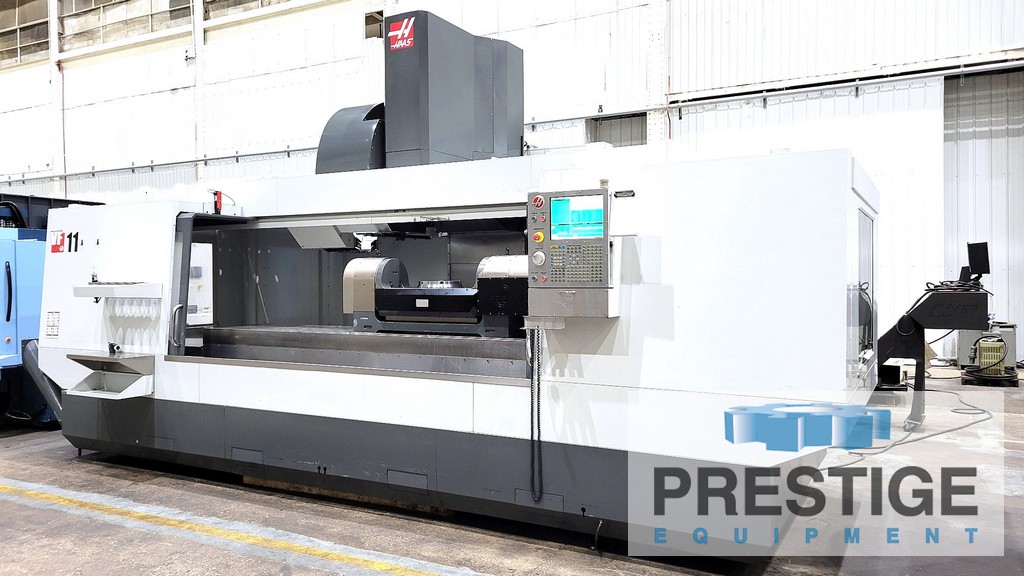

Haas VF-11/50 5-Axis CNC Vertical Machining Center

FEATURES:
Haas 5-Axis CNC Control

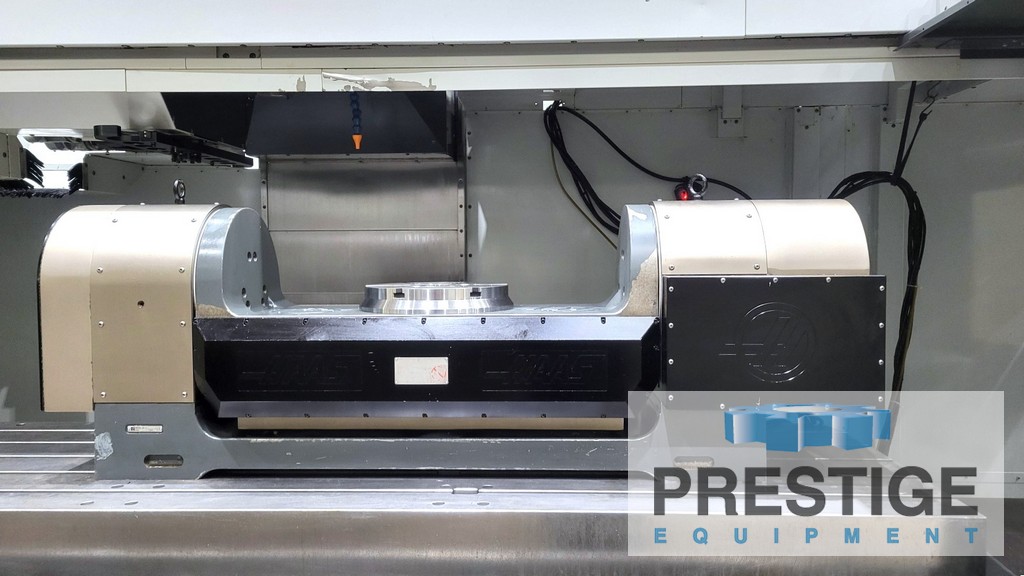

Haas TR310 CNC Trunnion Rotary Table
30-Station Side-Mounted ATC
CAT 50 Taper
Probe System
Thru Spindle Coolant

CAPACITY:
X-Axis Travel ......................... 120"
Y-Axis Travel ......................... 40"
Z-Axis Travel ......................... 30"
Table Size ............................ 28"x 120"
Spindle Nose To Table Top ............. 5"-35"
Maximum Table Load .................... 4,000 Lbs.
Spindle Speeds ........................ 7,500 RPM
Spindle Taper ......................... CAT 50
Spindle Motor ......................... 30 HP
Rapid Traverse, X-Axis ................ 360 IPM
Rapid Traverse, Y/Z Axes .............. 600 IPM
Max. Tool Weight ...................... 30 Lbs.
Max. Tool Dia, None Adjacent .......... 10"
Max. Tool Dia., Pockets Full .......... 4"
Max. Tool Length ...................... 16"
Approx. Machine Floor Space ........... 257" x 139"
Approx. Machine Height ................ 138"
Approx. Machine Weight ................ 35,700 Lbs

EQUIPPED WITH:

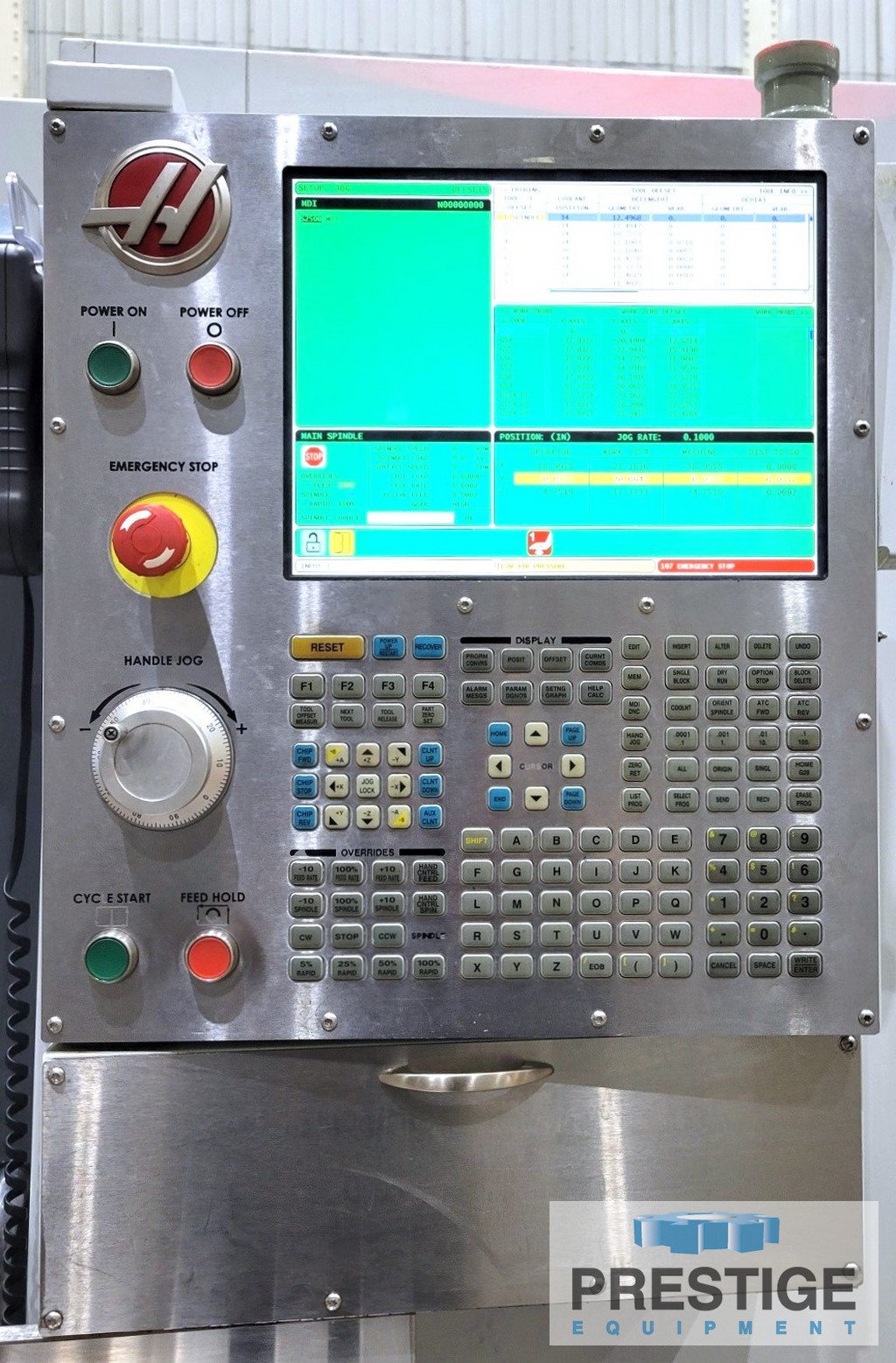

Haas 5-Axis CNC Control

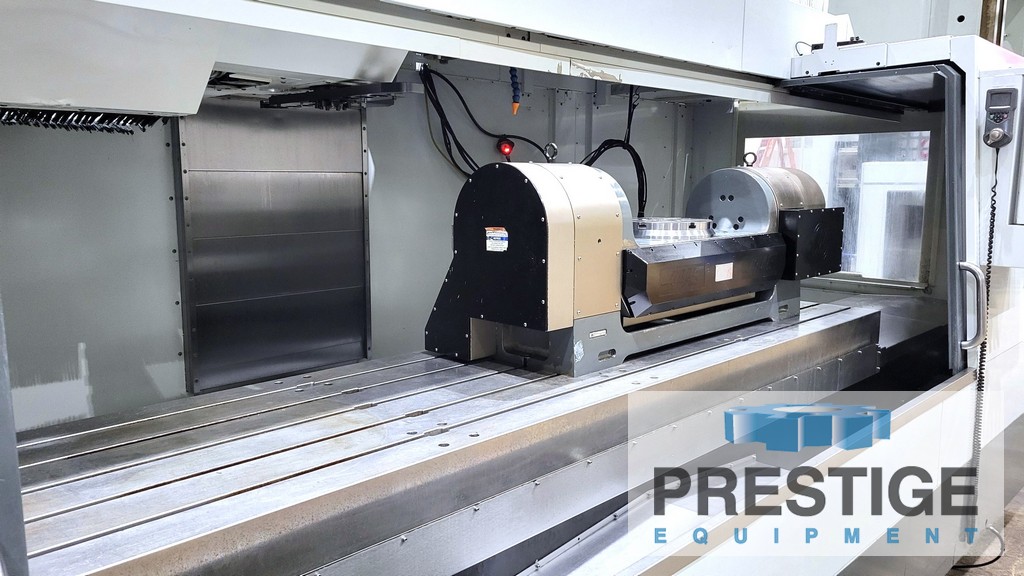

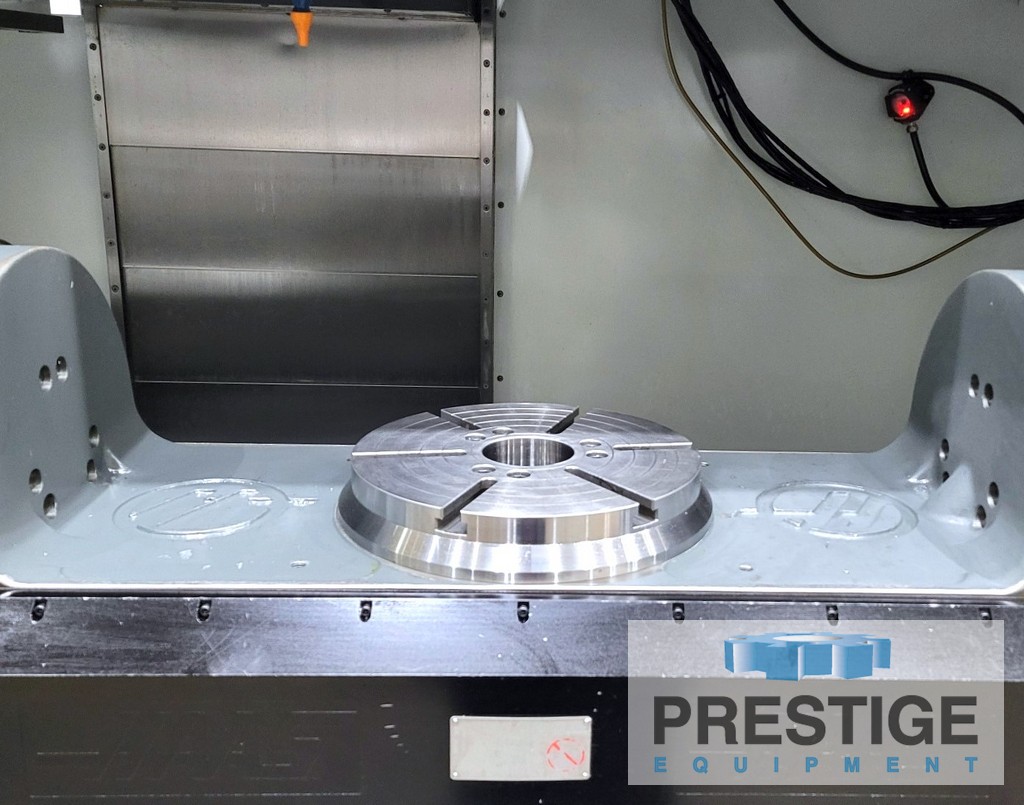

Haas TR310 CNC Trunnion Rotary Table

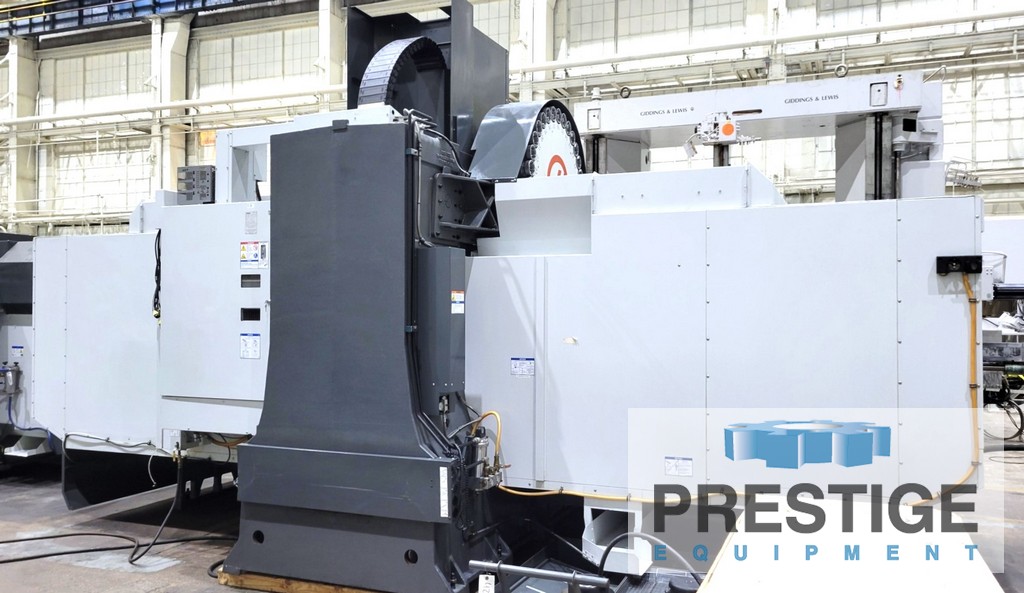

30-Station Side-Mounted Automatic Tool Changer

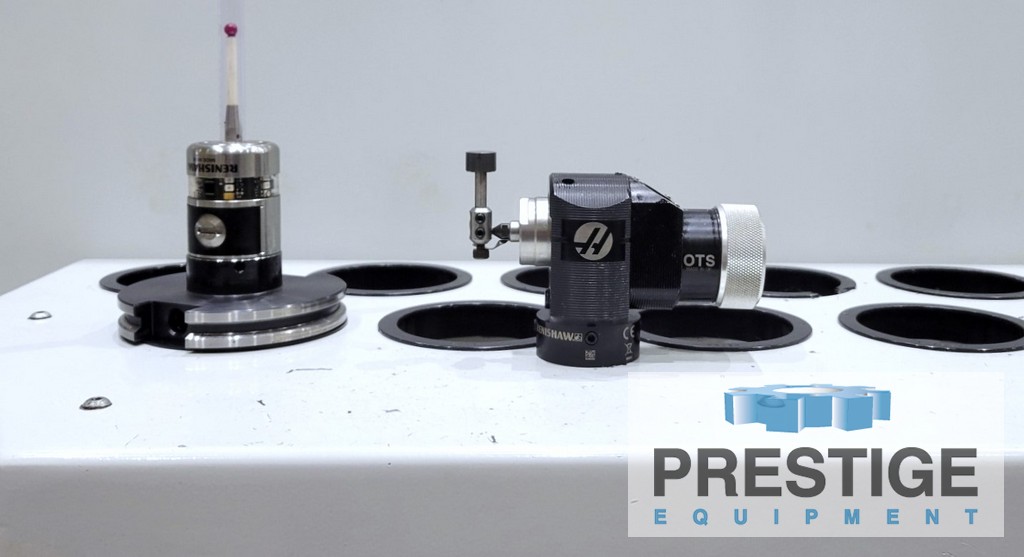

Renishaw Wireless Intuitive Probe System
300 PSI Thru Spindle Coolant

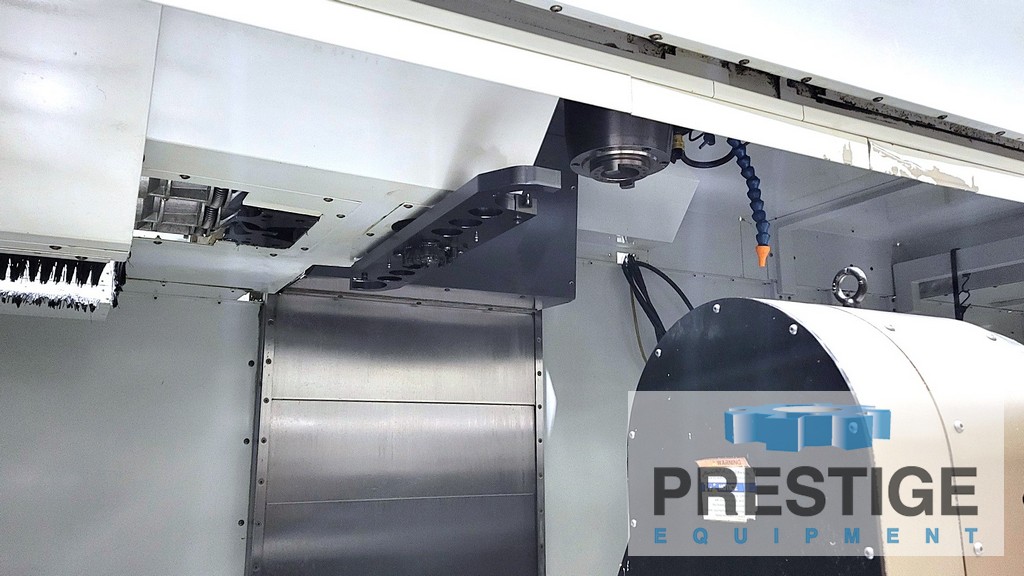

Programmable Coolant Nozzle
Remote Jog Handle
Chip Auger

NOTE:
Inspect Under Power In Pennsylvania CNC Machining Facility

No Video Available
