5.12" Kuraki KBT-13EB.A, X-118", Y-90", Z-25.5", W-63", 86" x 78" R.Tab, 4,000 RPM, Fanuc 31iB CNC, 2017, #44010

Manufacturer

KURAKI

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

44010

Model

KBT-13EB.A

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44010

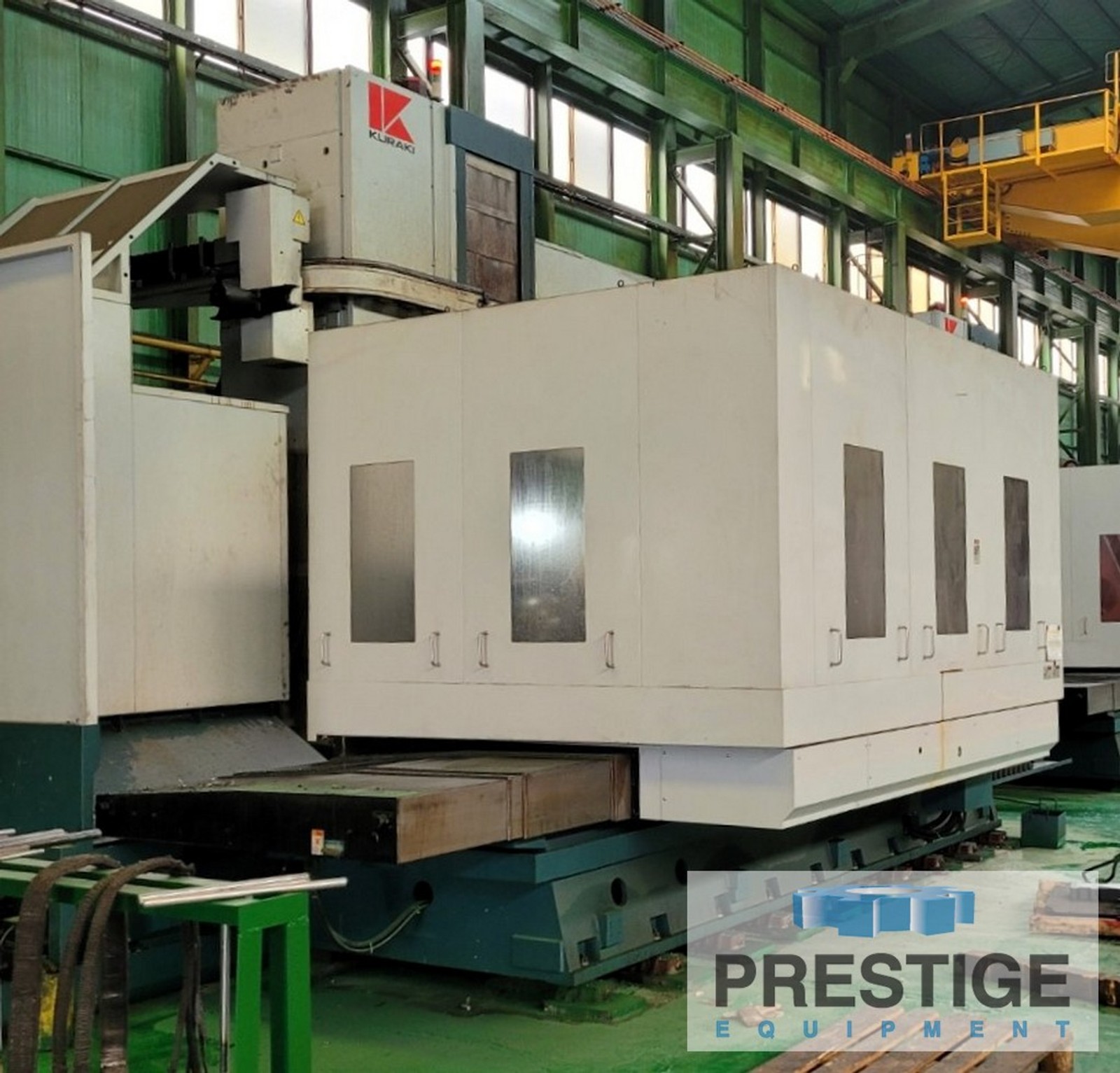

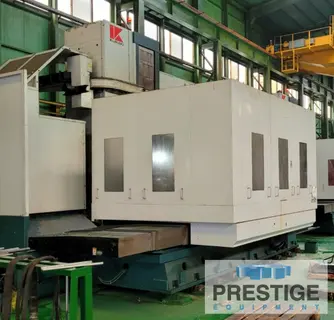

5.12" Kuraki KBT-13EB.A CNC Table Type Horizontal Boring Mill

FEATURES:

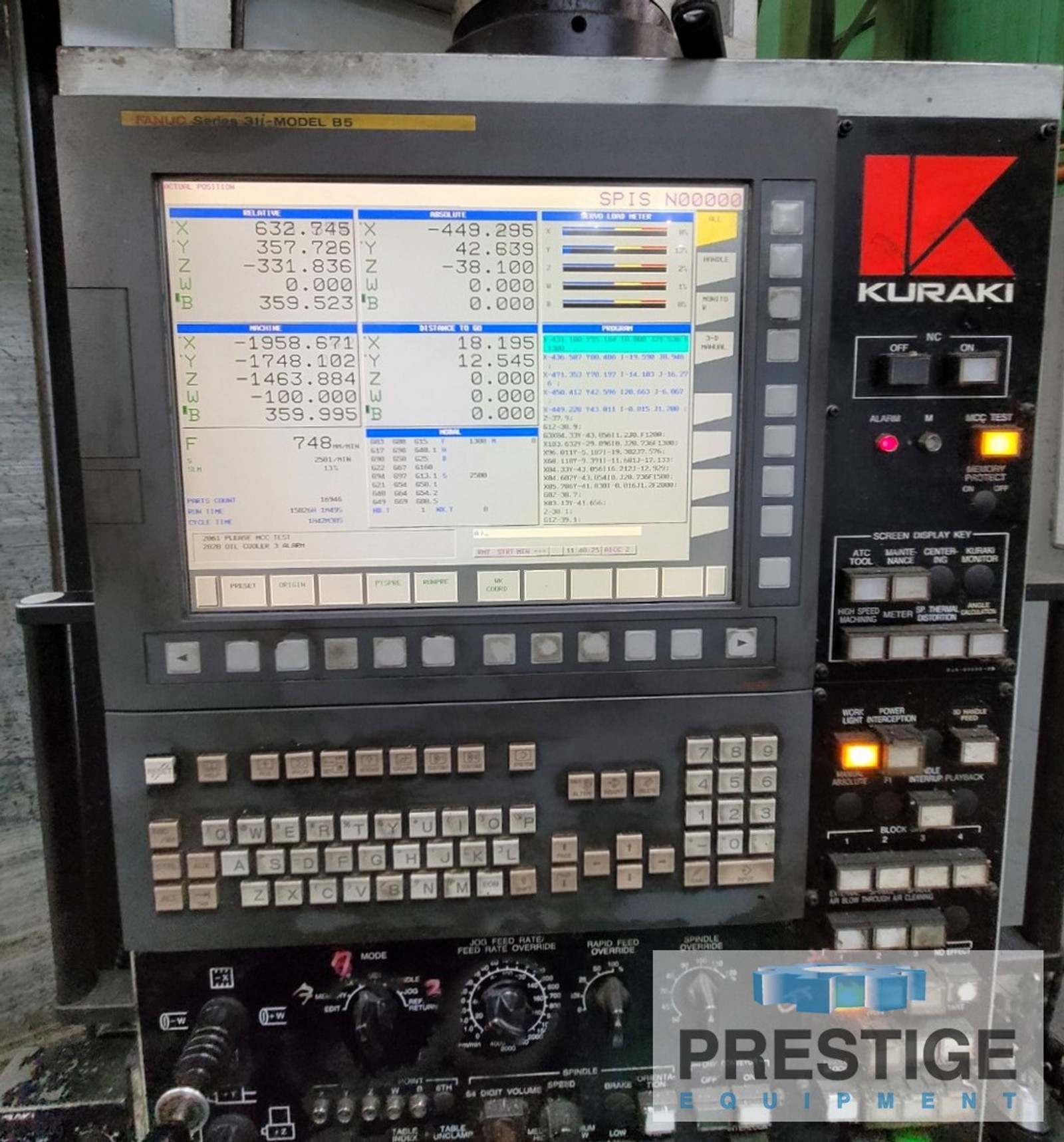

Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
Angle Head Attachment
Universal Head Attachment
Built In B-Axis Rotary Table
Heidenhain Scales
Coolant Thru Spindle

SPECIFICATIONS:
Spindle Diameter ...................... 5.12"
Taper In Spindle ...................... #50
Table Cross Travel, X-Axis ............ 118.11"
Headstock, Vertical Travel, Y-Axis .... 90.55"
Spindle Travel, Z-Axis ................ 25.59"
Column Infeed Travel, W-Axis .......... 62.99"
Rotary Table Dimensions ............... 78.74" x 86.61"
Rotary Table Weight Capacity .......... 55,000 Lbs
Rotary Table (Contouring), B-Axis ..... .001°
Spindle Speeds (3-Steps) .............. 5-4000 RPM
Spindle Taper ........................ BT-50
Spindle Motor (Cont./30 min)........... 50 HP / 60 HP
Rapid Traverse (X,Y & Z) .............. 472.44 IPM

EQUIPPED WITH:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
Built In B-Axis Rotary Table
Angle Head Attachment
Universal Head Attachment
Heidenhain Scales
Coolant Thru Spindle
Telescoping Steel Way Covers
Chip Conveyor
