Amada FO-3015NT, 4 KW CO2, 60" x 120" Max Sheet Size, Dust Collector, 2007, #43952

Manufacturer

AMADA

Category

Laser Cutting

Type

LASERS

Stock

43952

Model

FO-3015NT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43952

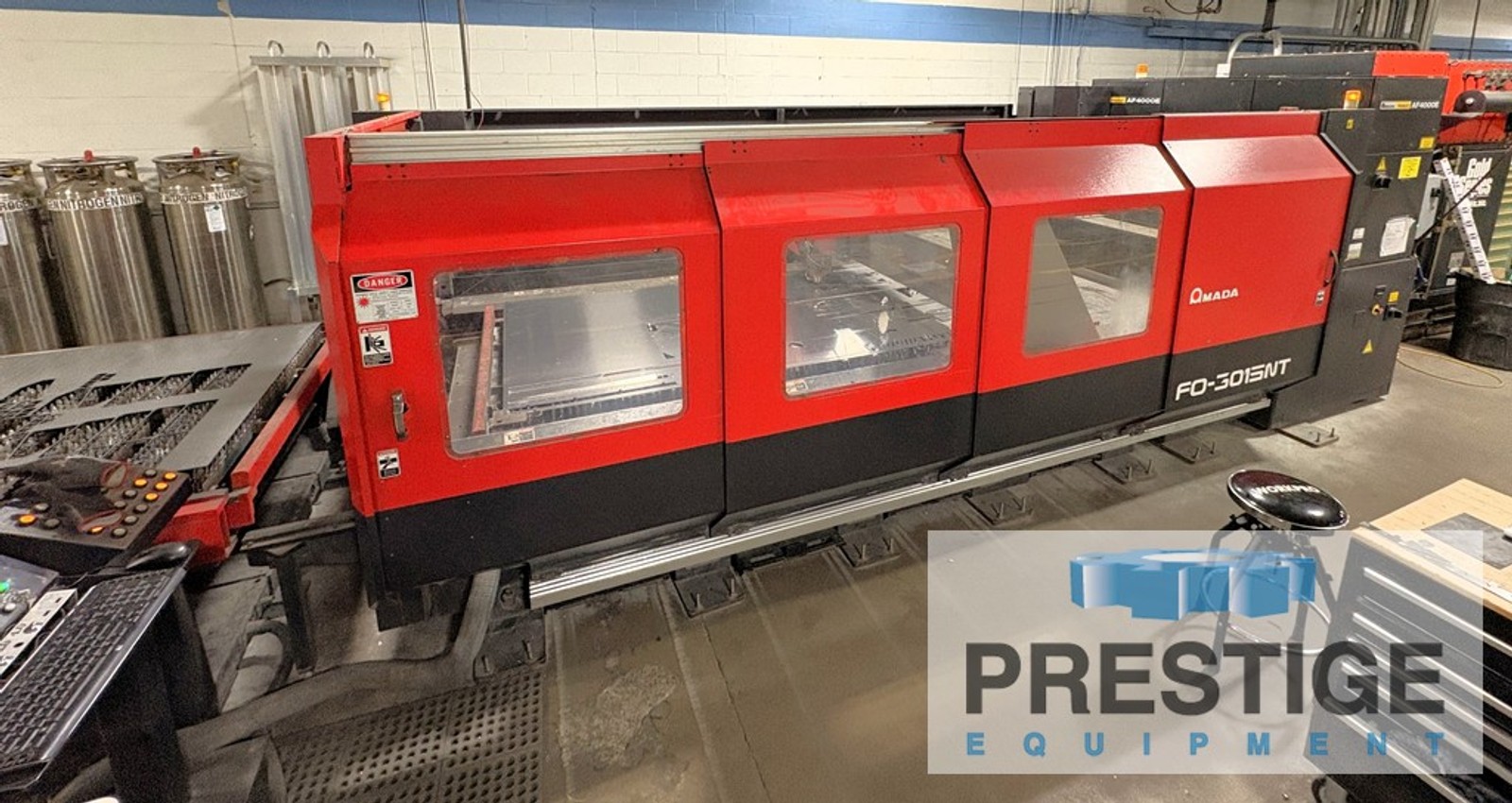

AMADA FO-3015NT 4000 Watt Flying Optic C02 CNC Laser

FEATURES:

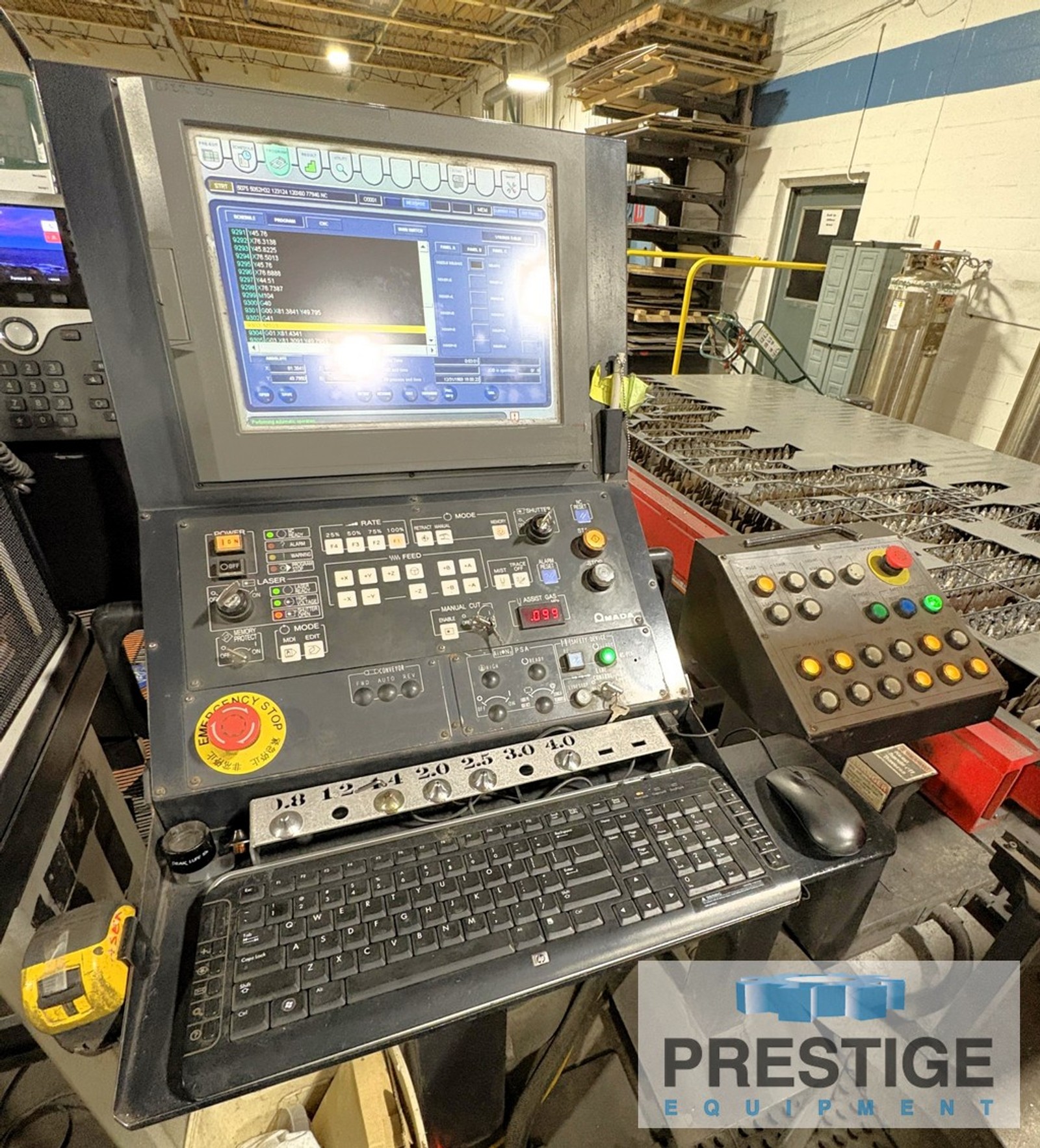

Fanuc AMNC-F 160iLB CNC Control
Fanuc AF4000E Resonator

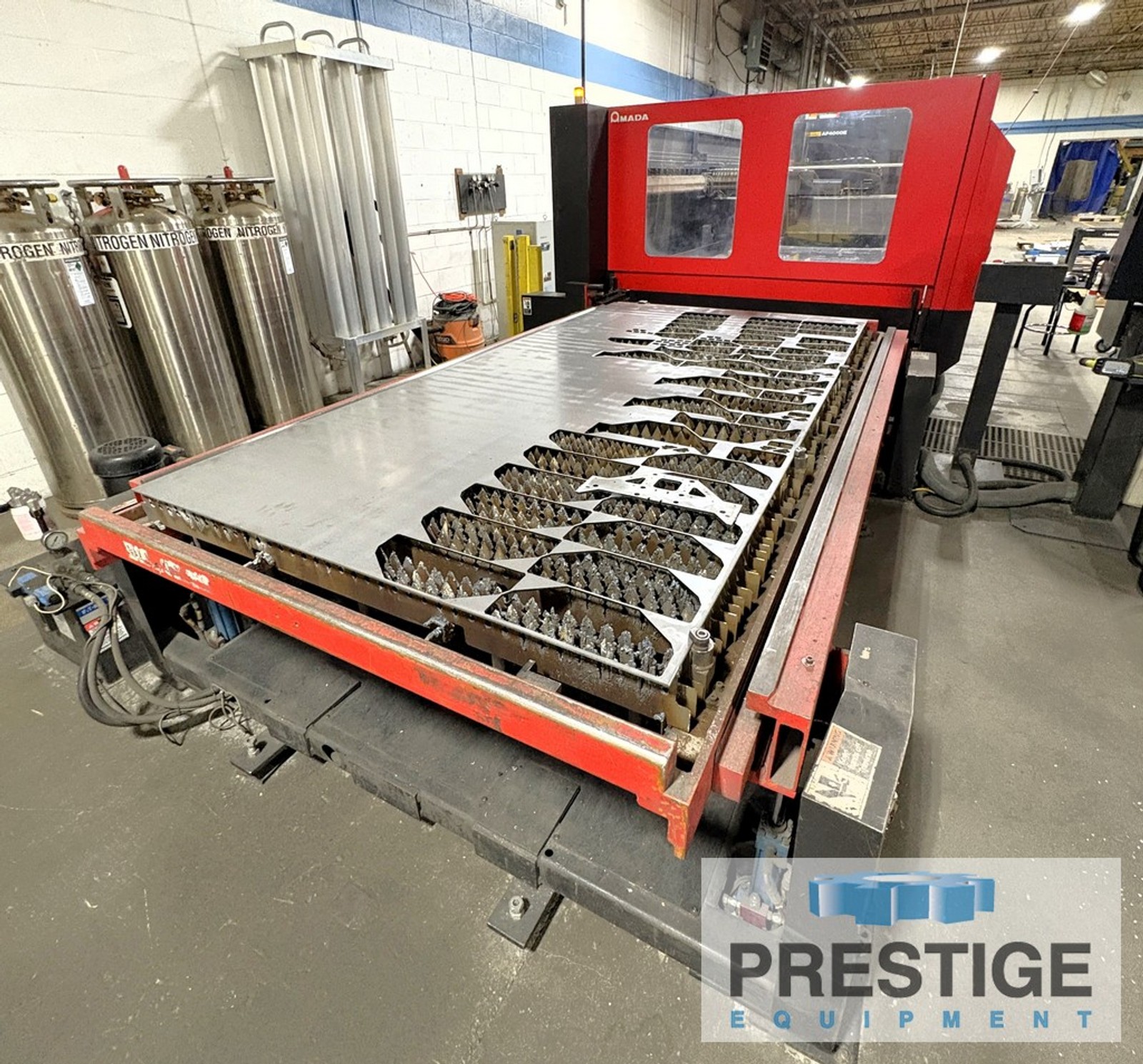

Dual Pallet Shuttle Tables

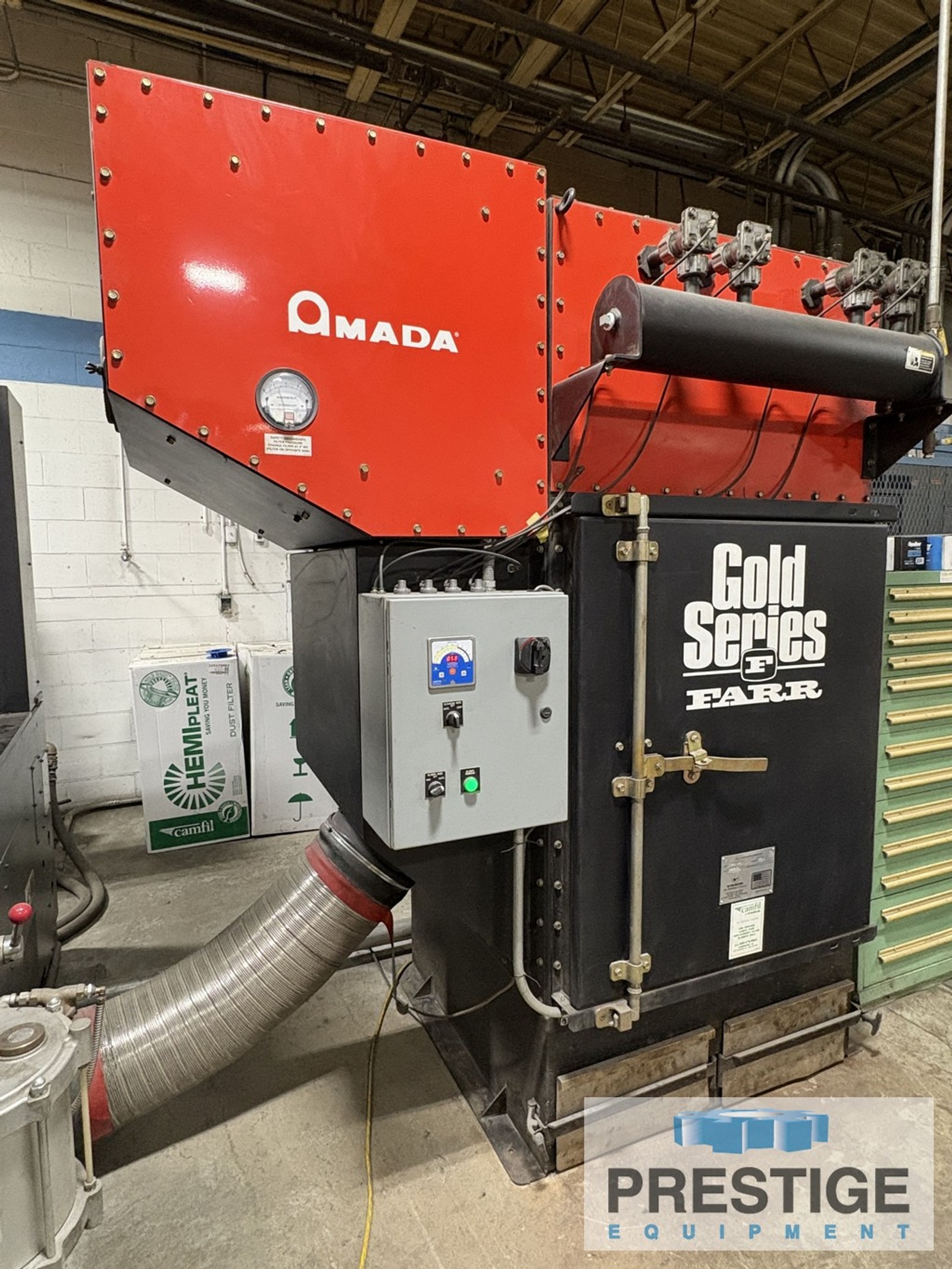

Amada Dust Collector

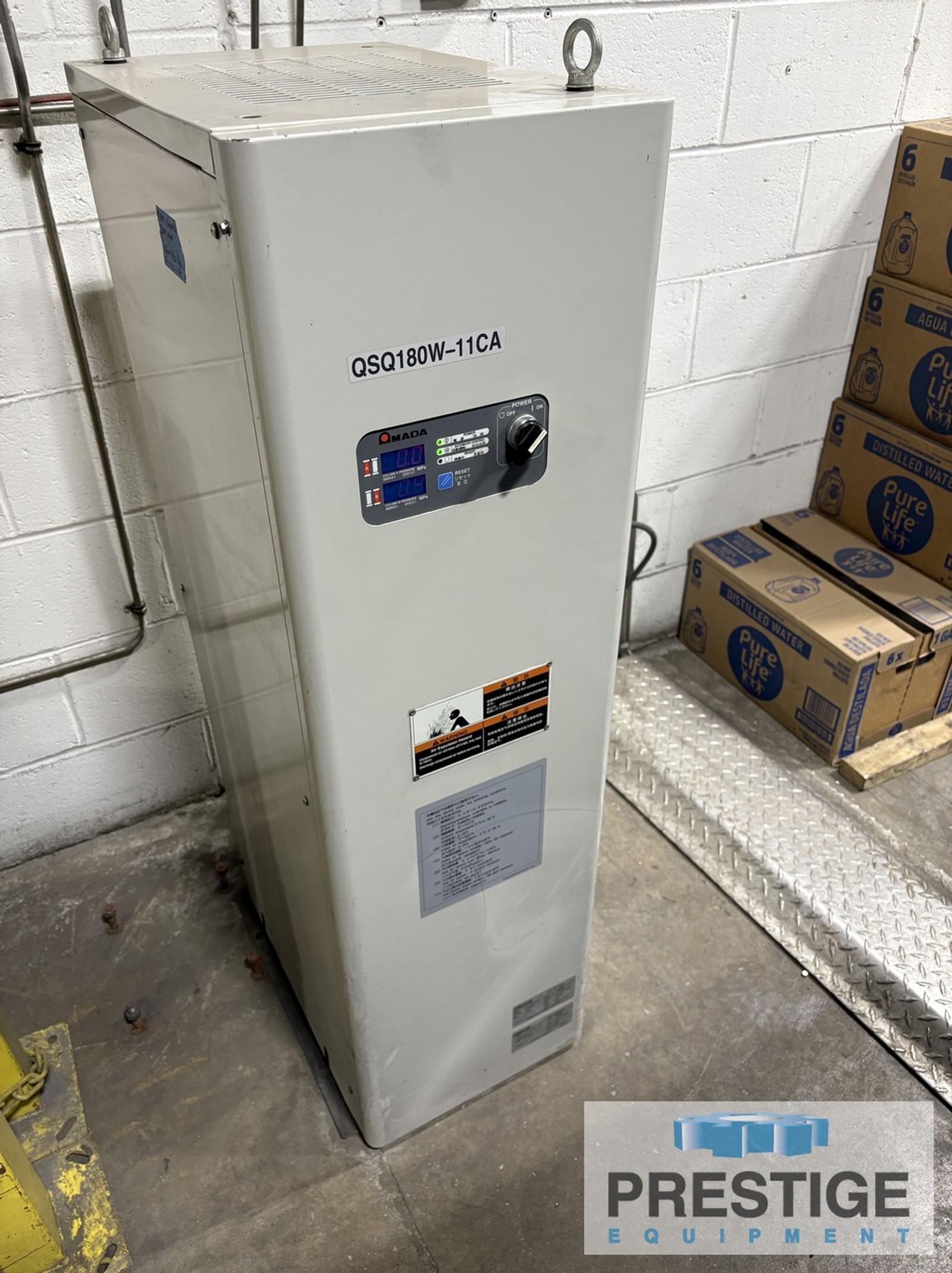

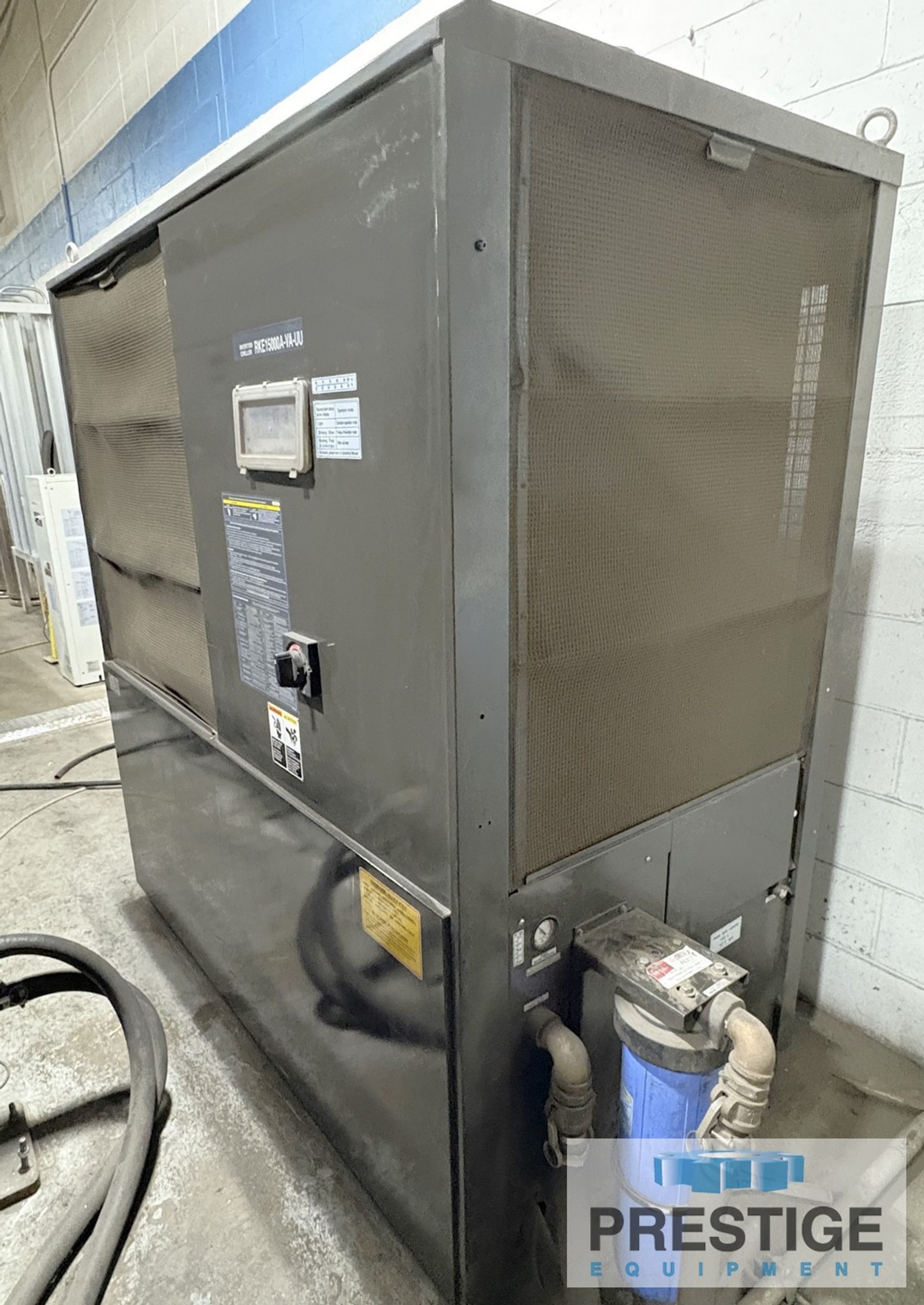

Chiller

CAPACITY:
Maximum Laser Output .................. 4000 Watt
X-Axis Carriage Travel ................ 134.64"
Y-Axis Laser Head Travel .............. 61"
Z-Axis Laser Head Travel .............. 7.8"
Maximum Sheet Size .................... 61" x 120"
Cutting Feed Rate ..................... 0 - 780 IPM
Max. Positioning Speed (X & Y Axis).... 3,150 IPM
Max. Positioning Speed (Z Axis) ....... 2,362 IPM
Max. Material Weight .................. 1,850 Lbs.
Approximate Weight .................... 26,000 Lbs.

EQUIPPED WITH:
Fanuc AMNC-F 160iLB CNC Control
Fanuc AF4000E Resonator
Dual Pallet Shuttle Tables
Fanuc AC Servo Motors
Amada Dust Collector
Chiller

APPROXIMATE HOURS:
36,000

NOTE:
Blower Changed at 23,000 Hours

NOTE:
Inspect In Plant Under Power
