Flow Mach 500 4020 XD 6'5" x 13', Dynamic 5-Axis Head, 94,000 PSI, 50 HP, Ebbco Closed Loop, Low Hrs, 2023, #43957

Manufacturer

FLOW

Category

Water Jet Cutting

Type

WATER JET CUTTING, CNC

Stock

43957

Model

Mach 500 4020 XD

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43957

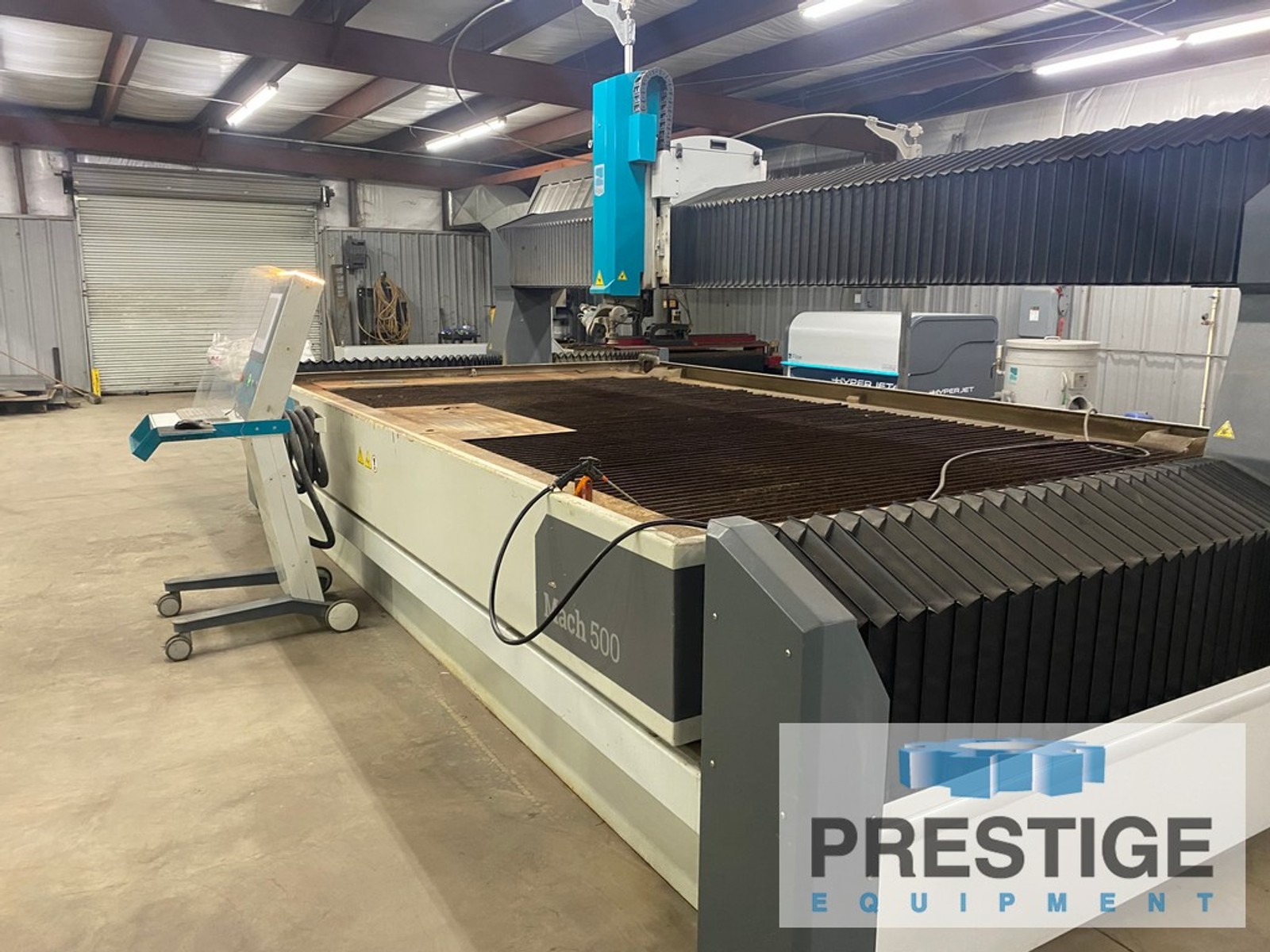

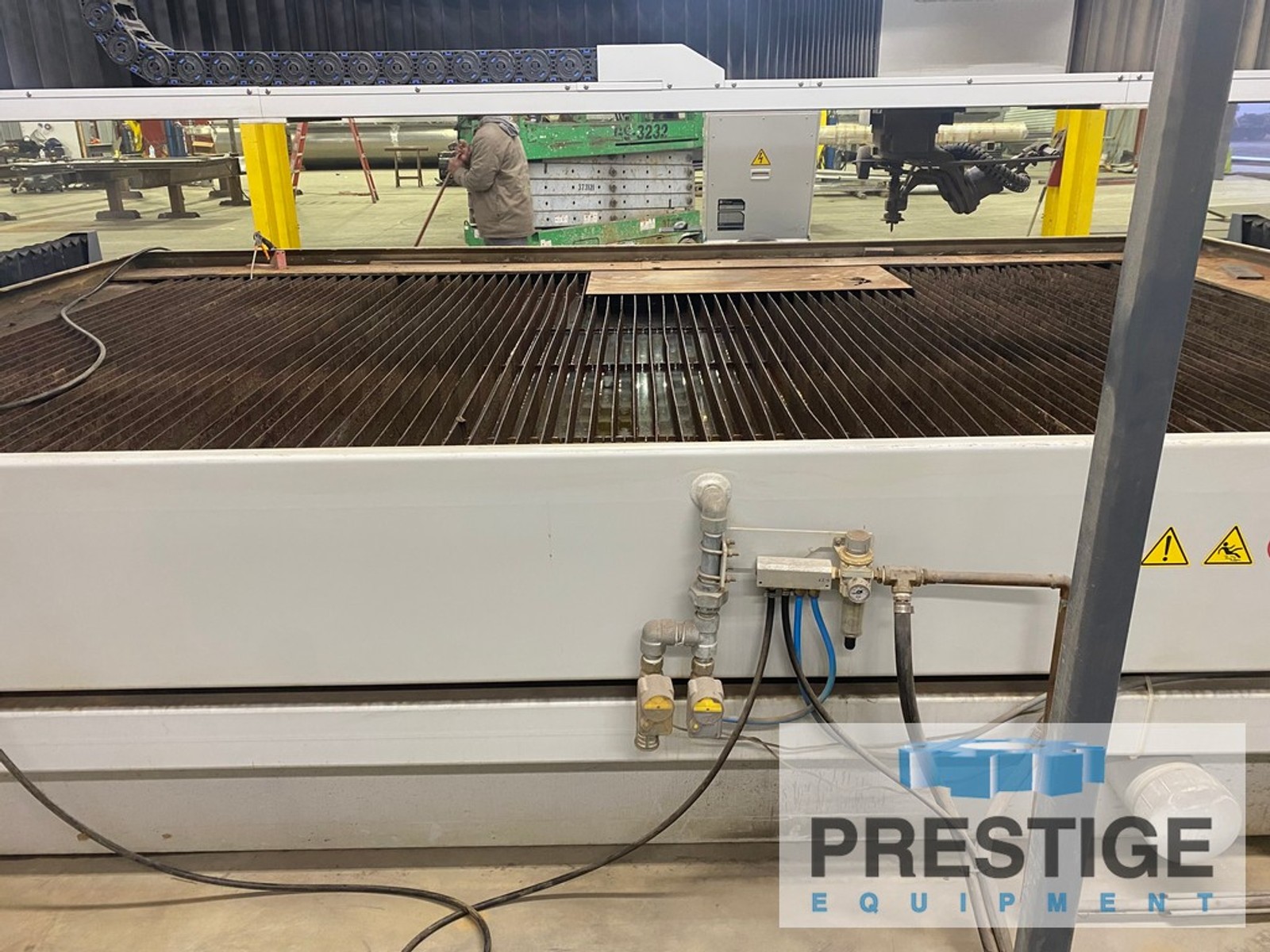

Flow Mach 500 4020 XD 6'5" x 13' 5-Axis CNC Water Jet Cutting System

FEATURES:

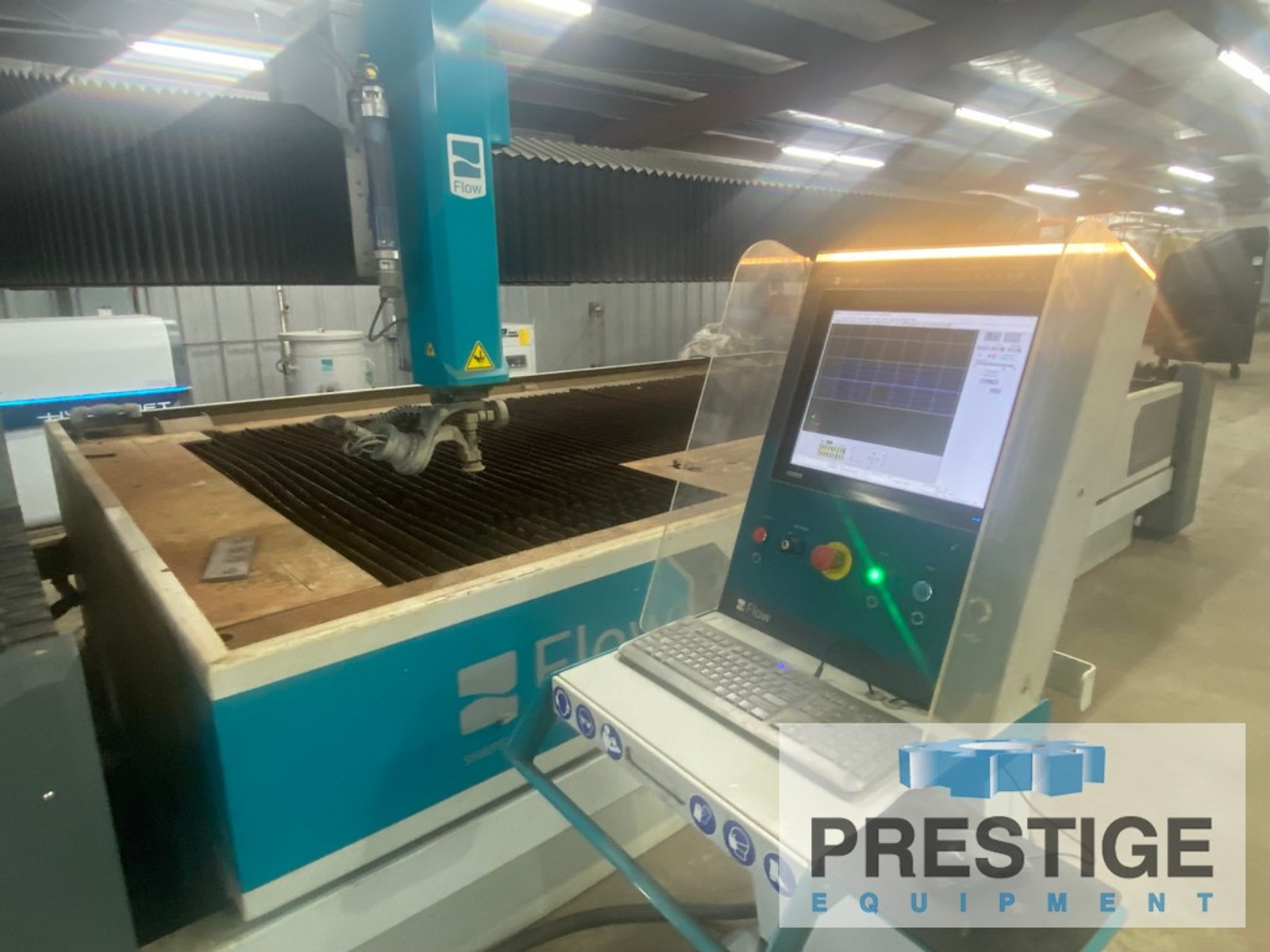

Flowmaster PC Based CNC Control
Flow Hyperjet 50 HP Pump
94,000 PSI Intensifier Output
Dynamic Waterjet 5-Axis Cutting Head

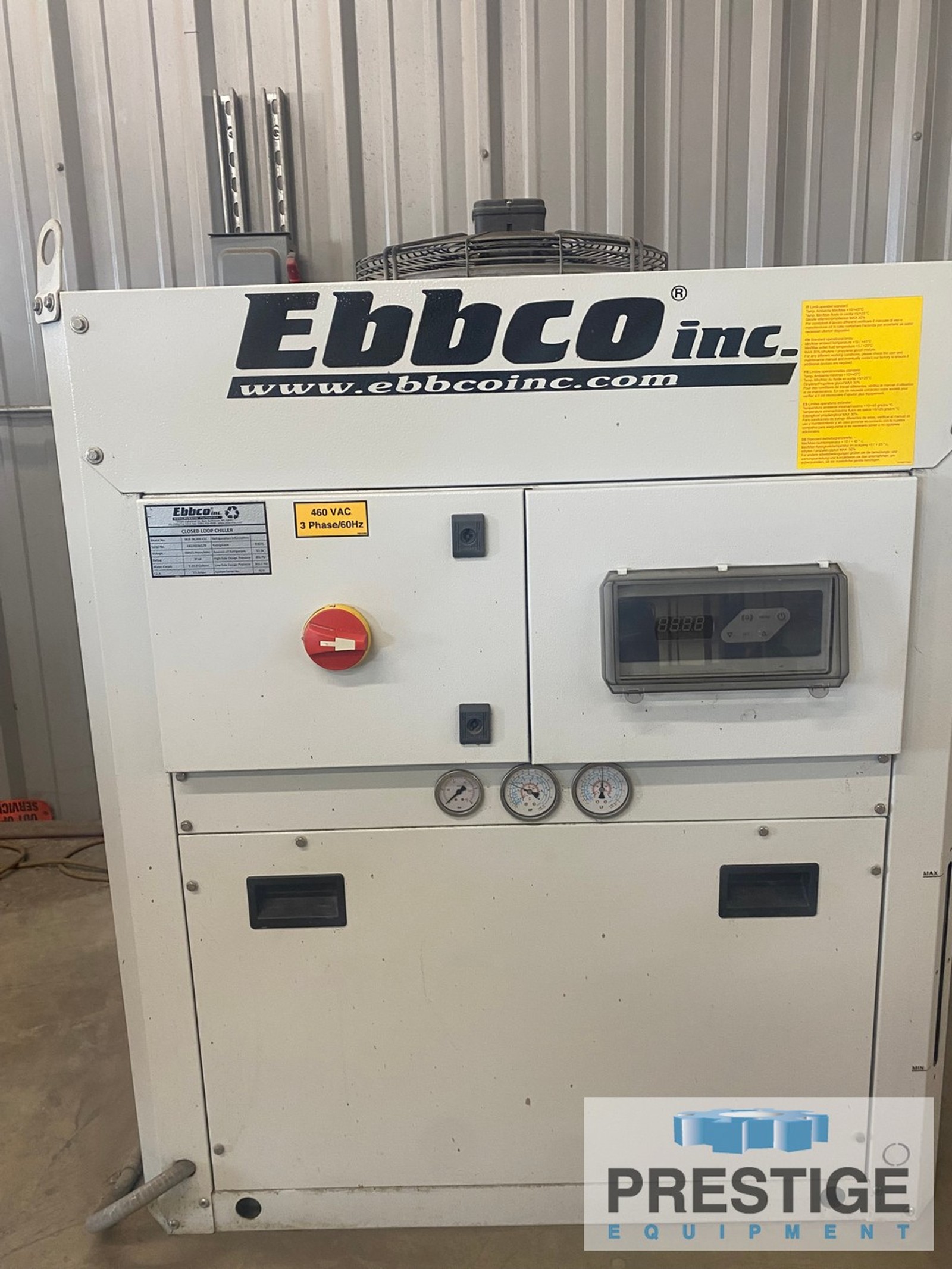

Ebbco Closed Loop Chiller
500 Lb. Abrasive Hopper
Abrasive Transfer System (ATS) Extractor

CAPACITY:
Work Envelope ......................... 13'1" x 6'6"
Z-Axis Travel ......................... 12"
Intensifier Output .................... 94,000 PSI
Motor Size ............................ 50 HP
Traverse Speed ........................ 700 IPM

EQUIPPED WITH:
Flowmaster PC Based CNC Control
Flow Hyperjet 50 HP Pump
94,000 PSI Intensifier Output
Dynamic Waterjet 5-Axis Cutting Head
Ebbco Closed Loop Chiller
500 Lb. Abrasive Hopper
Abrasive Transfer System (ATS) Extractor

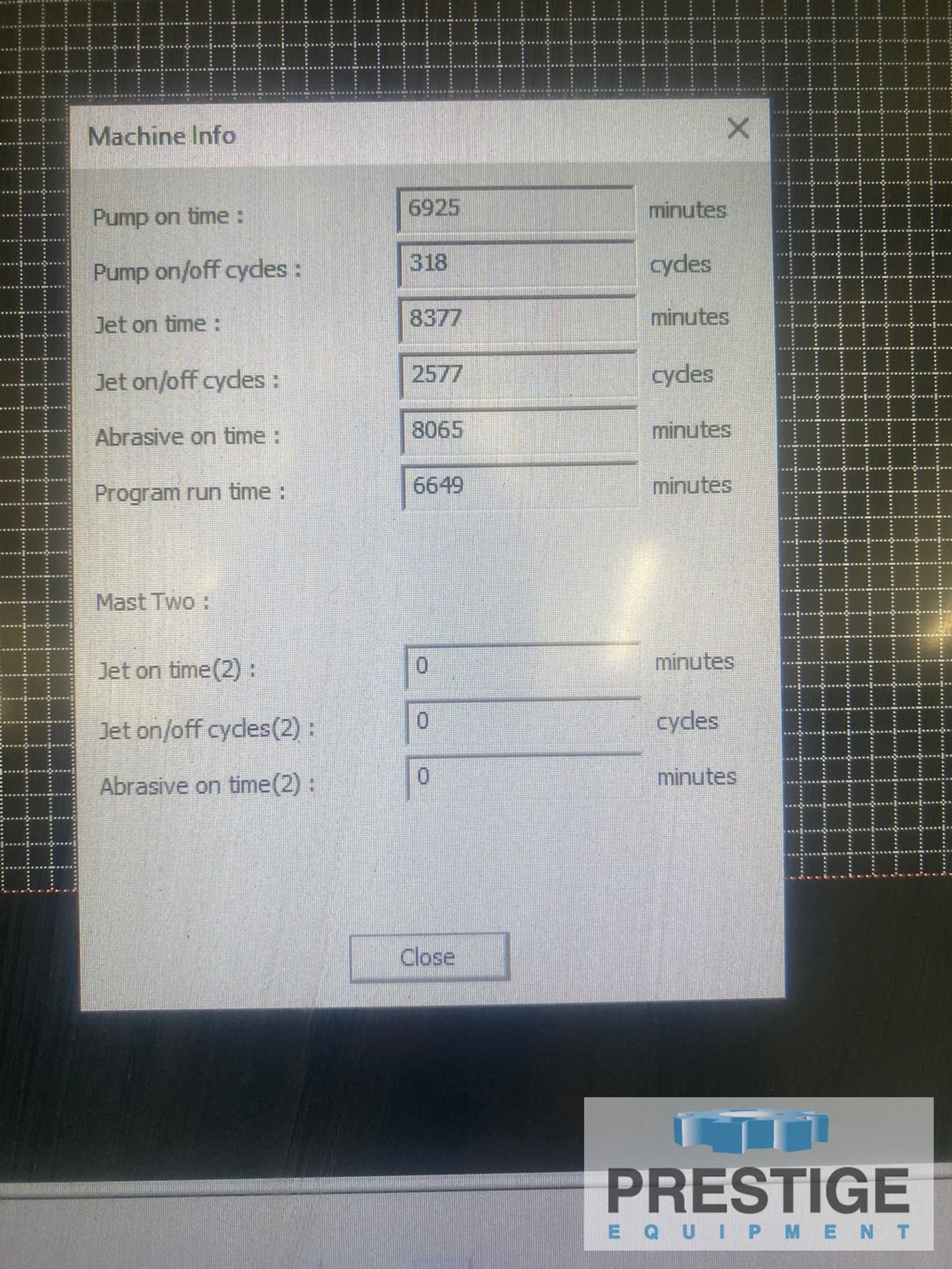

HOURS:
Pump On Time: 115 Hours
Number of Cycles: 318
Jet on Time: 139 Hours
Abrasive On Time: 134 Hours


NOTE:
Inspect Under Power in Plant, Like New!!

NOTE:
Installed in 2023
