Cloos 6-Axis CNC Welding Robot Micro Cell, New 2022, 400 Amp, Wire Feeder, 2 Position Table, Ref# 43959

Stock

43959

Model

QIROX MC 1.2M

Dealer Location

New York

Spec Sheet

Reference #43959

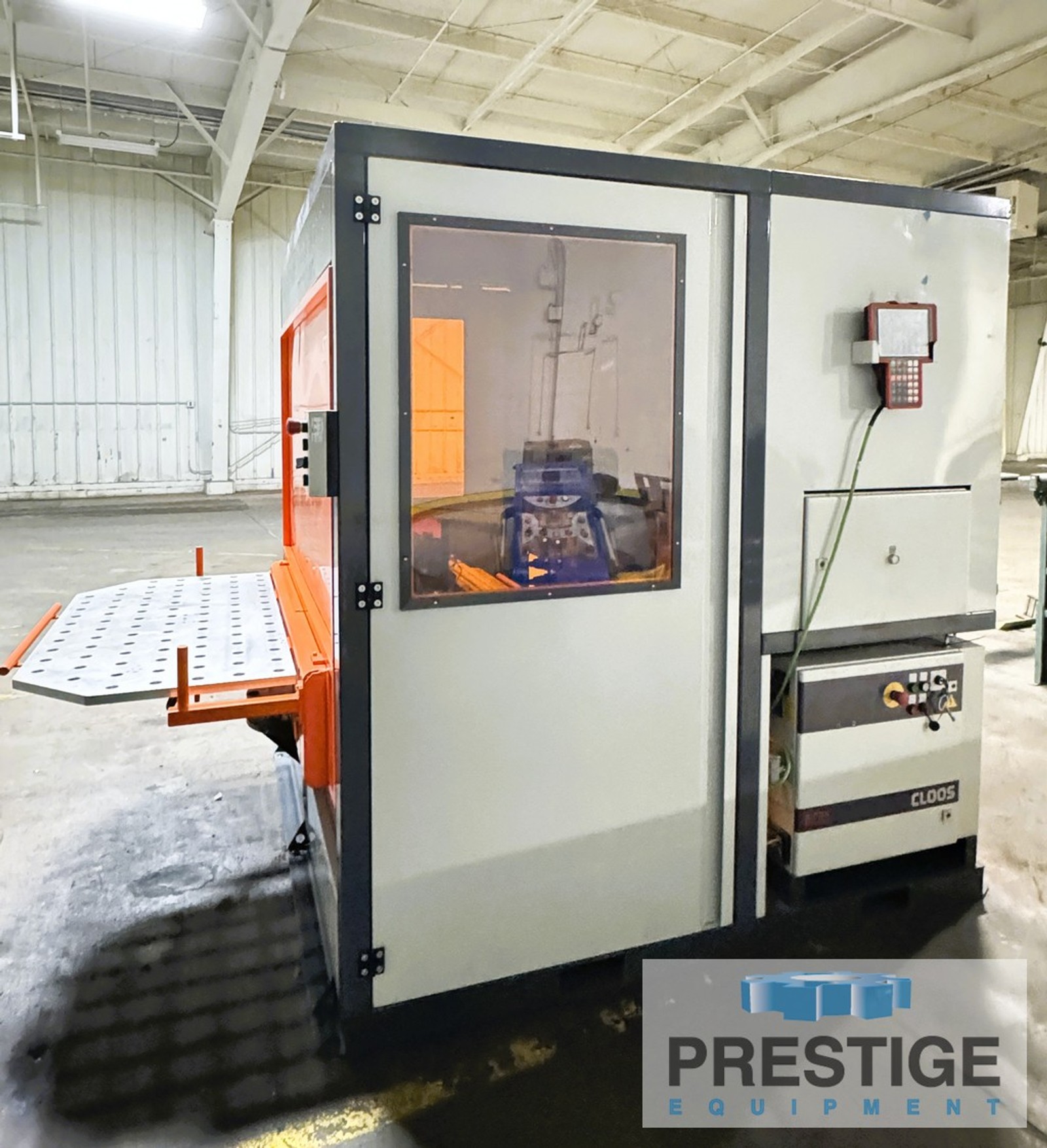

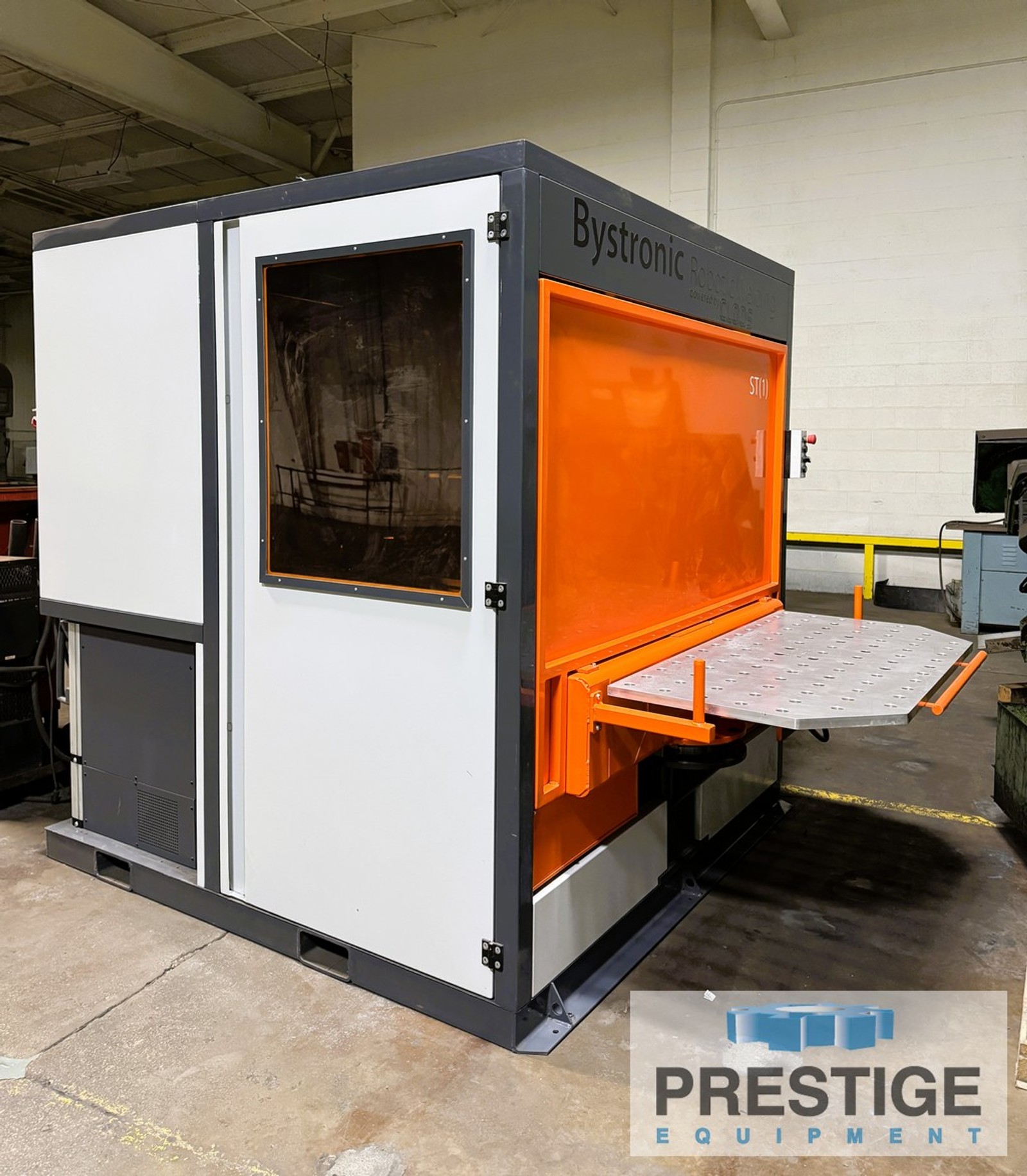

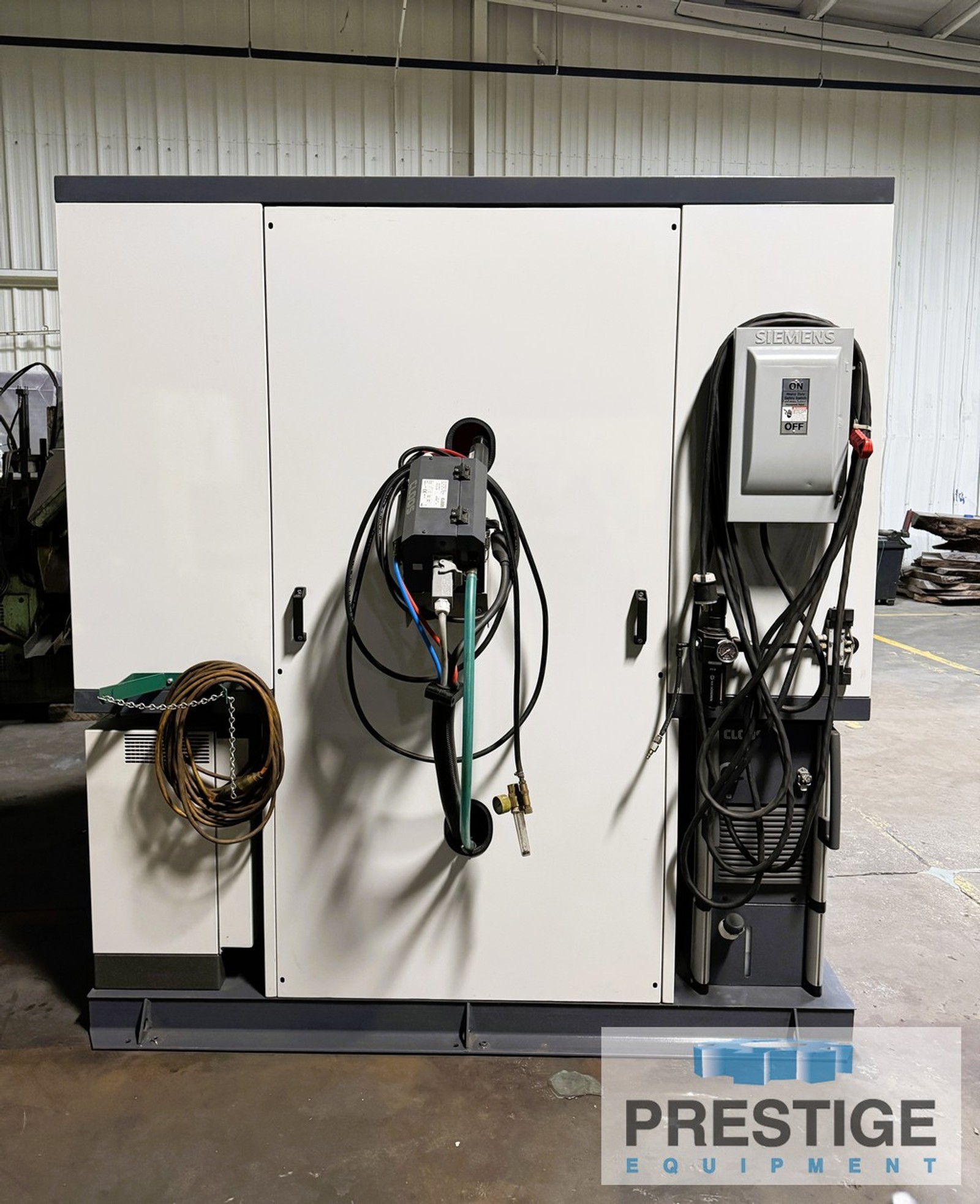

Cloos/Bystronic 6-Axis CNC Welding Robot Micro Cell

FEATURES:

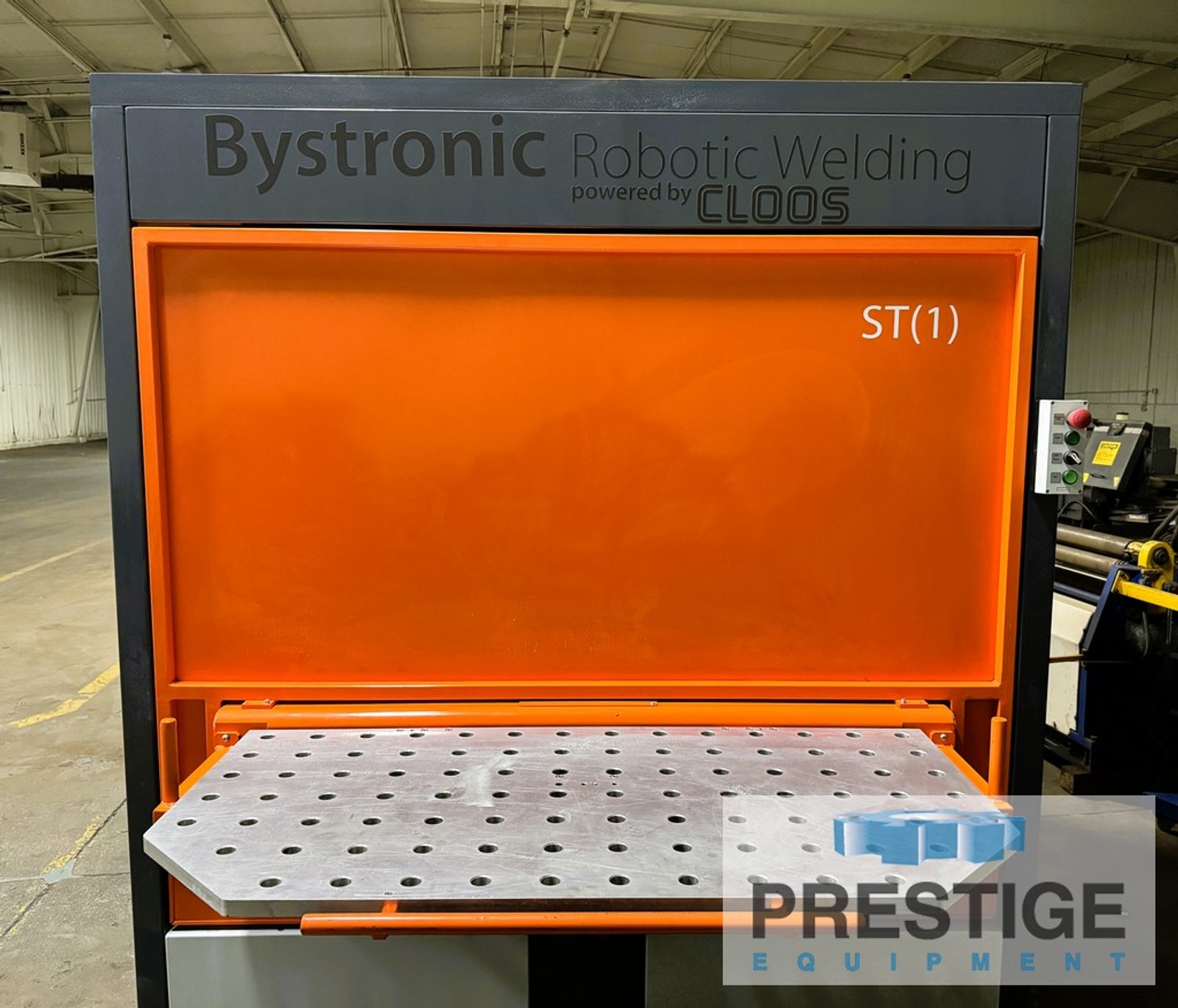

2 Station Work Piece Positioner
Cloos QRC 290 Robot
Cloos 400 AMP Power Supply
Cloos Wire Feeder

SPECIFACTIONS:
Cell Dimensions ........................... 79" Wide x 109" Deep x 80" High
Total System Weight ....................... 2700 lbs
Max Weight Per Station .................... 280 lbs
Connected Load Max ........................ 12KVA
Robot Working Envelope .................... 114.17"
Welding Current 100% Duty Cycle ........... 400 Amp
2 Machined Work Table Stations ............ 27" x 55"
Work Station Tables Compatible With ....... 22mm (Bluco, Siegmund, Demmeler)

EQUIPPED WITH:

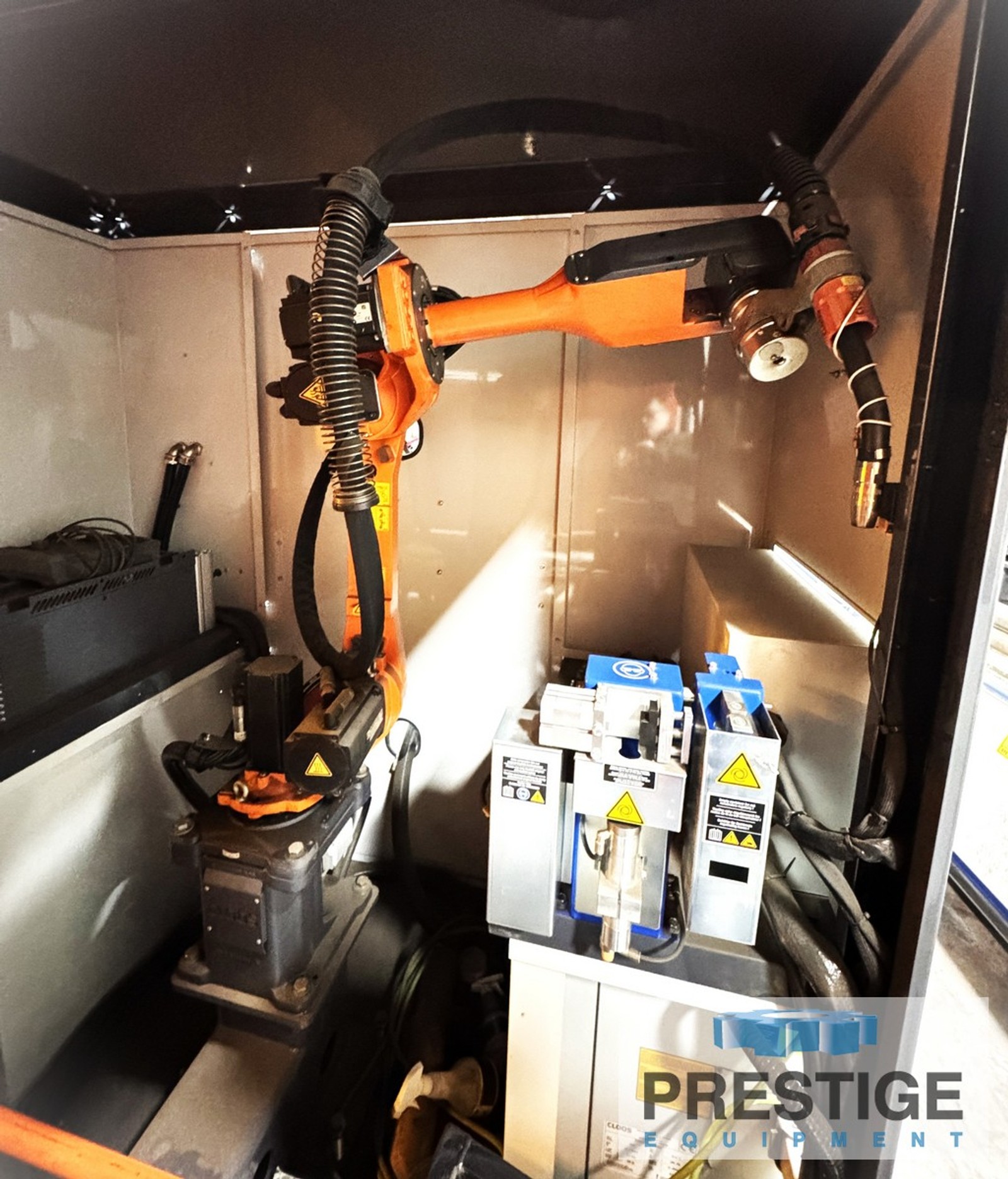

Cloos QRC 290 6 Axis Robot

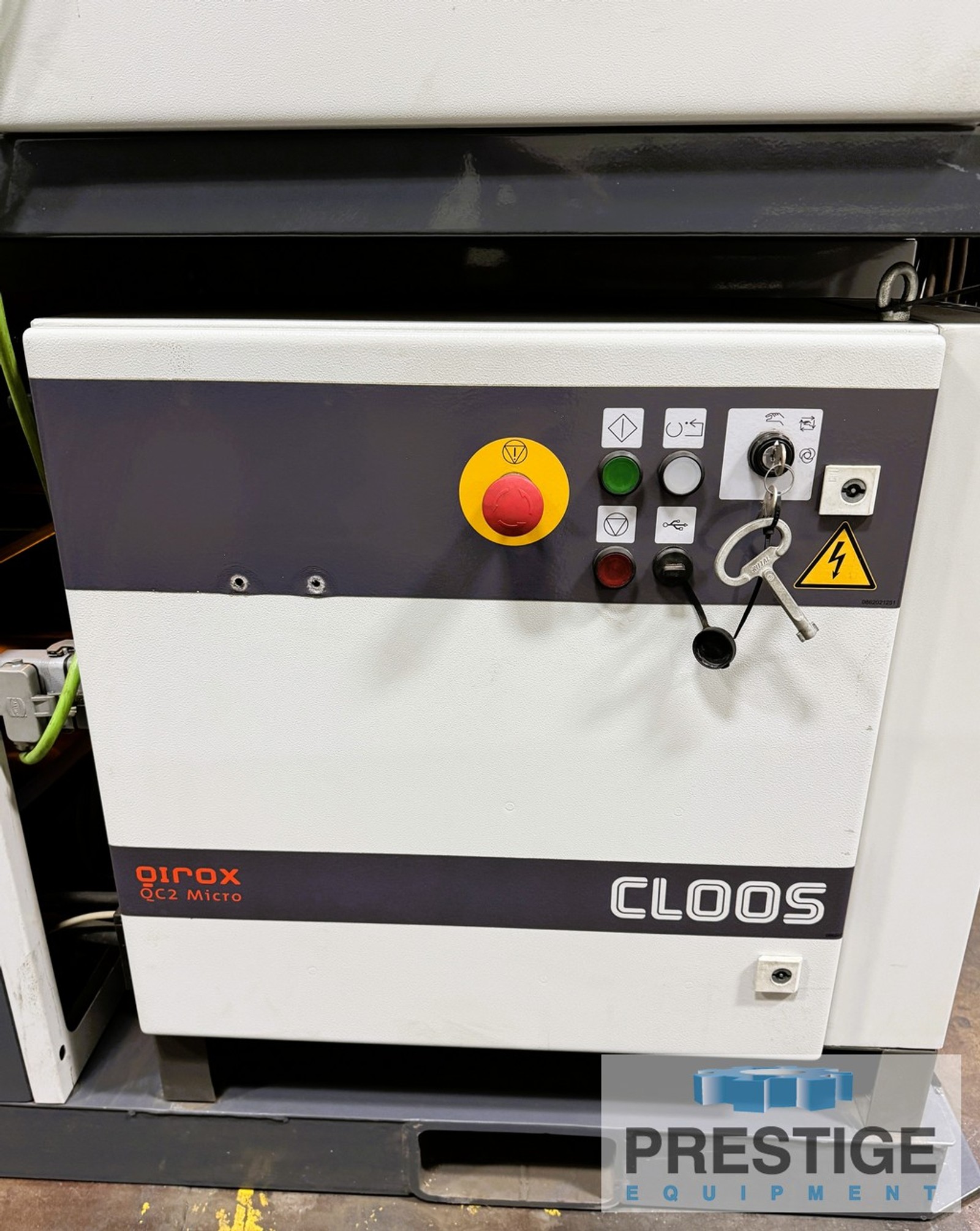

Cloos QC2 Controller Unit

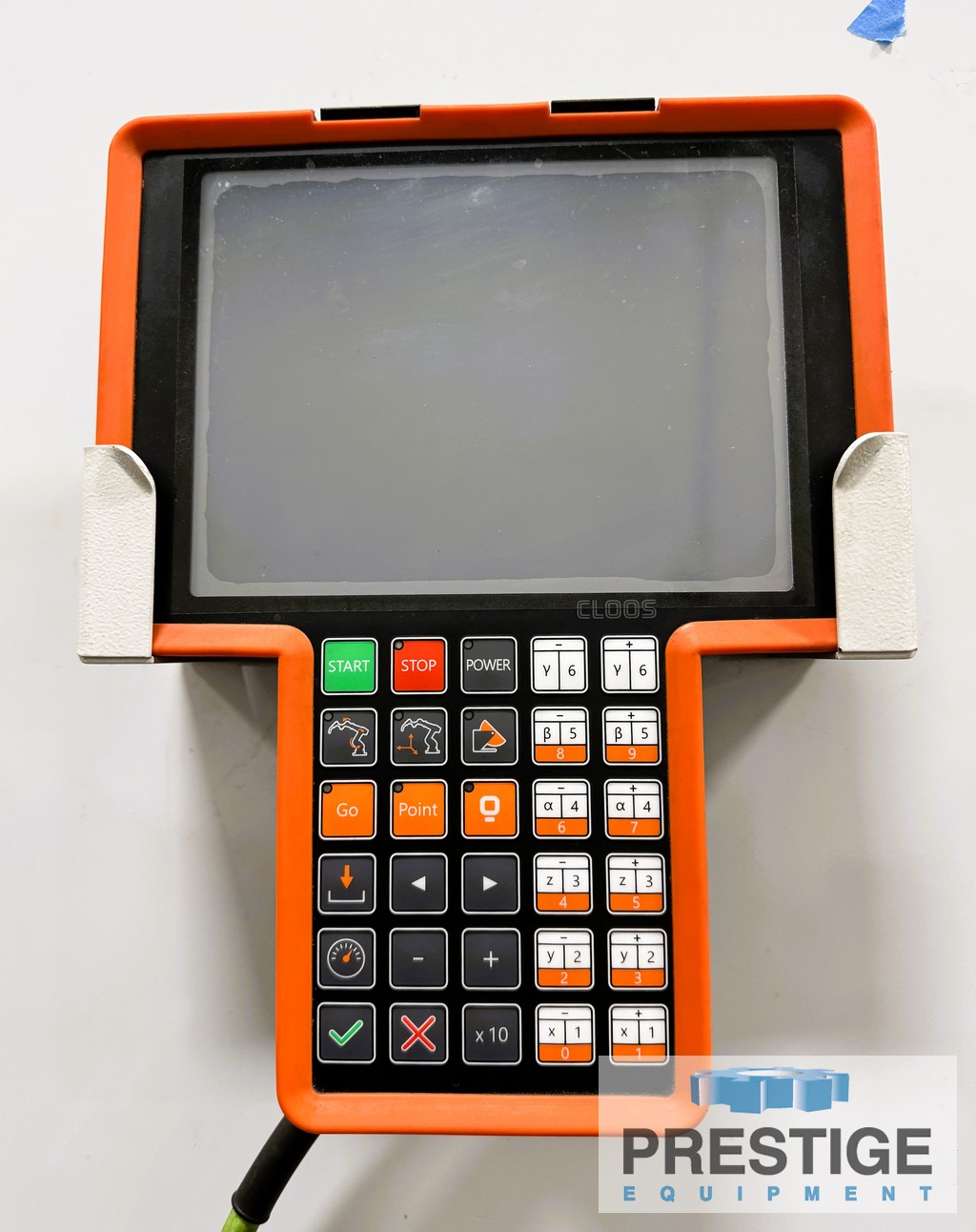

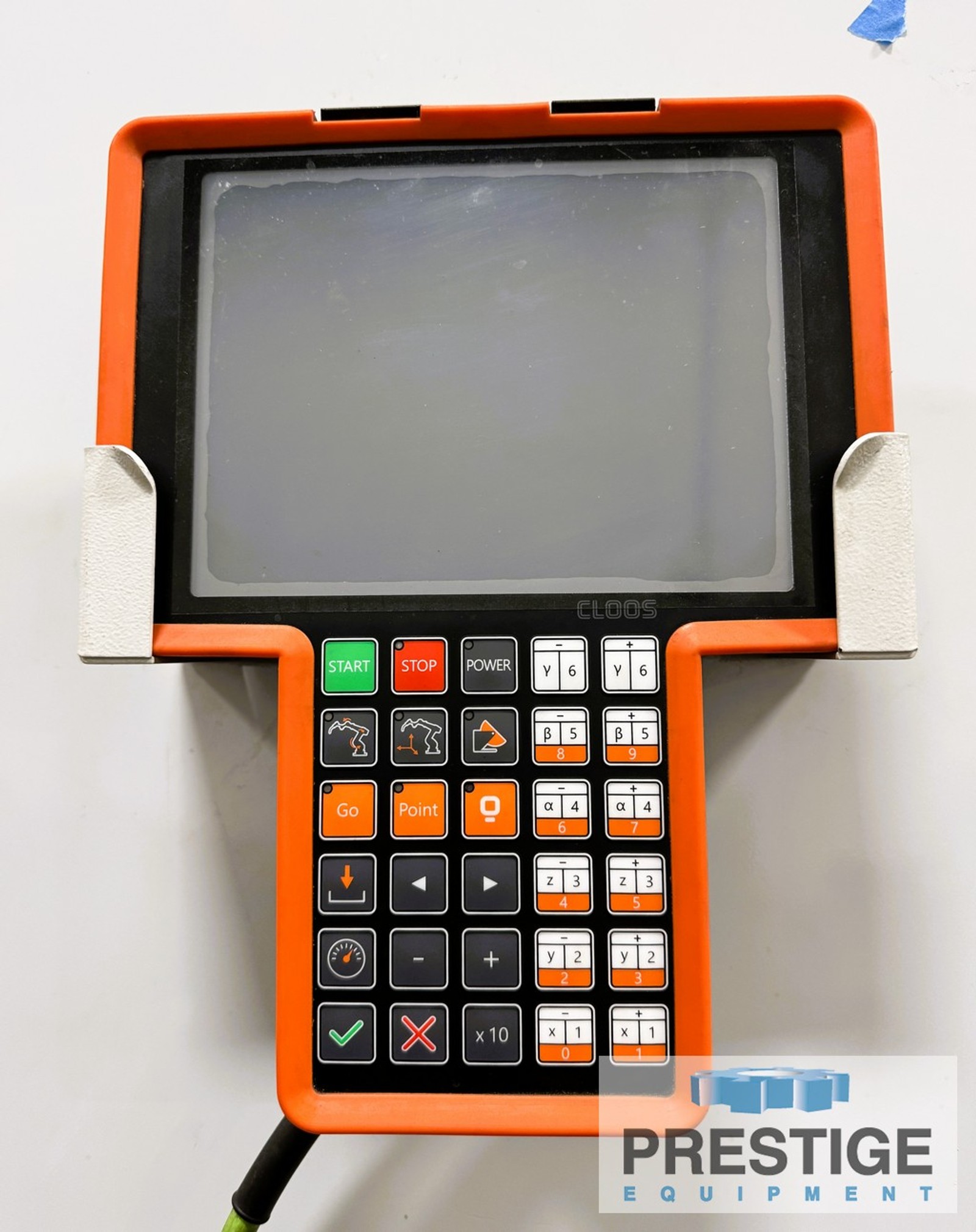

Color Touch Screen Teach Pendant

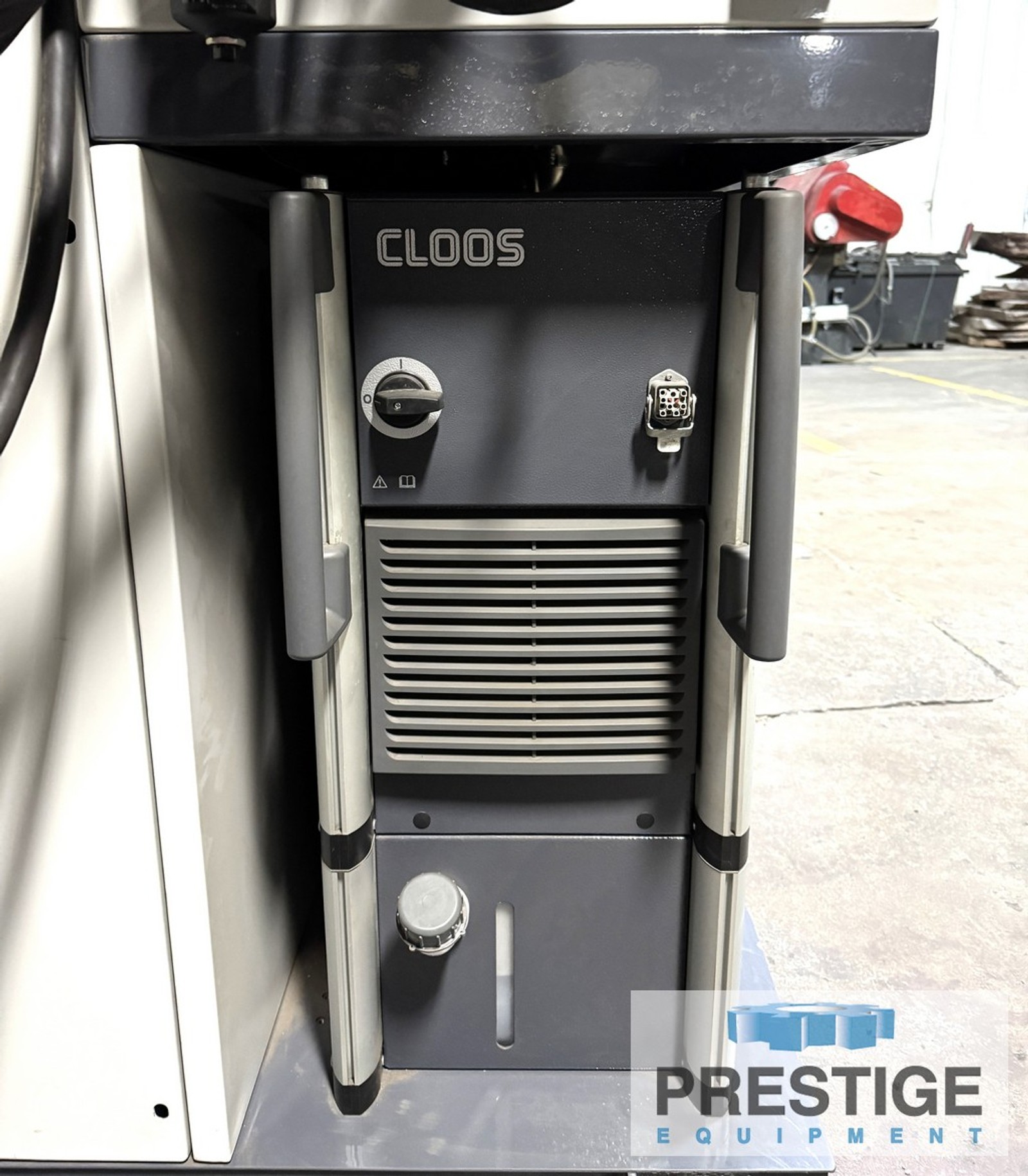

Cloos Qintron 400 Amp Power Supply
Cloos Wire Feeder

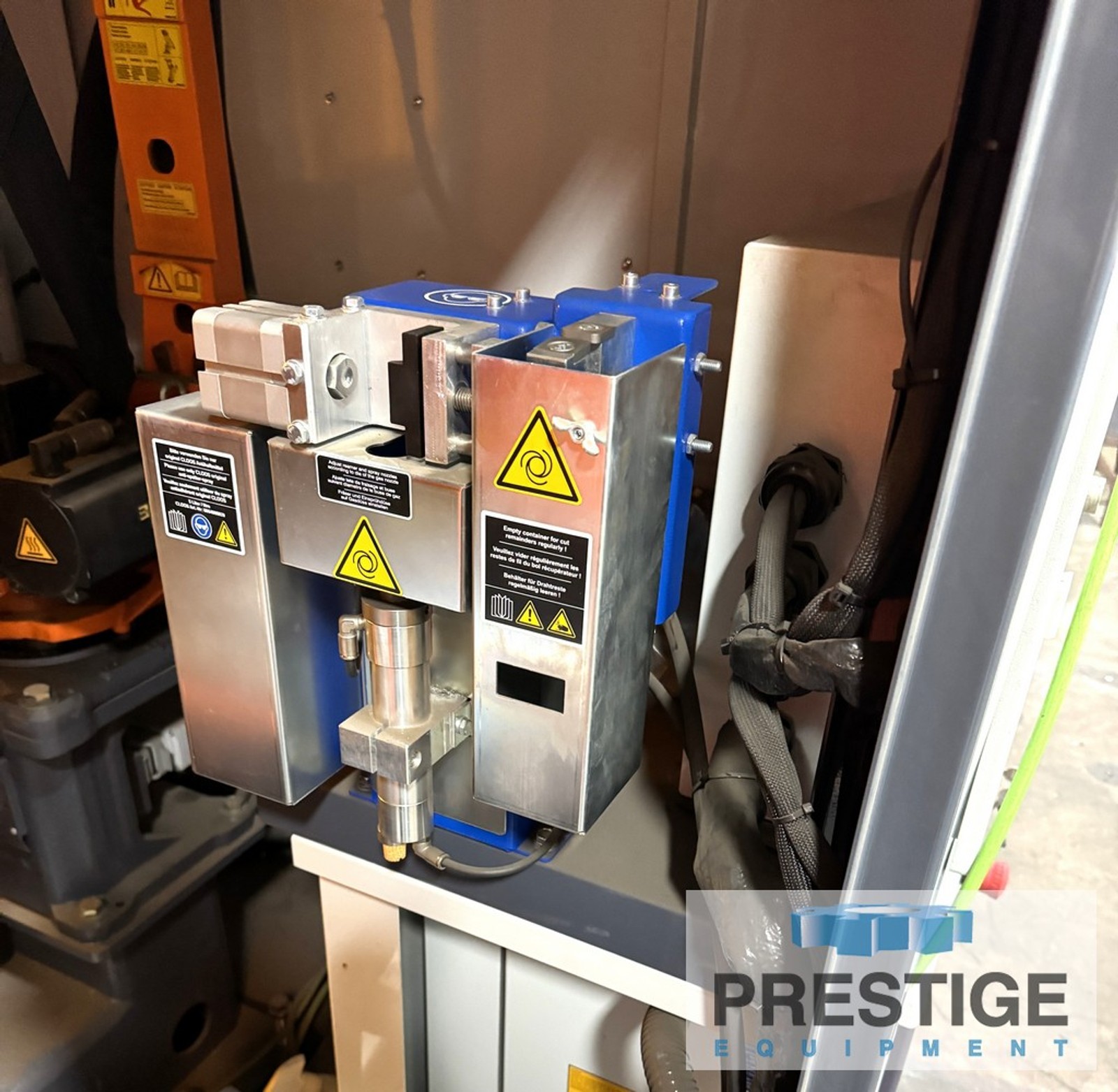

Auto Torch Cleaning System
Air Cooled Torch
