357 Ton Bystronic PR 320 x 4100, 161" OA, 6-Axis B.G., Extended Stroke, Hyd. Upper/Lower Clamping, #43967

Manufacturer

Bystronic

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43967

Model

PR 320 x 4100

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43967

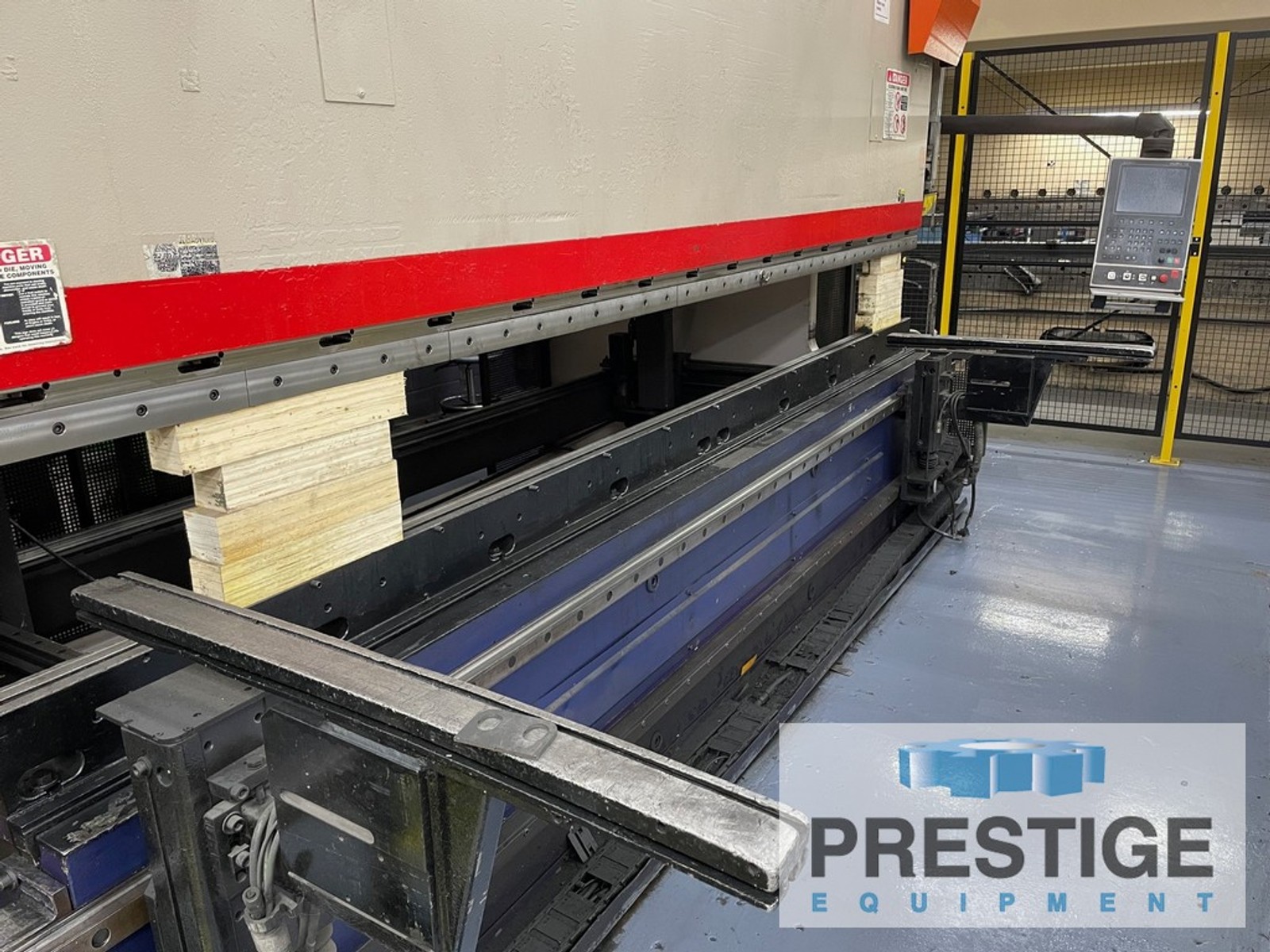

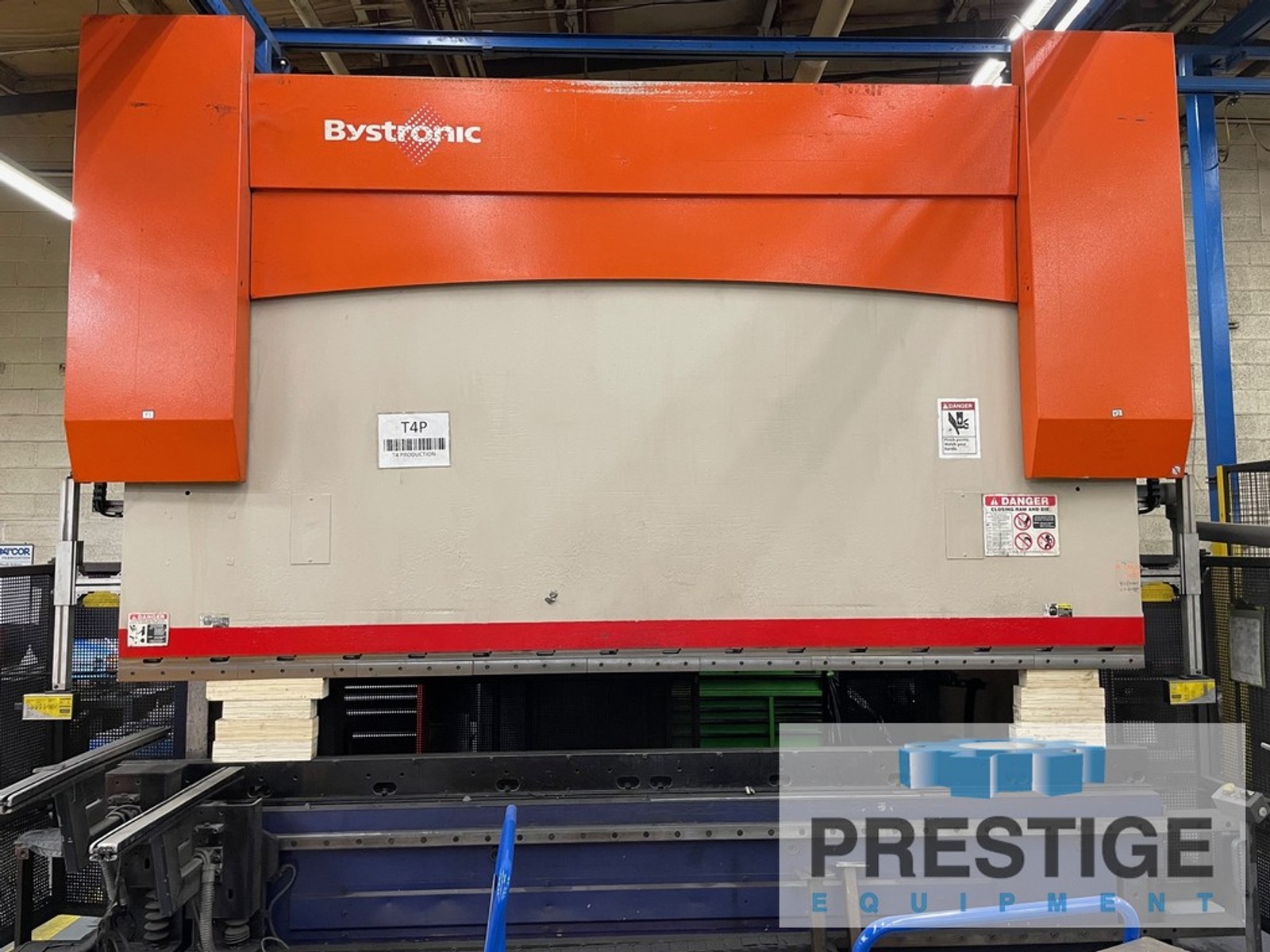

357 Ton Bystronic 8-Axis CNC Hydraulic Press Brake

FEATURES:

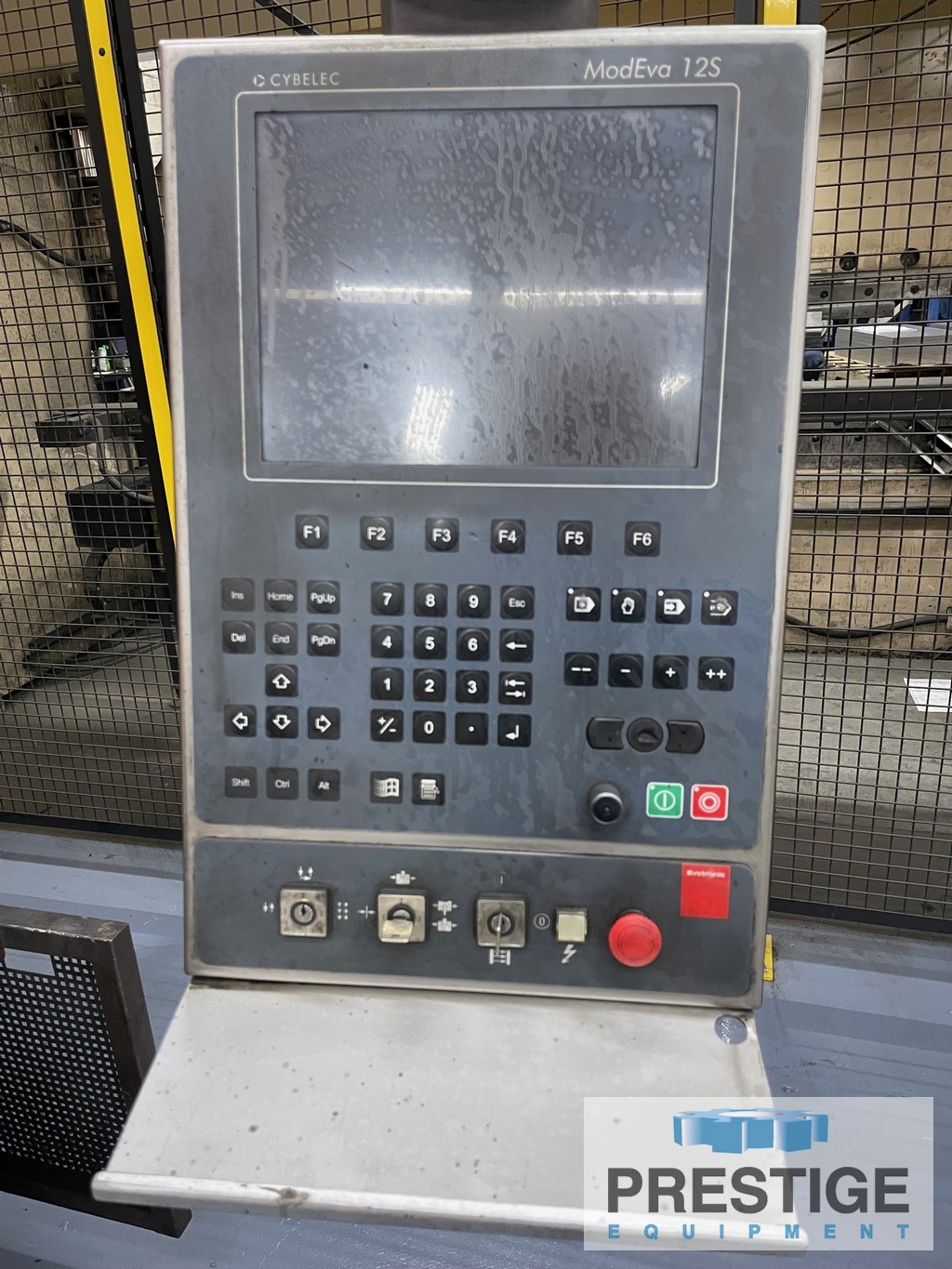

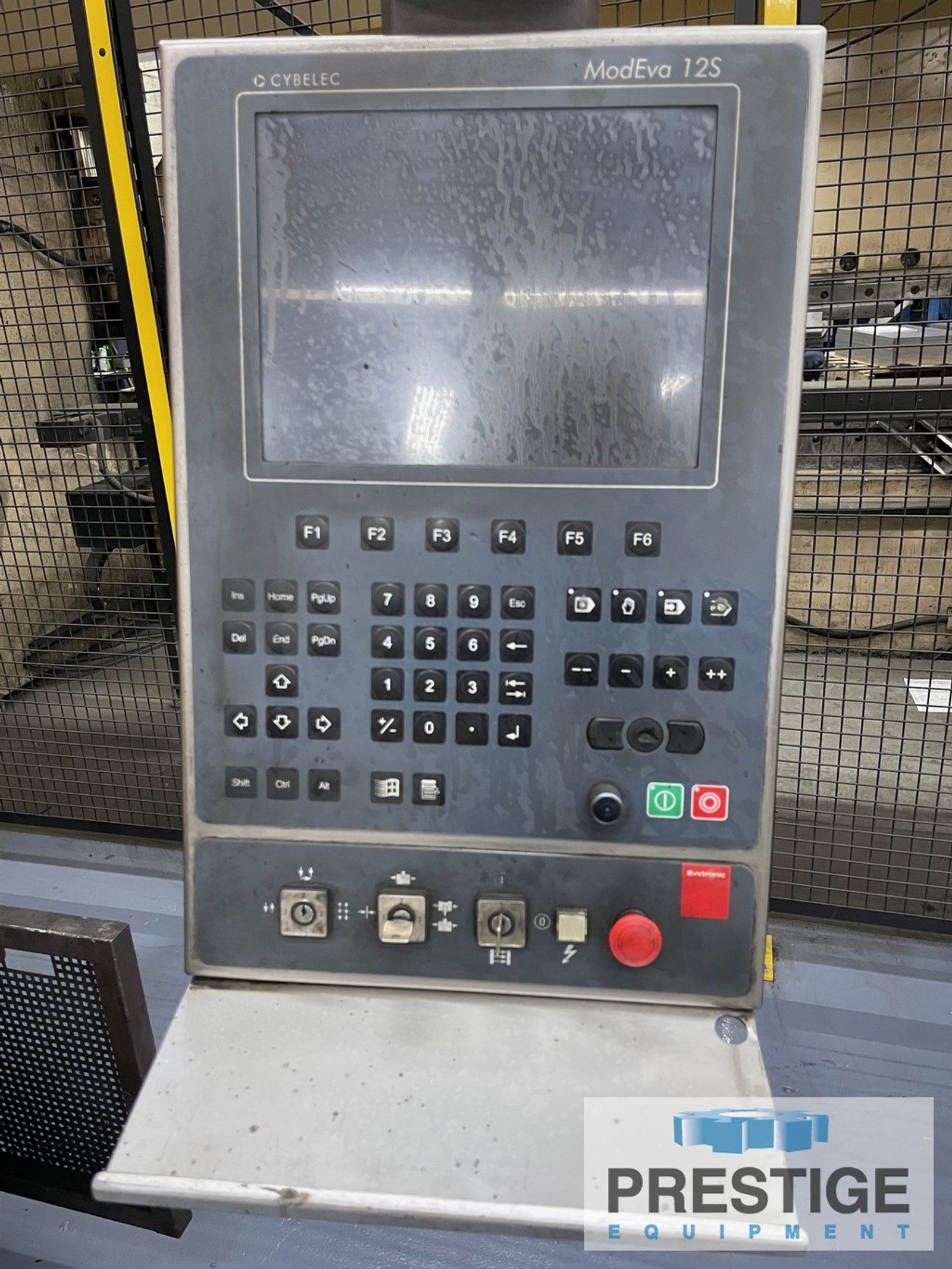

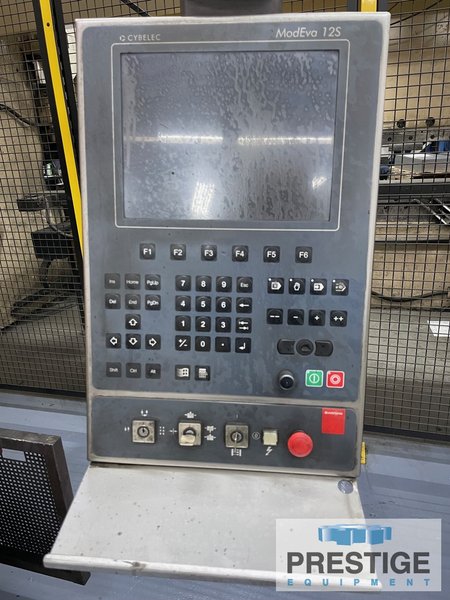

Cybelec ModEva 12S 8-Axis CNC Control

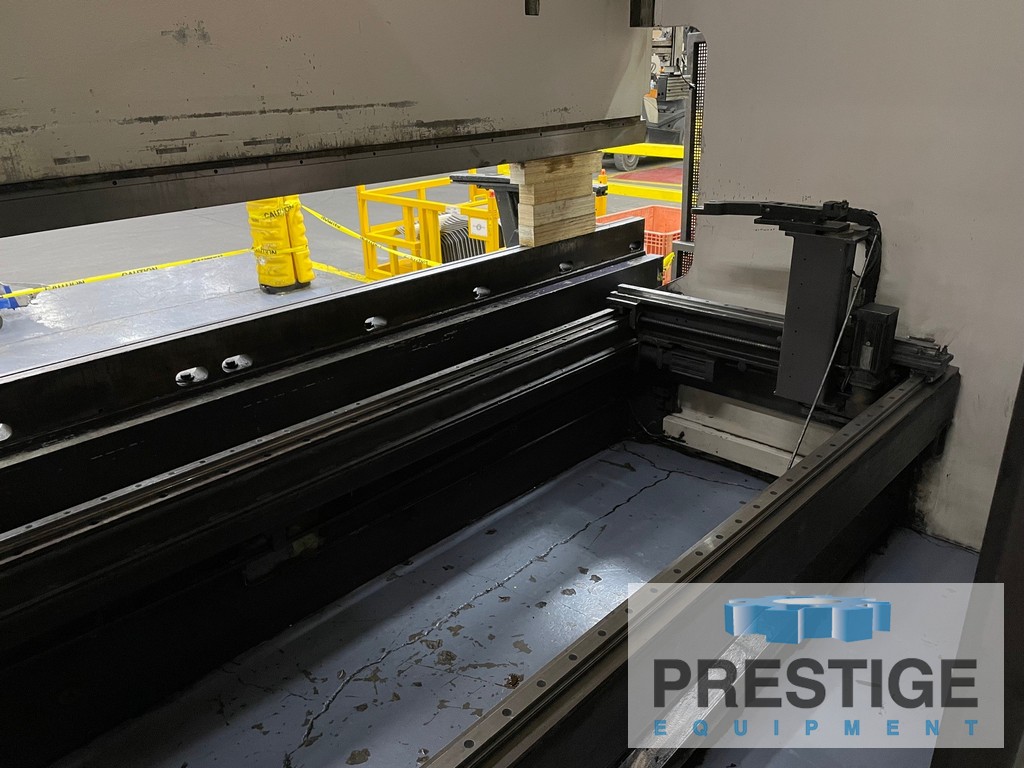

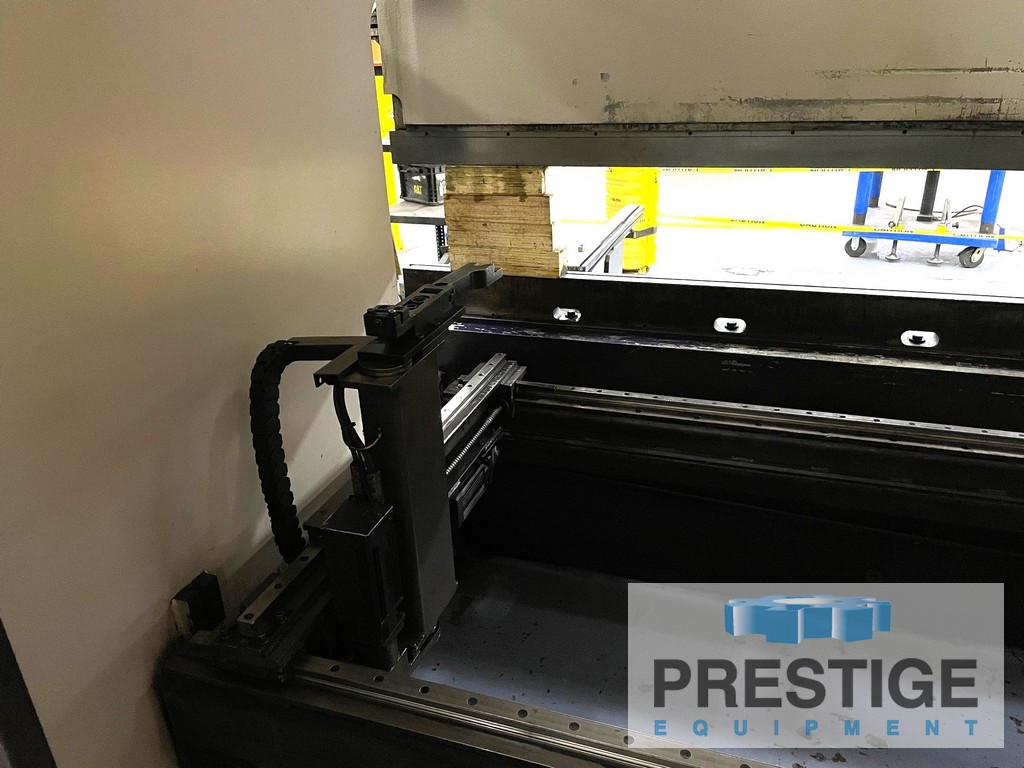

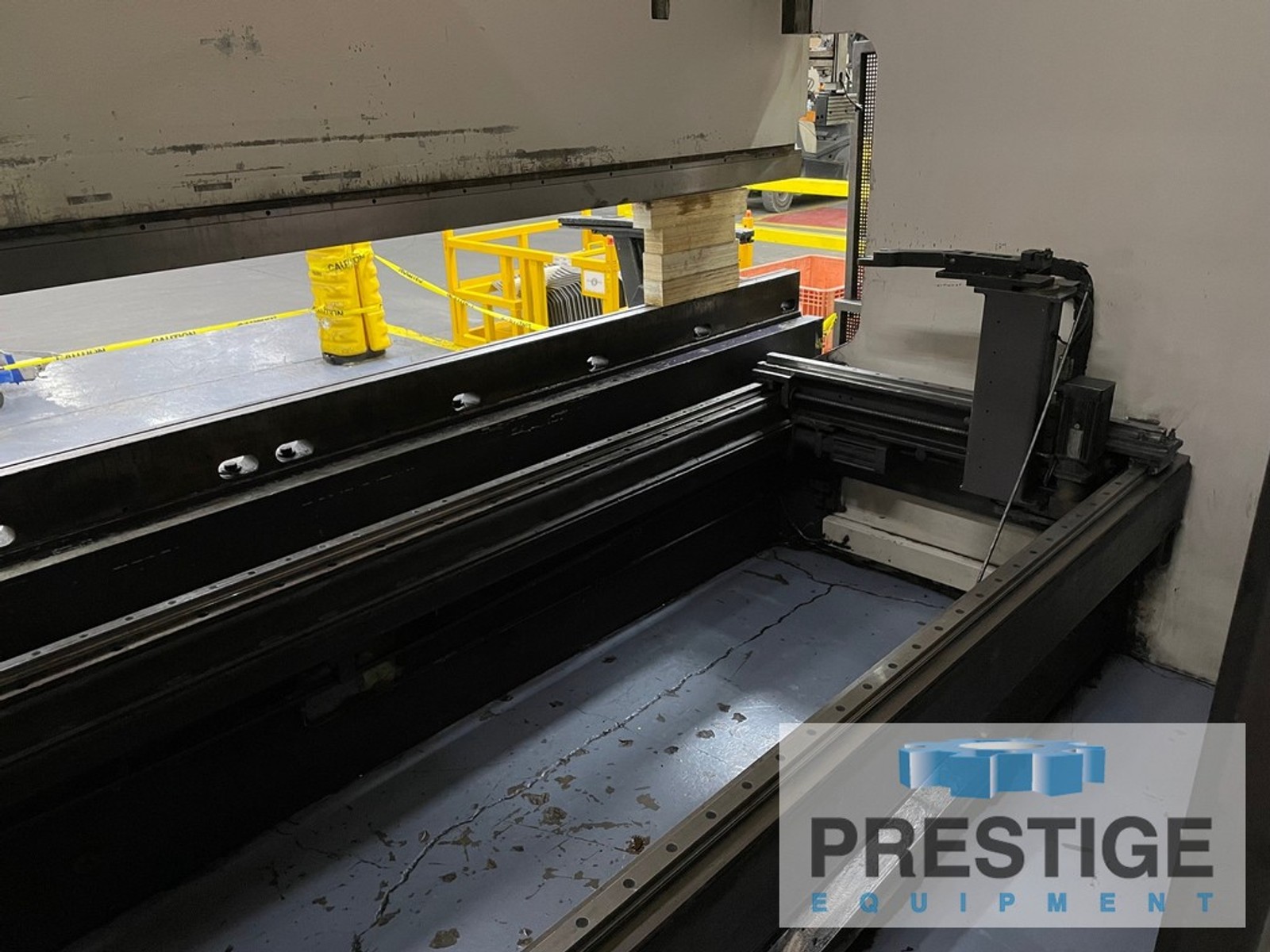

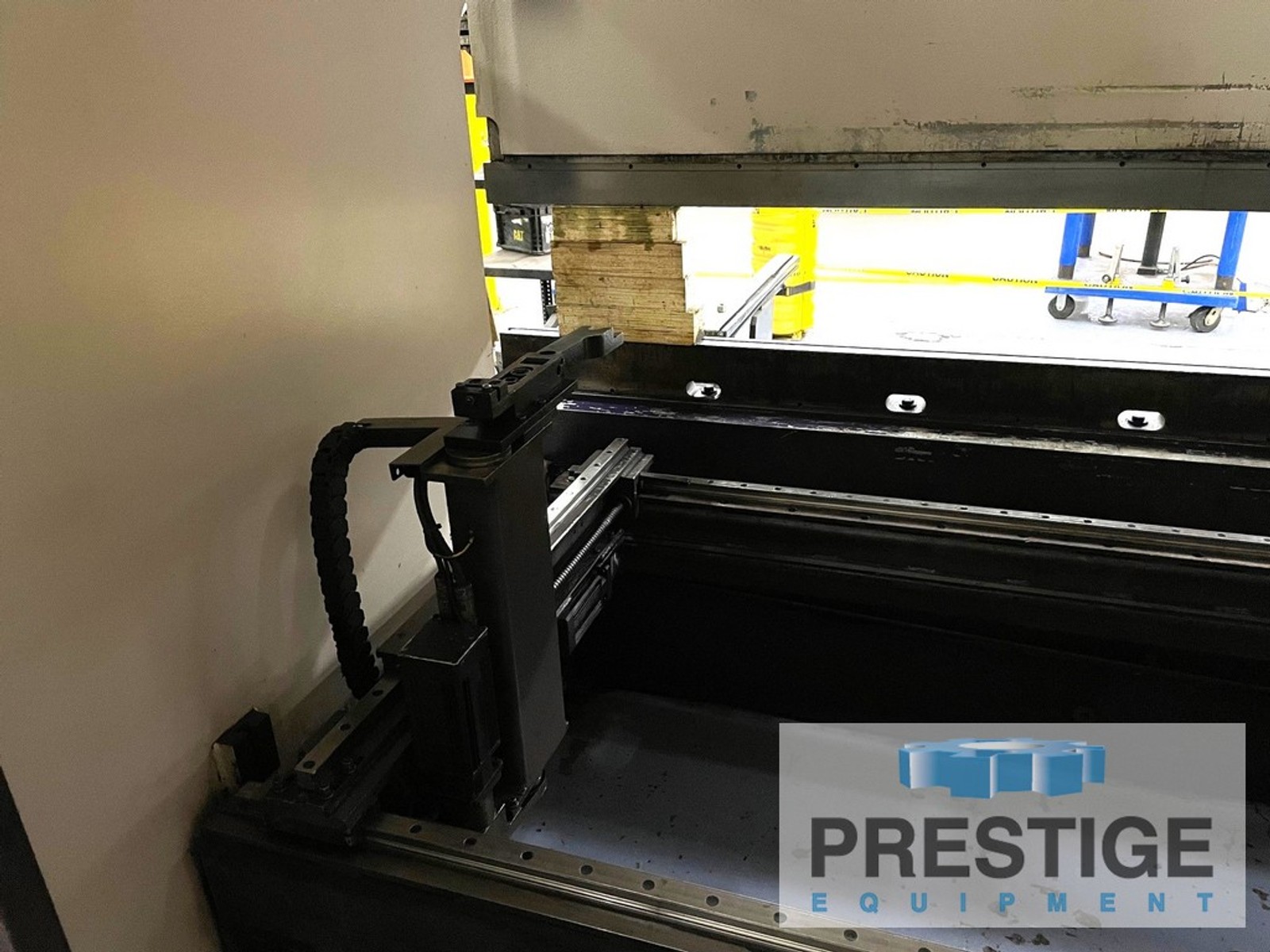

6-Axis CNC Back Gauge (X1,X2,R1,R2,Z1,Z2)
Extended Stroke (22.24")
Hydraulic Dynamic Crowning
Willa Upper Hydraulic Clamping
Lower Hydraulic Clamping
Flush Floor Machine

Maximum Tonnage Capacity .............. 357 Ton
Overall Length Of Bed & Ram ........... 161"
Distance Between Housings ............. 147"
Stroke (Extended) ..................... 22.24"
Throat Depth .......................... 16"
Rapid Approach ........................ 7.48 IPS
Bending Cycle ......................... .39 IPS
Rapid Return .......................... 5.90 IPS
Main Motor (480 V/3/60)................ 49 HP
Approximate Shipping Weight ........... 60,720 Lbs

EQUIPPED WITH:
Cybelec ModEva 12S 8-Axis CNC Control
6-Axis CNC Back Gauge (X1,X2,R1,R2,Z1,Z2)
Extended Stroke (22.24")
Hydraulic Dynamic Crowning
Willa Upper Hydraulic Clamping
Lower Hydraulic Clamping
Electric Foot Switch Control
(2) Front Support Arms
Laser Light Safety System
Flush Floor Machine

NOTE:
Machine is not under power as there is a Defective Proportional Valve. Customer looking for offers
