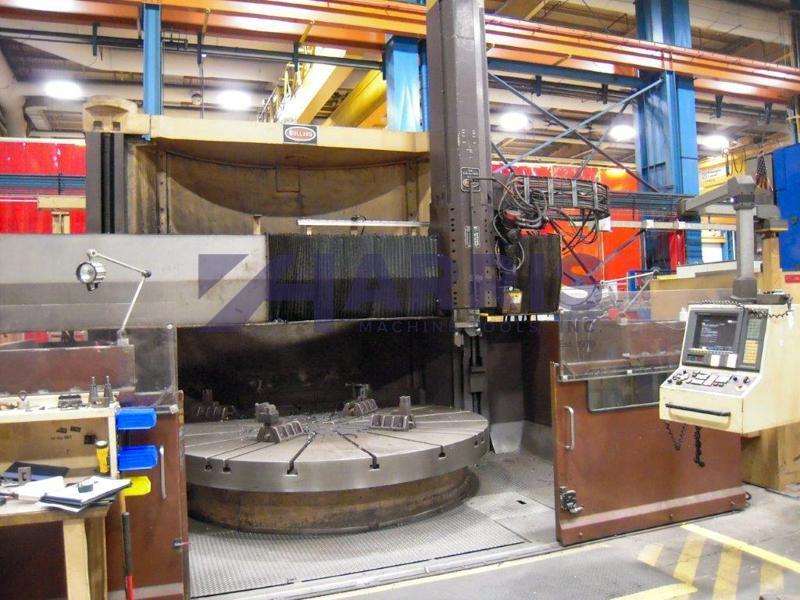

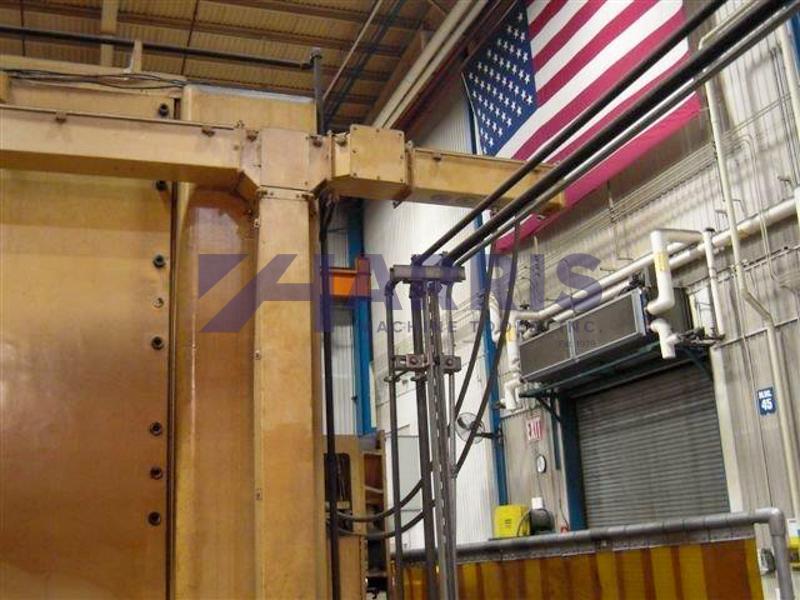

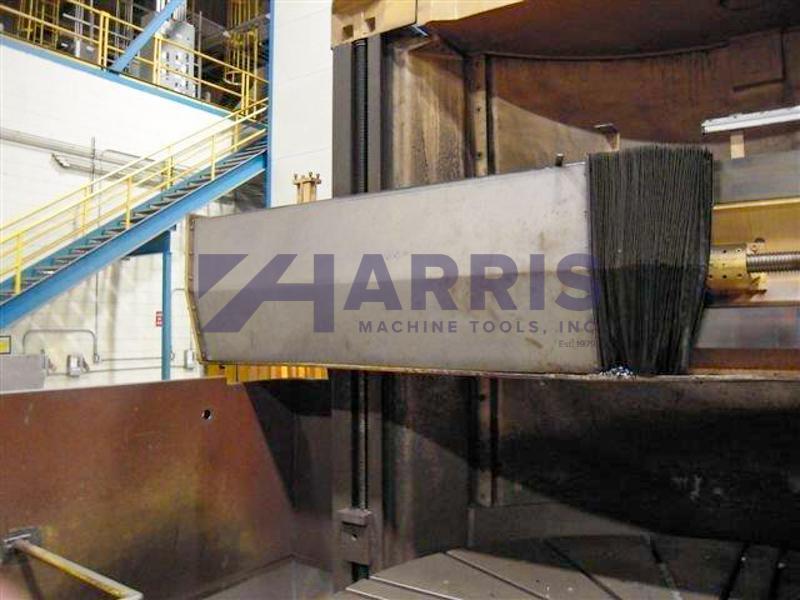

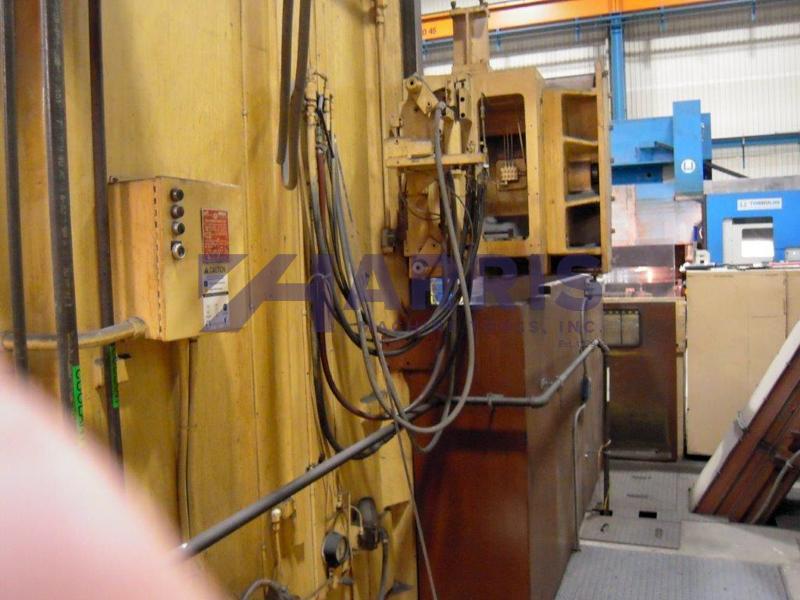

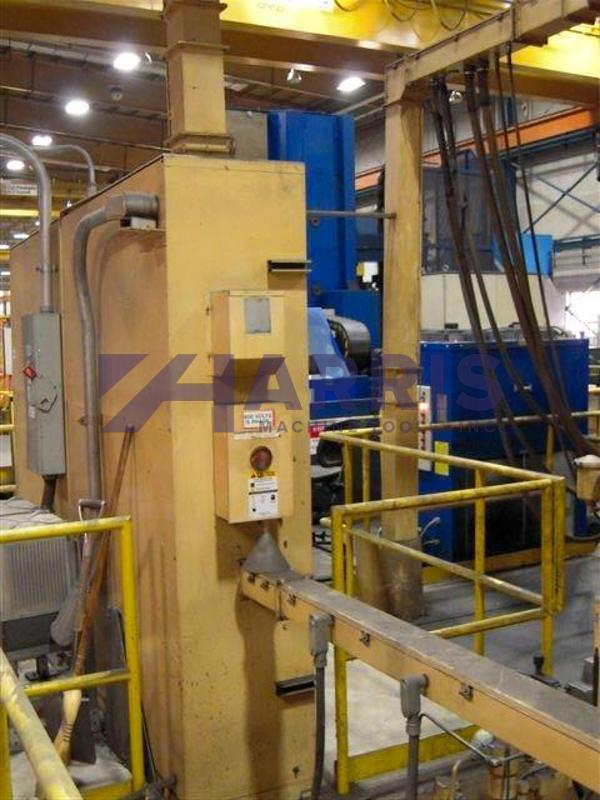

124" Bullard Dyn-au-tape 2 Axis CNC Vertical Boring Mill with Fanuc 15TT Control

Manufacturer

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

20659

Model

124" DYN-AU-TAPE

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

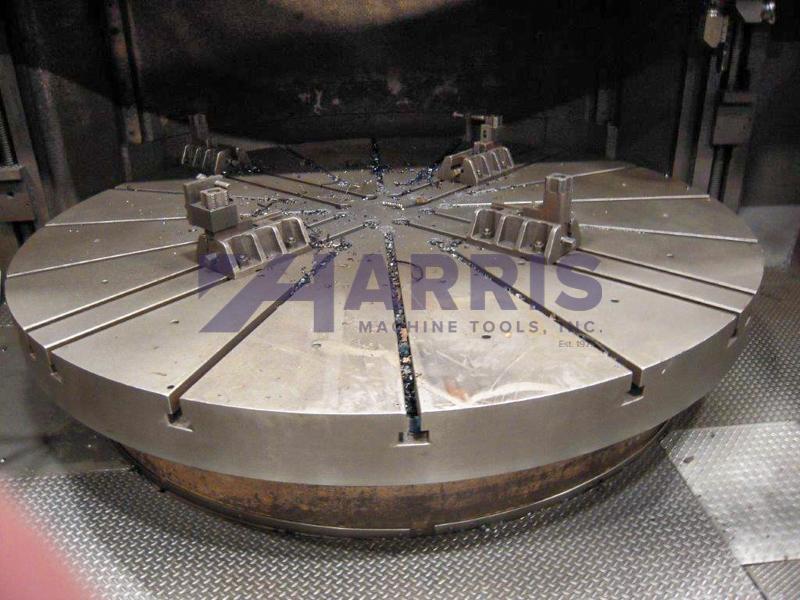

Table Dia - 124 inches
Work Ht-U/R - 71 inches
Dimensions - 265”H x 181”W x 239”F-B
Weight - 192700 pounds

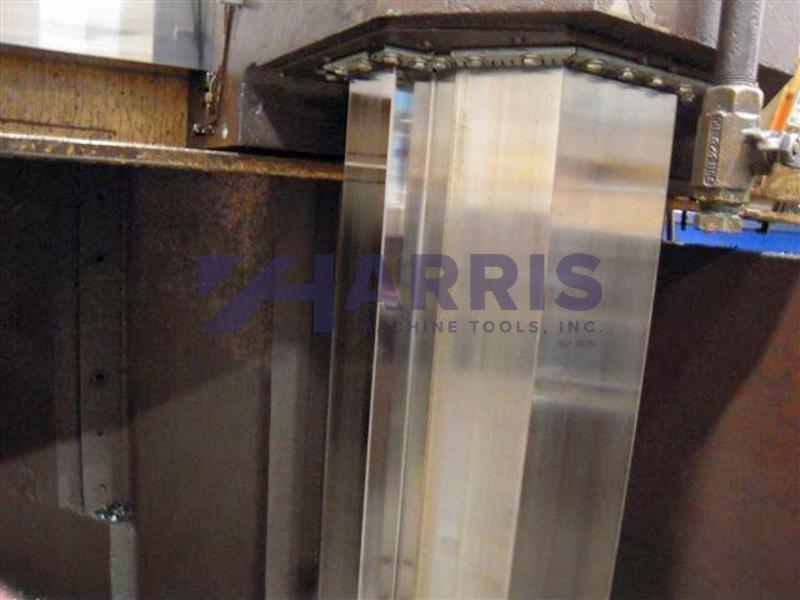

Ram Head Vertical Stroke - 71 inches
Ram Head Horizontal Travel - 76 inches
Ram Width - 12.75 inches
Table Speed - .37 - 66 RPM
Table Capacity - Radial - 167,337 lbs.
Table Capacity - Thrust - 400,312 lbs.
Headstock - 2 Range: Constant Torque / Constant Horsepower
CNC Control - yes
Type of CNC Control - NEW FANUC CONTROL WITH 100% MANUAL MACHINE HMI (HUMAN MACHINE INTERFACE)


  • Fanuc 15TT CNC Control
  • Faceplate Jaws

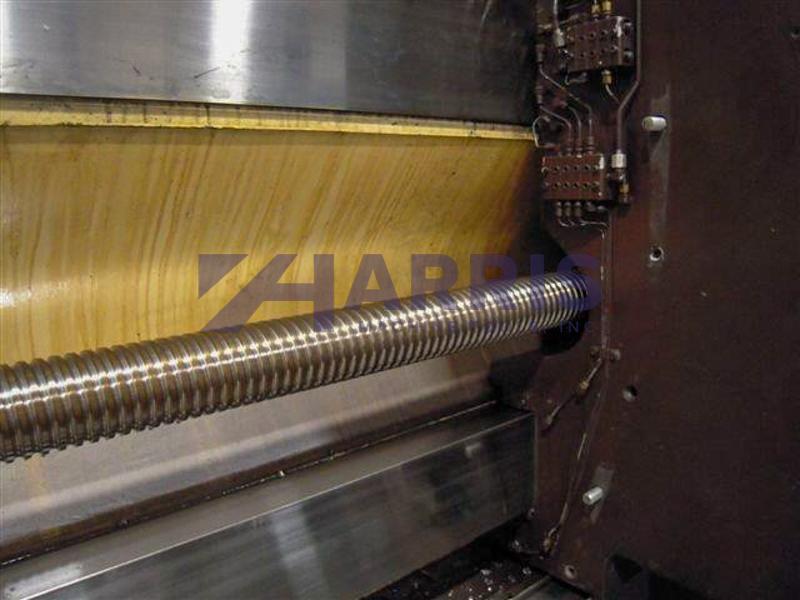

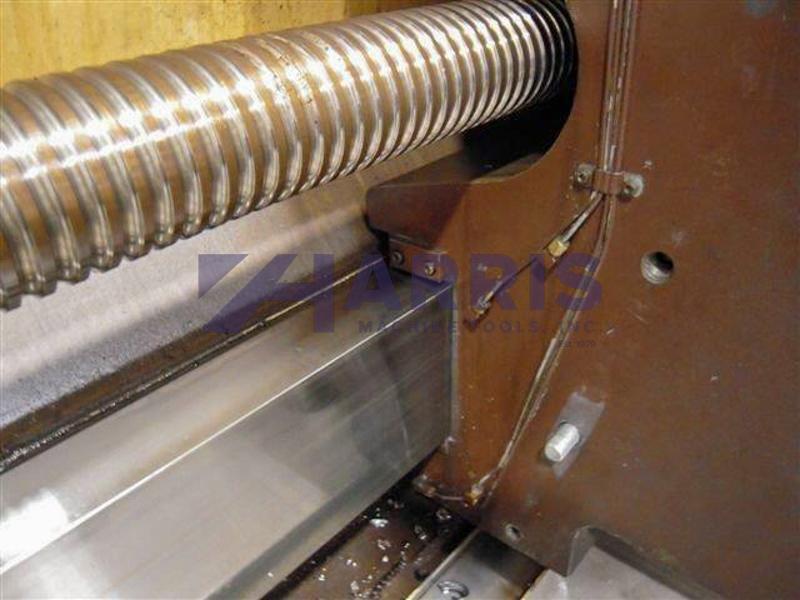

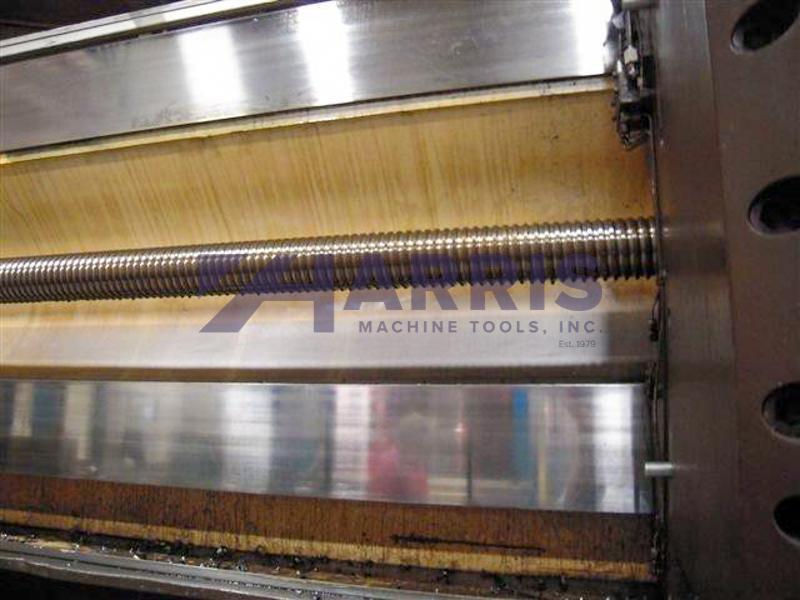

  • 3” Diameter Ball Screws

Features:
Power Rail Clamping

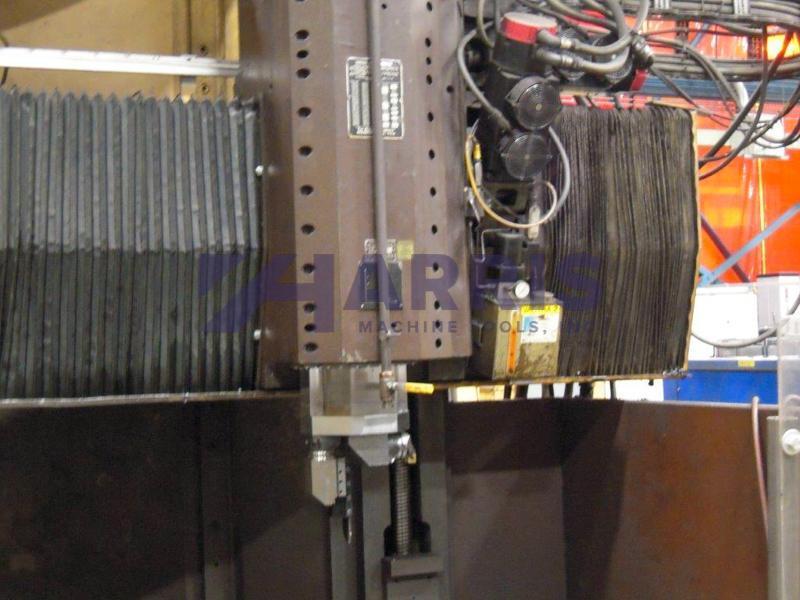

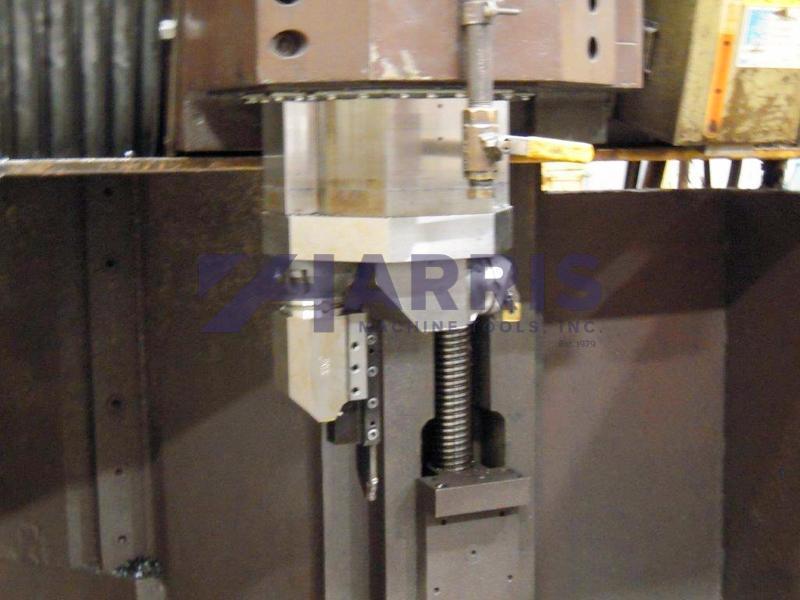

4 Position Turret index on Ram Head

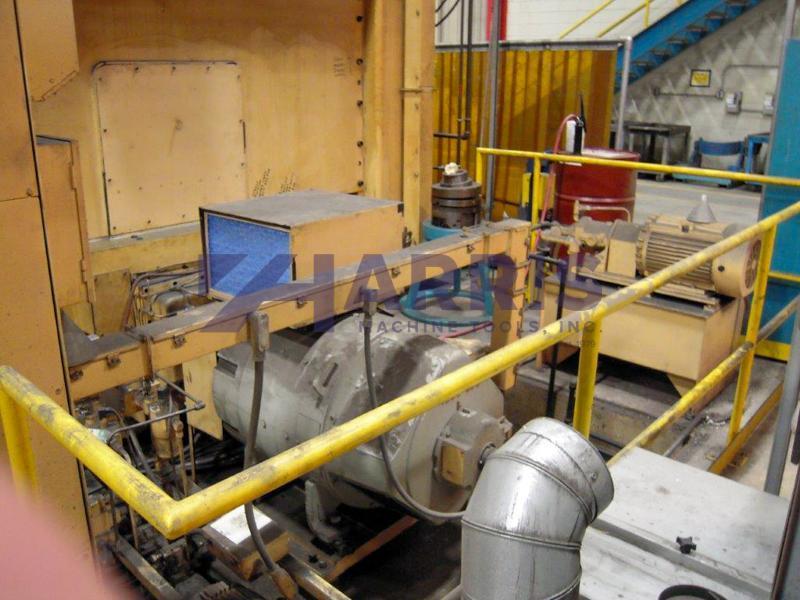

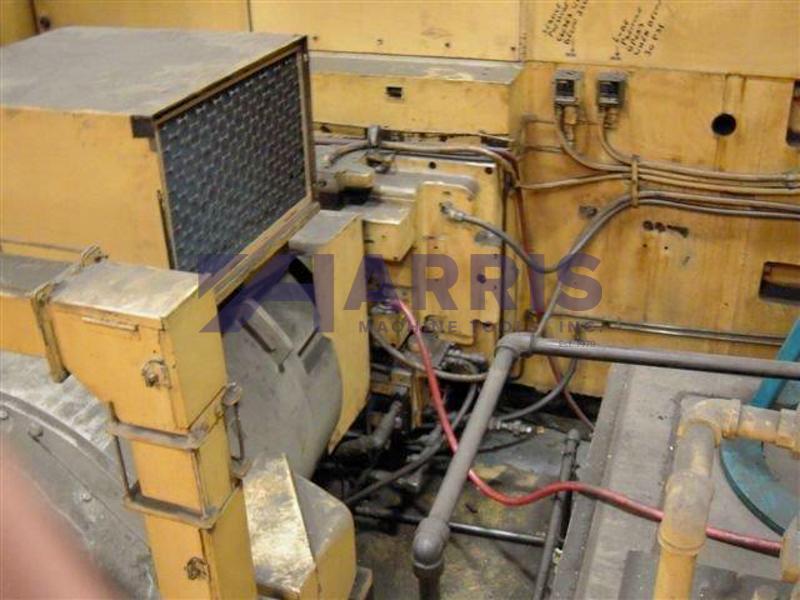

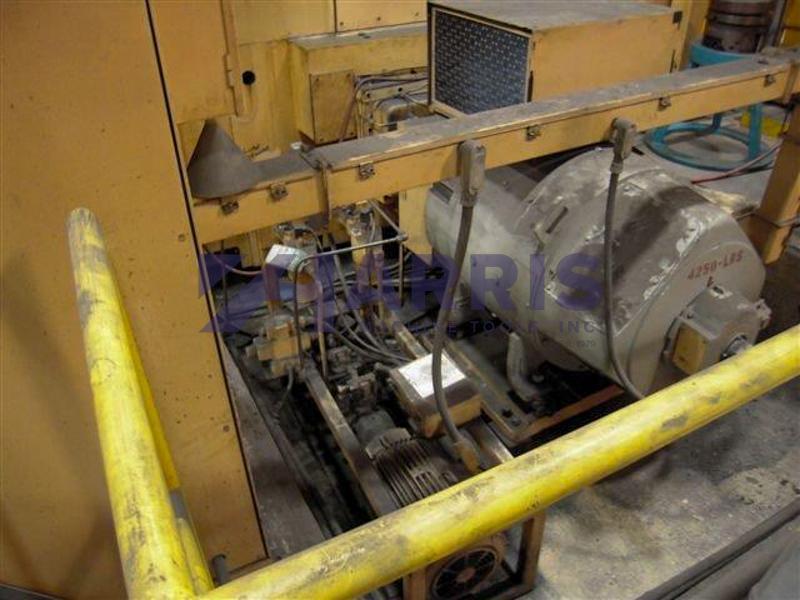

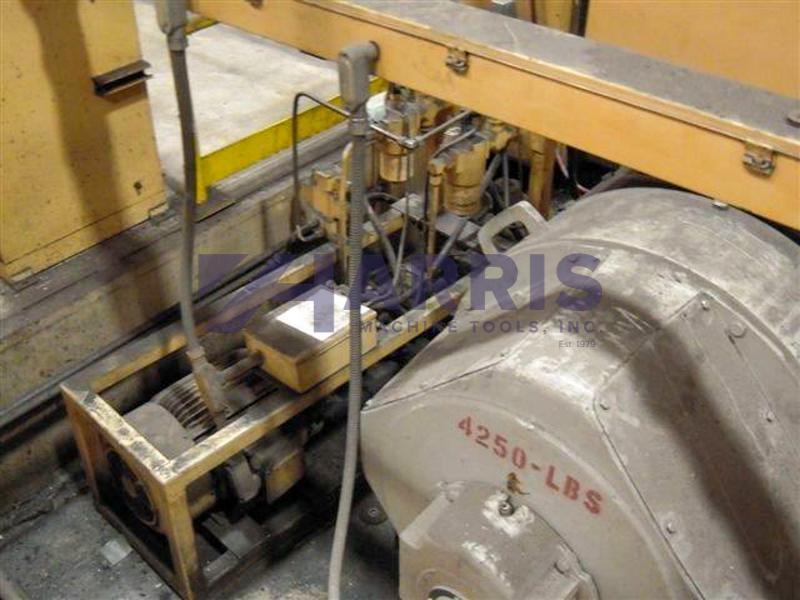

75 HP DC Motor

Brief Scope of Work:

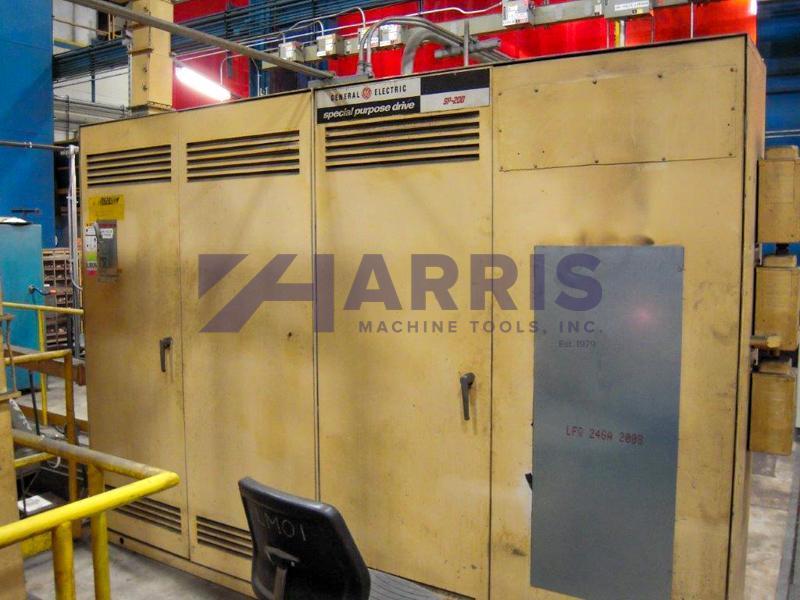

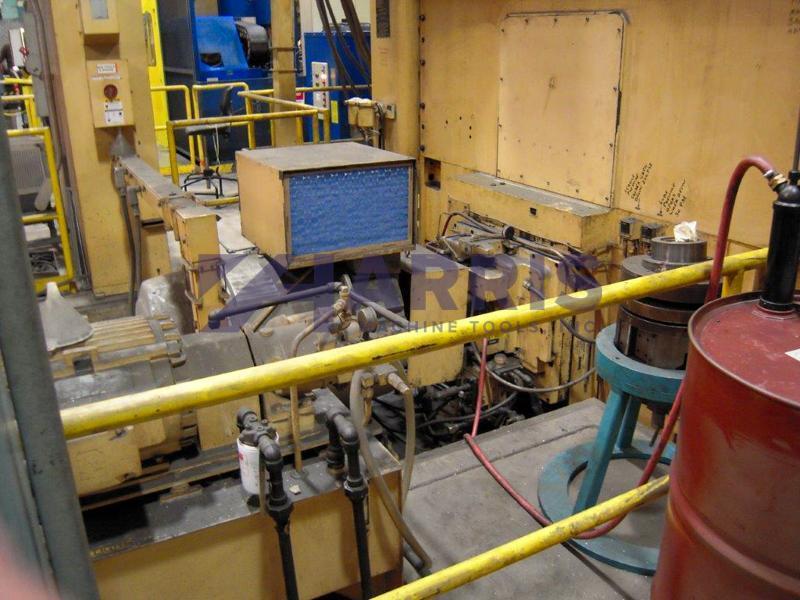

Rebuild Main table drive motor and install new DC Variable speed Drive.
Check and repair or replace as needed all table, transmission and way lubrication systems.
Check repair or rebuild as needed X and Z axis ball screws and drive systems.

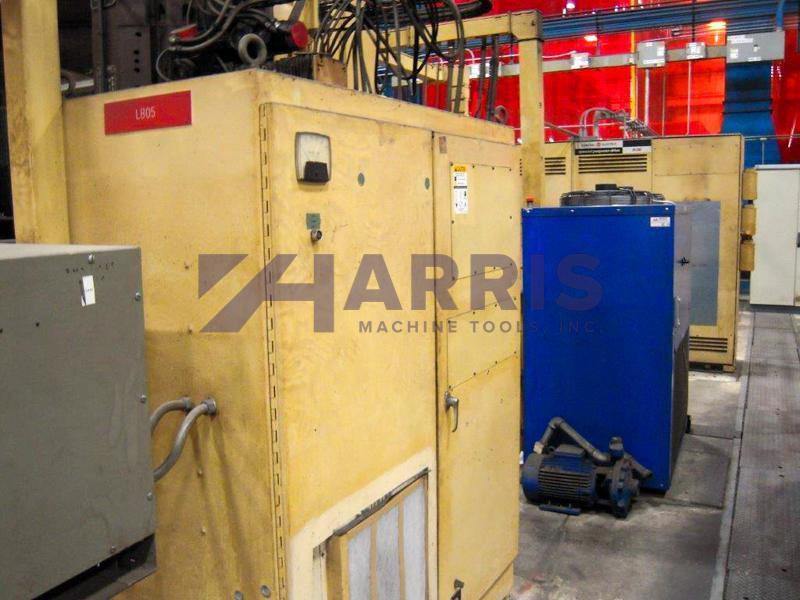

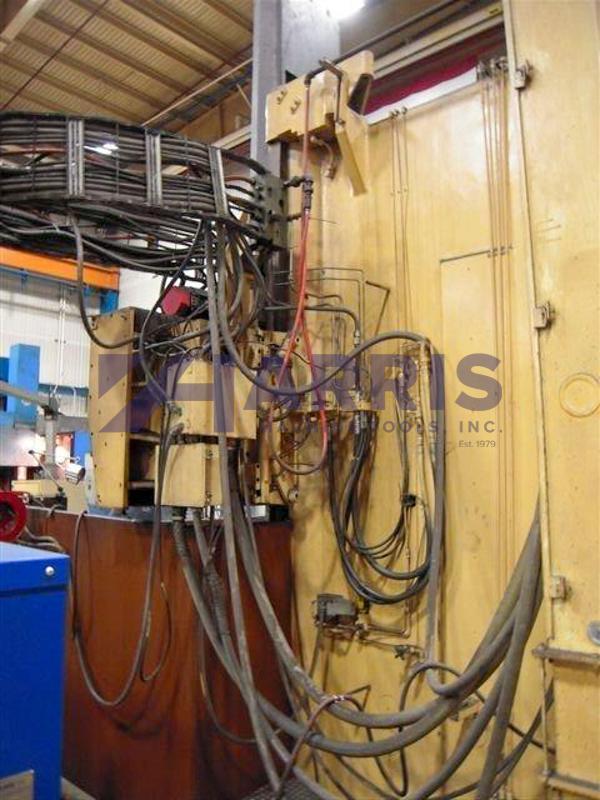

Install all new Electrical system and wiring.
New Fanuc CNC control with 100% manual machine operation panel whereby the Fanuc digital feedback is used as DRO system and the machine can function 100% manually via conventional table start/stop, axis movement via joystick control with feed rate override and rapid traverse functions.  The Fanuc control provides an incredibly robust and proven back end as well as the capability to run the machine fully CNC in the future.

More Detailed scope of work available on request.
