Makino MCC2013VG, X-78", Y-51", Z-51", 49" x 49" B-Axis R.Tab, 12K RPM, HSK-100, Makino Pro5 CNC, 2016, #43971

Manufacturer

MAKINO

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

43971

Model

MCC2013VG

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43971

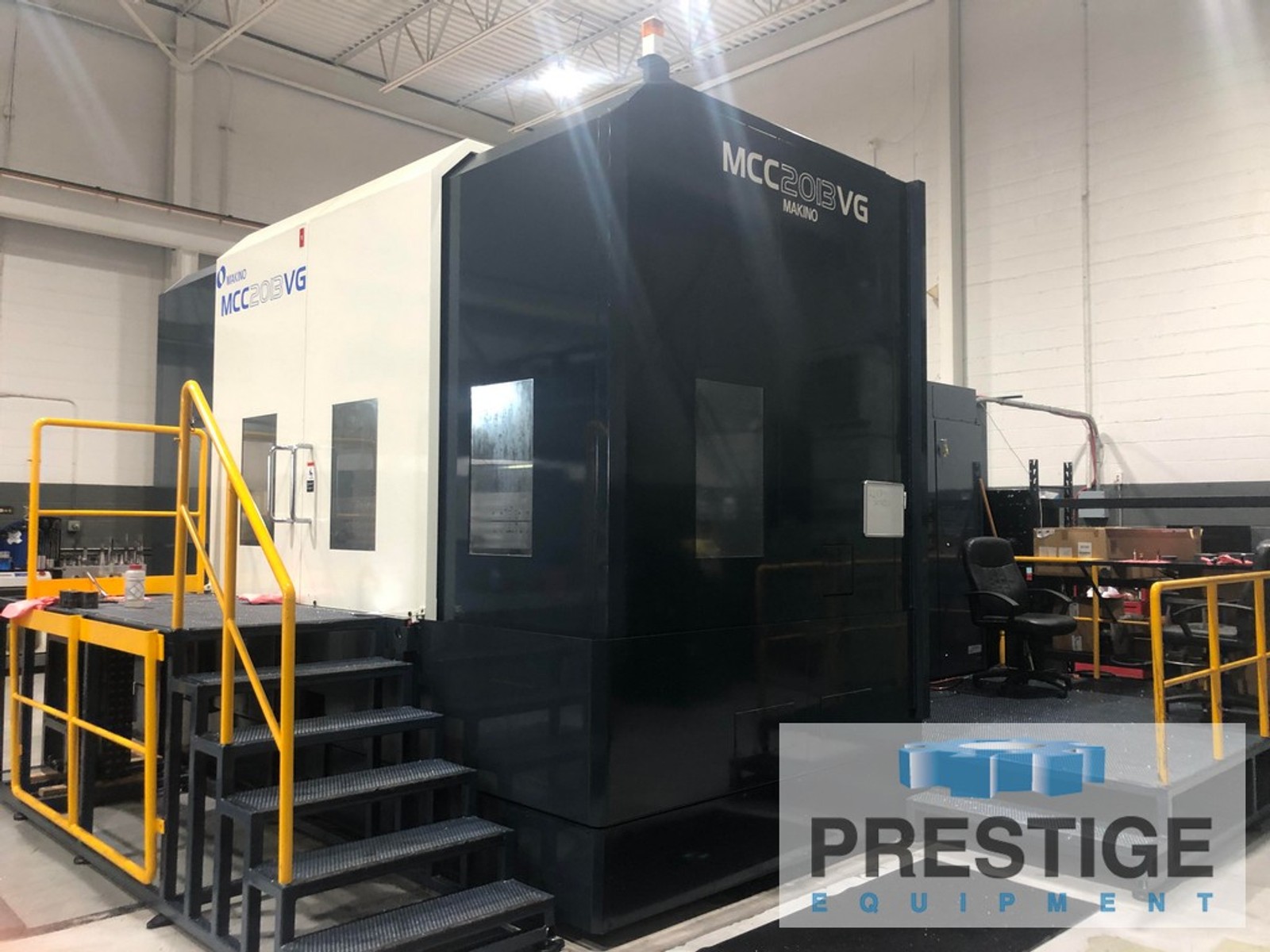

MAKINO MCC2013-VG 6-Axis Vertical Machining Center

FEATURES:
Makino Pro 5 (Fanuc Series 30i) CNC Control
3-Plus-2 Spindle Head
Through Spindle Coolant (1000 PSI)
120 Station Automatic Tool Changer
Renishaw Probe

CAPACITY:
X-Axis Cross Travel ................... 78.7"
Y-Axis Vertical Travel ................ 51.2"
Z-Axis Longitudinal Travel ............ 51.2"

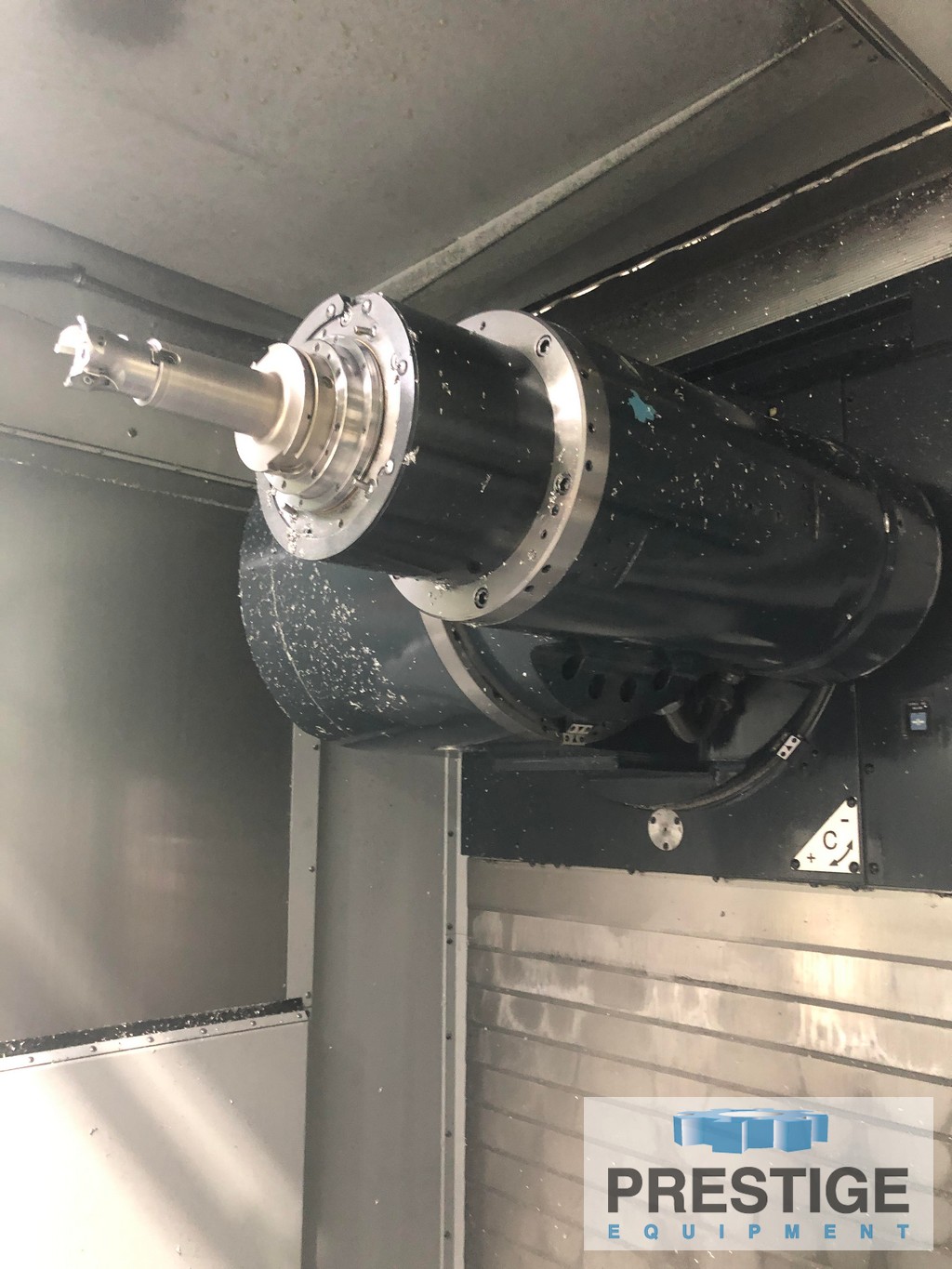

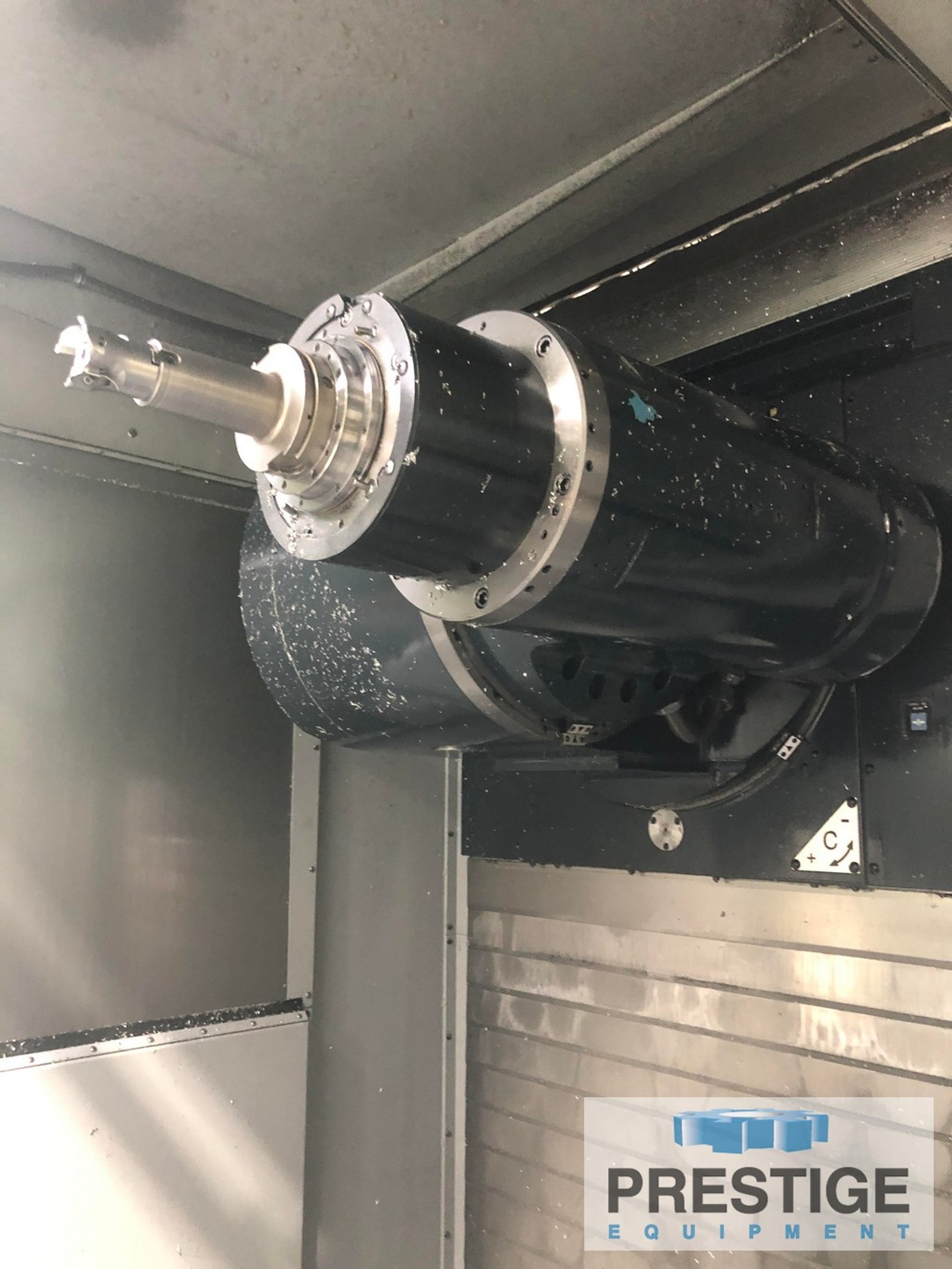

A/C-AXIS SPINDLE:
Spindle Type .......................... 3 + 2 Axis
Spindle Speeds ........................ 5-12,000 RPM
Spindle Drive ......................... 40 HP / 29 HP
Spindle Taper ......................... HSK 100
A-Axis Rotation ....................... -30/+30 Degree
C-Axis Rotation ....................... +/-185 Degree
C-Axis Indexing ....................... 0.001 Degree

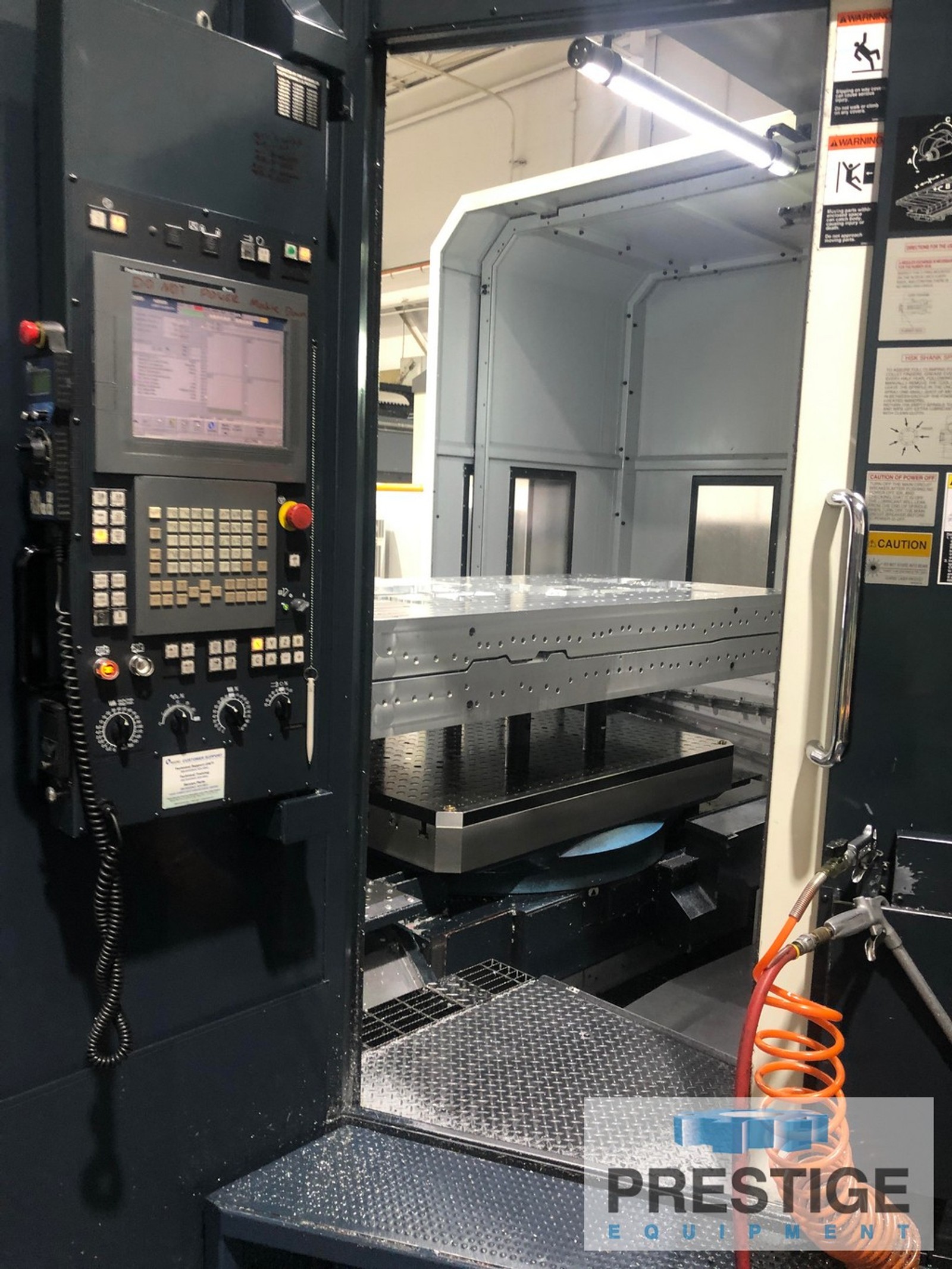

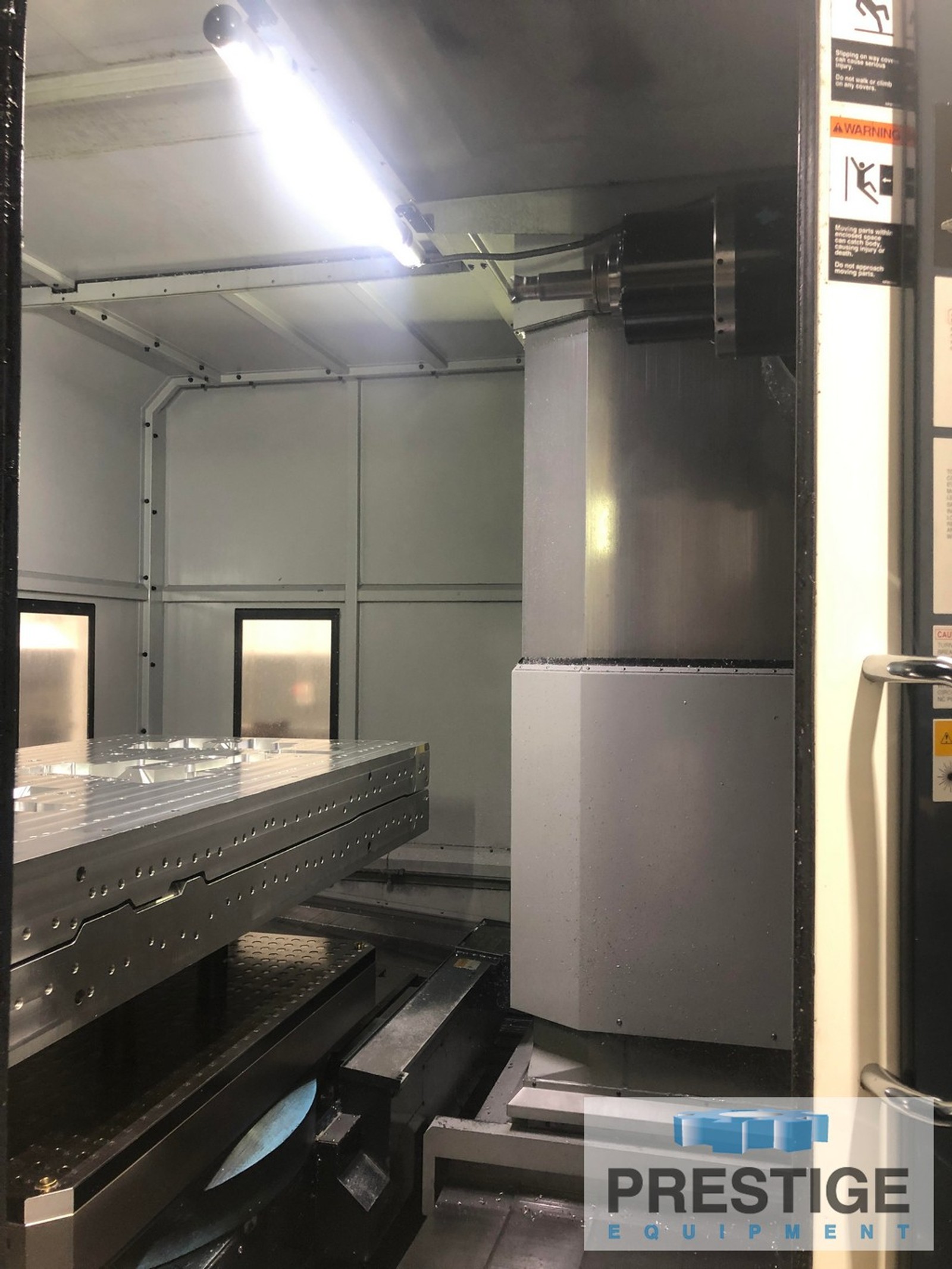

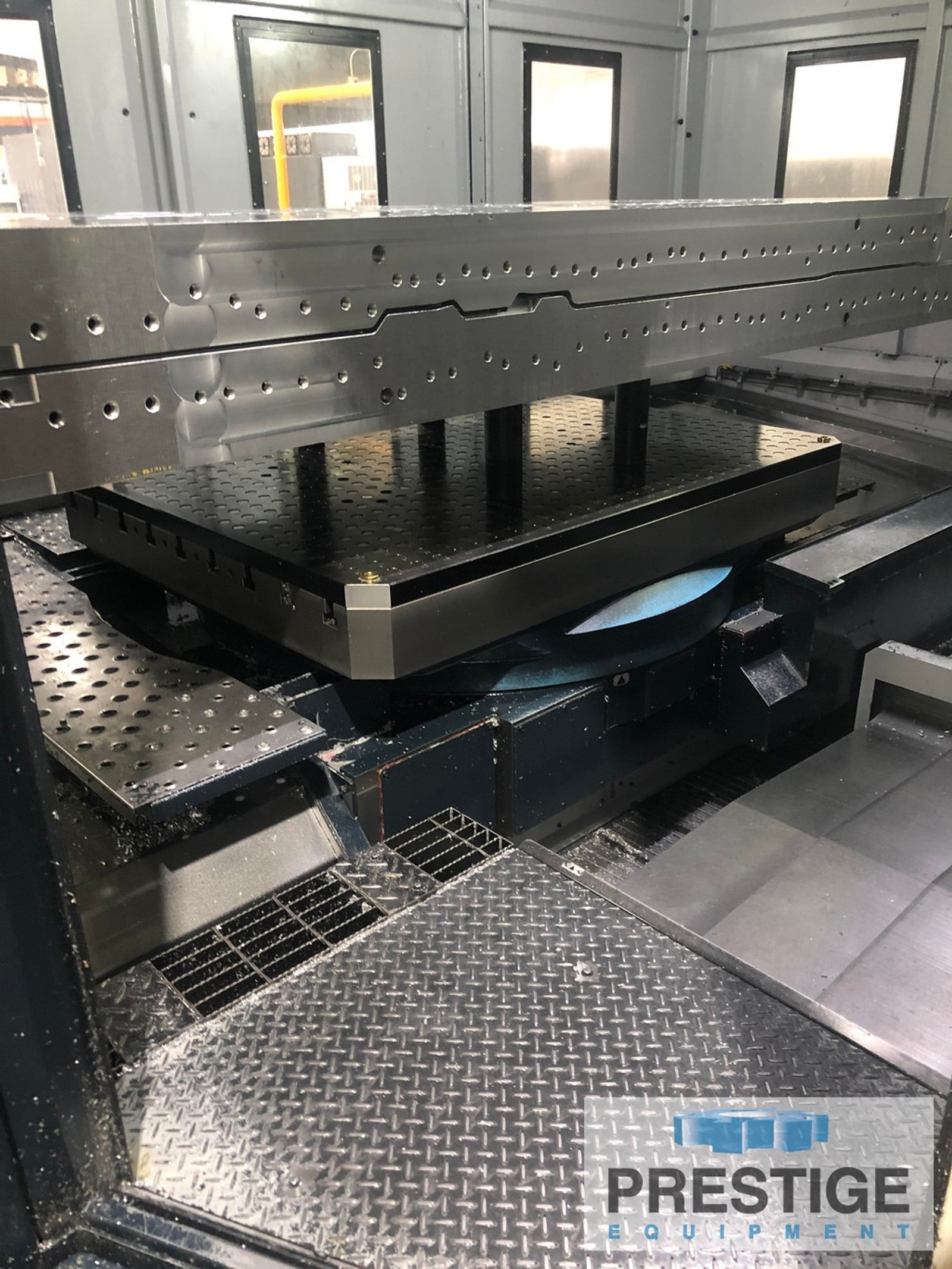

B-AXIS ROTARY TABLE:
Table Size ............................ 59" X 47.2"
Table Weight Capacity ................. 22,000 Lbs.
FEEDS:
Rapid Traverse, (X, Y & Z) ............ 787 IPM
Cutting Feed Rate ..................... 787 IPM

EQUIPPED WITH:

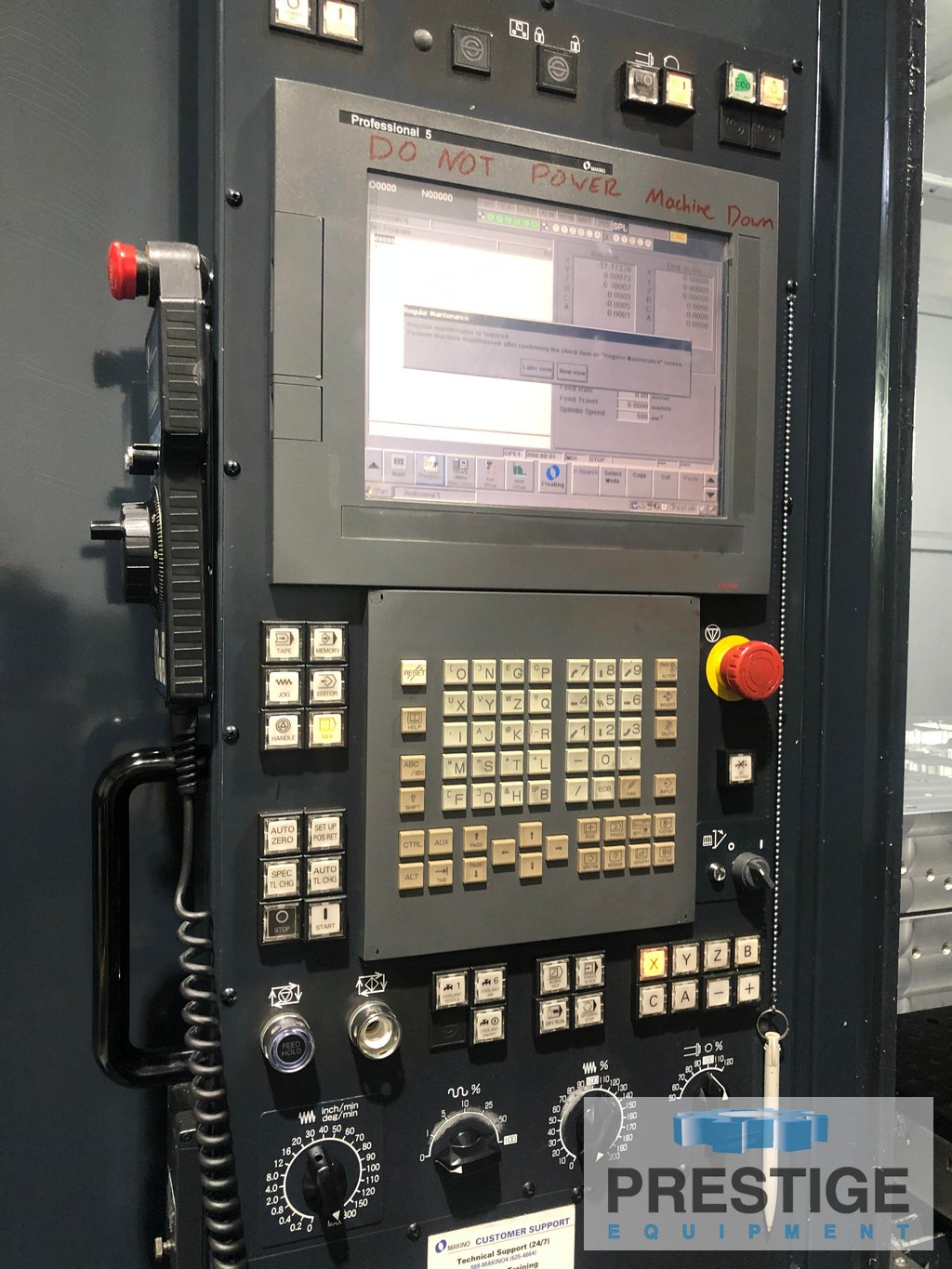

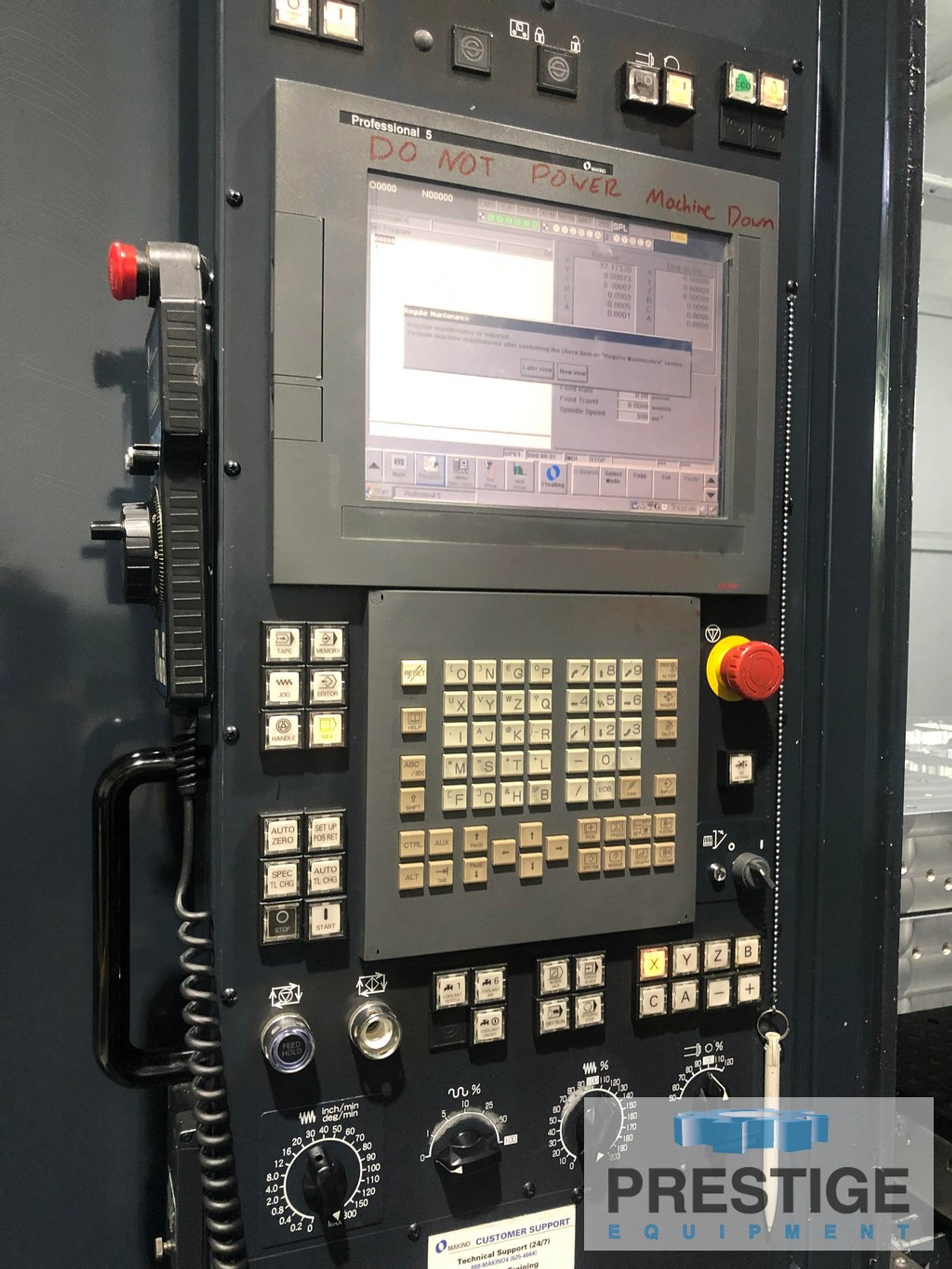

Makino Pro 5 (Fanuc Series 30i) CNC Control
3-Plus-2 Indexing Spindle Head

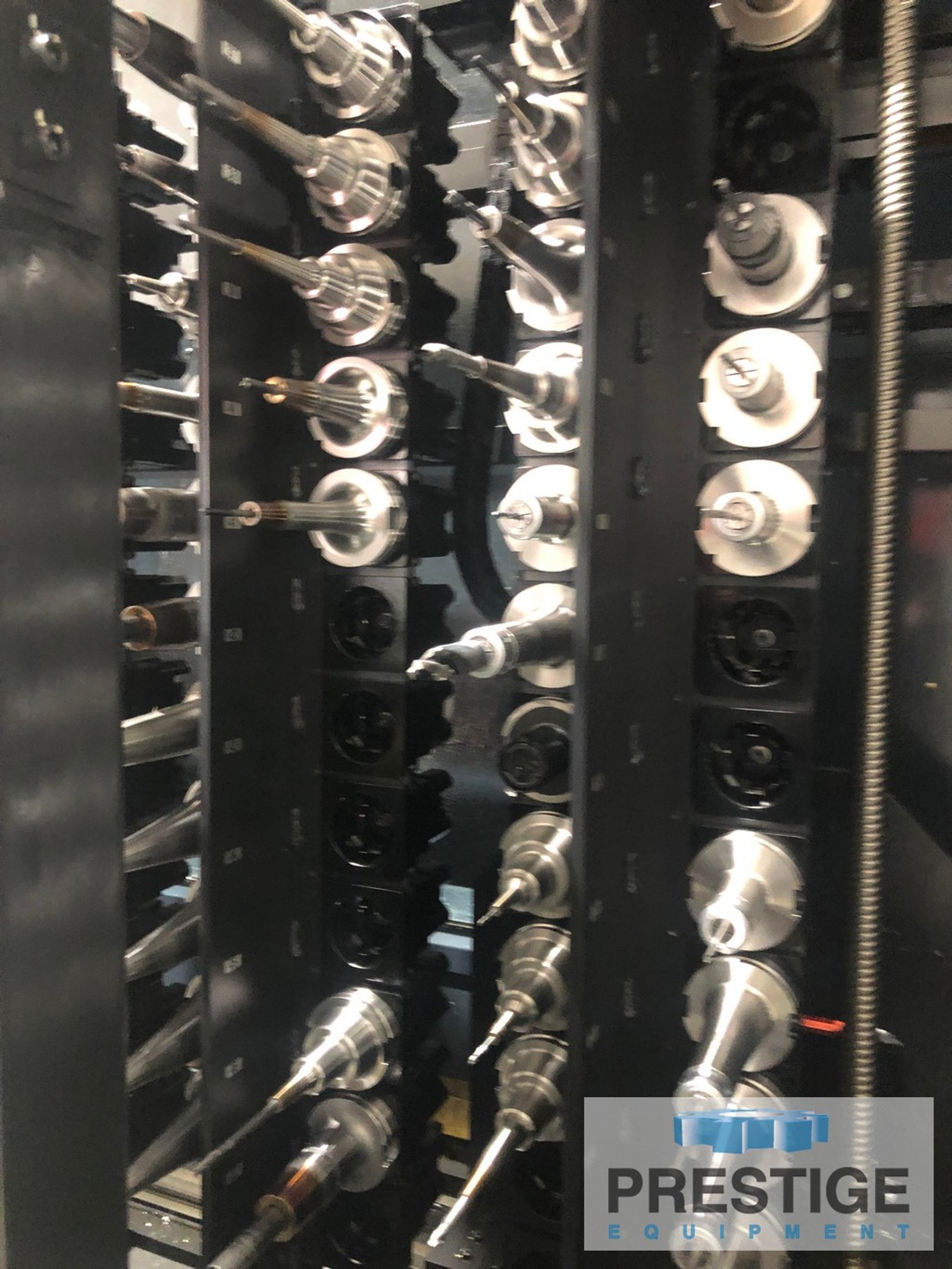

120-Station Automatic Tool Changer

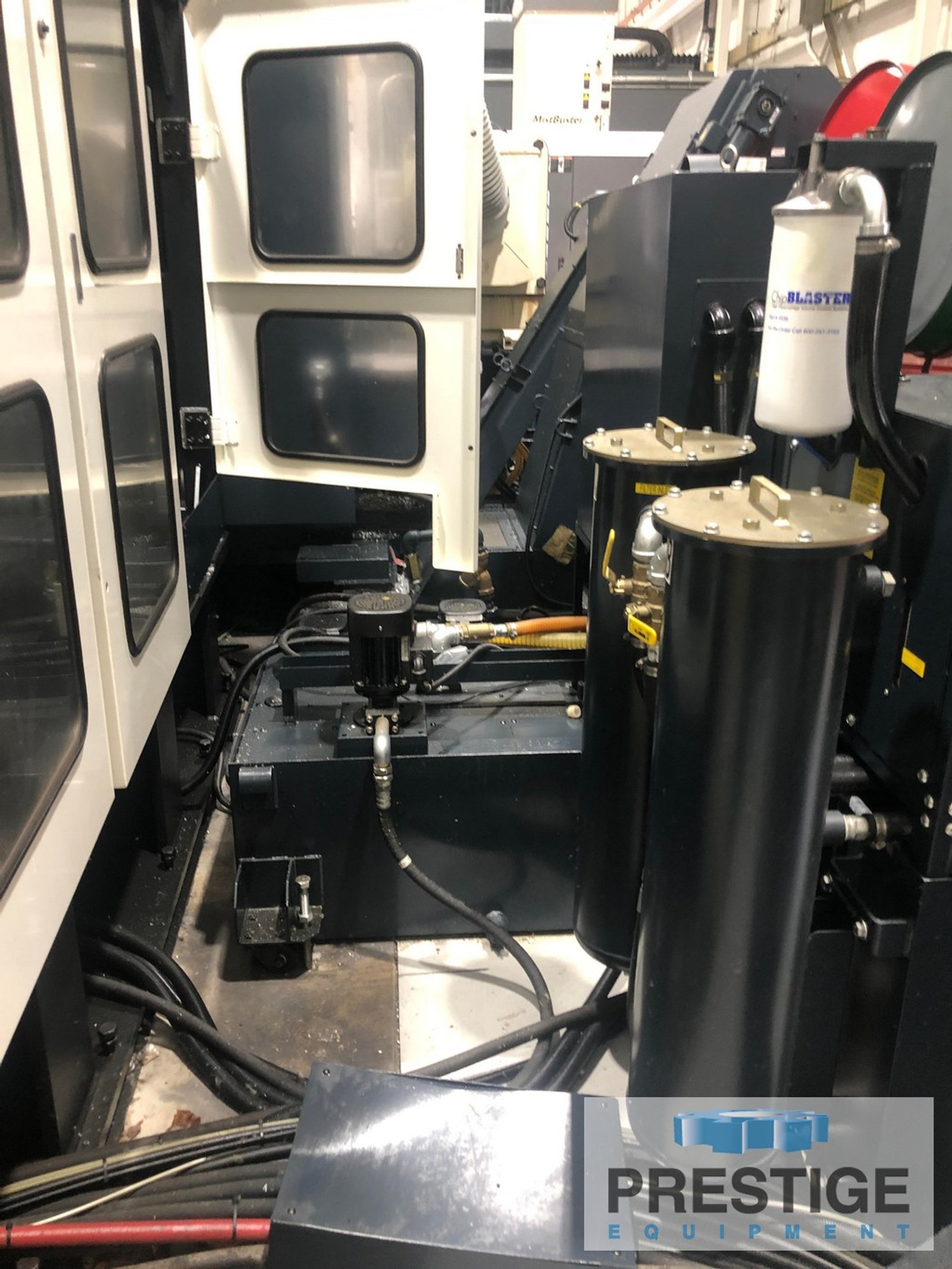

Through Spindle Coolant (1000 PSI)
Renishaw OMP60 Probe
Automatic Non-Contact Tool Measuring Function
Linear Interpolation
Rigid Tapping
Adaptive Control Function
Helical Interpolation
Chip Conveyor
