Imcar CPHV-100, 4" x 4" x 1/2", Pendant Ctrl, Hyd. Adjustment of Lower Rolls, Loaded with Tooling, #43976

Manufacturer

IMCAR

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

43976

Model

CPHV-100

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43976

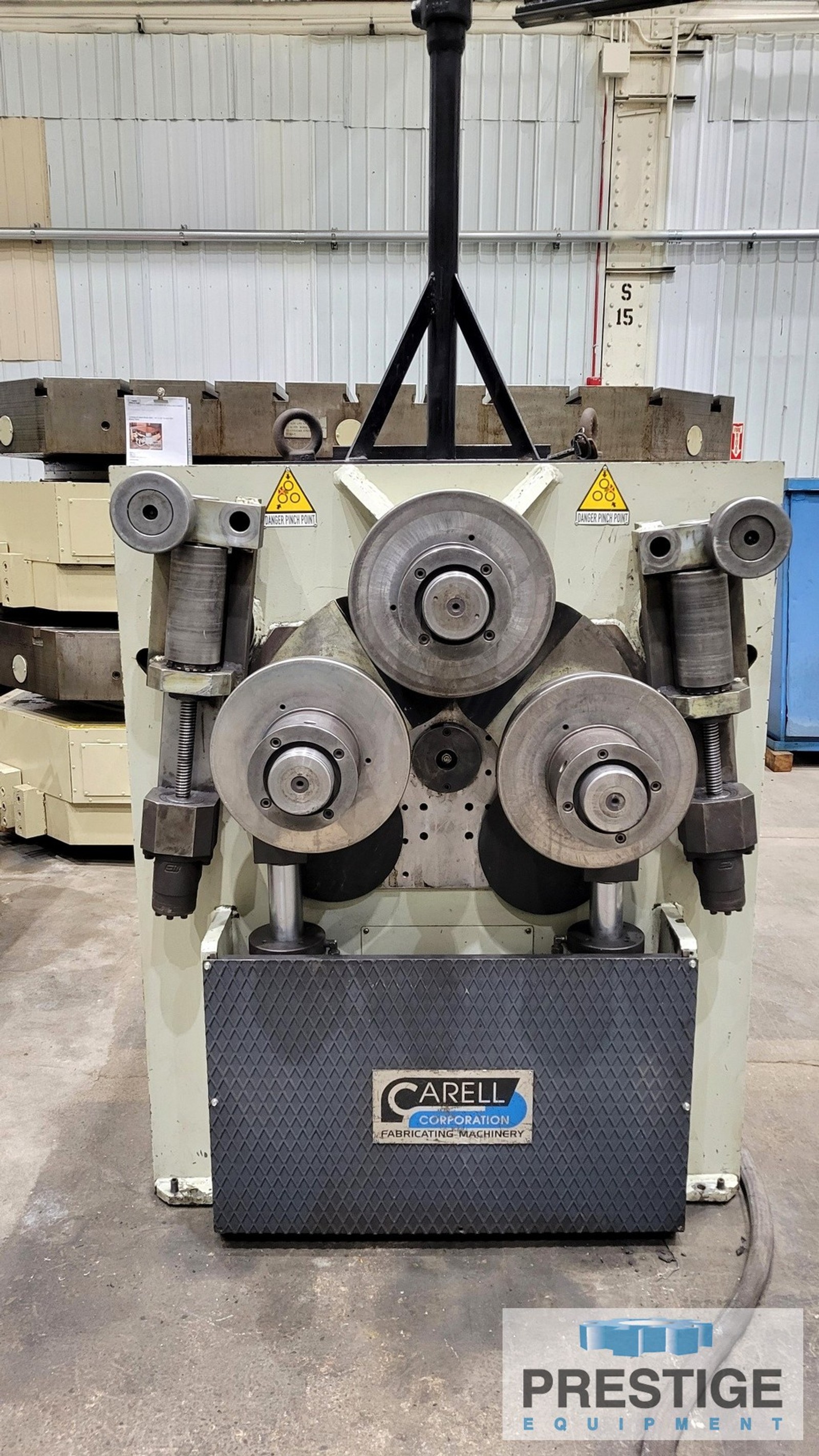

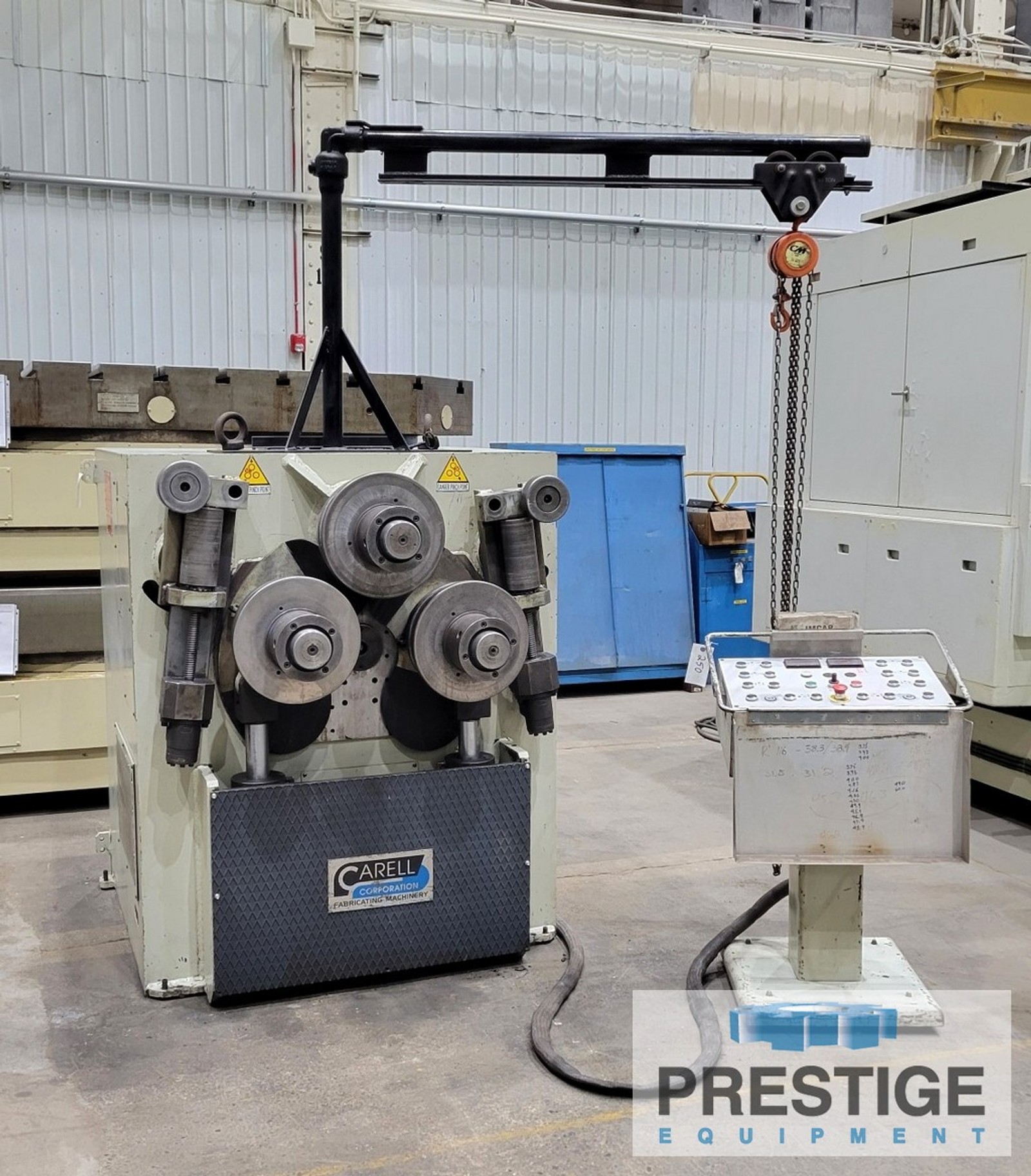

Imcar 4" x 4" x 1/2" Imcar Hydraulic Angle Bending Machine

CAPACITY:
Angle Bending Capacity (Leg Out) ...... 4" x 4" x 1/2"
Angle Bending Capacity (Leg In) ....... 4" x 4" x 3/8"
Flat Iron, Hard ....................... 4" x 1"
Flat Iron, Easy ....................... 7" x 1-3/8"
Round Bar Capacity .................... 3"
Square Bar Capacity ................... 2-3/8"
Pipe Capacity ......................... 3-1/2"
Square Tube ........................... 3" x 1/4"
Rectangle Tube ........................ 5" x 2" x 3/16"
Diameter of Bending Rolls ............. 12.50"
Shaft Diameter ........................ 3.95"
Rolling Speed ......................... 0 - 22 FPM
Main Motor (220 Volt).................. 15 HP
Approximate Dimensions ................ 53 x 63" x 65"
Approximate Overall Weight ............ 9,210 LBS

EQUIPPED WITH:

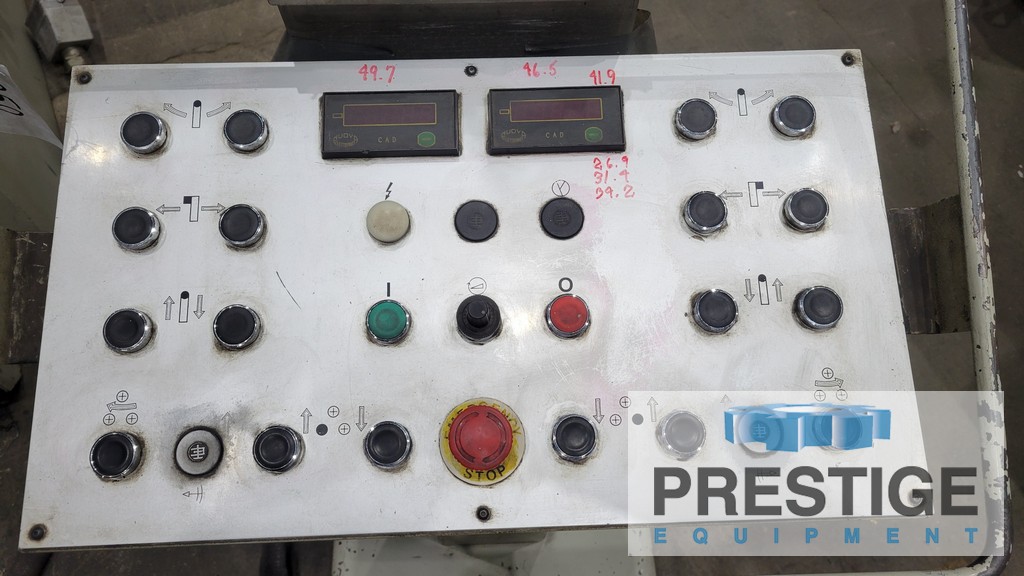

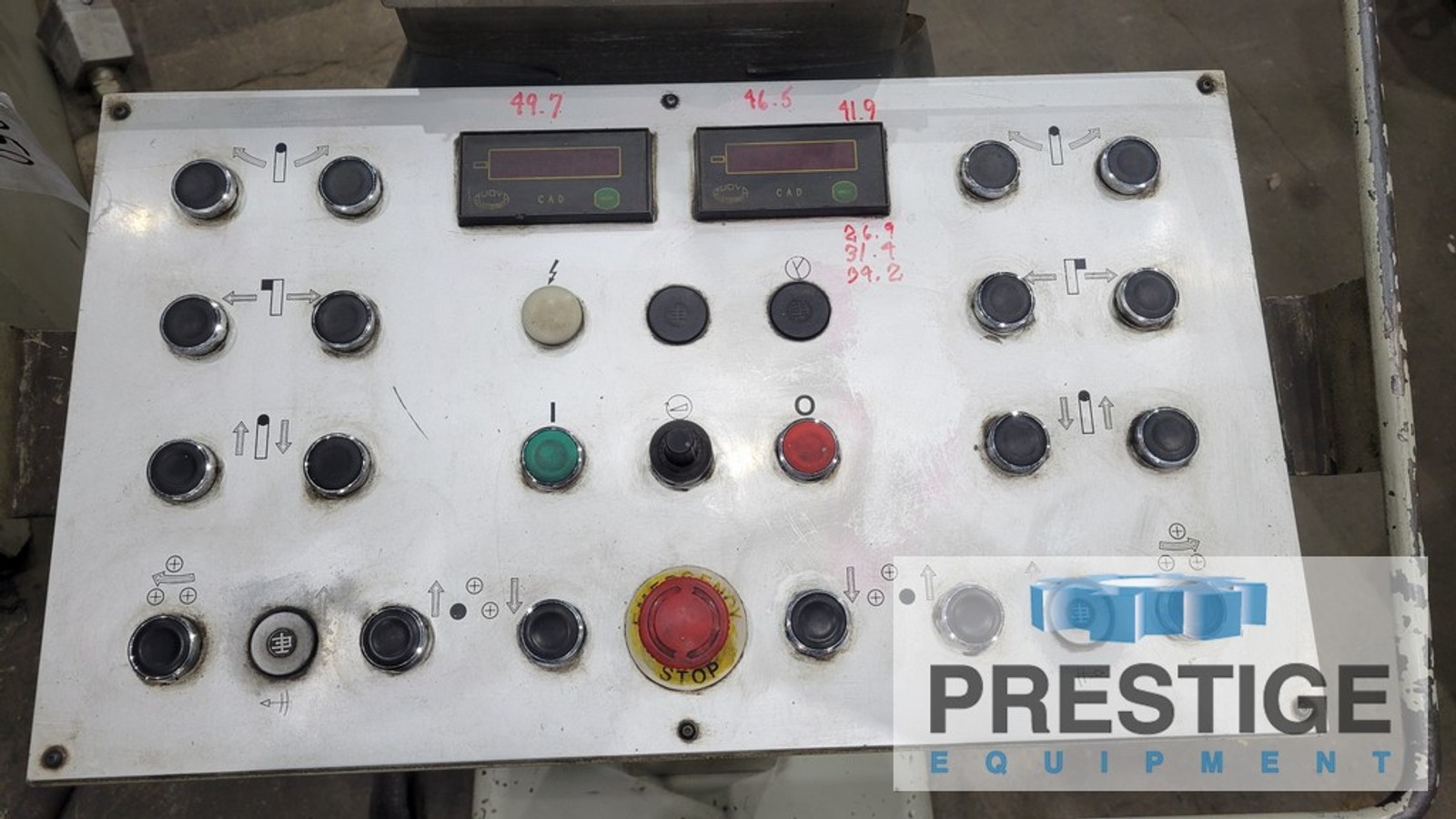

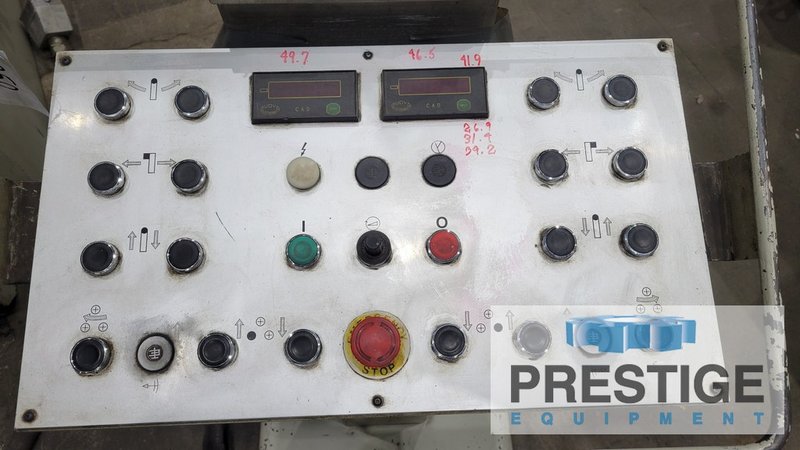

Pendant Control Station with Dual LED Digital Displays
Hydraulic Adjustment of Lower Rolls

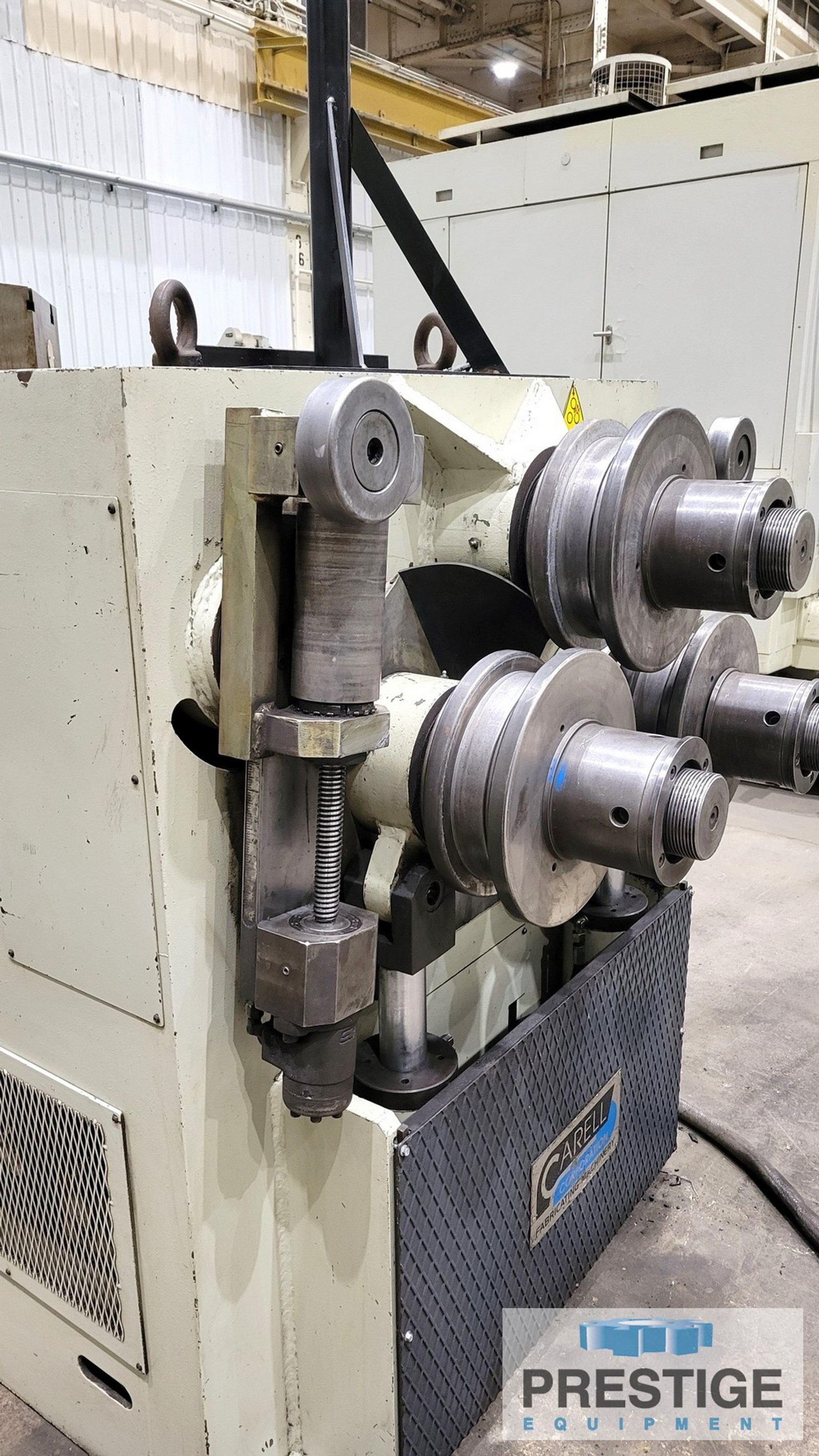

Manual Operation Lateral Guides
Prebending of Both Ends
Operates Both Horizontal & Vertical
Variable Speed
Floor Mounted Operator Console

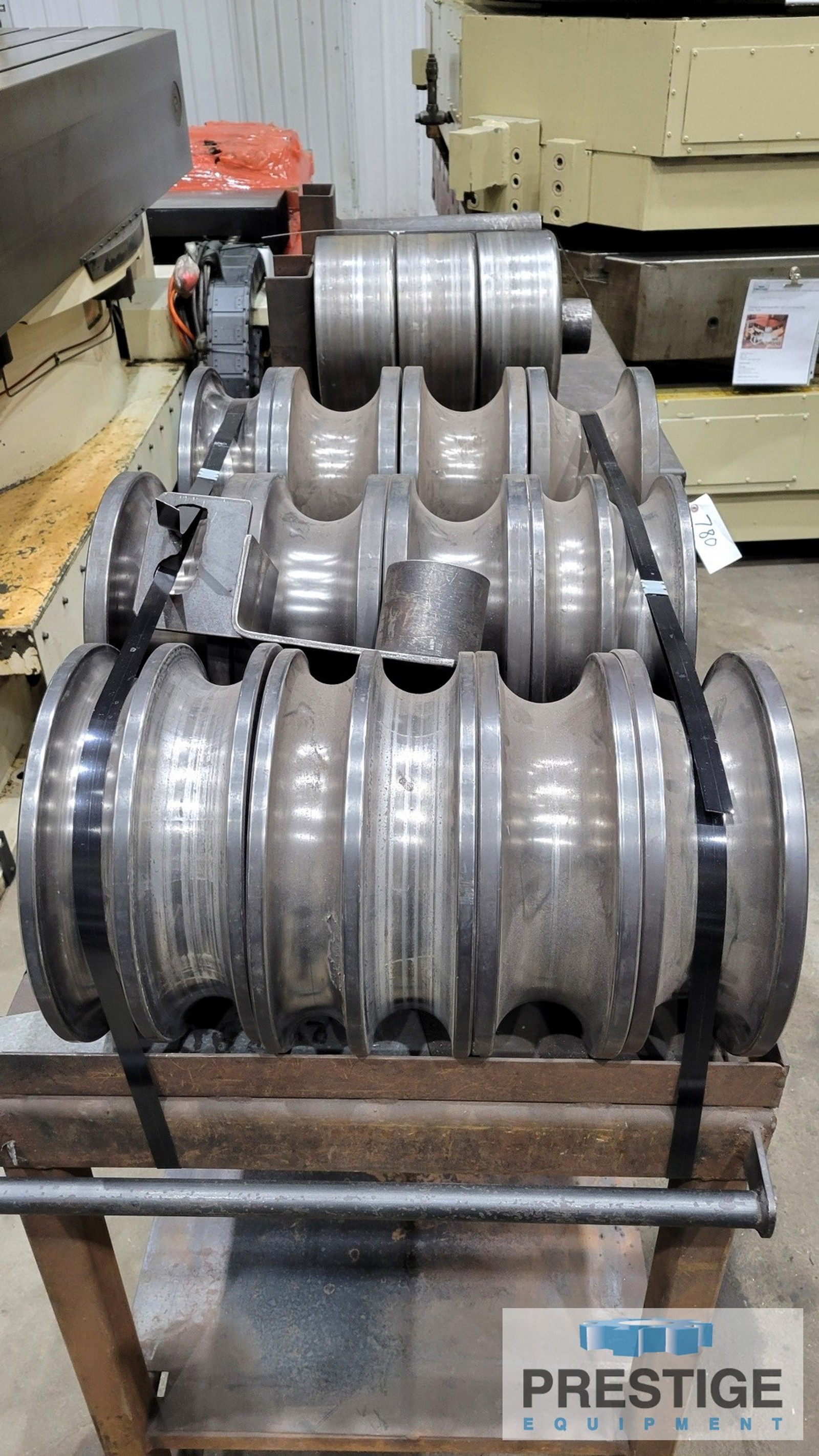

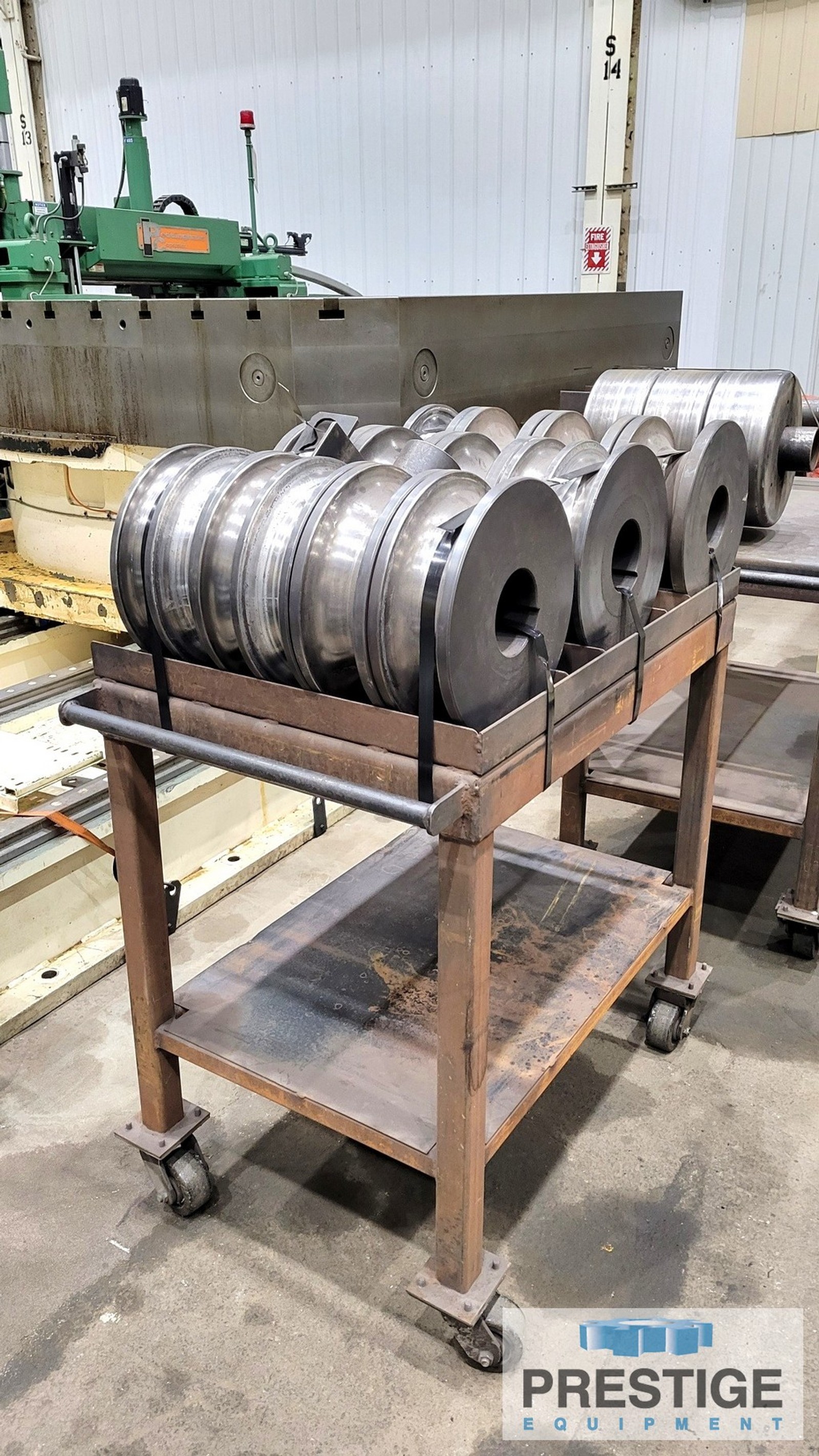

TOOLING INCLUDED WITH MACHINE:
(1) Set of 1.5" and 2" Combo Pipe Dies
(1) Set of 2.5" Pipe Dies
(1) Set of 3" Pipe Dies
(1) Set of 3.5" Pipe Dies
(1) Set of Standard Universal Dies (On Machine)

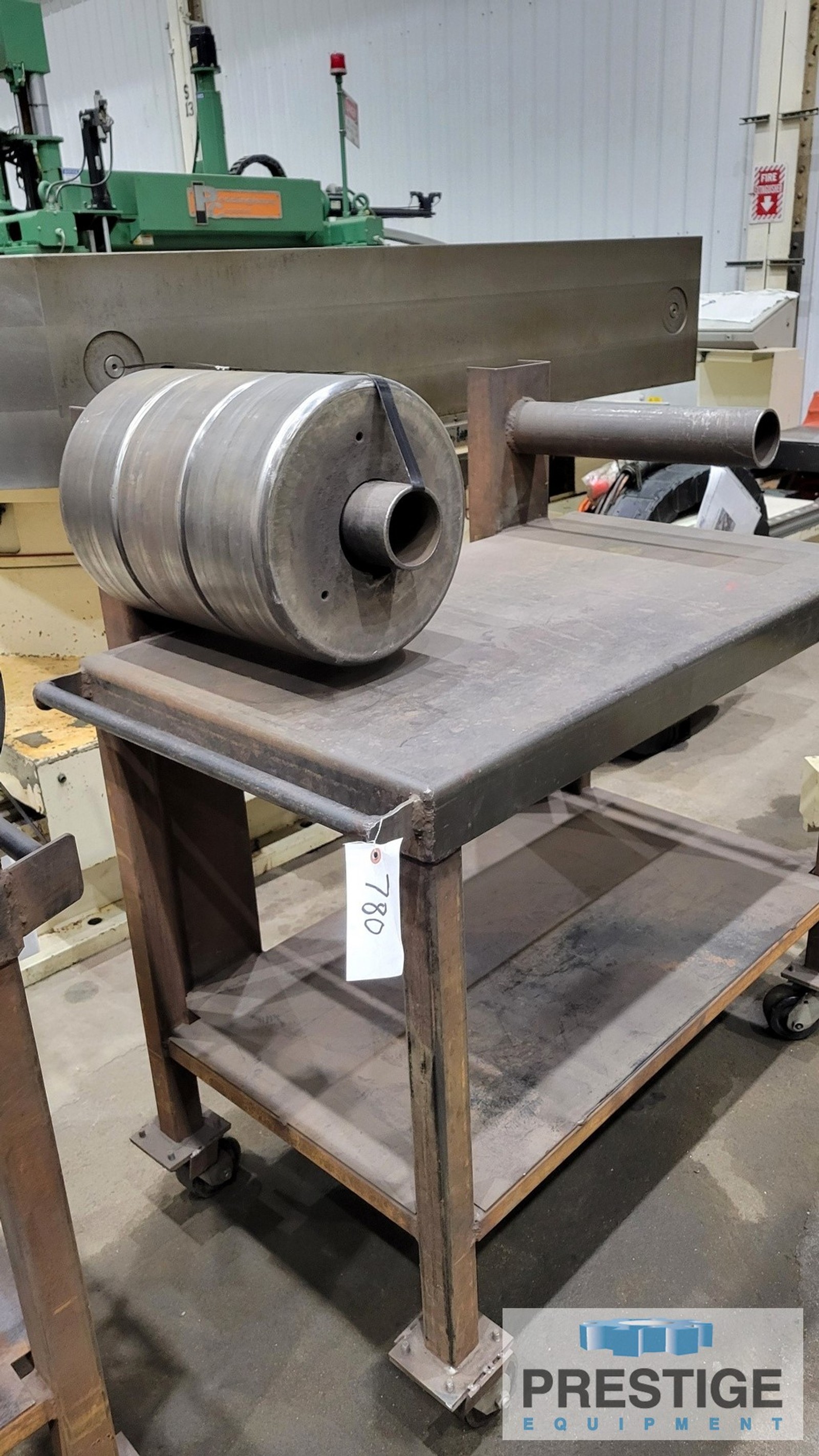

Additional Solid Rolls
