Yasda YMC-430 V2, X-16", Y-11", Z-9.8", B: -10°/+100°, C-.001°, 40k RPM, HSK-E32, Fanuc 31i-B5, 2017, #43979

Manufacturer

Yasda

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43979

Model

YMC-430 V2

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43979

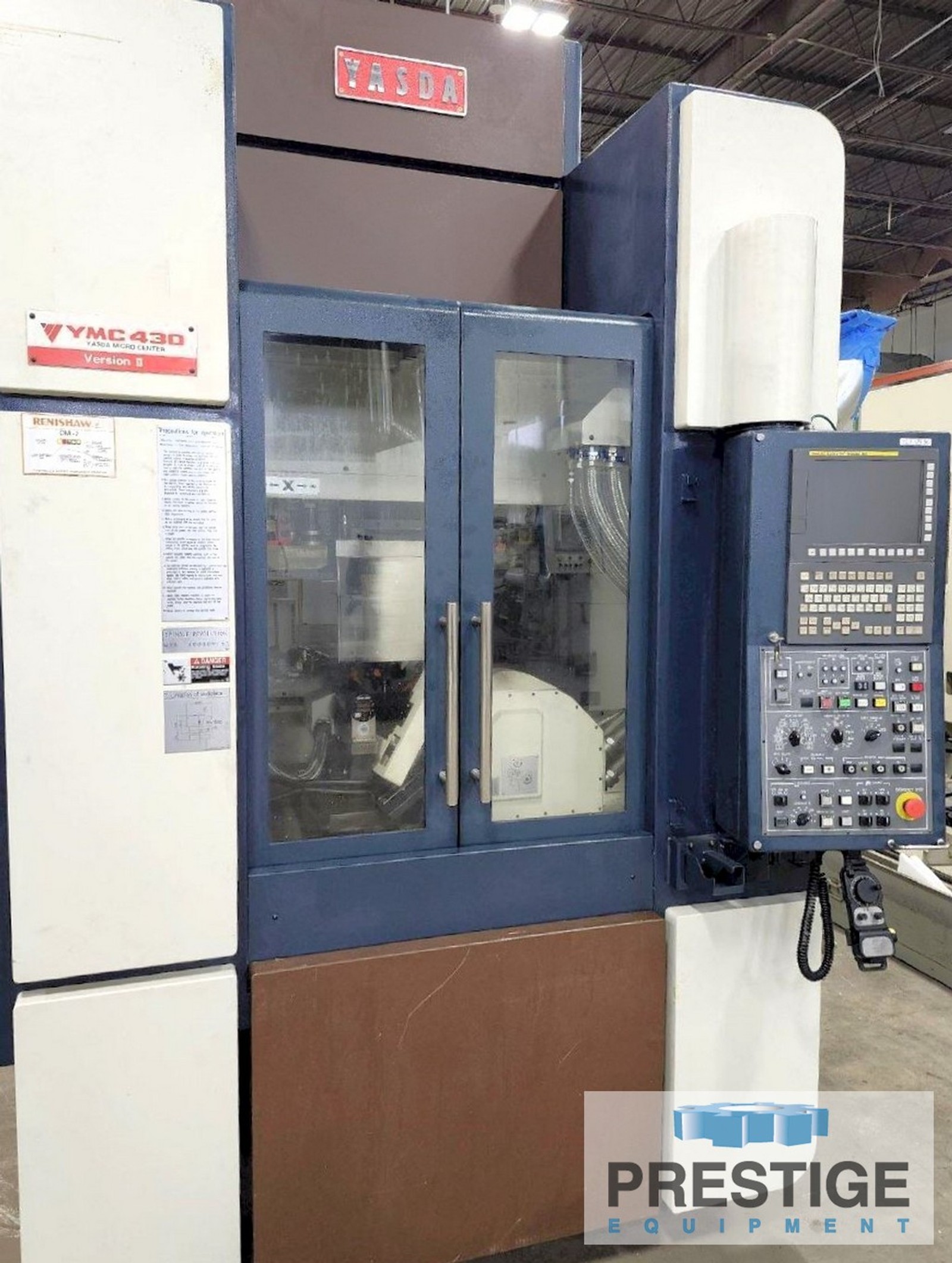

Yasda YMC-430 V2 5-Axis CNC Vertical Machining Center

FEATURES:

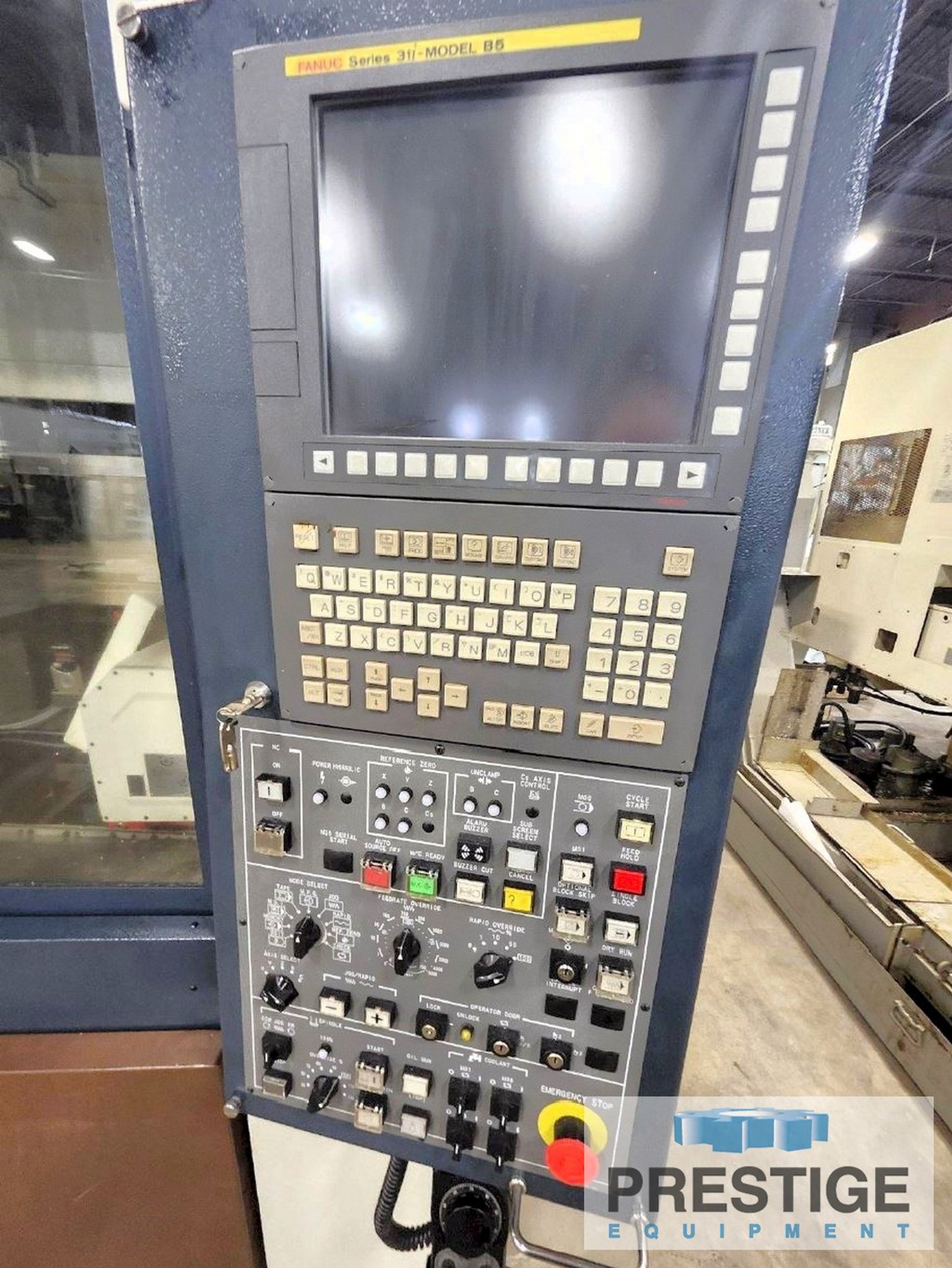

Fanuc 31i-B5 CNC Control
32-Station Automatic Tool Changer

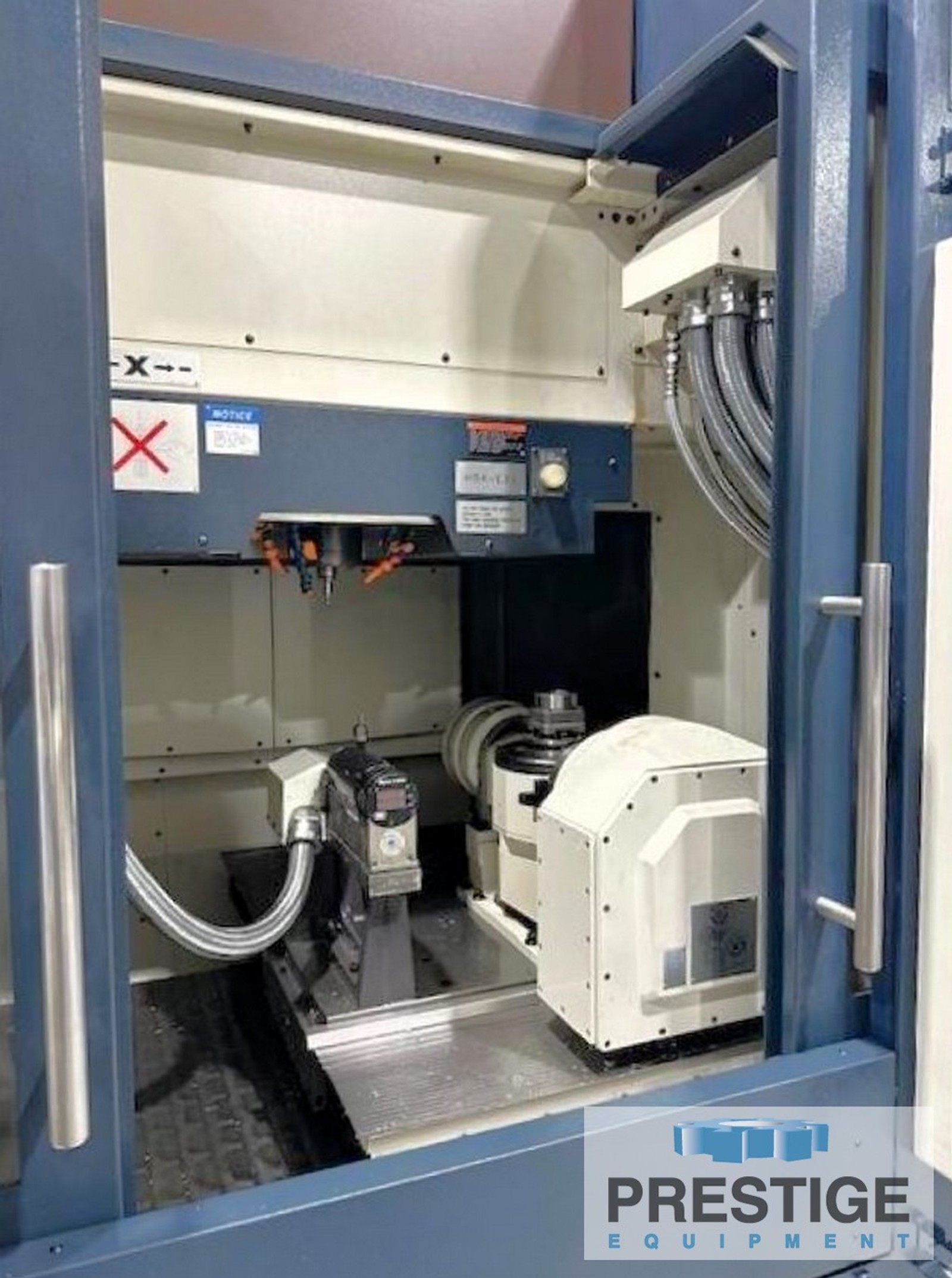

RT-10 Trunnion Style Rotary Table
Optical Scales on X/Y/Z Axes
Renishaw OMP 400 Probe

MACHINE SPECIFICATION:
X-Axis Travel ......................... 16.5"
Y-Axis Travel ......................... 11.8"
Z-Axis Travel ......................... 9.8"
Spindle Speed ......................... 200 - 40,000 RPM

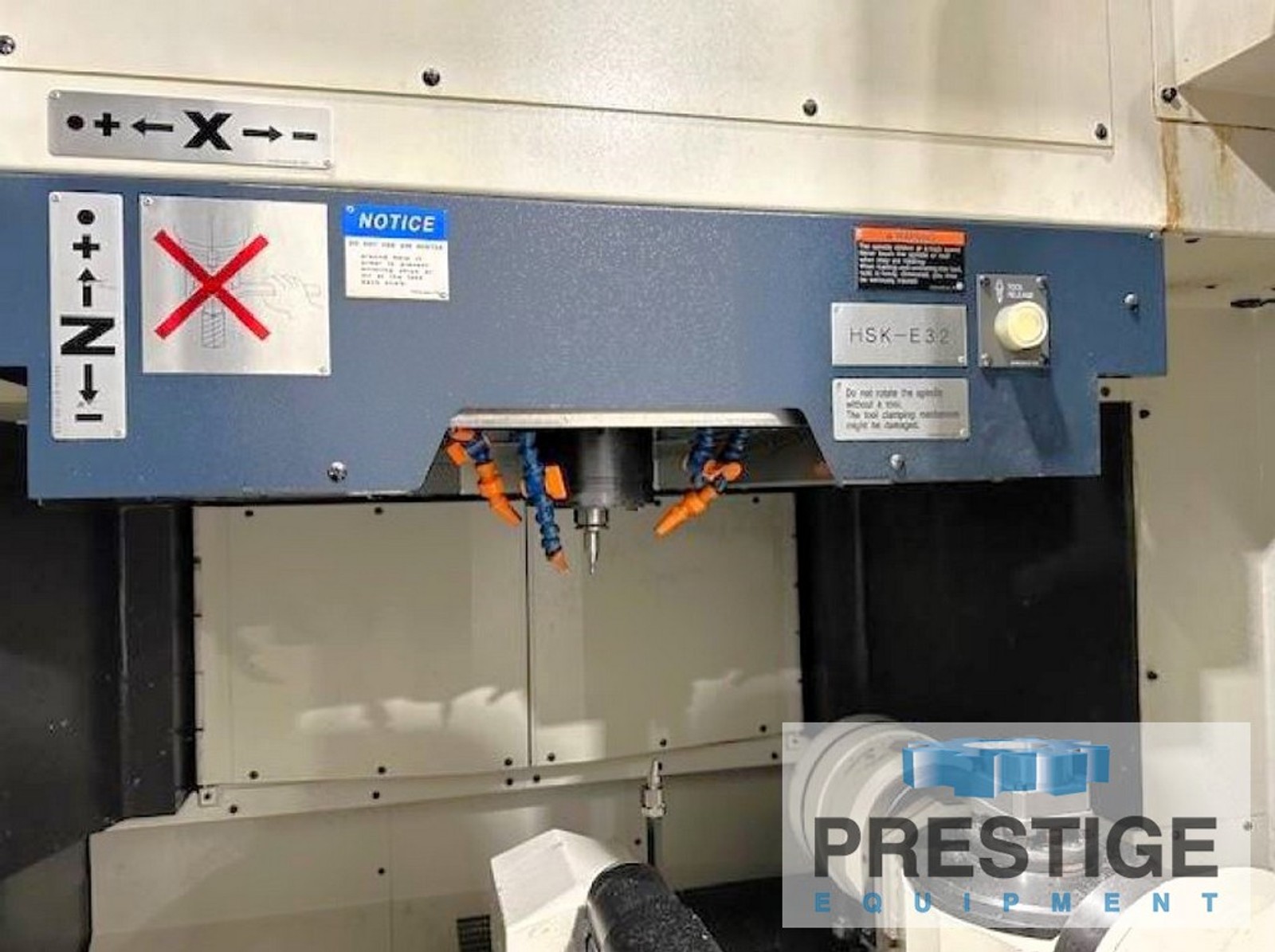

Spindle Taper ......................... HSK-E32
Table Dimensions ...................... 26.6" x 13.7"
Table Weight Capacity ................. 33 Lbs
Distance, Table - Spindle Nose ........ 5.9" - 15.7"
Rapid Feedrate, X/Y/Z ................. 787.4 IPM
Max. Cutting Feedrate ................. 393.7 IPM
Approx. Machine Dimensions ............ 97" x 135" x 119"
Approx. Machine Weight ................ 17,700 Lbs

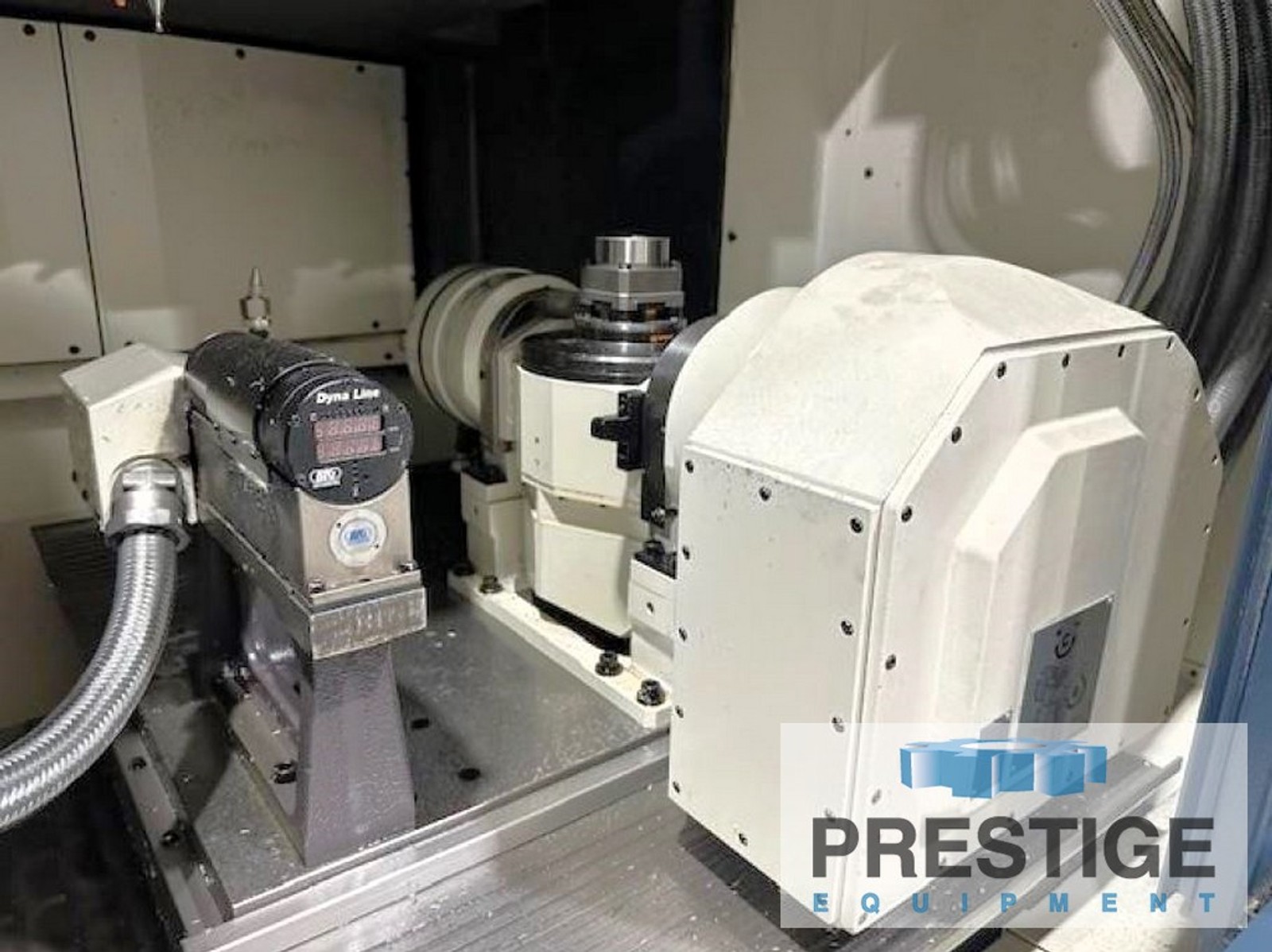

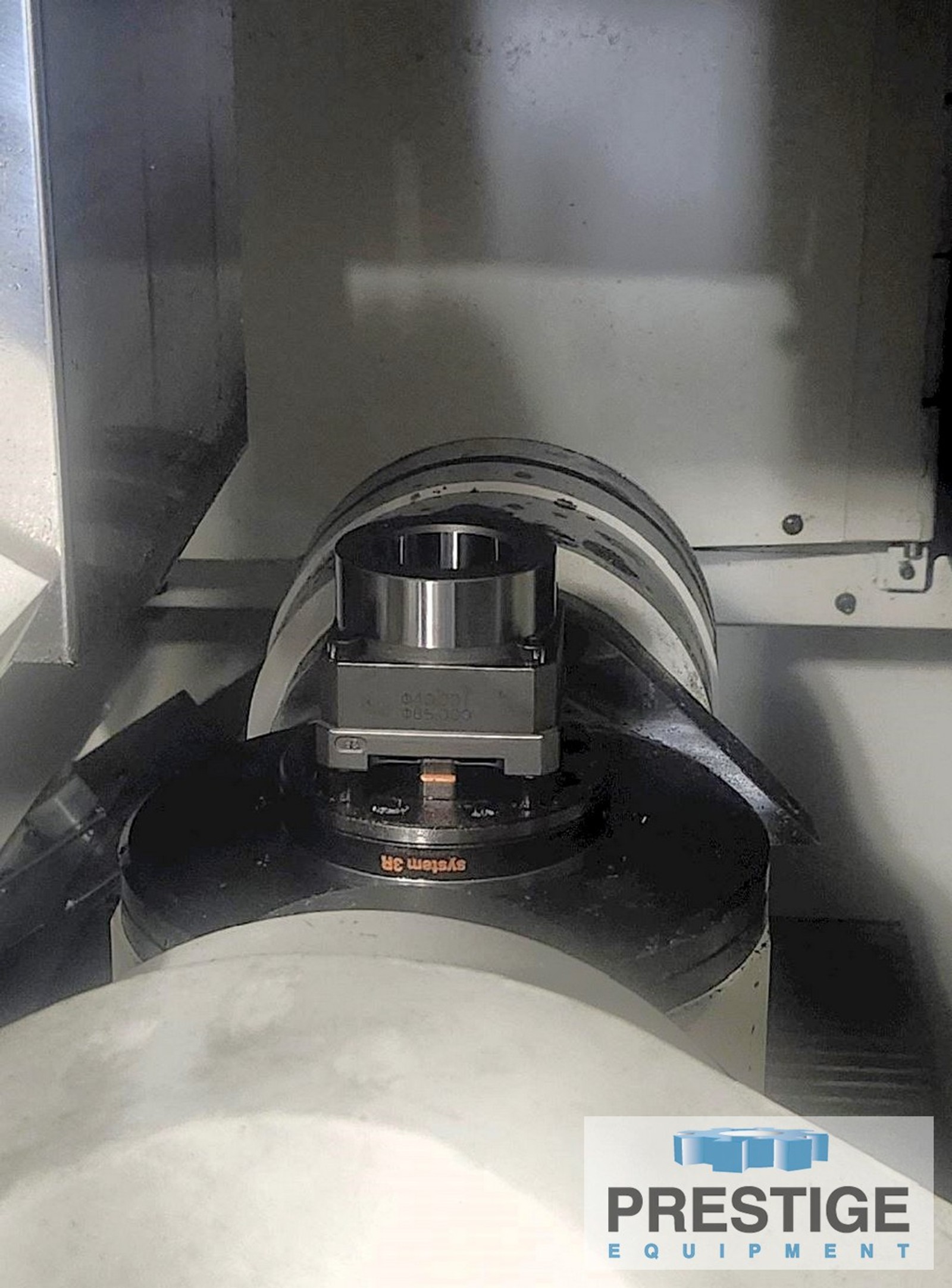

RT-10 TRUNNION STYLE TABLE SPECIFICATION:
B-Axis, Tilt .......................... -10°/+100°
C-Axis, Rotation ...................... .001°
Max. Diameter Swing ................... 9.84"

EQUIPPED WITH:
Fanuc 31i-B5 CNC Control
32-Station Automatic Tool Changer
RT-10 Trunnion Style Rotary Table
Optical Scales on X/Y/Z Axes
Renishaw OMP 400 Probe
Blube MQL External Mist Coolant
High Speed Smooth TCP
Tilted Working Plane Indexing
Rotation Center Calibration Function
Compensation for Thermal Displacement
Flood Coolant
Mist Collector Interface
Thermal Distortion Stabilizing System
Linear Motors
Coolant System
All Available Manuals

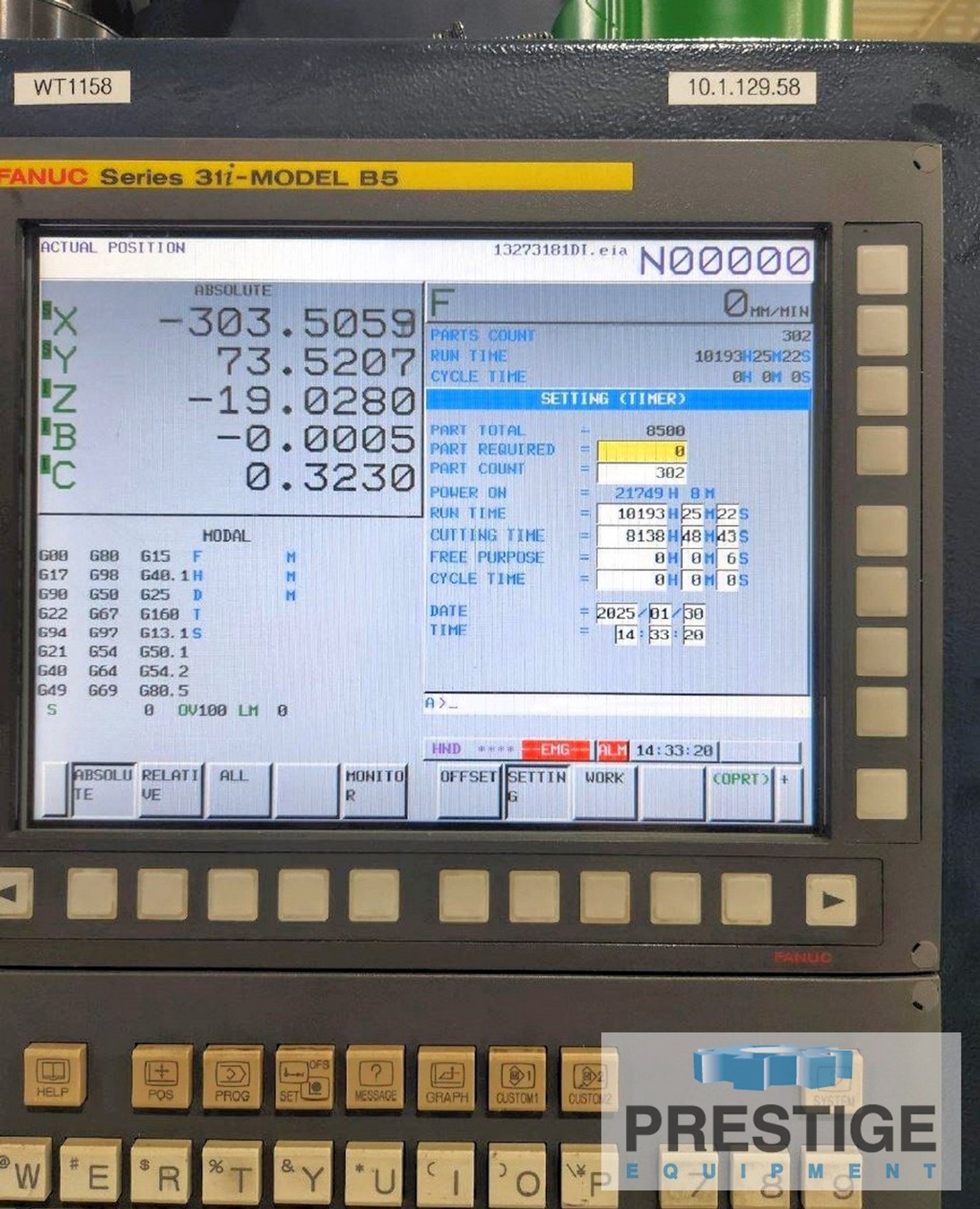

Approximate Cutting Hours:
8,138
