Giddings & Lewis G60TX, X-144", Y-115", Z-48", W-56", 144" x 72" Table, 2500 RPM, TSC, G&L 8000 CNC, #44002

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

44002

Model

G-60TX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44002

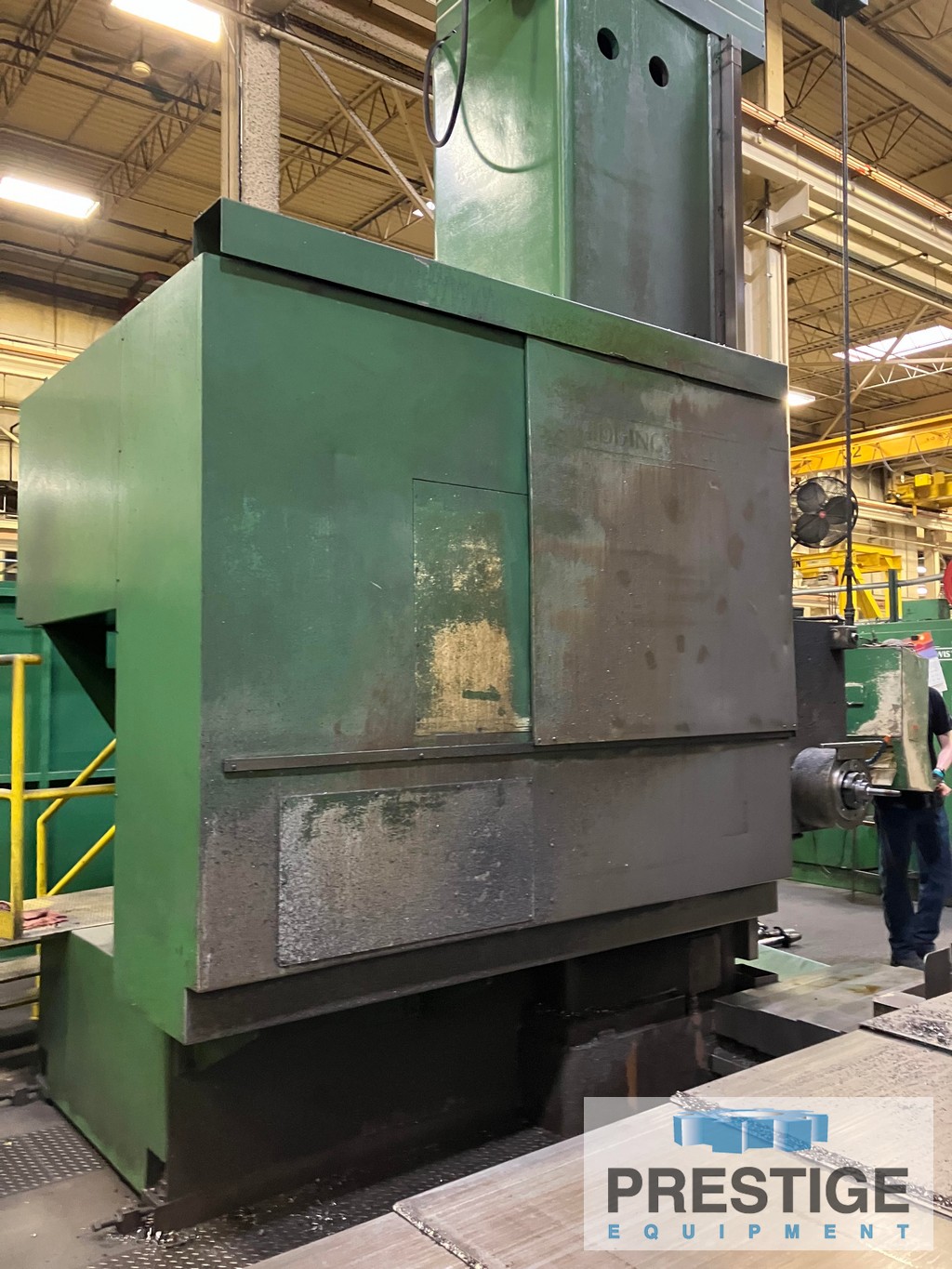

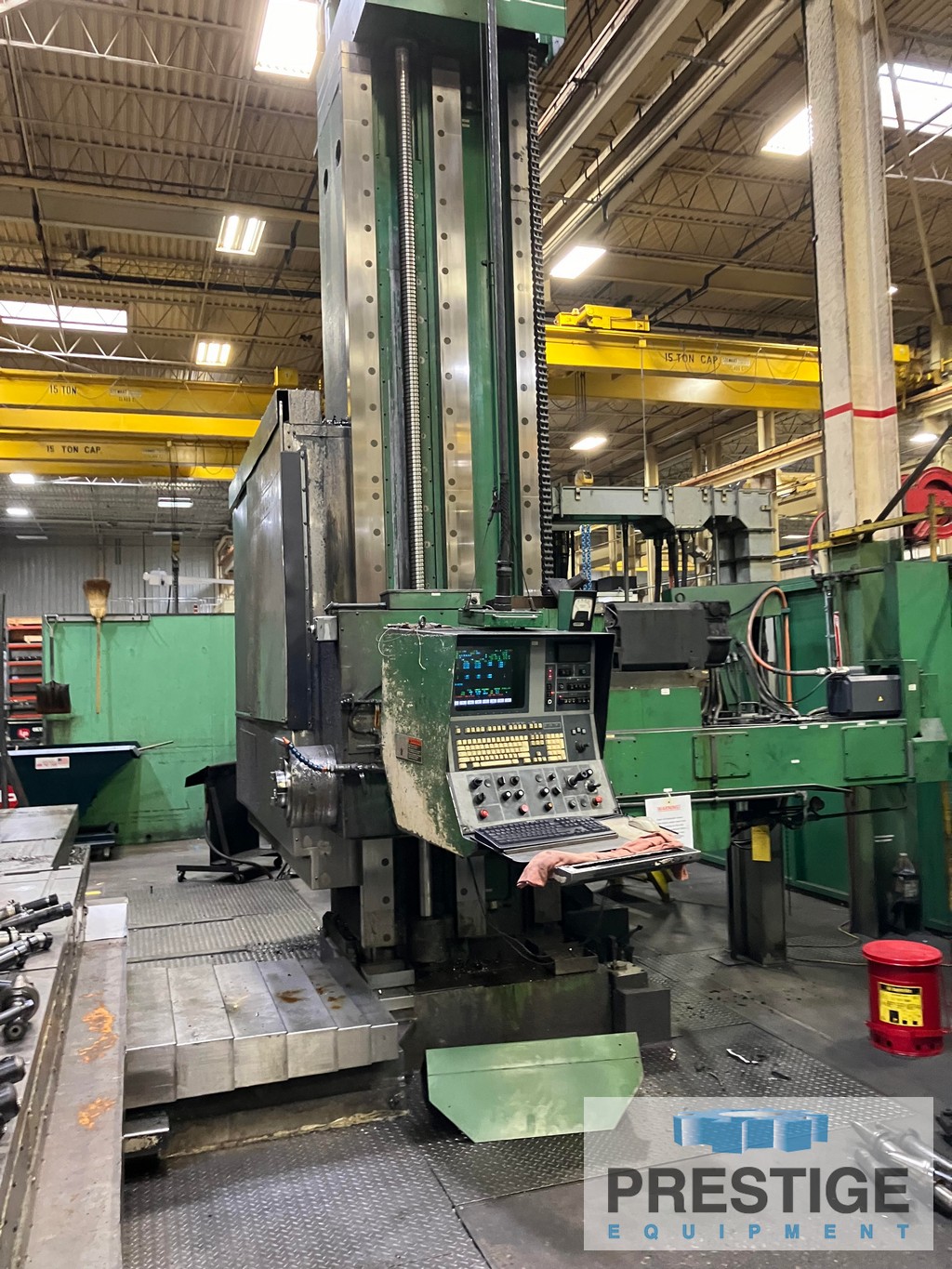

6" Giddings & Lewis G60TX CNC Horizontal Boring Mill

FEATURES:
Giddings & Lewis 8000-B Control

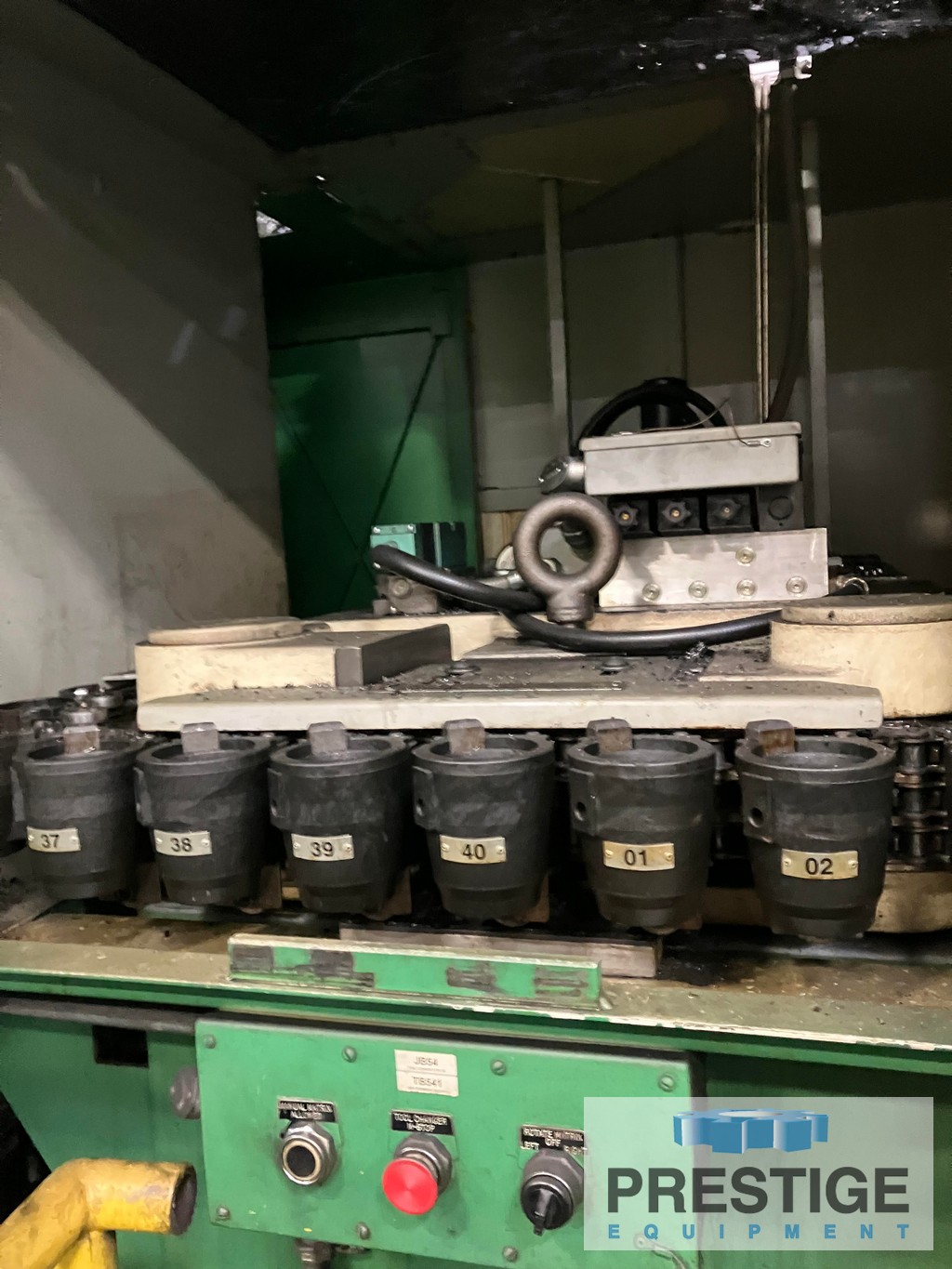

40 ATC Automatic Tool Changer
Coolant Thru-Spindle

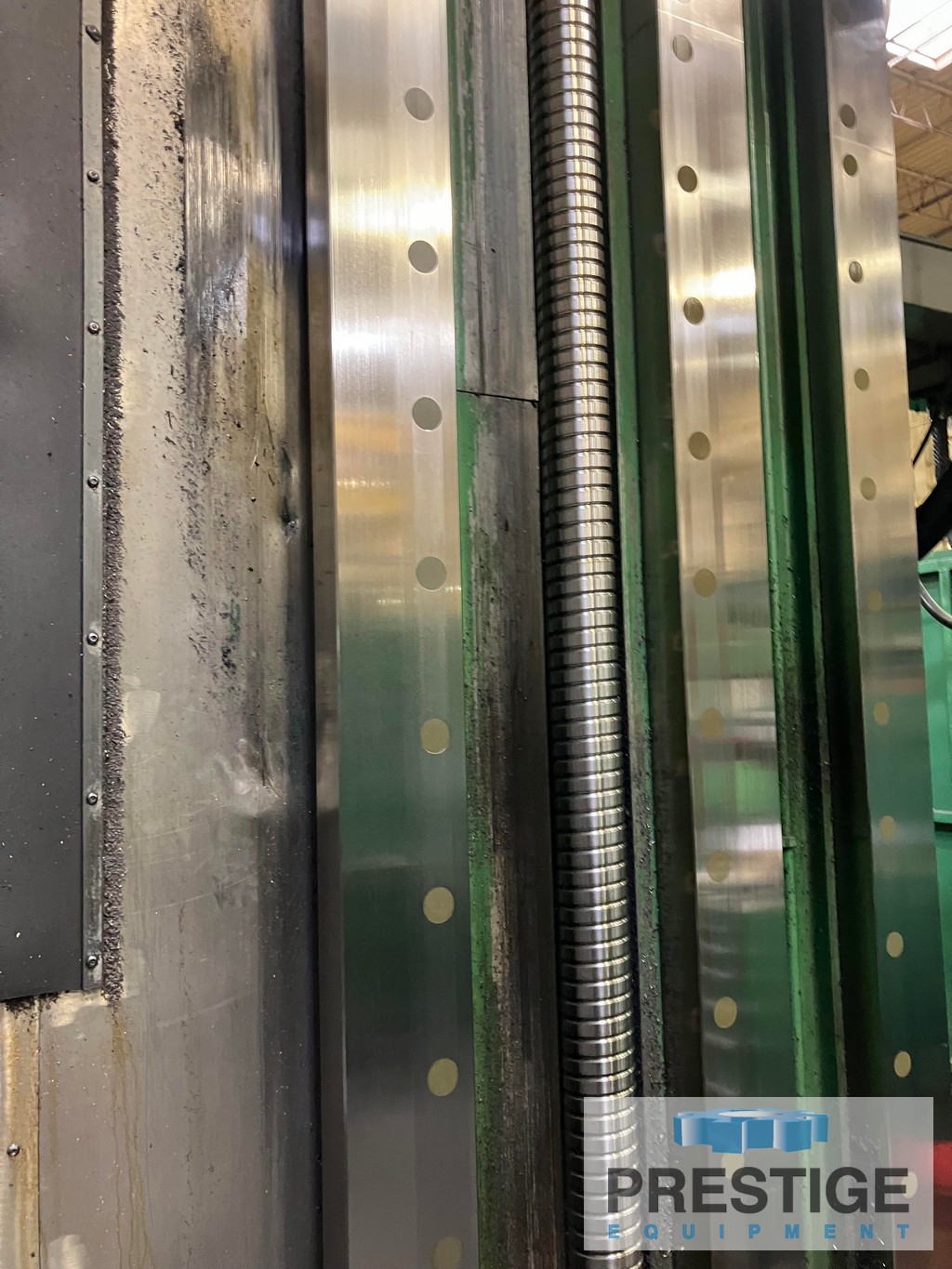

All Hardened & Ground Ways
Telescoping Steel Way Covers X & Y Axis
Heavy Duty Ball Screws
Chip Conveyor

SPECIFICATIONS:
Spindle Diameter ...................... 6"
Spindle Taper ......................... #50 CAT
Table Travel, X-Axis .................. 144"
Vertical Head Travel, Y-Axis........... 115"
Spindle Travel, Z-Axis................. 48"
Saddle Travel, W-Axis ................. 59+"
Table Size ............................ 72" x 144"
Spindle Speeds ........................ 25 to 3500 RPM
Table Weight Capacity ................. 60,000 Lbs.

EQUIPPED WITH:
Giddings & Lewis 8000-B Control
40 ATC Automatic Tool Changer
Coolant Thru Spindle
Telescoping Steel Way Covers X & Y Axis
Heavy Duty Ball Screws
All Hardened & Ground Ways

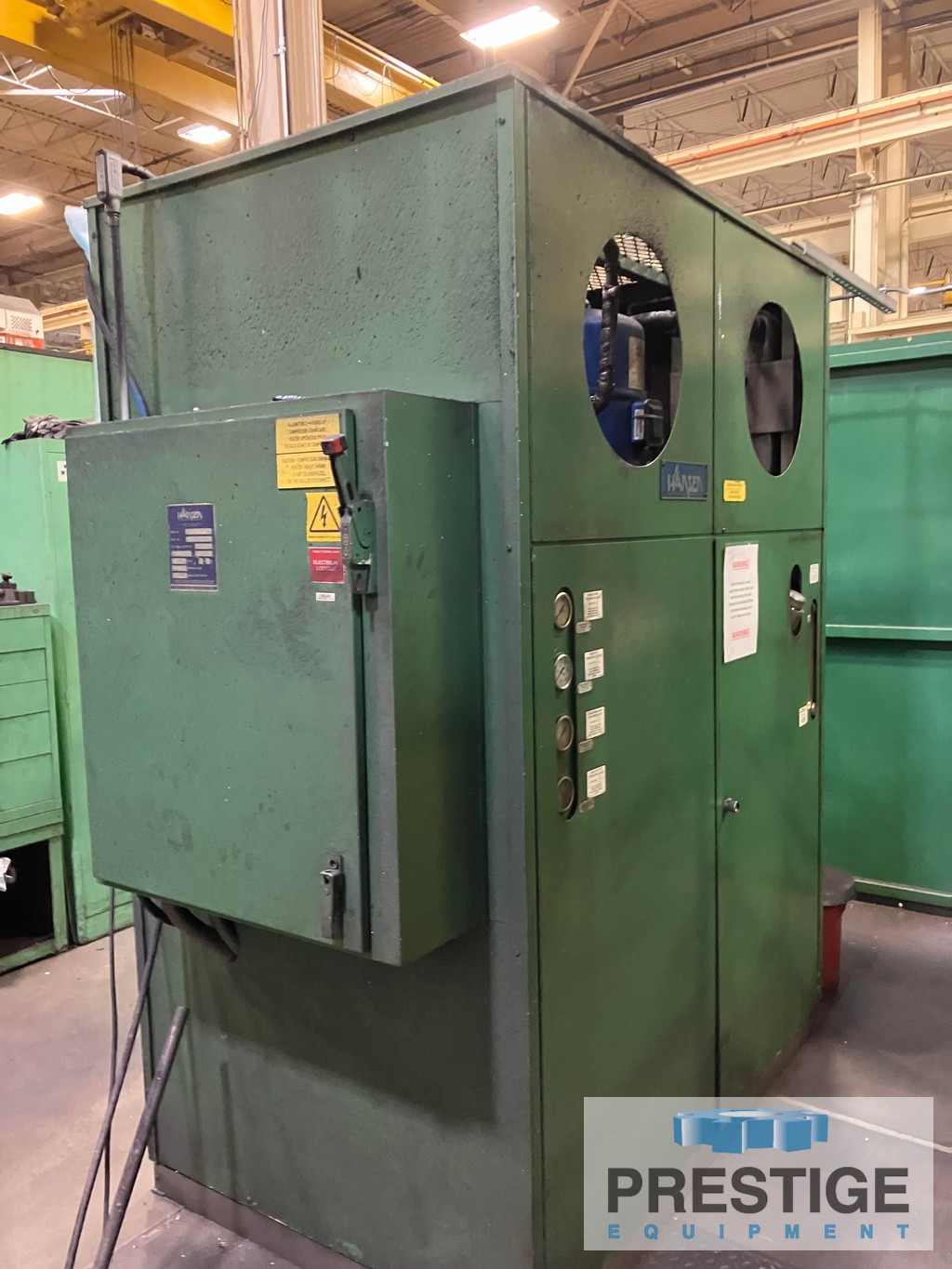

Hydraulic Chiller Unit
Control & Maintenance Manuals
Chip Conveyor

AVAILABLE AT ADDITIONAL COST:
(2) 120" x 30" x 60" Angle Plates
Miscellaneous Cat 50 Tool Holders
