Marvel/Amada 800A-PC-3S-60, 31.25" x 37.5" Capacity, PC3 Prog. control, bar feed w/72" stroke, 2" Blade, 2020 #43993

Manufacturer

Marvel

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

43993

Model

800A-PC-3S-60

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43993

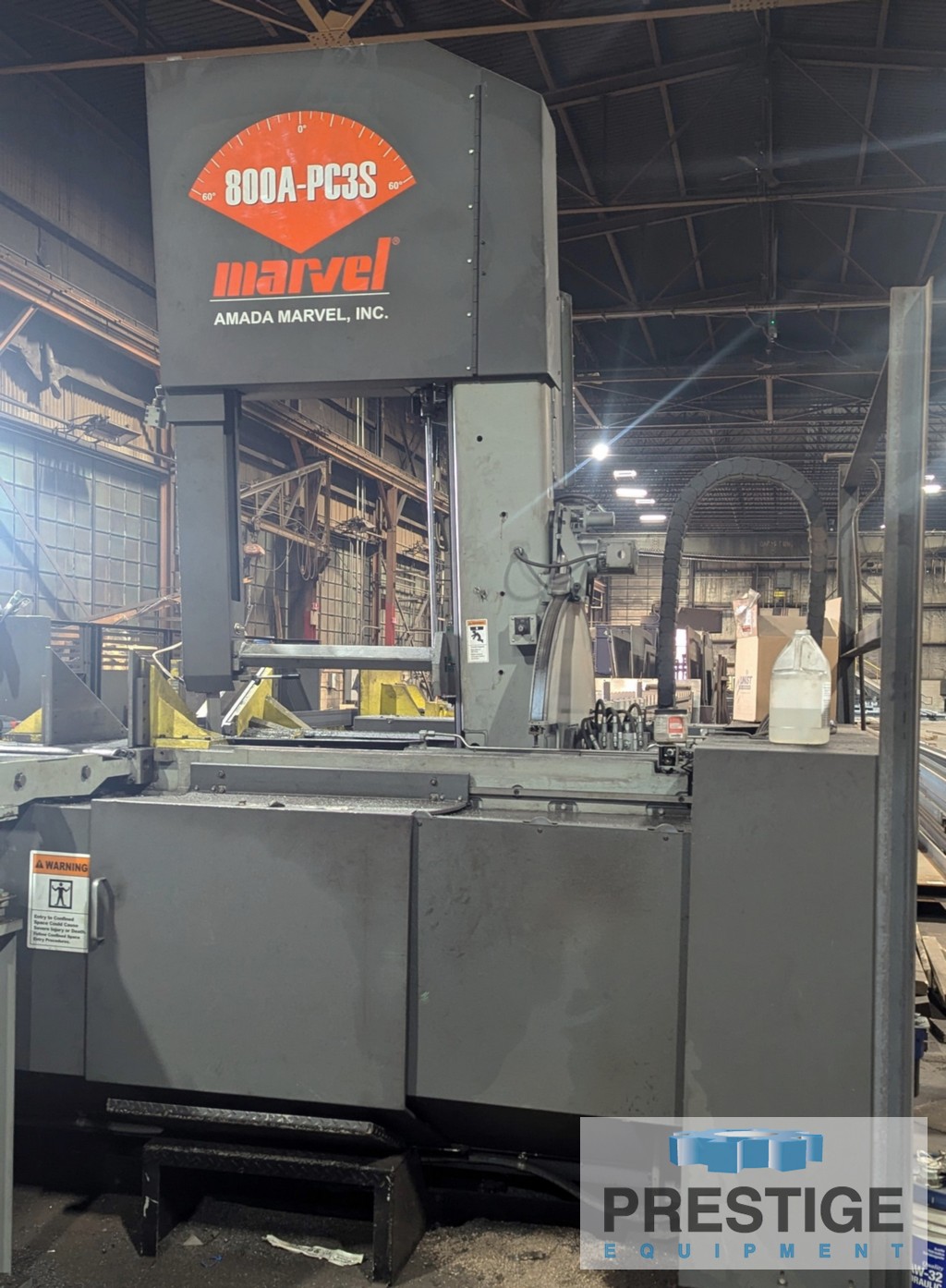

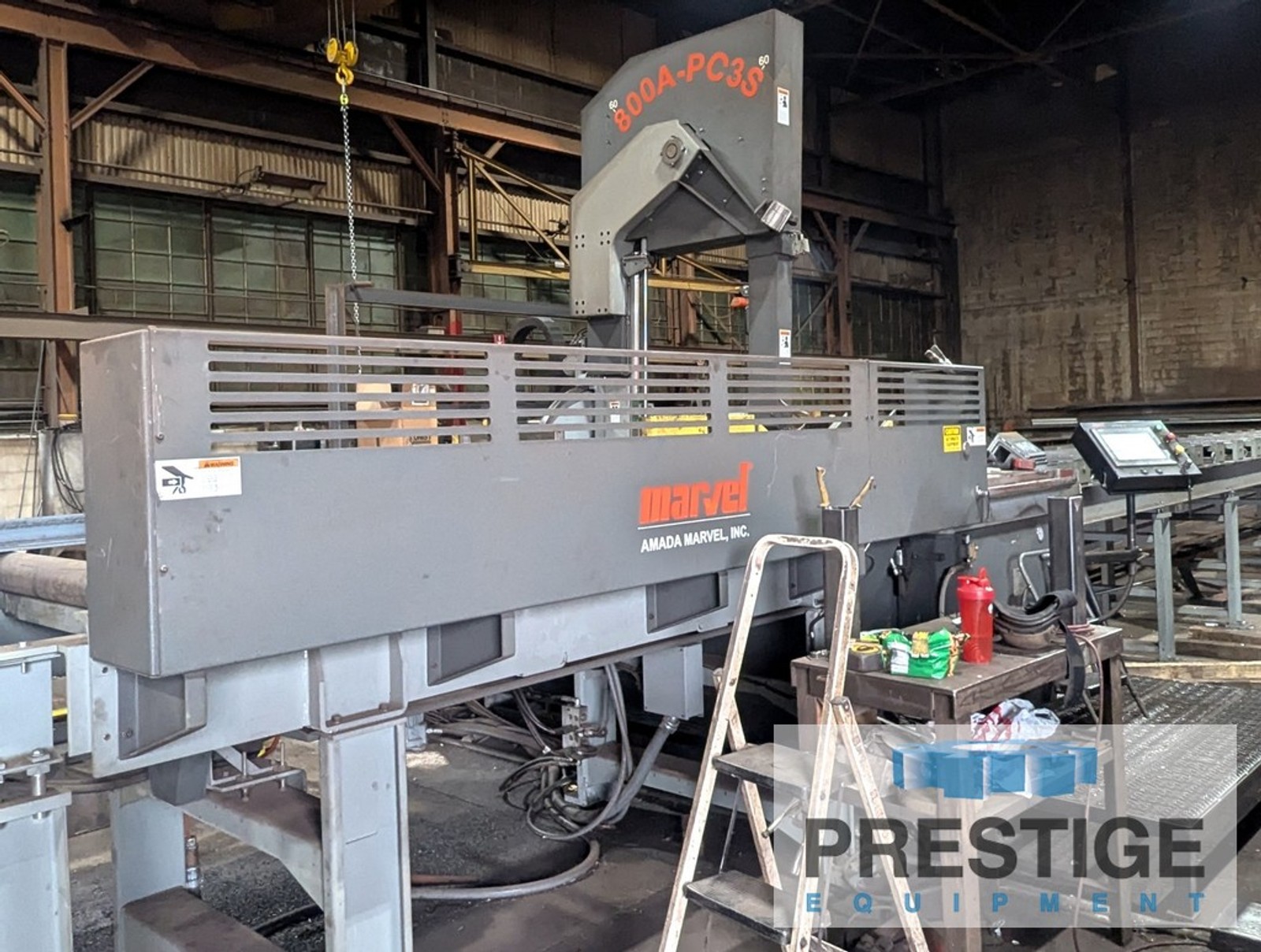

Marvel Amada 800A-PC-3S-60 Automatic CNC Vertical Band Saw

FEATURES:

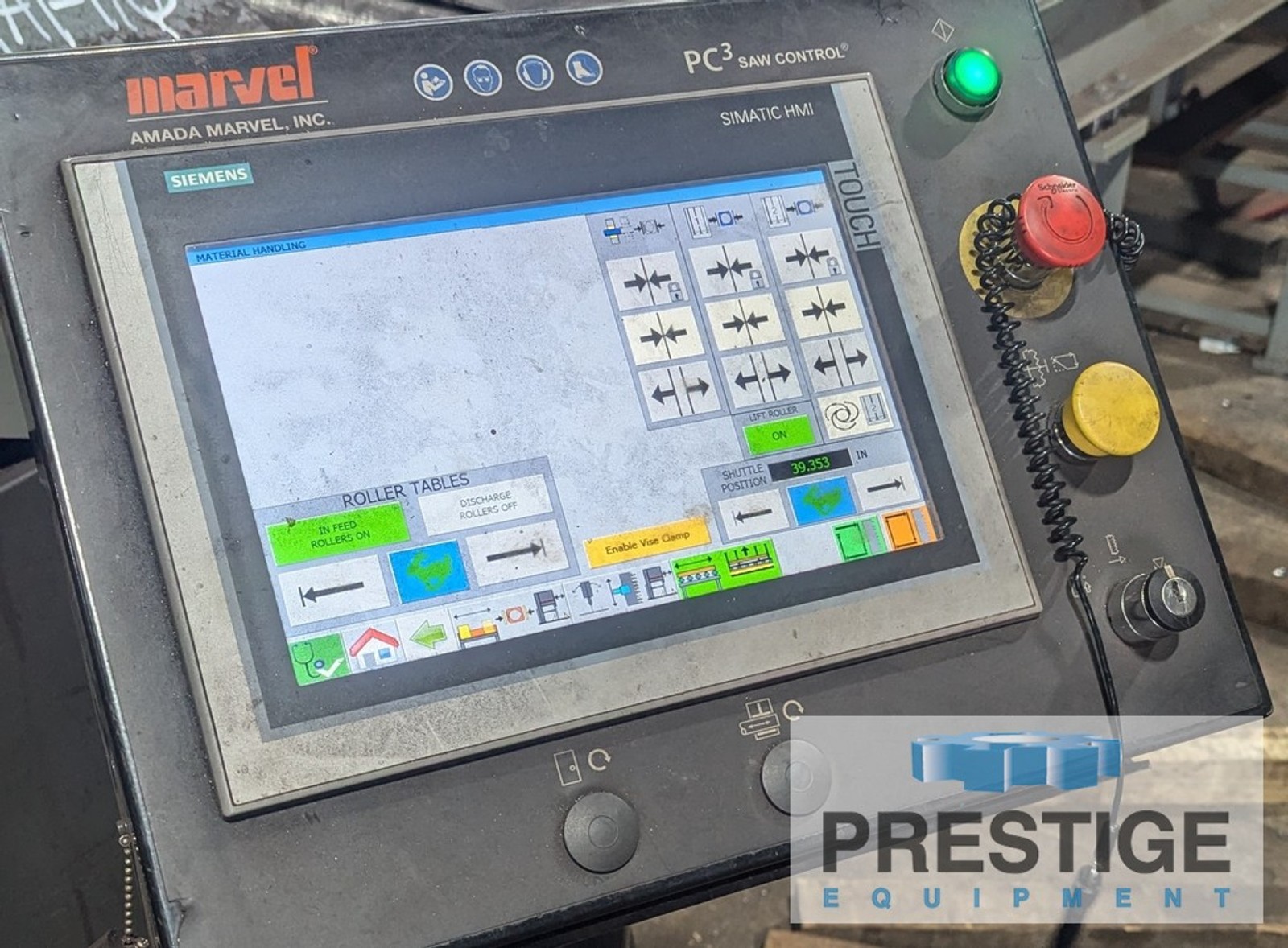

Marvel PC3 Programmable Control with 12" Display and Color Touch Screen

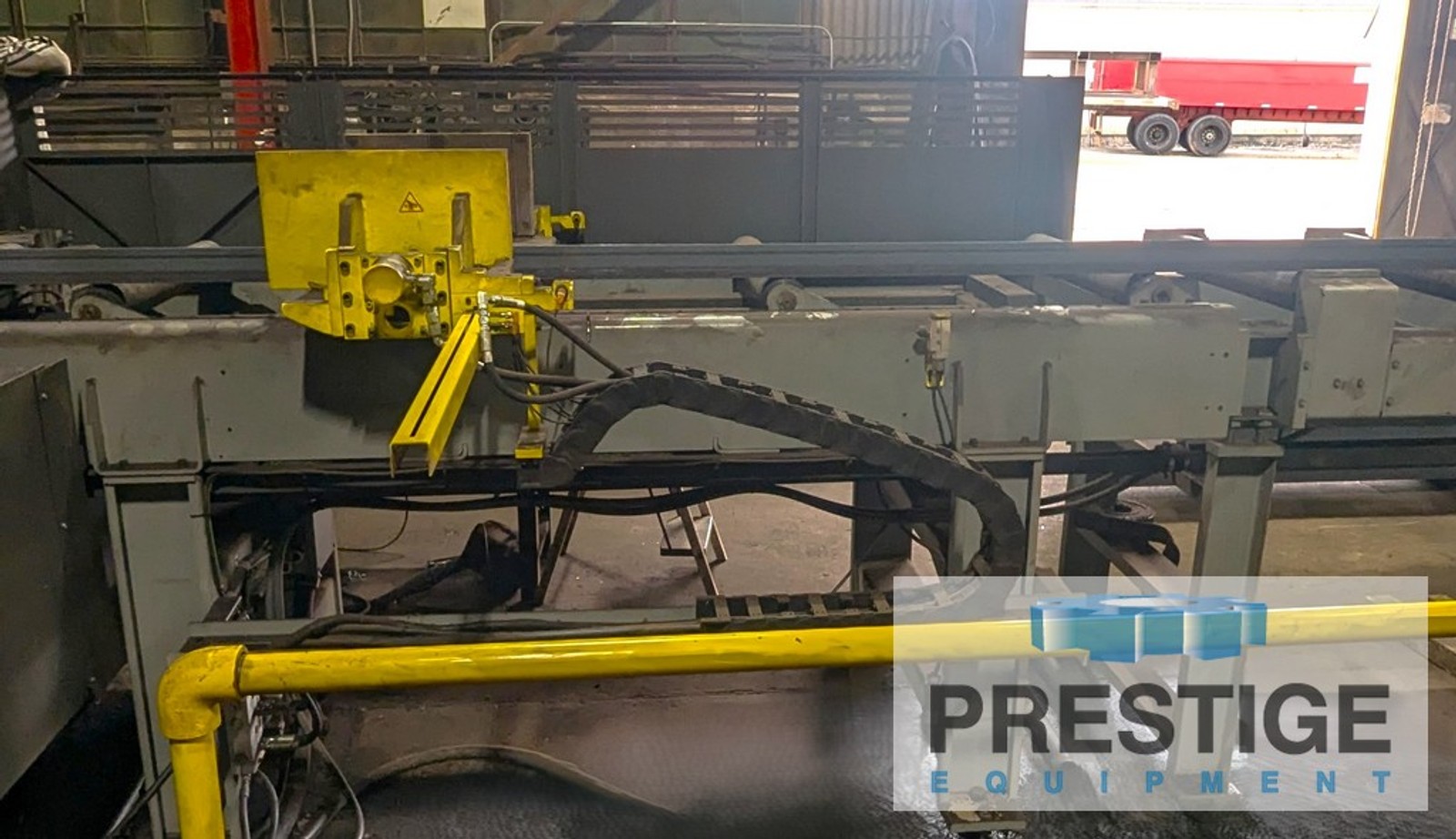

Automatic Bar Feed with 72" Stroke (Servo Driven w/ Encoder Feedback)
Electric Blade Drive with Sensor-Less Vector Control
Electric Tilting Column for Miter Cutting 60 Deg. Left and Right of Vertical

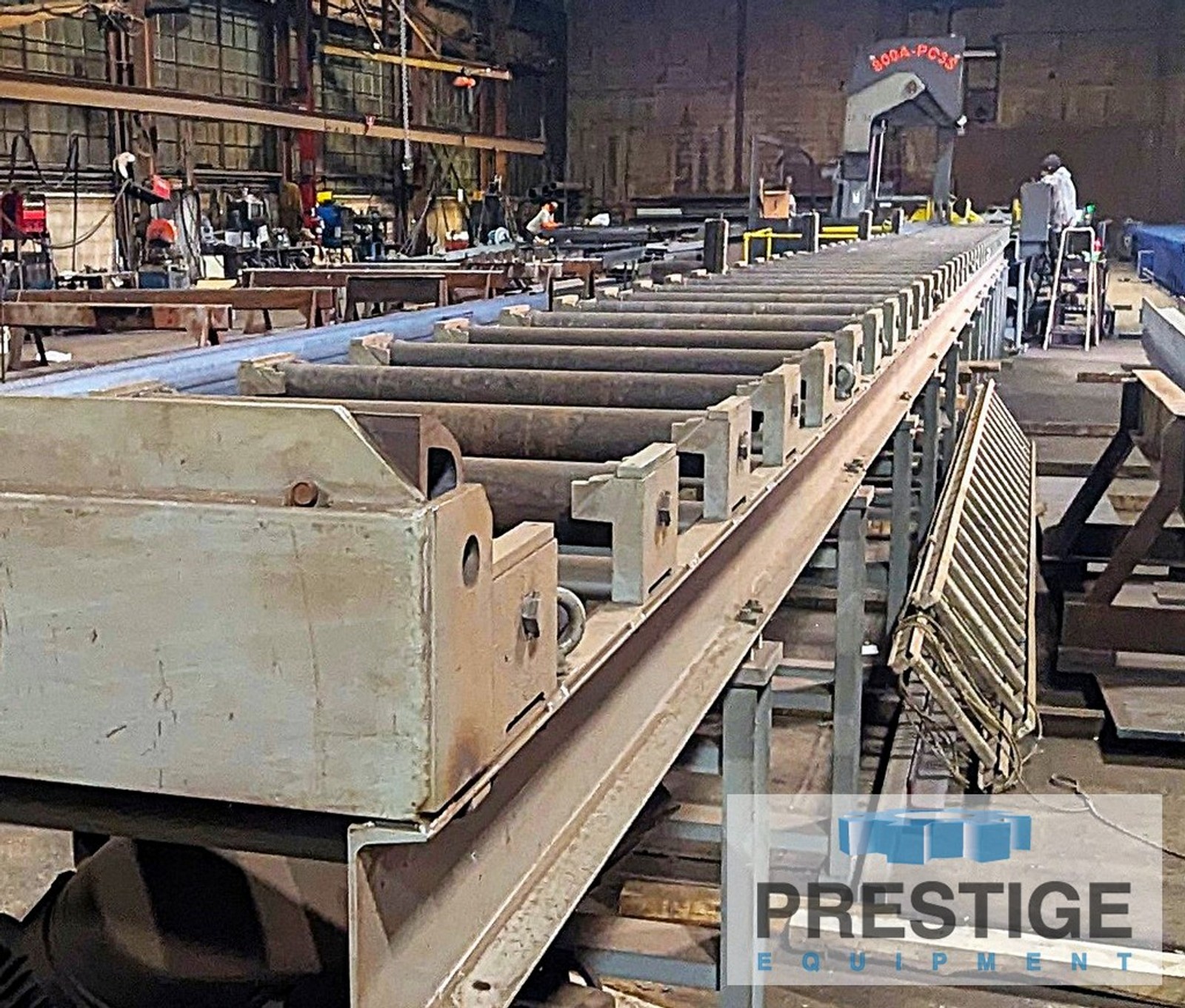

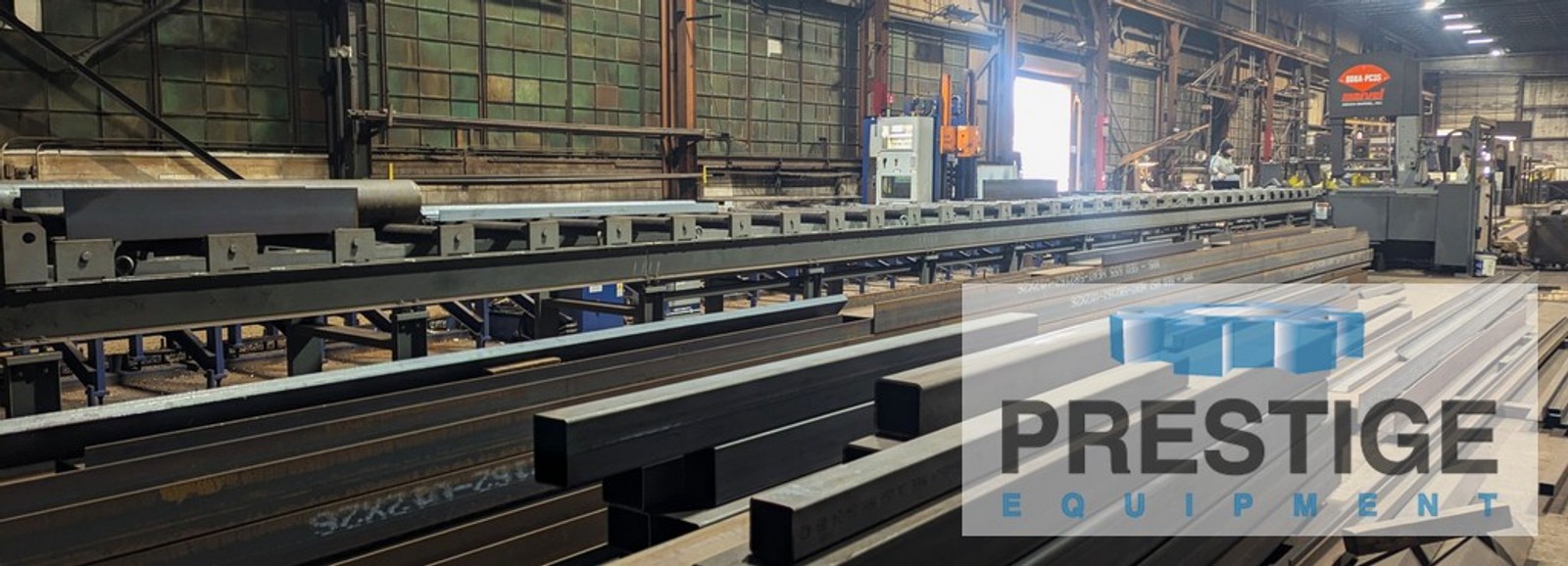

60' of Infeed and 60' of Outfeed Conveyors

CAPACITY:
Nominal Capacity ...................... 31.25" x 37.5"
Capacity, Blade at 45 Deg. (Right) .... 31.25" x 25.5"
Capacity, Blade at 45 Deg. (Left) ..... 31.25" x 24"
Capacity, Blade at 60 Deg. (Right) .... 31.25" x 17.5"
Capacity, Blade at 60 Deg. (Left) ..... 31.25" x 15.75"
Nominal Capacity, Rounds .............. 31.25"
Blade Length........................... 25'
Blade Width ........................... 2"
Blade Thickness........................ .063"
Blade Speeds (Infinitely Variable)..... 60-400 FPM
Table Height .......................... 52"
Main Motor ............................ 15 H.P.
Approximate Machine Weight ............ 15,000 Lbs.

EQUIPPED WITH:
Marvel PC3 Programmable Control with 12" Display and Color Touch Screen
Automatic Bar Feed with 72" Stroke (Servo Driven w/ Encoder Feedback)
Electric Blade Drive with Sensor-Less Vector Control
Electric Tilting Column for Miter Cutting 60 Deg. Left and Right of Vertical
Standard 3-Degree Forward Approach Angle (Increased Efficiency for Structural)
Rotating Easy Load Combination Carbide & Ball Bearing Roller Guides
Hydraulically Controlled Blade Tension
Automatic Blade Break/Blade Stall Shut Off Switch
Hydraulically Upper Blade Guide Arm
Built-in Flood Coolant System
60' of Infeed and 60' of Outfeed Conveyors
Powered Chip Conveyor

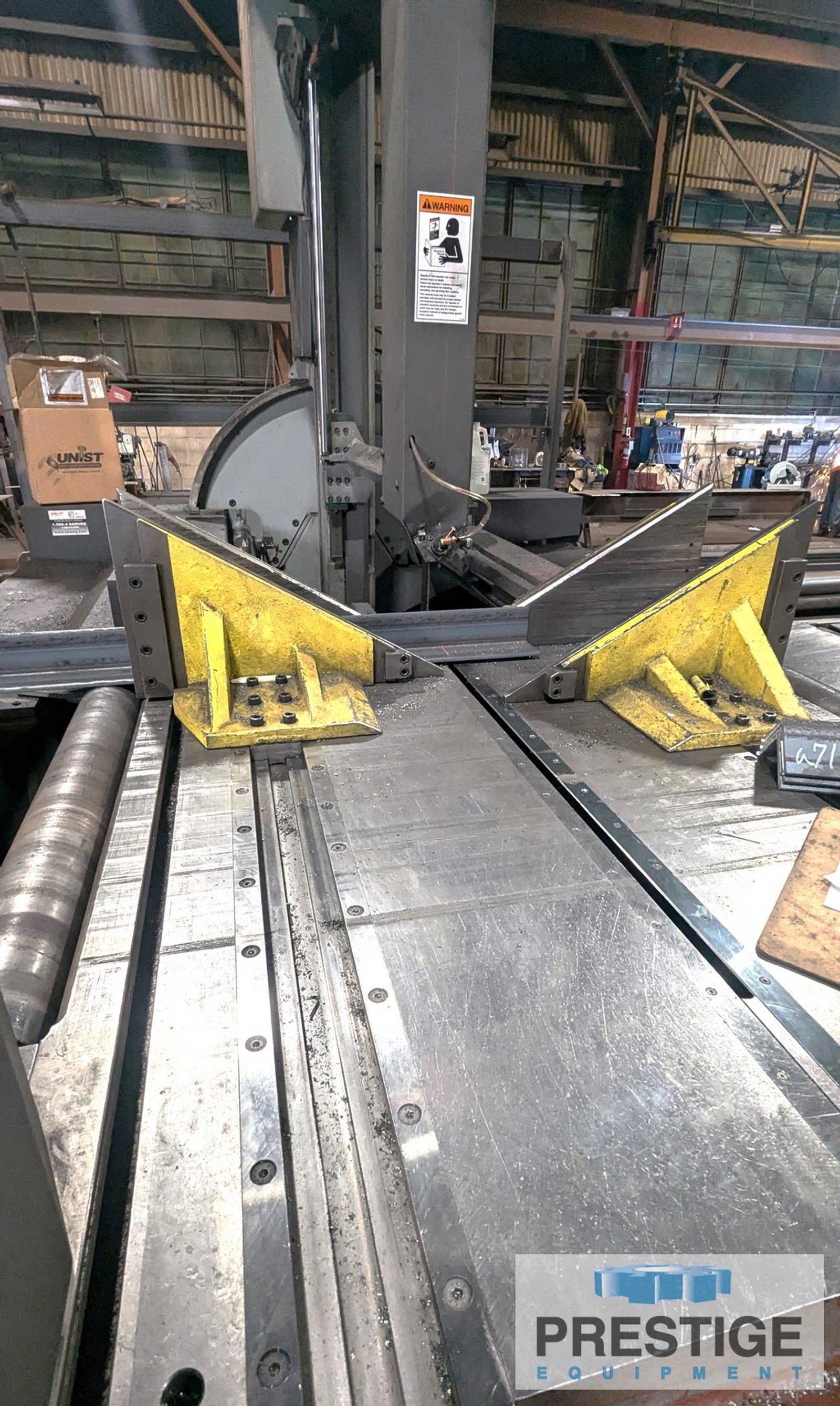

Variable Vise Pressure
Work Lift Rollers on Left & Right Side of Machine Bed
Second Machine Vise
Mist Lube (Automatic)
Pre-Plumbing for Hydraulic Hold downs in Future
Smart Guide Arm
Laser Alignment Light
Automatic Power Roller Extension

NOTE:
Inspect Under Power in Plant
