4.33" Union CNC Horizontal Boring Mill BFT 110, X-78", Y-50", Heidenhain CNC, Rotary Table, 40 HP, Facing Head, #43994

Manufacturer

UNION

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43994

Model

BFT 110

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43994

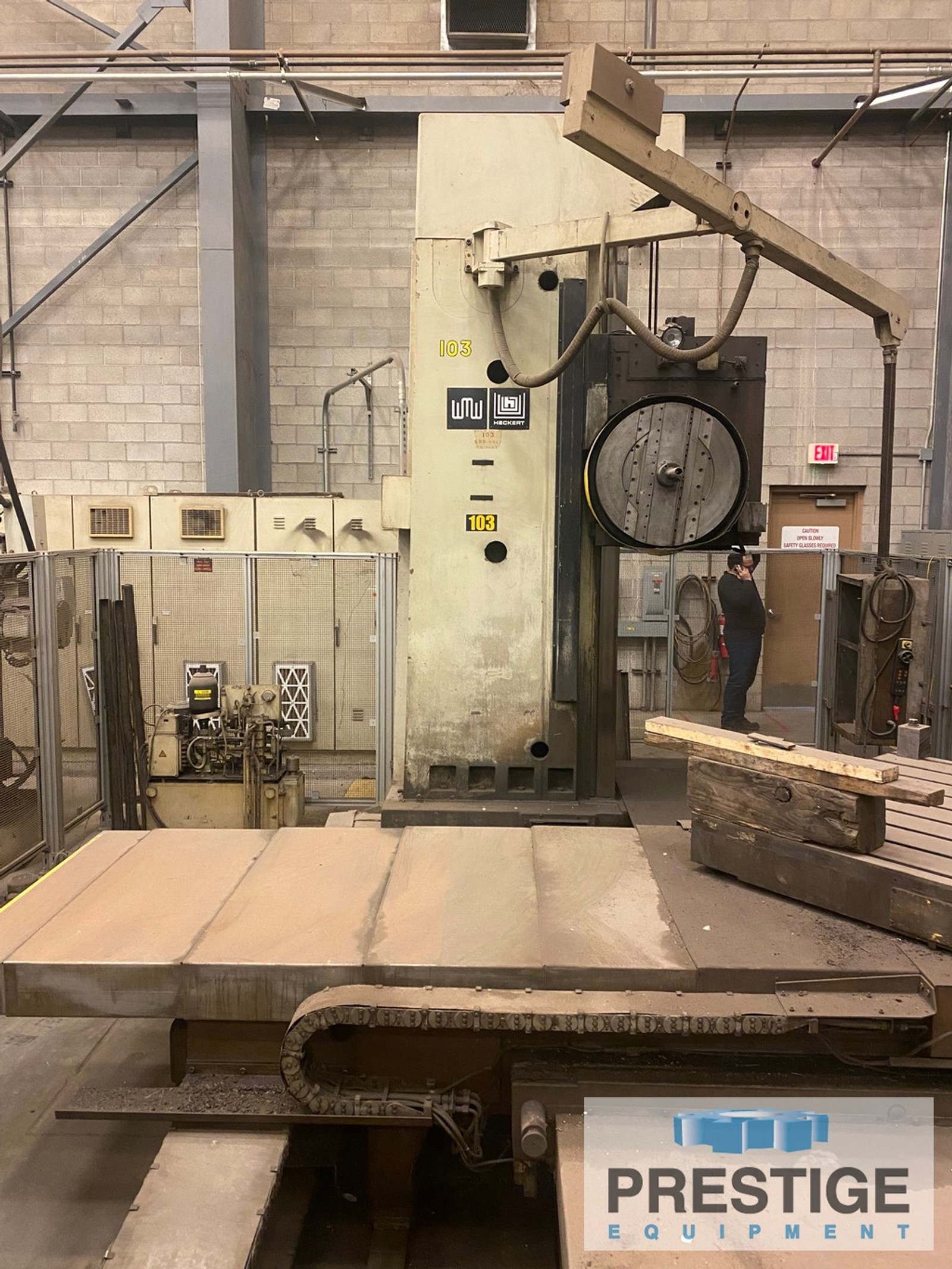

4.33" Union CNC Horizontal Boring Mill

CAPACITY:
Spindle Diameter ..................... 4.33"
Spindle Taper ........................ #50
Vertical Head Travel, Y-Axis ......... 50"
Table Cross Travel, X-Axis ........... 78.74"
Saddle Travel, W-Axis ................ 49"
Spindle Travel, Z-Axis ............... 28"
Spindle Speeds ....................... 5.6-1000 RPM
Rotary Table ......................... 55.12" x 63.99"
Table Load Capacity .................. 13,860 Lbs
Machine Weight ....................... 50,000 Lbs

EQUIPPED WITH:

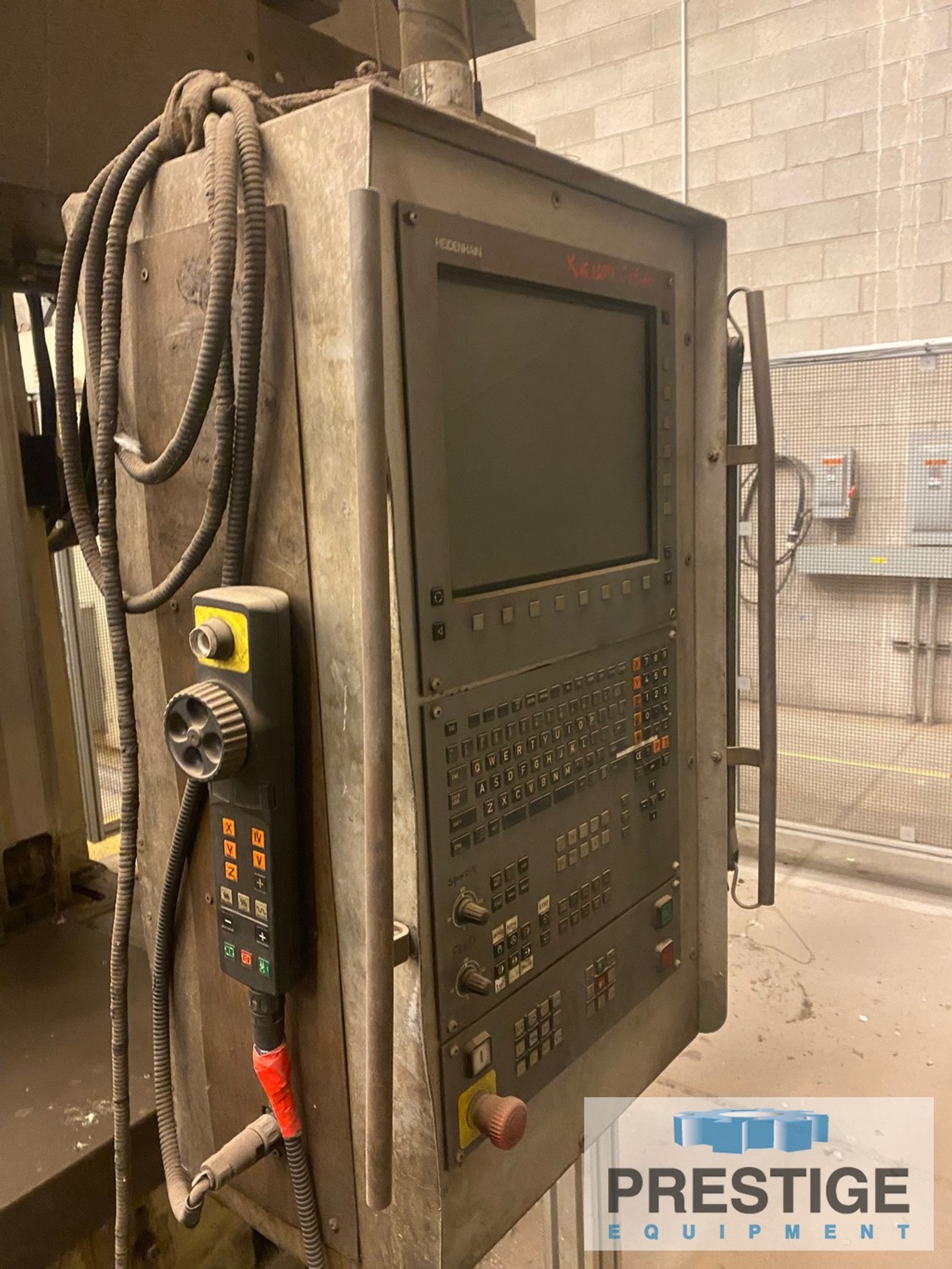

Heidenhain TNC 155 CNC Control
Pendant Mounted CRT
RS 232 Communication Port
Ball Screws & Servo Drive Motors
Built In Power Indexing Rotary Table
Power Braw Bar

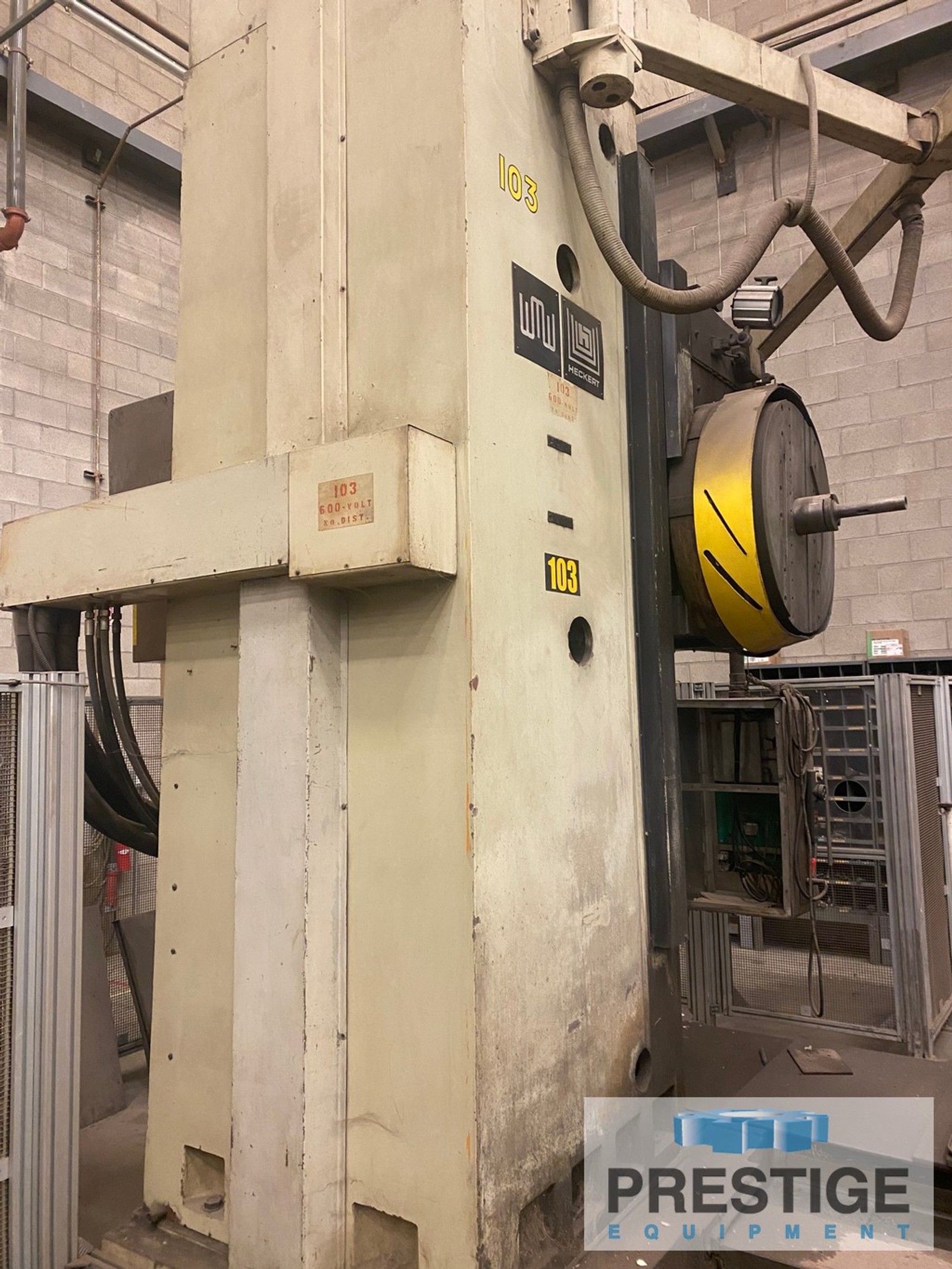

27.5" Diameter Built In Facing Head
Hardened Ways
Way Covers
40 HP Spindle Motor
