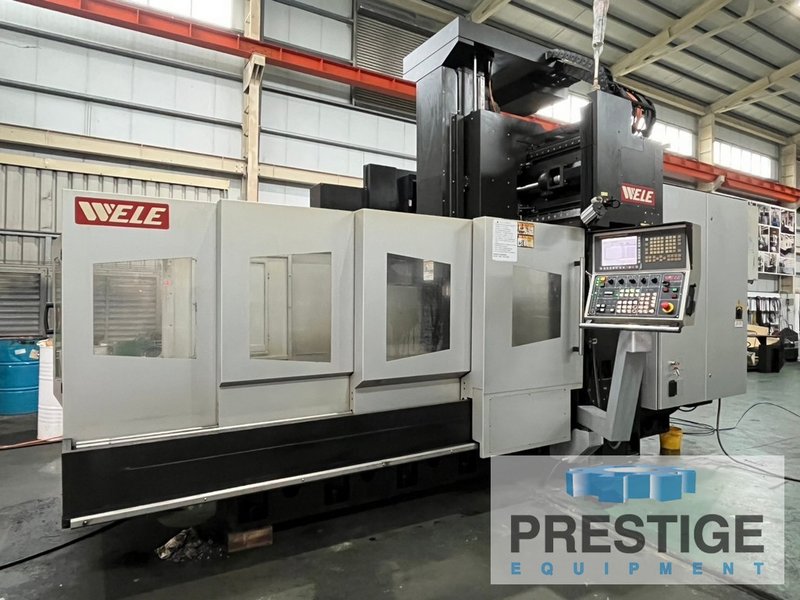

Wele RB-212 CNC Bridge Mill, X-83.5", Y-47.2", Fanuc 31IMB, 32 ATC, Linear Ways, Linear Scales, 2013, #43995

Manufacturer

WELE

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43995

Model

RB-212

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43995

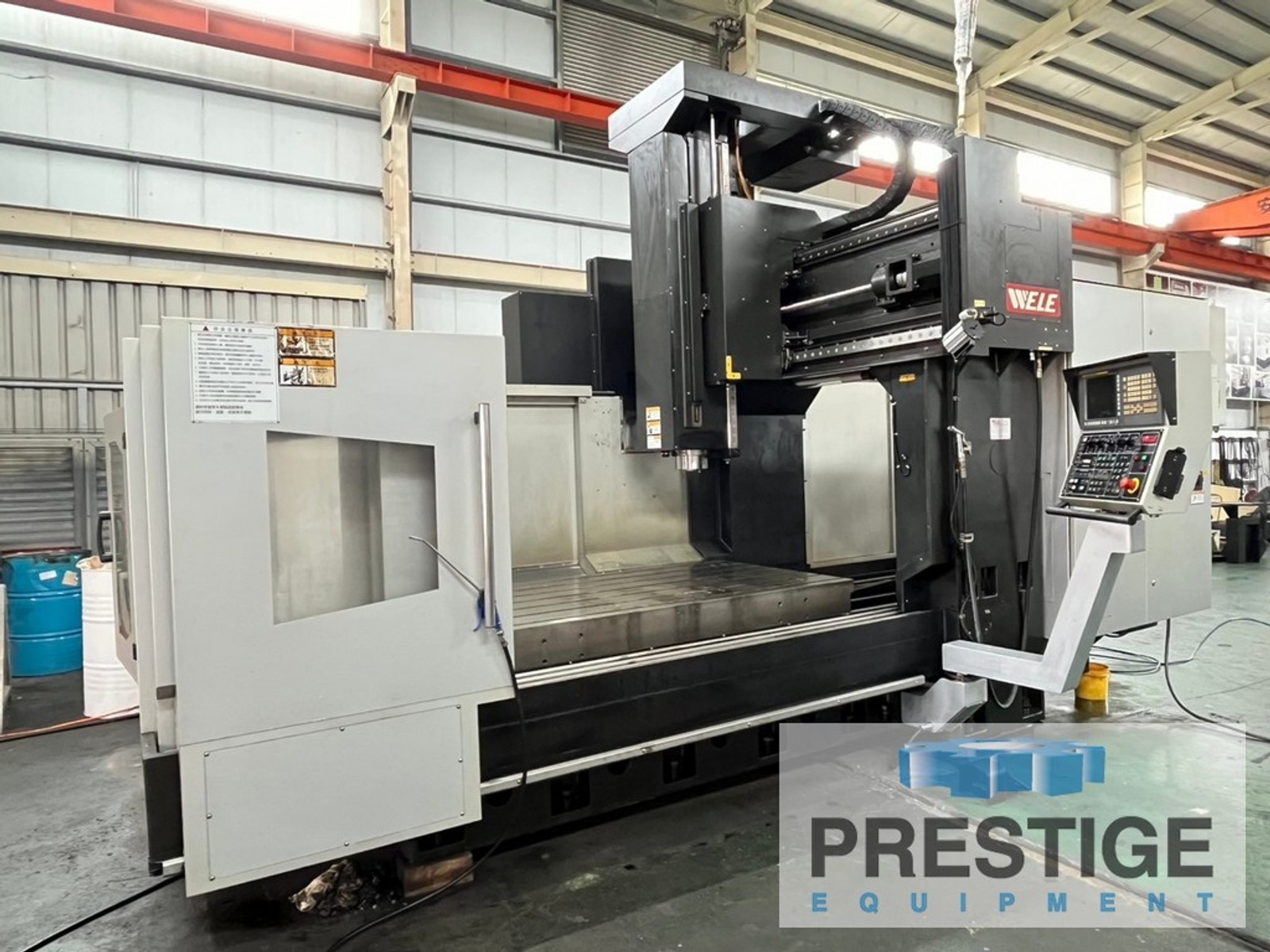

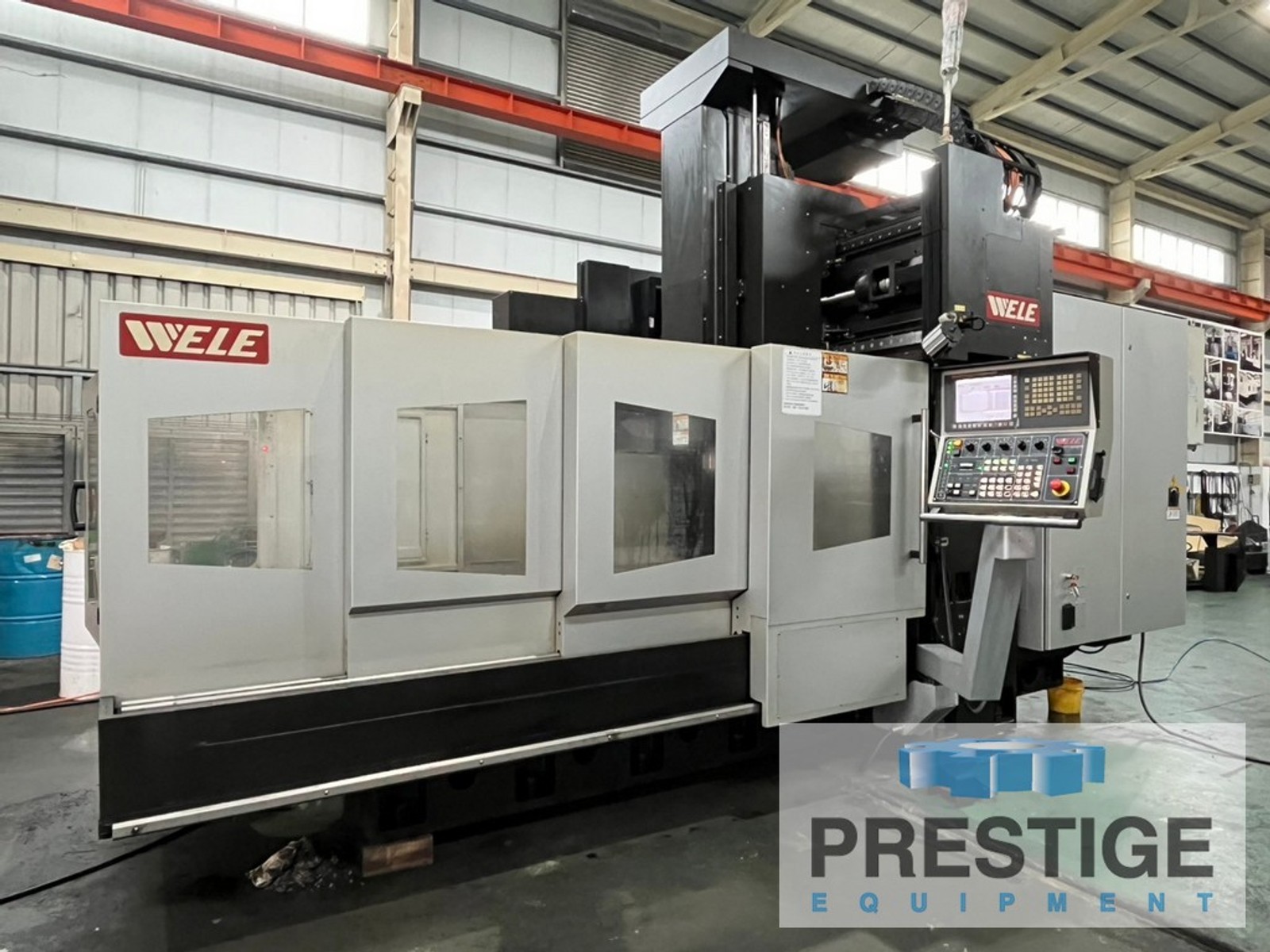

Wele RB-212 CNC Bridge Mill

FEATURES:

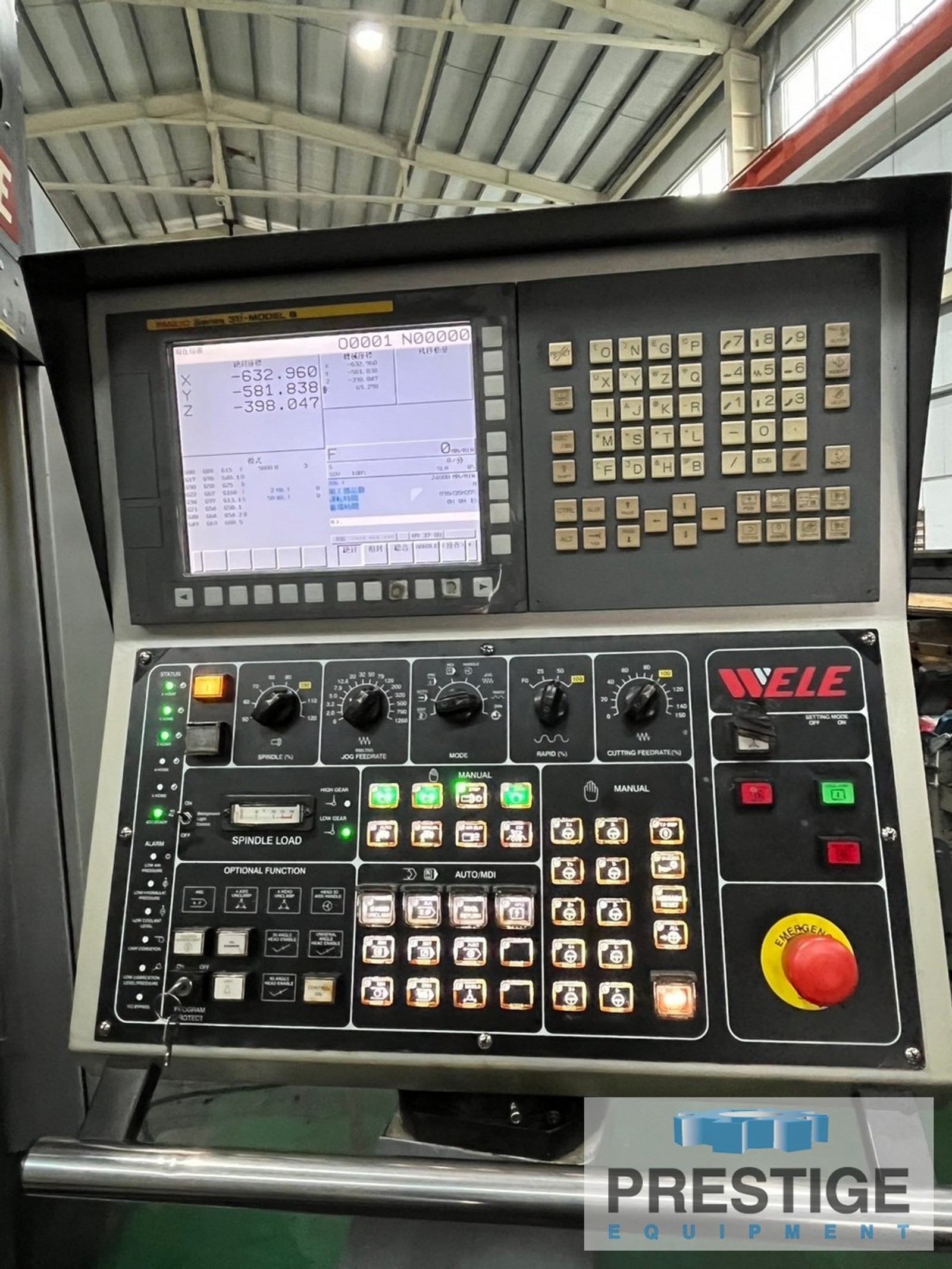

Fanuc 31iMB CNC Control

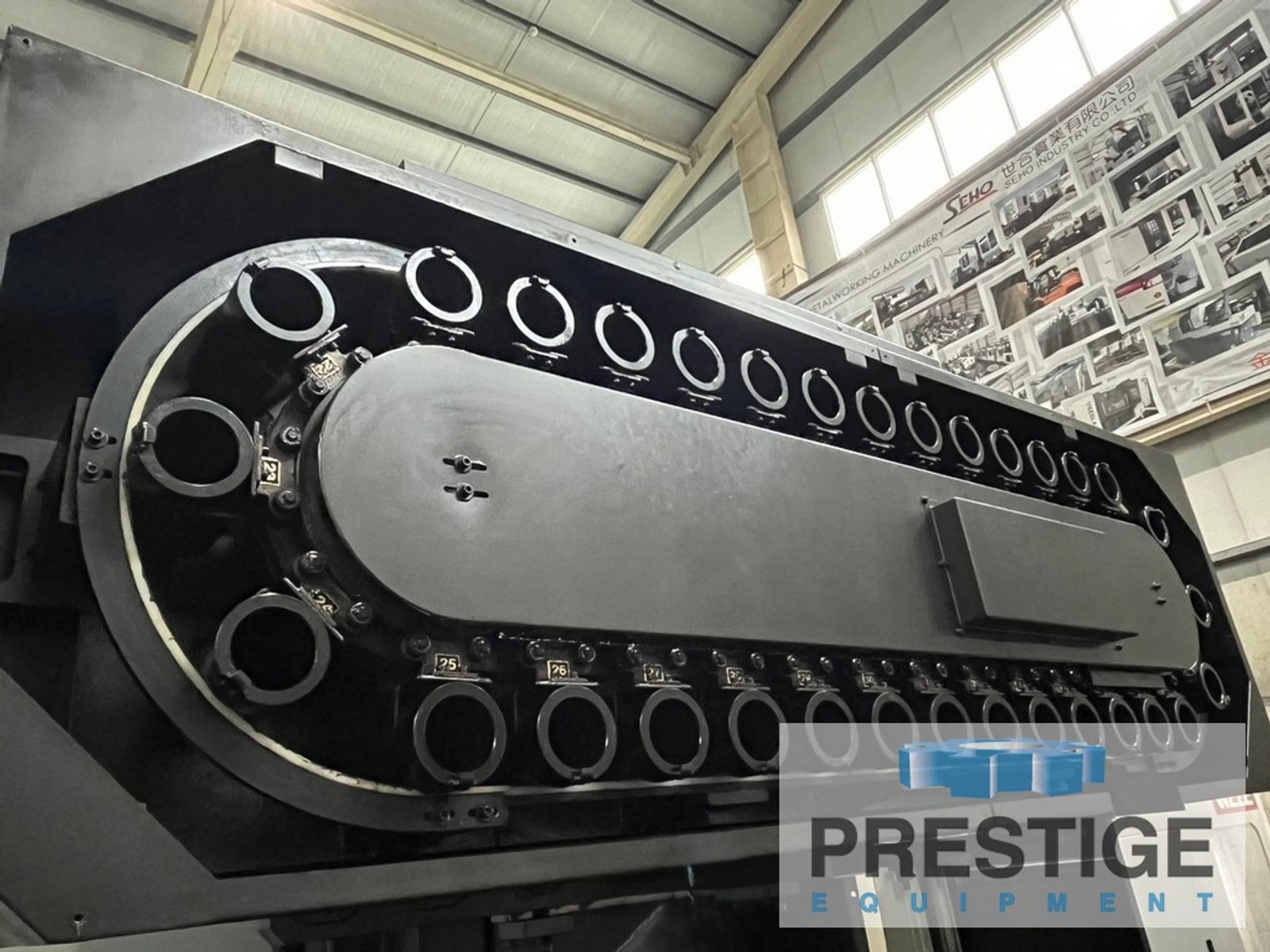

32-Position Automatic Tool Changer

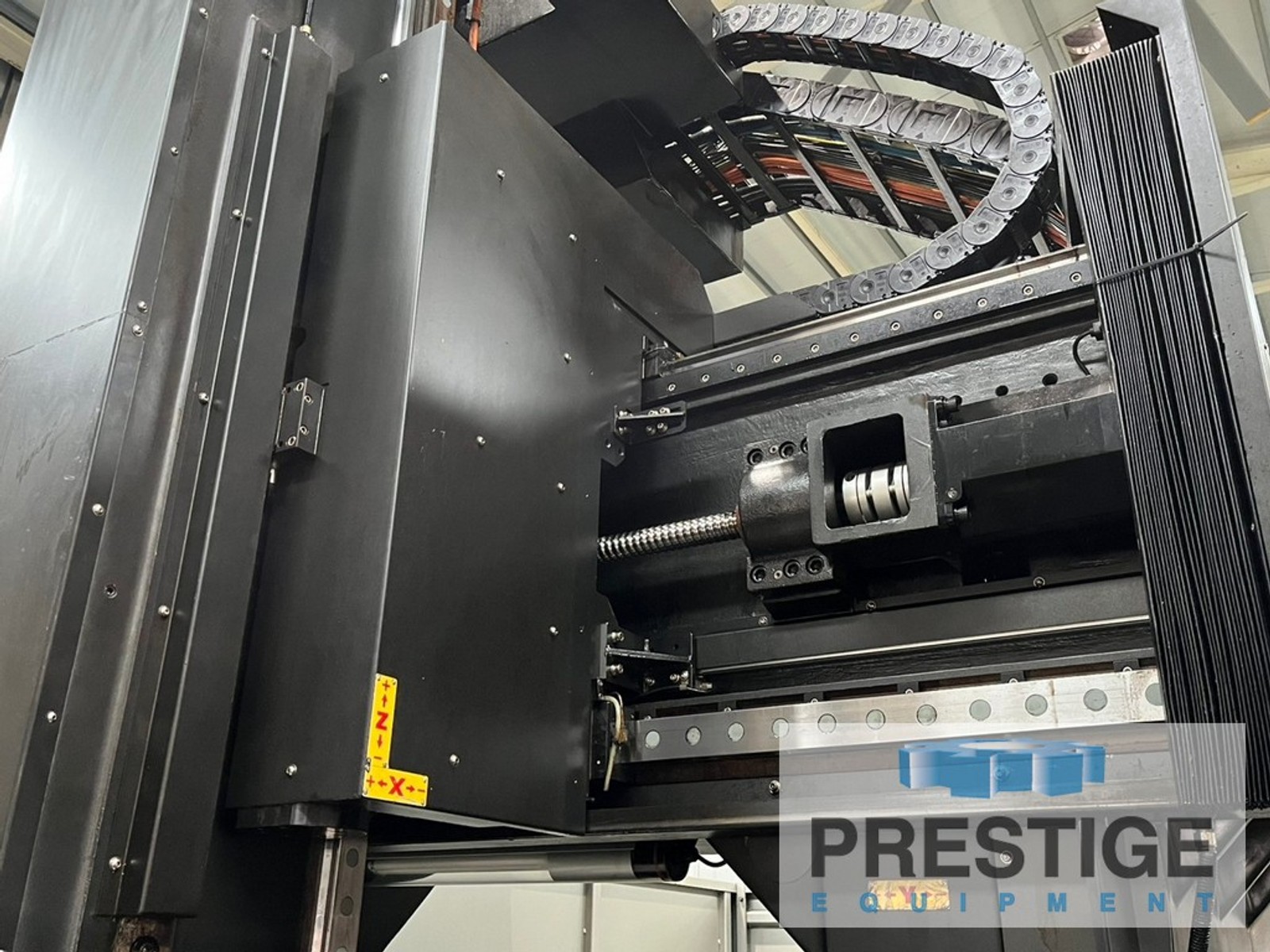

X/Y/Z Linear Guide Ways
X/Y/Z Linear Scales
Air Conditioner
Oil Skimmer

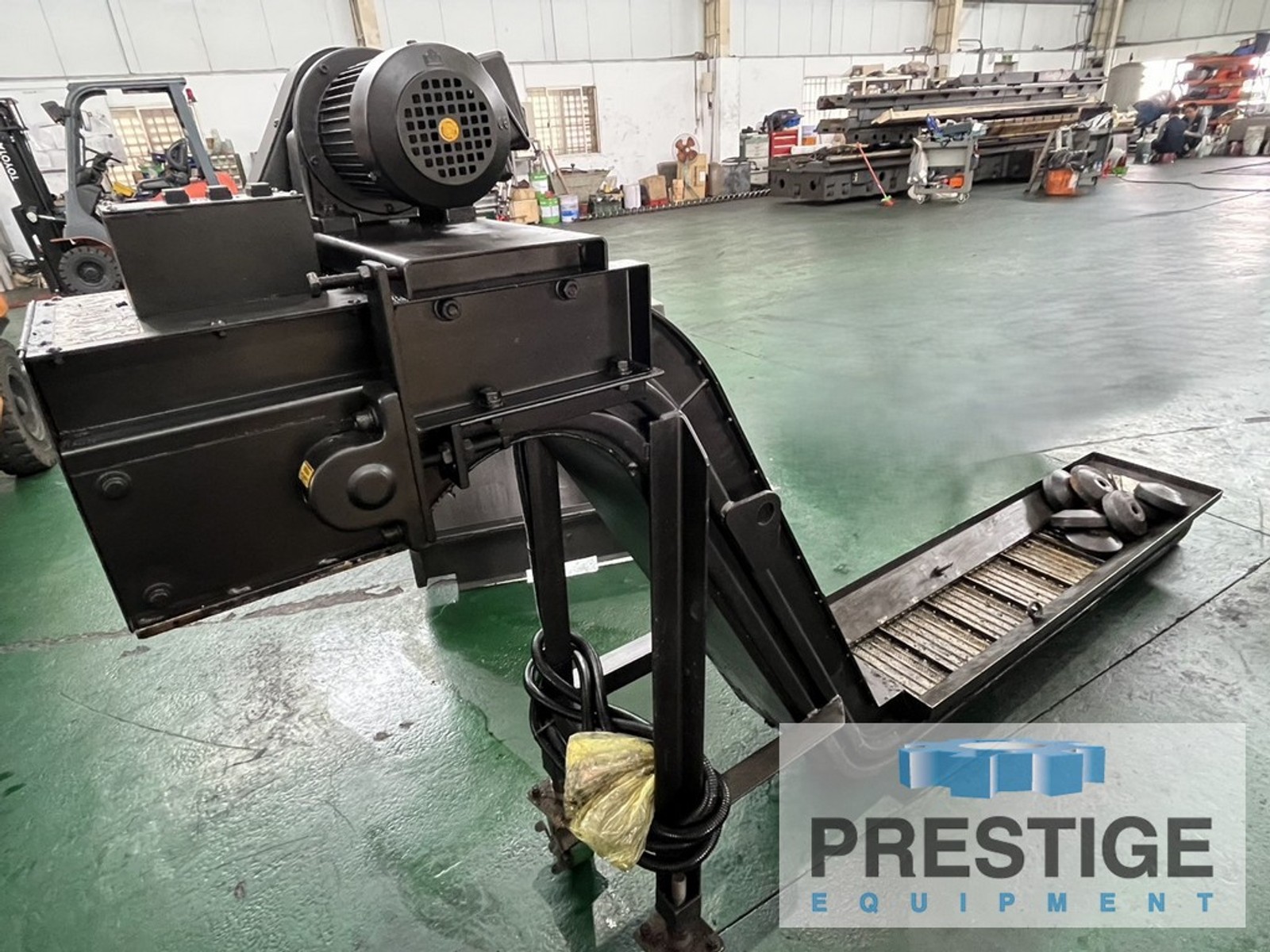

Chip Conveyor

CAPACITY:
X-Axis Travel ......................... 83.5"
Y-Axis Travel ......................... 47.2"
Z-Axis Travel ......................... 31.49"

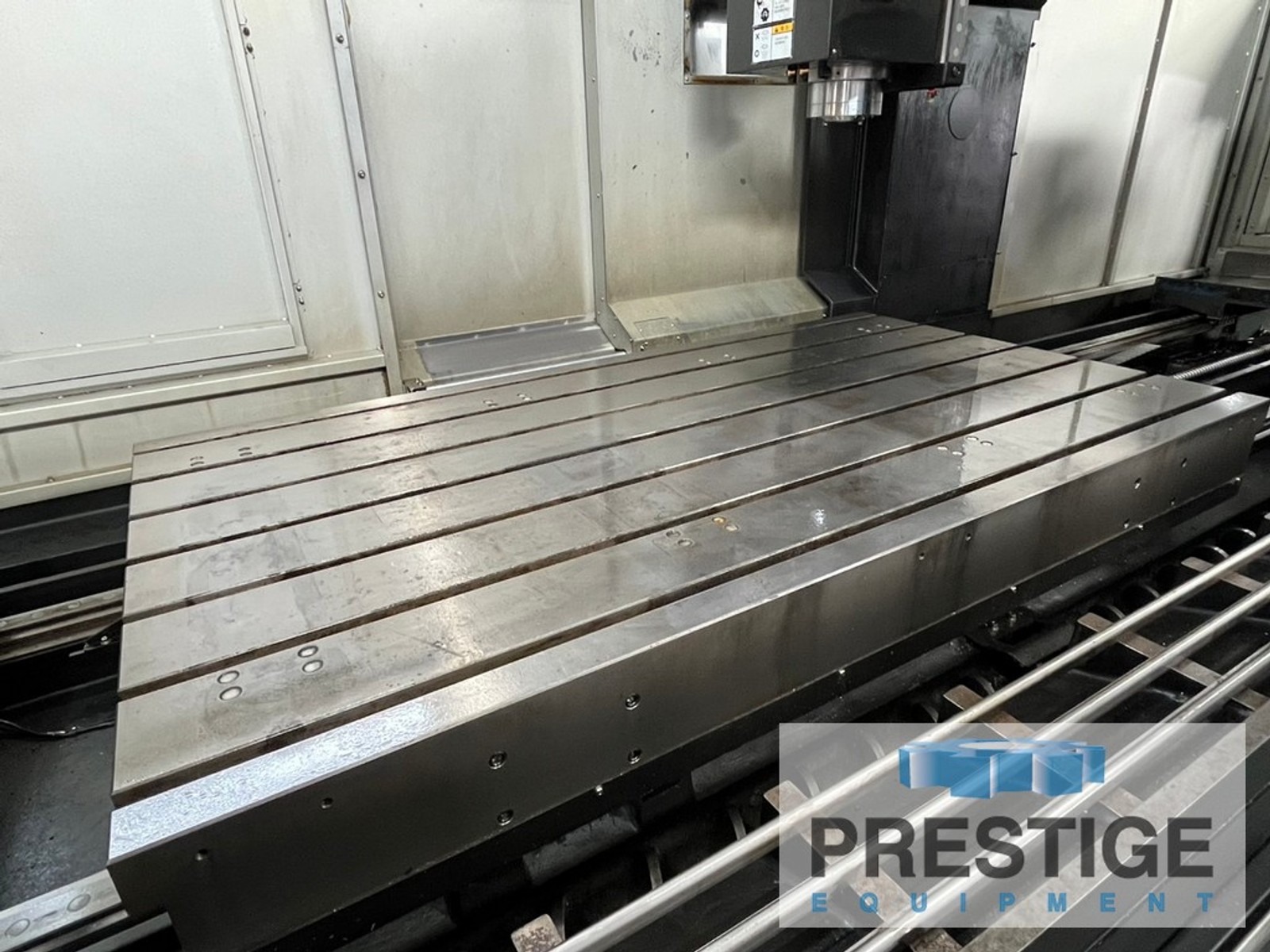

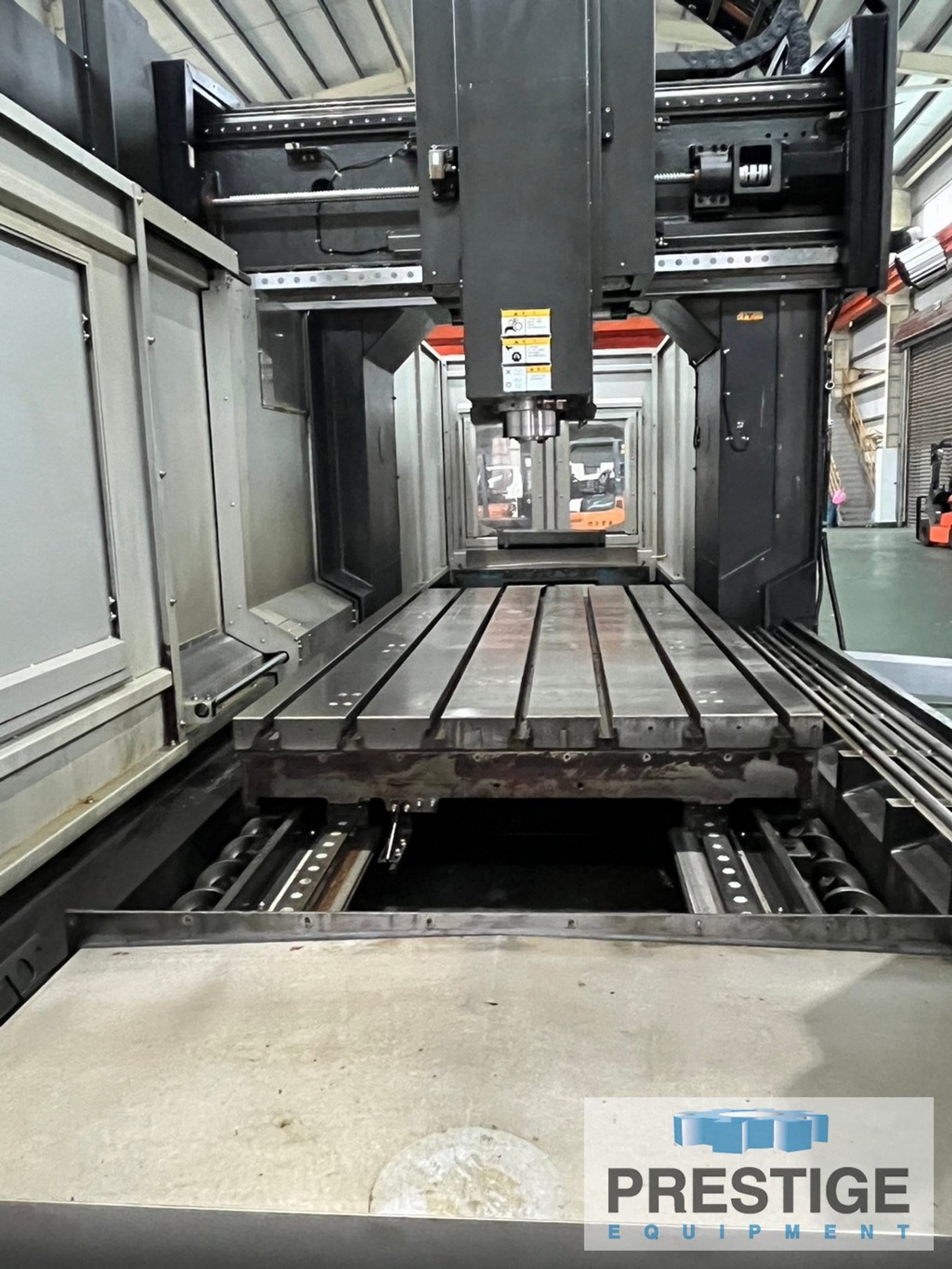

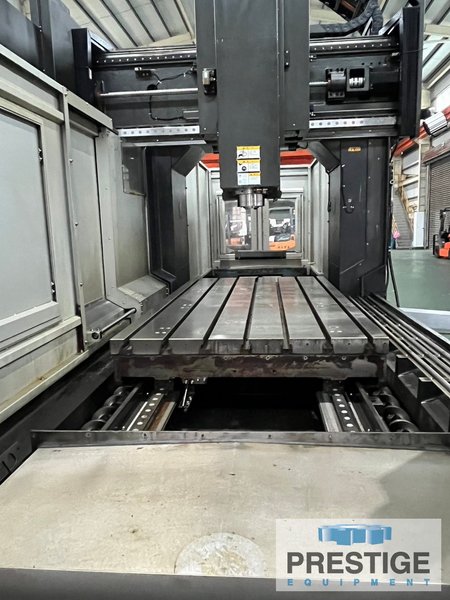

Table Size ............................ 78.74" x 43.3"
Table Load Capacity ................... 7,700 lbs
Distance Between Columns .............. 51.2"

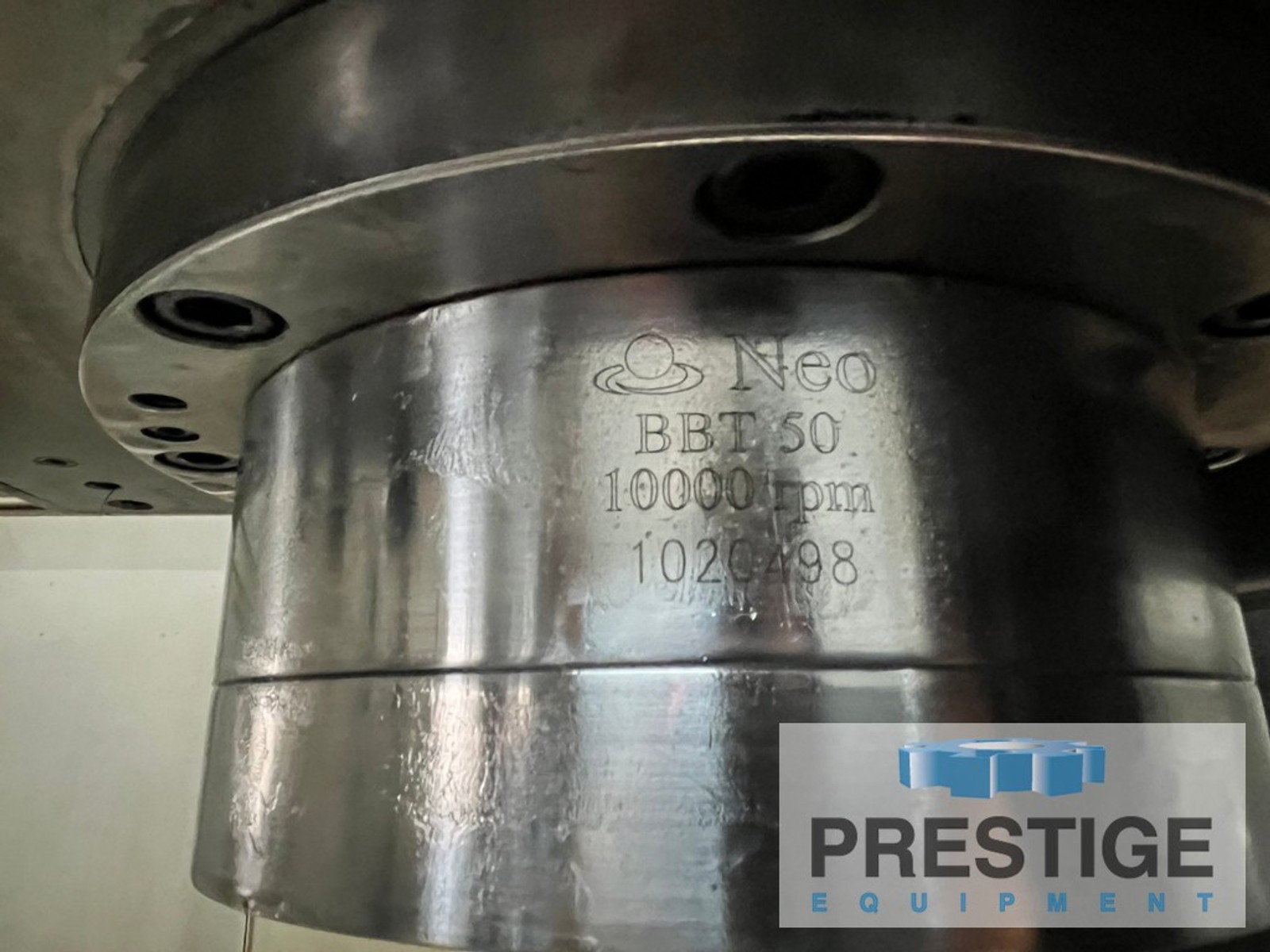

Spindle Speeds (Direct Driven) ........ 10,000 RPM
Spindle Taper ......................... BT 50
Spindle Motor, 2- Ranges .............. 25 HP/20 HP
Rapid Feed Rate (X/Y Axis) ............ 944.9 IPM
Rapid Feed Rate (Z-Axis) .............. 590.6
Cutting Feed Rate ..................... 0.04"-590.6"
Approximate Dimensions ................ 232" x 139" x 159"
Approximate Weight .................... 40,000 lbs

EQUIPPED WITH:
Fanuc 31iMB CNC Control
32-Position Automatic Tool Changer
X/Y/Z Linear Guide Ways
X/Y/Z Linear Scales
Air Conditioner
Oil Skimmer
Chip Conveyor


NOTE:
Inspect In Plant Under Power
