98" Pietro Carnaghi VBM, Live Milling, 16-ATC, 118" Turn Diameter, 100 HP C-Axis, Siemens System 8 CNC #43997

Manufacturer

Pietro Carnaghi

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43997

Model

AC25

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43997

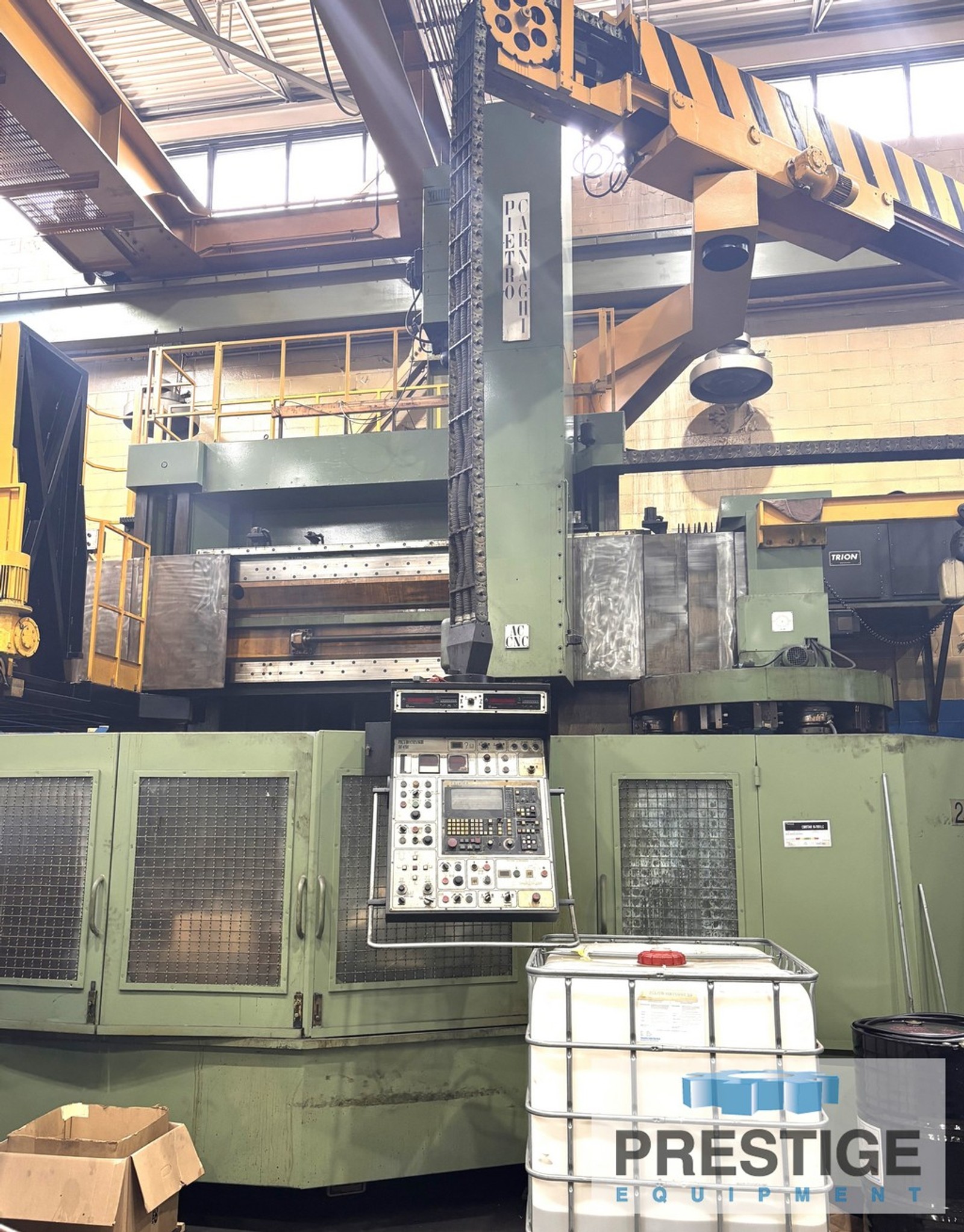

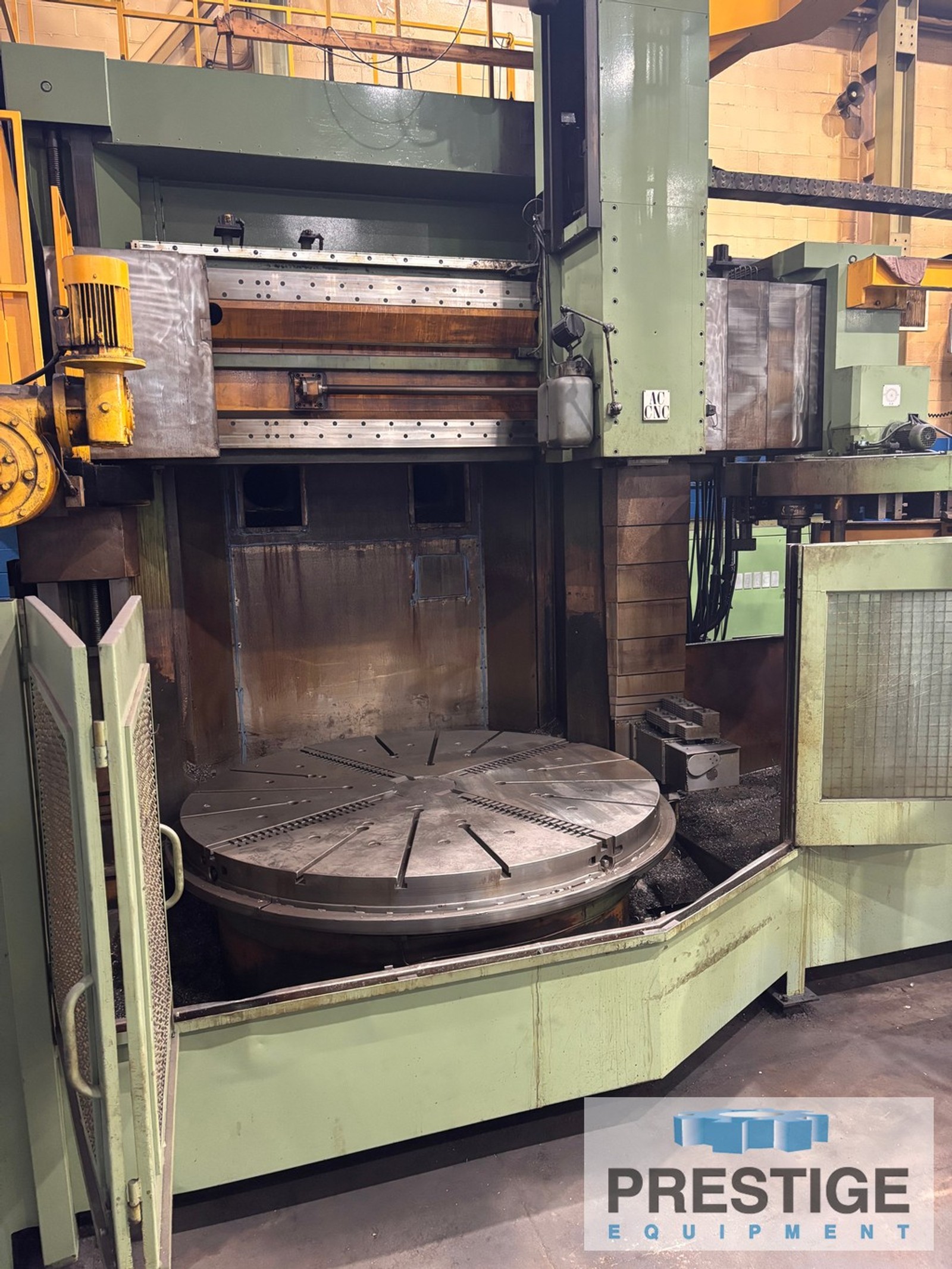

98" Pietro Carnaghi CNC Vertical Boring Mill with Milling

FEATURES:

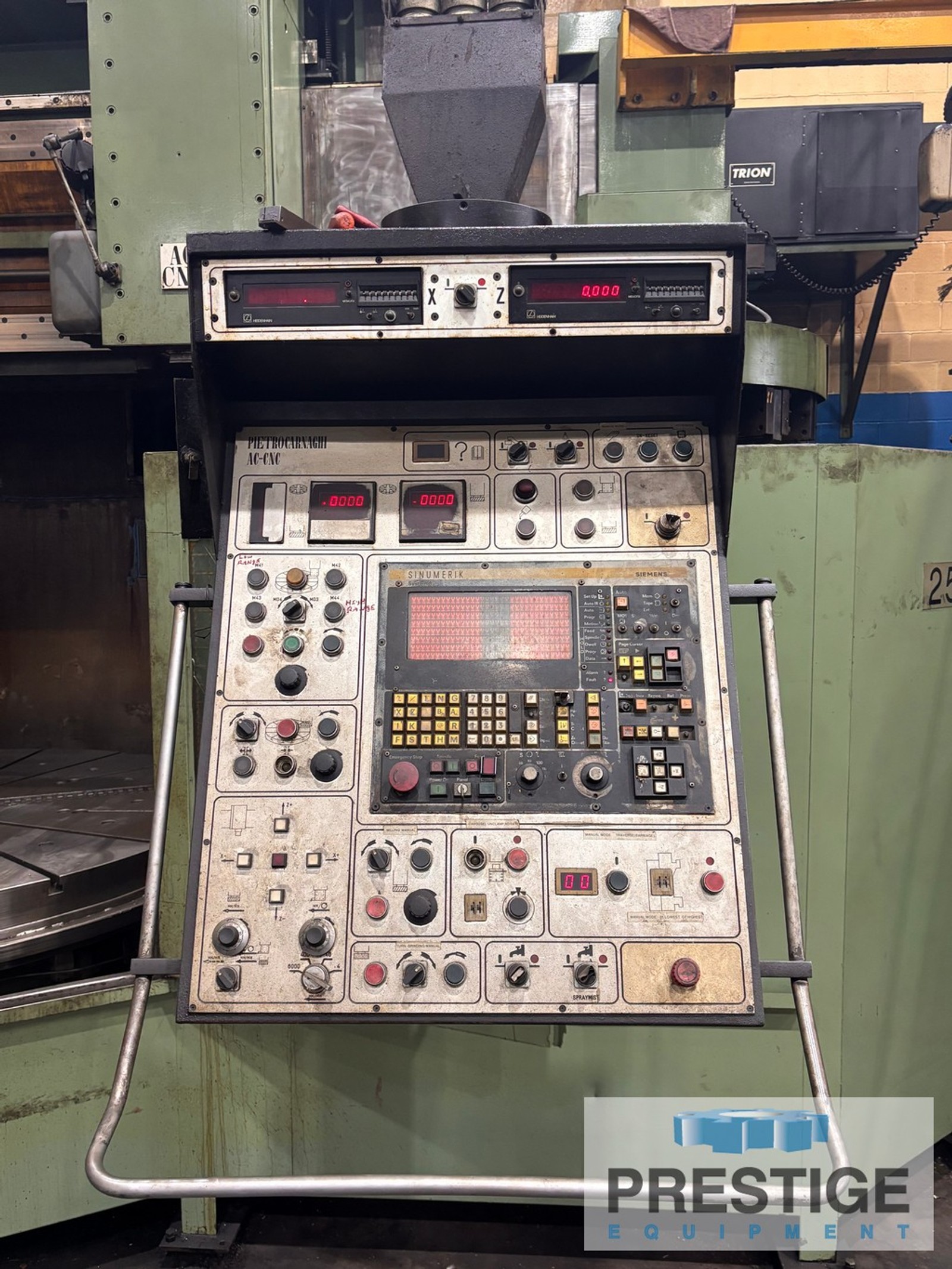

Siemens Sinumerik System 8 CNC Controls

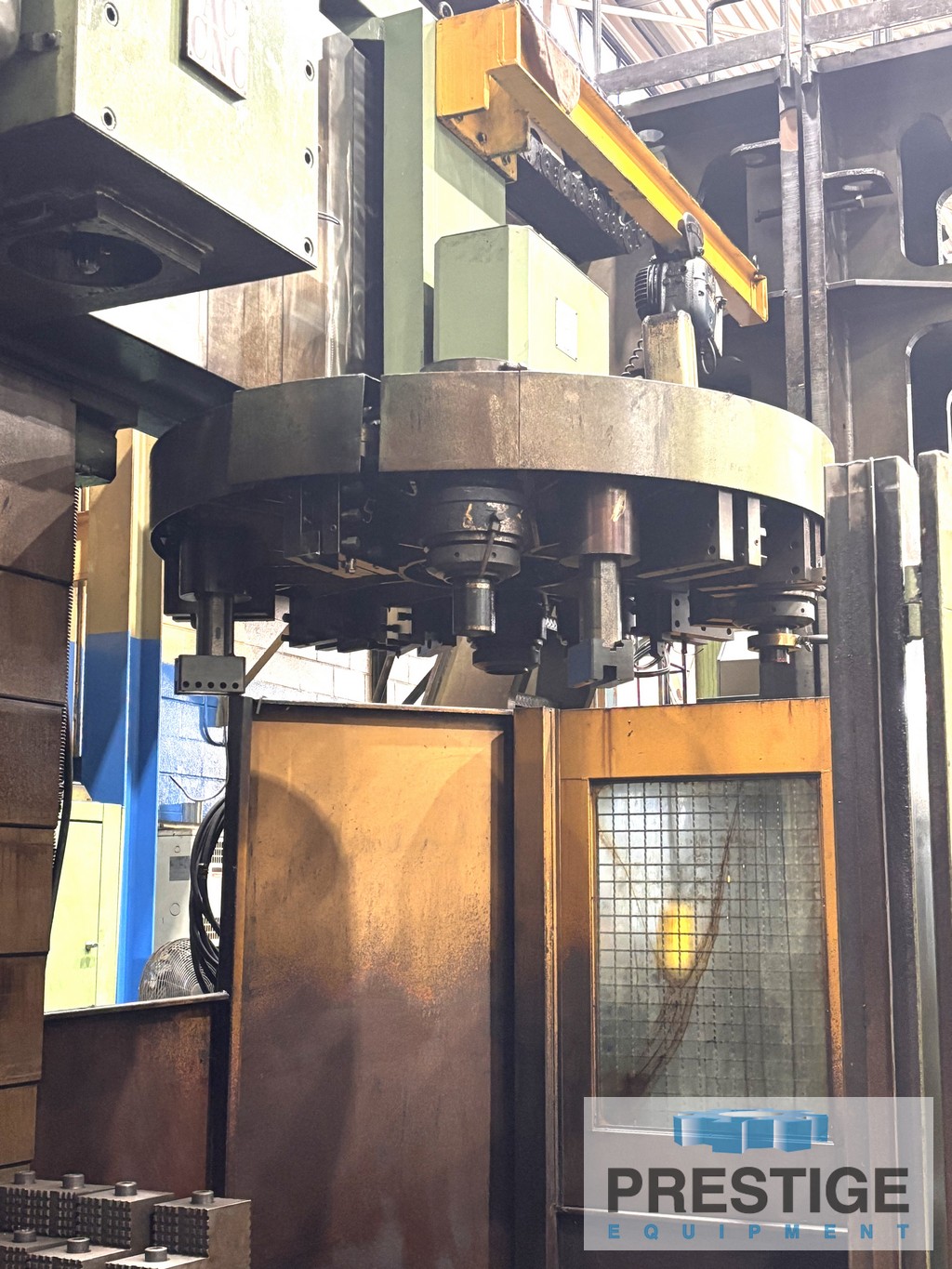

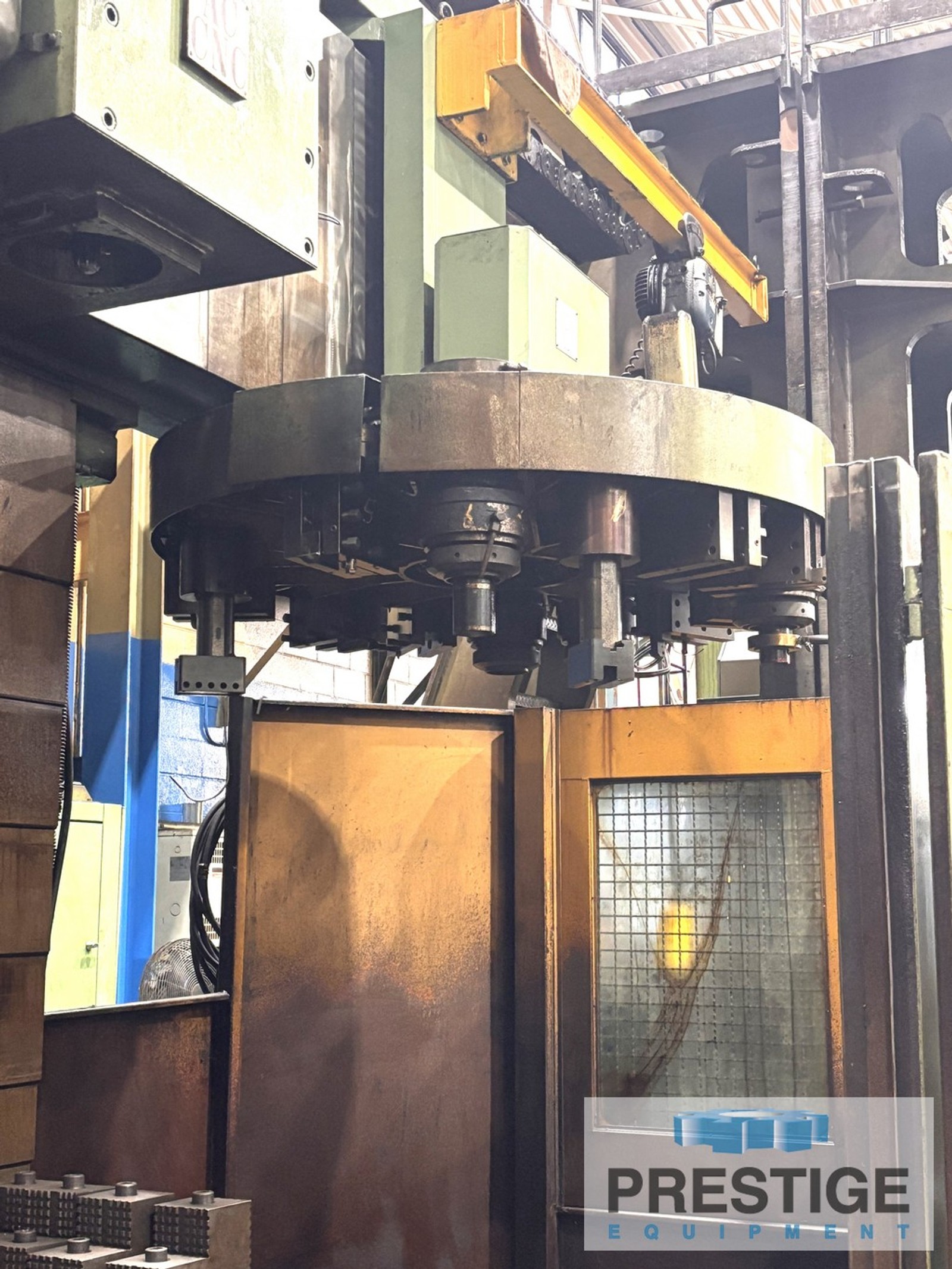

16-Station Automatic Tool Changer

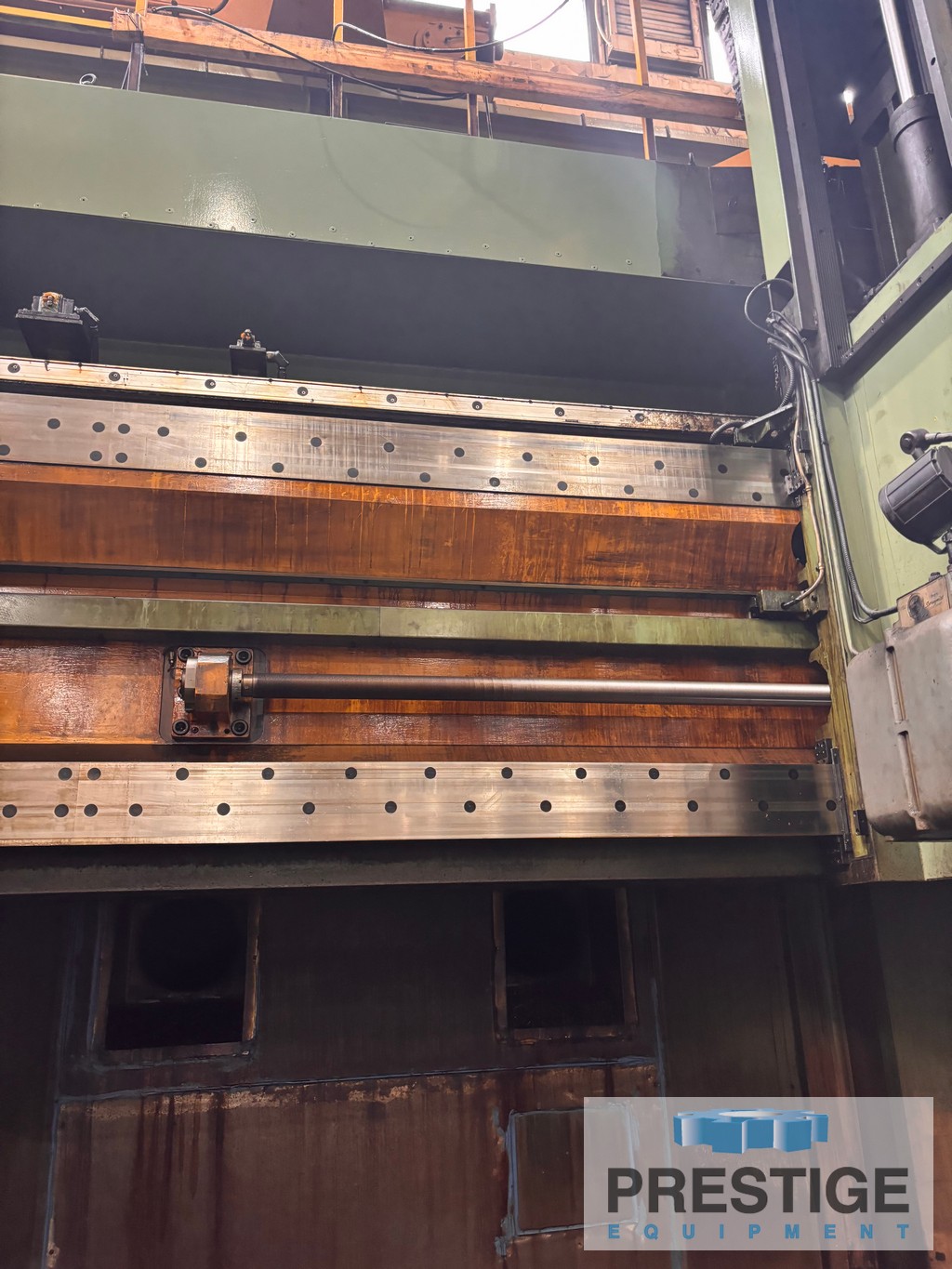

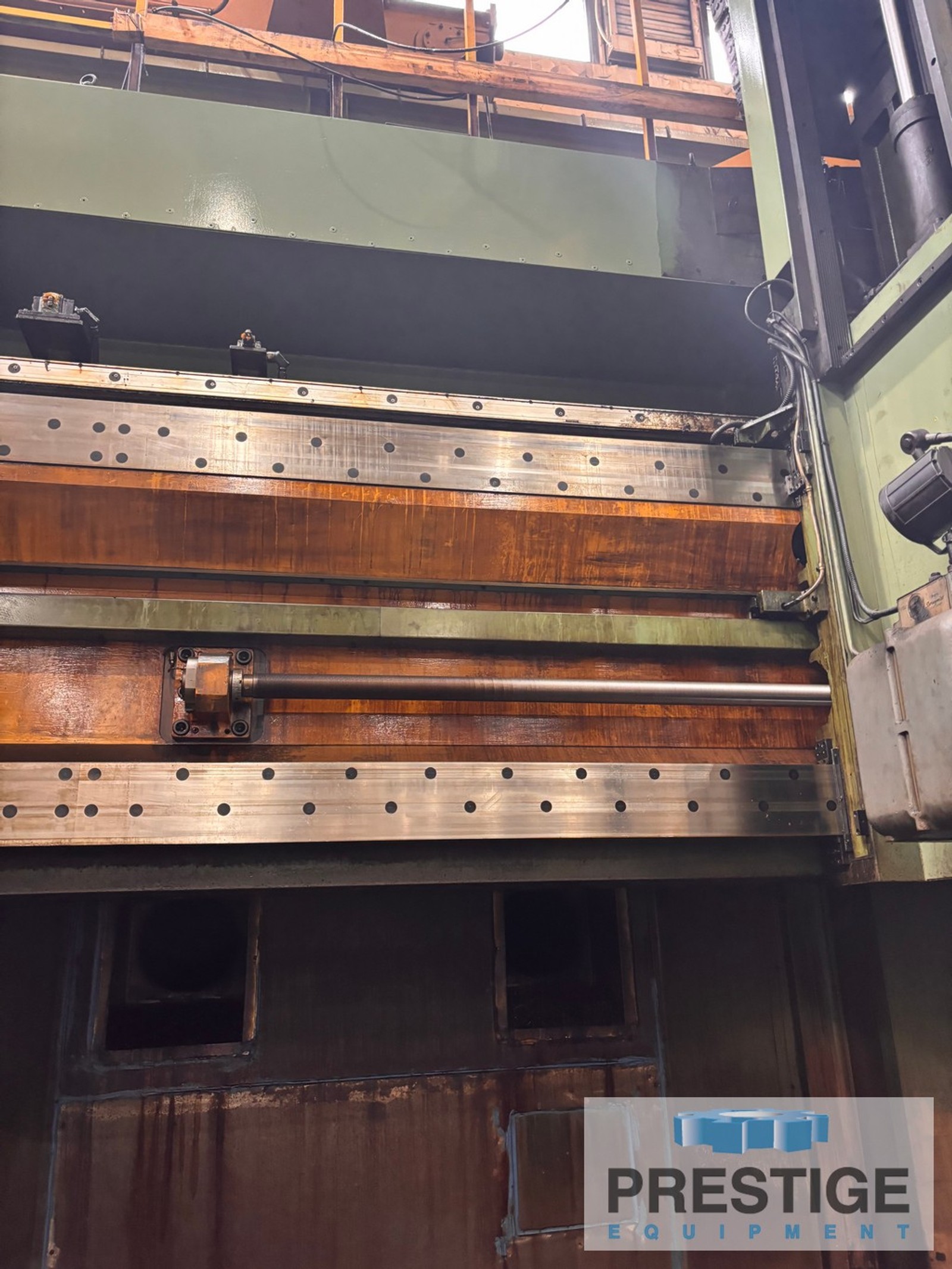

Hardened Replaceable Ways on Cross Rail
Live Milling Spindle

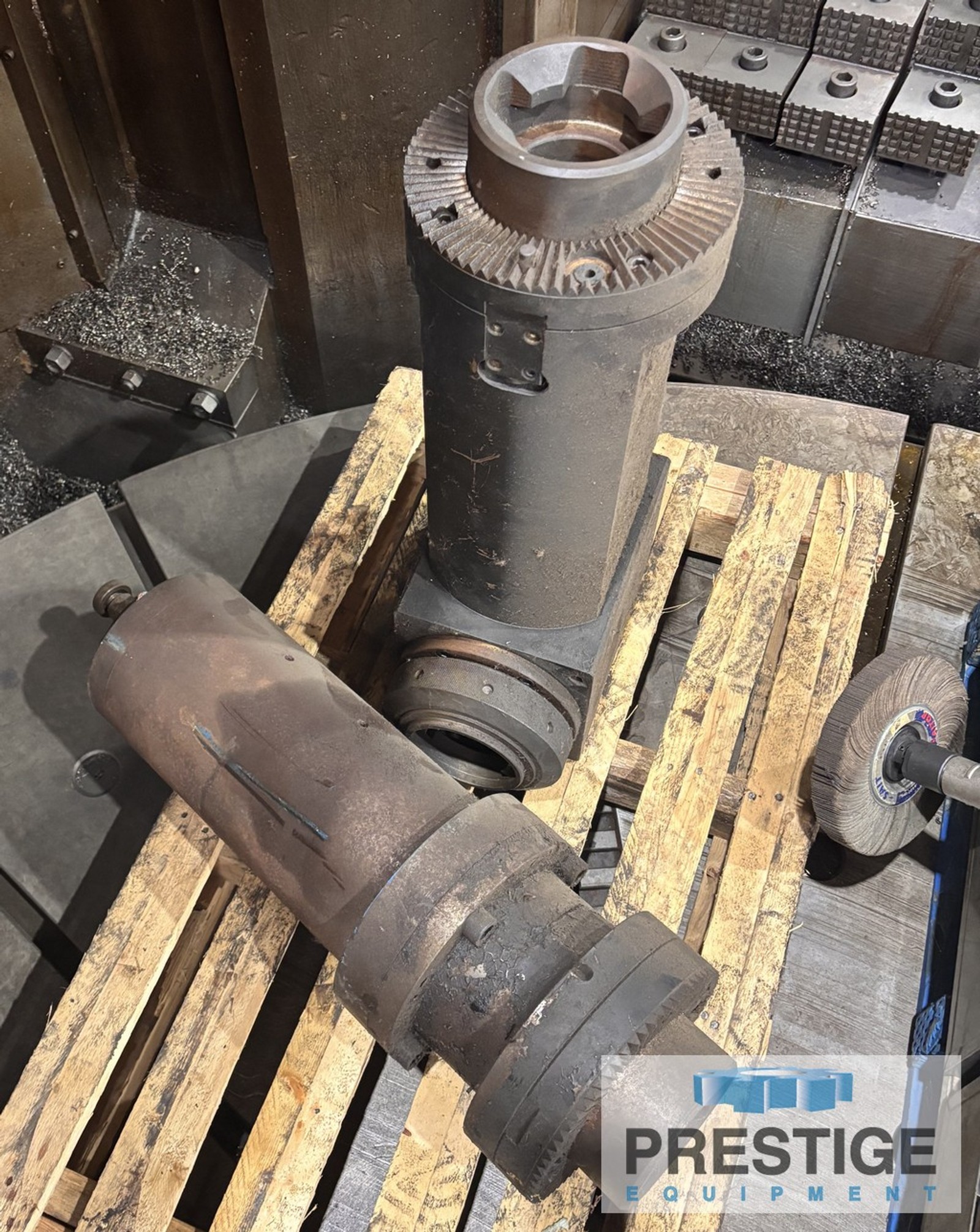

Right Angle Head

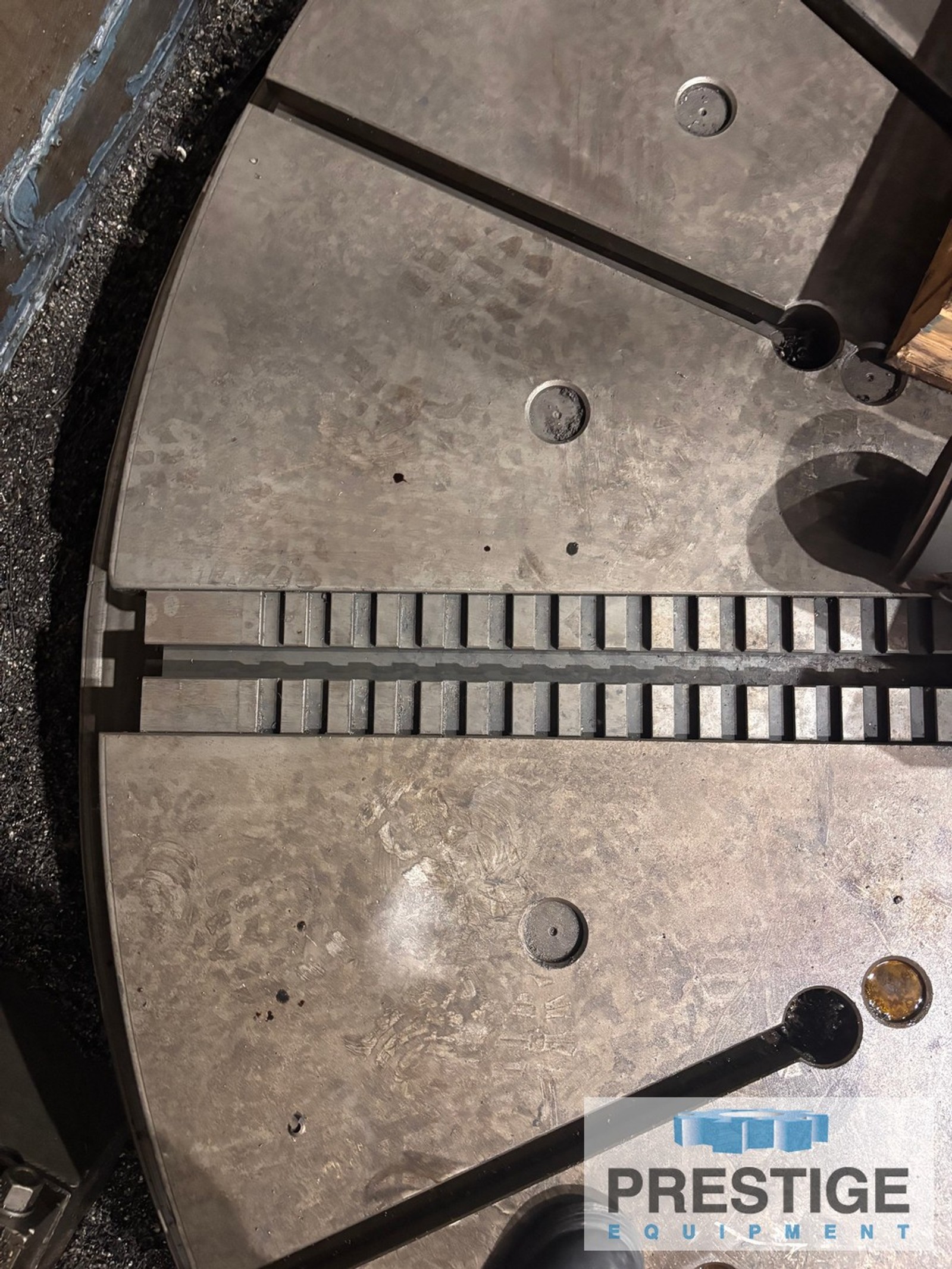

C-Axis Table

SPECIFICATIONS:
Table Diameter ........................ 98.45"
Maximum Swing ........................ 118.11"
Max Height Under Rail ................. 88.58"
Maximum Turning Height ................ 78.74"
Ram Stroke, Z-Axis .................... 49.21"
Ram Cross-Section ..................... 9.44" x 9.44"
Table Speeds (2 Ranges) ............... 2-123 RPM
Table Motor ........................... 100 HP
Table Indexing, C-Axis ............... .001 degrees
Milling Spindle Taper ................. ISO #50
Milling Spindle Speeds ............... 0-1,000 RPM
Milling Spindle Motor ................ 24 HP

EQUIPPED WITH:
Siemens Sinumerik System 8 CNC Controls
16-Station Automatic Tool Changer
Hardened Replaceable Ways on Cross Rail
Live Milling Spindle
Right Angle Head
C-Axis Table
100 HP Table Drive Motor
