6.3" Pama FT160 Ram Type, X-472", Y-125", Z-70", 900 RPM, (2) Rotary Tbls, Siemens CNC, #43998

Manufacturer

PAMA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

43998

Model

FT160

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43998

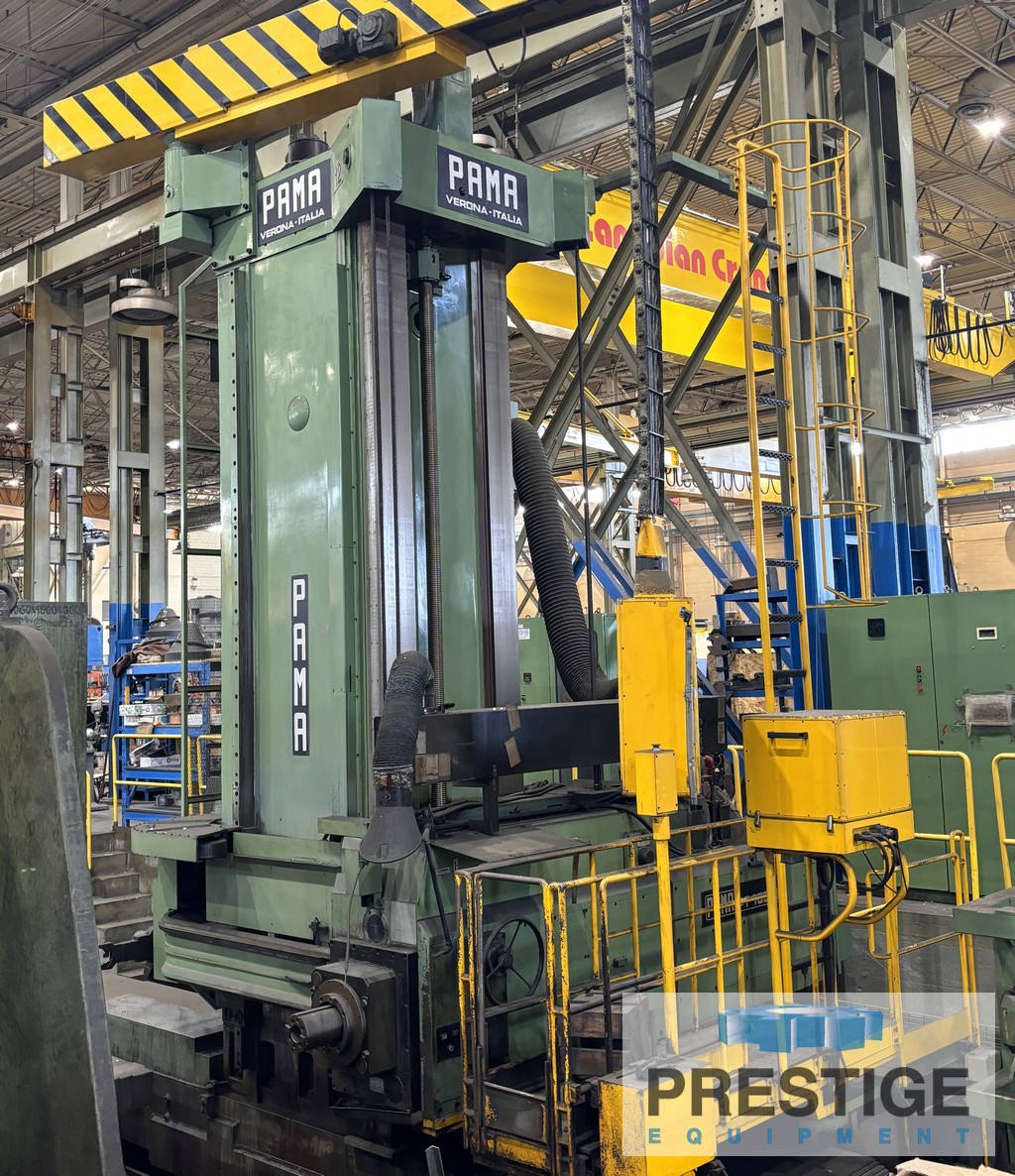

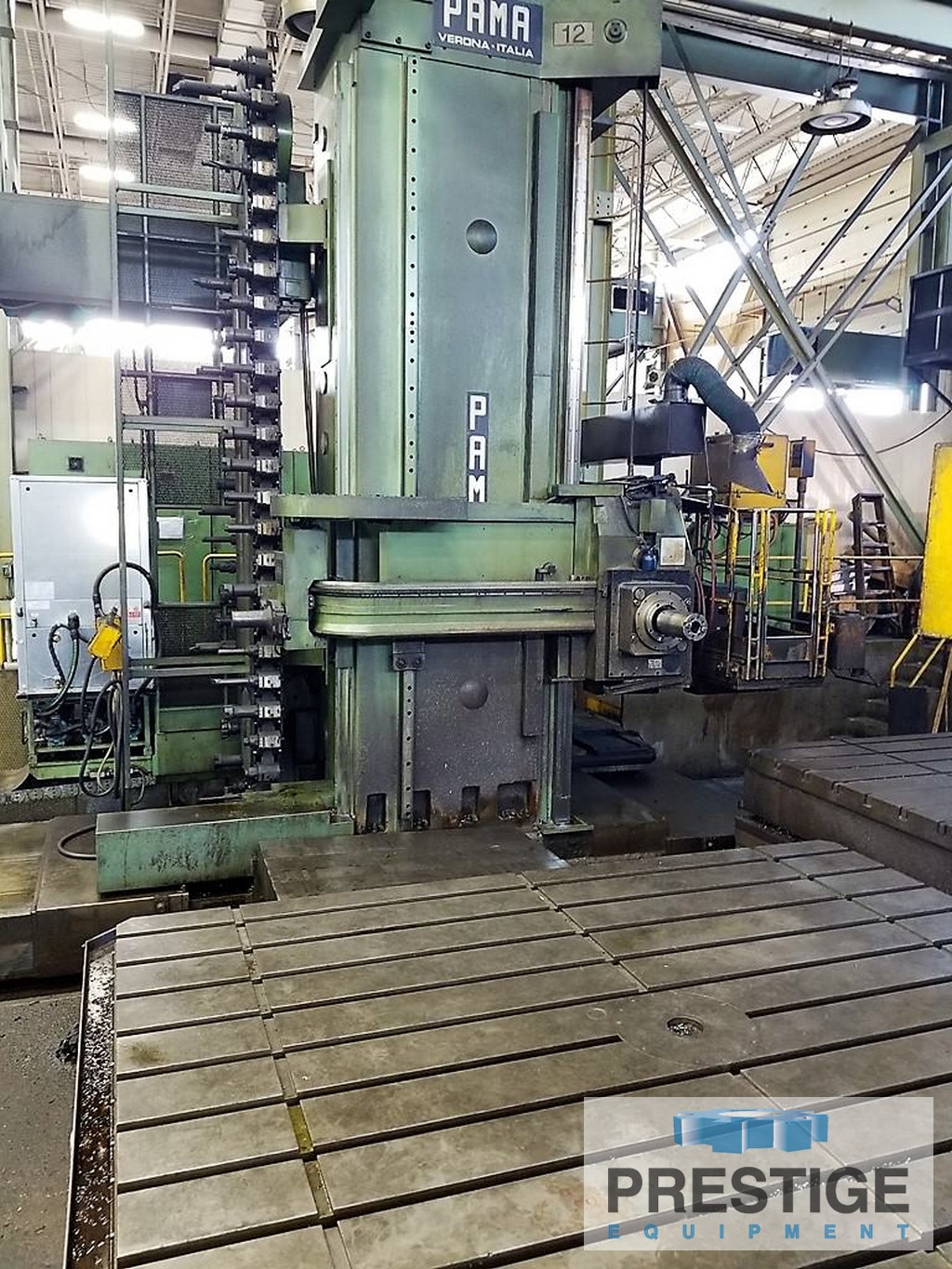

Pama F/T 160 CNC Floor Type Boring Mill

FEATURES:
Siemens CNC Control
(2) Infeeding Rotary Tables
60-Position Automatic Tool Changer
Head Attachment Tower
D'Andrea Facing Head, Universal Head, Vertical Head and Heavy Duty Head

CAPACITY:

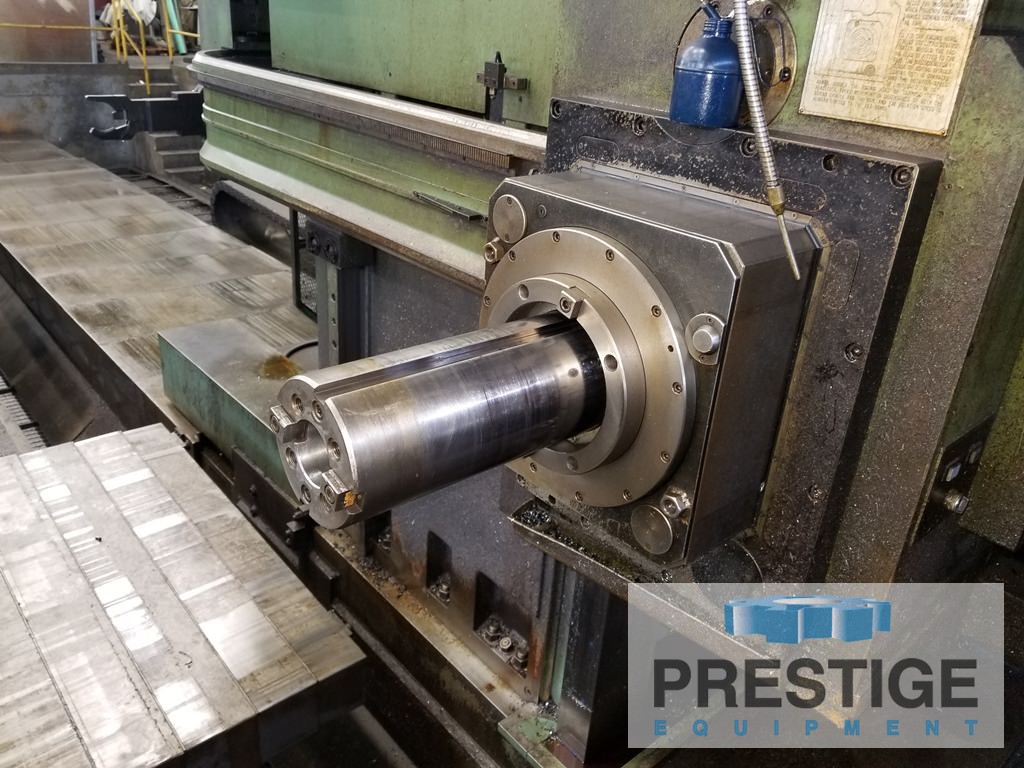

Spindle Diameter ...................... 6.3"
Vertical Head Travel, Y ............... 125.98"
Column Travel, X ...................... 472.44"
Ram Cross Section ..................... 16.53" x 18.89"
Ram Travel, Z-1 ....................... 35.43"
Spindle Travel, Z-2 ................... 35.43"
Combined Z1 & Z2 Travel ............... 70.86"
Spindle Speeds (3 Ranges) ............. 31-900 RPM
Spindle Taper ......................... ISO 50
Feedrate (X & Y Axes) ................. 236.22 IPM
Feedrate (Z-Axis) ..................... 157.48 IPM
Rapid Traverse (X/Y/Z Axes)............ 78.74 IPM

ROTARY TABLES
Number of Rotary Tables ............... 2
Make and Model ........................ PAMA TGN/2530
Table Size ............................ 98.42" x 118.11"
Table Rotation (B-Axis) ............... 360,000 Degrees
Table Infeed (W-Axis) ................. 78.74"
Table Capacity ........................ 88,000 Lbs.

EQUIPPED WITH:
Siemens CNC Control
60-Position Automatic Tool Changer

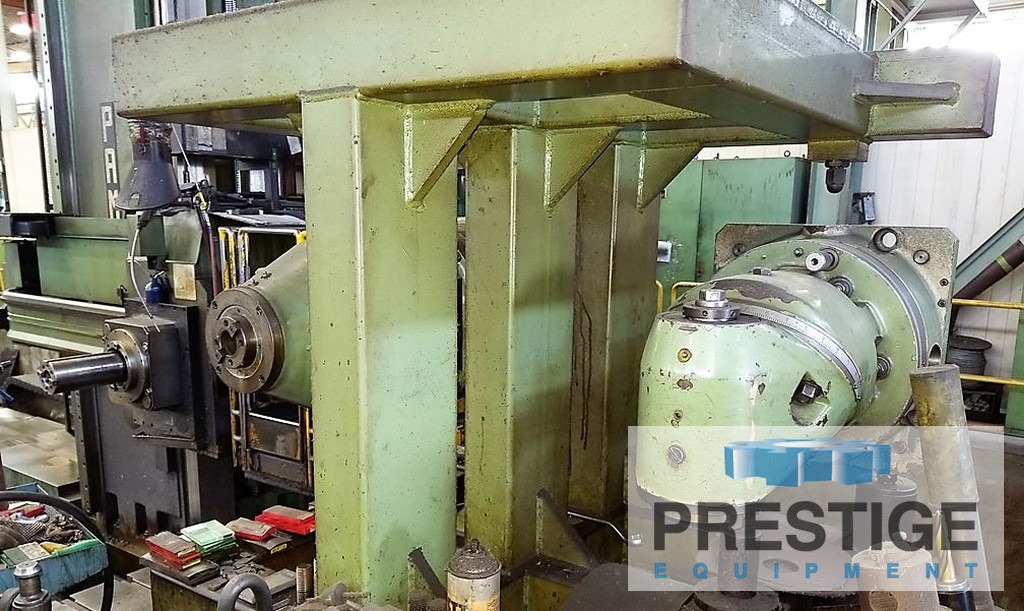

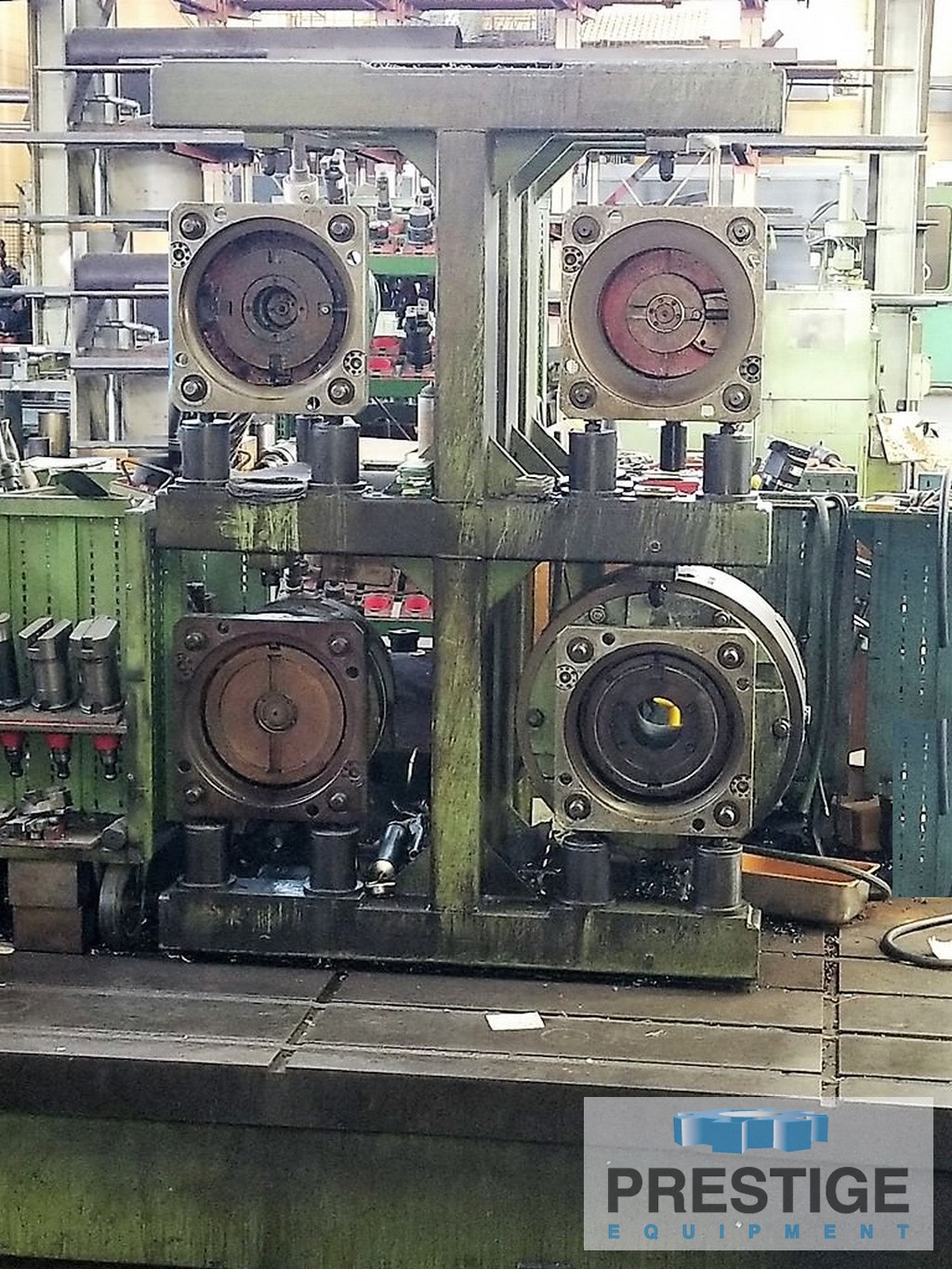

5-Station Head Attachment Tower

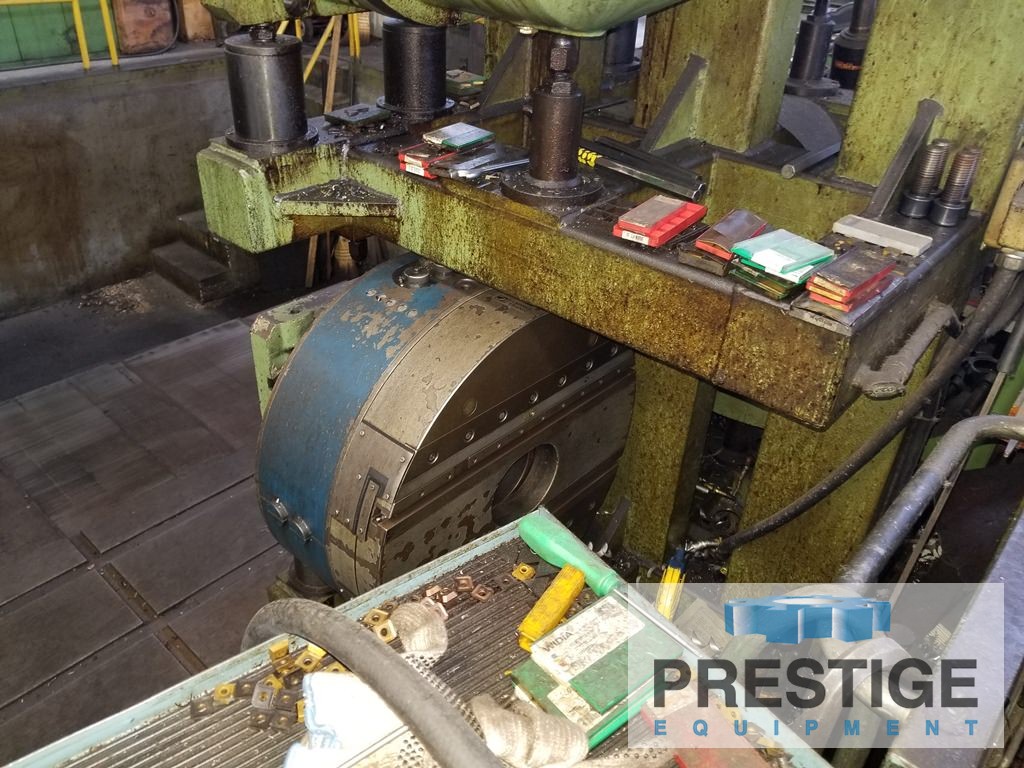

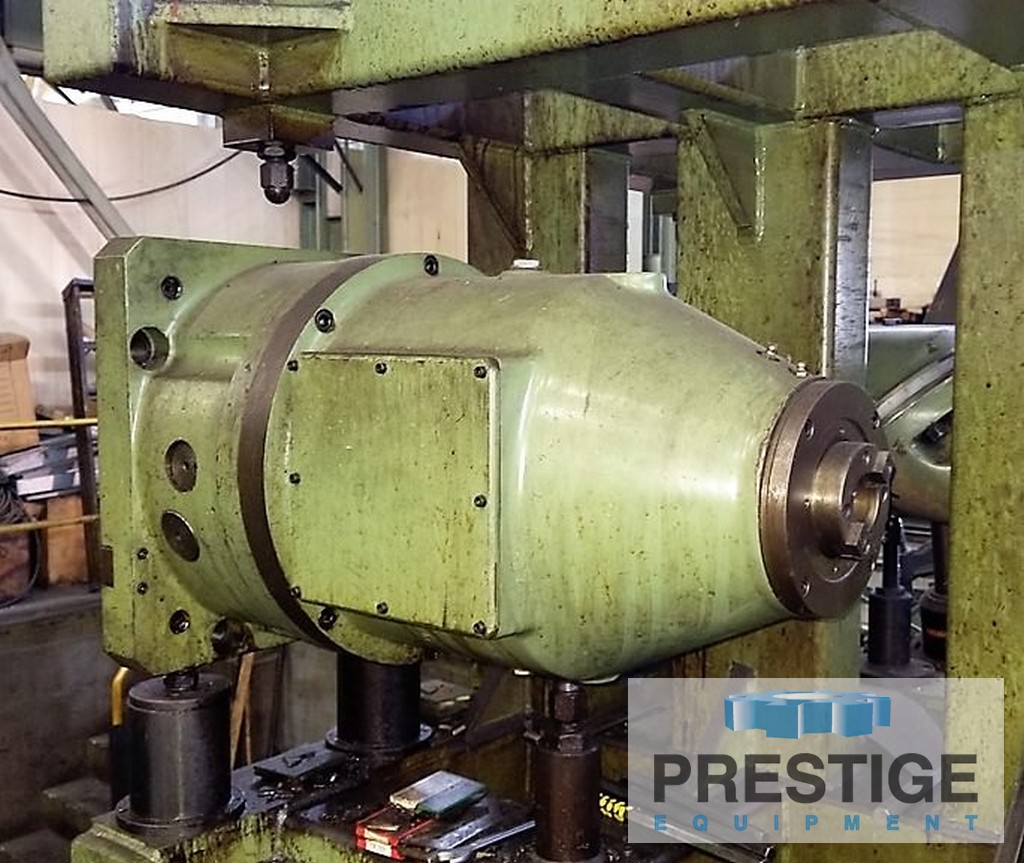

D'Andrea Facing Head, Universal Head, Vertical Head, Heavy Duty Head

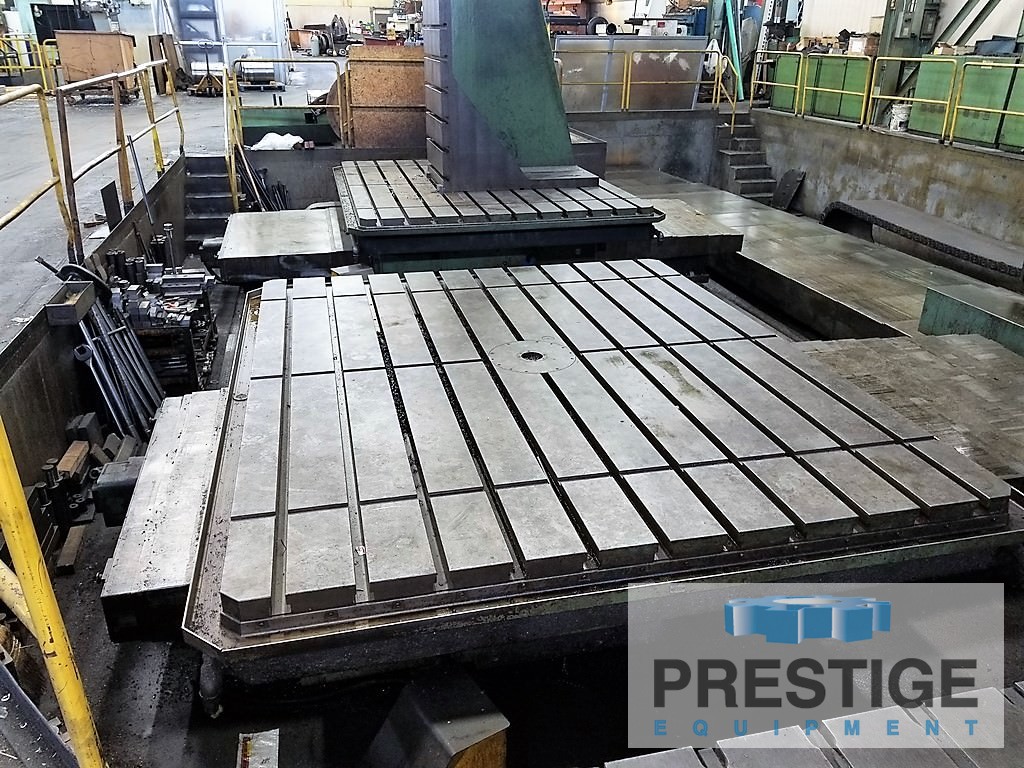

(2) 98.42 x 118.11" Infeeding Rotary Tables
118.11" x 118.11" T-Slotted Floor Plate
Chiller
Hydrostatic Guideways
Chip Conveyor
80 HP Spindle Motor
