Asquith RMD 16/60 6.3" CNC Ram Type, X-670", Y-157", Z-98" (Ram & Spindle), 85 HP, GE CNC, #43590

Manufacturer

ASQUITH

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

43590

Model

RMD 16/60

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43590

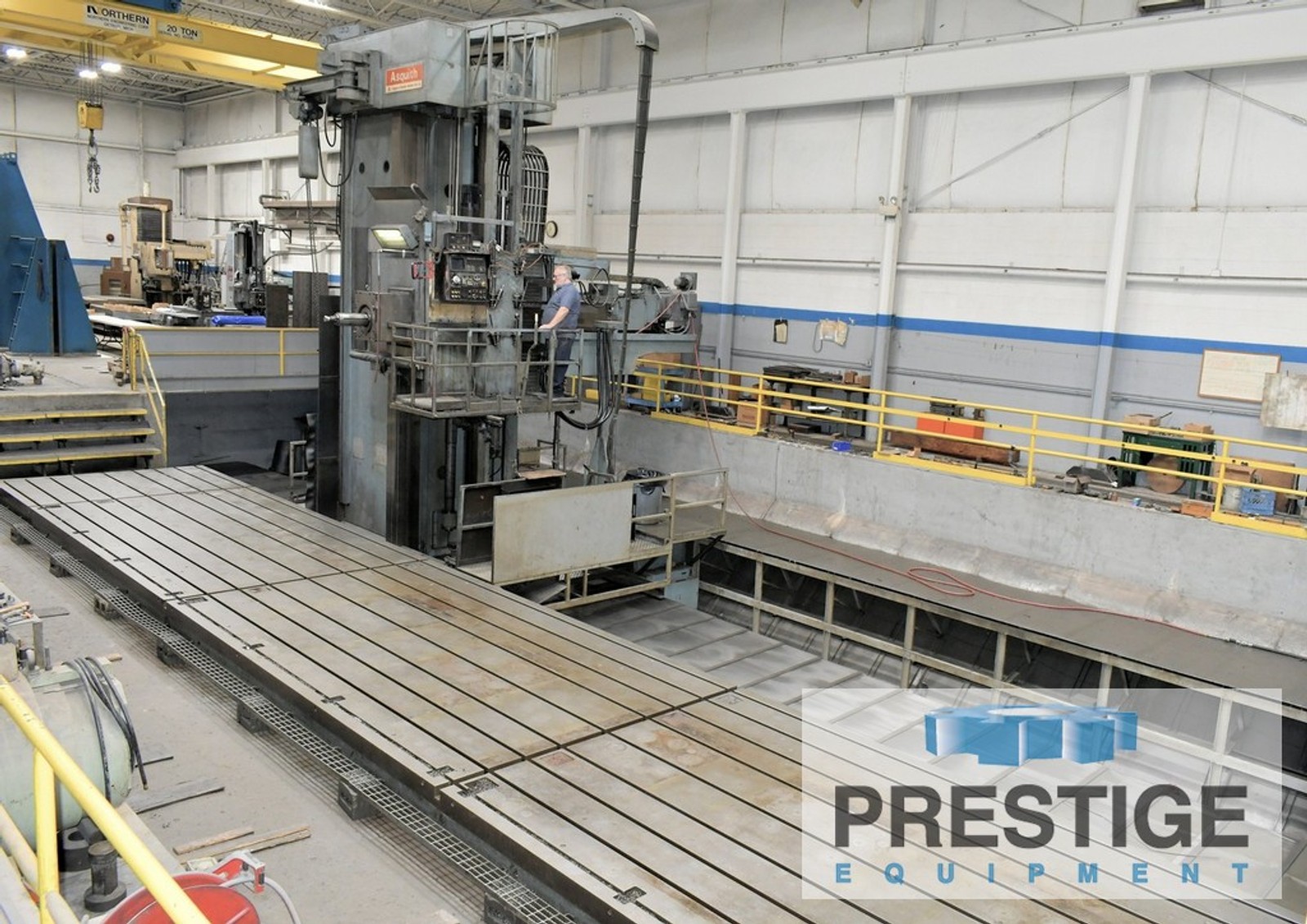

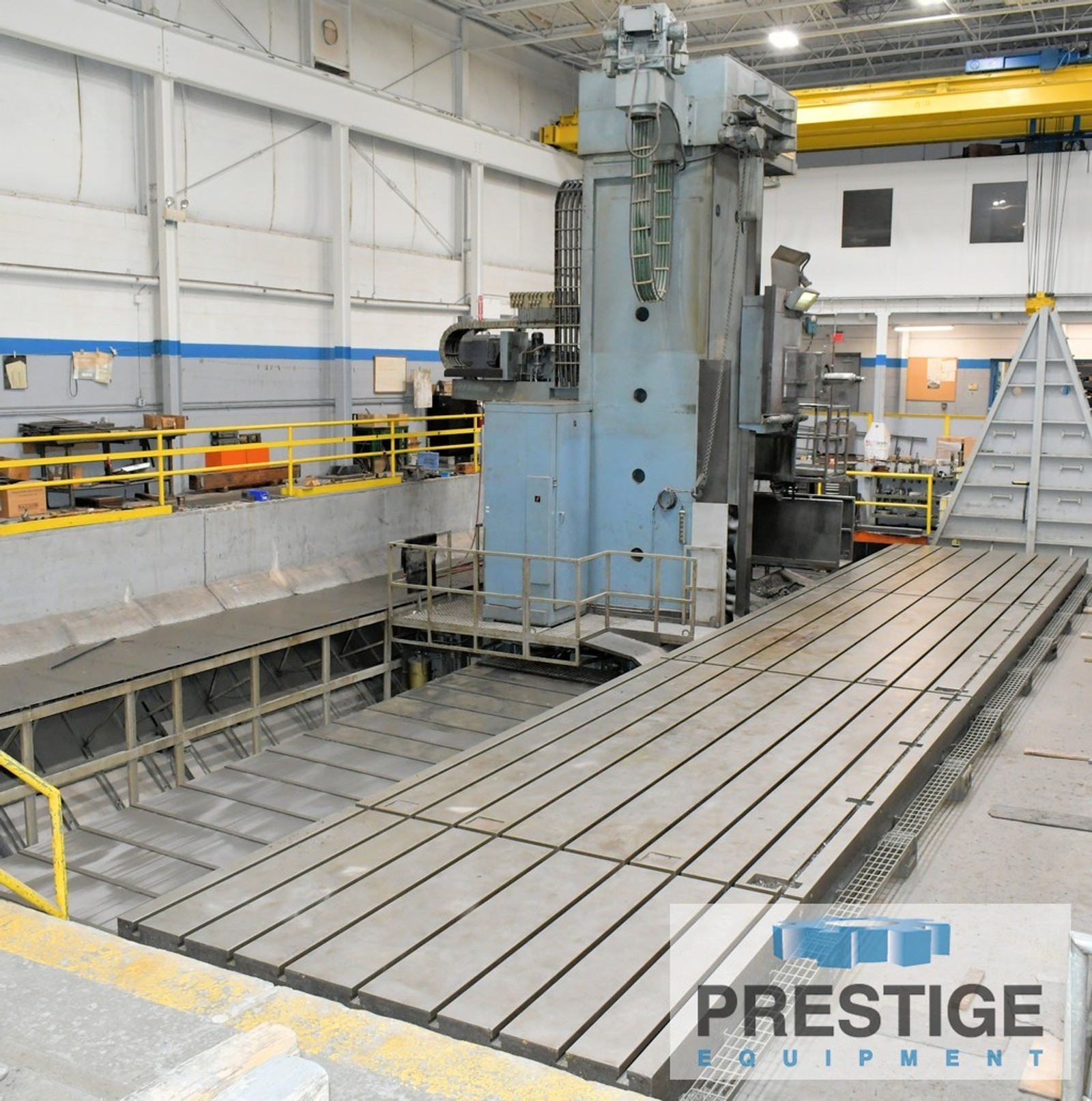

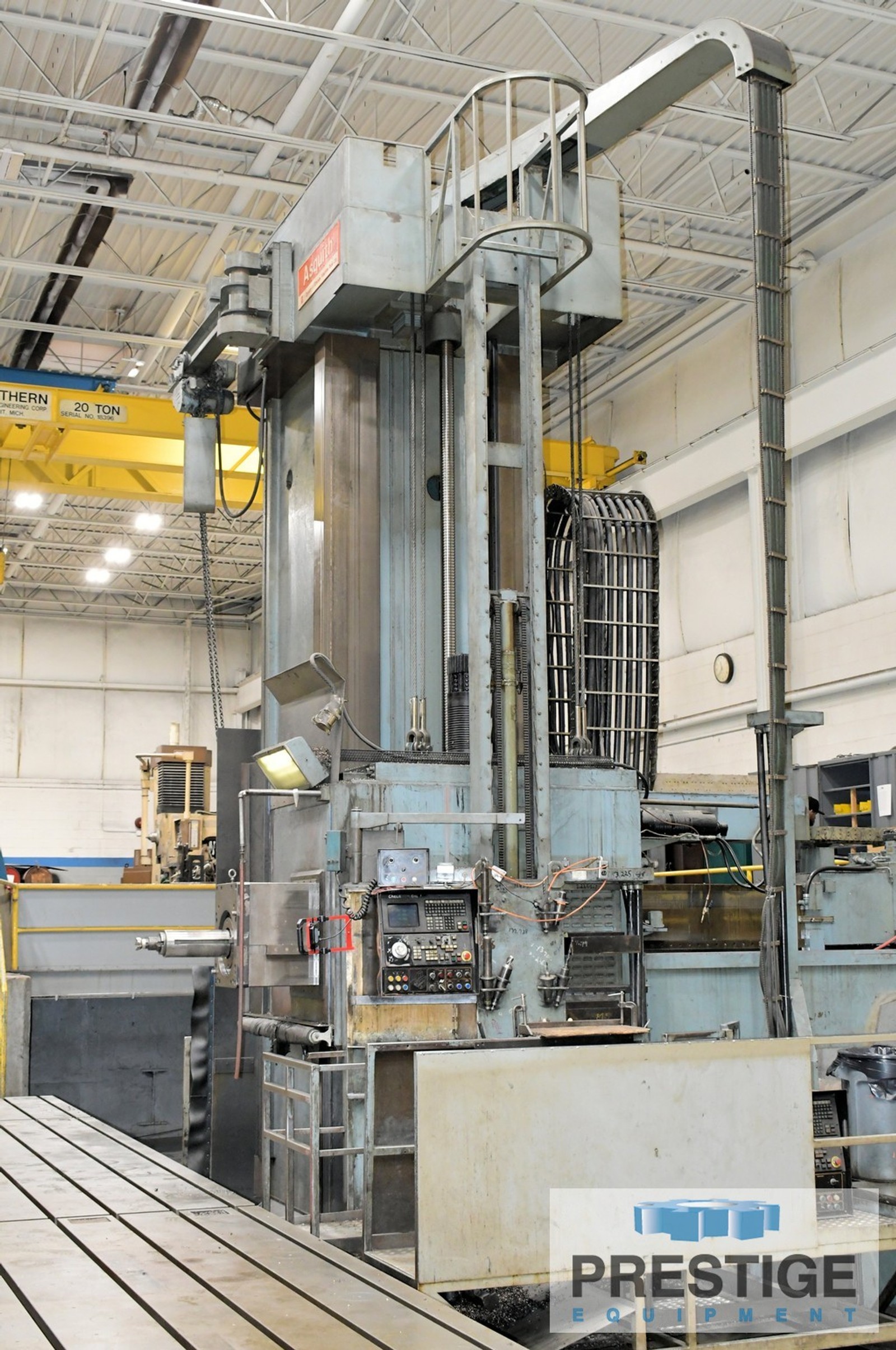

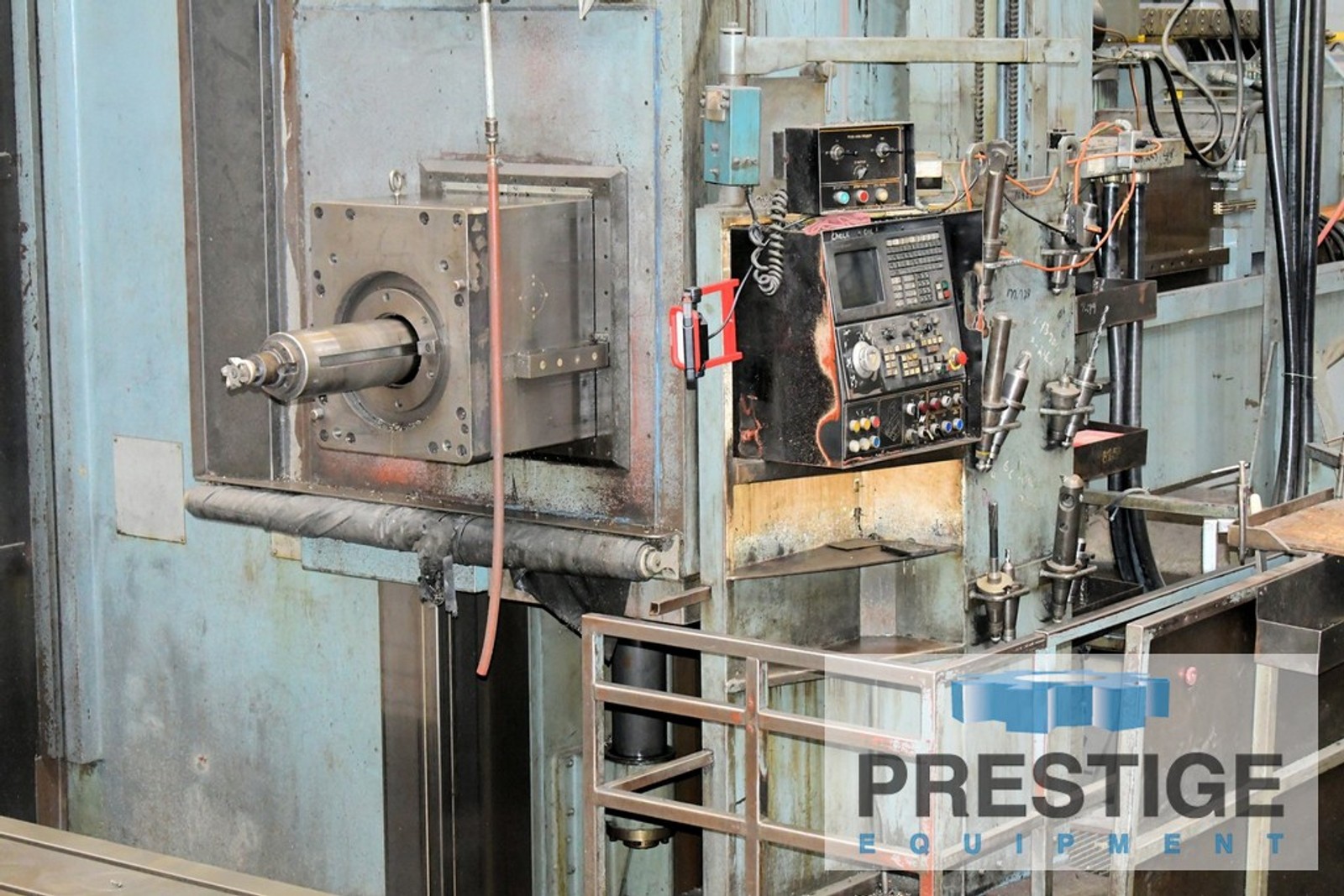

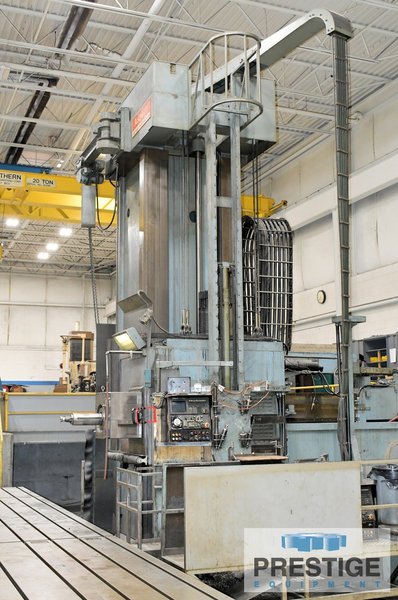

Asquith RMD 16/60 6.3" Ram Type CNC Travelling Column Horizontal Boring Mill

FEATURES:

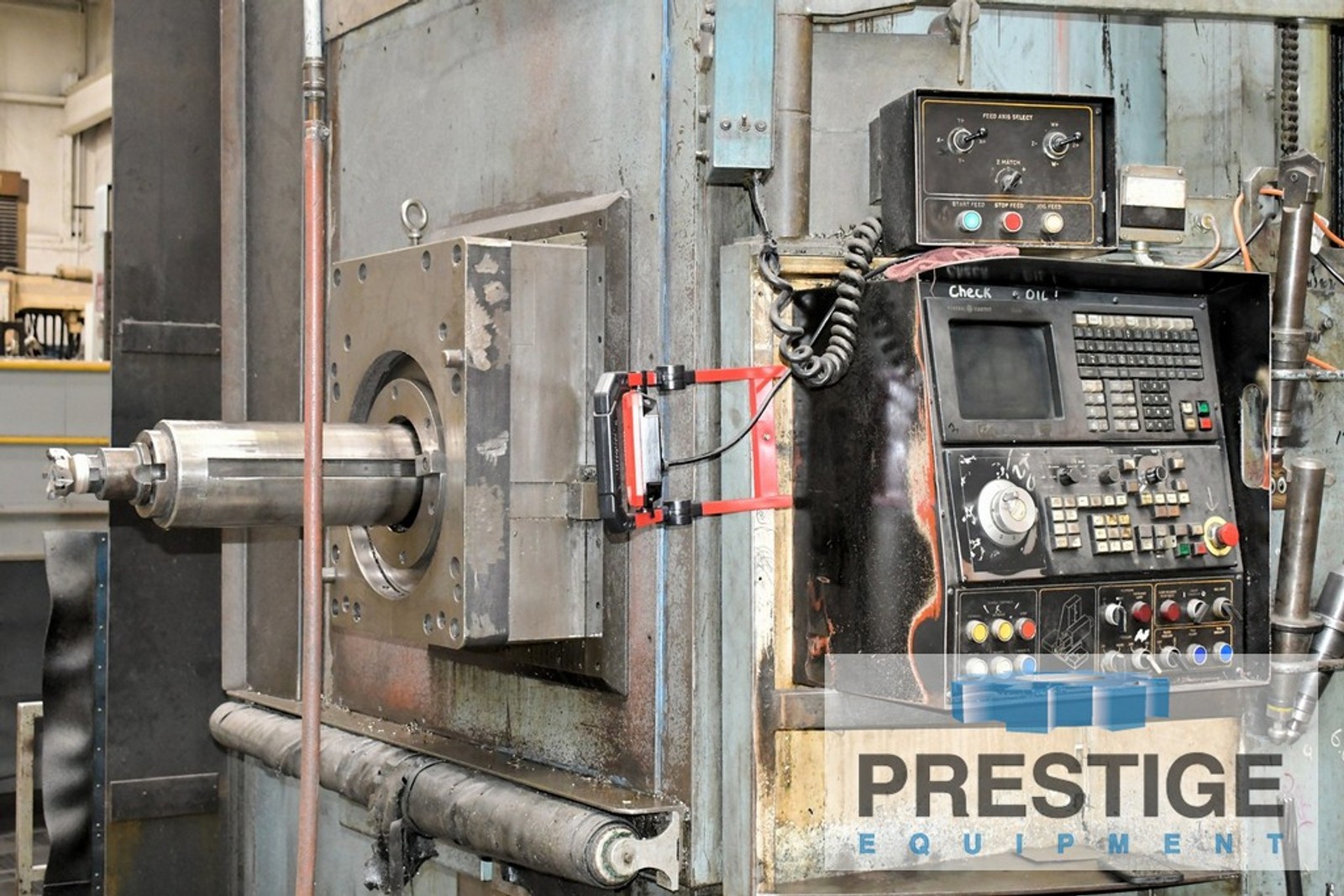

GE CNC Control
Boring & Facing Head

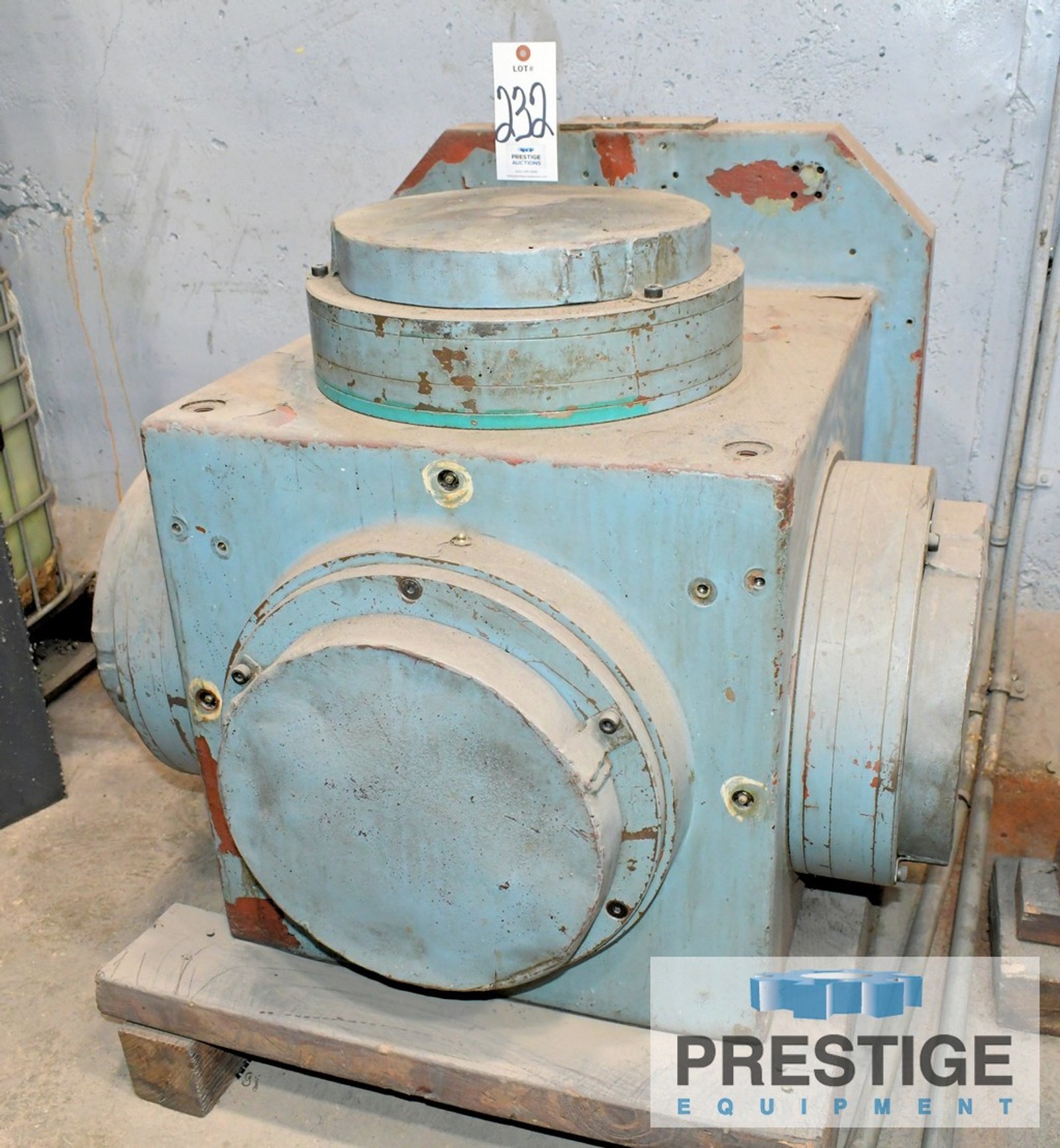

Right Angle Head

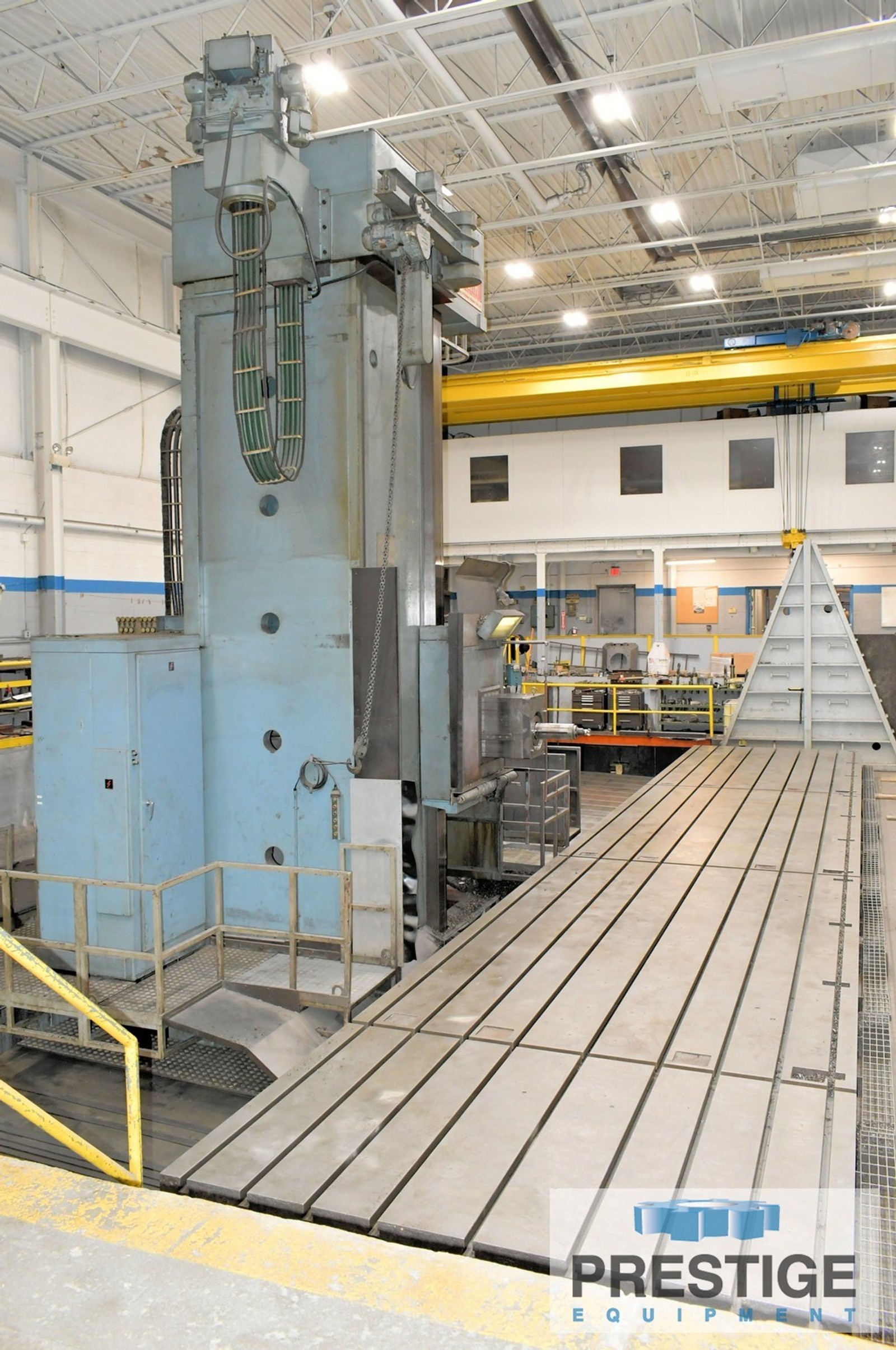

(3) 118.11" x 196.48 x 15" T-Slotted Floor Plates

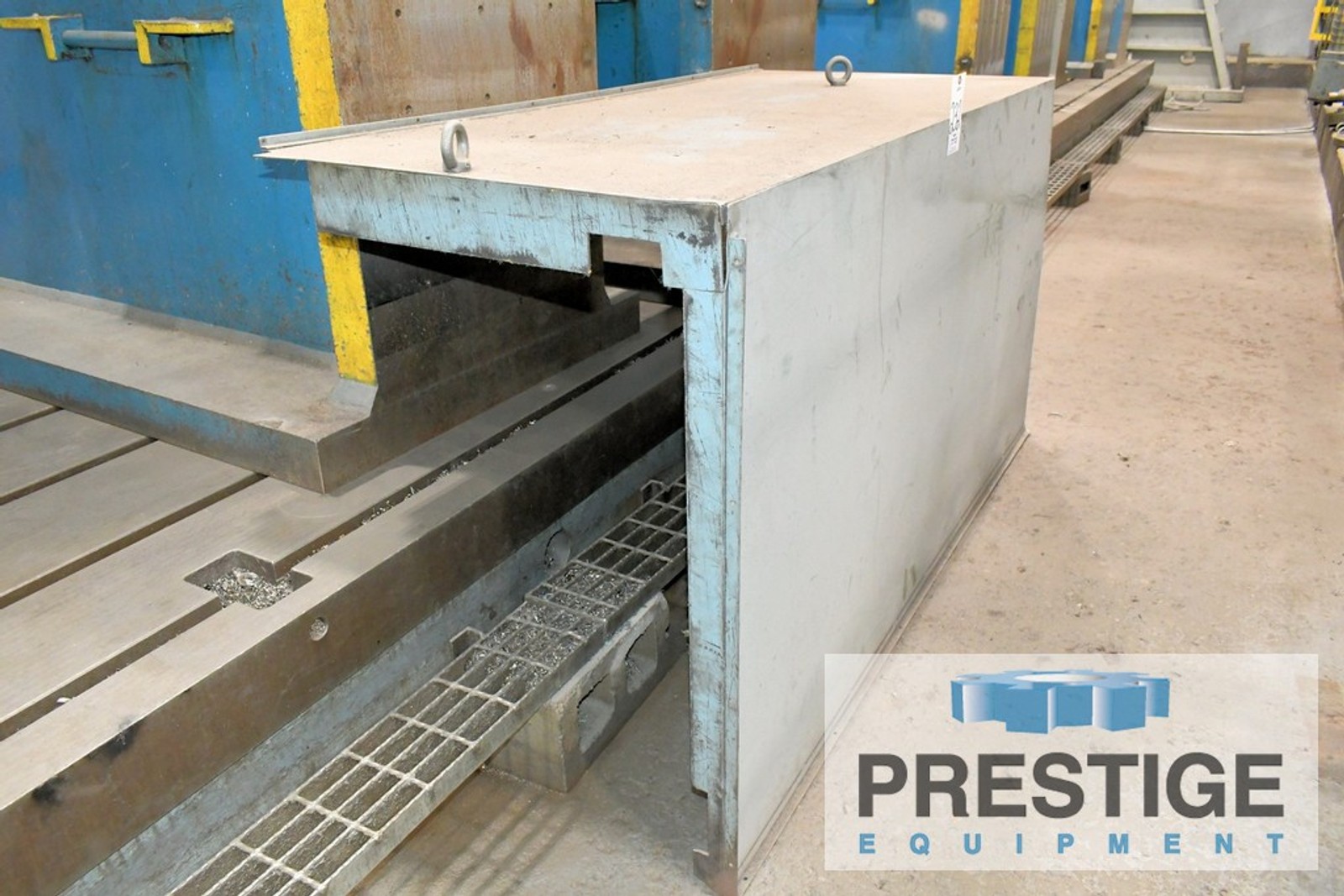

(6) 171" Tall Angle Plates

SPECIFICATIONS:
Spindle Diameter ...................... 6.3"
Milling Sleeve Flange Diameter ........ 11.81"

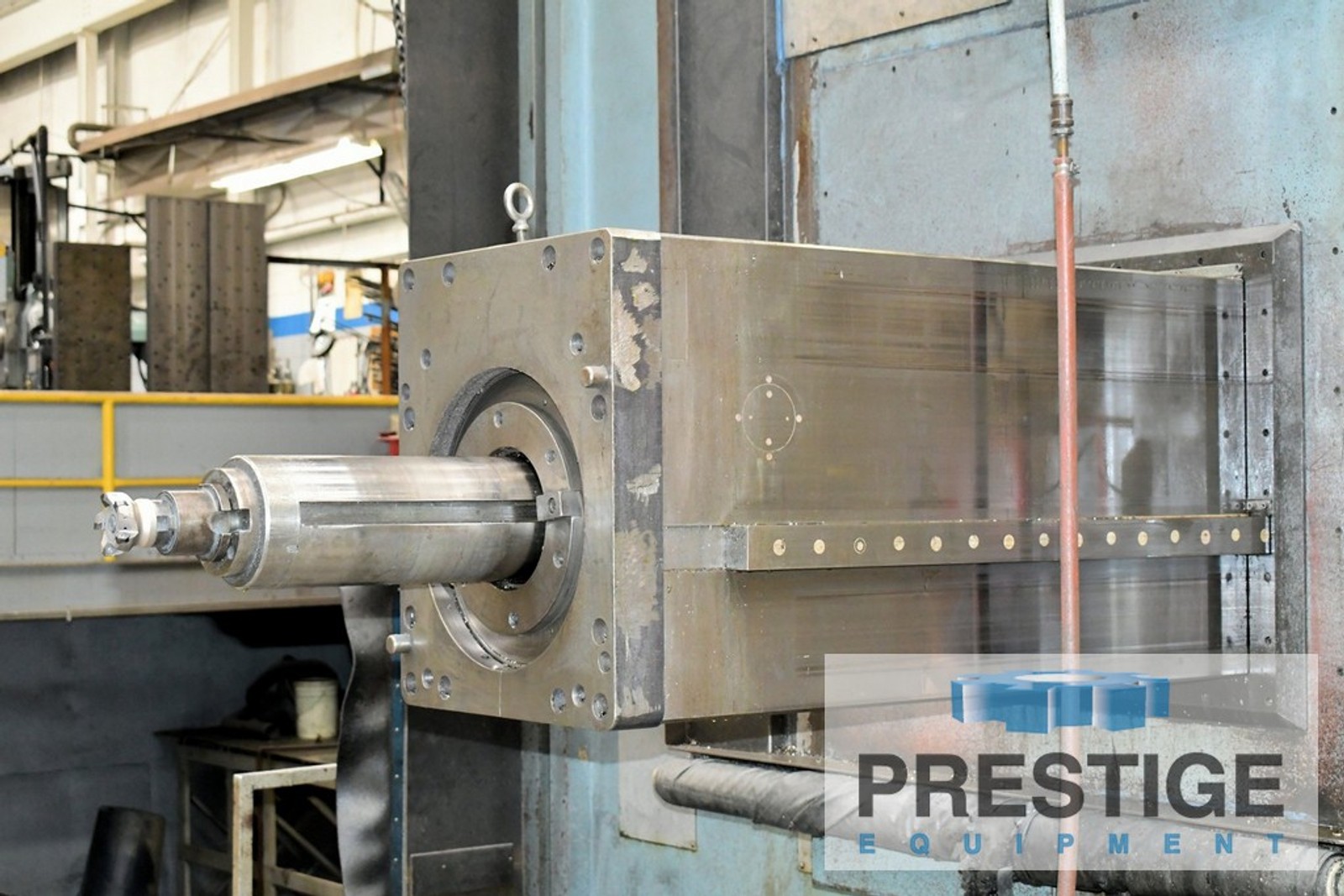

Ram Dimensions ........................ 19.68" X 23.62"
Spindle Taper ......................... #50 ISO
X-Axis, Column Travel X-Axis .......... 669.29"
Y-Axis, Vertical Head Travel .......... 157.48
Z-Axis, Spindle Travel ................ 39.37"
W-Axis, Ram Travel .................... 59.05"
Combined Travel, Z & W Axis ........... 98.42"
Spindle Speeds ........................ 4-Ranges
Spindle End Thrust .................... 5900 kgf
Spindle Speeds, Infinitely Variable ... 2.8-810 RPM
Rapid Traverse, All Axes .............. 196.85 IPM
Feeds, All Axes, Infinitely Variable .. 0.0393 to 118.11 IPM
Main Drive Motor ...................... 85 HP
Machine Weight ........................ 304,237 Lbs

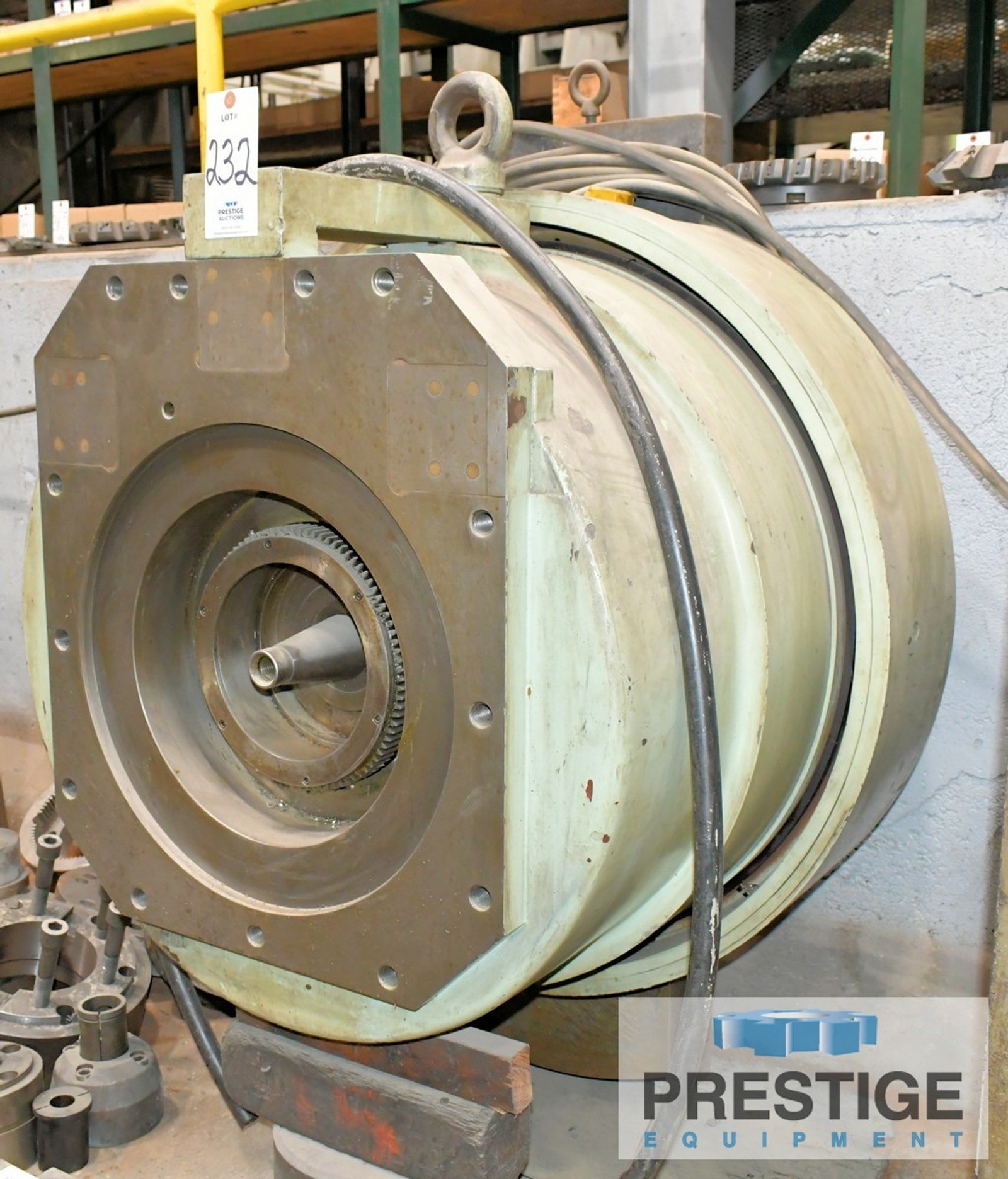

FACING HEAD:
Facing Head Diameter .................. 39.37"
Stroke of Cross Slide ................. 7.87"
Boring Capacity ....................... 58.26"
Facing Capacity ....................... 54.33"
Feed Range ............................ 0.196 to 19.68 IPM
Speed Range, Inf. Variable ............ 1-200 RPM

RIGHT ANGLE MILLING ATTACHMENT:
Spindle Nose Taper ..................... No 50 ISO
Power .................................. 75 HP @100 RPM

ADDITIONAL ATTACHMENTS:

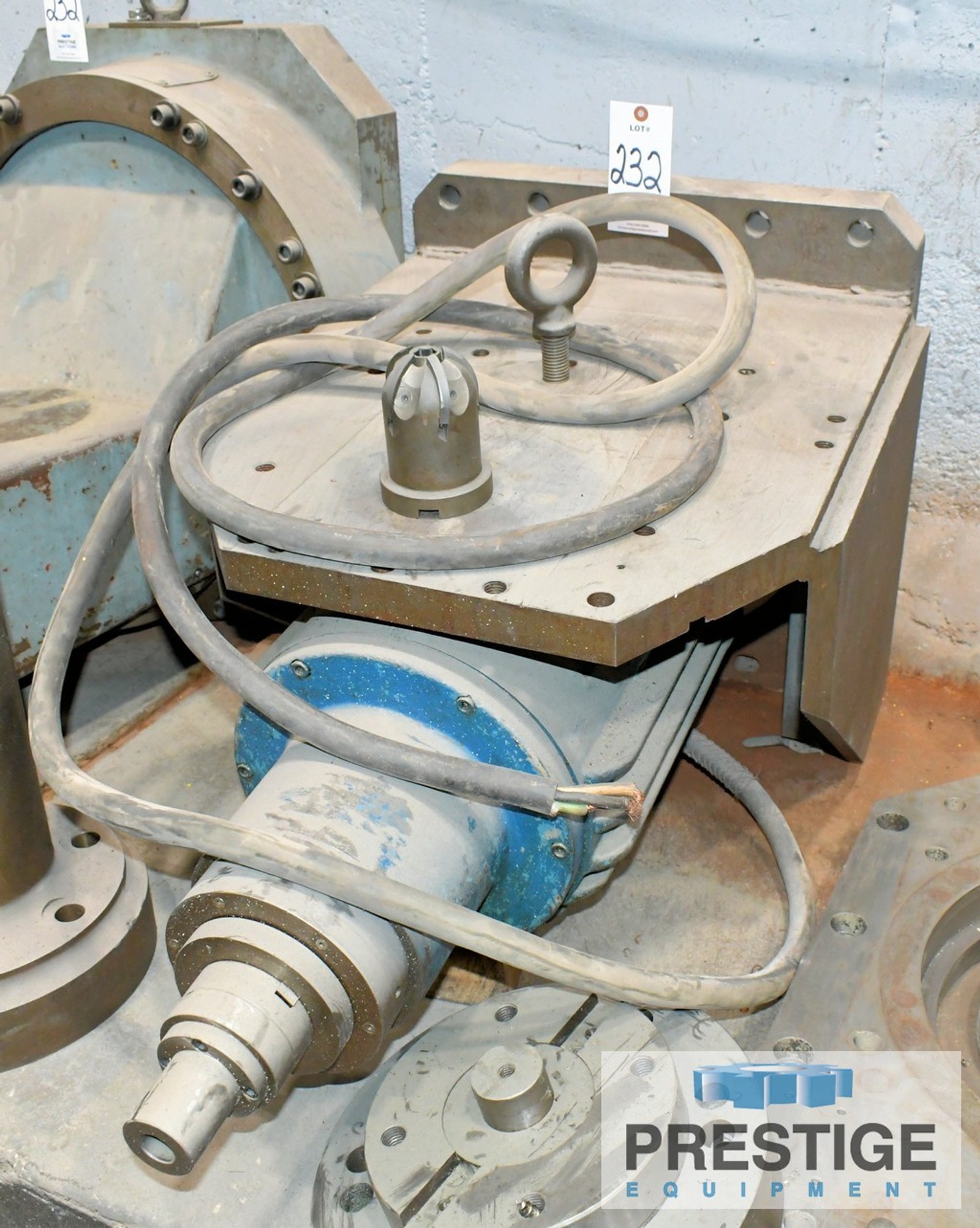

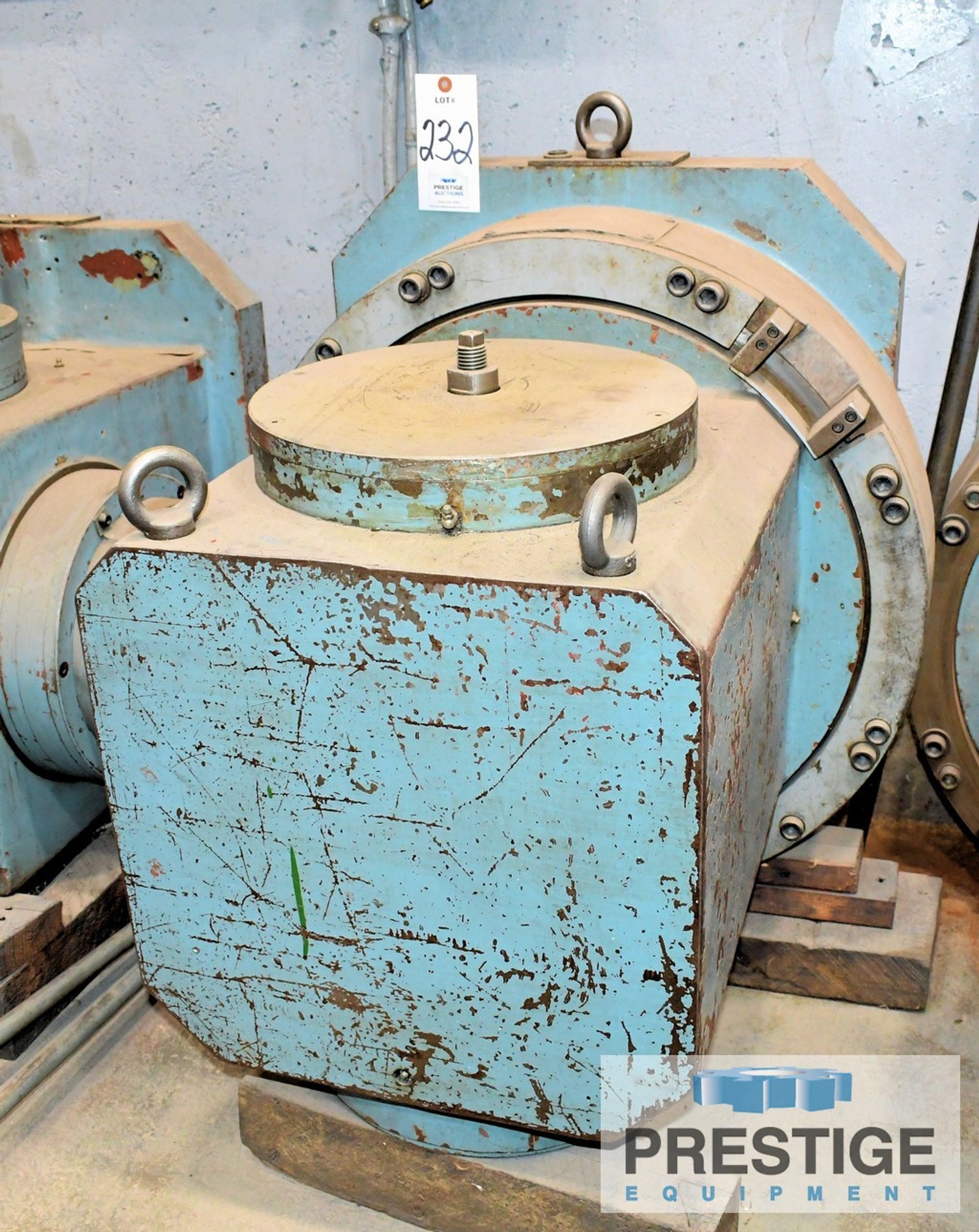

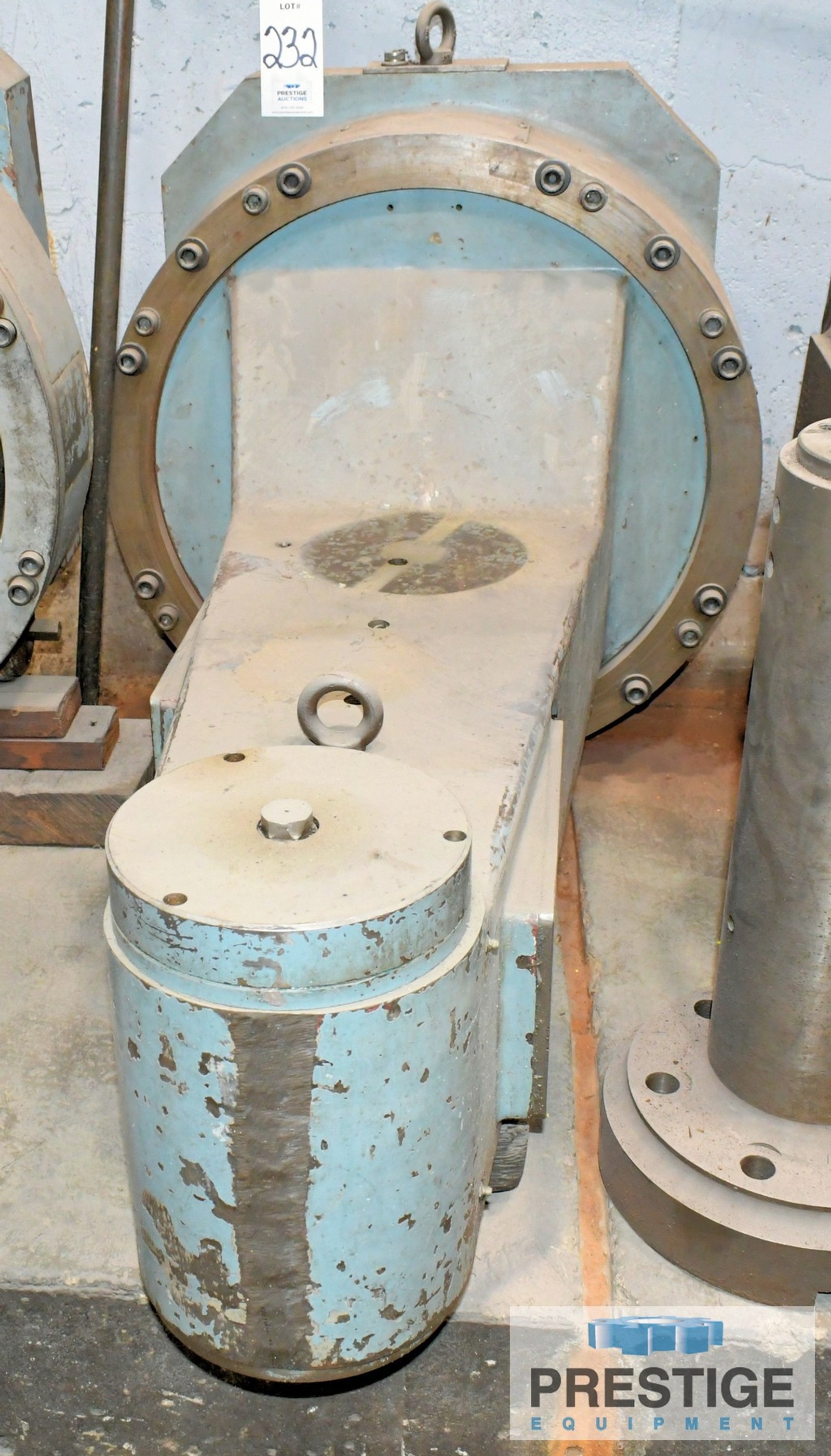

Heavy Duty Right Angle Head

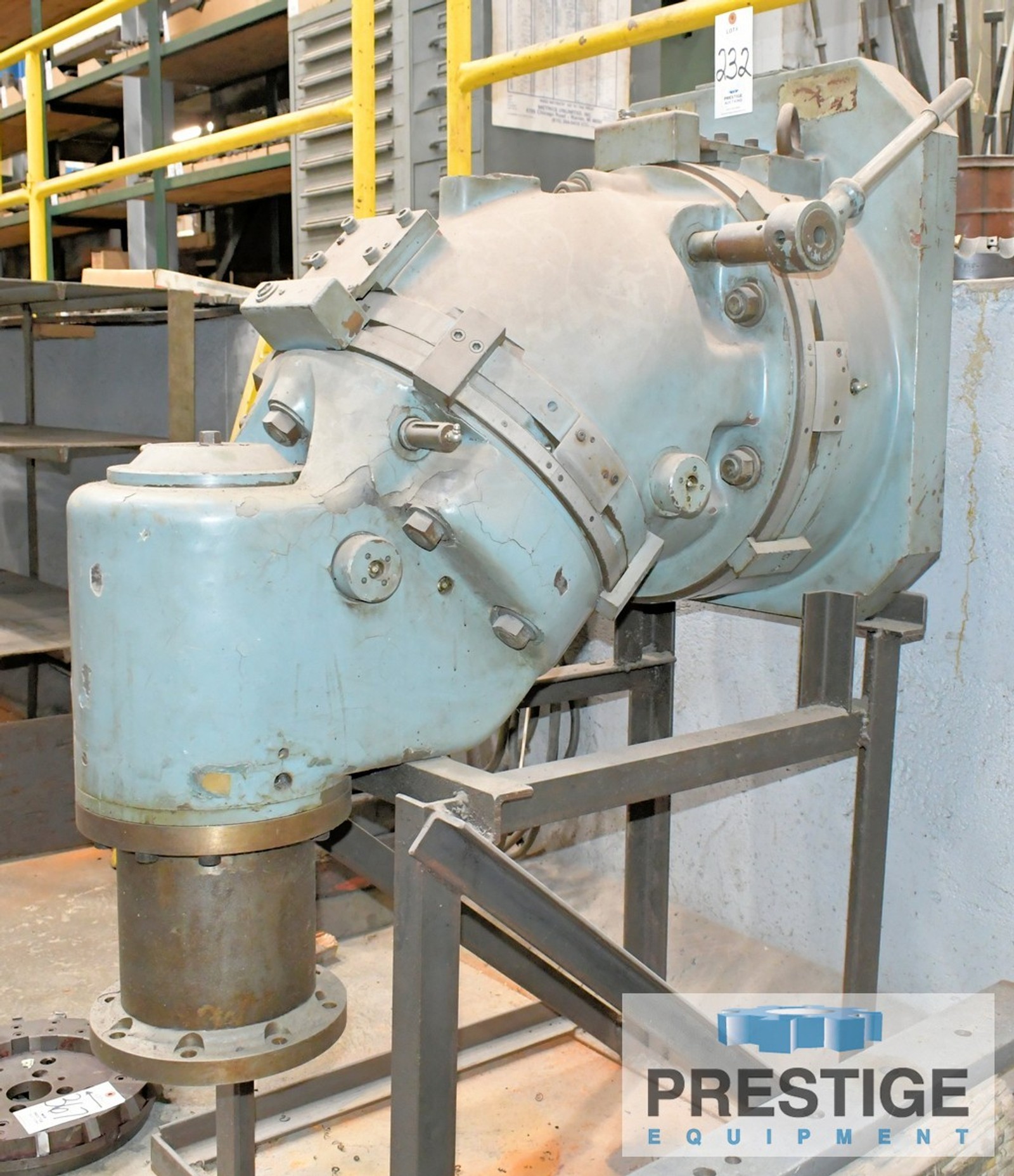

Universal Milling Attachment

EQUIPPED WITH:

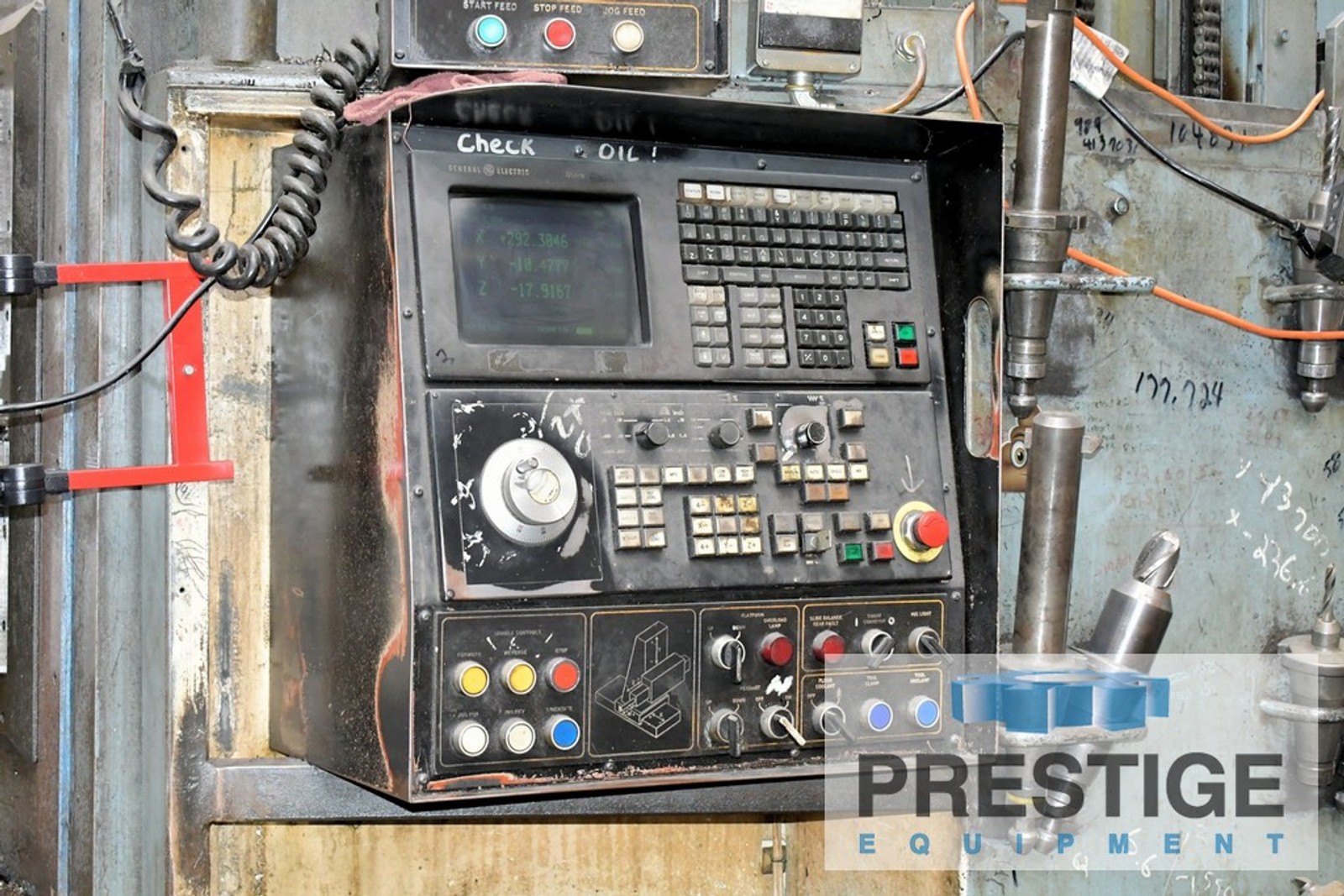

GE CNC Control
Power Adjustable Pendant Control
Right Angle Milling Head
Power Tool Lock & Eject

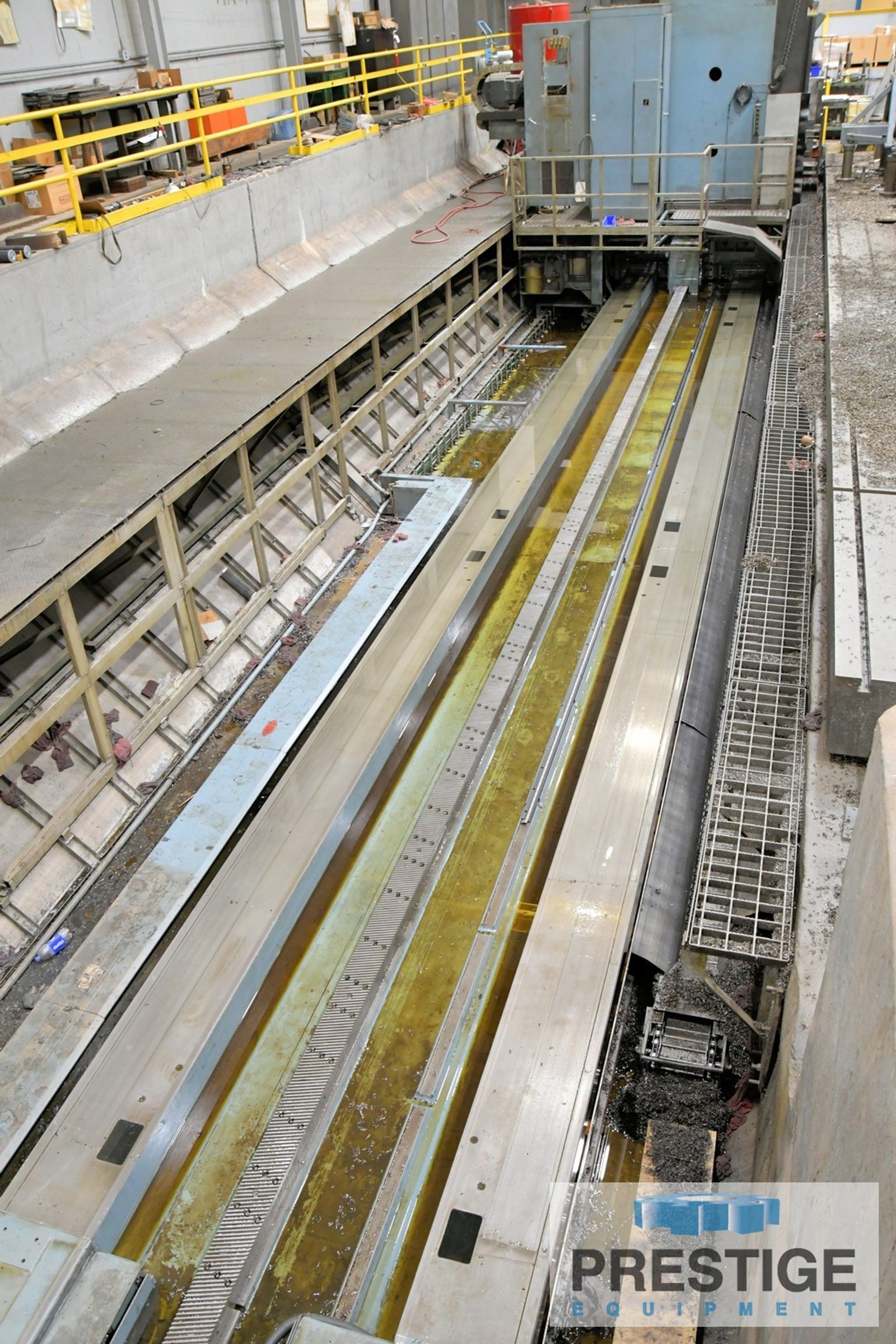

Telescoping Steel Way Covers On X-Axis

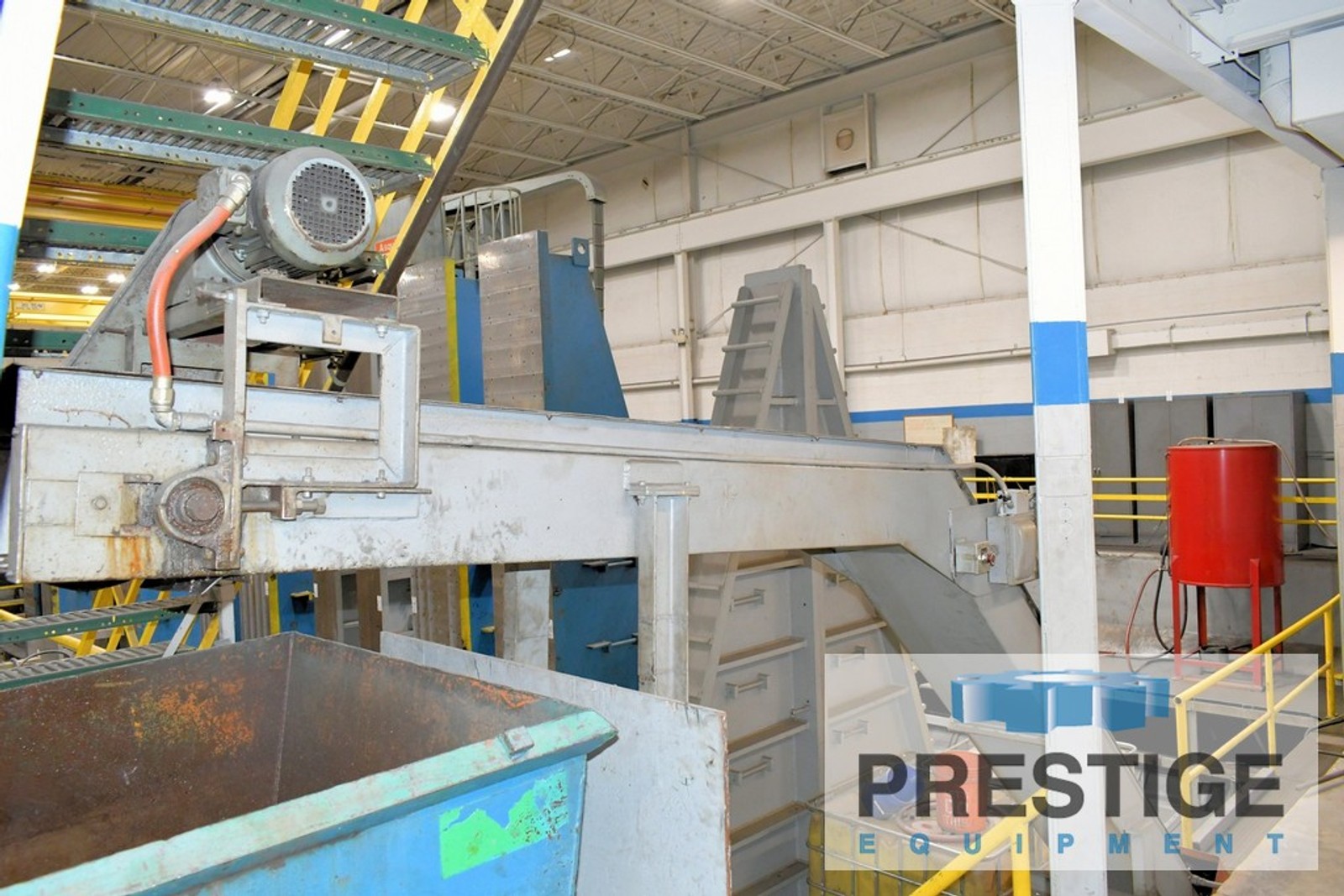

Chip Conveyor

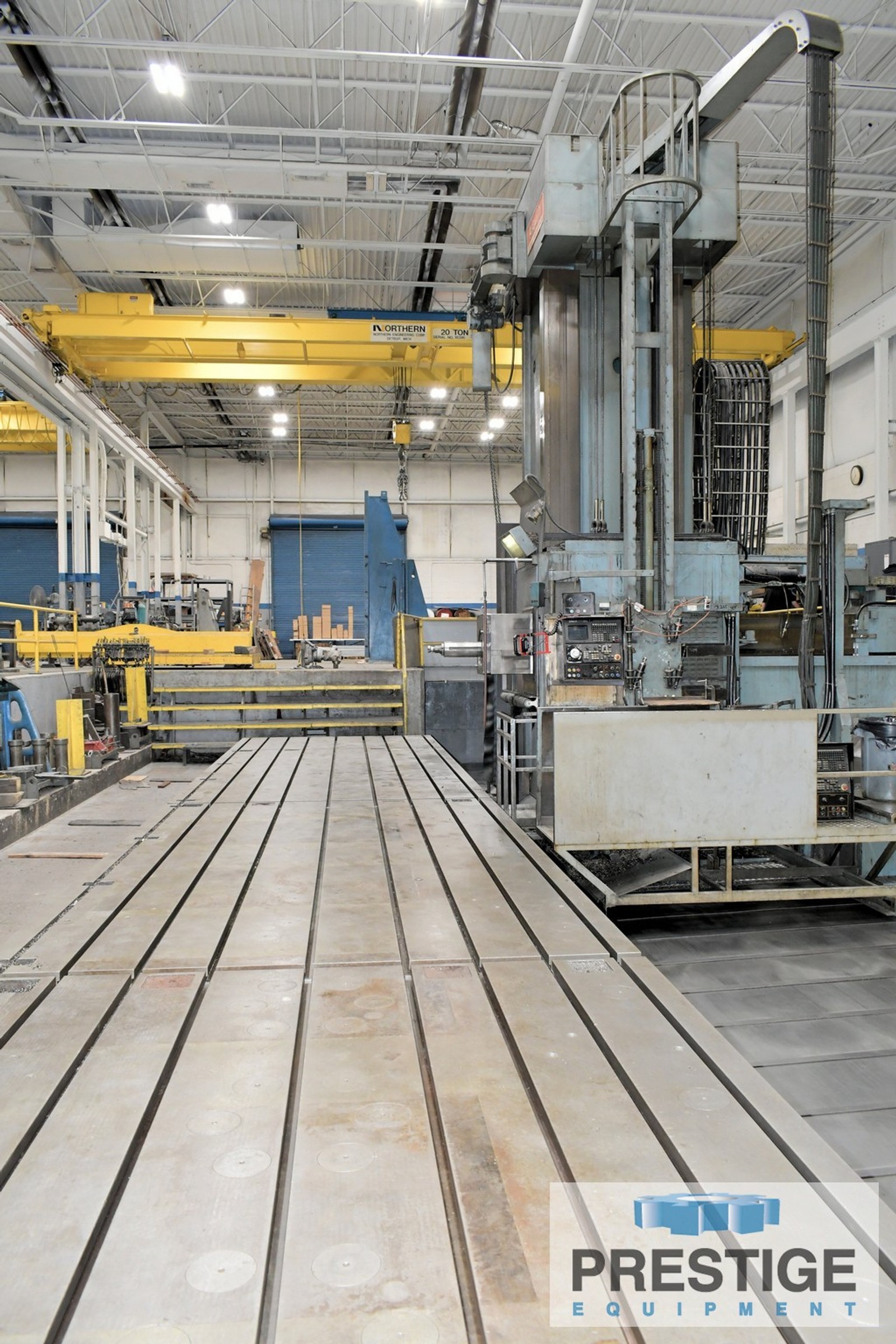

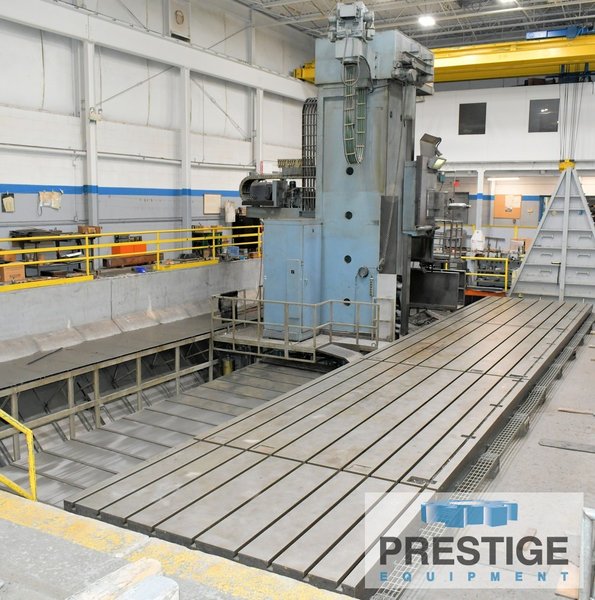

118" x 590" T-Slotted Floor Plates

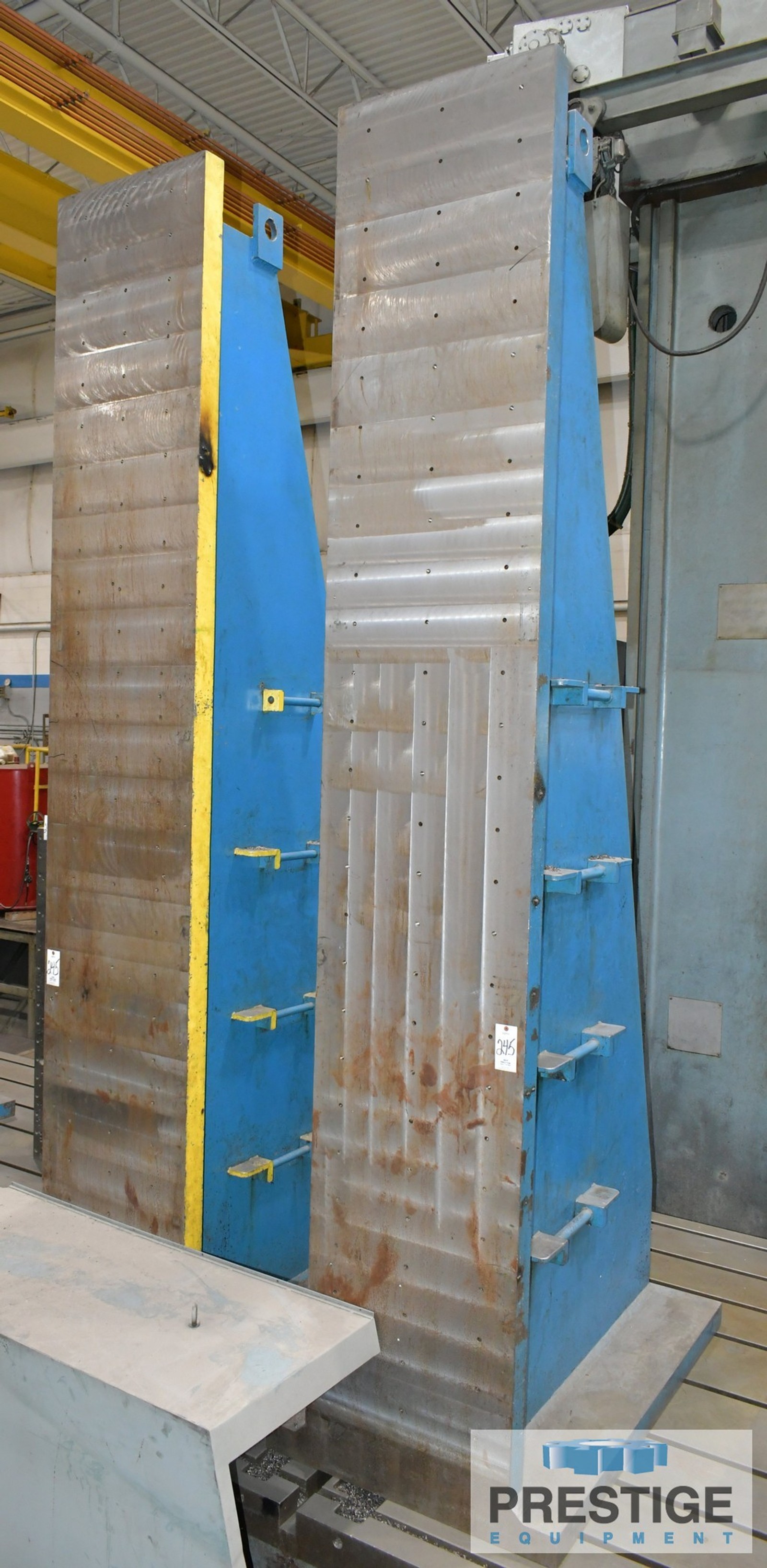

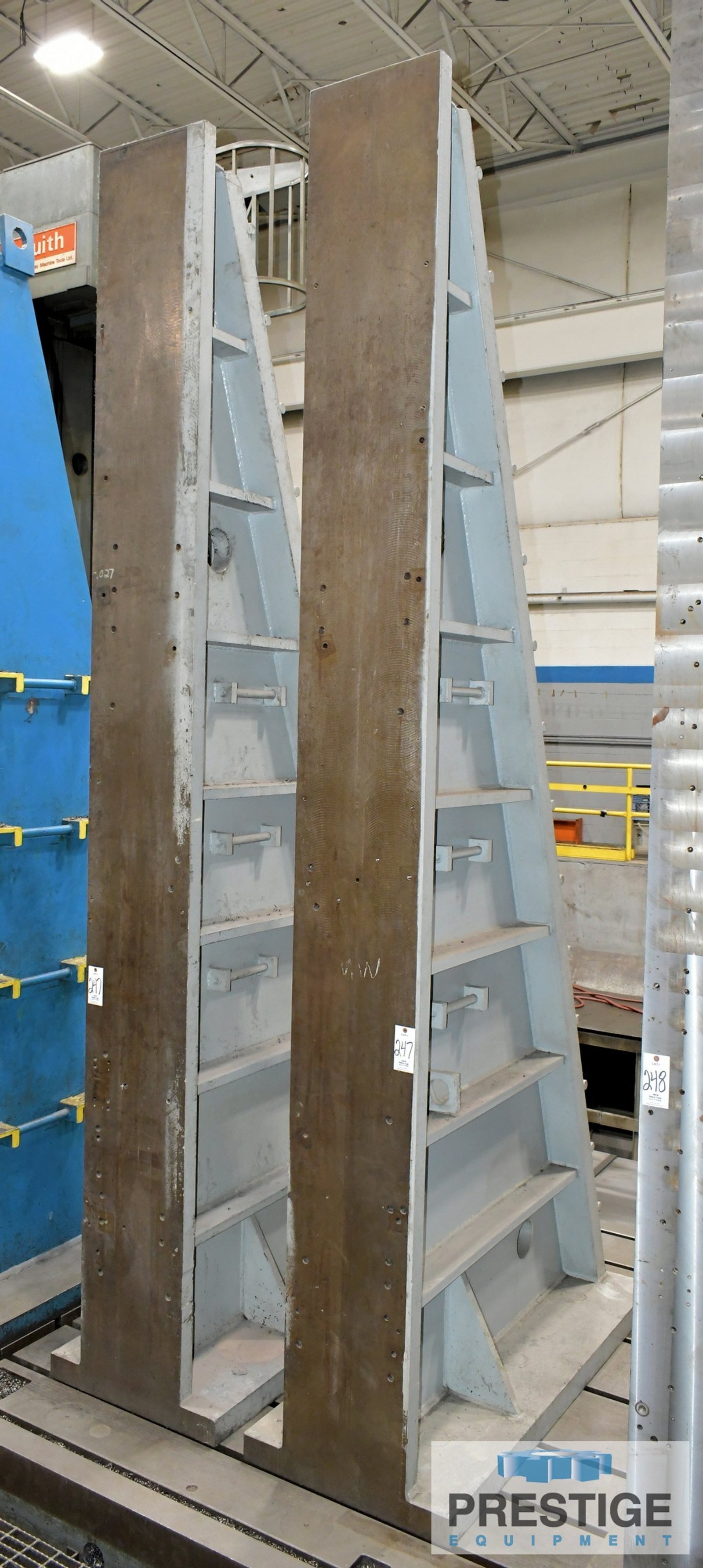

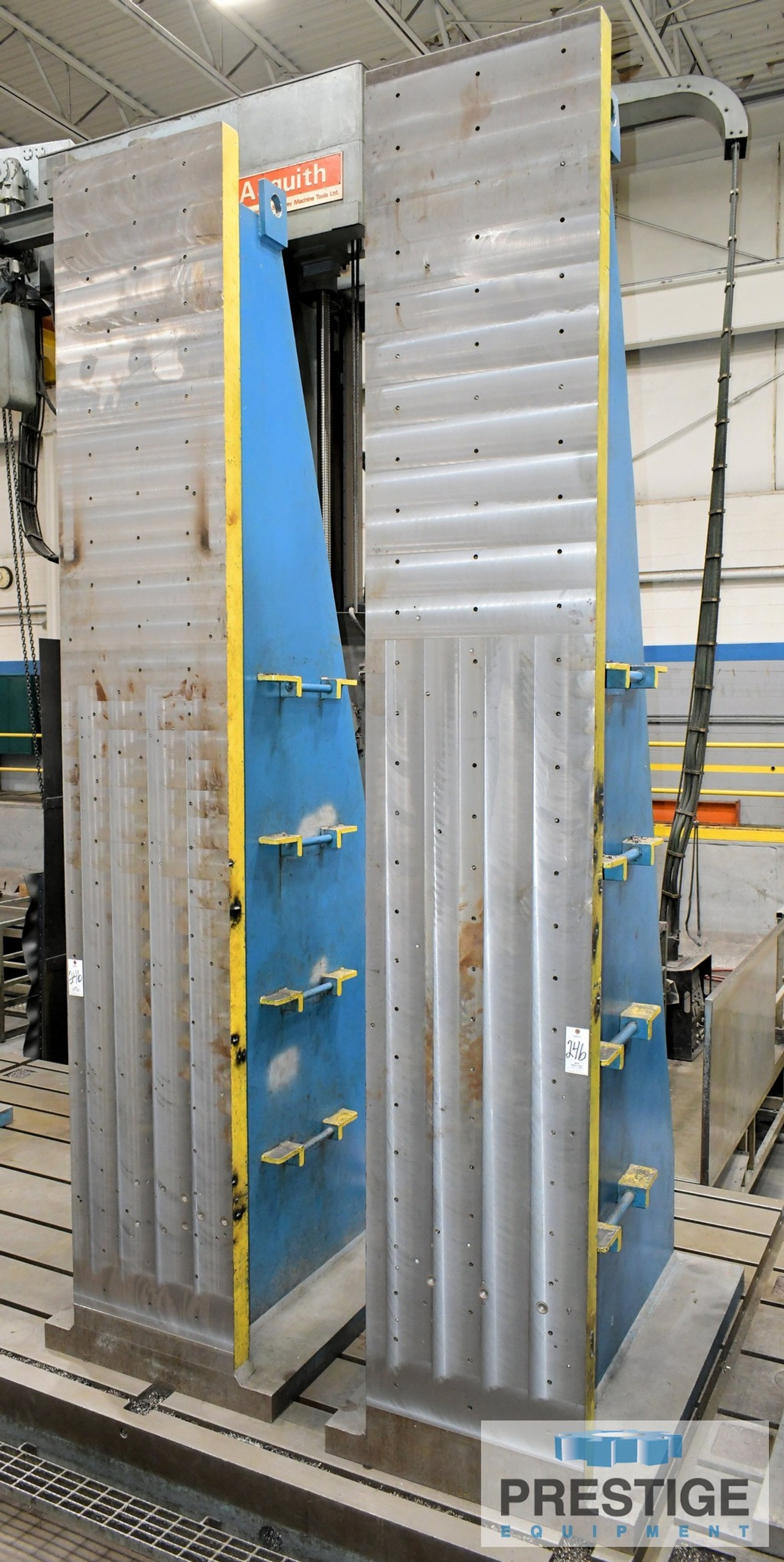

(4) 171.5" x 28.5" Angle Plates
(2) 171.5" x 18" Angle Plates
85 HP Main Drive Motor

Machine Weight:304,237 Lbs

NOTES:
Inspect Under Power

No Video Available
