Makino A-92, X-59, Y-49", Z-53", ATC, 40 HP, TSC, Pro-5 CNC #43243

Manufacturer

MAKINO

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

43243

Model

A-92

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43243

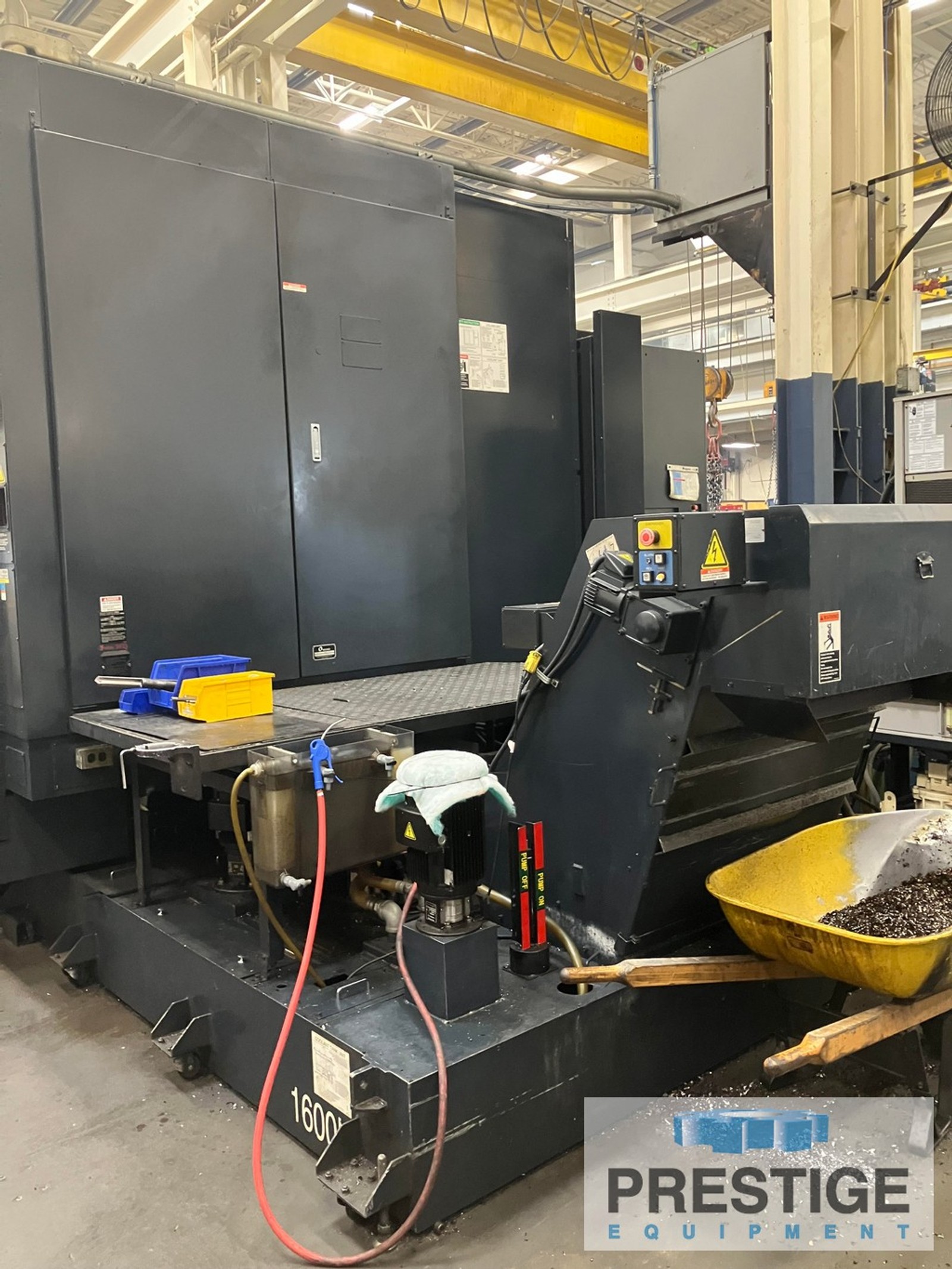

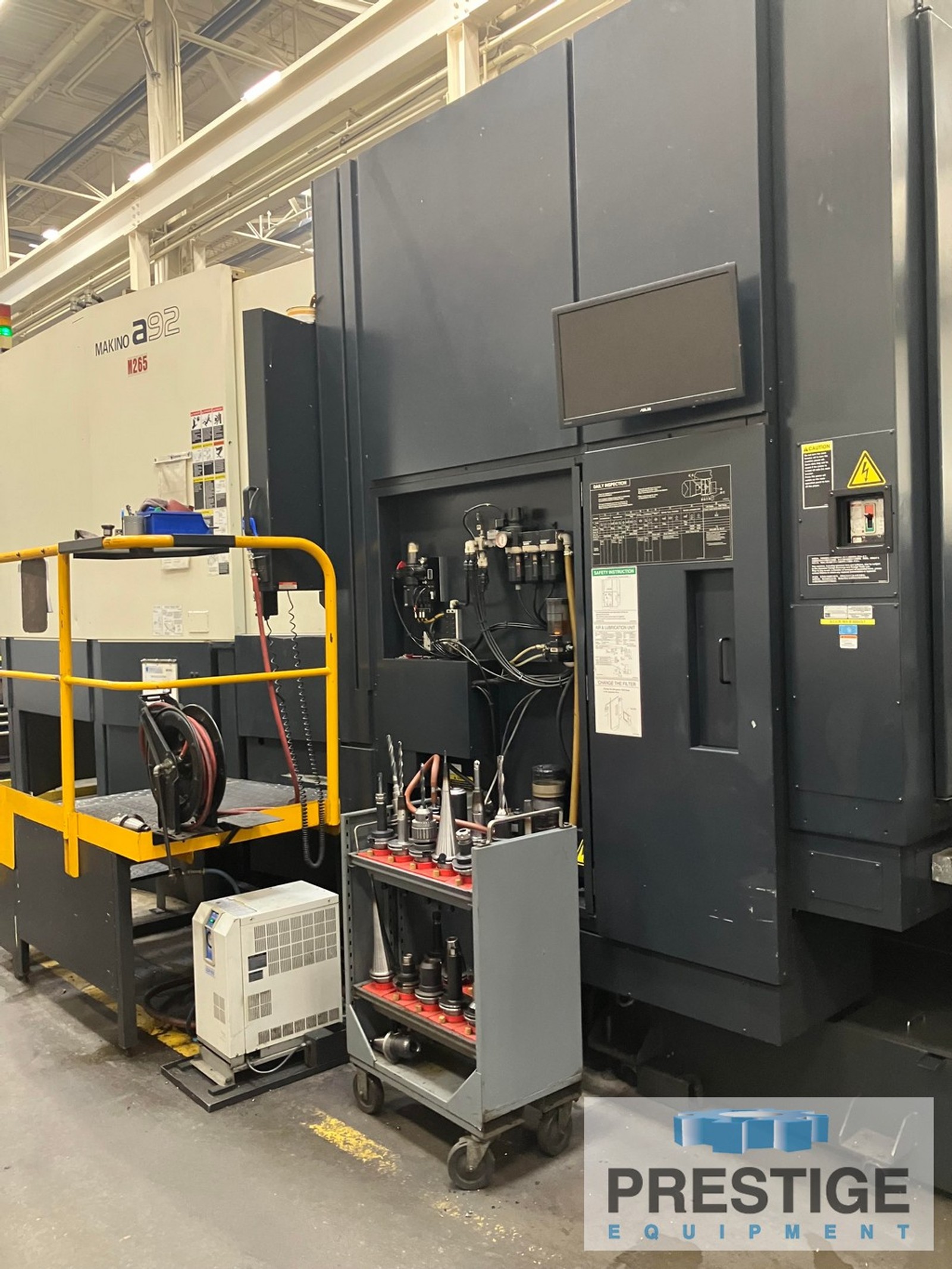

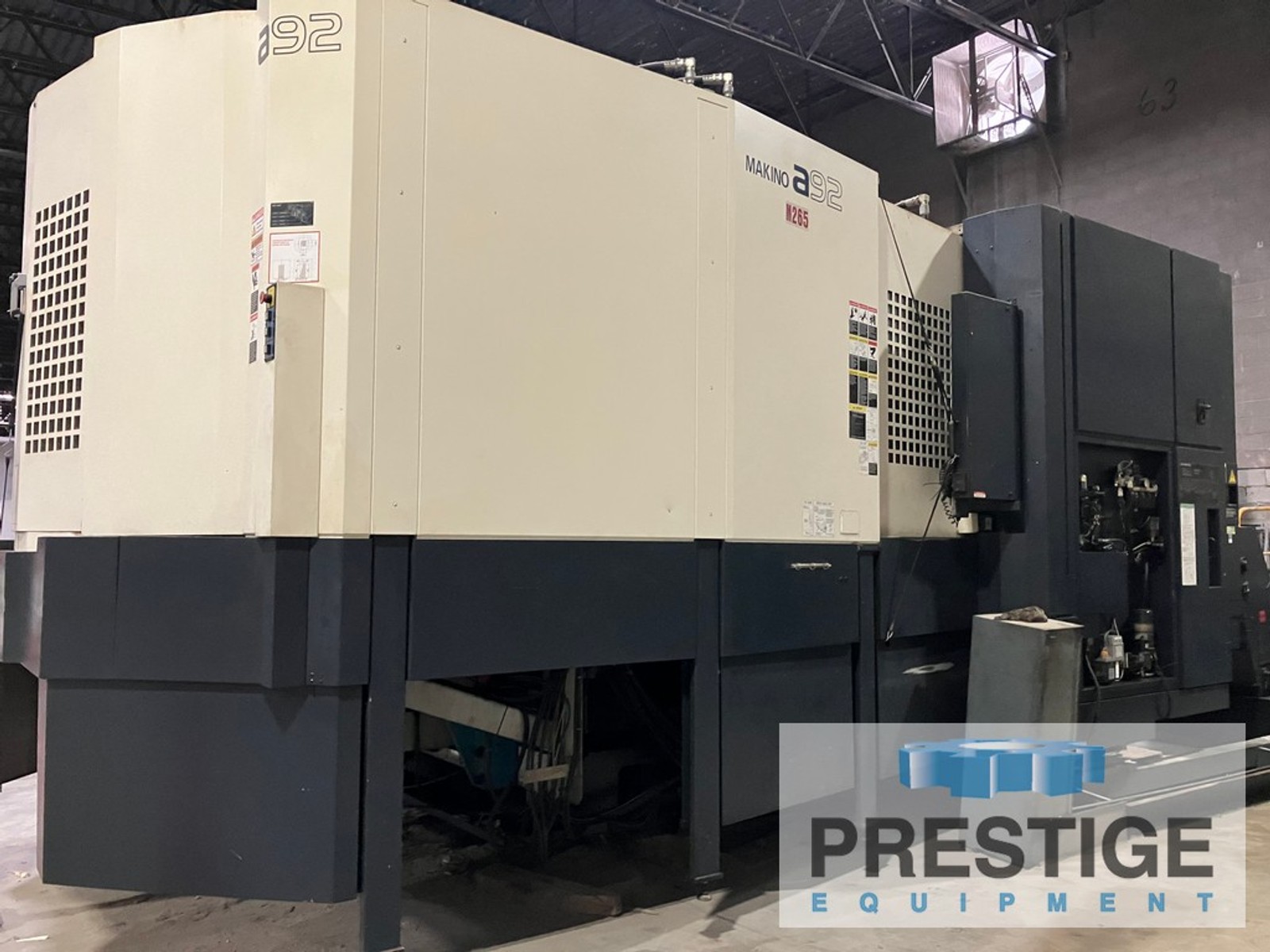

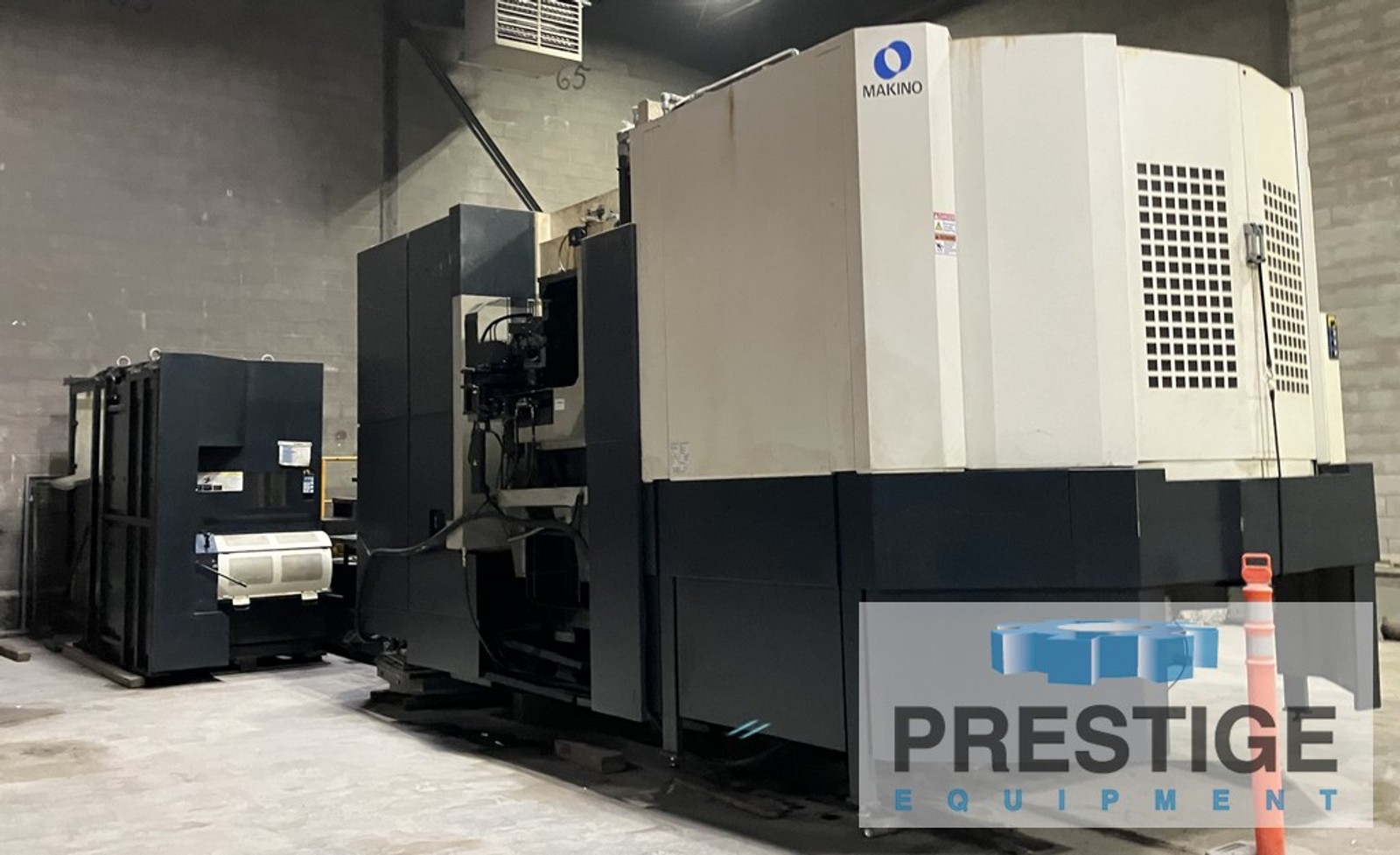

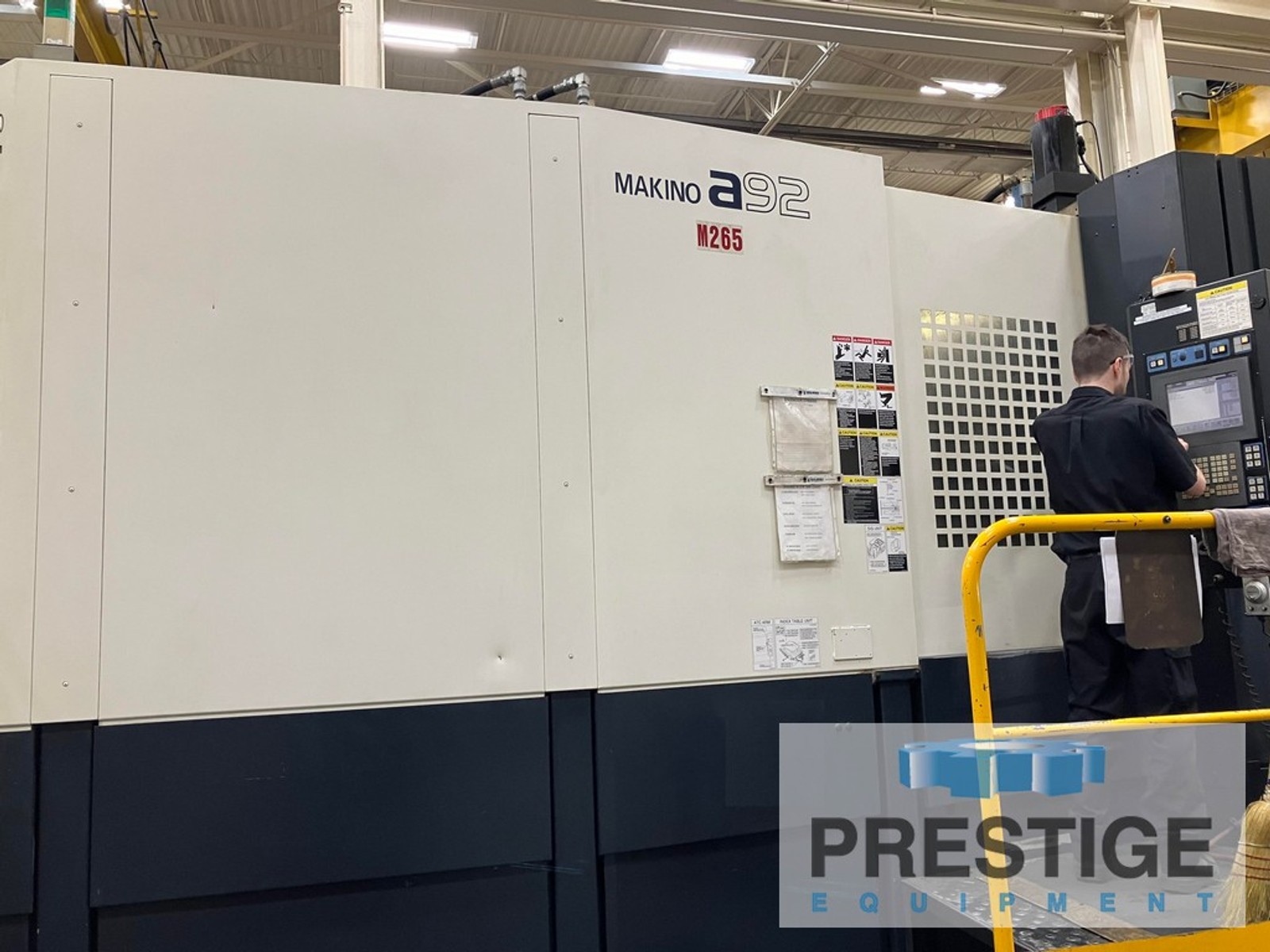

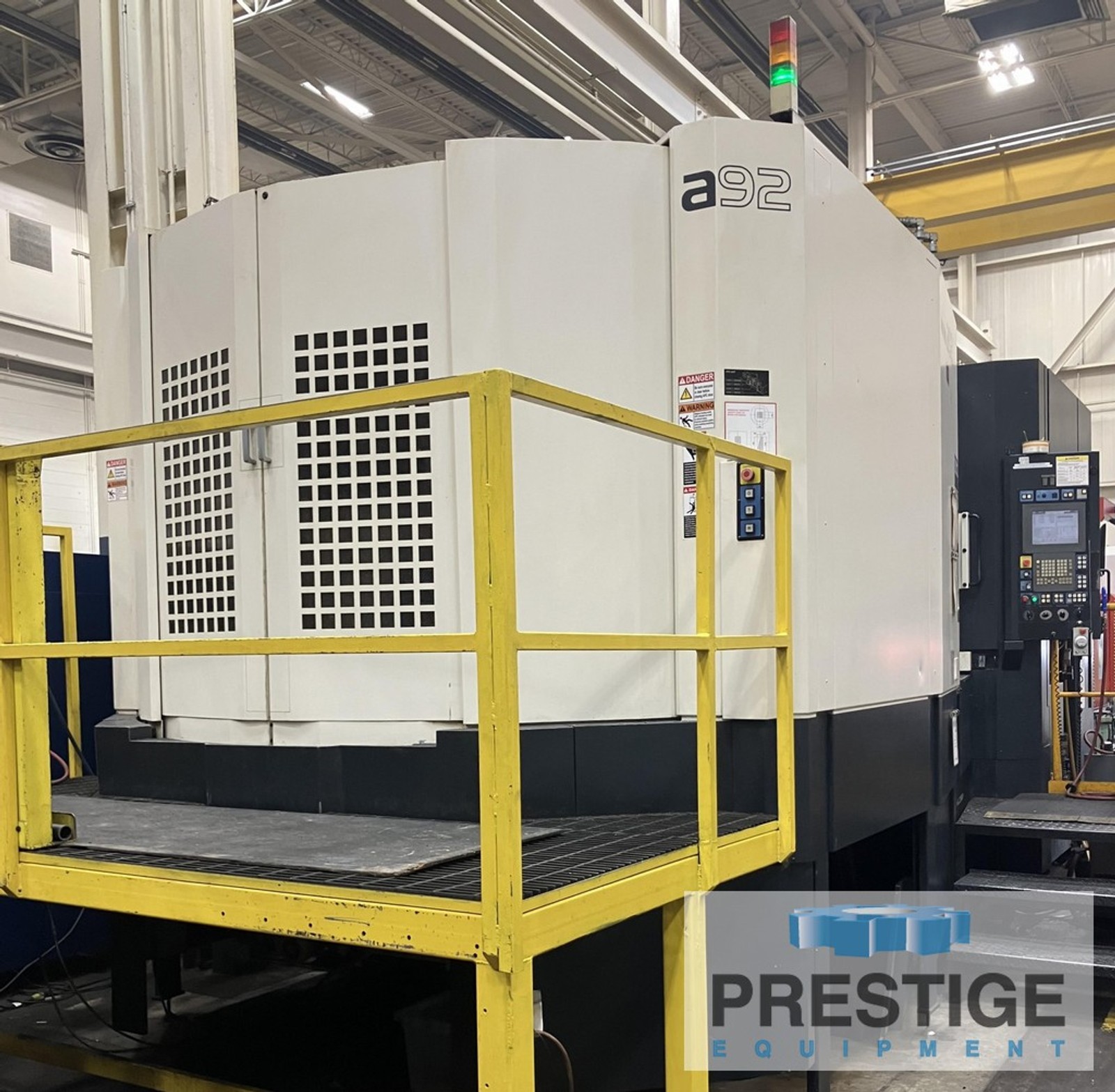

Makino A-92 CNC Horizontal Machining Center

Features:
Makino Pro 5 (Fanuc) Control
Full B-Axis Contouring
(2) 39” x 32” Pallet Size

Specification:
X-Axis ................................ 59.8”
Y-Axis ................................ 49.2”
Z-Axis ................................ 53.1”
B-Axis ............................... .001 degrees

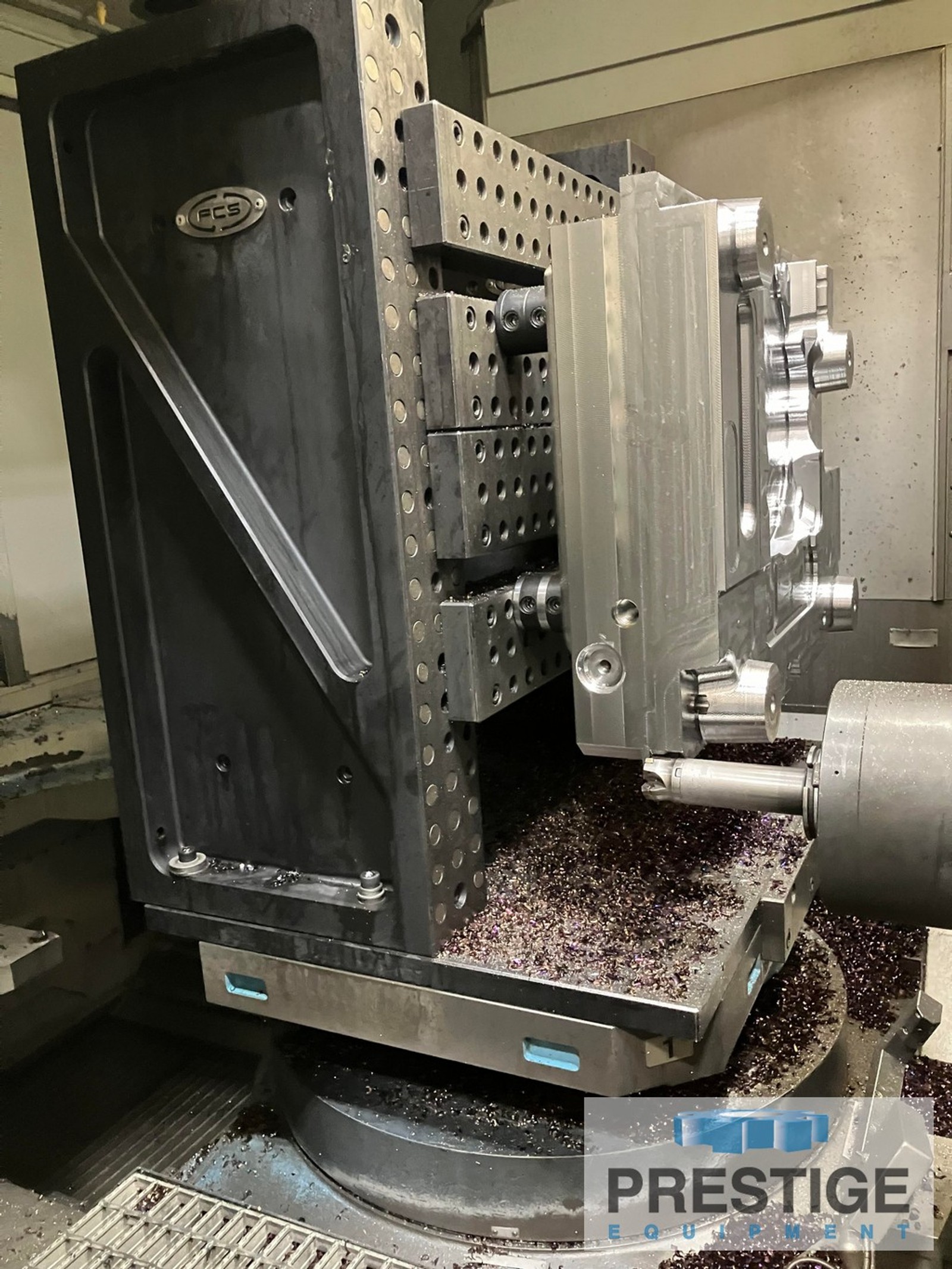

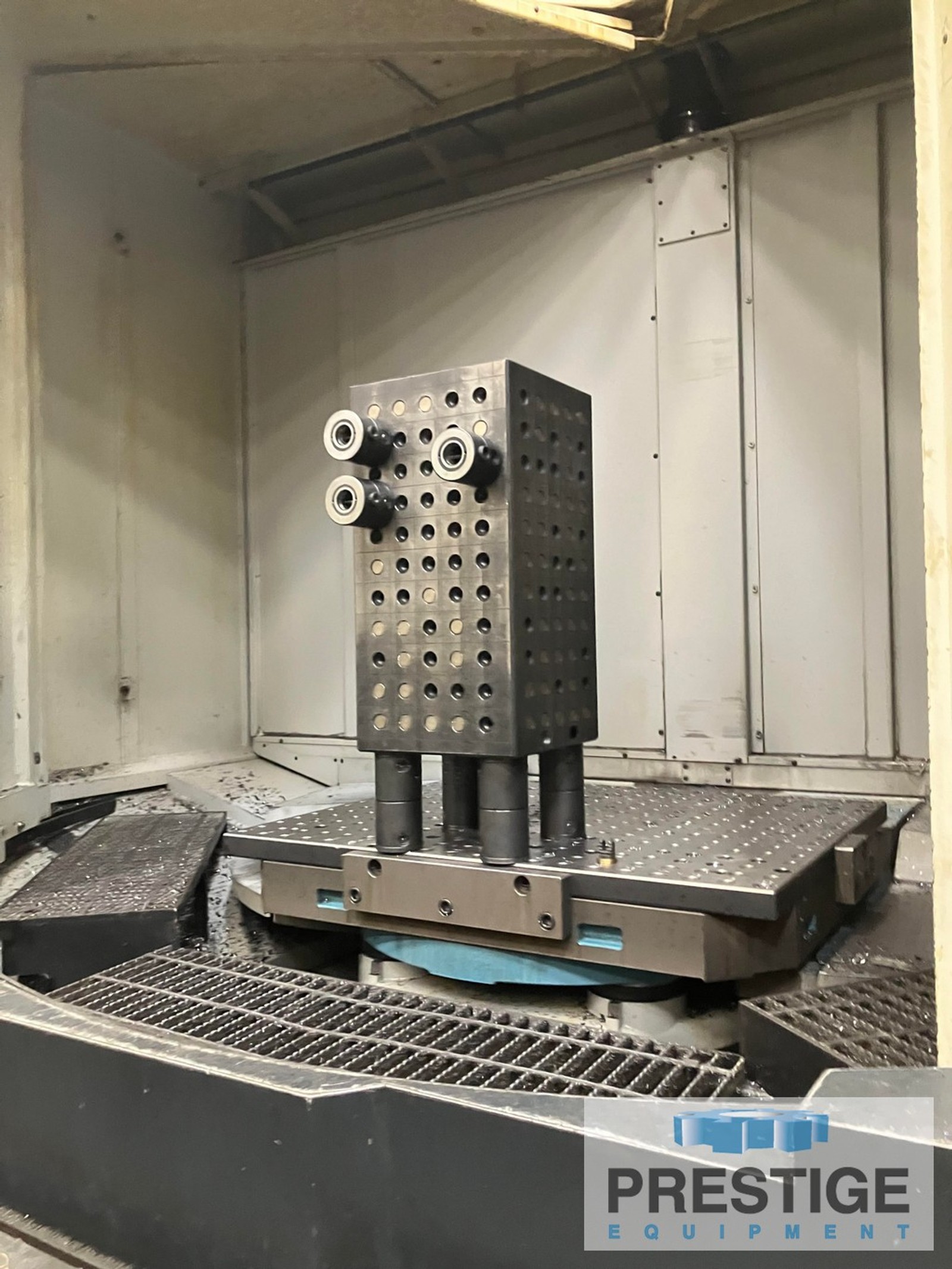

Pallet Size .......................... 39" x 32"
Number of Pallets ..................... 2
Tool Changer .......................... 92 ATC
Spindle Speeds ........................ 10,000 RPM
Spindle Taper ........................ Cat 50
Spindle Drive ......................... 40 HP
Pallet Load Capacity .................. 6600 Lbs.

Equipped With:

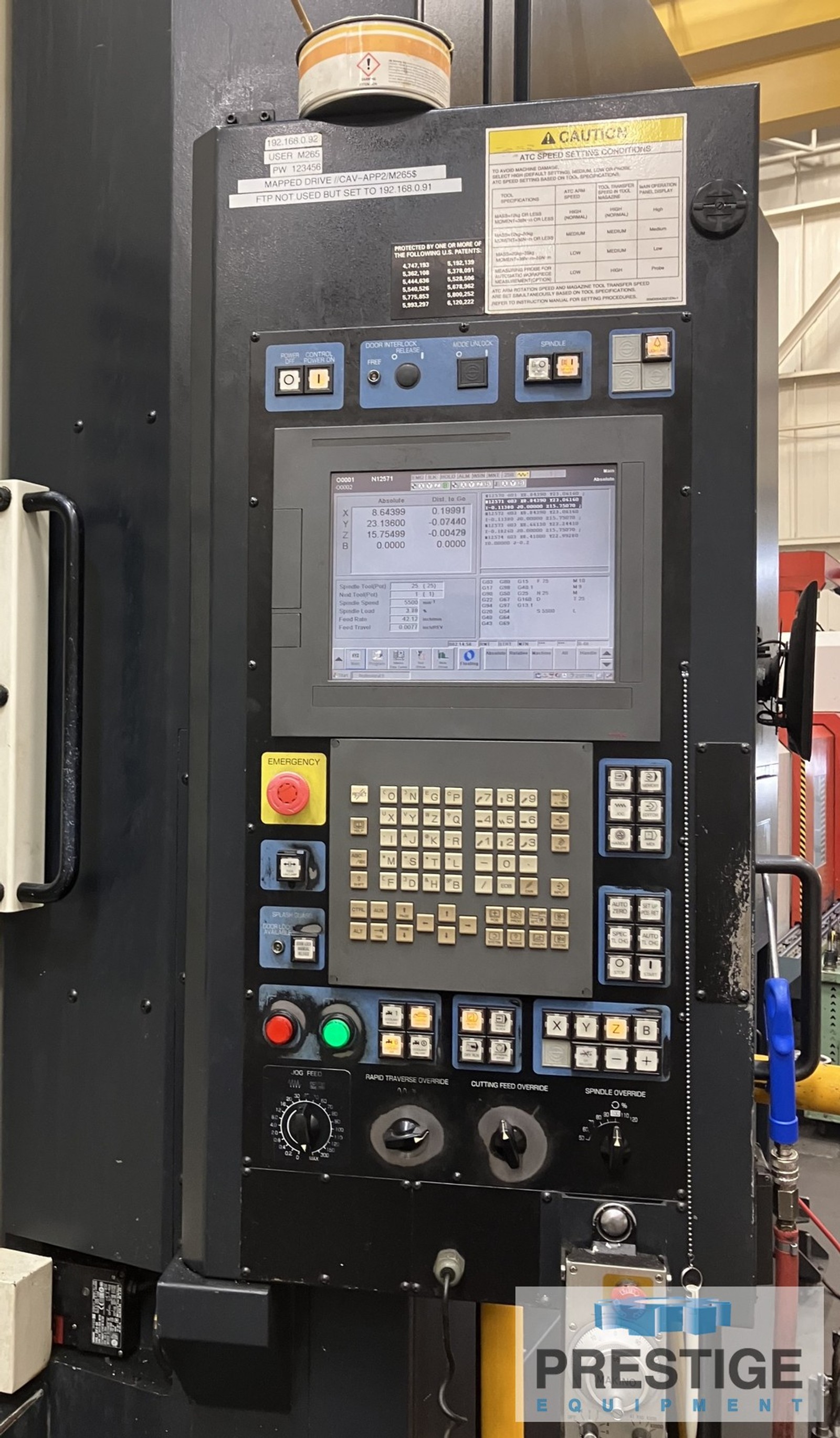

Makino Pro 5 (Fanuc) CNC Control
1000 PSI High Pressure Coolant Through Spindle
Overhead Shower Coolant Nozzles
Blum Laser Tool Measurement

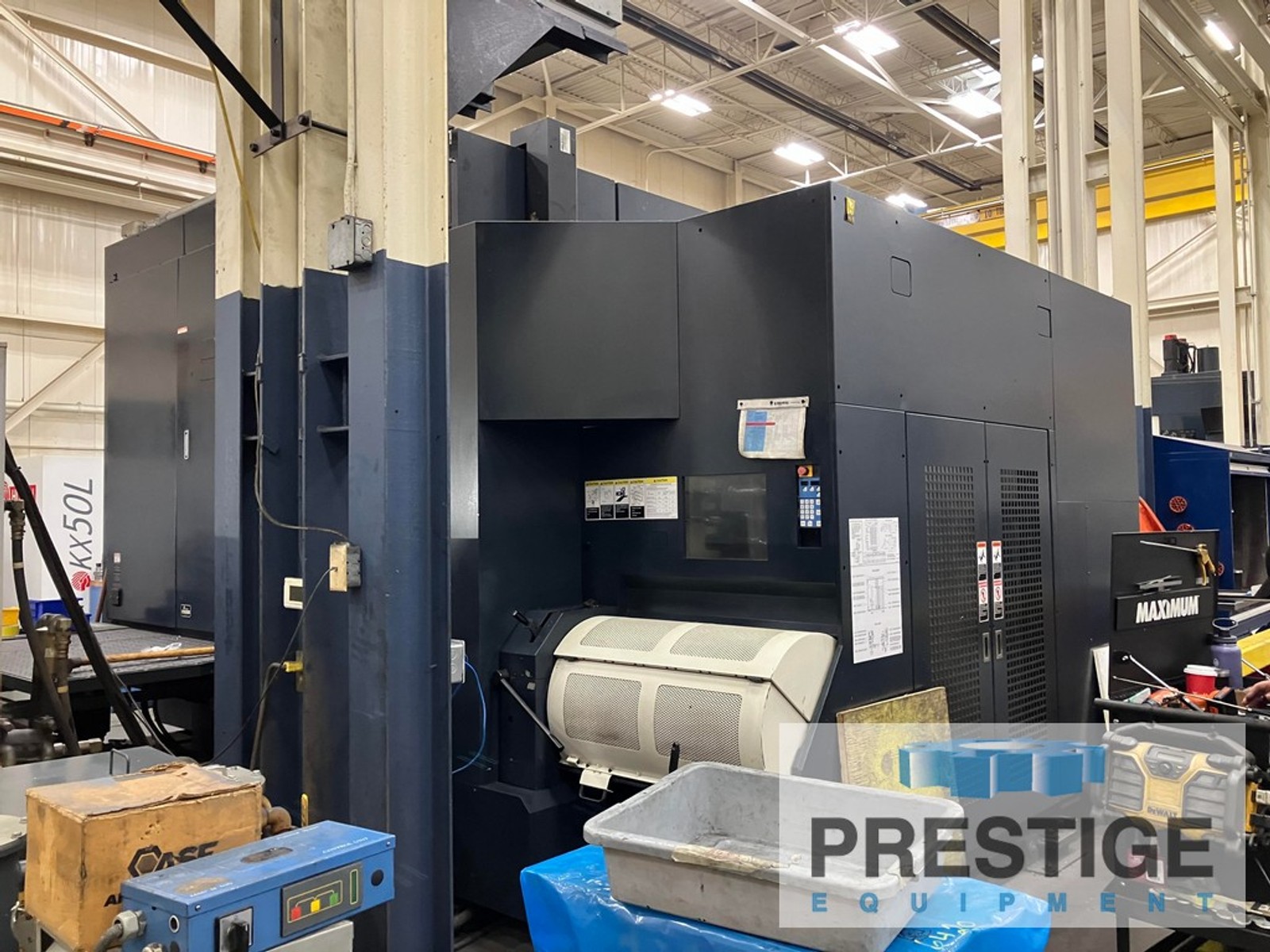

Chip Conveyor

Note:
Machine was Installed New in 2009
