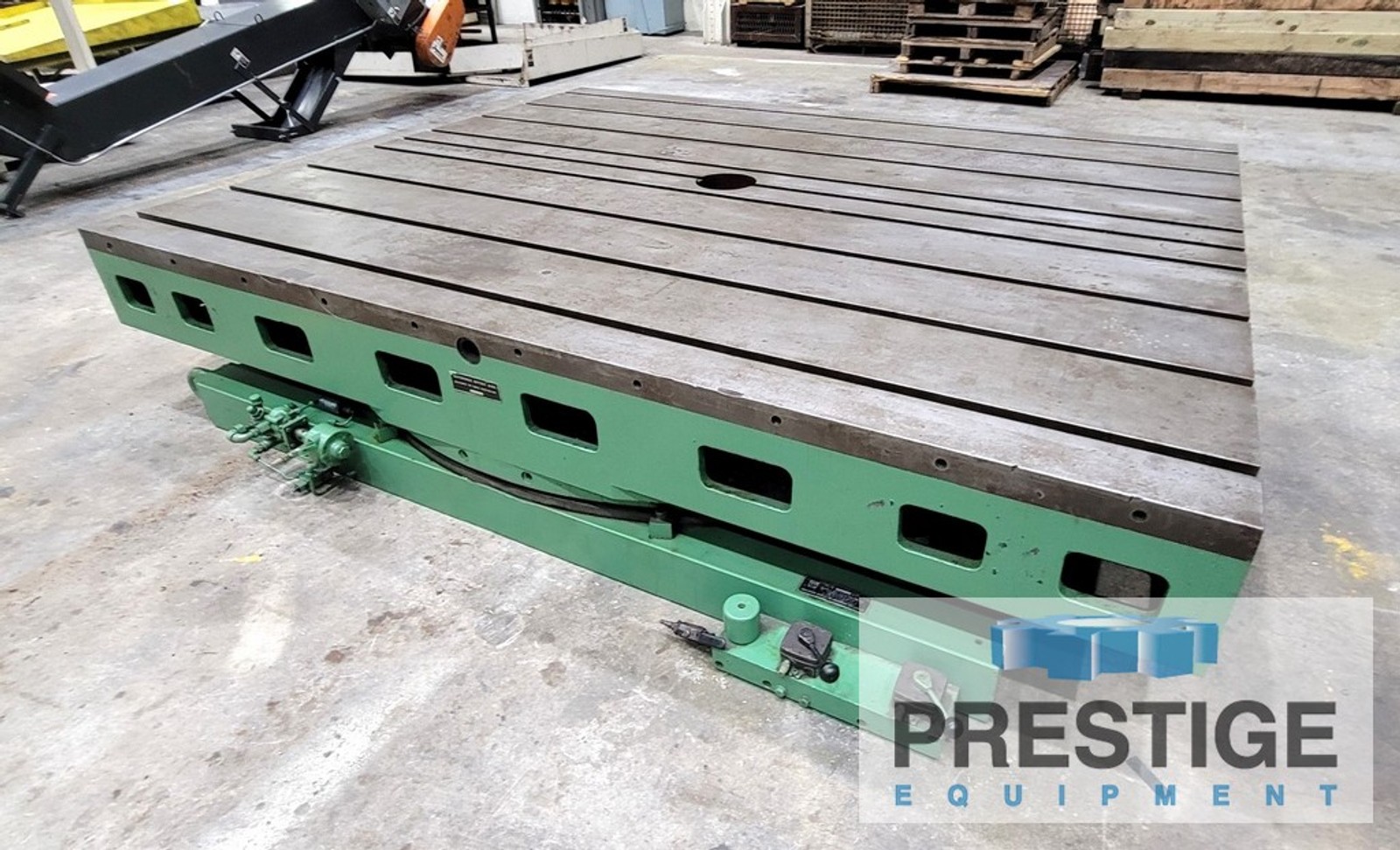

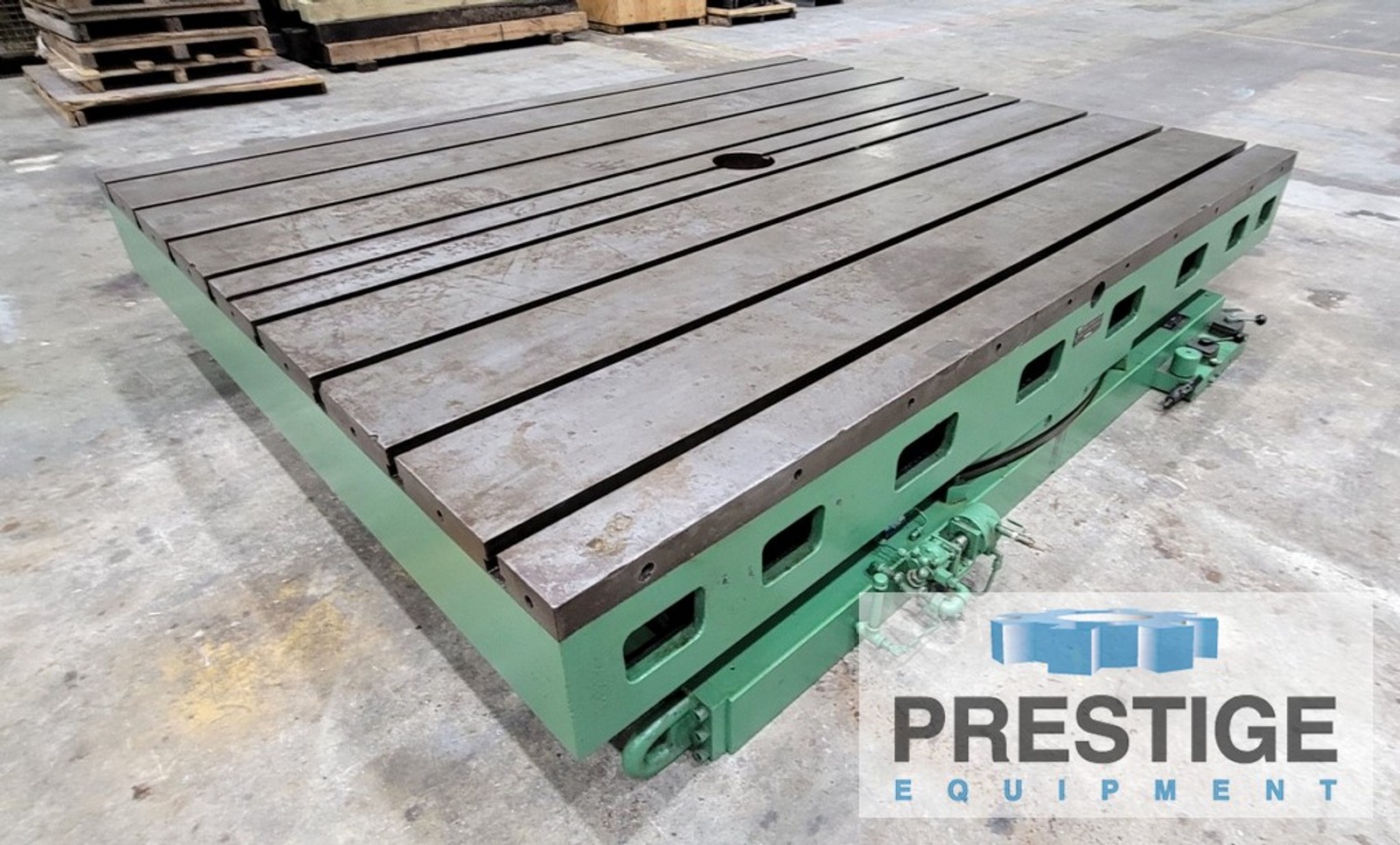

96" x 120" G&L Hydrostatic Table, 75,000 Lb. Capacity, 90 Deg. Pos., Power Clamping, #27645

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY

Stock

27645

Model

Hydrostatic

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27645

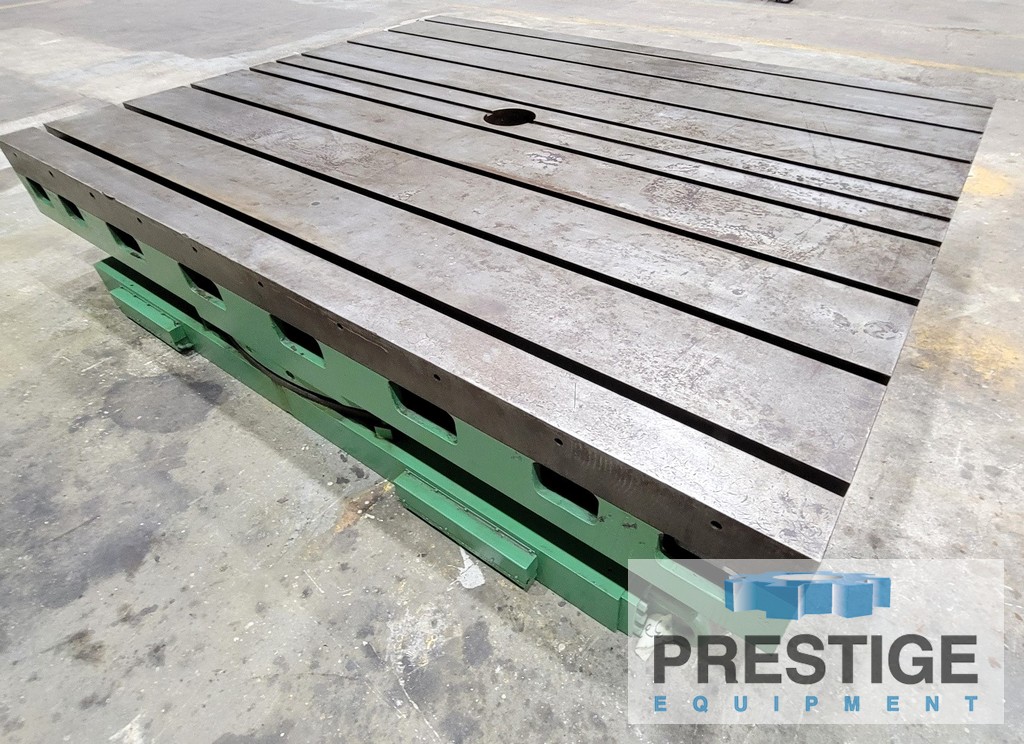

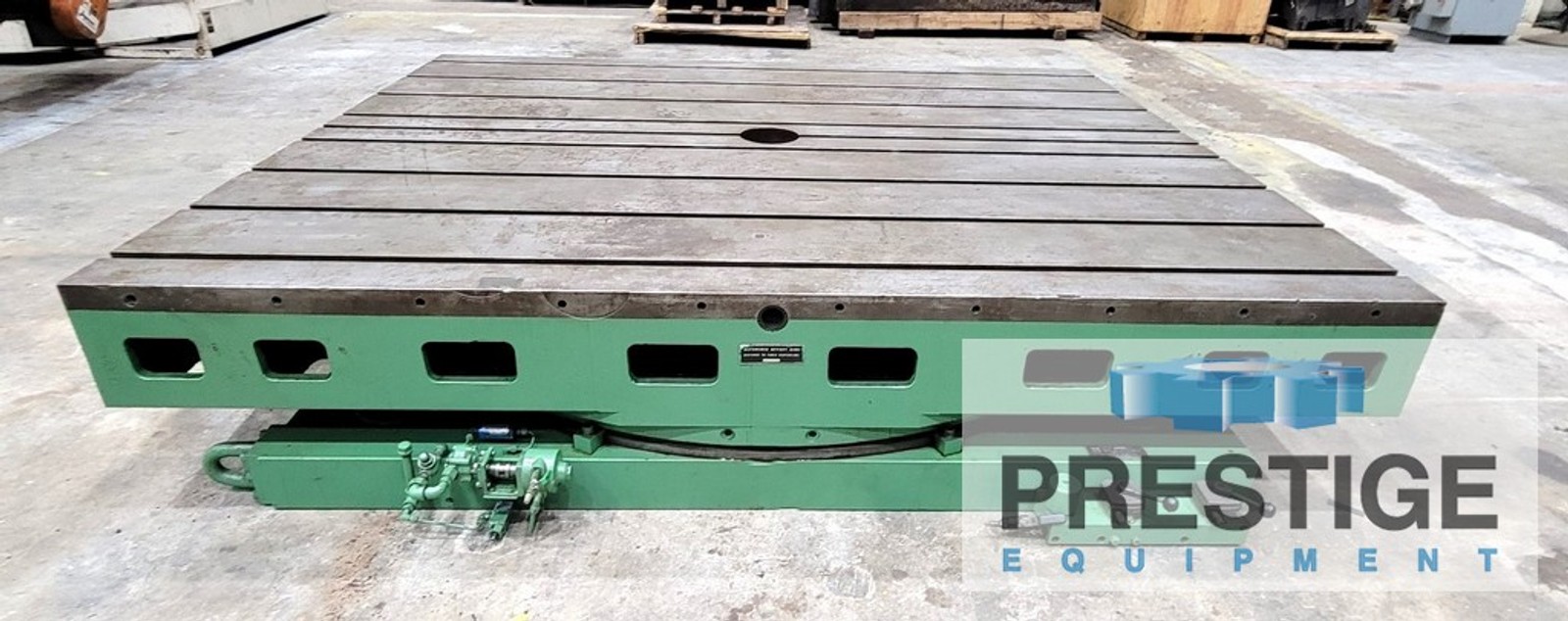

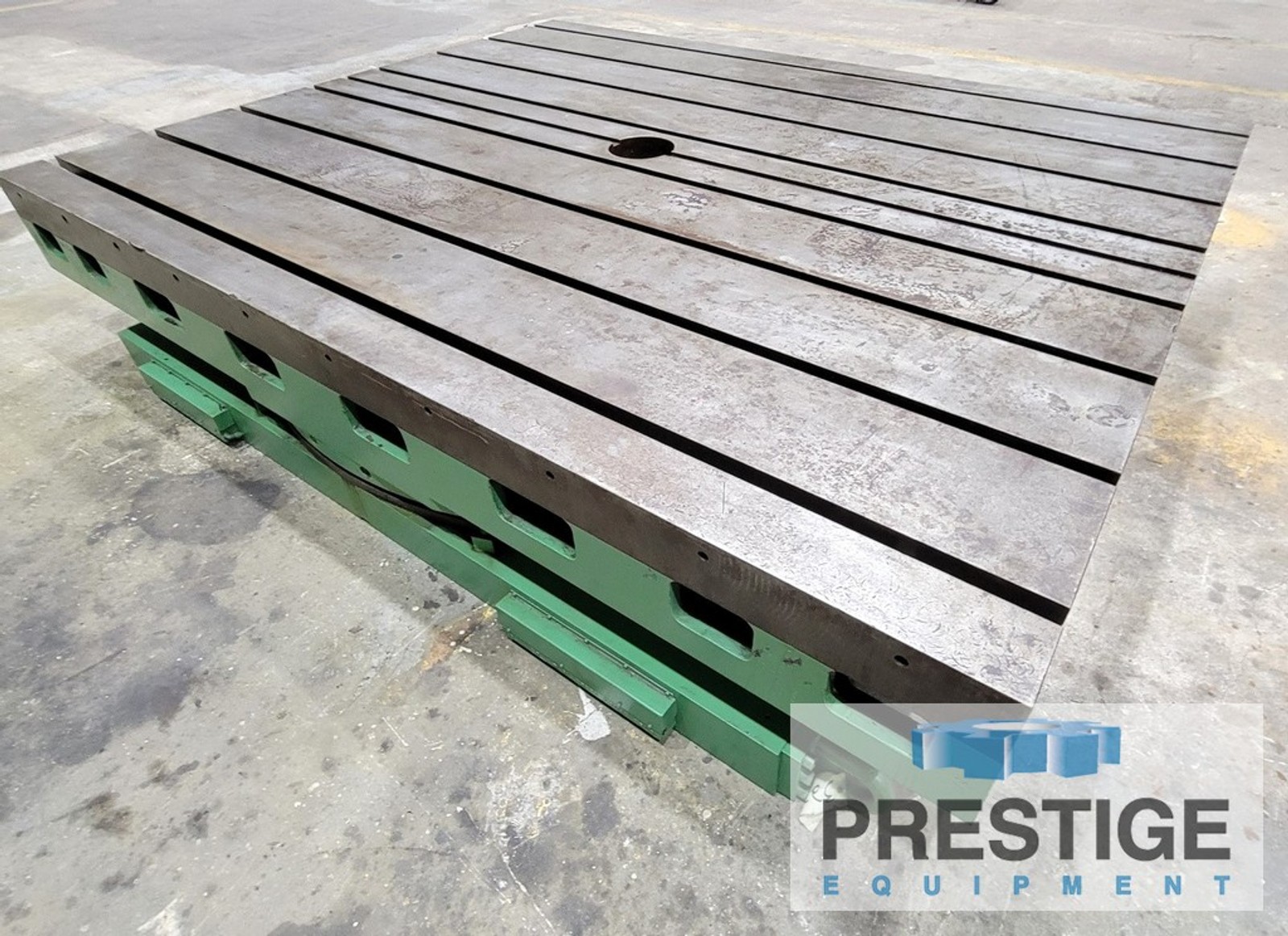

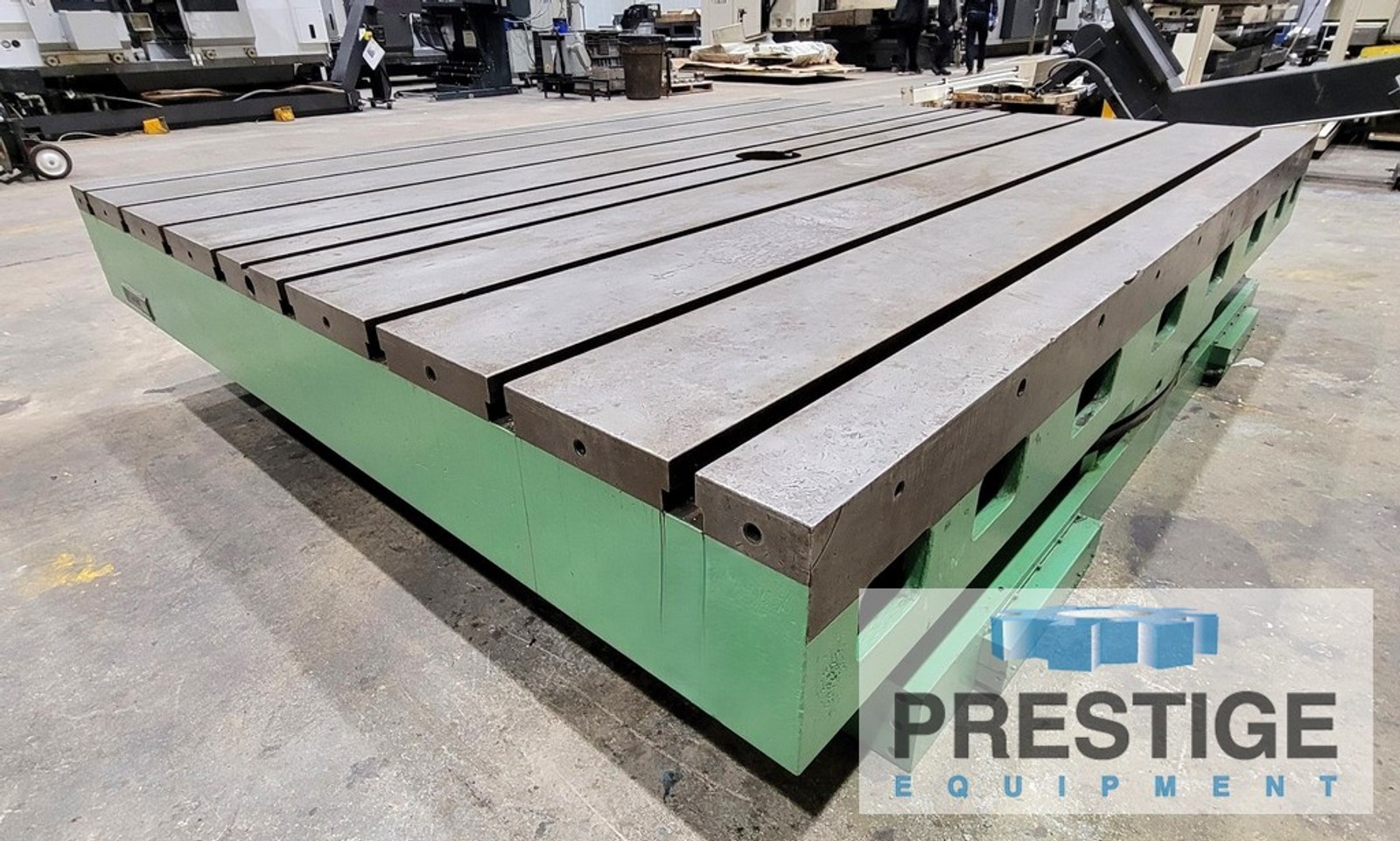

Giddings & Lewis 96" x 120" Hydrostatic Rotary Index Table

FEATURES:
75,000 lb Load Capacity
4-Positive Shot Pin Locations

SPECIFICATIONS:
Spindle Size .......................... 96" x 120"
Base Size ............................. 96" x 96"
Table Height Overall .................. 24"

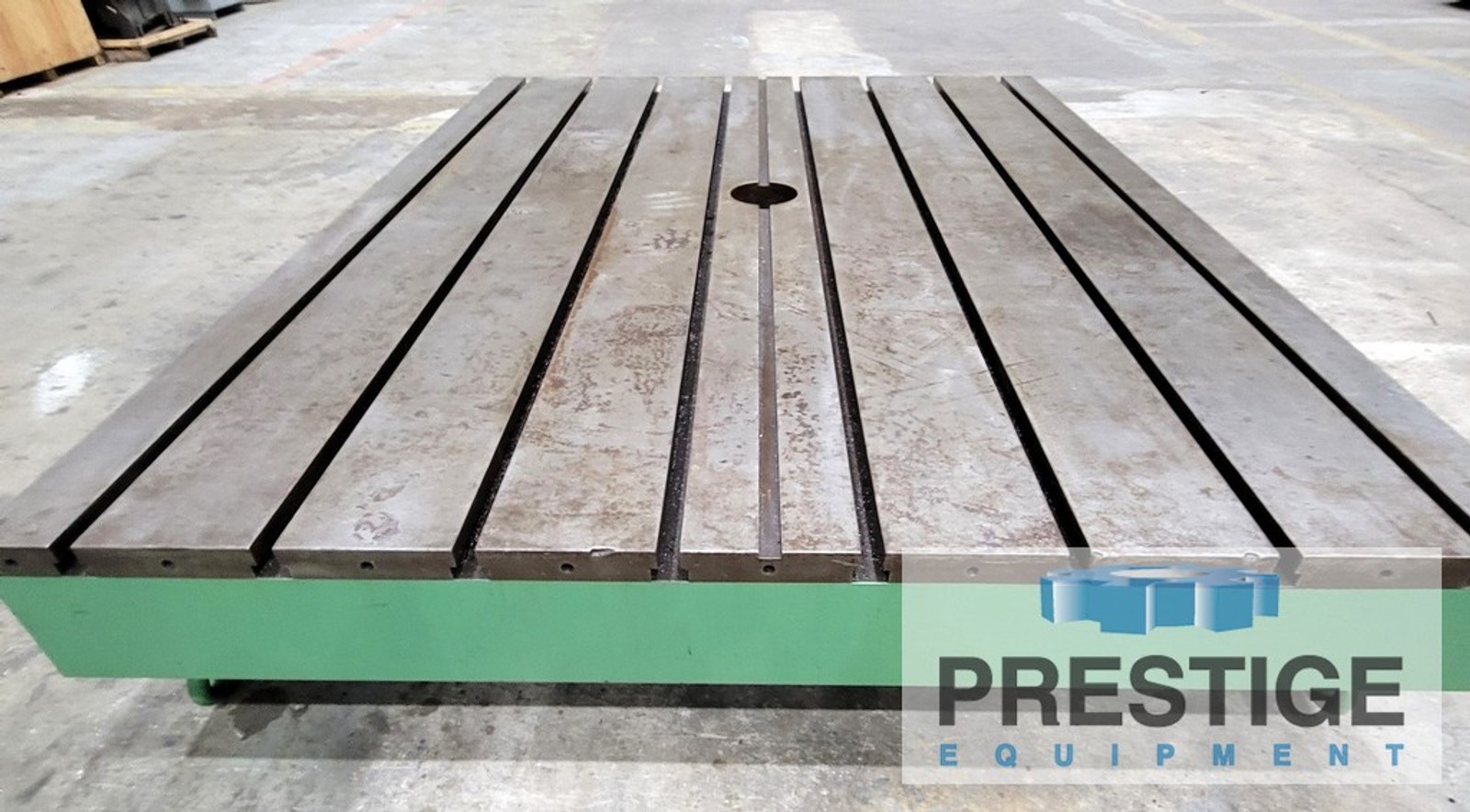

Number Of T-Slots ..................... 8
Width Of T-Slots Top .................. 1.25"
Width Of T-Slots Bottom ............... 2-1/8"
Depth Of T-Slots ...................... 2.5"
Distance Between T-Slot Centers ....... 12"
Maximum Load Capacity ................. 75,000 LBS
360 Degree Scale Increments ........... 1-Degree
Approximate Shipping Weight ........... 32,700 LBS

EQUIPPED WITH:
90 Degree Positioning
4-Shot Pin Positions
Fixture Locating Keyway

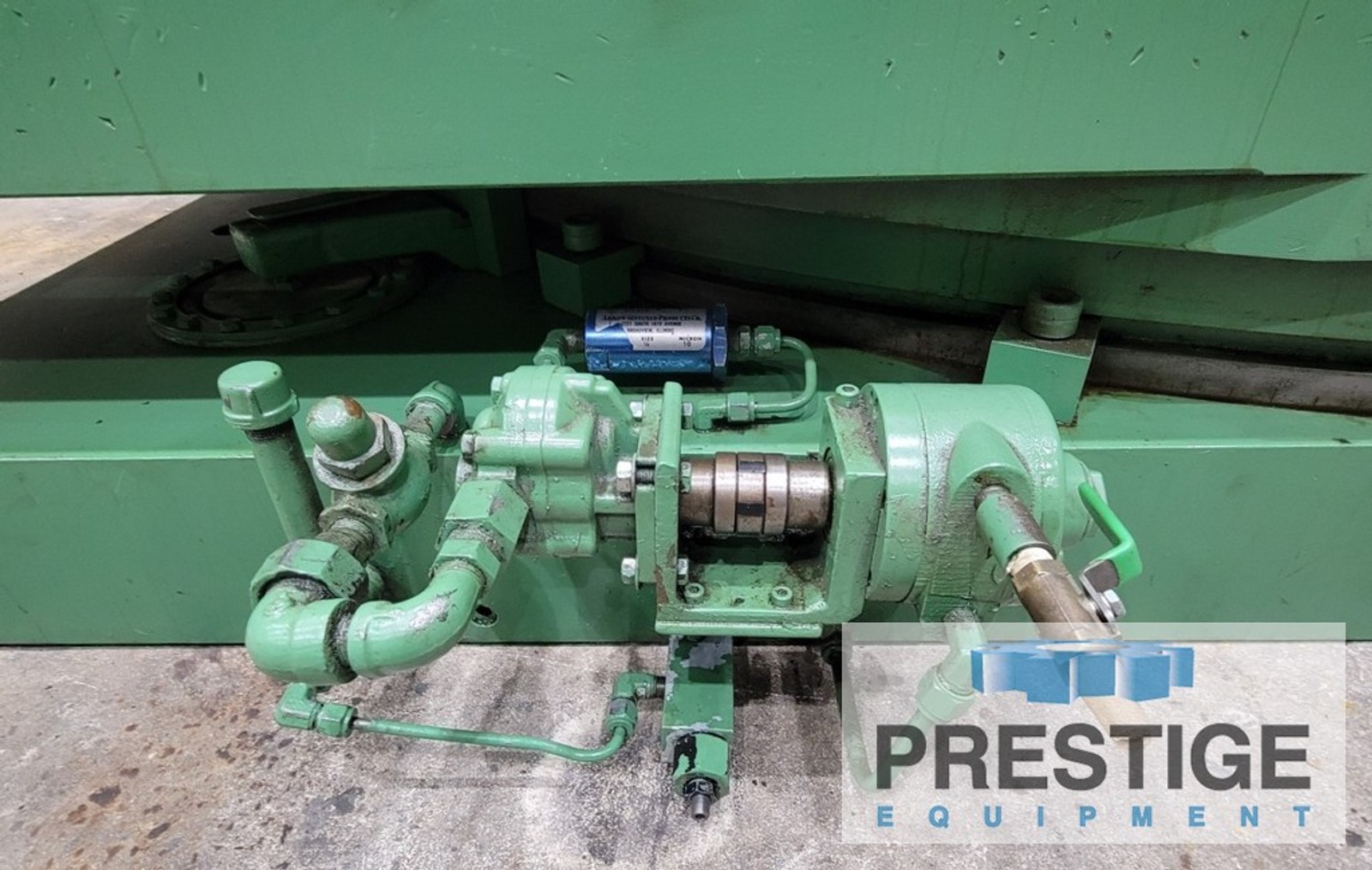

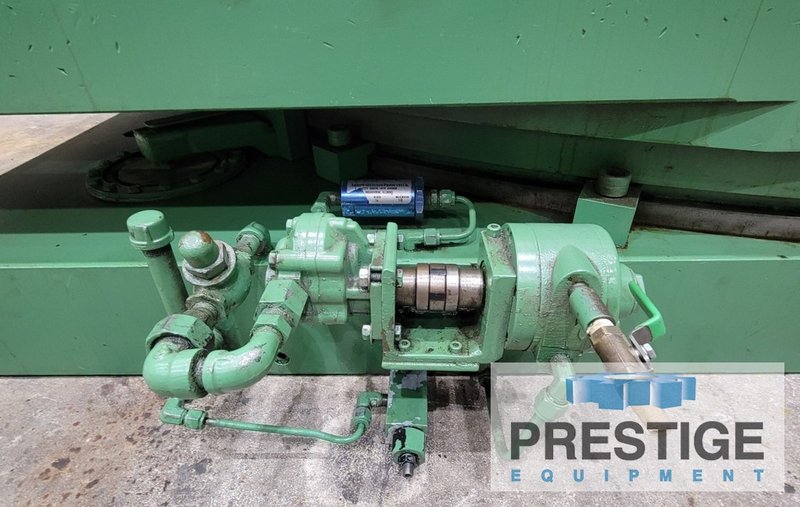

Power Clamping
Centerbore In Table Platen

NOTE:
Inspect In Our Philadelphia PA Warehouse
