72" x 96" G & L CNC Rotary Table, 360 NC, 25,000 Lb Cap., 22.5" High, Hyd. Clamping #23421

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY

Stock

23421

Model

360 N/C

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #23421

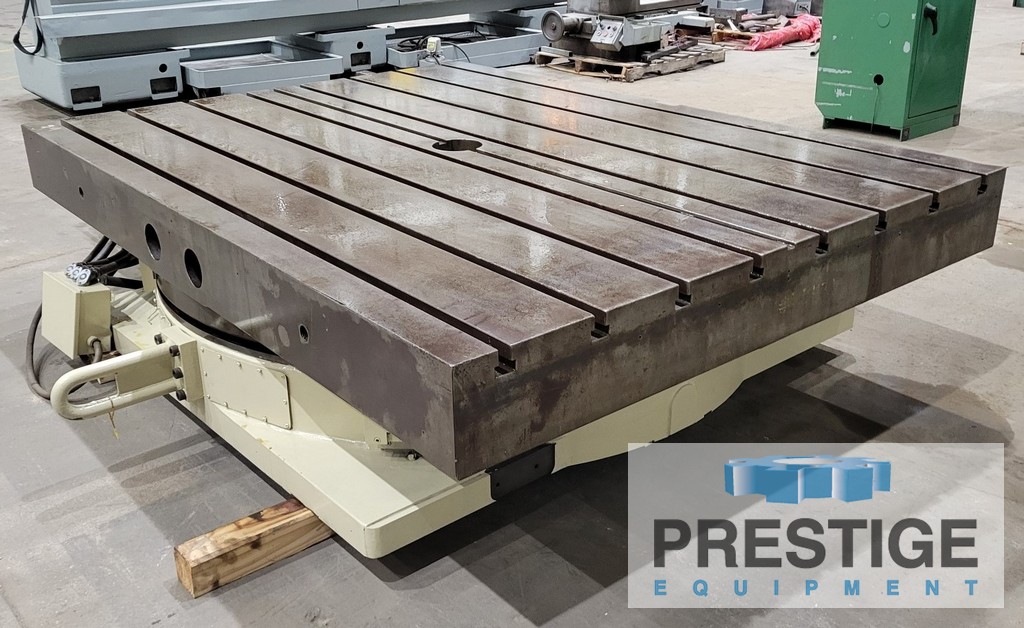

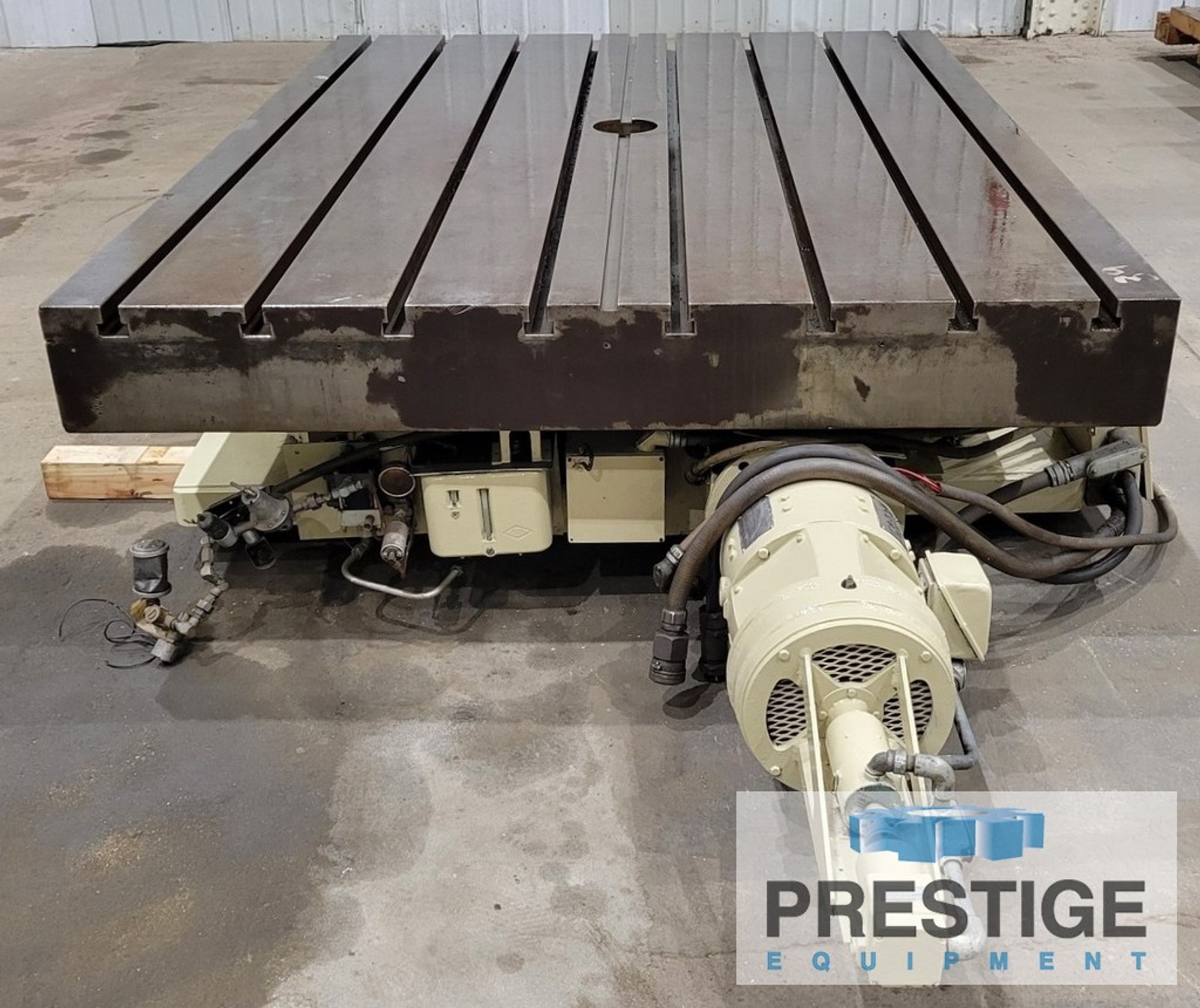

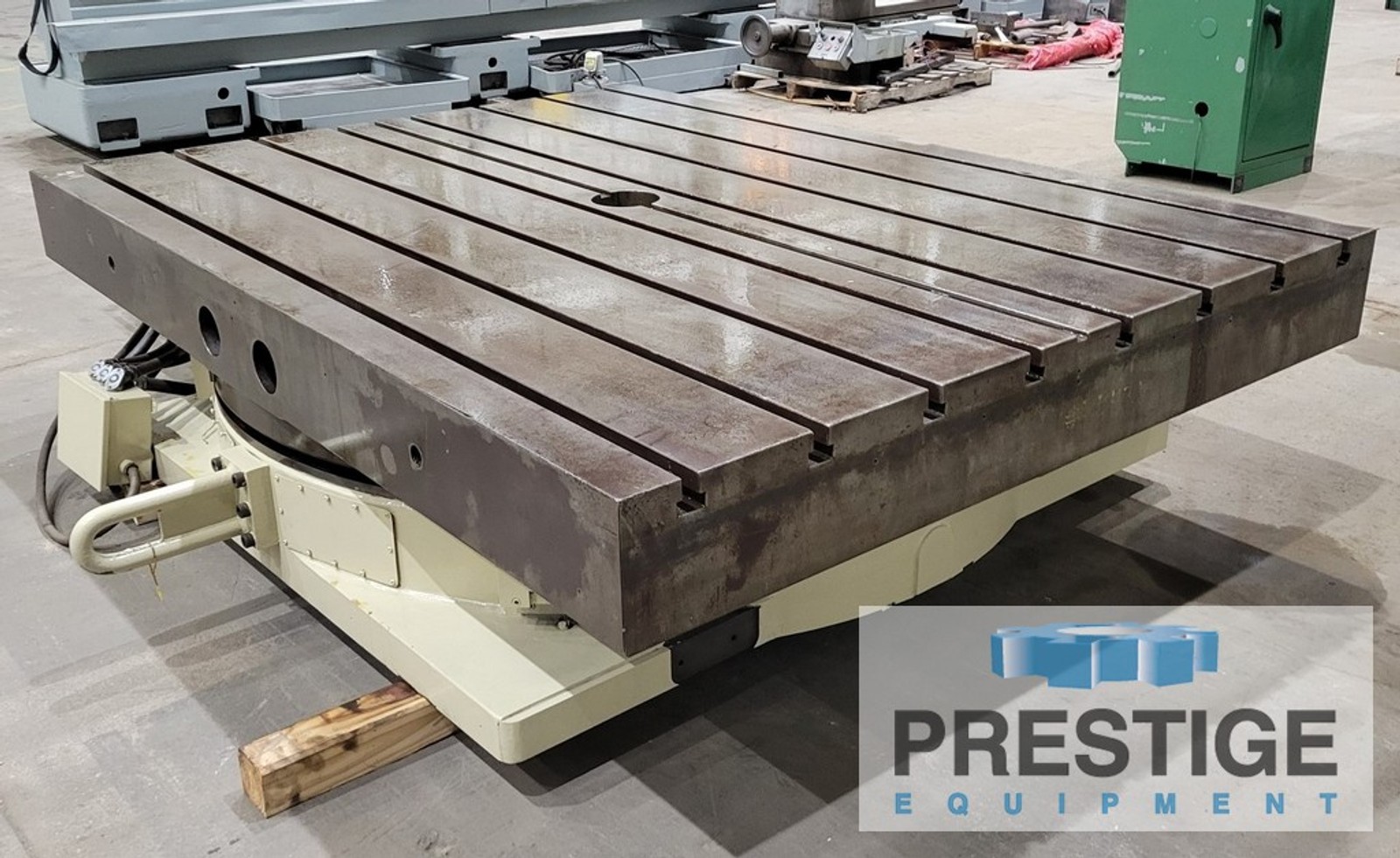

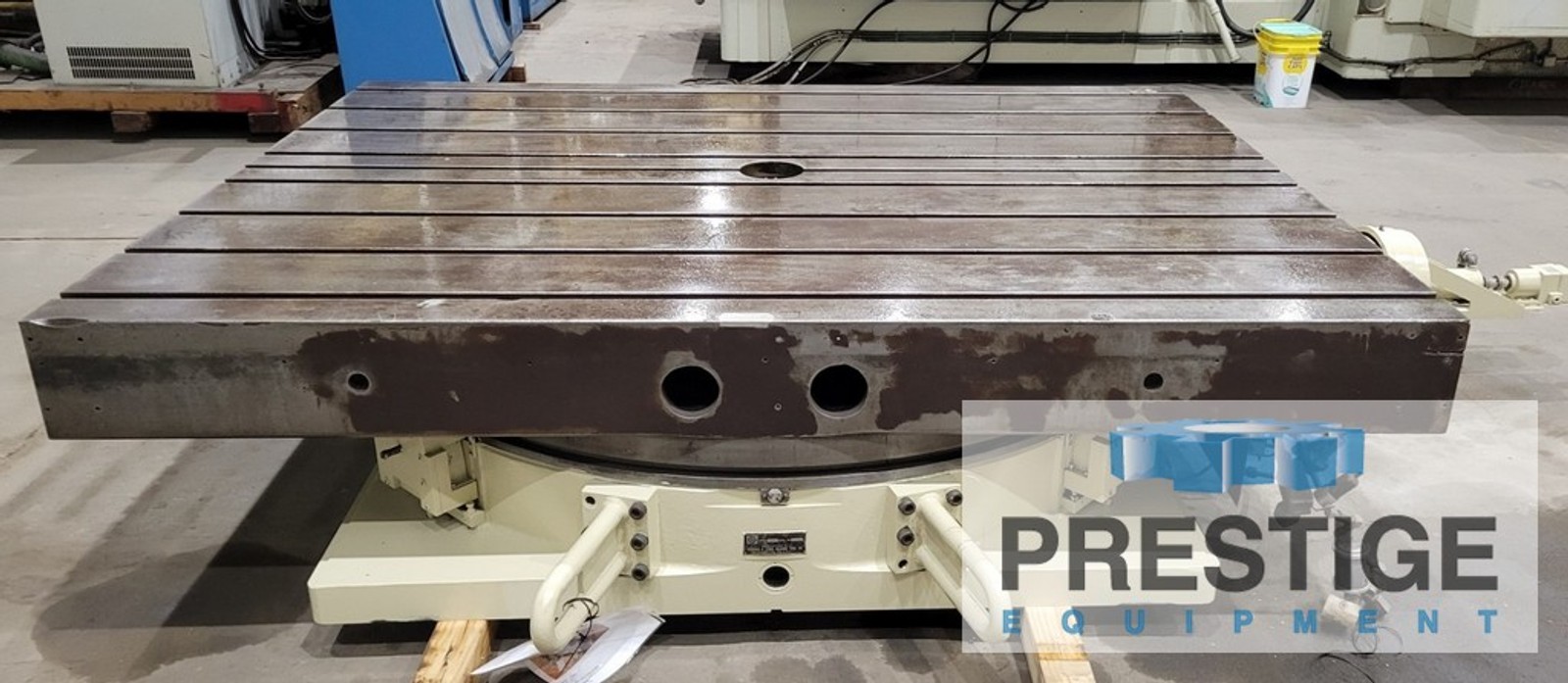

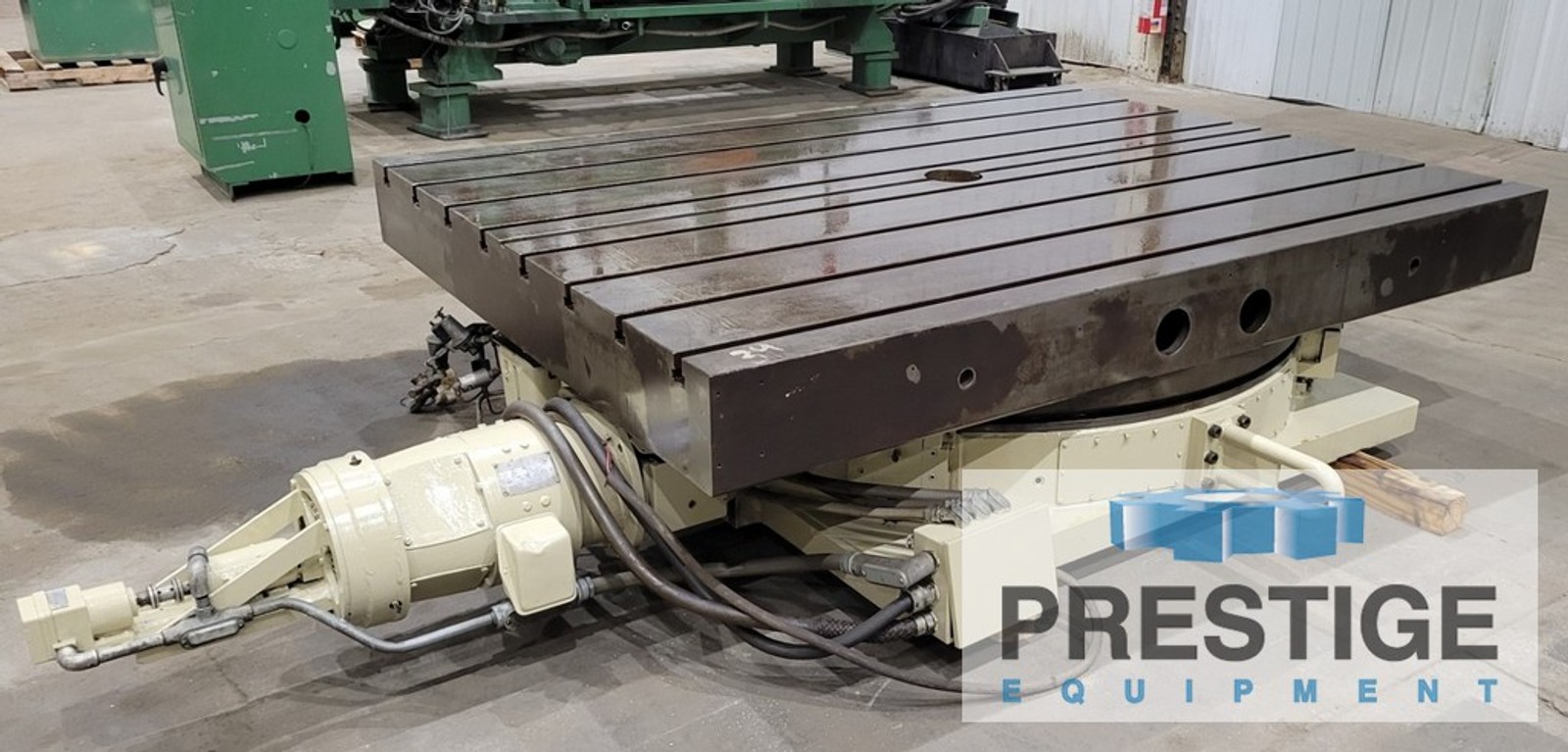

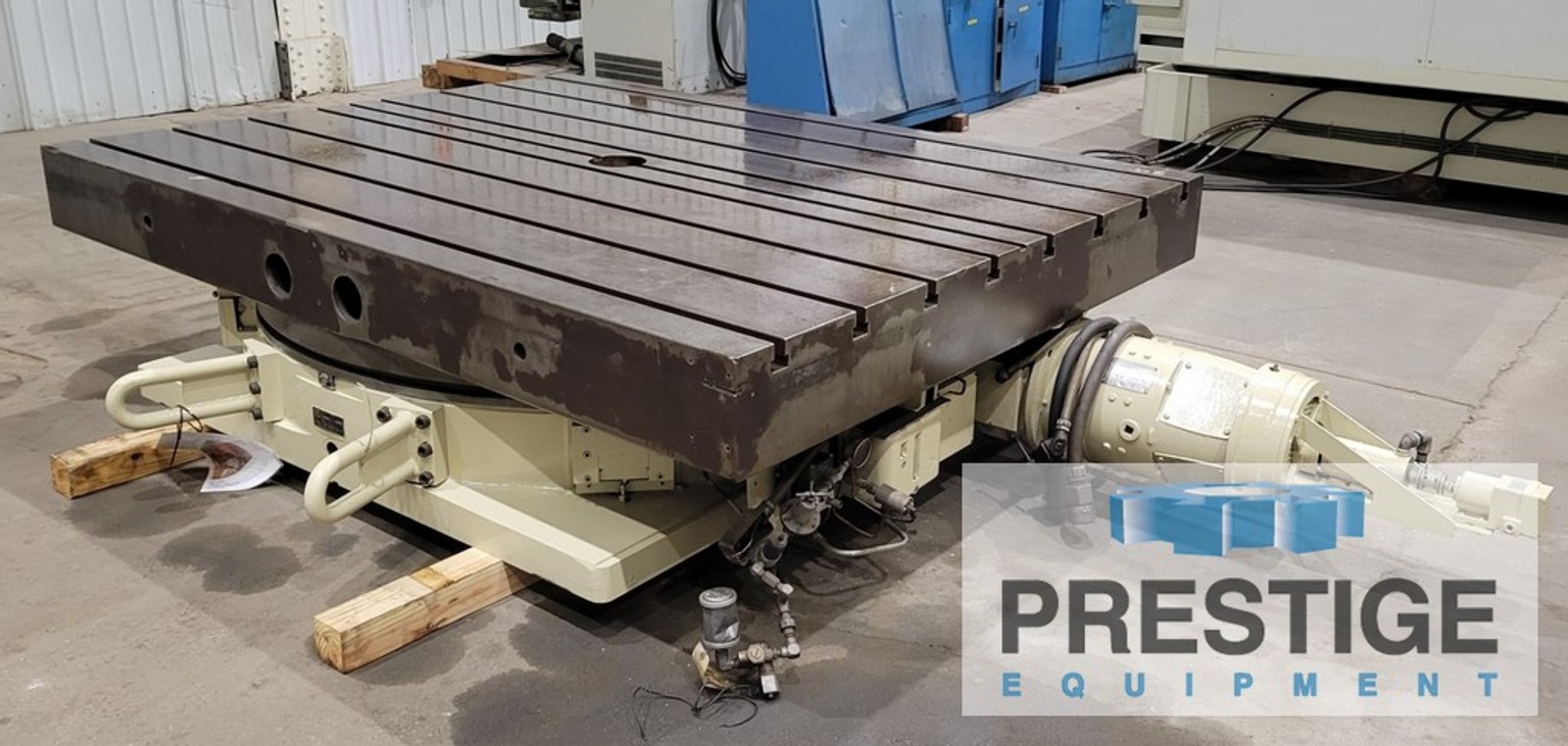

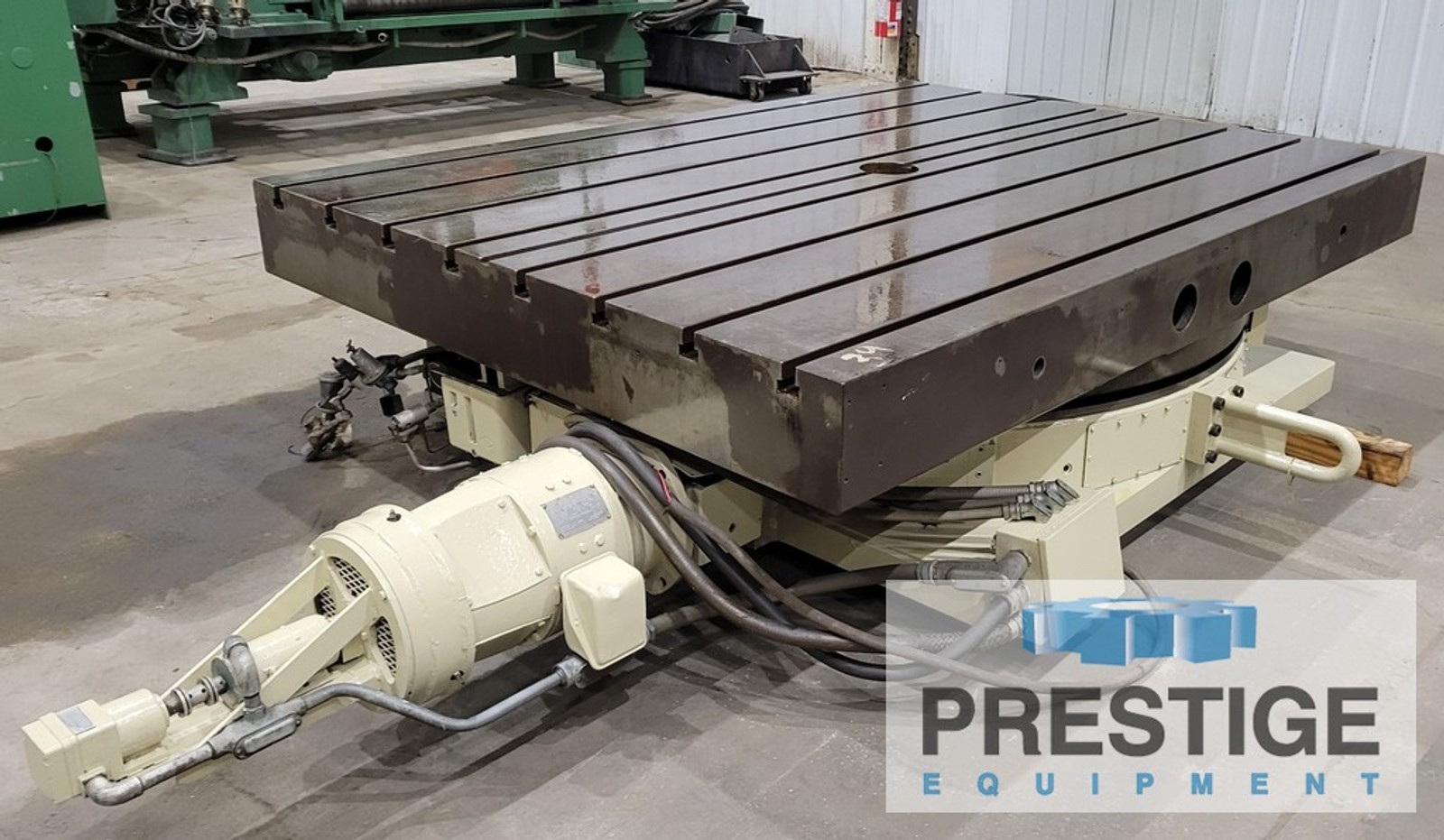

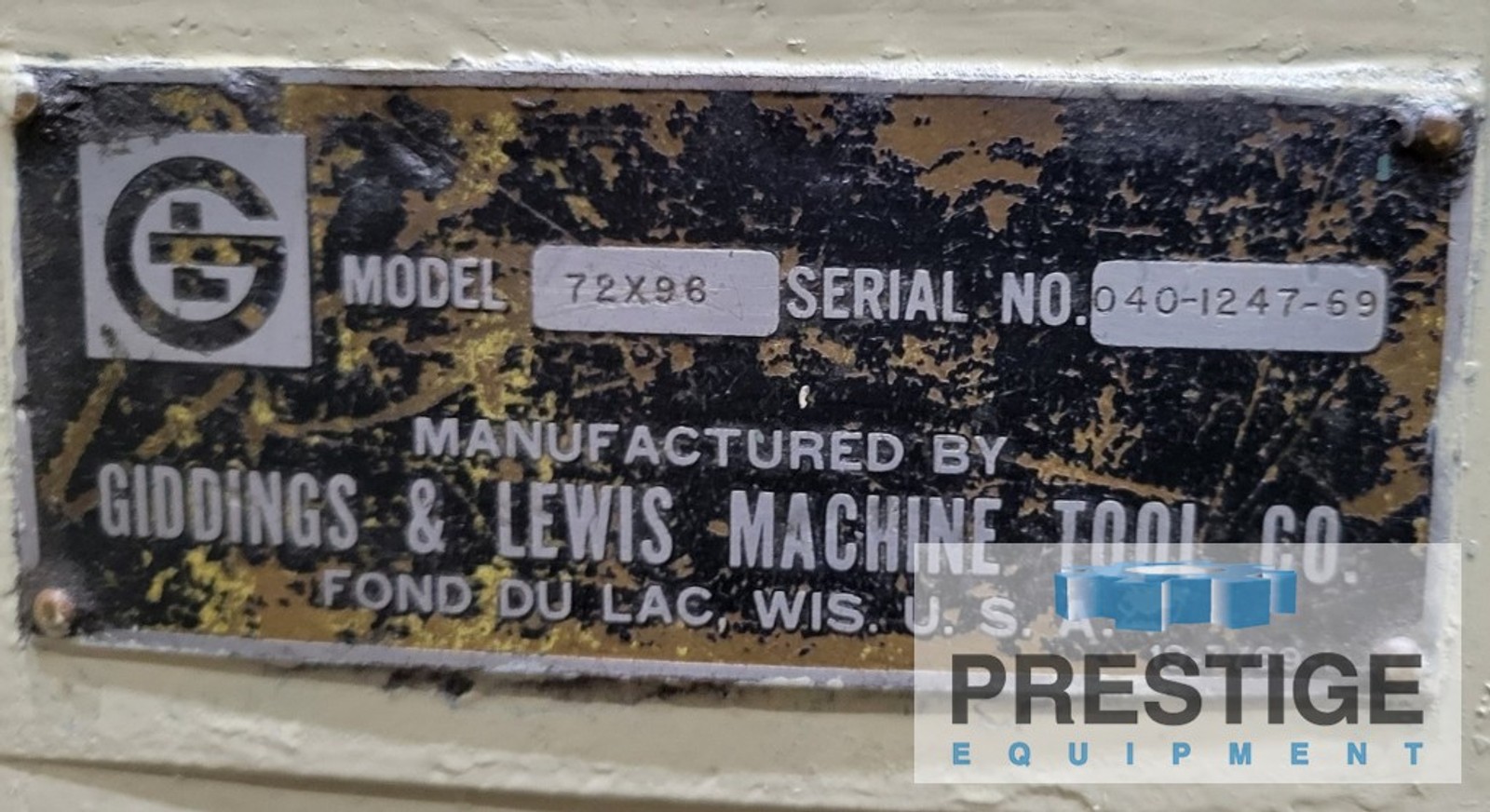

Giddings & Lewis 360P 72" x 96" CNC Rotary Table

FEATURES:
360 Degree Scale With 1/2 Degree Increments
Hydraulic Clamping

SPECIFICATIONS:
Table Size ............................ 72" x 96"
Work Height ........................... 22.5"
Number Of T-Slots ..................... 8
Width Of T-Slots, Top ................. 1"
Width Of T-Slots, Bottom .............. 1-3/4"
Depth Of T-Slots, Overall ............. 2"
Distance Between T-Slot Centers ....... 9"
Center Keyway Width ................... 1"
Center Bore Diameter .................. 6"
Approx. Maximum Load Capacity ......... 35,000 Lbs
Table Base Dimensions ................. 72" x 96"
Approximate Shipping Weight ........... 13,500 Lbs

EQUIPPED WITH:
360 Degree Scale With 1/2 Degree Increments
Hydraulic Clamping

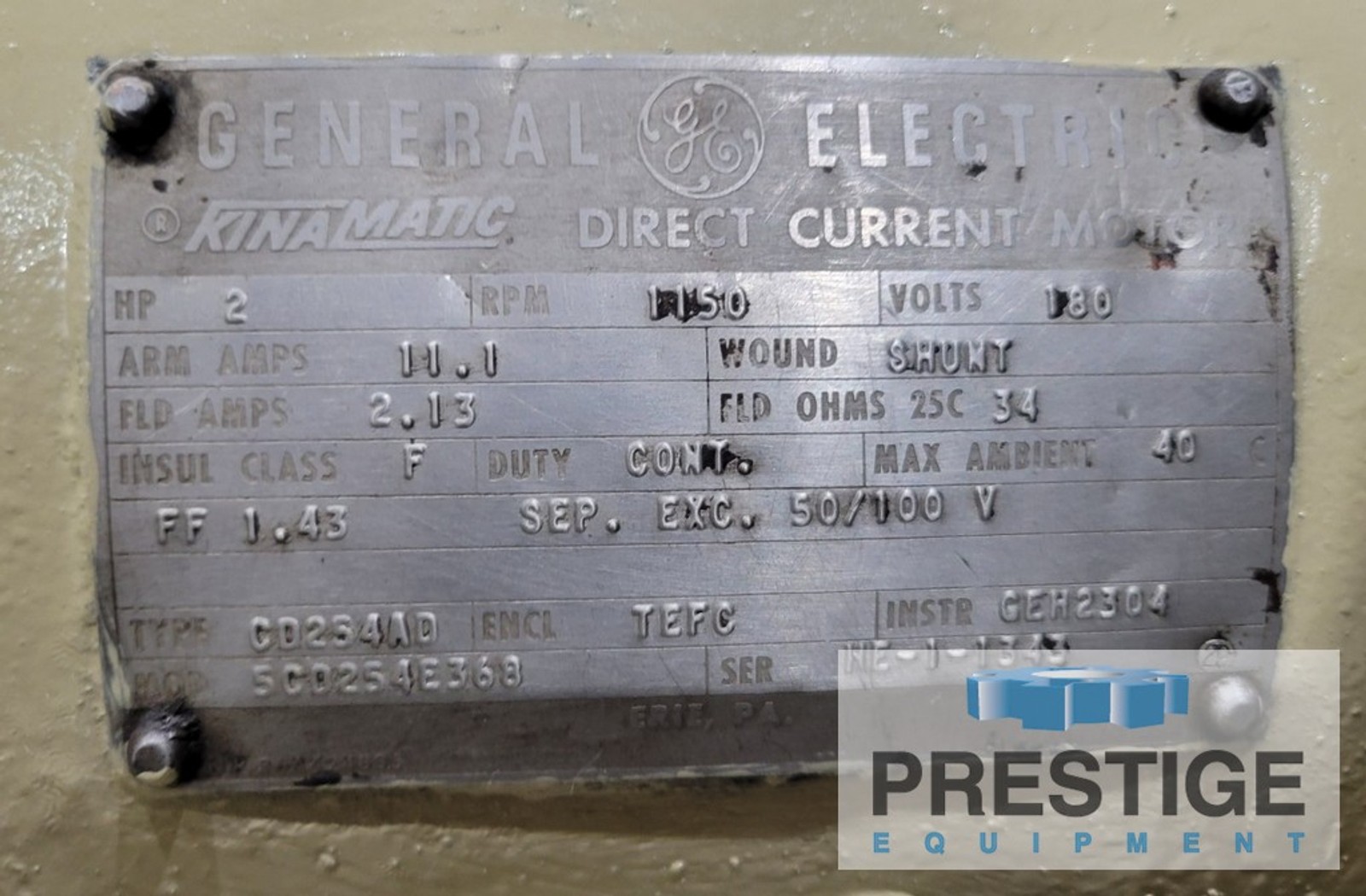

2 HP Main Motor (180 Volt DC)

NOTES:
Inspect In Our Philadelphia PA Warehouse
