44003
MAK4 4000/5,0
New York
Reference #44003

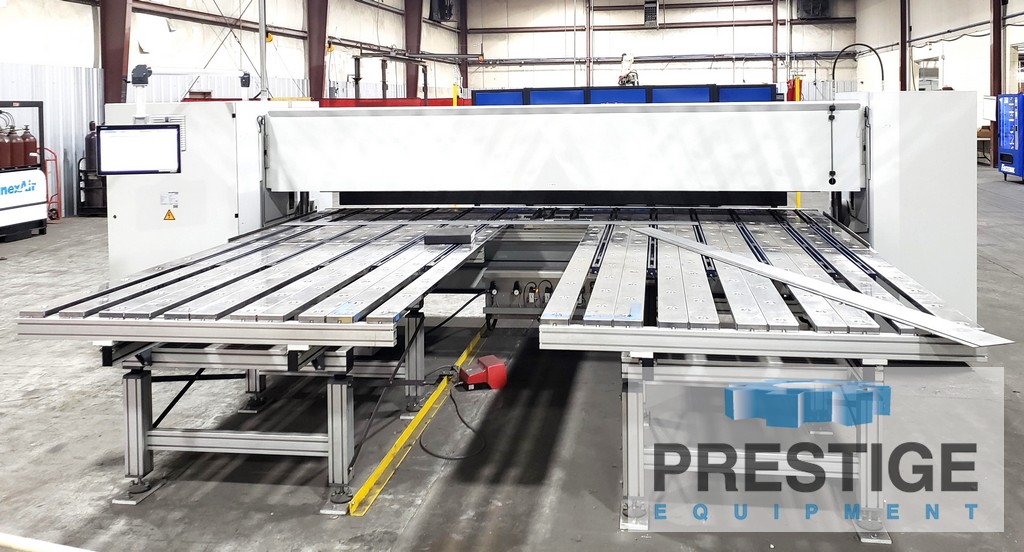

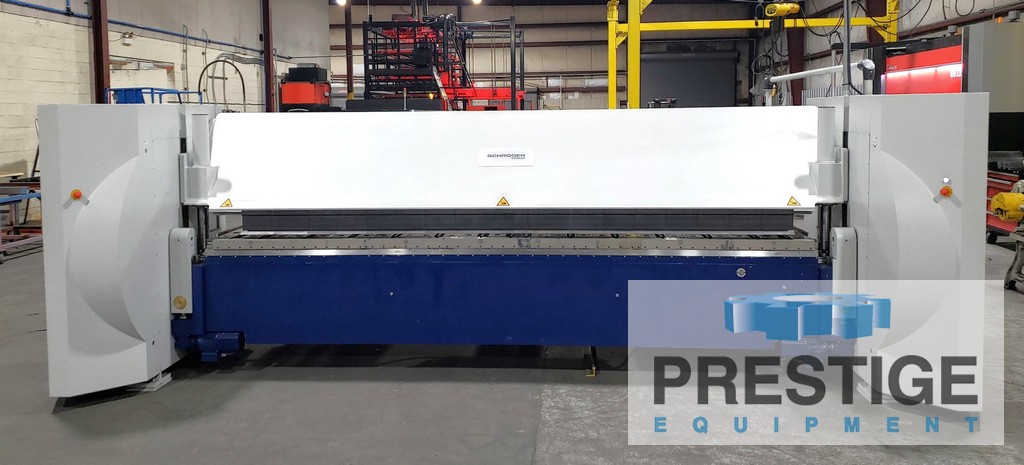

Schroder MAK4 4000/5,0 5mm x 158" CNC Folder
FEATURES:

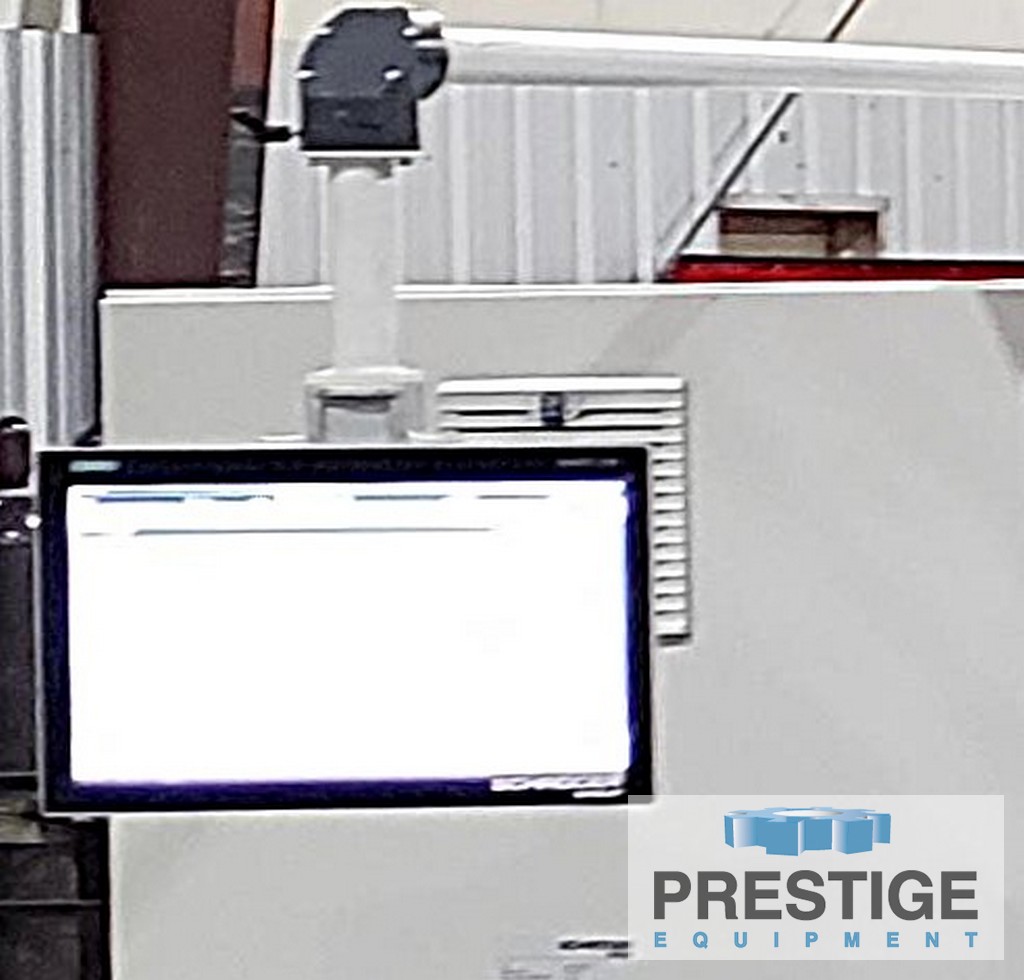

POS3000 Professional PC Based Graphic Control with Touchscreen
U-Shaped Back-Gauge
Foot Switch
CAPACITY:
Bending Capacity ...................... 5mm
Max. Working Length ................... 158.27"
Bending Rail .......................... 3.937" x 0.787"
Reinforcing Rail ...................... 3.937" x 0.984"
Sharp Rail ............................ 45 Deg, Rounded Cutting Edge R1,5
Backgauge Travels ..................... 59.055" - 196.85"
Approx. Machine Weight ................ 24,030 Lbs
EQUIPPED WITH:
POS3000 Professional PC Based Graphic Control with Touchscreen
U-Shaped Back-Gauge
Foot Switch
NOTE:
Inspect In Plant
