144 Ton Trumpf V1300 6-Axis, Delem DA-69, 120" OA, 106" BH, 4-Axis B.G., Crowning/Clamping, Loaded with Tooling, #43975

Manufacturer

TRUMPF

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43975

Model

V1300

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43975

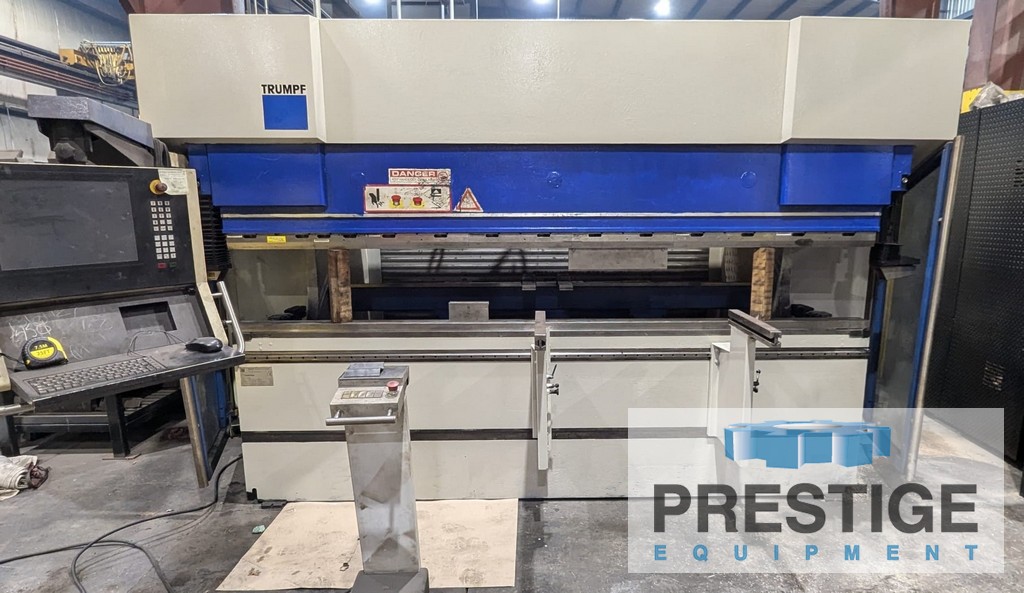

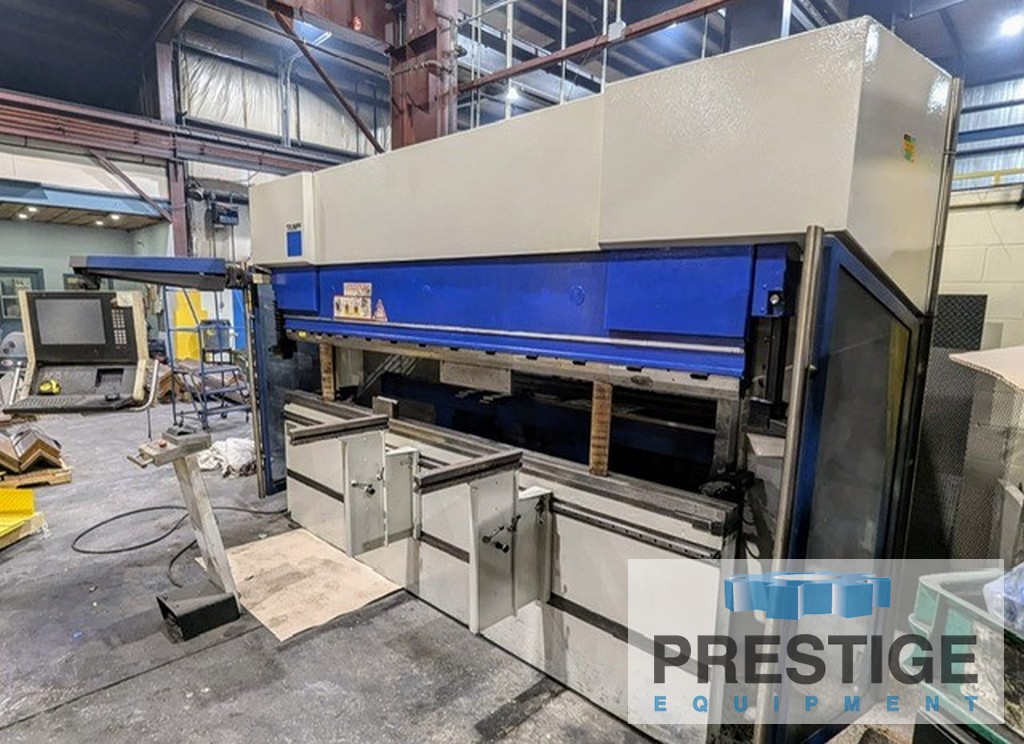

144 Ton Trumpf V1300 6-Axis CNC Press Brake

CAPACITY:
Tonnage Capacity ...................... 144 Tons
Maximum Bending Length ................ 127.1"
Distance Between Housings ............. 106"
Stroke Length ......................... 8.46"
Die Space ............................. 15.2"
Throat Depth .......................... 16.5"
Travel In X-Axis ...................... 24"
Travel In R-Axis ...................... 9.8"
Operating Speed In Y-Axis ............. 2-26 IPM
Drive Motor ........................... 20 H.P.
Overall Weight ........................ 22,500 Lbs.

EQUIPPED WITH:
Trumpf TC 6000 CNC Control

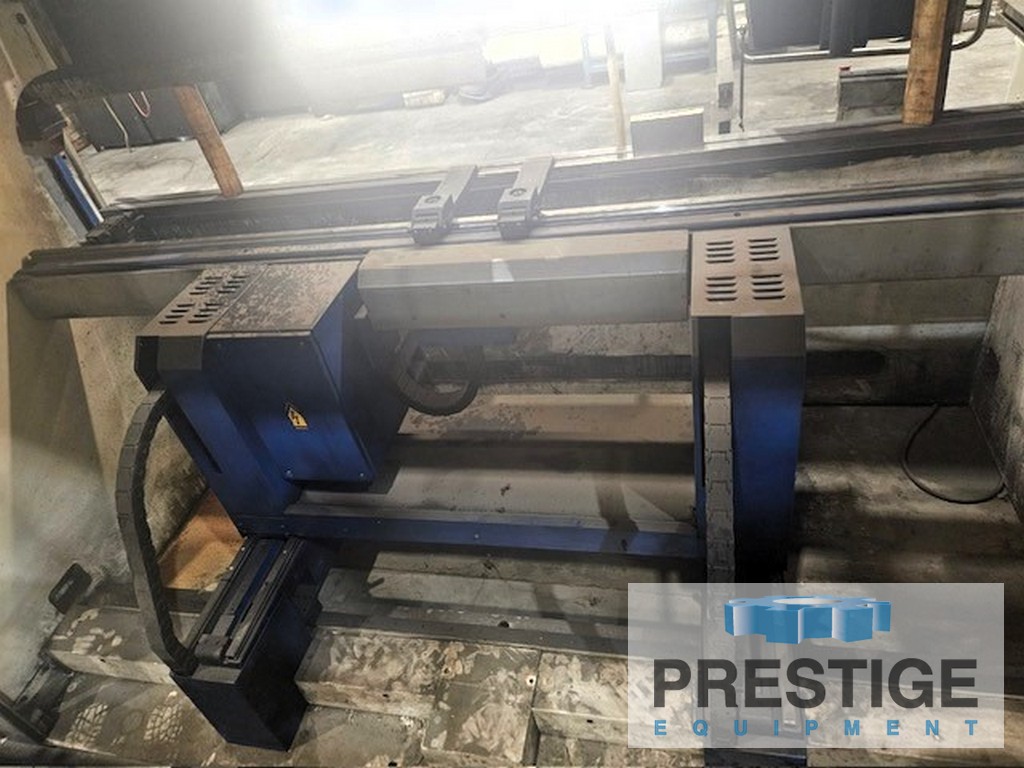

Trumpf 4-Axis Back Gauge
CNC Crowning
Power Punch And Die Clamping
Electric Foot Controls
Pedestal Station
(2) Front Support Arms

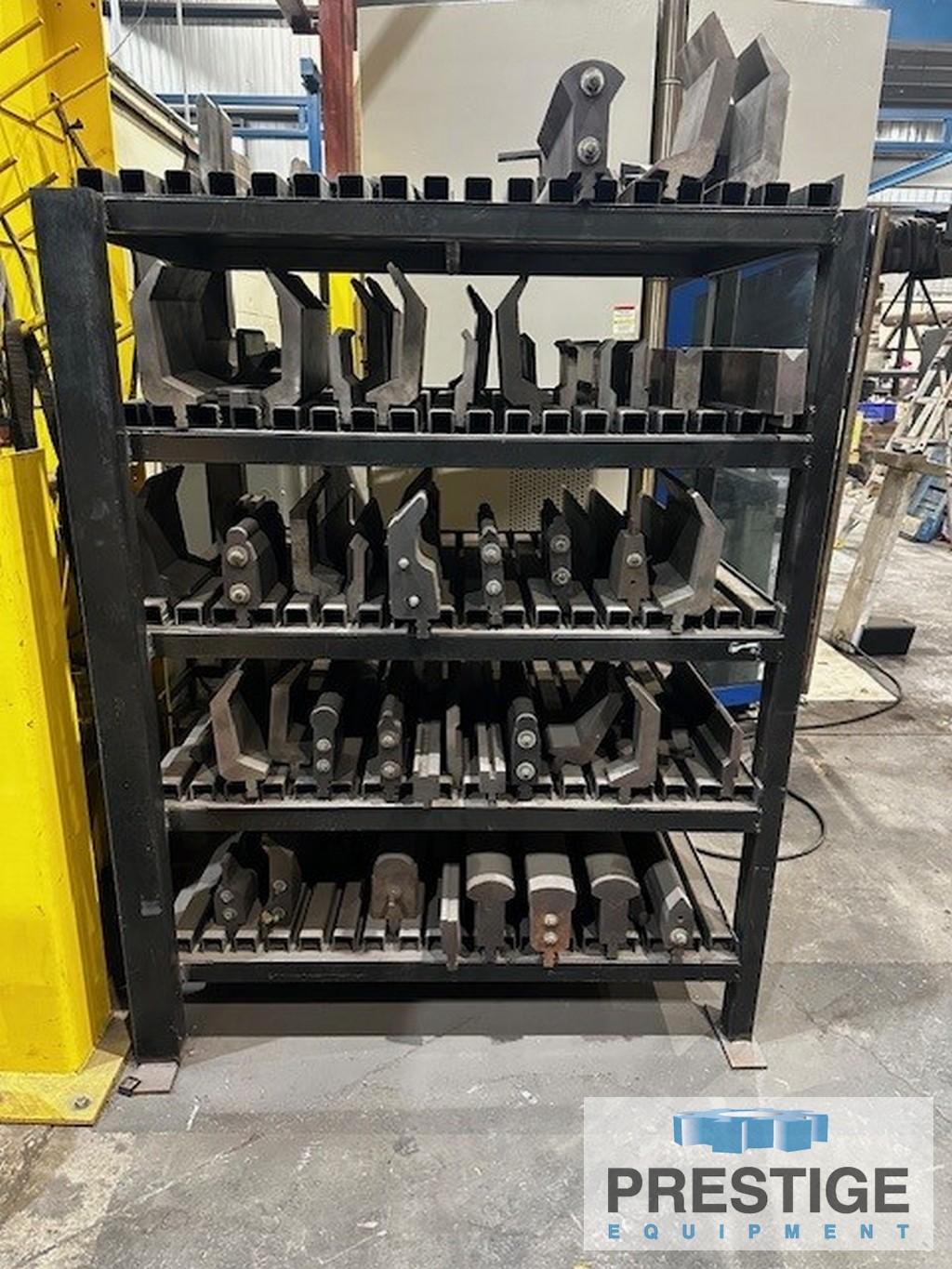

Loaded with Tooling
